ONLINE AUCTION SALE - LATE MODERN 3 & 5 AXIS MACHINING CENTRES, CNC LATHES, INSPECTION & WORKSHOP EQUIPMENT (170727)

Auction details

Sales Starts 30 Jul 2024 @ 09:00
Sales Ends 29 Aug 2024 @ 13:00
Auction Catalogue

Description

ONLINE AUCTION SALE - LATE 3 & 5 AXIS MACHINING CENTRES, CNC LATHES, INSPECTION & WORKSHOP EQUIPMENT (170727)

CNC MACHINE TOOLS

MAZAK Variaxus i-500 5 Axis Vertical Machining Centre, Year 2014. MAZAK Variaxis i-500 5 Axis Vertical Machining Centre. Mazatrol Smooth Control, Year 2016. MAZAK Variaxis J-500/5X Axis Vertical Machining Centre, Year 2019. MAZAK VCN 530C Vertical Machining Centre with Smooth Control. 18k spindle. c/w Ultraspindle attachment, Year 2022. MAZAK VCN 530C Vertical Machining Centre with Smooth Control. 18k spindle. c/w Ultraspindle attachment, Year 2022. MAZAK Quick Turn Smart 200M CNC Lathe, Year 2015. HARDINGE BRIDGEPORT 1500 XP3 Vertical Machining Centre with Heidenhain iTNC 530 Control, Year 2004. HAAS TM3P Vertical Machining Centre with Haas Control, Year 2012. COLCHESTER Tornado 220M CNC Lathe with Fanuc 21i-TB Control, Year 2003.

INSPECTION EQUIPMENT

ROMER Type RA 7535-2 Absolute Portable 6 axis Co-ordinate Measuring Machine, Year 2012. SYLAC Z Cal 350 Digital Height Gauge.

WORKSHOP EQUIPMENT

HN Automatic Lang Samsautomat LS1000L Seam Welder with Vario Control. Year 1994. ROHM 161825 Heavy Duty Modular Machine Vice x 2. HURCO Heavy Duty Machine Vice x 3. BRIERLEY ZB32/R Drill Grinder with Extraction Unit. CHRISTEN Type 2 - 32 Drill Grinder.

BUYERS PREMIUM 18%



Collection Details

Equipment can be loaded to Flat Bed transport free of charge and must be collected no later than Friday 6th September 2024. Export packing can be quoted at extra cost.

Viewing Details

Viewing is available on site in Oldham, Greater Machester which is by appointment only with the auctioneers on 0161 345 3000. Visiting parties will need to wear Personal Protection Equipment. No Minors will be allowed onsite.

Notice To Purchasers

If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licences will be required and it is the buyer’s responsibility to make the necessary enquiries prior to purchasing. Please note under no circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.

Upon purchase if you are exporting from the UK, a charge of £55 + vat will be automatically added to your invoice for us to prepare the paperwork which will require UK Export Customs Declarations. This process is now a mandatory UK export requirement and has been since 1st January 2021. All machinebidder invoices are issued on an Incoterms EXW (Ex Works) basis.

The final collection date is Friday 6th September 2024 . All payments must be received within 48 hours of receiving the invoice.

Available Lots

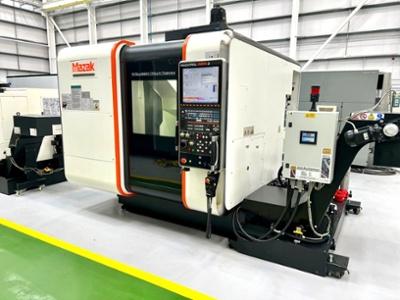

Lot 1: MAZAK Variaxis i-500 5 Axis Vertical Machining Centre. Mazatrol Matrix 2 Control. Year 2014

Table Size 500mm dia. x 400mm wide. X/Y/Z travels 350mm/ 550mm/510mm. A axis (table tilt) -120 – +30 ° (0.0001 ° increment). C axis (table rotation) +/-360 degrees (0.0001° increment). Maximum Workpiece Size 500mm x 350mm. Maximum table load 300kg. T slots 5 x 18mm x 80mm pitch. Maximum cutting feedrate 565m/minute. Rapid feedrates X/Y/Z axes 60/60/56m/min. Rapids A&C Axes 18,000°/min. Min/Max Height table to spindle nose 50mm/560mm. Automatic Tool Changer 40 station. Toolchange time chip to chip 4.5 seconds. Spindle Motor Power (40% ED/Cont rating) 22/15 kW. Electrical power requirement (40% ED/Cont rating) 51.07 kVA/41.17 kVA. Spindle speeds to 12,000 rpm. No. of controlled axes (5). Maximum Tool diameter /length/weight 90mm/300mm/8kg. Maximum tool dia. with empty adjacent pockets 130mm. Tool change time (chip to chip) 4.5 seconds. Coolant tank capacity 300 Litres. Mazatrol Matrix 2 Control.

Machine dimensions L x W x H 3235mm x 2400mm x 2975mm. Approximate weight 8000kg

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

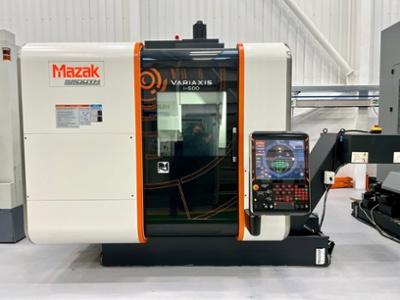

Lot 2: MAZAK Variaxis i-500 5 Axis Vertical Machining Centre. Mazatrol Smooth Control. Year 2016

Table Size 500mm dia. x 400mm wide. X/Y/Z travels 350mm/ 550mm/510mm. A axis (table tilt) -120 – +30 ° (0.0001 ° increment). C axis (table rotation) +/-360 degrees (0.0001° increment). Maximum Workpiece Size 500mm x 350mm. Maximum table load 300kg. T slots 5 x 18mm x 80mm pitch. Maximum cutting feedrate 565m/minute. Rapid feedrates X/Y/Z axes 60/60/56m/min. Rapids A&C Axes 18,000°/min. Min/Max Height table to spindle nose 50mm/560mm. Automatic Tool Changer 40 station. Toolchange time chip to chip 4.5 seconds. Spindle Motor Power (40% ED/Cont rating) 22/15 kW. Electrical power requirement (40% ED/Cont rating) 51.07 kVA/41.17 kVA. Spindle speeds to 12,000 rpm. No. of controlled axes (5). Maximum Tool diameter /length/weight 90mm/300mm/8kg. Maximum tool dia. with empty adjacent pockets 130mm. Tool change time (chip to chip) 4.5 seconds. Coolant tank capacity 300 Litres. . G00 slope constant. Synchronised tapping. Auto pecking cycle with load detection. Tool radius compensation. Cylindrical interpolation. Mazatrol Smooth X Control.

Machine dimensions L x W x H 3235mm x 2400mm x 2975mm. Approximate weight 8000kg

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

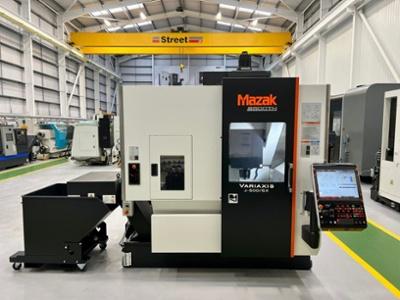

Lot 3: MAZAK Variaxis J-500/5X Axis Vertical Machining Centre. Year 2019

Maximum workpiece dia. 500mm. Maximum workpiece height 350mm. X/Y/Z travels 350mm/550mm/510mm. A Axis (table tilt) -120° / + 30°. C Axis (table rotation) indexing ) 0.0001° rotation 360°. Min/Max distance from spindle nose to table top (table horizontal) 50mm/560mm. Min/Max distance spindle nose to table centre (table vertical) 40mm/450mm. Maximum table load (evenly distributed ) 200kg. Spindle taper CAT40. Maximum spindle speed 12,000rpm. No. of spindle speed shift changes 2. Main output (AC Inverter motor) 10% ED rating 18.5kW. Main output (AC Inverter motor) 25% ED rating 15kW. Main output (AC Inverter motor) 40% ED rating 11kW. Main motor torque (continuous) 57.3 Nm. X/Y/Z Cutting Feedrates 36m/min. X/Y/Z Rapids 36m/min. Rapid traverse B&C Axes 30min-1. No. of simultaneous controlled axes 5. Table dia. 500mm. Tapped hole configuration M16 x P2 (16 holes). 30 Position Auto tool changer. Tool selection- Random pocket, shortest direction. Maximum tool dia. (with adjacent tool present) 80mm. Maximum tool dia. (without adjacent tool present) 125mm. Maximum tool length 300mm. Maximum weight of tool 8kg. Tool change time (chip to chip) 4.6 seconds. High pressure coolant. Cromar Swarf Conveyor. Swarf Bin. Mazatrol Smooth X Control.

Machine dimensions L x W x H 2570mm (2984mm with CNC Console) x 2300mm (3365mm with conveyor) x 2933mm high.

Approx weight 7100kg

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

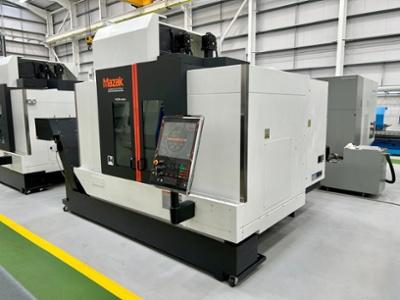

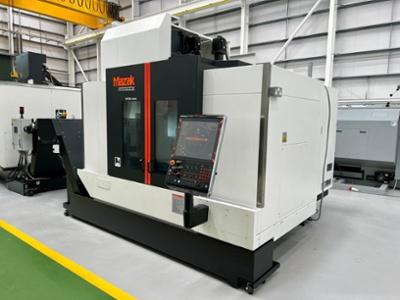

Lot 4: MAZAK VCN 530C Vertical Machining Centre with Smooth Control. 18k spindle. c/w Ultraspindle attachment. Year 2022

Table 1300 mm x 550 mm. X/Y/Z travels 1050mm/530mm/510mm. Maximum spindle speed 18,000 rpm. Spindle taper CAT40. Min/Max distance from top of table to spindle nose 150 mm/660 mm. Distance between column and spindle centreline 586 mm. Auto Tool Changer 40 positions. Rapid feeds X/Y/X 42m/min. LNS Turbo MH500 Swarf conveyor. Swarf bin. Air thro’ spindle option. Ultraspindle attachment 60,000 rpm. Renishaw OMP60 inspection probe & software. High pressure coolant. Mazatrol Smooth Control.

Machine Dimensions (L x W x H) 2880mm x 2725mm x 2800mm. Approximate weight 7100kg.

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

Lot 5: MAZAK VCN 530C Vertical Machining Centre with Smooth Control. 18k spindle. c/w Ultraspindle attachment. Year 2022

Table 1300 mm x 550 mm. X/Y/Z travels 1050mm/530mm/510mm. Maximum spindle speed 18,000 rpm. Spindle taper CAT40. Min/Max distance from top of table to spindle nose 150 mm/660 mm. Distance between column and spindle centreline 586 mm. Auto Tool Changer 40 positions. Rapid feeds X/Y/X 42m/min. LNS Turbo MH500 Swarf conveyor. Swarf bin. Air thro’ spindle option. Ultraspindle attachment 60,000 rpm. Renishaw OMP60 inspection probe & software. High pressure coolant. Mazatrol Smooth Control.

Machine Dimensions (L x W x H) 2880mm x 2725mm x 2800mm. Approximate weight 7100kg.

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

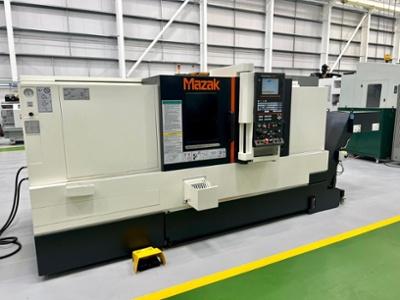

Lot 6: MAZAK Quick Turn Smart 200M CNC Lathe with Mazatrol Smart Control. Year 2015

Swing over bed 660mm. Maximum machining dia. 360mm. X travel 225mm. Z travel 1125mm. Rapid feeds X/Z 30/33m/min. Spindle speeds to 35 – 5000 rpm. Spindle nose A2-6. Spindle power (30min/cont rating) 18.5/15 kW. 12 station turret. No. of driven positions 12. Speed of driven tools 4500 rpm. Maximum bar capacity 65mm. Tailstock taper 4MT. Tailstock travel 565mm. Rotary tool speed 4500rpm. Coolant capacity 270 litres. Hydrafeed Multifeed MX-1B bar feeder. Cromar swarf conveyor with swarf bin. Collet chuck with collets. Tailstock. C axis. Tool eye. Coolant. Mazatrol Smart Control.

Machine dimensions L x W x H 3385 mm x 1720 mm x 1820 mm Approximate weight 6100kg.

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

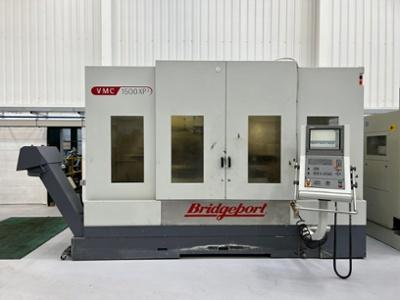

Lot 7: HARDINGE BRIDGEPORT 1500 XP3 Vertical Machining Centre with Heidenhain iTNC 530 Control. Year 2004

Table size 1700mm x 660mm. X/Y/Z travels 1500mm/660mm/610mm. Spindle taper BT40. Spindle Speeds 20-10,000 rpm. Rapids 32m/min. 32 ATC. Swarf conveyor. T Slotted Sub Table. Main motor power 20HP. Year 2004.

Machine dimensions L x W x H 3800mm x 2220mm x 3400mm. Approximate weight 9600 kg

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES

Bidding on this lot has finished

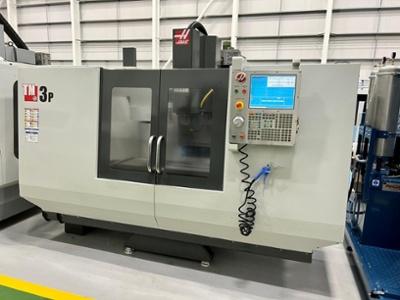

Lot 8: HAAS TM3P Vertical Machining Centre with Haas Control. Year 2012

Table Size 368 x 1467mm. Travels X/Y/Z 1016 x 508 x 406mm. Maximum workpiece weight 454Kg. Maximum cutting feedrate 10.2m/minute. Rapid feedrates 10.2m/minute . Min – max height under spindle: 102 – 508mm. Spindle motor power 5.6kW. Spindle speed 6000rpm. Maximum tool diameter 89mm. Maximum tool weight 5.4Kg. Tool change capacity 10 Stations. Tool change time (chip to chip) 6.5 Seconds. Tool Size BT40. Current Software Version M18.23A. Compensation tables. Intuitive Programming Systems. Rigid Tapping. Spindle Hours 6703
Machine dimensions L x W x H 3470 x 2457 x 2616mm
Weight 2800Kg

Bidding on this lot has finished

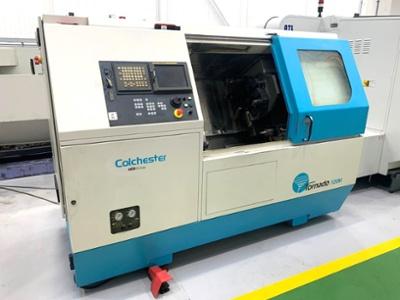

Lot 9: COLCHESTER Tornado 220M CNC Lathe with Fanuc 21i-TB Control. Year 2003

Swing over bed 510mm. Maximum turning dia. 260mm. Maximum turning length 540mm. Spindle speeds 3500 rpm. Spindle power 22kW. Spindle nose A2-6. X travel 235mm. Z travel 540mm. Bar capacity 66mm. 12 station turret (VDI40). Driven Tooling. Milling speeds 4000 rpm. Milling power 3.7 kW. C axis. Rapids X/Z 25m/30m/min. Fitted with 3 jaw powered chuck.

Bidding on this lot has finished

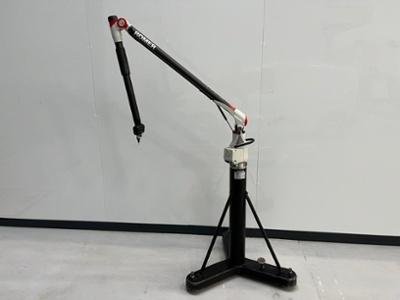

Lot 10: ROMER Type RA 7535-2 Absolute Portable 6 axis Co-ordinate Measuring Machine. Year 2012

Measuring range 3500mm. Point repeatability 0.040mm. Volumetric accurcay + 0.057mm. Arm weight 806kg. The Point Repeatability Test is the reference test to determine measurement arm repeatability with ball probe. The cone is in front of the machine. Points are measured from multiple approach directions. The average point and the deviation of each point to the average center are calculated. The result is the maximum range divided by two. The Volumetric Accuracy Test most accurately represents the reasonable expectations for machine performance in practical measuring applications since it involves measuring a certified length standard many times in several locations and orientations and compares the resultant measurements to the actual length. The Volumetric Length Accuracy Test is the most appropriate test for determining machine accuracy and repeatability. The result is the maximum deviation of the measuring distance less the theoretical length. The Romer Absolute is complete Mobility Pack, Flight Case, Probe, Operating System & Software

Bidding on this lot has finished

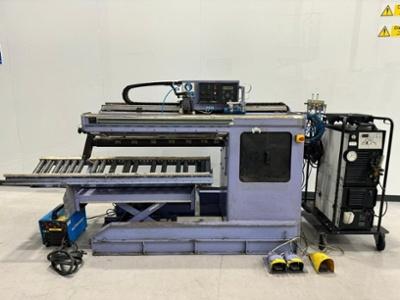

Lot 11: HN Automatic Lang Samsautomat LS1000L Seam Welder with Vario Control. Year 1994.

Complete with EWM Hightec Tetrix 300 Confrot Plasma Unit, GS Inverter Tig 150DC Unit.

Bidding on this lot has finished

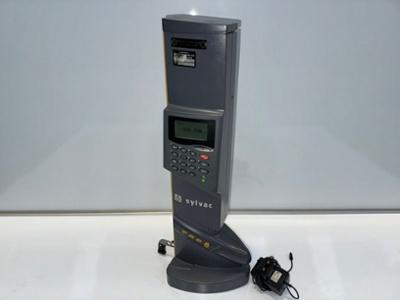

Lot 12: SYLAC Z Cal 350 Digital Height Gauge

Z Cal, 350mm. Serial No: 15010

Bidding on this lot has finished

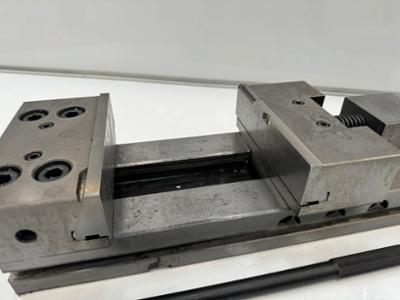

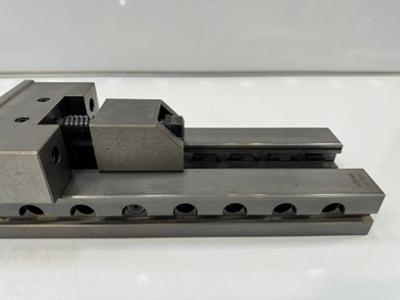

Lot 13: ROHM 161825 Heavy Duty Modular Machine Vice

Jaw Width 175mm. Max. Capacity 400mm. 60Kn Clmaping Force.

Bidding on this lot has finished

Lot 14: ROHM 161825 Heavy Duty Modular Machine Vice

Jaw Width 175mm. Max. Capacity 400mm. 60Kn Clmaping Force.

Bidding on this lot has finished

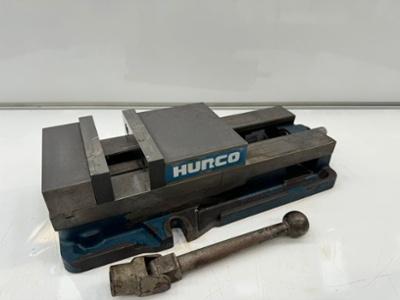

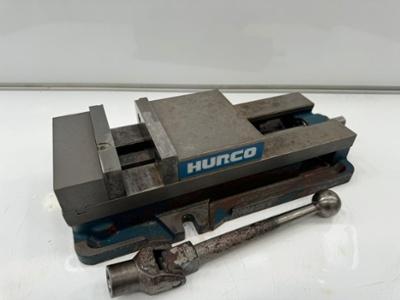

Lot 15: HURCO Heavy Duty Machine Vice

150mm Jaw Width. Max. Capacity 220mm.

Bidding on this lot has finished

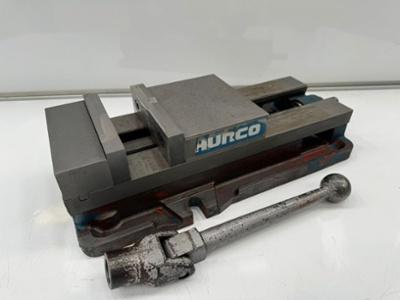

Lot 16: HURCO Heavy Duty Machine Vice

150mm Jaw Width. Max. Capacity 220mm.

Bidding on this lot has finished

Lot 17: HURCO Heavy Duty Machine Vice

150mm Jaw Width. Max. Capacity 220mm.

Bidding on this lot has finished

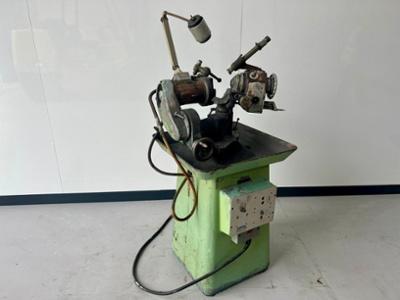

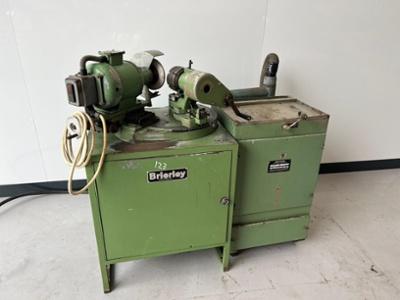

Lot 18: BRIERLEY ZB32/R Drill Grinder with Extraction Unit

Bidding on this lot has finished

Lot 19: CHRISTEN Type 2 - 32 Drill Grinder

Max RPM 3000. Max Wheel Dia. 5 3/4 "

Bidding on this lot has finished
