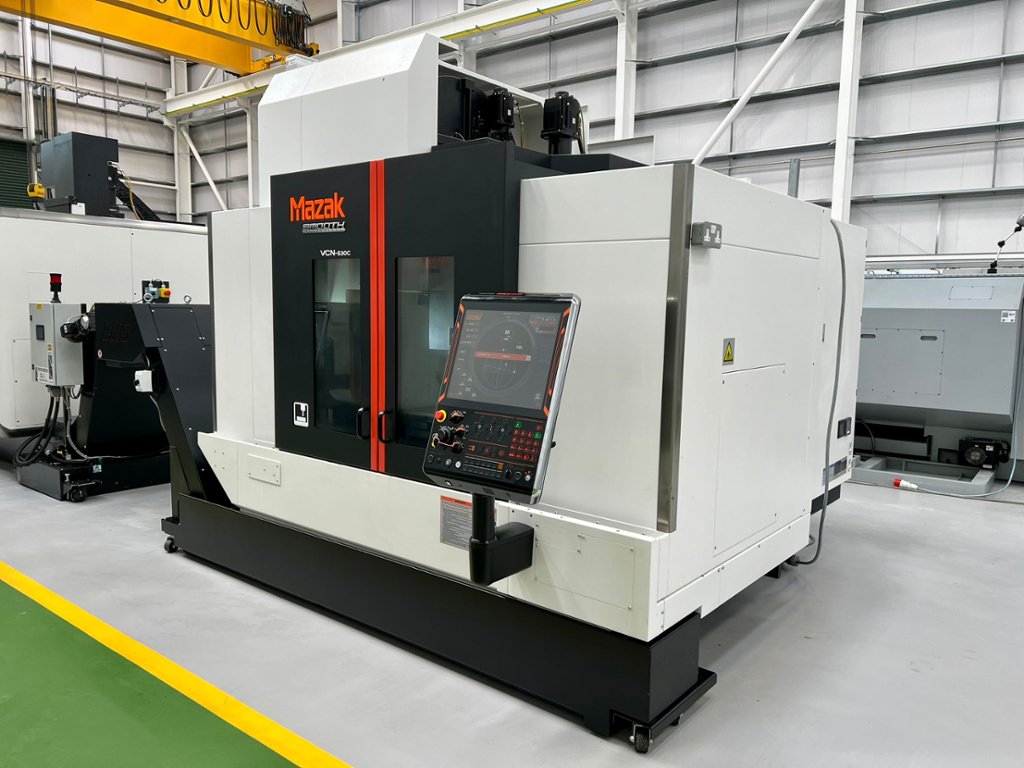

Lot 4: MAZAK VCN 530C Vertical Machining Centre with Smooth Control. 18k spindle. c/w Ultraspindle attachment. Year 2022

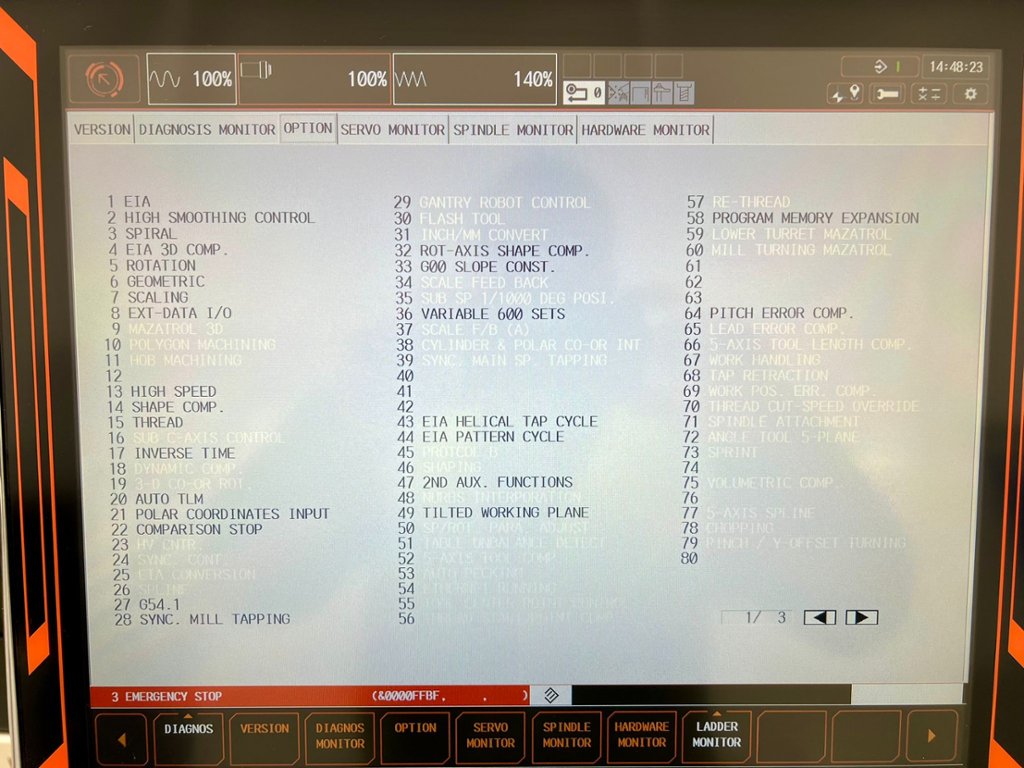

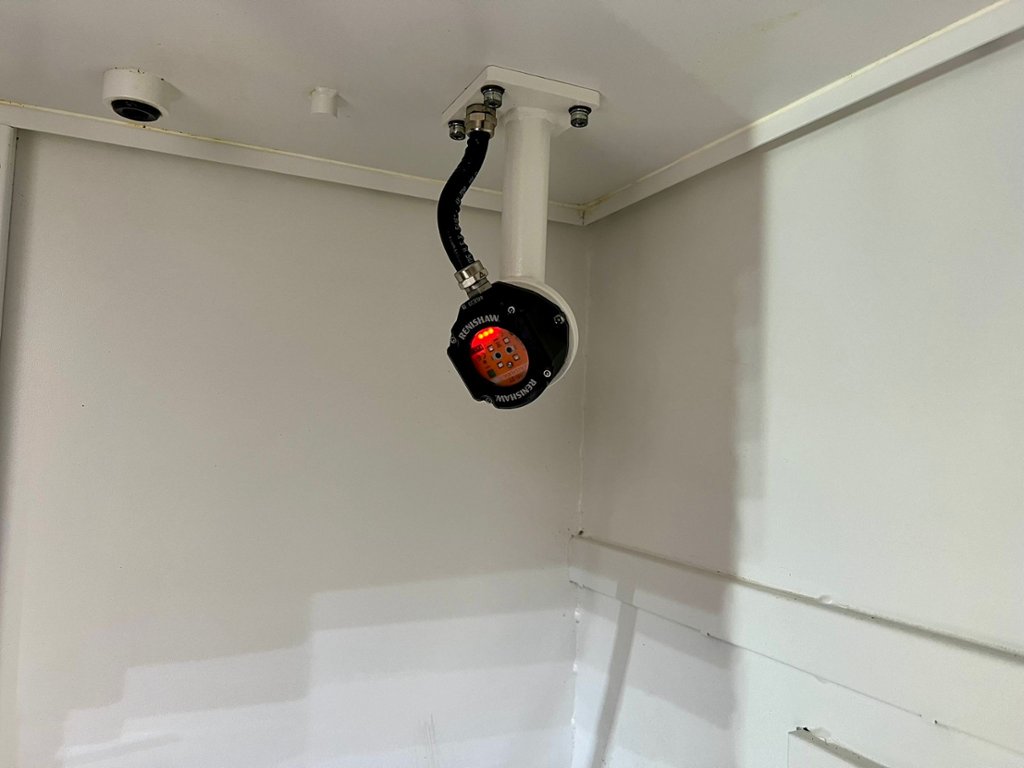

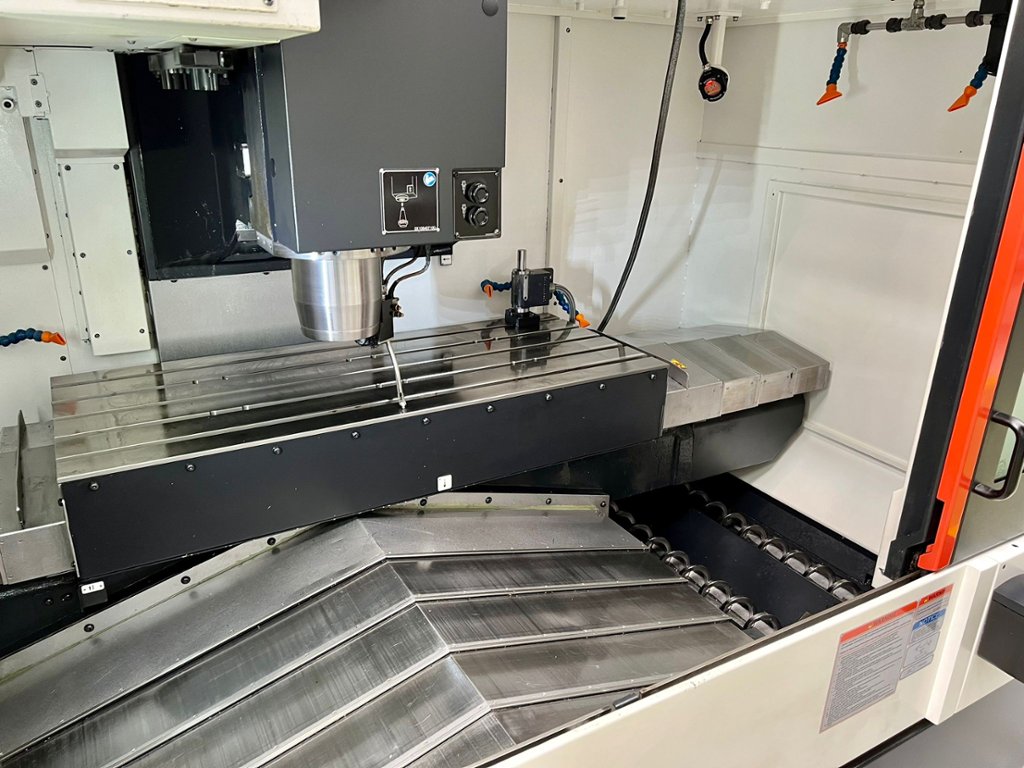

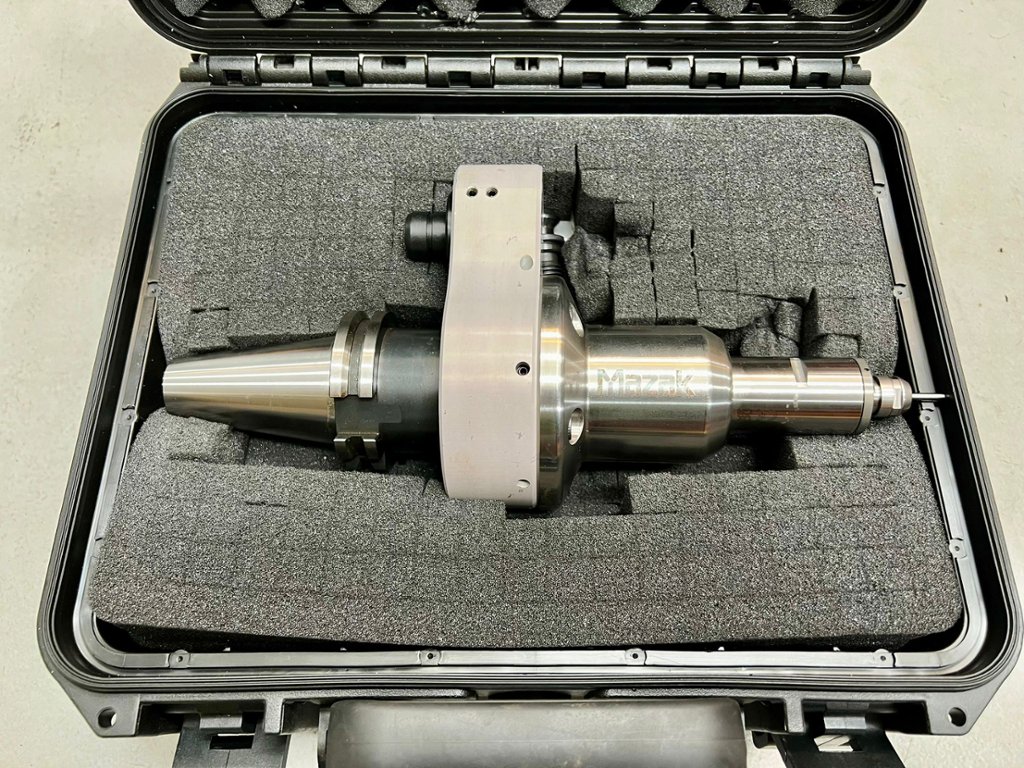

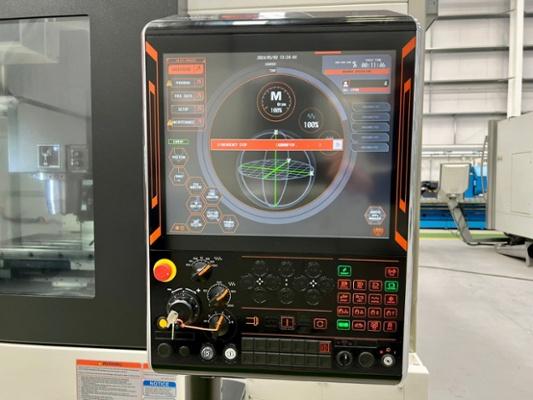

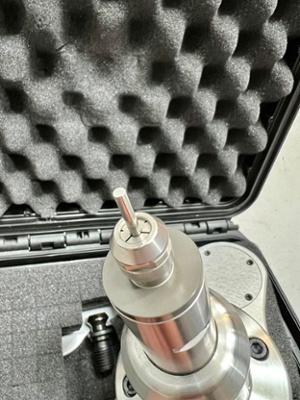

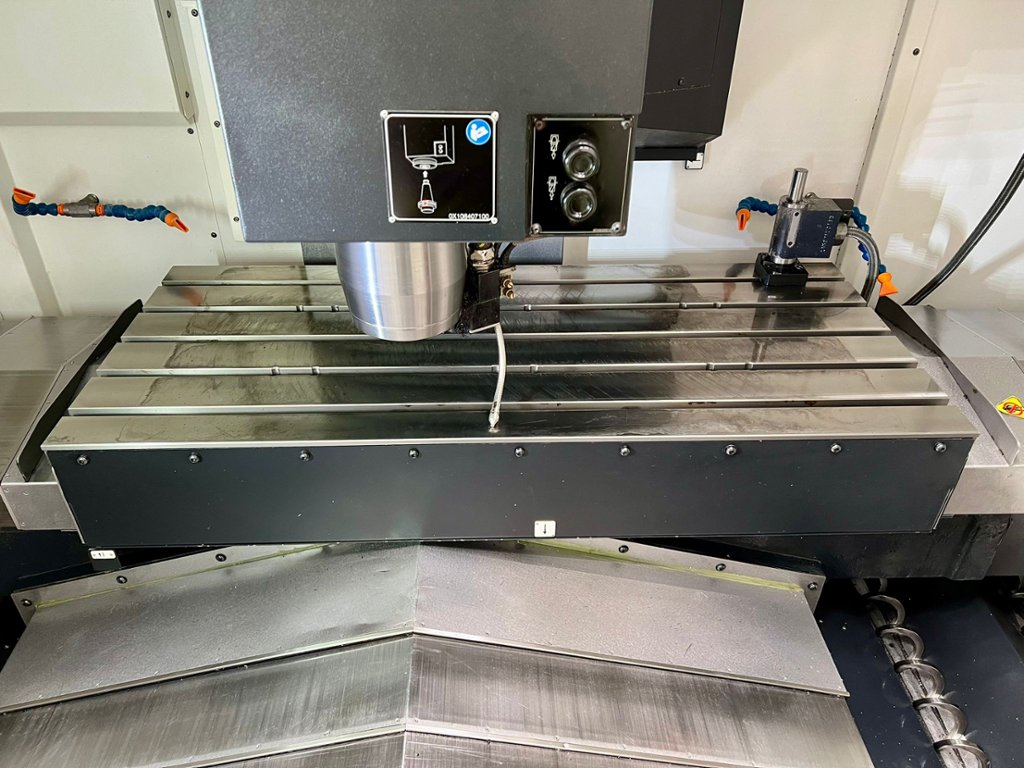

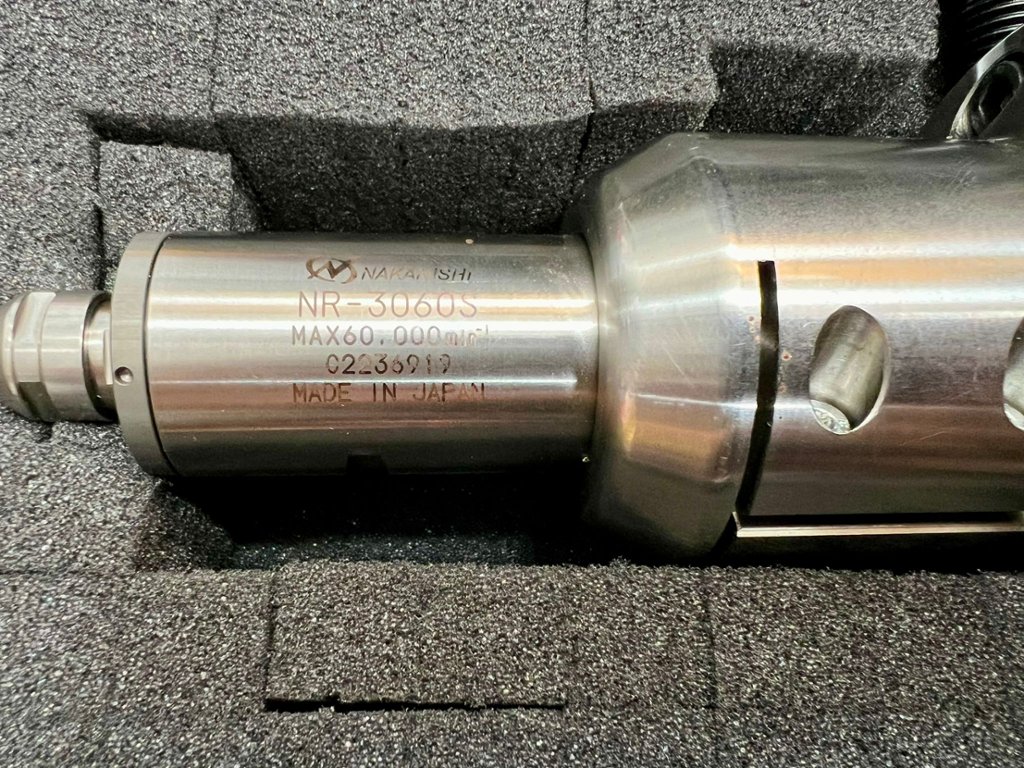

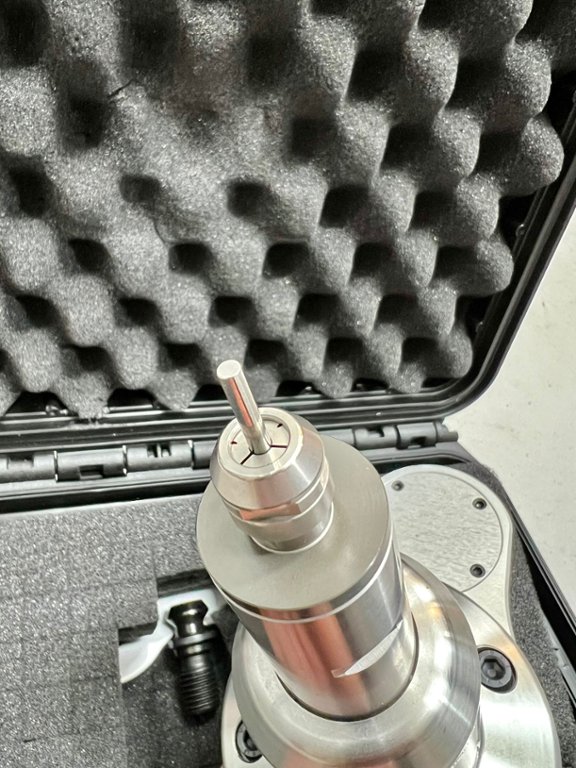

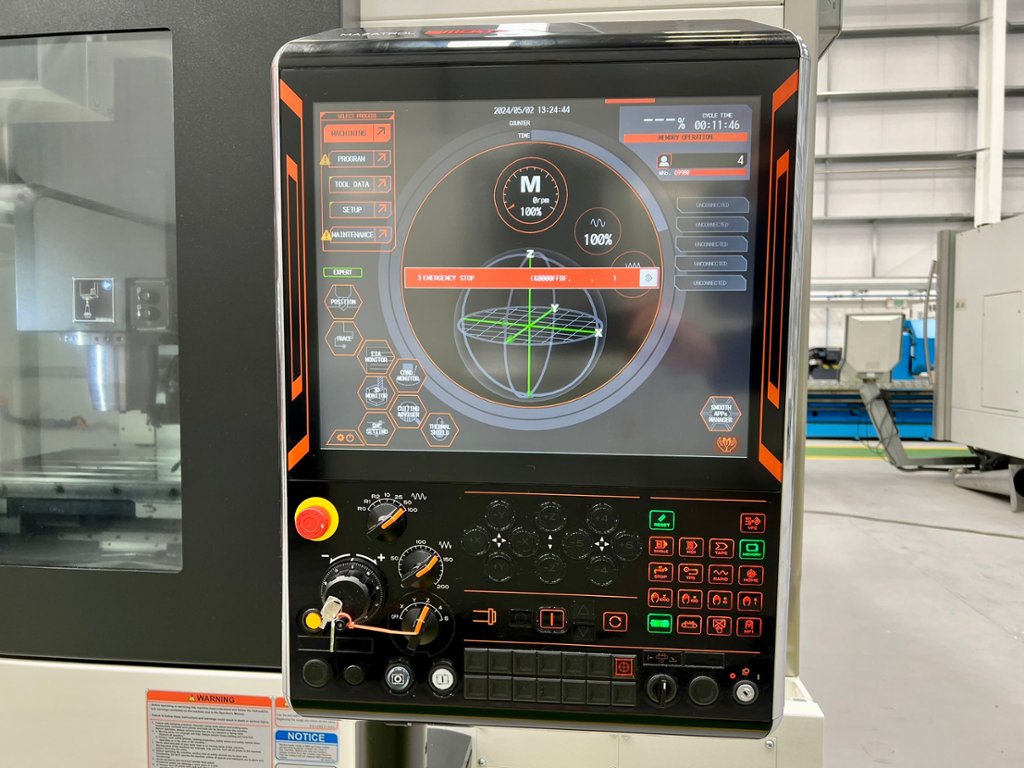

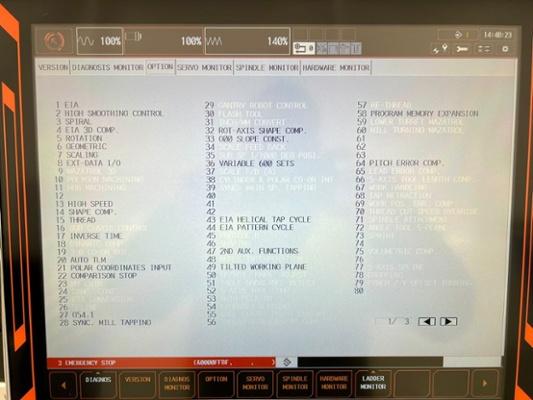

Table 1300 mm x 550 mm. X/Y/Z travels 1050mm/530mm/510mm. Maximum spindle speed 18,000 rpm. Spindle taper CAT40. Min/Max distance from top of table to spindle nose 150 mm/660 mm. Distance between column and spindle centreline 586 mm. Auto Tool Changer 40 positions. Rapid feeds X/Y/X 42m/min. LNS Turbo MH500 Swarf conveyor. Swarf bin. Air thro’ spindle option. Ultraspindle attachment 60,000 rpm. Renishaw OMP60 inspection probe & software. High pressure coolant. Mazatrol Smooth Control.

Machine Dimensions (L x W x H) 2880mm x 2725mm x 2800mm. Approximate weight 7100kg.

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES
