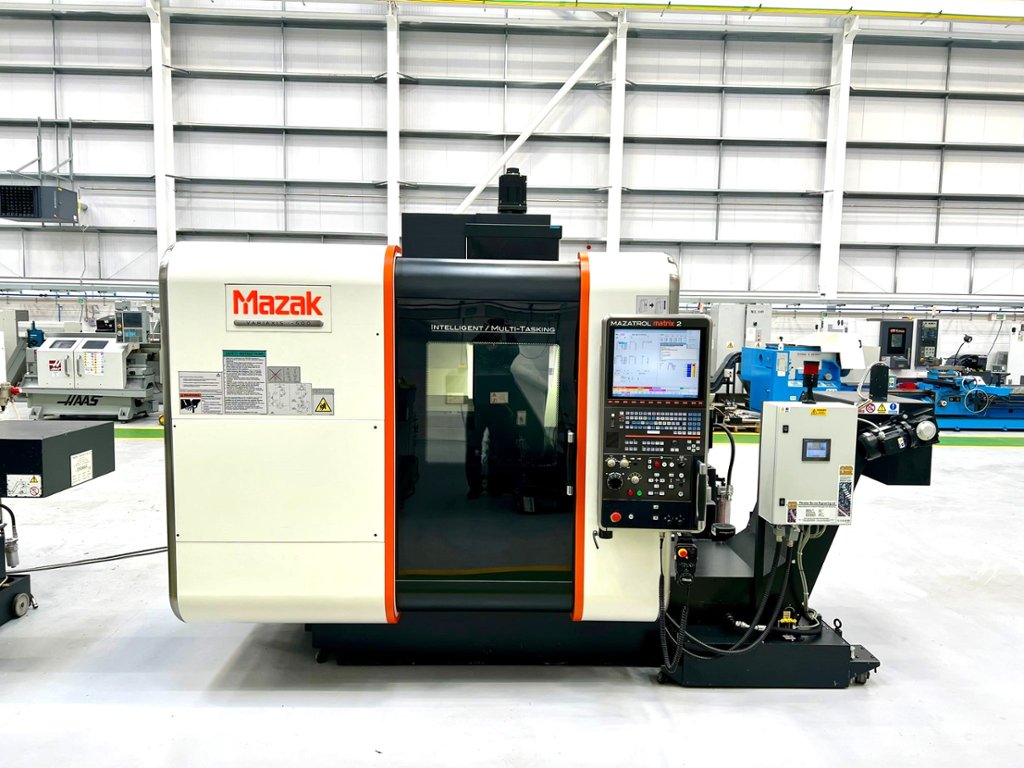

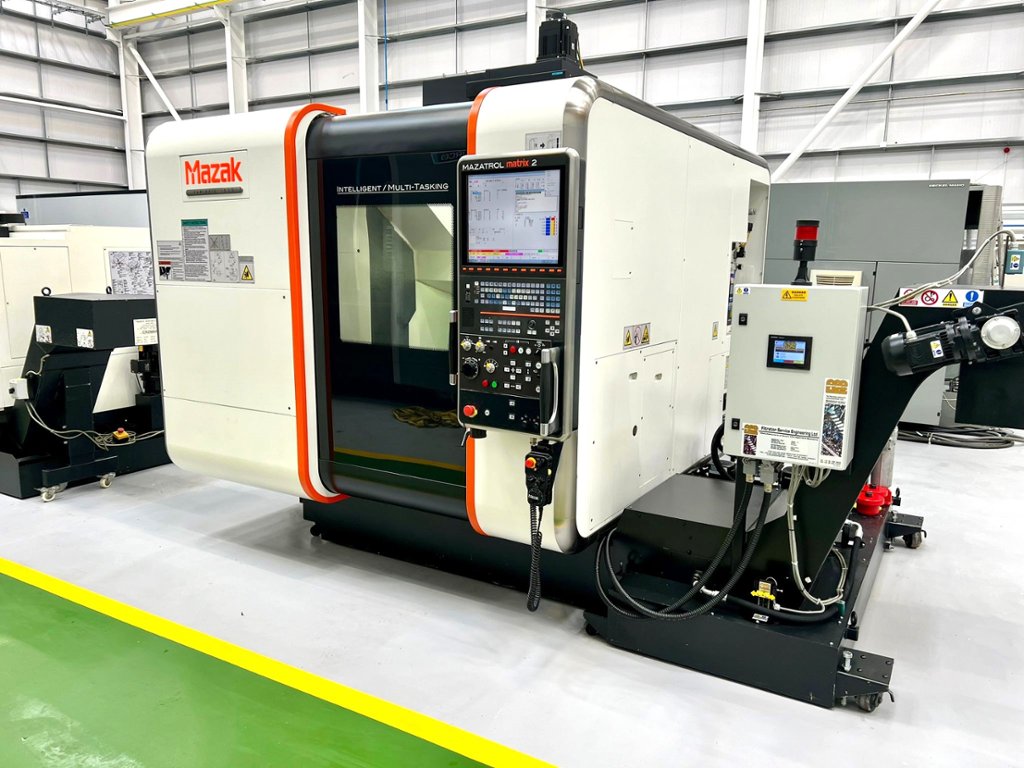

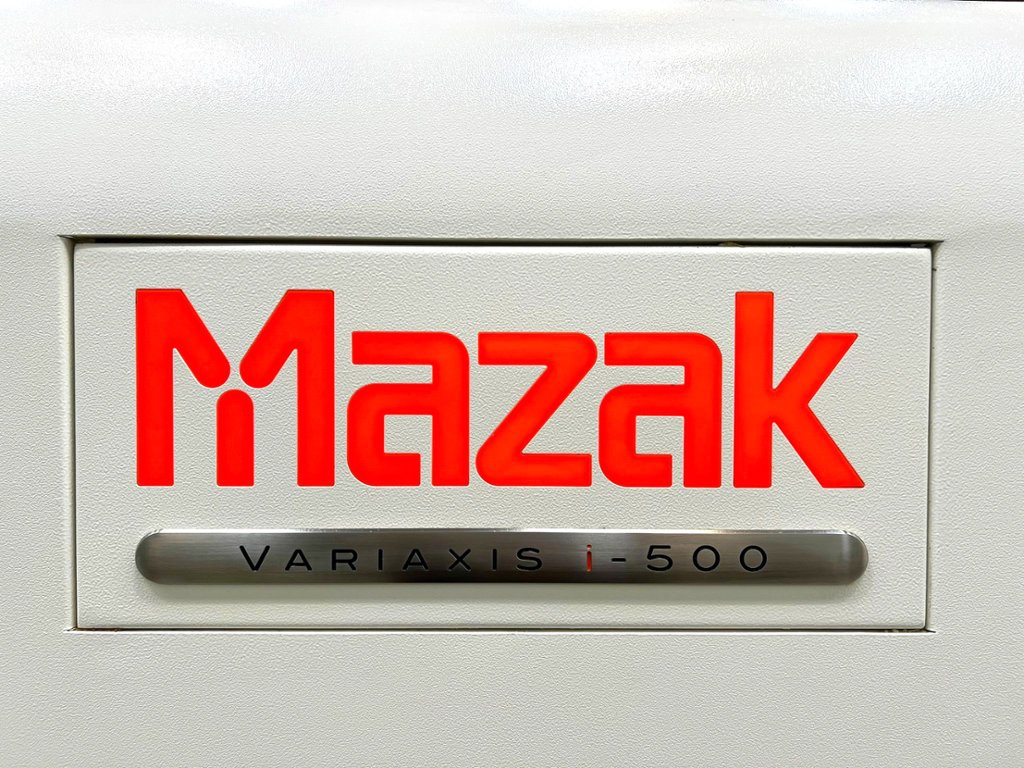

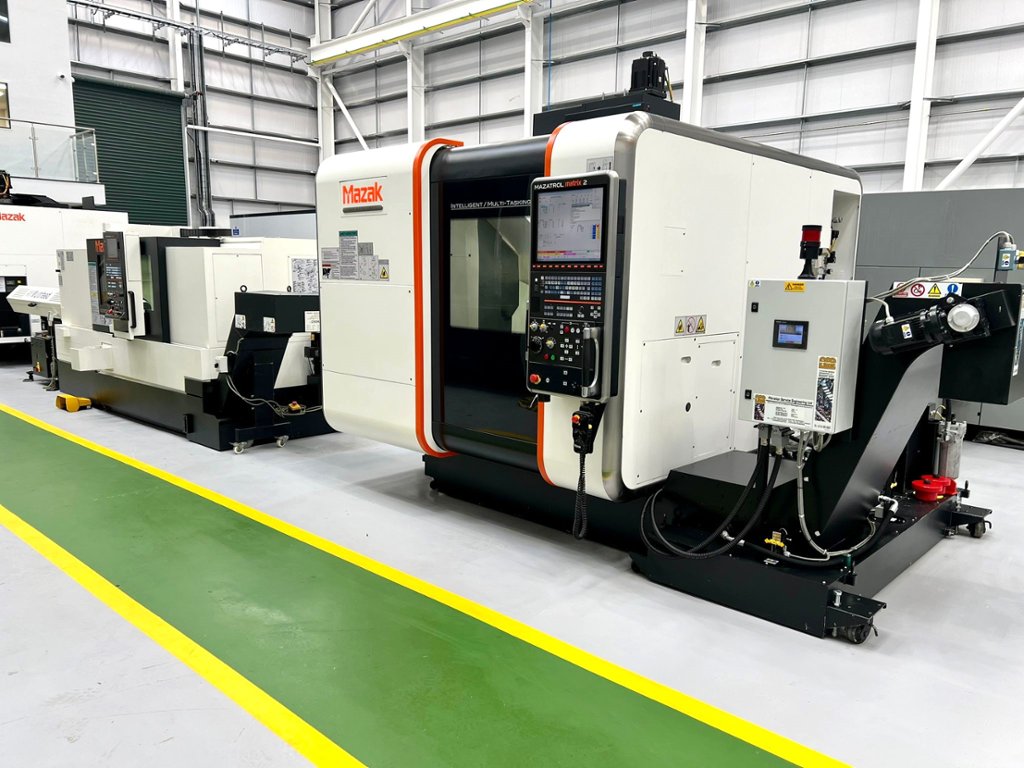

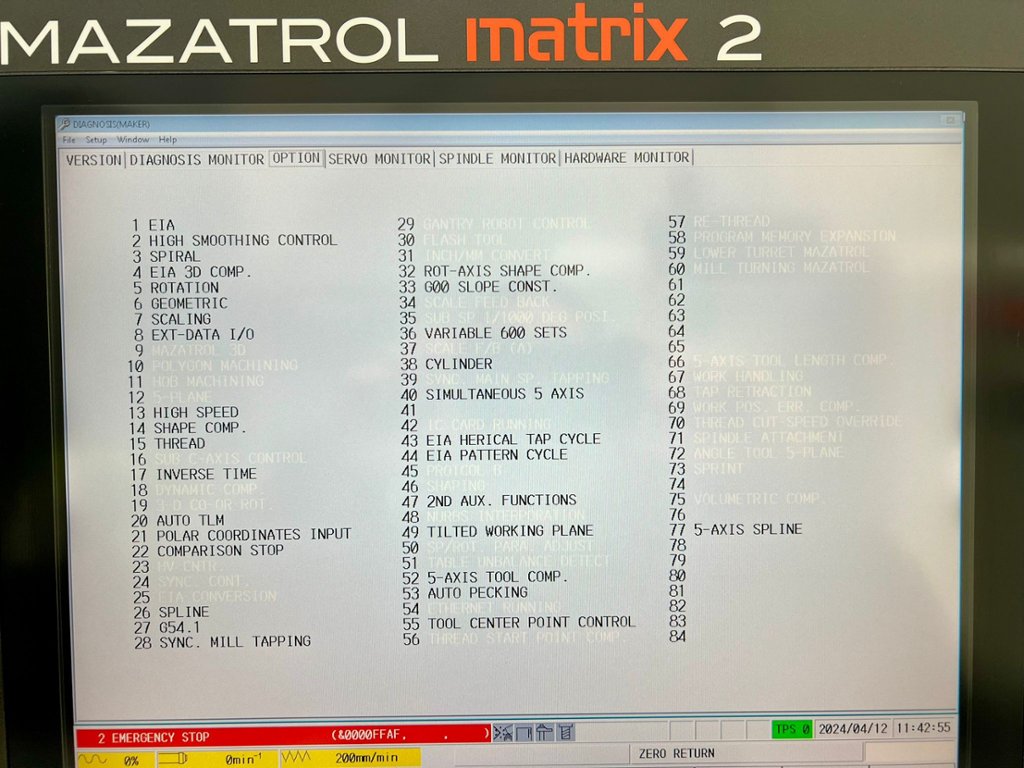

Lot 1: MAZAK Variaxis i-500 5 Axis Vertical Machining Centre. Mazatrol Matrix 2 Control. Year 2014

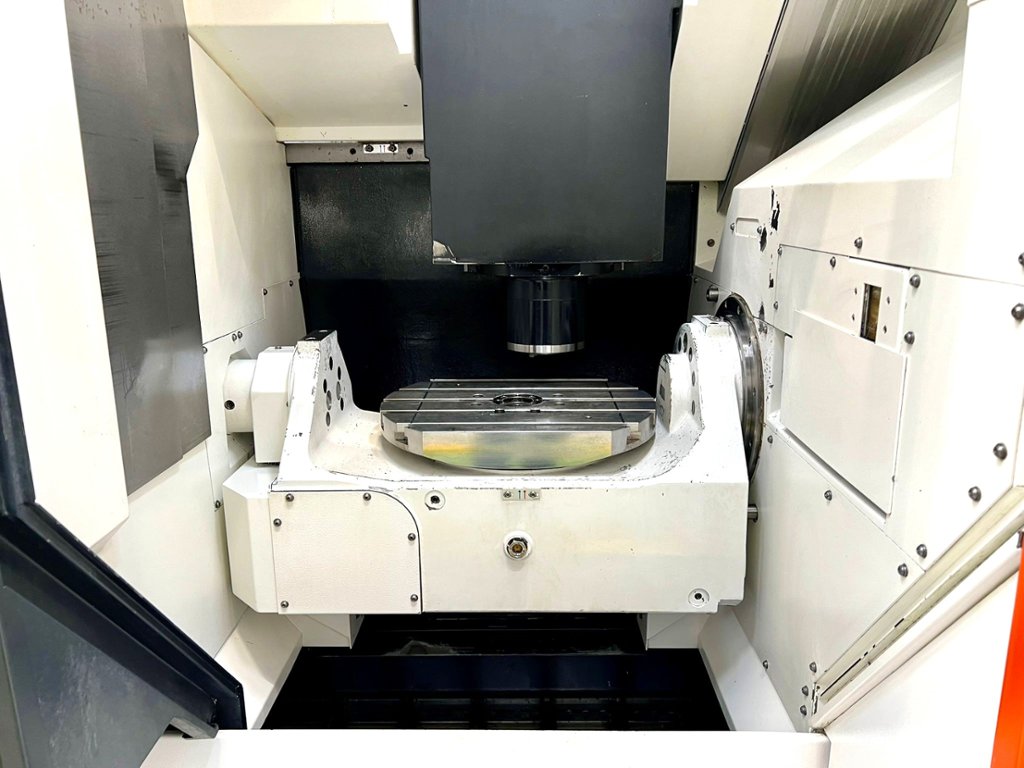

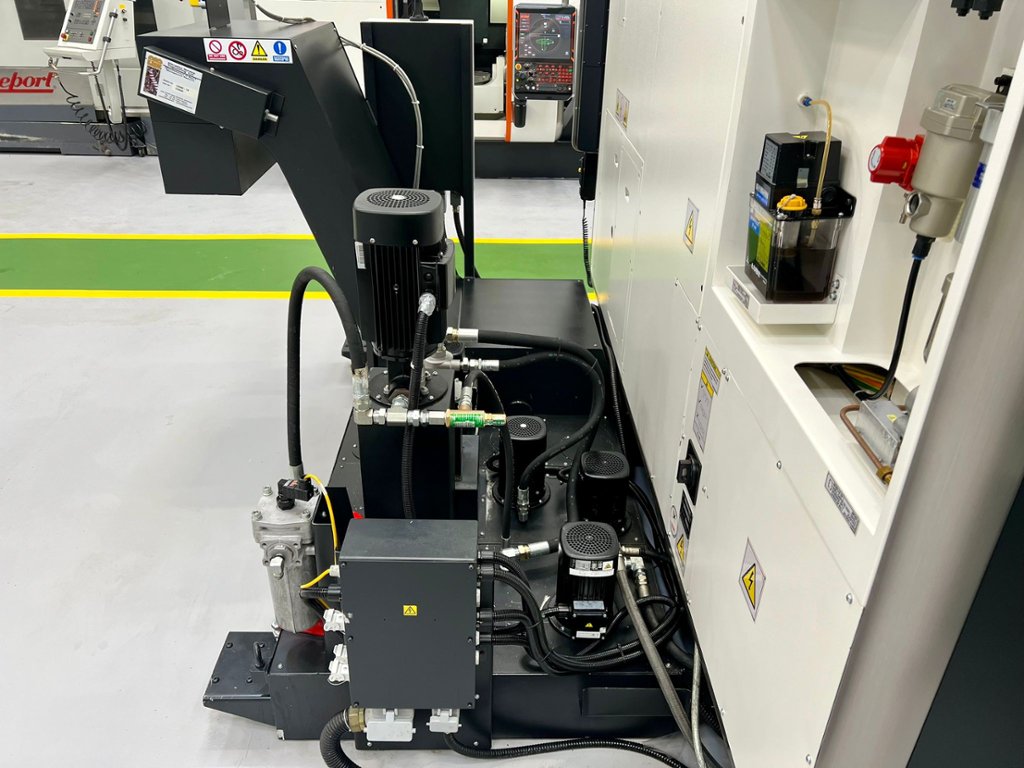

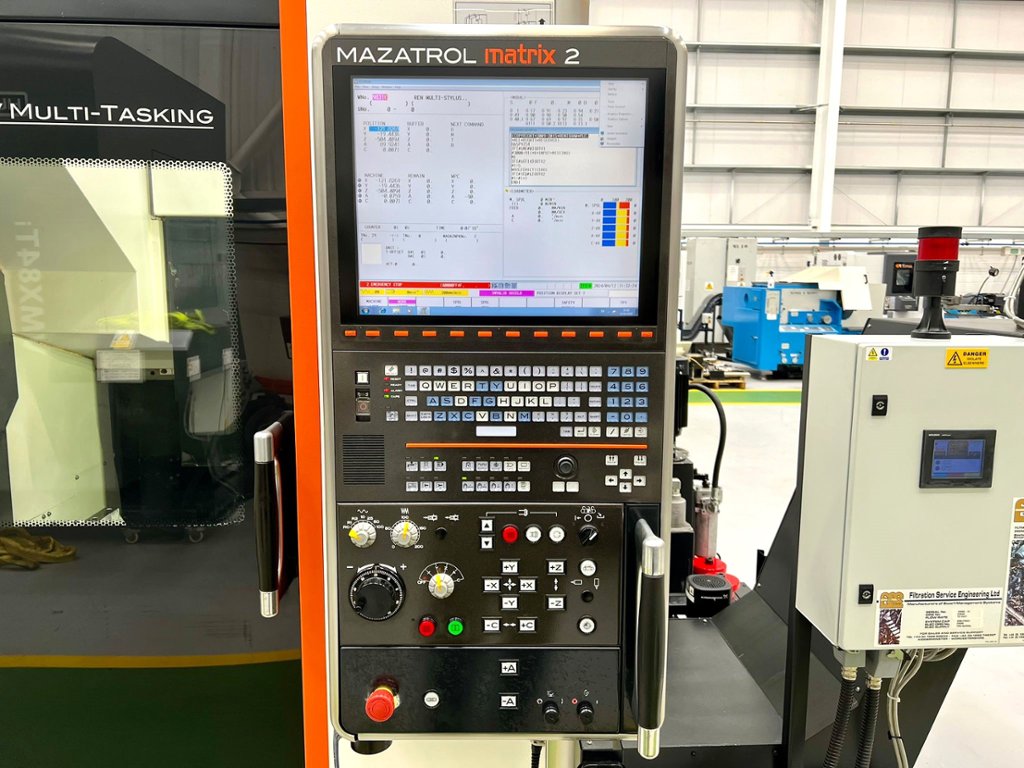

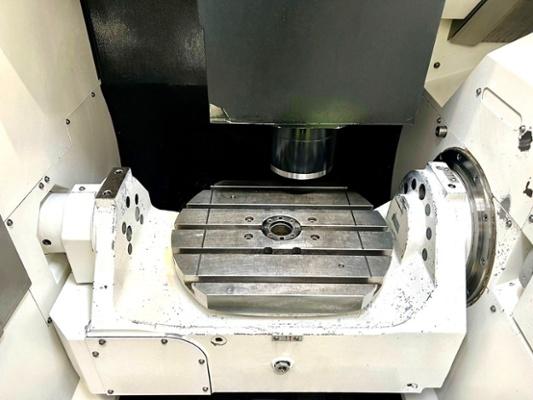

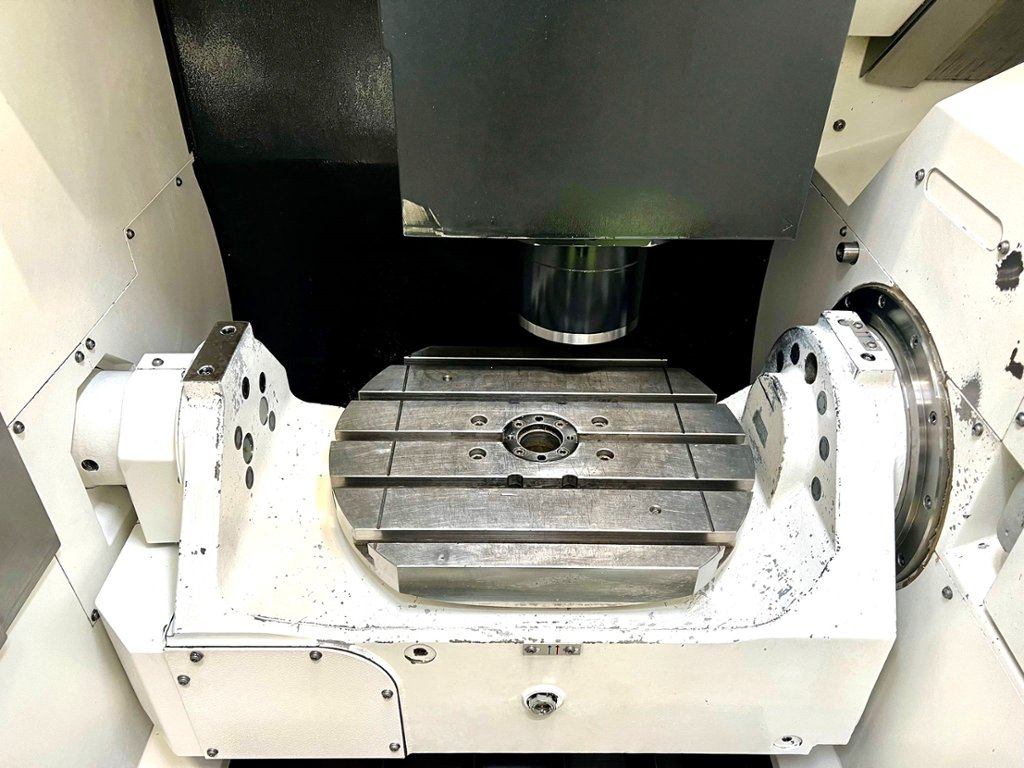

Table Size 500mm dia. x 400mm wide. X/Y/Z travels 350mm/ 550mm/510mm. A axis (table tilt) -120 – +30 ° (0.0001 ° increment). C axis (table rotation) +/-360 degrees (0.0001° increment). Maximum Workpiece Size 500mm x 350mm. Maximum table load 300kg. T slots 5 x 18mm x 80mm pitch. Maximum cutting feedrate 565m/minute. Rapid feedrates X/Y/Z axes 60/60/56m/min. Rapids A&C Axes 18,000°/min. Min/Max Height table to spindle nose 50mm/560mm. Automatic Tool Changer 40 station. Toolchange time chip to chip 4.5 seconds. Spindle Motor Power (40% ED/Cont rating) 22/15 kW. Electrical power requirement (40% ED/Cont rating) 51.07 kVA/41.17 kVA. Spindle speeds to 12,000 rpm. No. of controlled axes (5). Maximum Tool diameter /length/weight 90mm/300mm/8kg. Maximum tool dia. with empty adjacent pockets 130mm. Tool change time (chip to chip) 4.5 seconds. Coolant tank capacity 300 Litres. Mazatrol Matrix 2 Control.

Machine dimensions L x W x H 3235mm x 2400mm x 2975mm. Approximate weight 8000kg

OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES
