Description

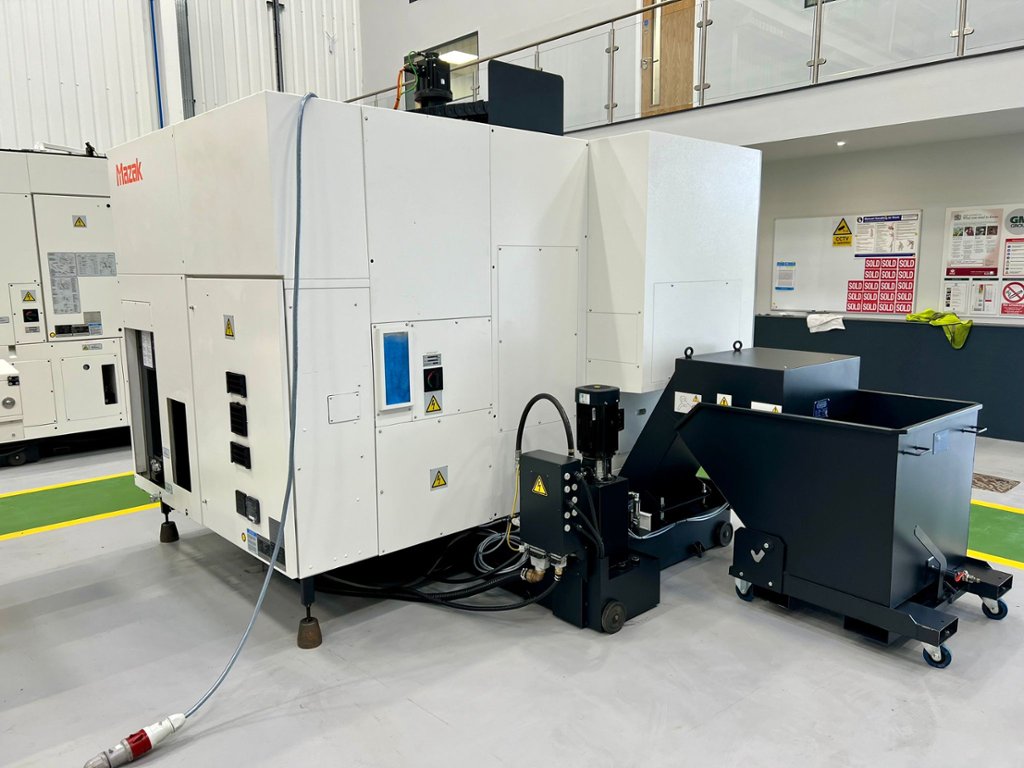

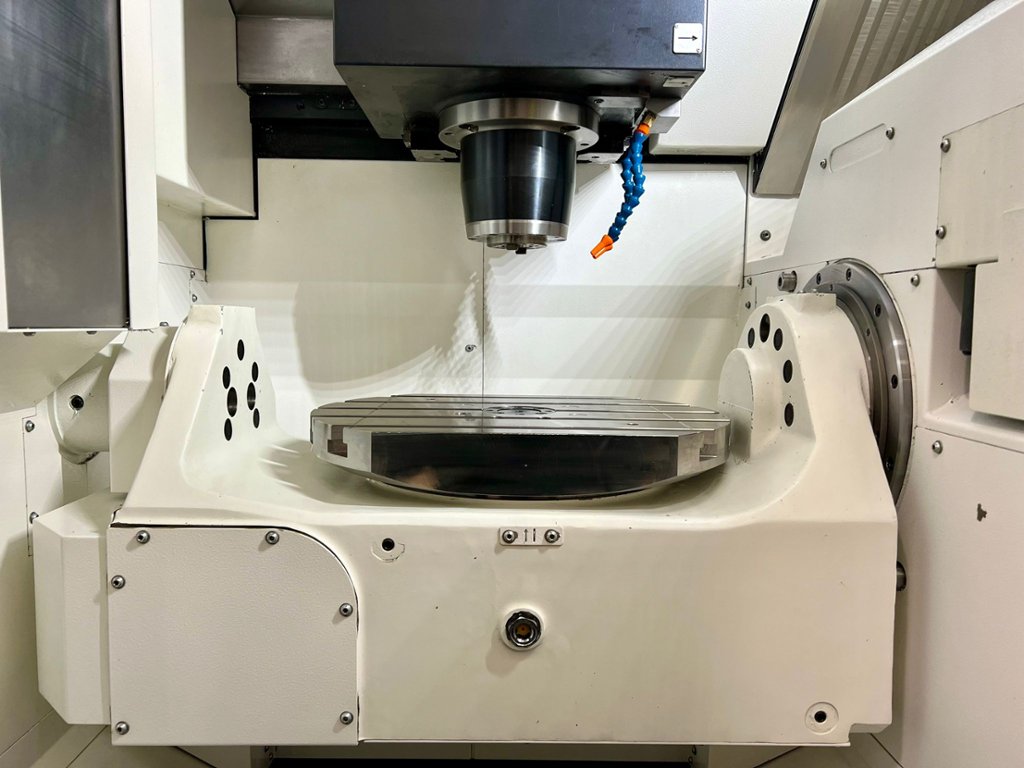

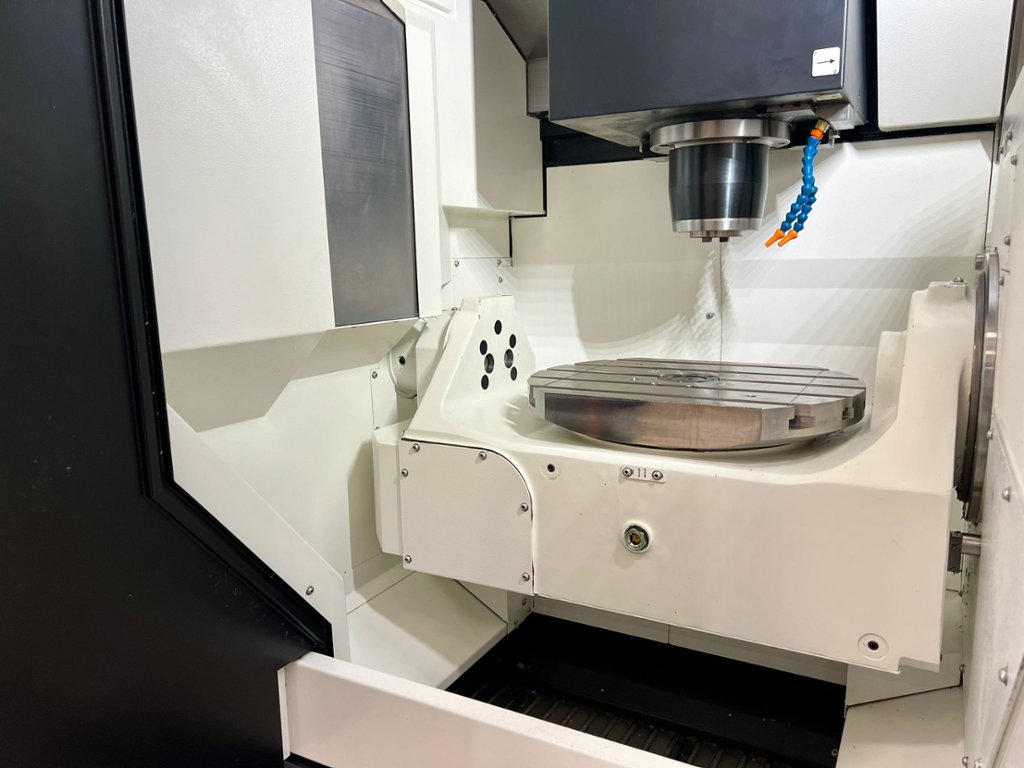

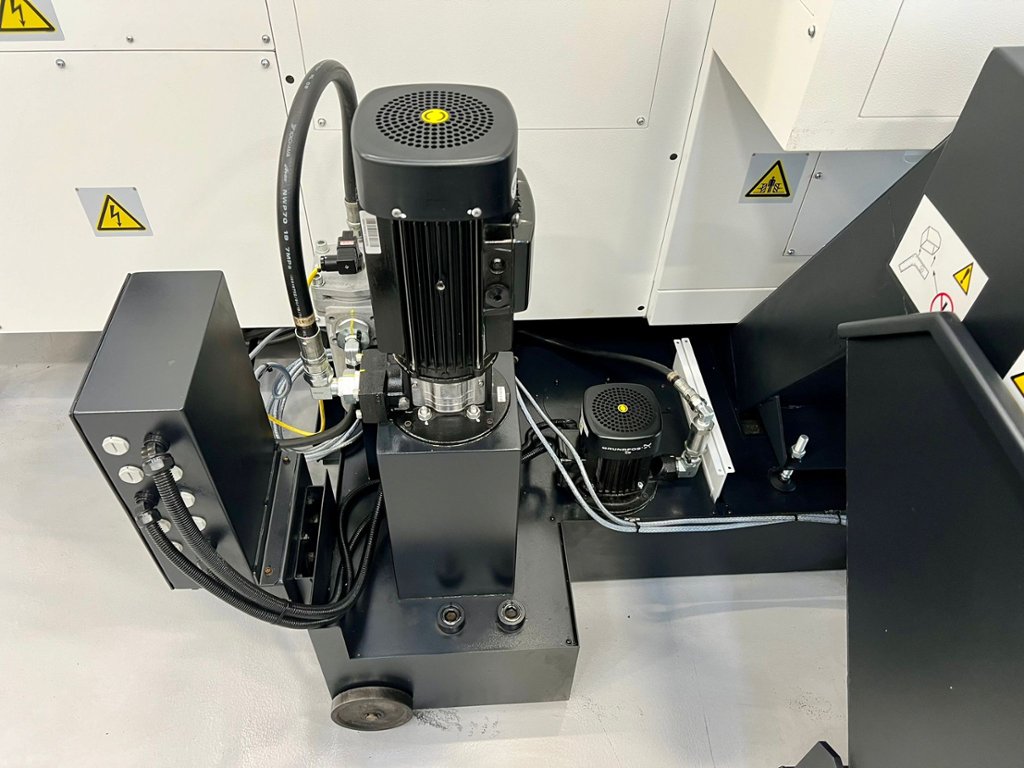

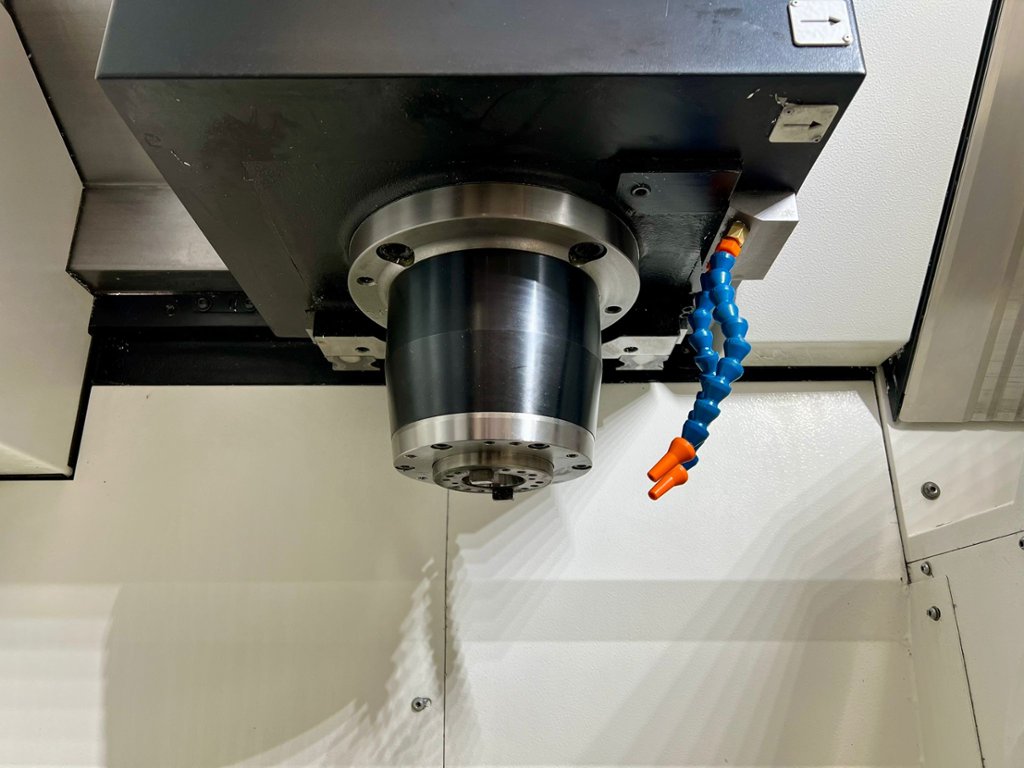

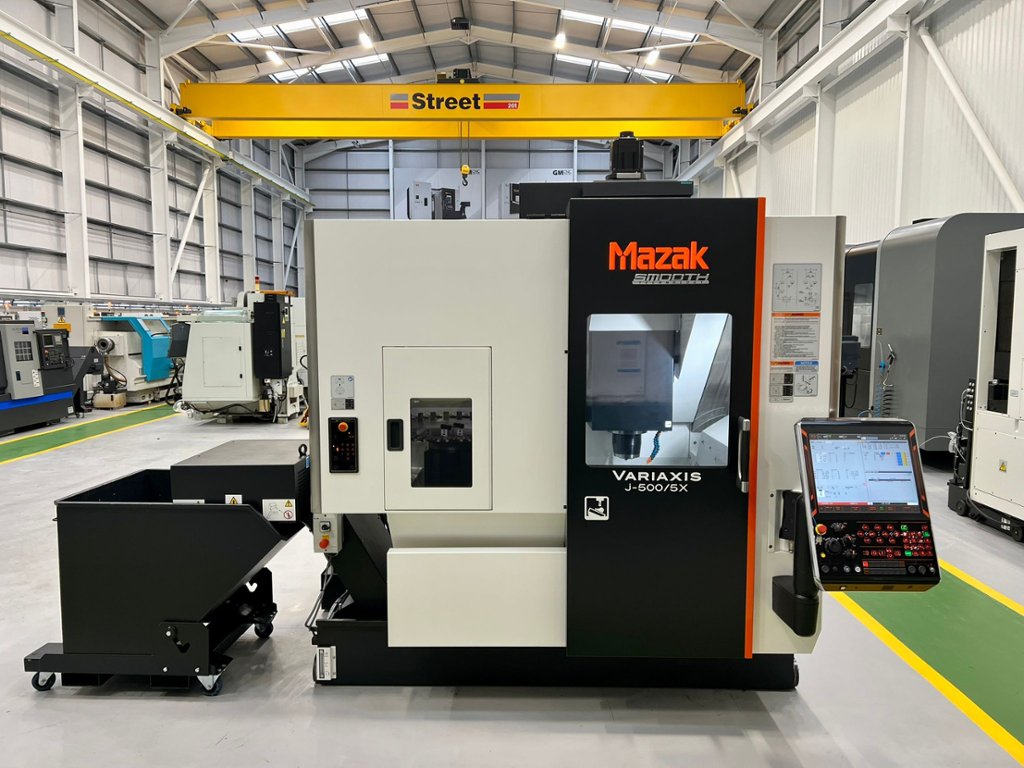

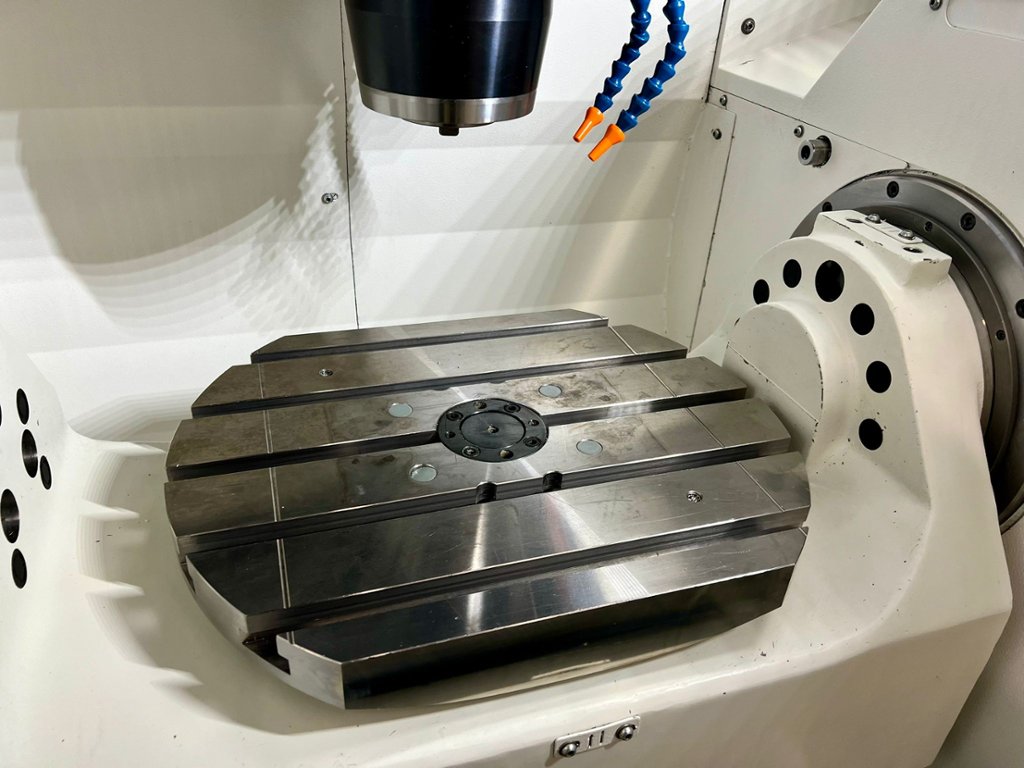

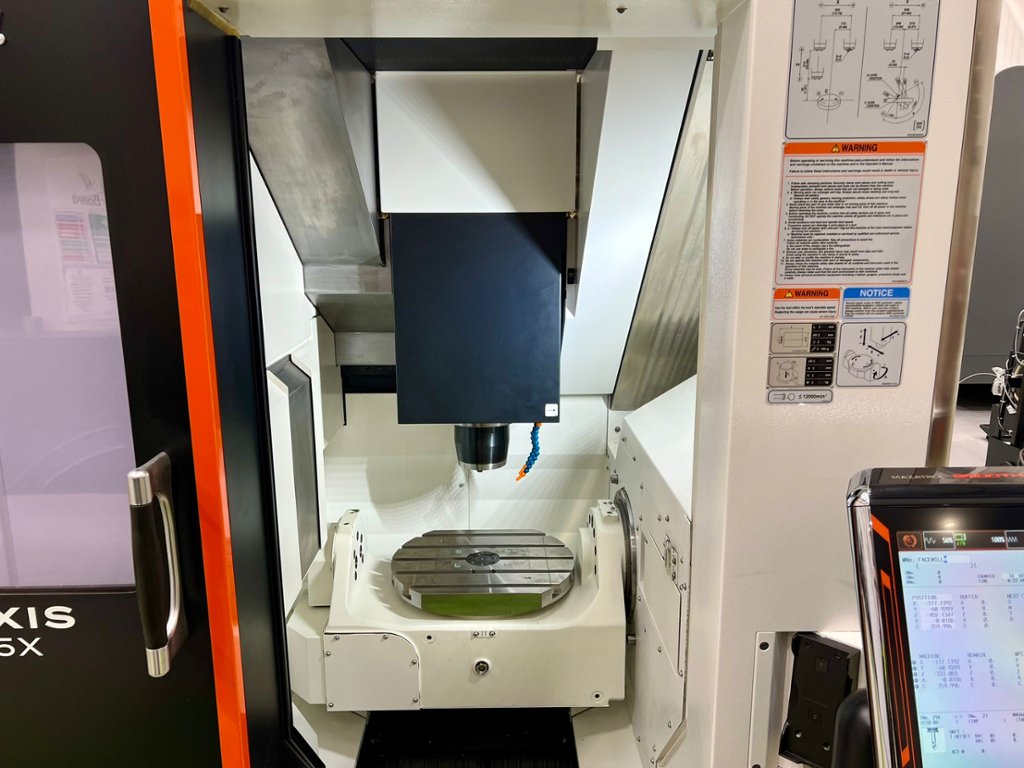

Maximum workpiece dia. 500mm. Maximum workpiece height 350mm. X/Y/Z travels 350mm/550mm/510mm. A Axis (table tilt) -120° / + 30°. C Axis (table rotation) indexing ) 0.0001° rotation 360°. Min/Max distance from spindle nose to table top (table horizontal) 50mm/560mm. Min/Max distance spindle nose to table centre (table vertical) 40mm/450mm. Maximum table load (evenly distributed ) 200kg. Spindle taper CAT40. Maximum spindle speed 12,000rpm. No. of spindle speed shift changes 2. Main output (AC Inverter motor) 10% ED rating 18.5kW. Main output (AC Inverter motor) 25% ED rating 15kW. Main output (AC Inverter motor) 40% ED rating 11kW. Main motor torque (continuous) 57.3 Nm. X/Y/Z Cutting Feedrates 36m/min. X/Y/Z Rapids 36m/min. Rapid traverse B&C Axes 30min-1. No. of simultaneous controlled axes 5. Table dia. 500mm. Tapped hole configuration M16 x P2 (16 holes). 30 Position Auto tool changer. Tool selection- Random pocket, shortest direction. Maximum tool dia. (with adjacent tool present) 80mm. Maximum tool dia. (without adjacent tool present) 125mm. Maximum tool length 300mm. Maximum weight of tool 8kg. Tool change time (chip to chip) 4.6 seconds. High pressure coolant. Cromar Swarf Conveyor. Swarf Bin. Mazatrol Smooth X Control.
Machine dimensions L x W x H 2570mm (2984mm with CNC Console) x 2300mm (3365mm with conveyor) x 2933mm high.
Approx weight 7100kg
OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES
