Description

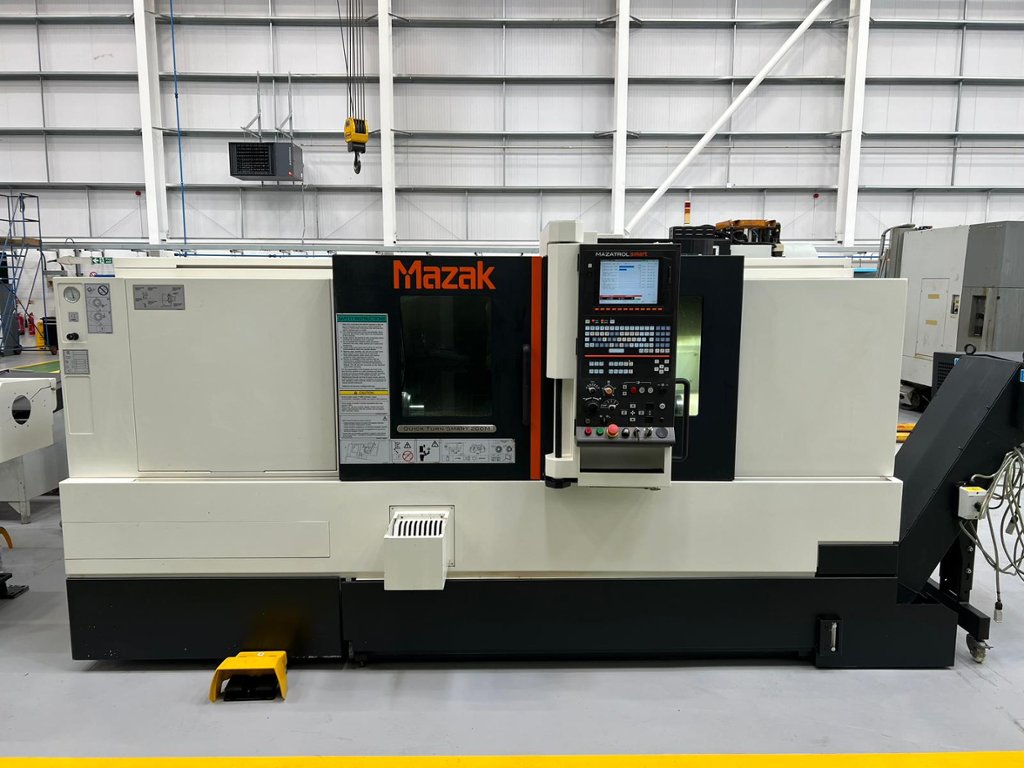

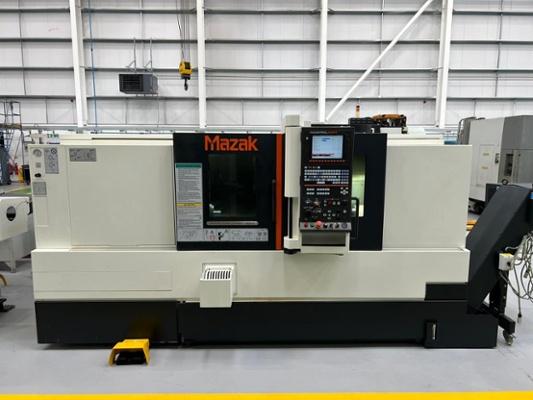

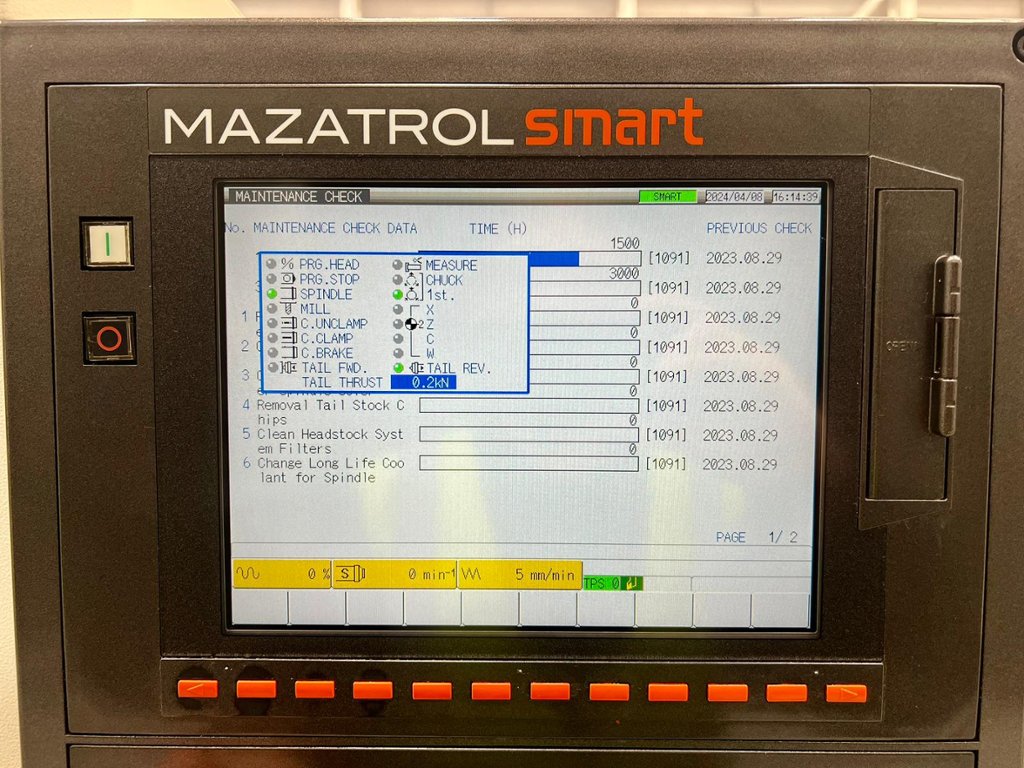

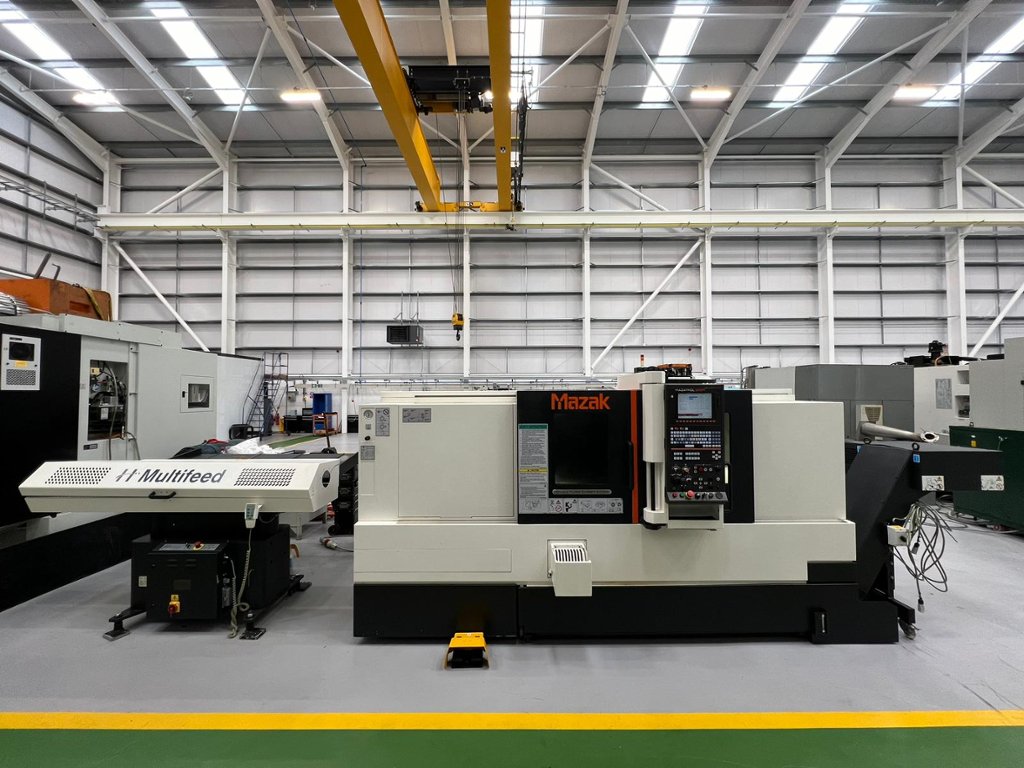

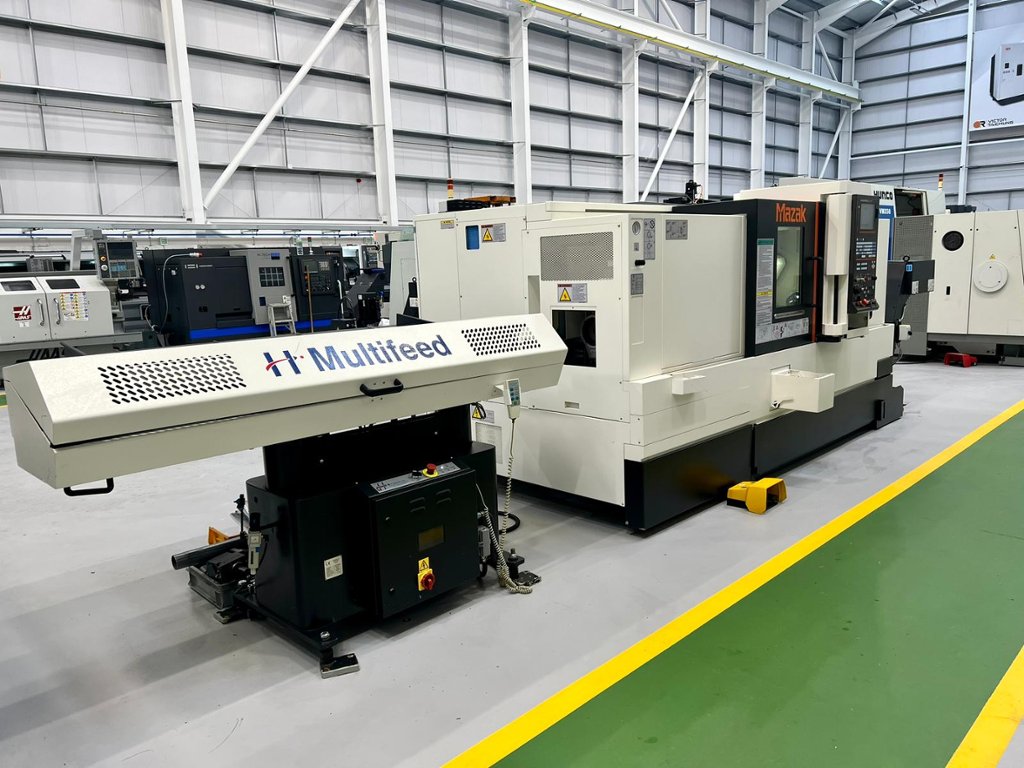

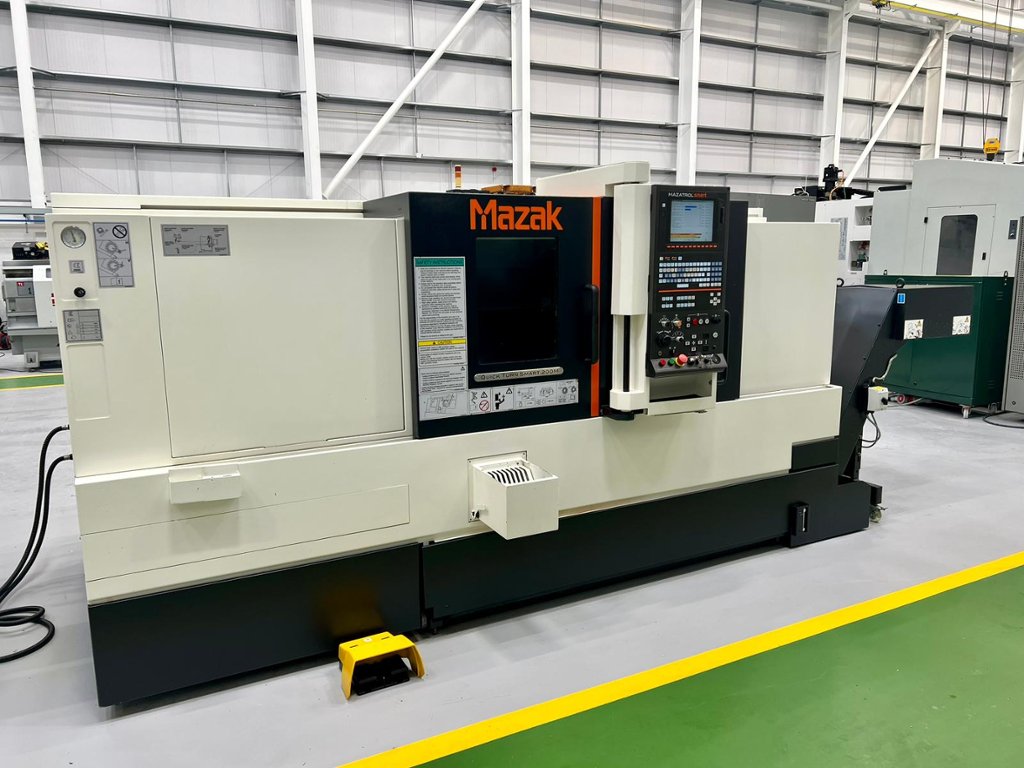

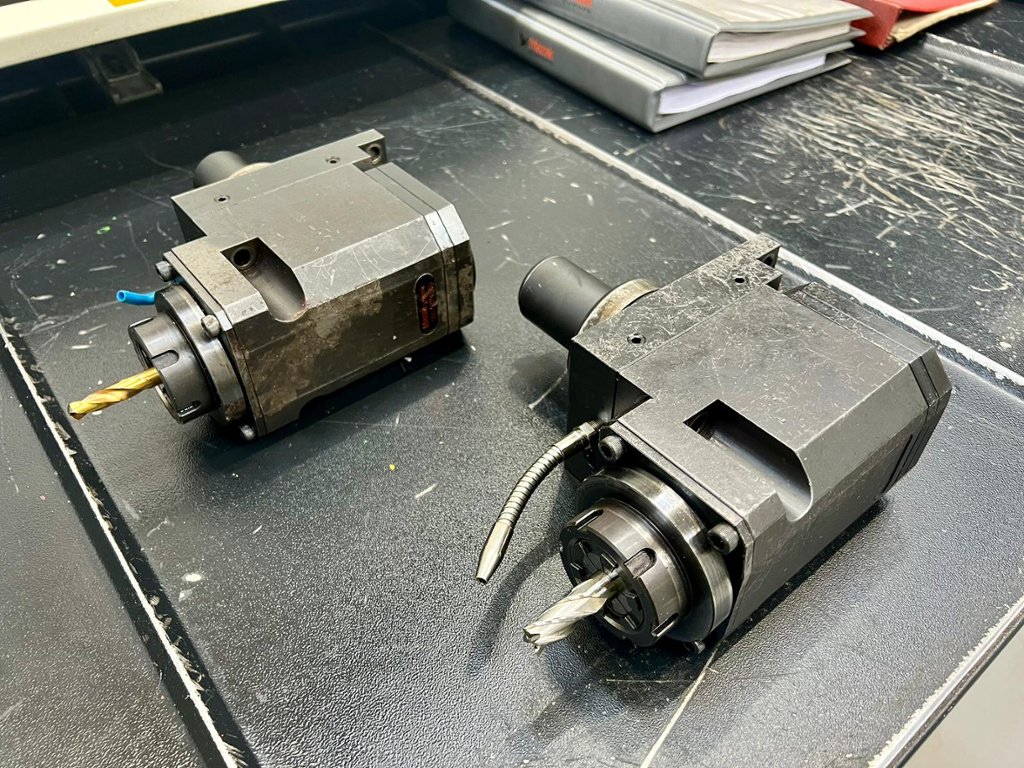

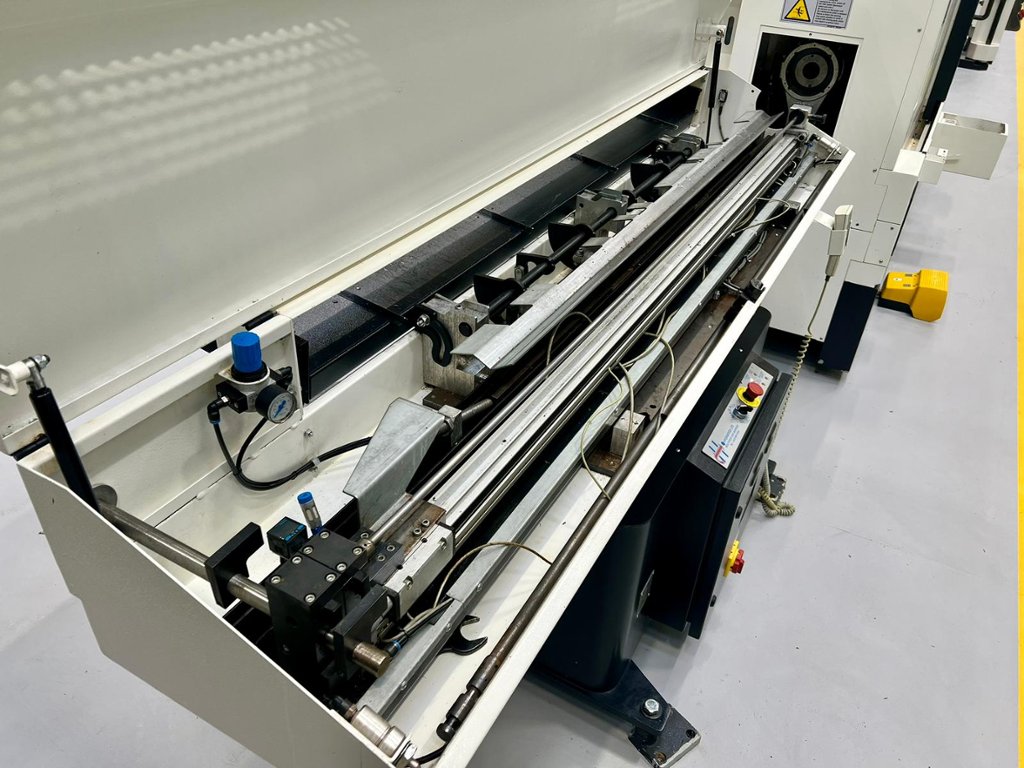

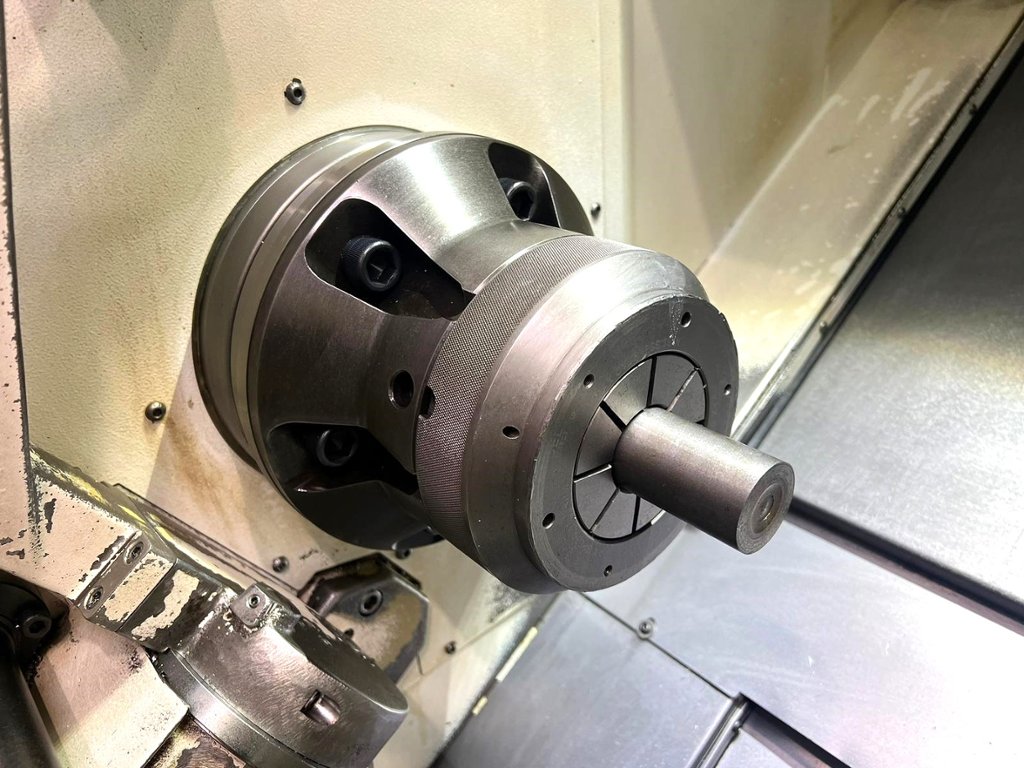

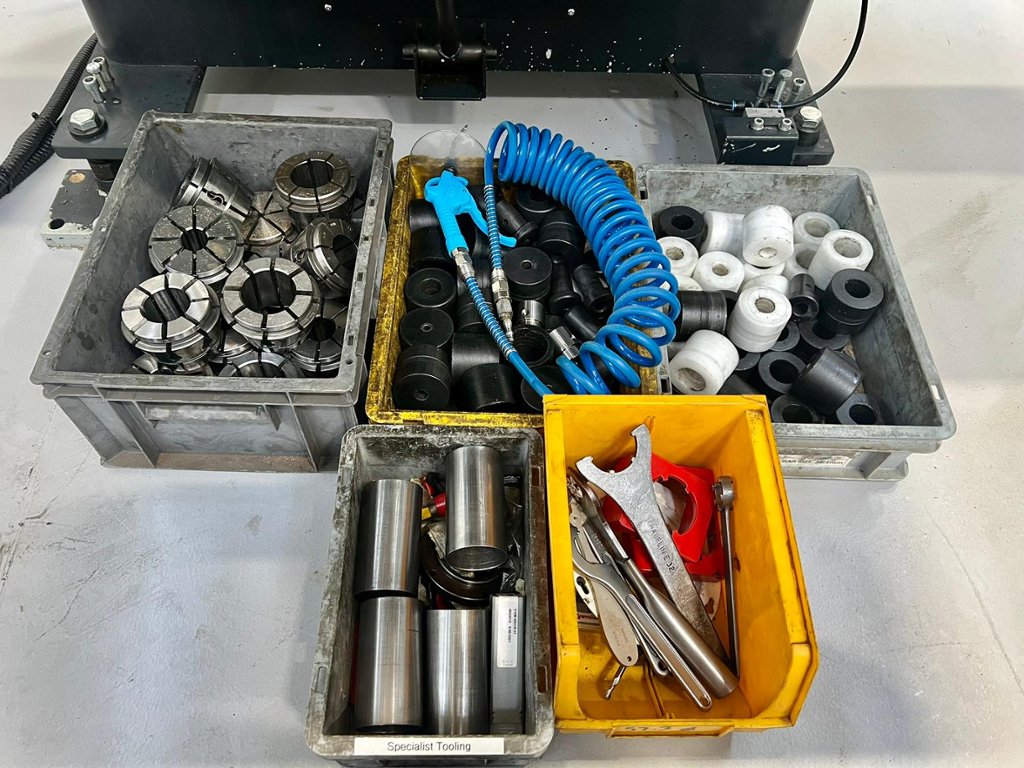

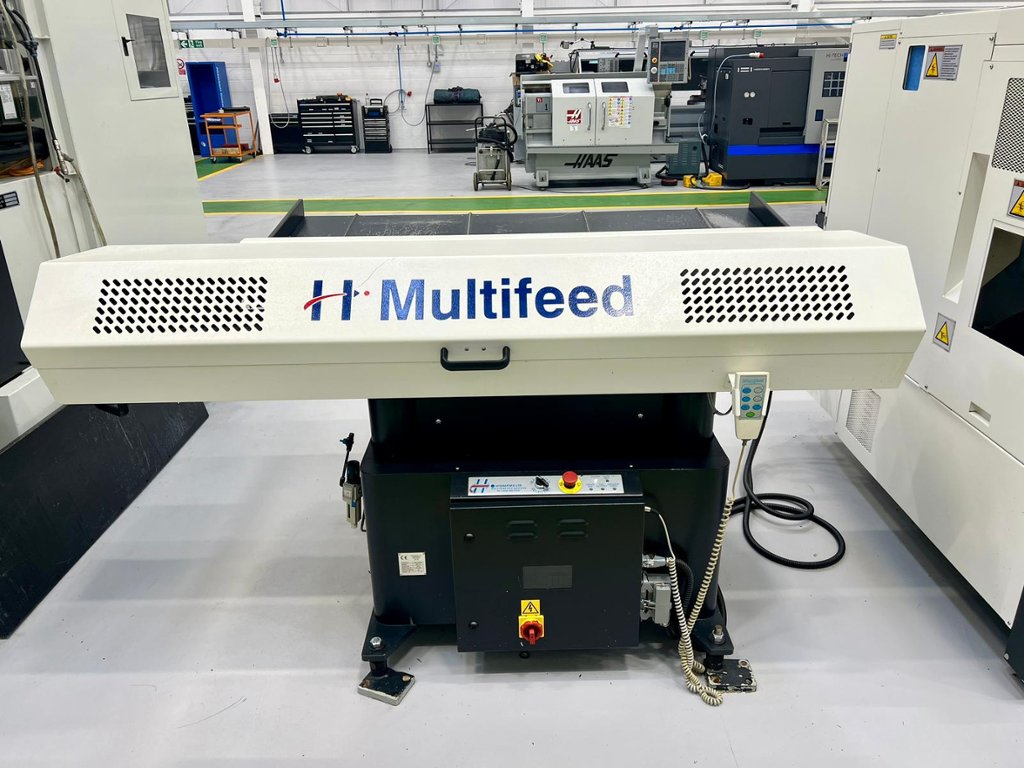

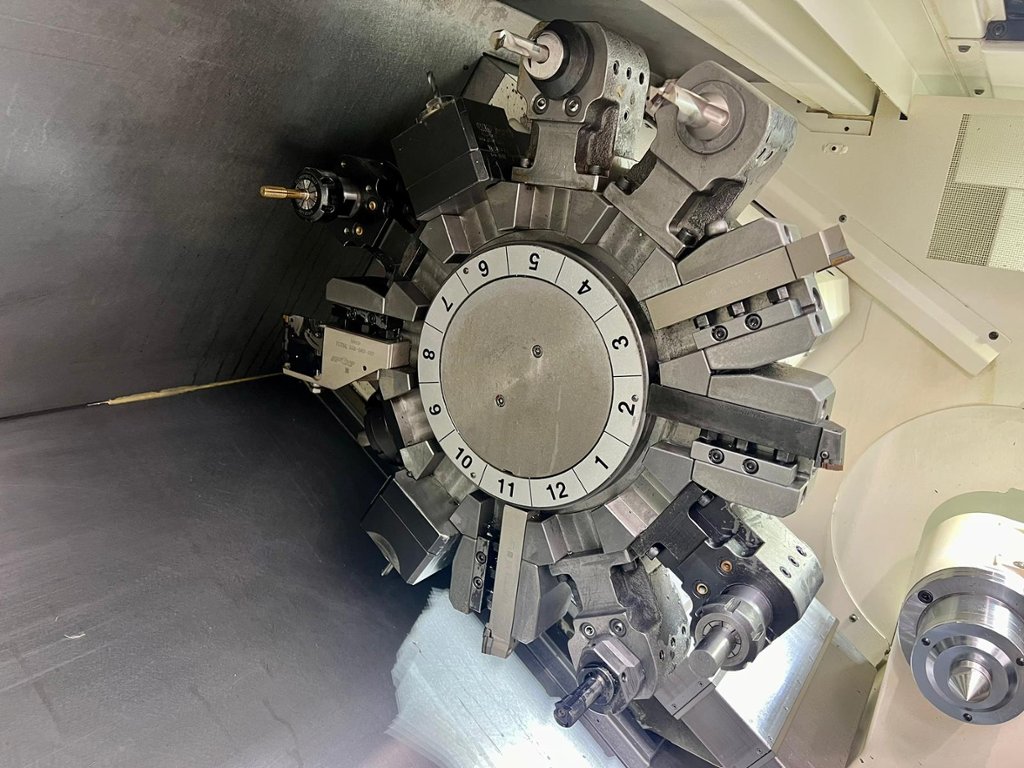

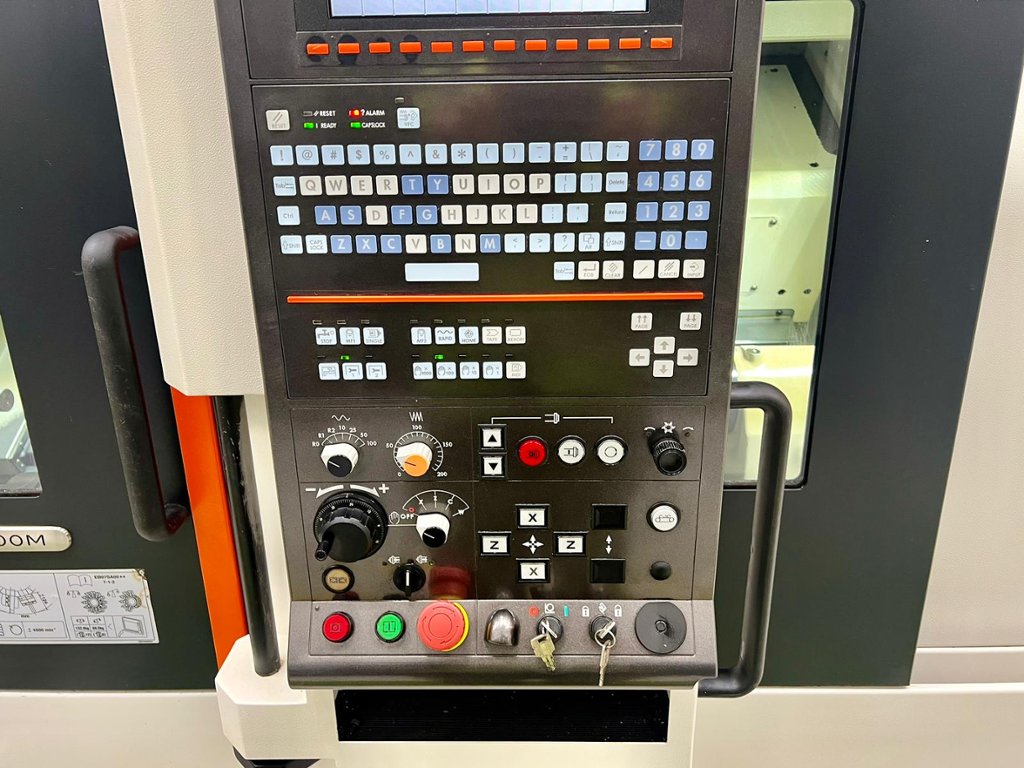

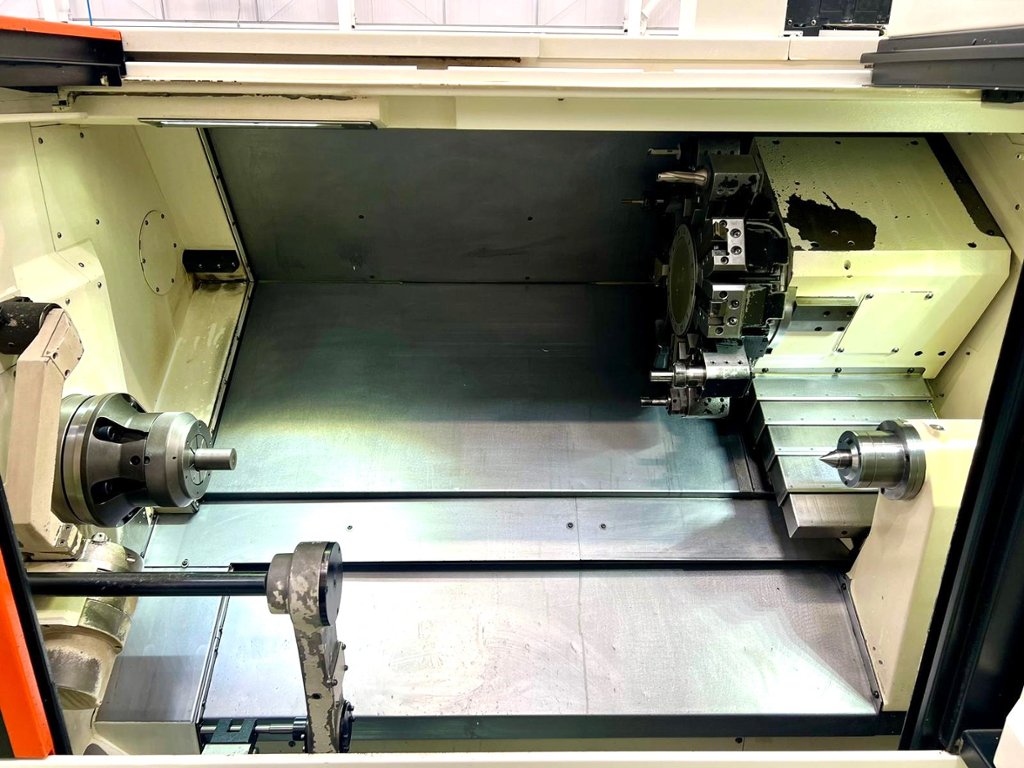

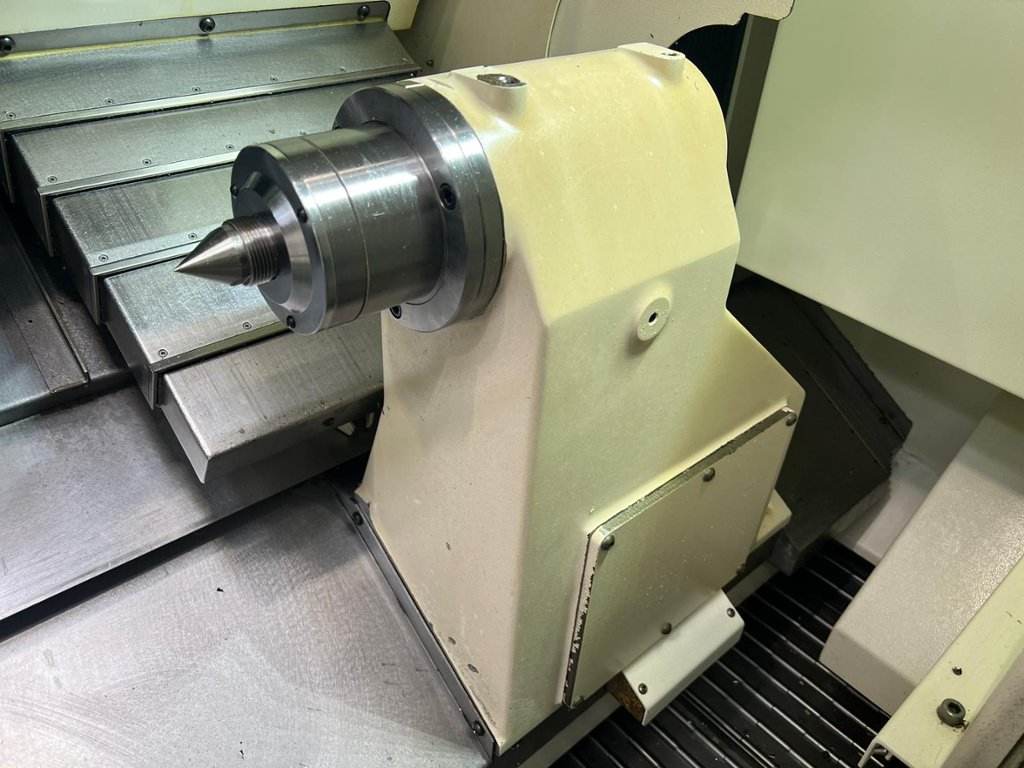

Swing over bed 660mm. Maximum machining dia. 360mm. X travel 225mm. Z travel 1125mm. Rapid feeds X/Z 30/33m/min. Spindle speeds to 35 – 5000 rpm. Spindle nose A2-6. Spindle power (30min/cont rating) 18.5/15 kW. 12 station turret. No. of driven positions 12. Speed of driven tools 4500 rpm. Maximum bar capacity 65mm. Tailstock taper 4MT. Tailstock travel 565mm. Rotary tool speed 4500rpm. Coolant capacity 270 litres. Hydrafeed Multifeed MX-1B bar feeder. Cromar swarf conveyor with swarf bin. Collet chuck with collets. Tailstock. C axis. Tool eye. Coolant. Mazatrol Smart Control.
Machine dimensions L x W x H 3385 mm x 1720 mm x 1820 mm Approximate weight 6100kg.
OFFERS ARE INVITED UNTIL 24 HOURS BEFORE THE AUCTION CLOSES
