ONLINE AUCTION SALE 2 x CNC HOFLER GEAR GRINDERS (170701)
Auction details
| Sales Starts | 8 Feb 2022 @ 12:00 |
|---|---|
| Sales Ends | 24 Mar 2022 @ 13:00 |
| Auction Catalogue |
Description
On instructions received due to major investment in New Equipment
2 x CNC HOFLER GEAR GRINDERS
HOFLER HELIX 400K FORM GEAR GRINDER. Year 2001
HOFLER PROMAT 400 GEAR GRINDER. Year 2000
Offers are invited prior to the closure of the sale.
DUE TO THE LATE ARRIVAL OF NEW EQUIPMENT BOTH MACHINES WILL NOW BE AVAILABLE EARLY MAY, 2022.
Collection Details
The successful buyer or their designated contractors are responsible for the complete removal of the machines from the factory. Method Statements and Risk Assessments must be forwarded to the auctioneers for checking along with a valid certificate of insurance prior to work commencing. The machine(s) must be removed within 7 days from the invoice date.
Viewing Details
Viewing is strictly by appointment with the auctioneers. Machines are situated in the Manchester area, UK. All visitors to the site without exception will need to wear appropriate Personal Protective Equipment (PPE) and Face Masks. No Minors will be allowed on site.
Notice To Purchasers
If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licenses will be required and it is the buyers responsibility to make the necessary enquiries prior to bidding.Please note under any circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.
Available Lots
Lots 1-2 of 2

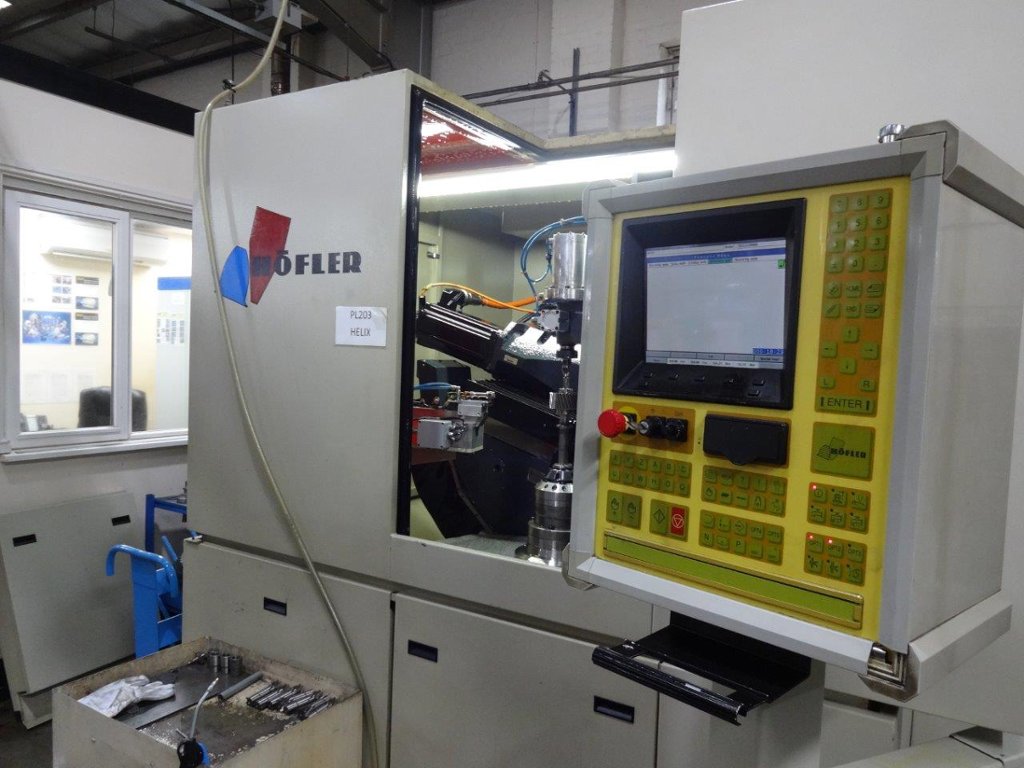

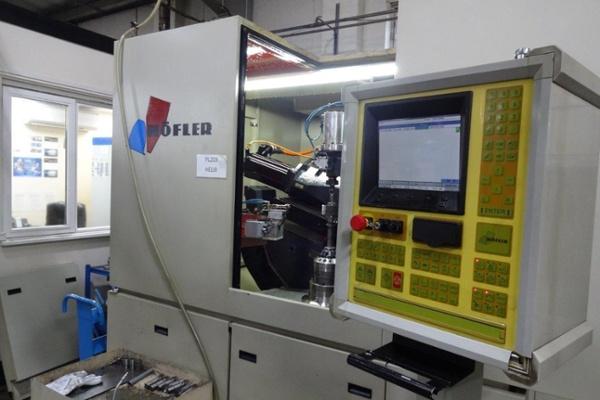

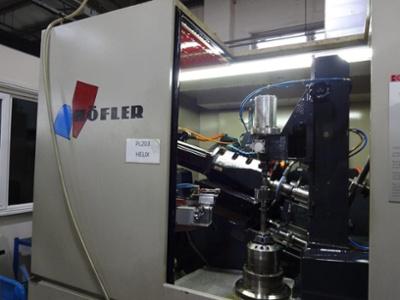

Lot 1: HOFLER HELIX 400K CNC Form Gear Grinder with Hofler Control. Year 2001
No.of controlled axis 5 (machine) 2 (dresser).Maximum gear dia. 400mm.Minimum gear dia. 5mm.Grinding stroke 200mm.Number of teeth free selectable.Helix angle +/- 45 degrees.CNC Wheel dressing – Profile variable.Grindable module minimum 0.5mm .Grindable module maximum -10mm.CNC Wheel dressing Maximum/Minimum dia. 300mm/80mm.Grinding spindle power 11kW.Grinding spindle speed 0-5400 rpm. Dressing wheel speed 0-5400 rpm. Total connected power 30 kVA
Floorspace required 4500mm x 5000mm x 2400mm high
Approximate weight 9000 kgs

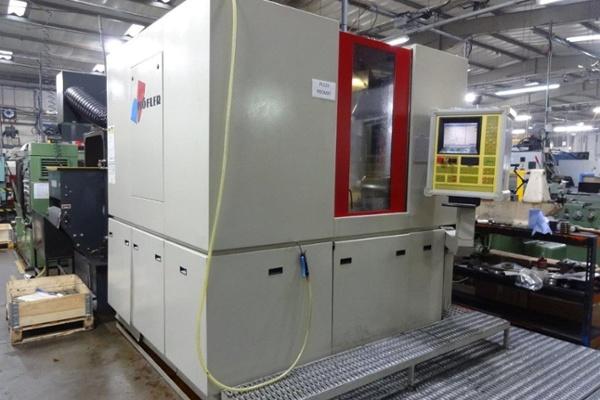

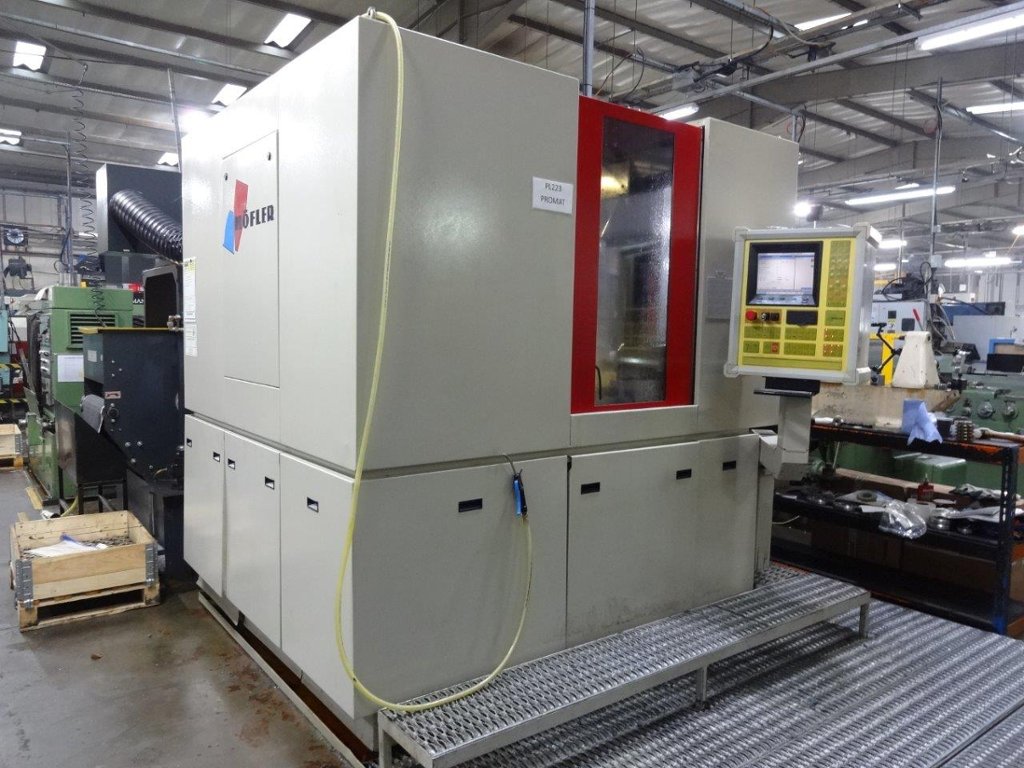

Lot 2: HOFLER PROMAT 400 CNC Gear Grinder with Hofler Control. Year 2000
4 Axis CNC Gear Grinding Machine for Cylindrical, Spur Gears & Special Tooth Components.The grinding wheel is profiled with an integrated cnc dresser.Maximum dia. 400mm.Minimum root dia. 10mm.Maximum tool width 200mm.Maximum working stroke 210mm.Modul 0.5-11 45m/sec.Number of teeth free selectable.No.of controlled axis 4 (machine) 2 (dresser).Maximum table load 100 kgs.Grinding wheel dia. 400mm.Maximum grinding wheel width 45mm.Power rating of grinding wheel 15 kW.Maximum cutting speed 45m/second.Maximum grinding stroke 210mm .Workpiece carriage lifting speed 6,000mm/min.Total connected power 30 kVA
Machine equipment: CNC Dresser, Coolant equipment, DITTEL balancing device
Floorspace required 4500mm x 5000mm x 2400mm high
Approximate weight 9000 kgs
