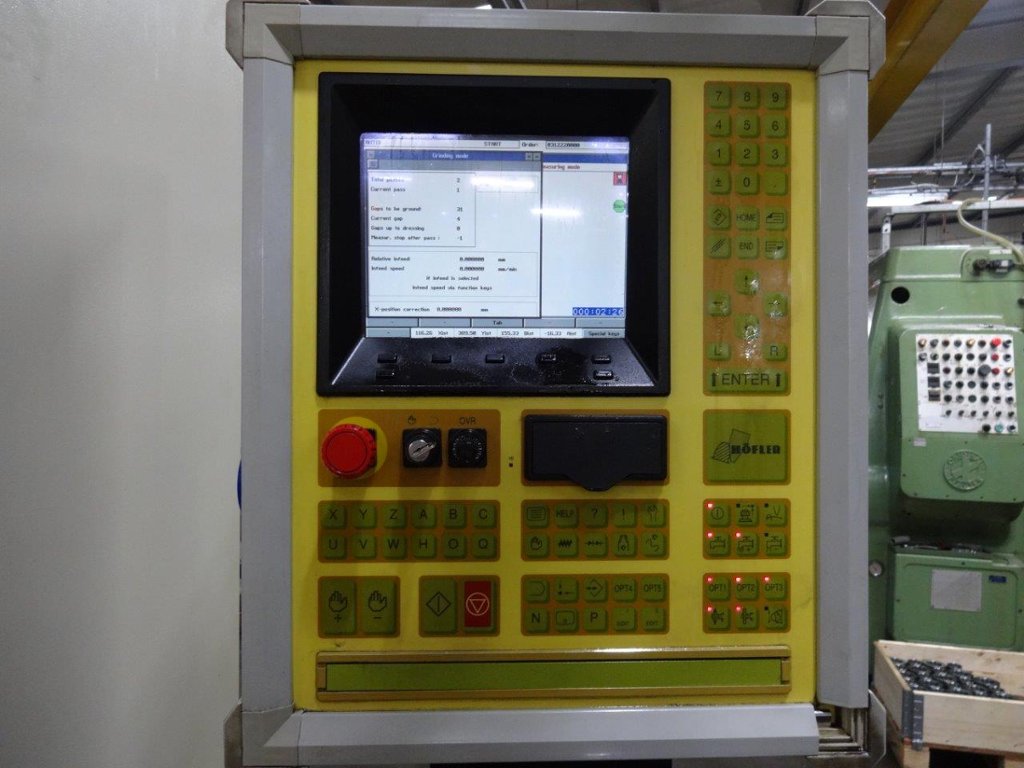

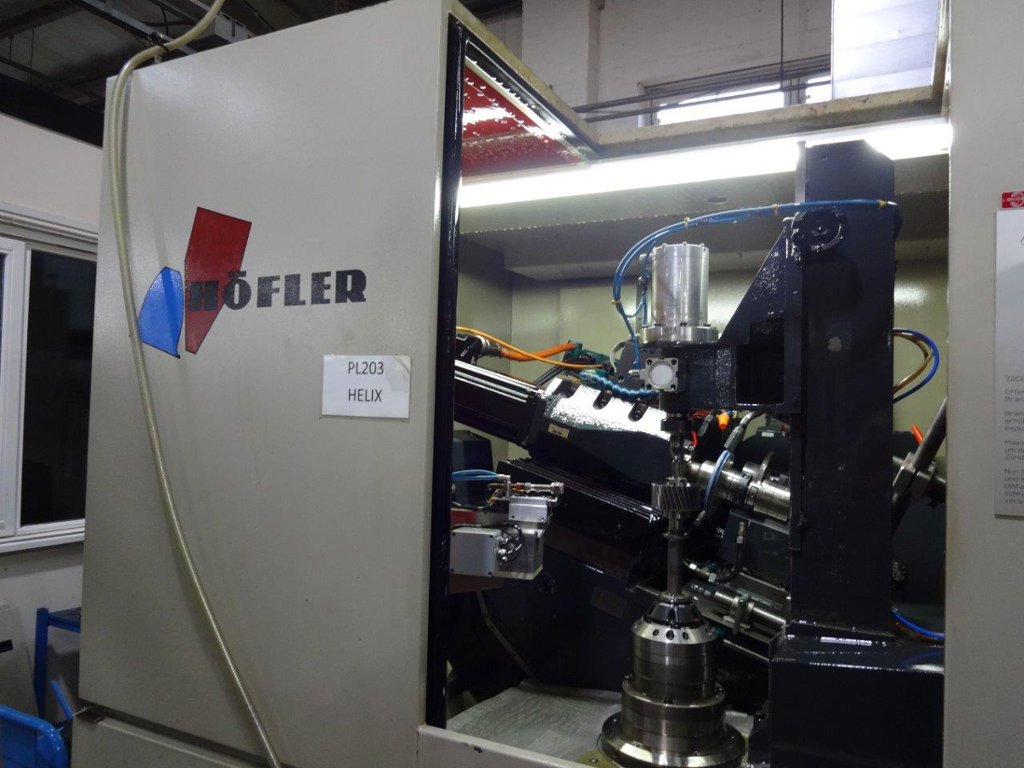

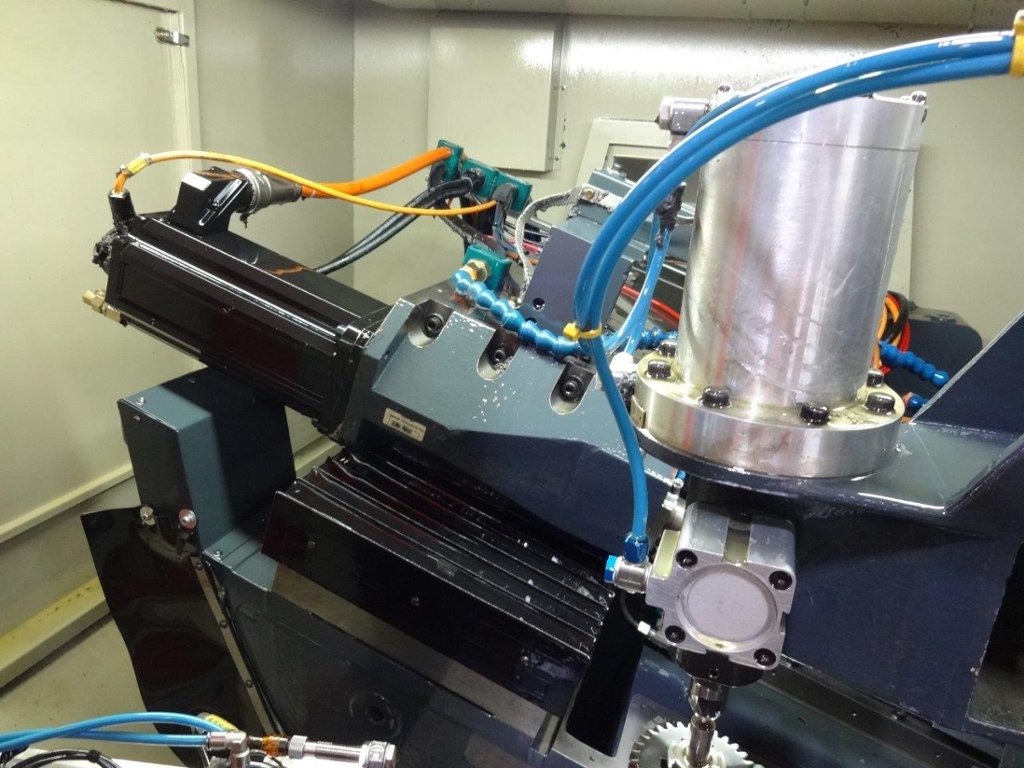

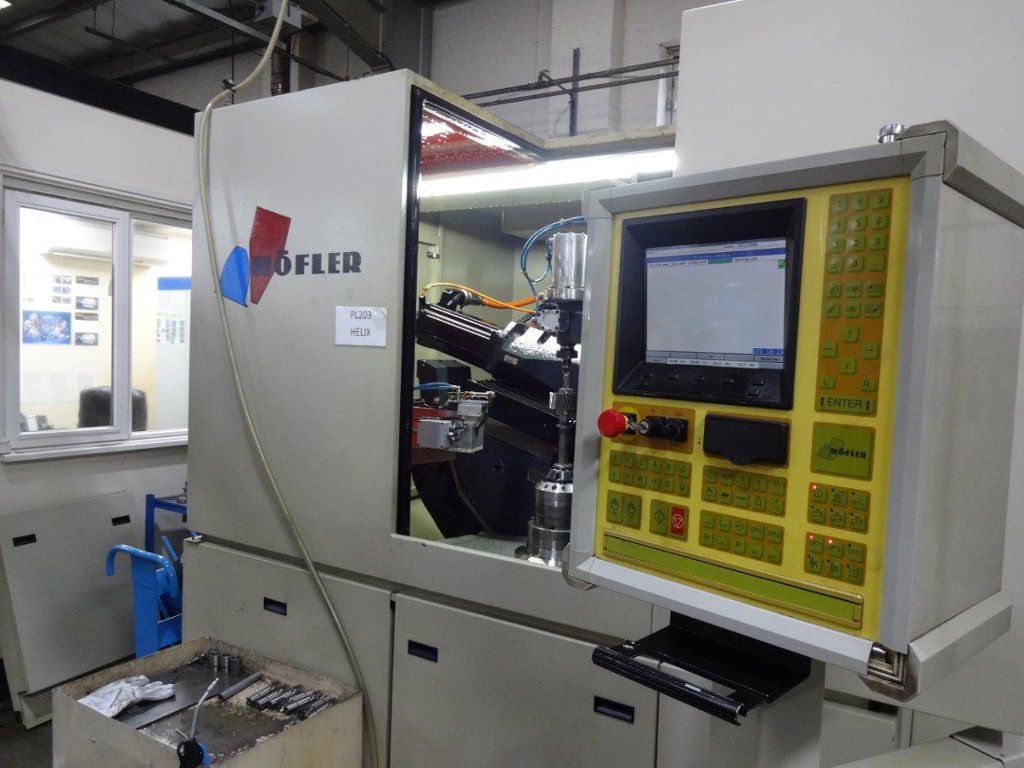

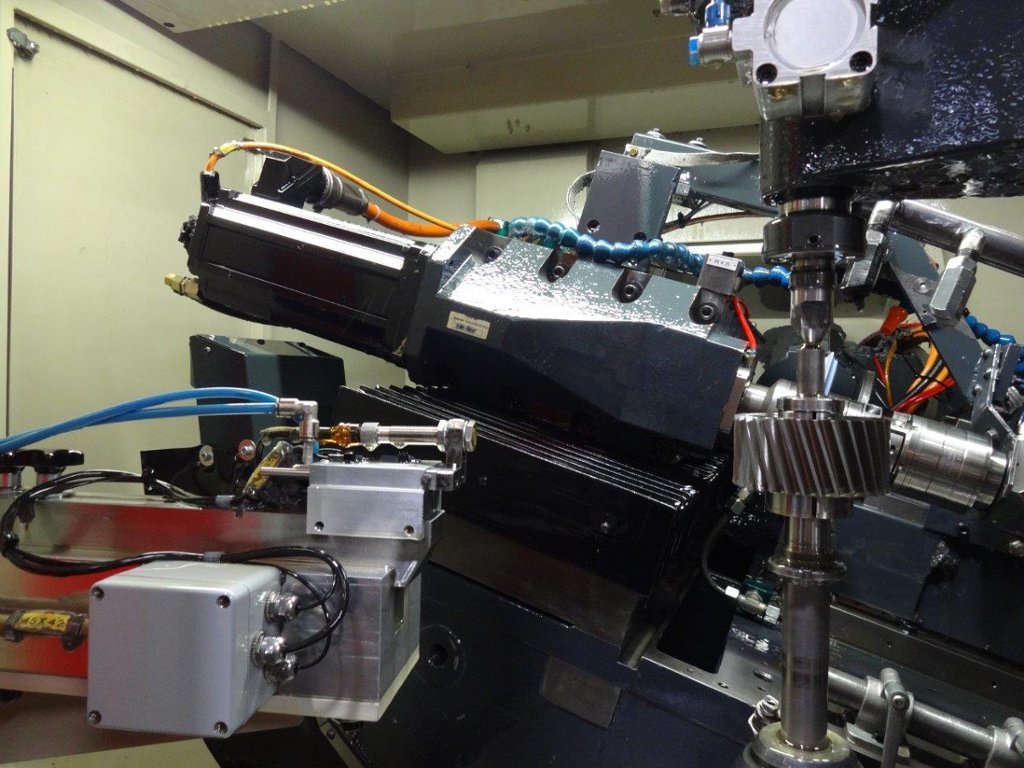

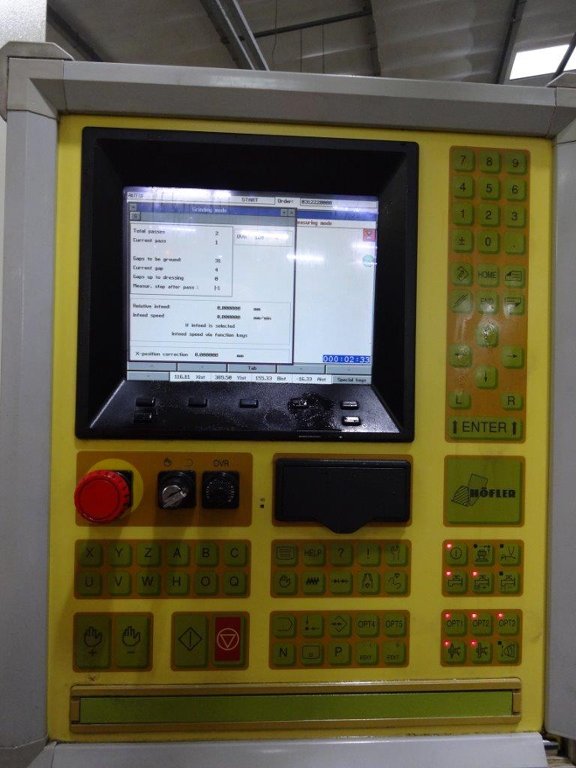

Lot 1: HOFLER HELIX 400K CNC Form Gear Grinder with Hofler Control. Year 2001

No.of controlled axis 5 (machine) 2 (dresser).Maximum gear dia. 400mm.Minimum gear dia. 5mm.Grinding stroke 200mm.Number of teeth free selectable.Helix angle +/- 45 degrees.CNC Wheel dressing – Profile variable.Grindable module minimum 0.5mm .Grindable module maximum -10mm.CNC Wheel dressing Maximum/Minimum dia. 300mm/80mm.Grinding spindle power 11kW.Grinding spindle speed 0-5400 rpm. Dressing wheel speed 0-5400 rpm. Total connected power 30 kVA

Floorspace required 4500mm x 5000mm x 2400mm high
Approximate weight 9000 kgs

DUE TO THE LATE ARRIVAL OF NEW EQUIPMENT THE MACHINE WILL BE AVAILABLE IN EARLY MAY, 2022.
