Description

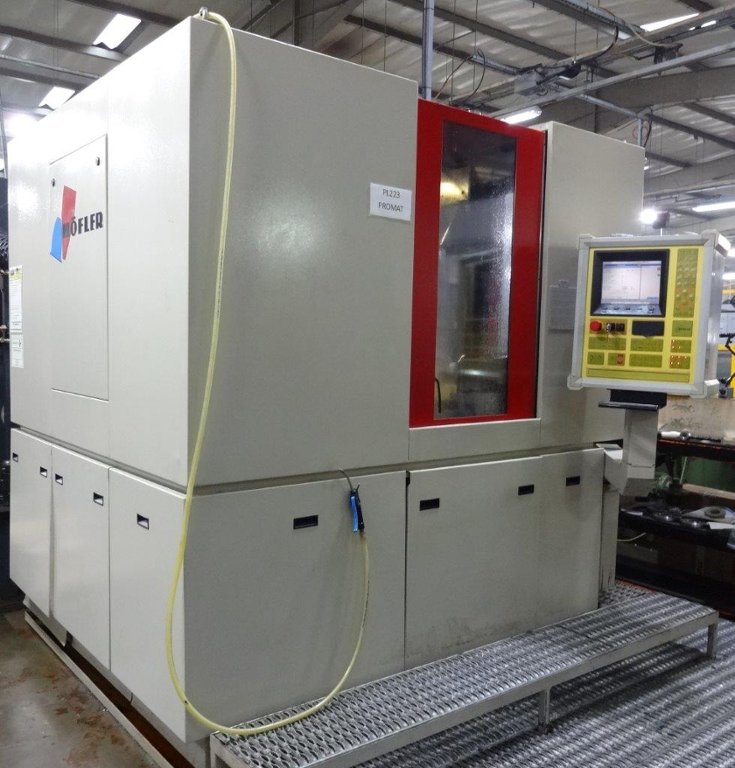

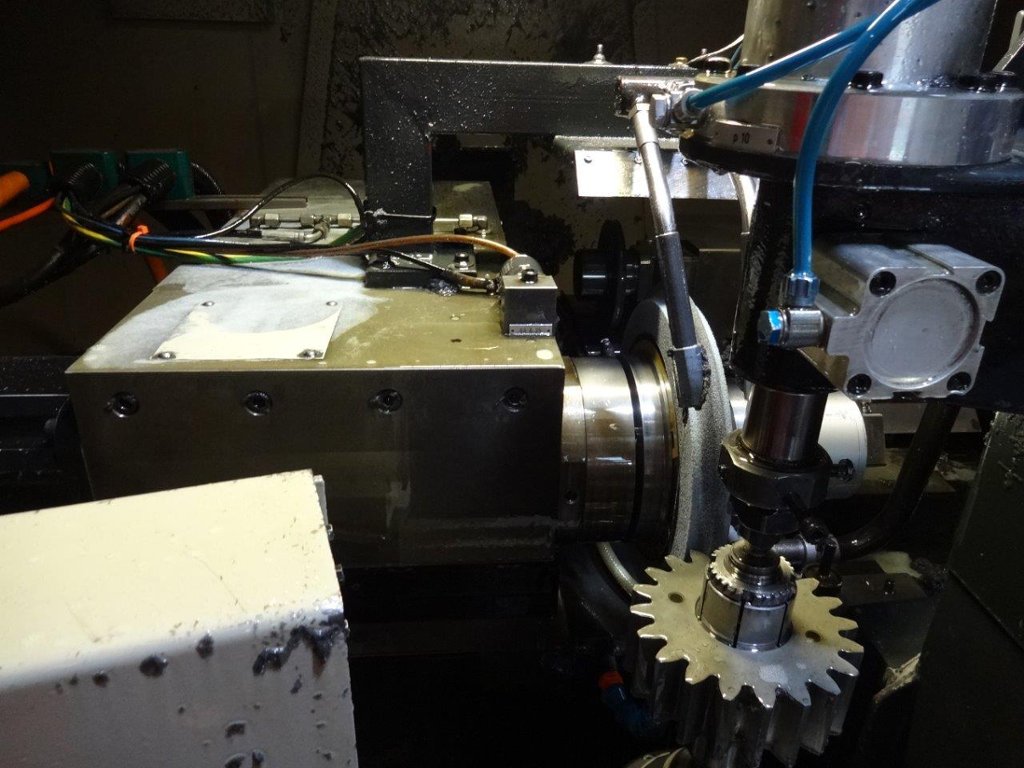

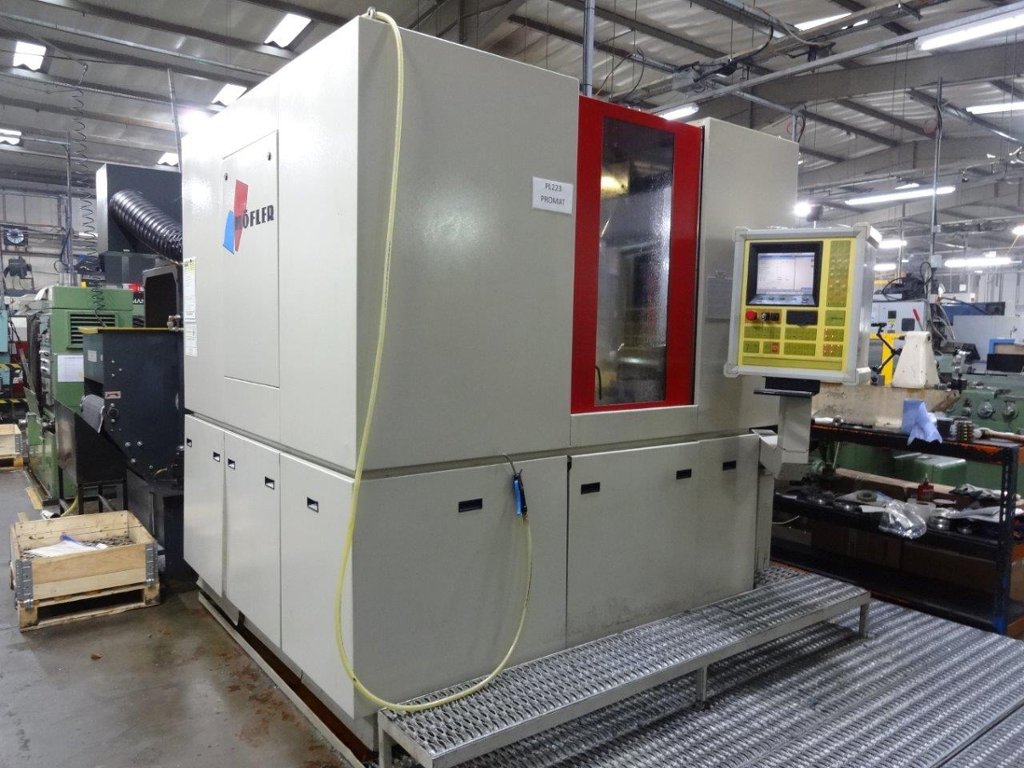

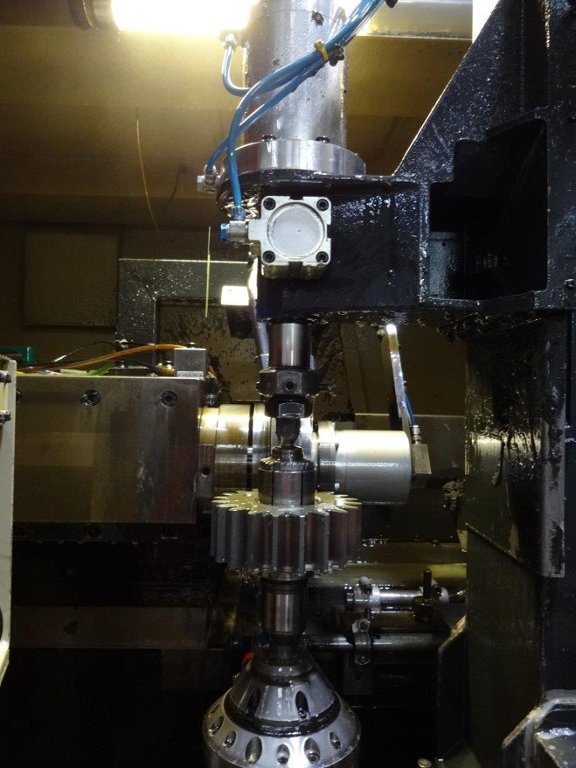

4 Axis CNC Gear Grinding Machine for Cylindrical, Spur Gears & Special Tooth Components.The grinding wheel is profiled with an integrated cnc dresser.Maximum dia. 400mm.Minimum root dia. 10mm.Maximum tool width 200mm.Maximum working stroke 210mm.Modul 0.5-11 45m/sec.Number of teeth free selectable.No.of controlled axis 4 (machine) 2 (dresser).Maximum table load 100 kgs.Grinding wheel dia. 400mm.Maximum grinding wheel width 45mm.Power rating of grinding wheel 15 kW.Maximum cutting speed 45m/second.Maximum grinding stroke 210mm .Workpiece carriage lifting speed 6,000mm/min.Total connected power 30 kVA

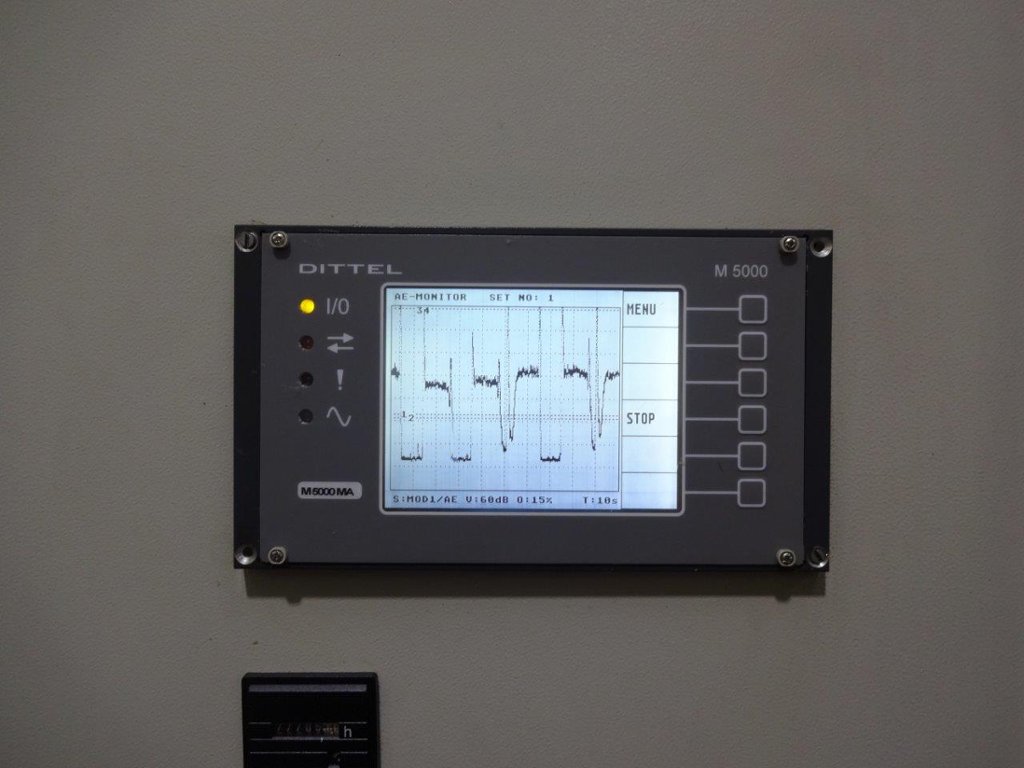

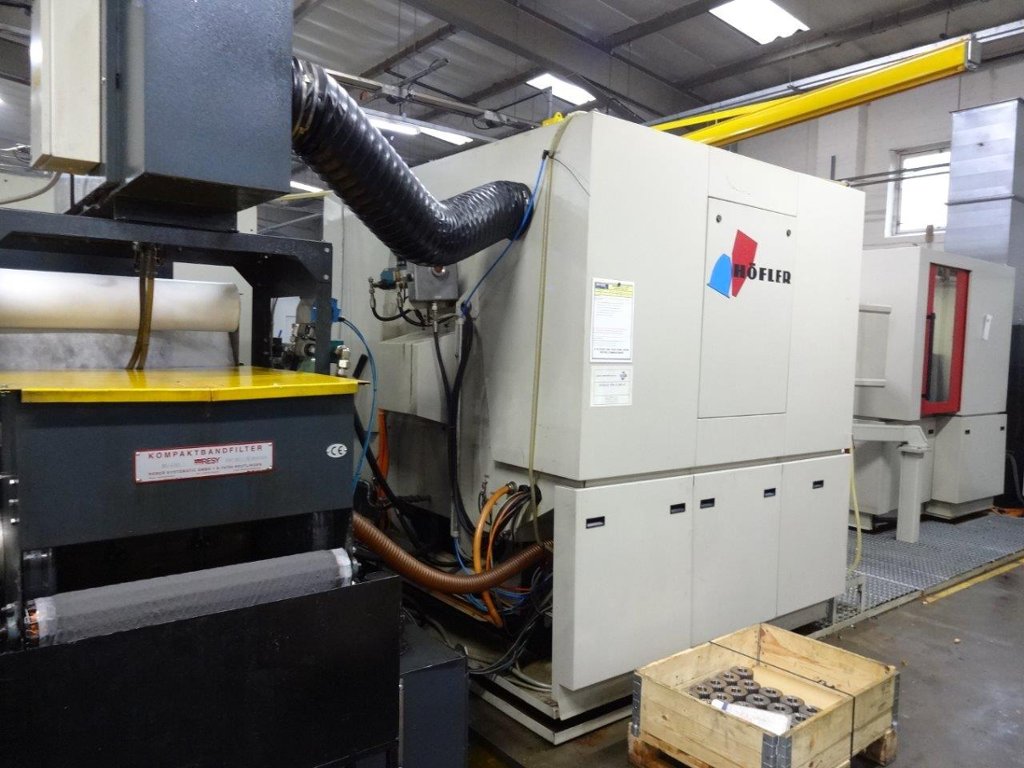

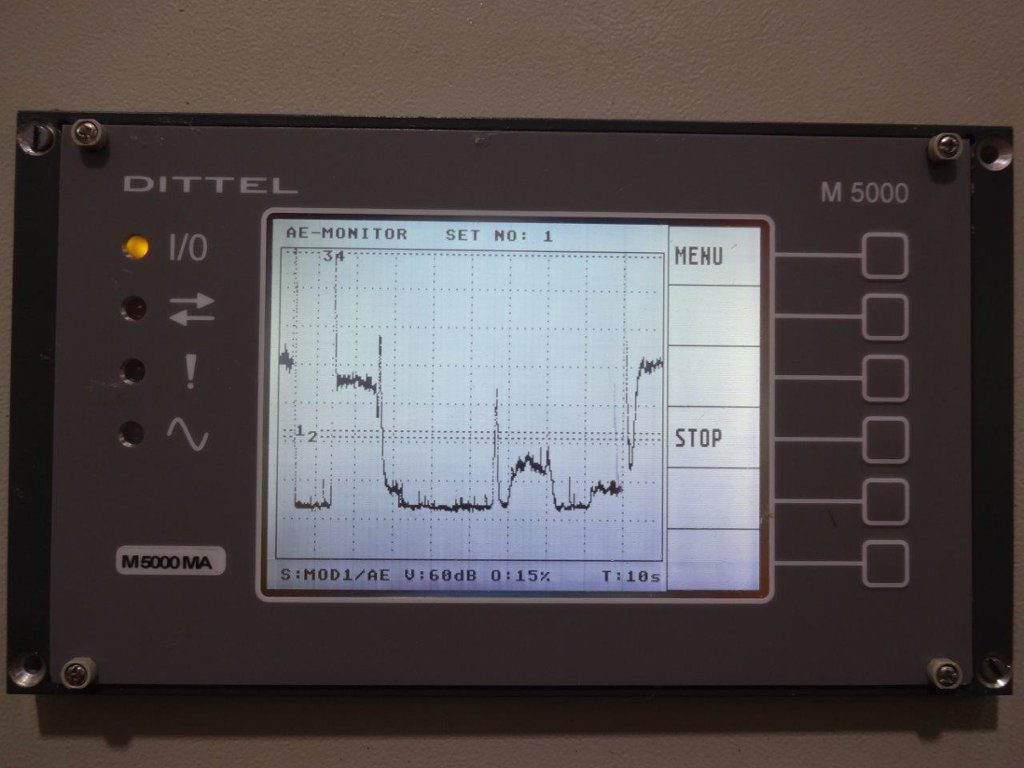

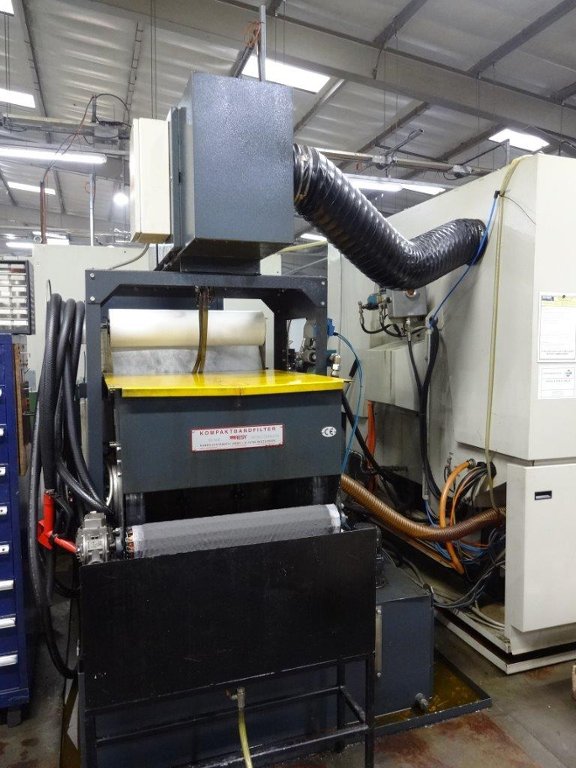

Machine equipment: CNC Dresser, Coolant equipment, DITTEL balancing device
Floorspace required 4500mm x 5000mm x 2400mm high
Approximate weight 9000 kgs
DUE TO THE LATE ARRIVAL OF NEW EQUIPMENT THE MACHINE WILL BE AVAILABLE IN EARLY MAY, 2022.
