Centre Lathes
Lot 22: DEAN SMITH & GRACE 1609 CT Surfacing & Boring Lathe. Year 1973
Swing over bed 16''. Coss sliding turret & tooling. 310mm dia. 3 jaw Chuck. Sliding Chuck Guard. Coolant. Serial No. 3980-10-73. Year 1973

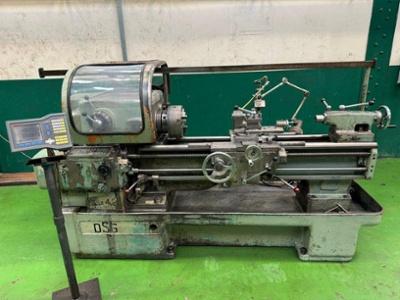

Lot 23: DEAN SMITH & GRACE 13-1 x 42'' Gap Bed Centre Lathe
Swing over bed 13”. Swing over cross slide 7”. Spindle bore 1.5/8”.Distance Between Centres 42”. Speed range 40 - 2240 rpm. Tailstock Taper 3MT. Drilling Attachment. 4 way toolpost. Travelling chuck guard.

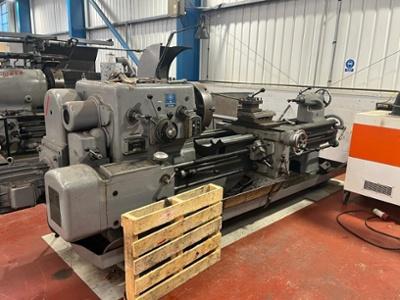

Lot 24: DEAN SMITH & GRACE Type 21 x 72'' Gap Bed Centre Lathe
Swing over Bed 21” . Swing in Gap 34” Swing over saddle 13’’. Distance between centres 72”. Spindle speeds. Spindle bore 3 5/8”. 4 way toolpost. Coolant pump.
Lot 25: DEAN SMITH & GRACE Type 21 x 96 Gap Bed Centre Lathe
Swing over bed 21''. Swing over cross slide 13''. Distance between centres 96''. Spindle speeds 7.5-600 rpm. Spindle dia. 3.1/2''. Motor 12.5 HP . Fitted with 400mm dia. 3 jaw chuck. 560mm dia. 4 jaw chuck. 4 way toolpost. Tailstock. Acurite DRO.Dual ...
Lot 26: DEAN SMITH & GRACE Type 21 x 96 Straight Bed Centre Lathe
Swing over bed 21''. Swing over cross slide 13''. Distance between centres 96''. Spindle speeds 13.7 - 1100 rpm. Spindle dia. 3.1/2''. Motor 12.5 HP . Fitted with 400mm dia. 3 jaw chuck. 4 jaw chuck. 4 way toolpost. Tailstock. 2 x Boring bar supports ...
Lot 27: DEAN SMITH & GRACE Type 1910 x 100'' Gap Bed Centre Lathe
Swing over bed 19''. Swing over cross slide 10''. Distance Between Centres. Swing in gap 32''. Distance between centres 100''. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 3.3/16''. Spindle power 11.25 kW. Tailstock quill dia.3''. Tailstock ...

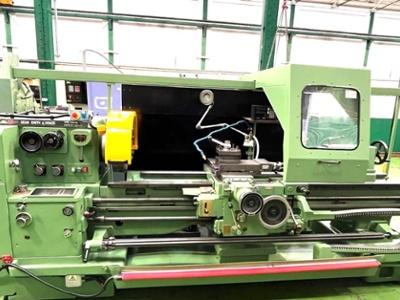

Lot 28: DEAN SMITH & GRACE Type 1910 x 80'' Gap Bed Centre Lathe. Year 1985
Swing over bed 495mm. Swing over cross slide 267mm. Swing in gap 737mm Width of gap in front of spindle nose 286mm. Width across bed shears 445mm. Distance between centres 2032mm. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 81mm. Spindle ...

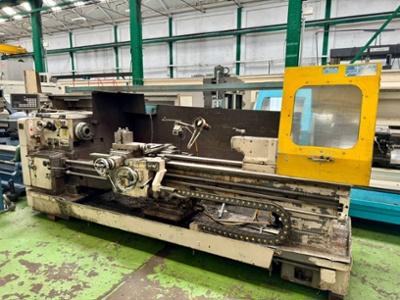

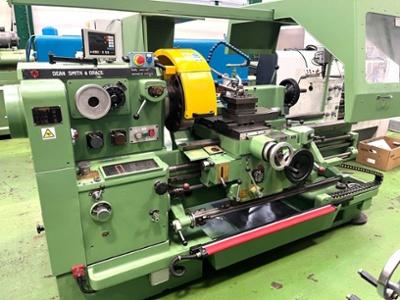

Lot 29: DEAN SMITH & GRACE Type 1910 x 40'' Straight Bed Centre Lathe. Year 1986
Swing over bed 495mm. Swing over cross slide 267mm. Swing in gap 737mm Width of gap in front of spindle nose 286mm. Width across bed shears 445mm. Distance between centres 1016mm. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 81mm. Spindle ...
Lot 30: COLCHESTER Mastiff 1400 x 80'' Gap Bed Centre Lathe
Maximum machining dia. 12mm. Maximum machining length 135mm. Maximum drilled hole dia. 6mm. Maximum dia. for tapping M6. Spindle thro’ hole dia. 14mm. Spindle speeds 100 – 12,000 rpm. Spindle collet chuck FC096-M. Guide bushing WFG541-M. Drill chuck ...
Lot 31: COLCHESTER Mascot 1600 x 40'' Gap Bed Centre Lathe
Swing over bed 17''. Swing over cross slide 10.1/2''. Swing in gap 28''. Distance between centres 40''. Spindle speeds 20-1600 rpm. Main motor 10 hp.Spindle bore 3''. Approximate dimensions 96'' x 40'' x 53''. Approximate weight 2100 kg.

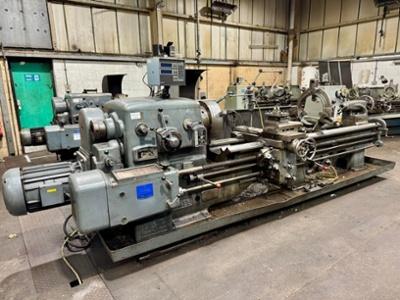

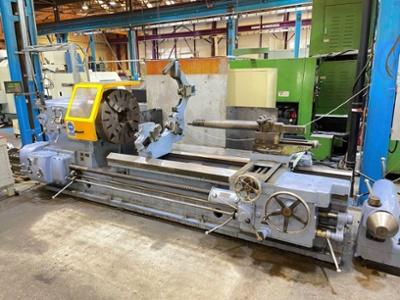

Lot 33: SWIFT 16V5 x 80'' Heavy Duty Gap Bed Centre Lathe
Swing over bed 32”. Swing over cross slide 24”. Swing in gap 64”. Distance between centres 80”. Spindle speeds 2.2 – 535 rpm. Spindle bore 4.3/16”. Width of bedways 30”. 31.1/2” 4 jaw chuck. Tailstock taper 6MT. 16” dia. capacity 3 point roller steady. ...

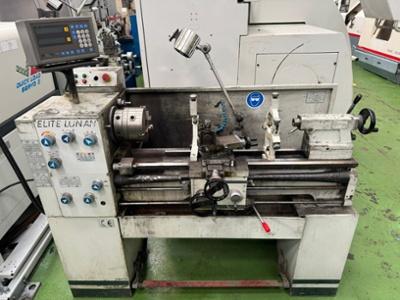

Lot 37: ELITE Lunan 13'' x 30'' Centre Lathe. Year 1999
Swing over bed 13''. Distance between centres 30''. Spindle speeds 60-2000 rpm. Quick change toolpost. 3 point steady. Traveling steady. 165mm dia. 3 jaw chuck. Change gears. Mitutoyo KL DRO.Footbrake.

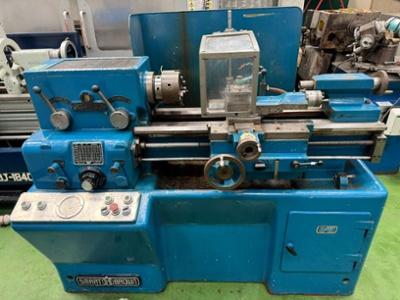

Lot 38: SMART & BROWN 1024 Mark II VSL 11'' x 24'' Precision Toolroom Centre Lathe
Swing over bed 11''. Swing over 6.1/4''. Distance between centres 24''. Spindle speeds 40-2500 rpm (steplessly variable). Spindle nose 4'' DI Camlock. Spindle bore 1.1/4''. Tailstock taper 3MT. Main motor 3HP. Machine dimensions L x W x H 65'' x 31''. ...

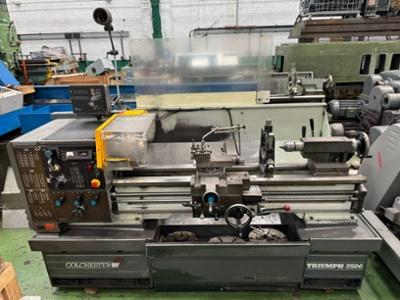

Lot 57: COLCHESTER Triumph 2500 x 50'' Straight Bed Centre Lathe
Swing over bed 15.3/4''. Swing over cross slide 9.1/2''. Distance between centres 50″. Spindle bore 2.1/8''.Speeds to 2500 rpm.(inf.variable). Spindle power 7.5 kW. Tailstock taper 5 MT. Quill travel 5.3/4''. 10'' dia. 3 jaw chuck. 12'' dia. 4 jaw chuck. ...
