SHORT NOTICE ONLINE AUCTION SALE - ON BEHALF OF VARIOUS VENDORS (170723)
Auction details
| Sales Starts | 17 Jun 2024 @ 09:00 |
|---|---|
| Sales Ends | 26 Jun 2024 @ 13:00 |
| Auction Catalogue |
Description
SHORT NOTICE ONLINE AUCTION SALE - ON BEHALF OF VARIOUS VENDORS (170723)
DOOSAN Puma MX 2000ST CNC Lathe with Milling Spindle. Sub Spindle. Imeca Multifeed Barfeed. Fanuc 18i-TB Control. Year 2005
CITIZEN B12 Sliding Head CNC Lathe with IMECA Mini Boss 325CNC Barfeed. Year 1995
CITIZEN B12 Sliding Head CNC Lathe with IMECA Mini Boss 325CNC Barfeed. Year 1997
BRIDGEPORT VMC1000/22 Vertical Machining Centre with 4th Axis Attachment. Heidenhain TNC370 Control. Year 1997
BRIDGEPORT VMC760 Vertical Machining Centre with Heidenhain TNC370 Control. Year 1995
BRIDGEPORT VMC600 Vertical Machining Centre with 4th Axis Attachment. Heidenhain TNC530 Control. Year 2003
DECKEL Maho 60T Vertical Machining Centre with Heidenhain iTNC530 Control. Year 2003
Buyers Premium 18%
Collection Details
Equipment can be loaded to Flat Bed transport free of charge and must be collected by 10th July 2024. Export packing can be quoted at extra cost.
Viewing Details
Viewing on site will be available by appointment only with the auctioneers. Visiting parties will need to wear Personal Protection Equipment. No Minors will be allowed onsite. For further enquiries please contact our Manchester Office. 0161 345 3000. All equipment has been removed for convenience of sale and are now located in Greater Manchester
Notice To Purchasers
If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licences will be required and it is the buyer’s responsibility to make the necessary enquiries prior to bidding. Please note under no circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.
Available Lots
Lots 1-7 of 7

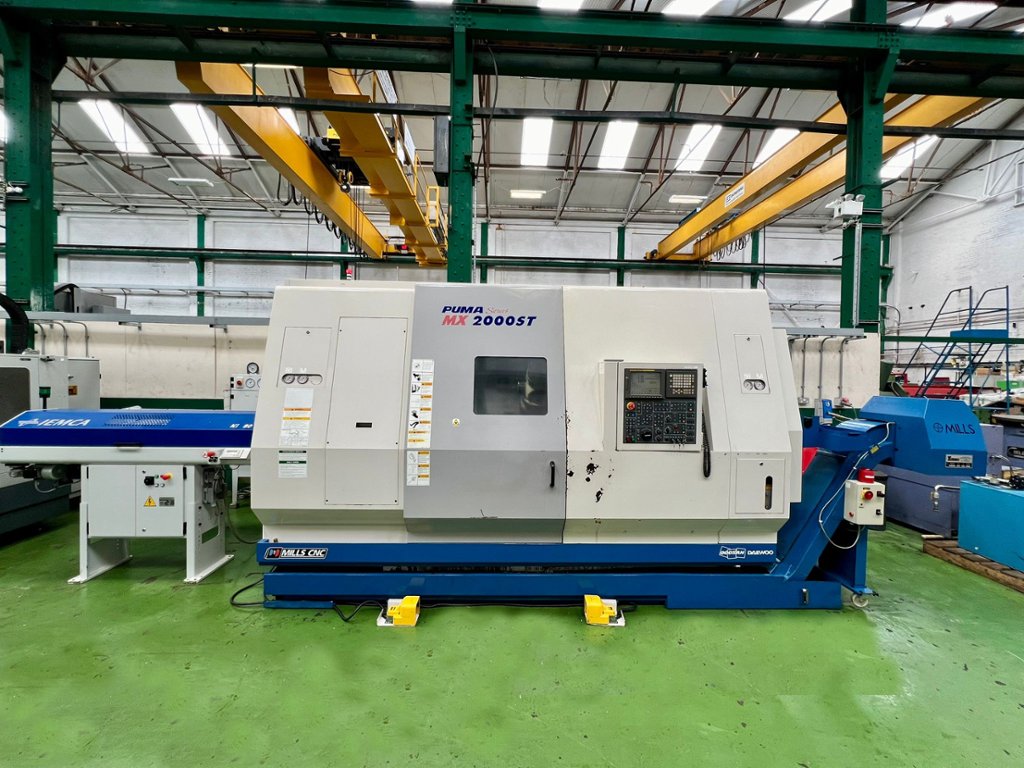

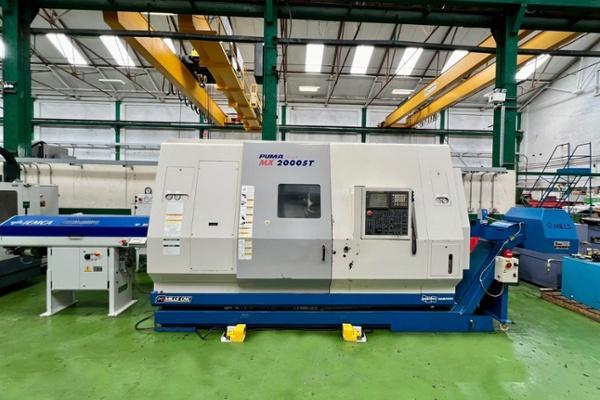

Lot 1: DOOSAN Puma MX 2000ST CNC Lathe with Milling Spindle. Sub Spindle. Imeca Multifeed Barfeed. Fanuc 18i-TB Control. Year 2005
Max. turning diameter with upper turret 550 mm. Max. turning diameter with lower turret 315 mm. Max. turning length 1020 mm. Max. bar capacity 65 mm. Main spindle power 22kW. Spindle speeds 5000 rpm. C Axis. Milling spindle power 18.5 kW. Milling speeds to 12,000rpm. Milling spindle taper Capto C6. B axis 240°. Auto toolchanger 40 positions. Sub spindle power 22kW. Spindle speeds 5000 rpm. C.Axis. Lower turret BMT65P. 12 station all driven positions. Max 4000 rpm. Machine complete with Swarf Conveyor. Nederman OMF1000 Oil Mist Filter. IMECA KI 80 Multifeed Barfeed. Toolsetter. Fanuc 18i-TB Control. Static & driven tooling package.
Machine dimensions L x W 4000mm (inc.barfeed & swarf conveyor 6080mm) x 2350mm x 2600mm. Approximate weight 12,500 kg.

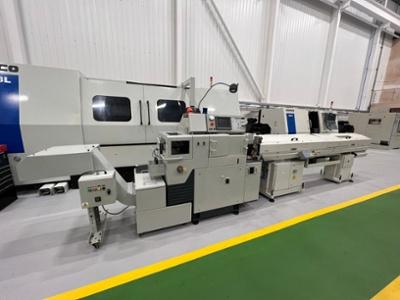

Lot 2: CITIZEN B12 Sliding Head CNC Lathe with IMECA Mini Boss 325CNC Barfeed. Year 1995
Maximum machining dia. 12mm. Maximum machining length 135mm. Maximum drilled hole dia. 6mm. Maximum dia. for tapping M6. Spindle thro’ hole dia. 14mm. Spindle speeds 100 – 12,000 rpm. Spindle collet chuck FC096-M. Guide bushing WFG541-M. Drill chuck AR11 & ER11. No. of mountable tools – Byte 5 Drilling 3. Tool size Byte 10mm x 10mm x 120mm. Sleeve 20mm dia. Rapid feedrate X&Y 21m/min. Z 15m/min. Least input increment X/Y/Z 0.001mm. Bar length 2500mm. Centre height of bar 1000mm. Motor rating – Spindle drive 1.5/2.2kW (15 minutes rated). X/Y/Z axis feed motors 0.3kW. Chuck opening/closing control motor & separator control motor 0.2kW. Coolant motor 0.18kW. Lubrication motor 0.002kW. Input power capacity 4Kva. Year 1995. Machine complete with IMECA Mini Boss 325CNC Barfeed (1995)
Machine dimensions L x W x H 1840mm (with swarf conveyor 2900mm) x 770mm x 1540mm. Approximate weight 900kg. Bar Feed dimensions L x W x H 4000mm x 600mm x 1250mm. Approximate weight 850kg

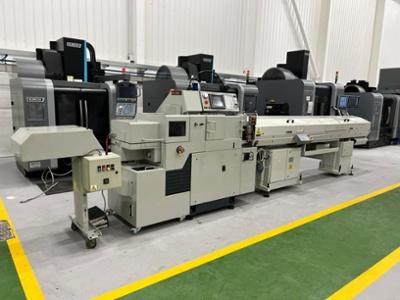

Lot 3: CITIZEN B12 Sliding Head CNC Lathe with IMECA Mini Boss 325CNC Barfeed. Year 1997
Maximum machining dia. 12mm. Maximum machining length 135mm. Maximum drilled hole dia. 6mm. Maximum dia. for tapping M6. Spindle thro’ hole dia. 14mm. Spindle speeds 100 – 12,000 rpm. Spindle collet chuck FC096-M. Guide bushing WFG541-M. Drill chuck AR11 & ER11. No. of mountable tools – Byte 5 Drilling 3. Tool size Byte 10mm x 10mm x 120mm. Sleeve 20mm dia. Rapid feedrate X&Y 21m/min. Z 15m/min. Least input increment X/Y/Z 0.001mm. Bar length 2500mm. Centre height of bar 1000mm. Motor rating – Spindle drive 1.5/2.2kW (15 minutes rated). X/Y/Z axis feed motors 0.3kW. Chuck opening/closing control motor & separator control motor 0.2kW. Coolant motor 0.18kW. Lubrication motor 0.002kW. Input power capacity 4Kva. Year 1997. Machine complete with IMECA Mini Boss 325CNC Barfeed (1997)
Machine dimensions L x W x H 1840mm (with swarf conveyor 2900mm) x 770mm x 1540mm. Approximate weight 900kg. Bar Feed dimensions L x W x H 4000mm x 600mm x 1250mm. Approximate weight 850kg

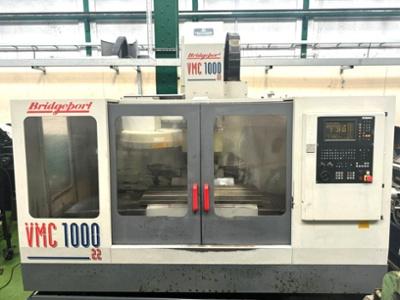

Lot 4: BRIDGEPORT VMC1000/22 Vertical Machining Centre with 4th Axis Attachment. Heidenhain TNC370 Control. Year 1997
Table size 1150mm x 490mm. Table loading 900kg. X/Y/Z travels 1020mm/510mm/500mm. Spindle taper BT40. Spindle speeds to 6,000 rpm. Spindle power 11kW. ATC 22 Tools. Rapid Feed Rates X/Y 42m/min. Z 25m/min. Tool change tool to tool 5.2 seconds. Max weight of each tool 6 kg. Max tool length 250mm. Max tool dia. with adjacent empty pocket. 130mm. Complete with 4th Axis Attachment. Heidenhain TNC370 Control. Year 1996.
Machine dimensions L x W x H 2830mm x 2160mm x 2595mm. Approximate weight 3600 kg.

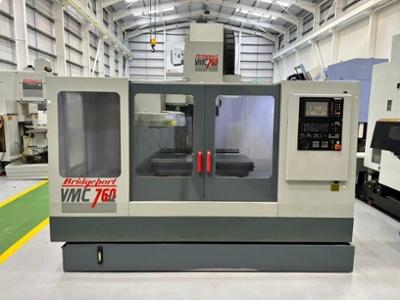

Lot 5: BRIDGEPORT VMC760 Vertical Machining Centre with Heidenhain TNC370 Control. Year 1995
Table size 1000mm x 490mm. X/Y/Z travels 800mm/510mm/500mm. Spindle taper BT40. Spindle Speeds 40 – 6000 rpm. Spindle power 11kW. 22 ATC. Swarf conveyor. Heidenhain TNC 370.
Machine dimensions L x W x H 3175mm x 2505mm x 2585mm. Approximate weight 3600 kg

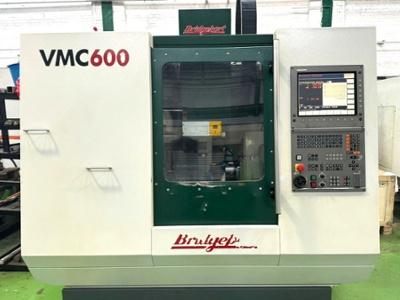

Lot 6: BRIDGEPORT VMC600 Vertical Machining Centre with 4th Axis Attachment. Heidenhain TNC530 Control. Year 2003
Table size 840mm x 420mm. X/Y/Z travels 600mm/410mm/520mm. Spindle taper BT40. Spindle Speeds 40 – 8000 rpm. Spindle power 11 kW. Rapids X/Y Axes 40m/min. Z Axis 20m/min. 22 ATC. Swarf conveyor. 4th Axis Attachment. Heidenhain TNC 530 Control. Year 2003.
Machine dimensions L x W x H 2000mm x 2020mm x 2530mm. Approximate weight 2600 kg

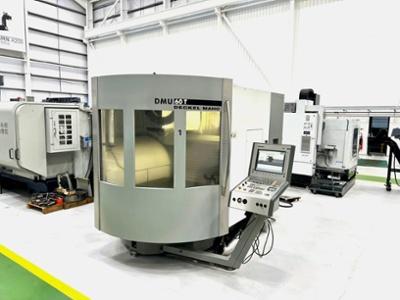

Lot 7: DECKEL Maho 60T Vertical Machining Centre with Heidenhain iTNC530 Control. Year 2003
Table dimensions 1000mm x 600mm. Table loading 350 kg. T Slots No.8 @ 63mm centres. X/Y/Z travels 630mm/560mm/560mm. Feedrates X/Y/Z 20-10,000 mm/min. Rapids X&Y 18m/min. Z 17m/min. Spindle Taper SK40. Auto toolchanger 25 positions. Spindle speeds 20-12,000 rpm. Spindle power 10/15kW. Coolant Tank/Pump. Heidenhain iTNC530 Control.
Machine dimensions L x W x H 2880mm x 3490mm x 2220mm. Approximate weight 7,000kg
