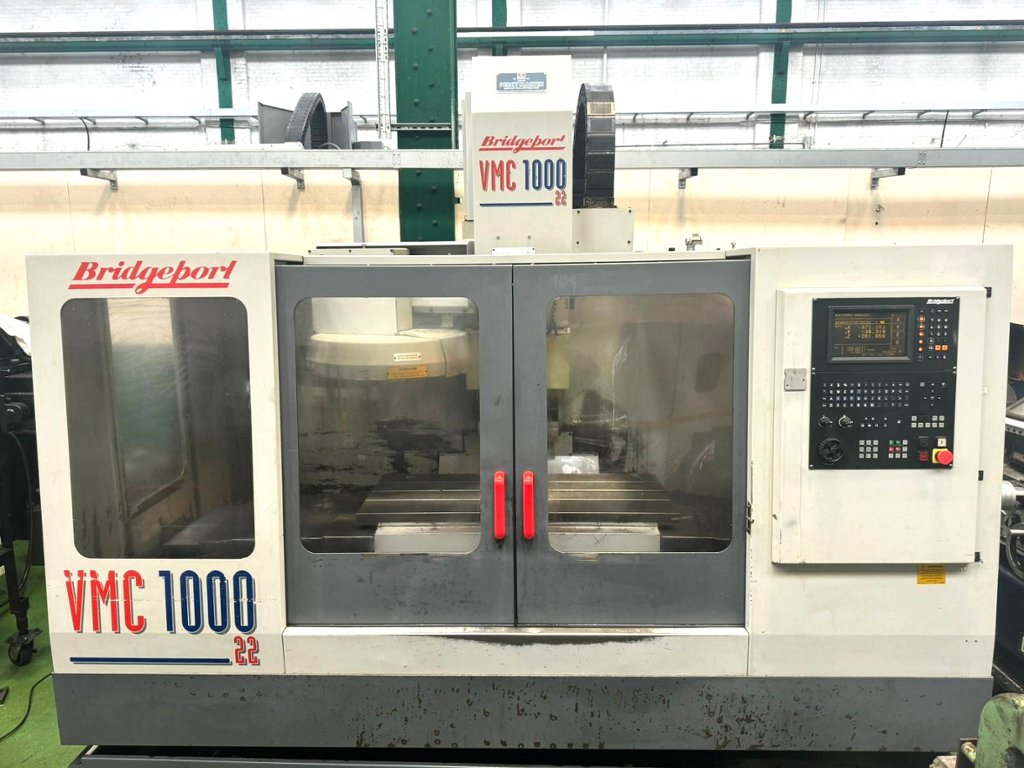

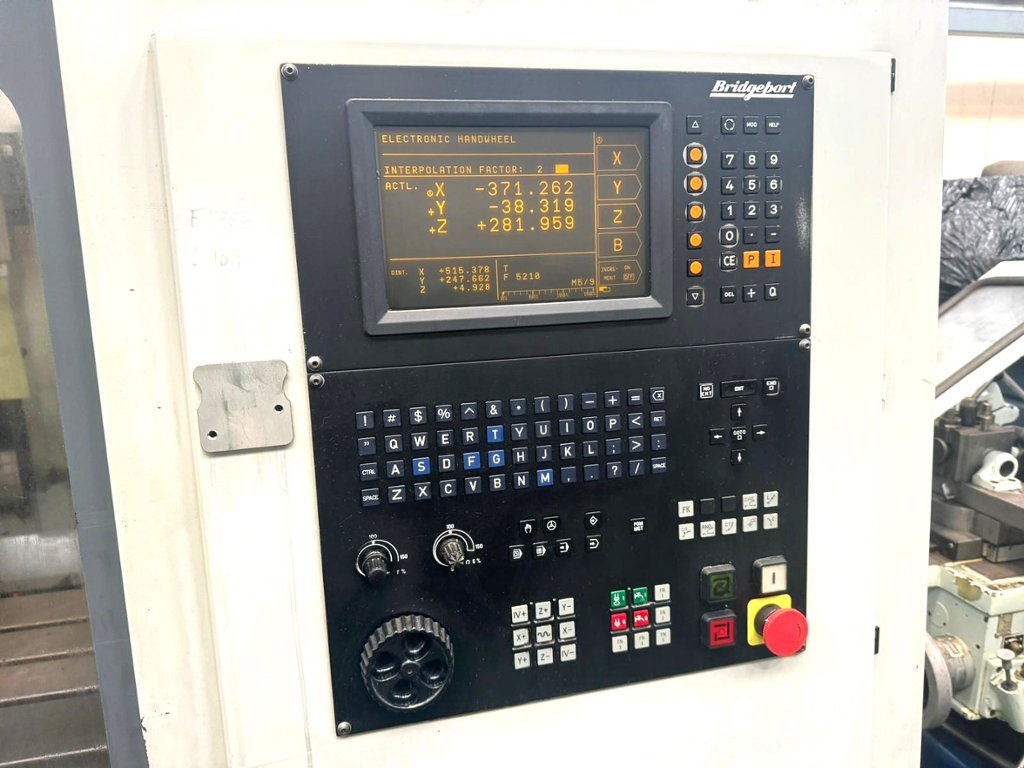

Lot 4: BRIDGEPORT VMC1000/22 Vertical Machining Centre with 4th Axis Attachment. Heidenhain TNC370 Control. Year 1997
This lot has been archived
Description
Table size 1150mm x 490mm. Table loading 900kg. X/Y/Z travels 1020mm/510mm/500mm. Spindle taper BT40. Spindle speeds to 6,000 rpm. Spindle power 11kW. ATC 22 Tools. Rapid Feed Rates X/Y 42m/min. Z 25m/min. Tool change tool to tool 5.2 seconds. Max weight of each tool 6 kg. Max tool length 250mm. Max tool dia. with adjacent empty pocket. 130mm. Complete with 4th Axis Attachment. Heidenhain TNC370 Control. Year 1996.
Machine dimensions L x W x H 2830mm x 2160mm x 2595mm. Approximate weight 3600 kg.
