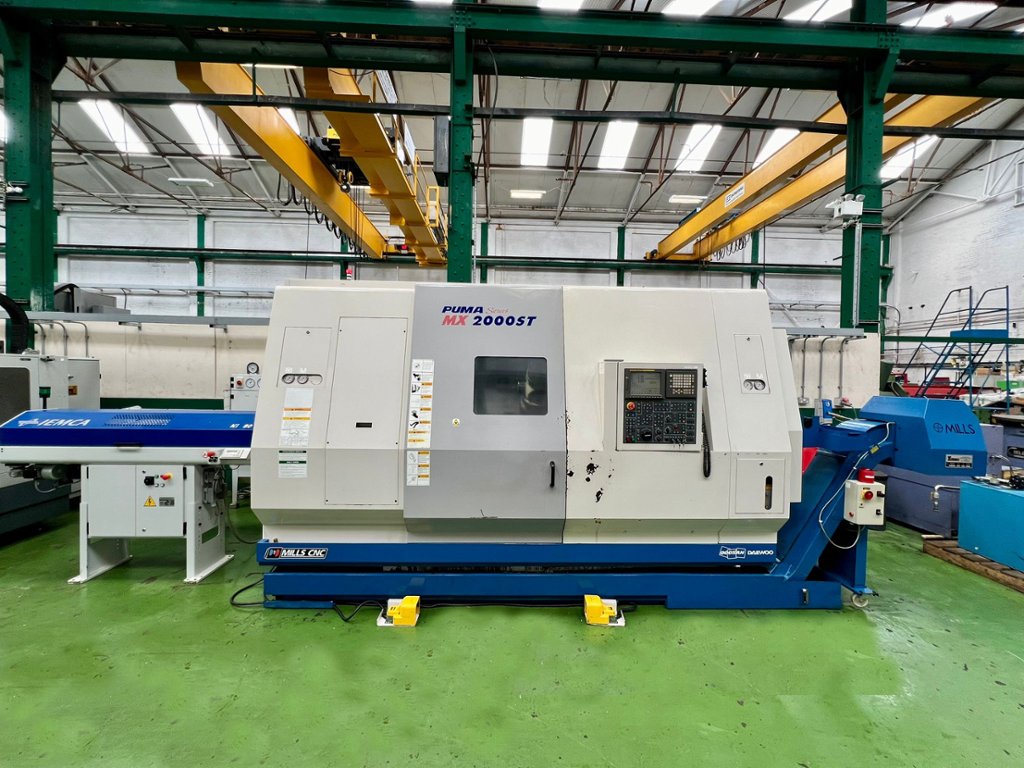

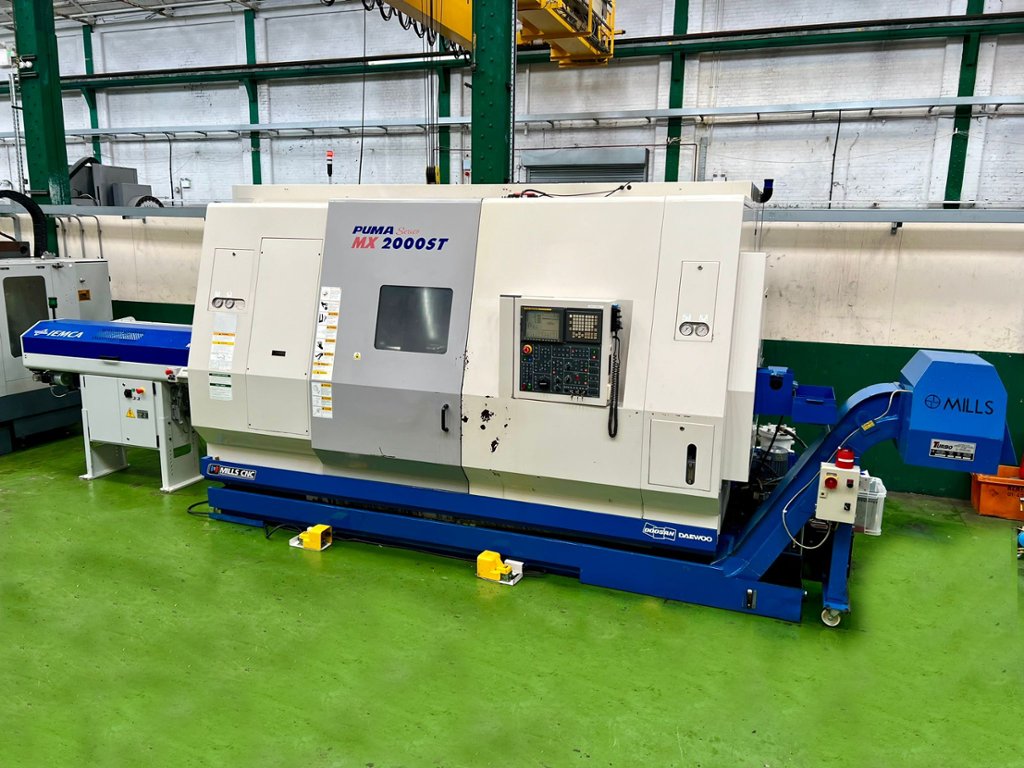

Lot 1: DOOSAN Puma MX 2000ST CNC Lathe with Milling Spindle. Sub Spindle. Imeca Multifeed Barfeed. Fanuc 18i-TB Control. Year 2005

This lot has been archived

Bidding on this lot has finished

Description

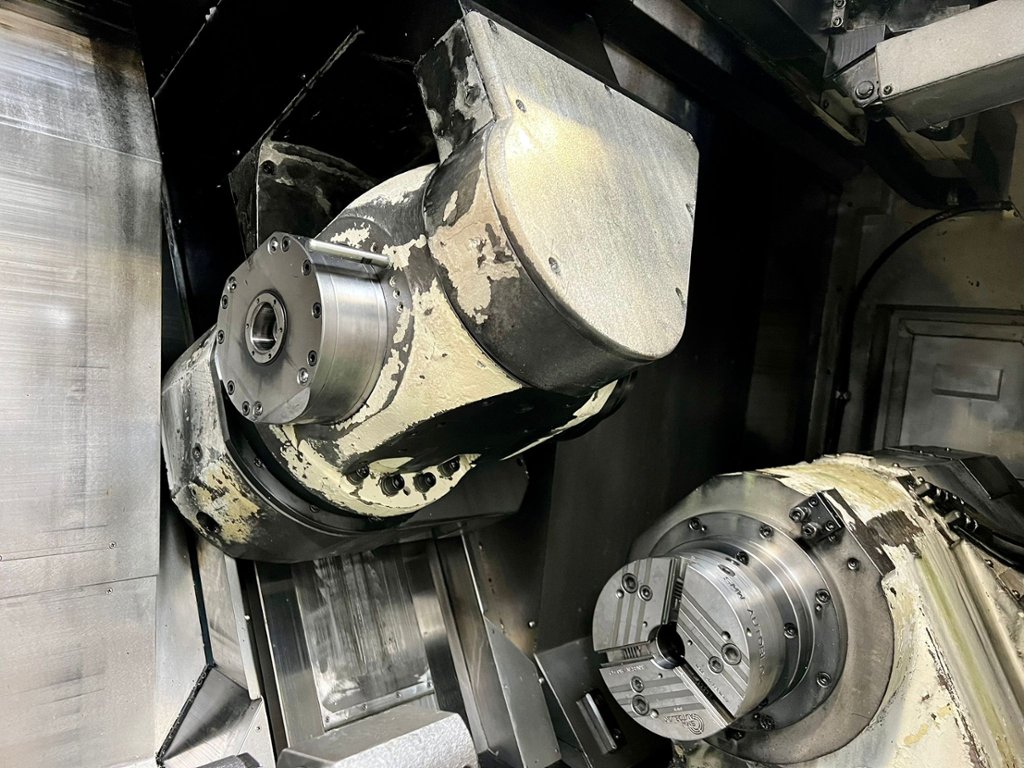

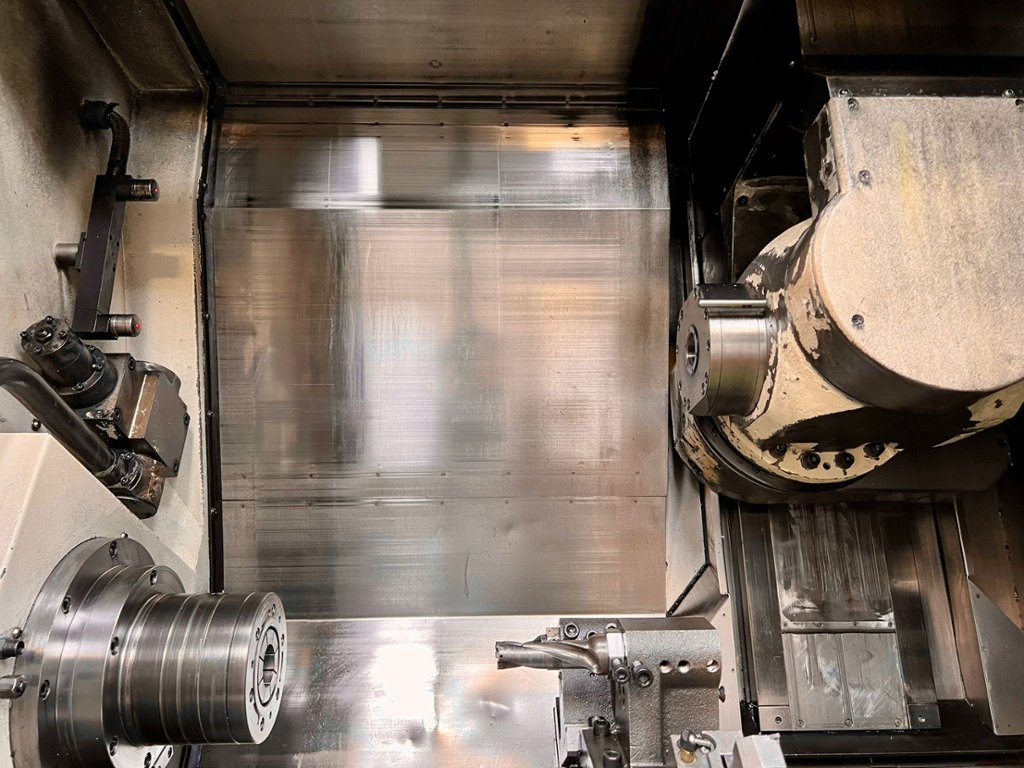

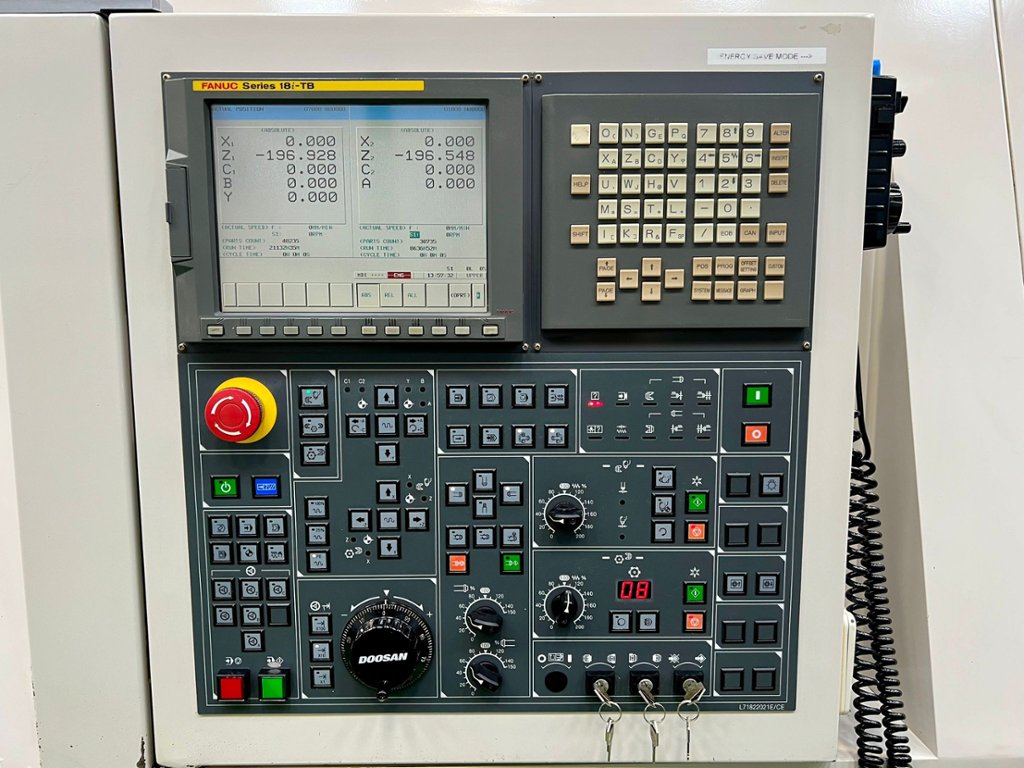

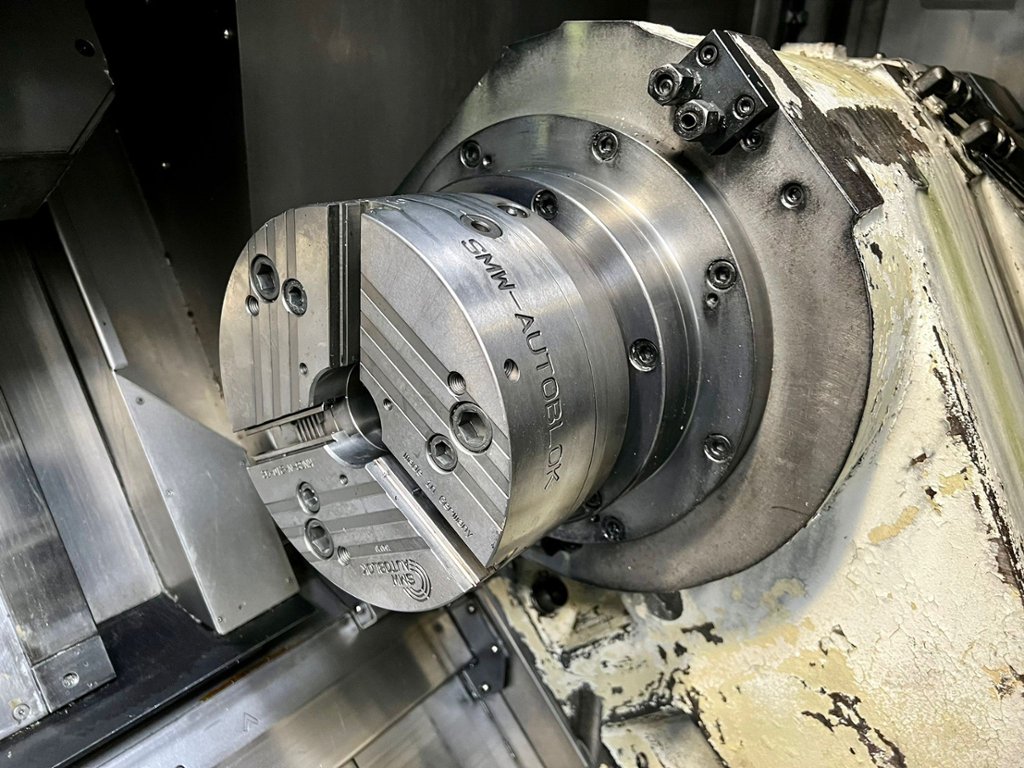

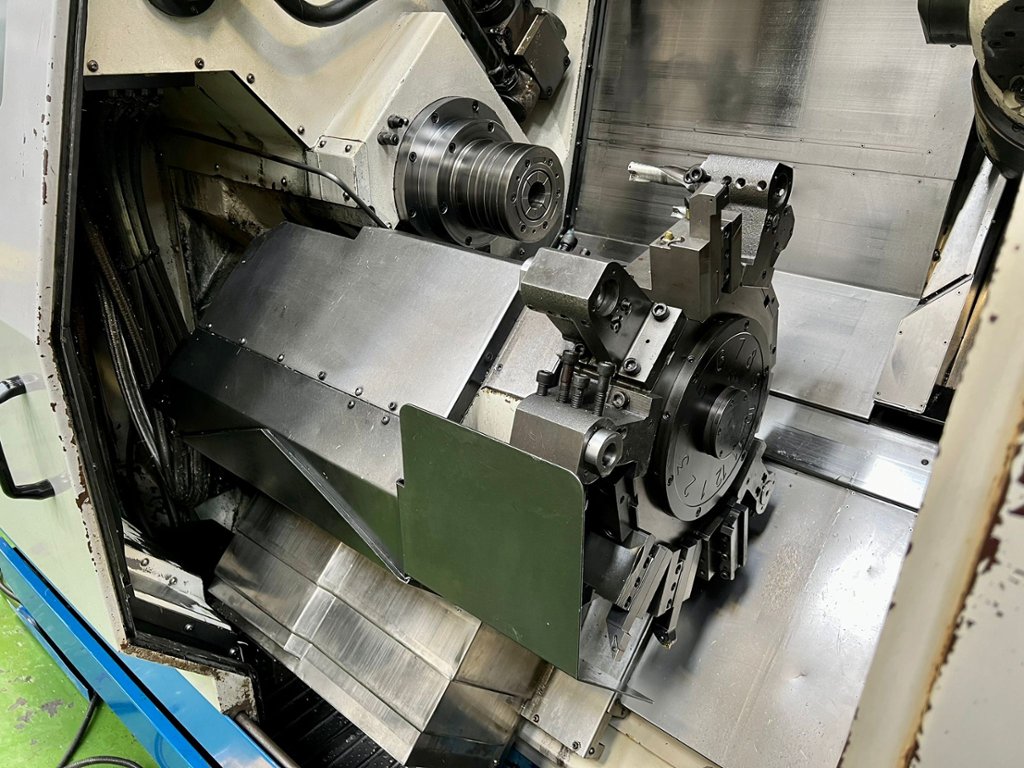

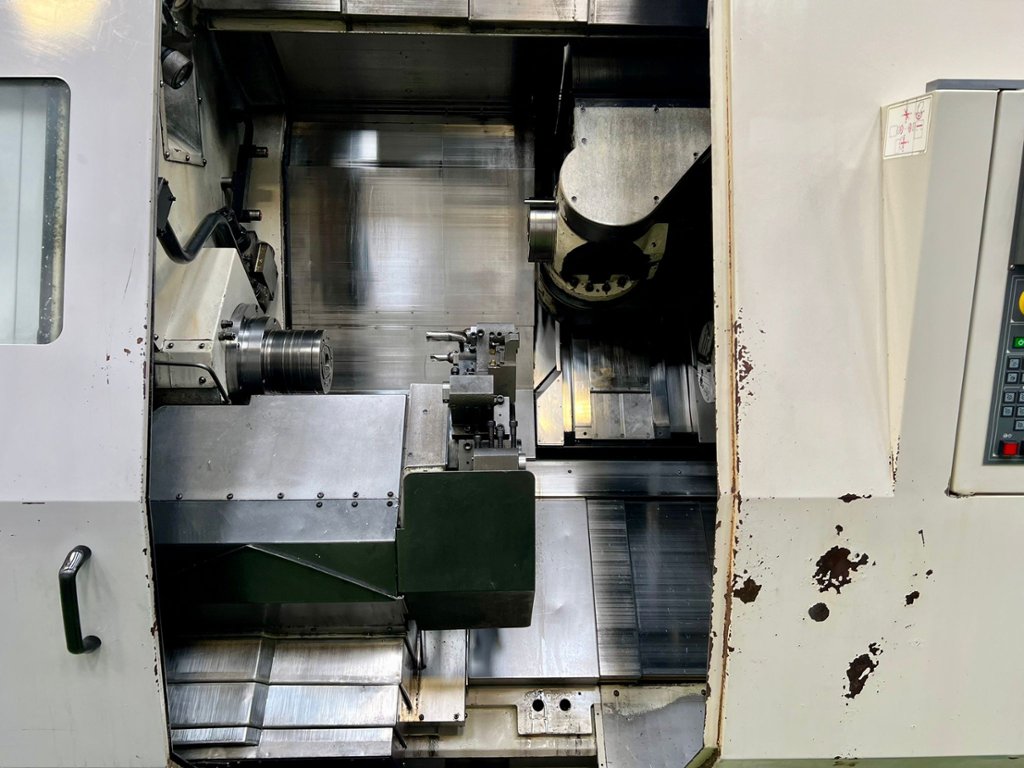

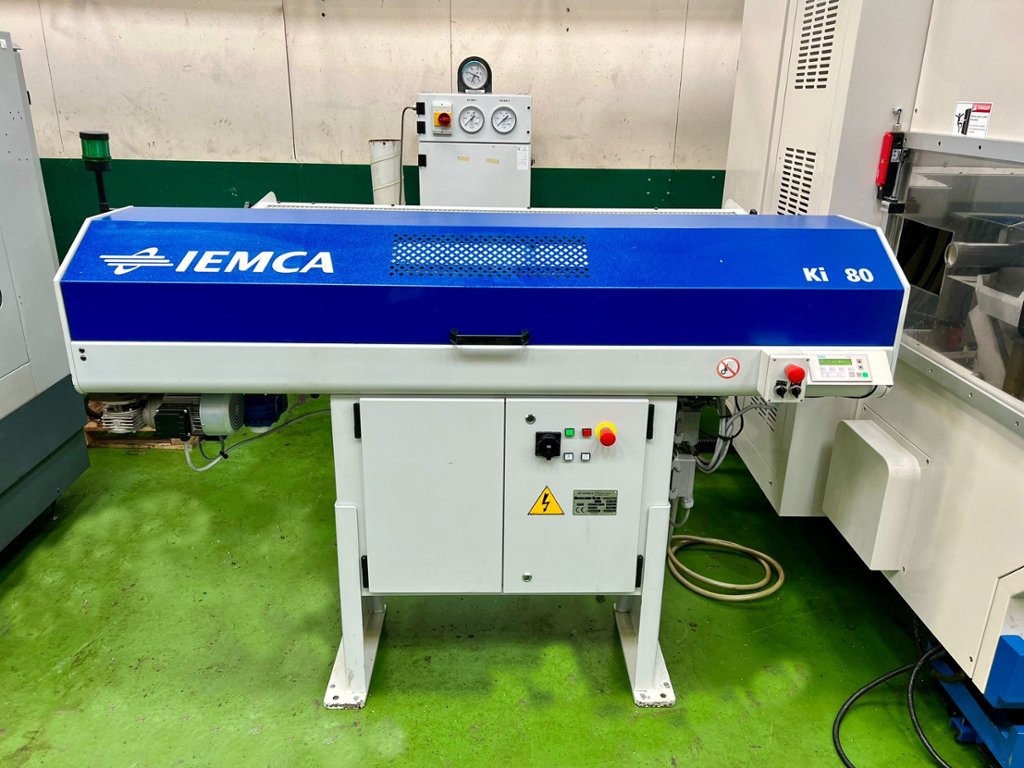

Max. turning diameter with upper turret 550 mm. Max. turning diameter with lower turret 315 mm. Max. turning length 1020 mm. Max. bar capacity 65 mm. Main spindle power 22kW. Spindle speeds 5000 rpm. C Axis. Milling spindle power 18.5 kW. Milling speeds to 12,000rpm. Milling spindle taper Capto C6. B axis 240°. Auto toolchanger 40 positions. Sub spindle power 22kW. Spindle speeds 5000 rpm. C.Axis. Lower turret BMT65P. 12 station all driven positions. Max 4000 rpm. Machine complete with Swarf Conveyor. Nederman OMF1000 Oil Mist Filter. IMECA KI 80 Multifeed Barfeed. Toolsetter. Fanuc 18i-TB Control. Static & driven tooling package.

Machine dimensions L x W 4000mm (inc.barfeed & swarf conveyor 6080mm) x 2350mm x 2600mm. Approximate weight 12,500 kg.
