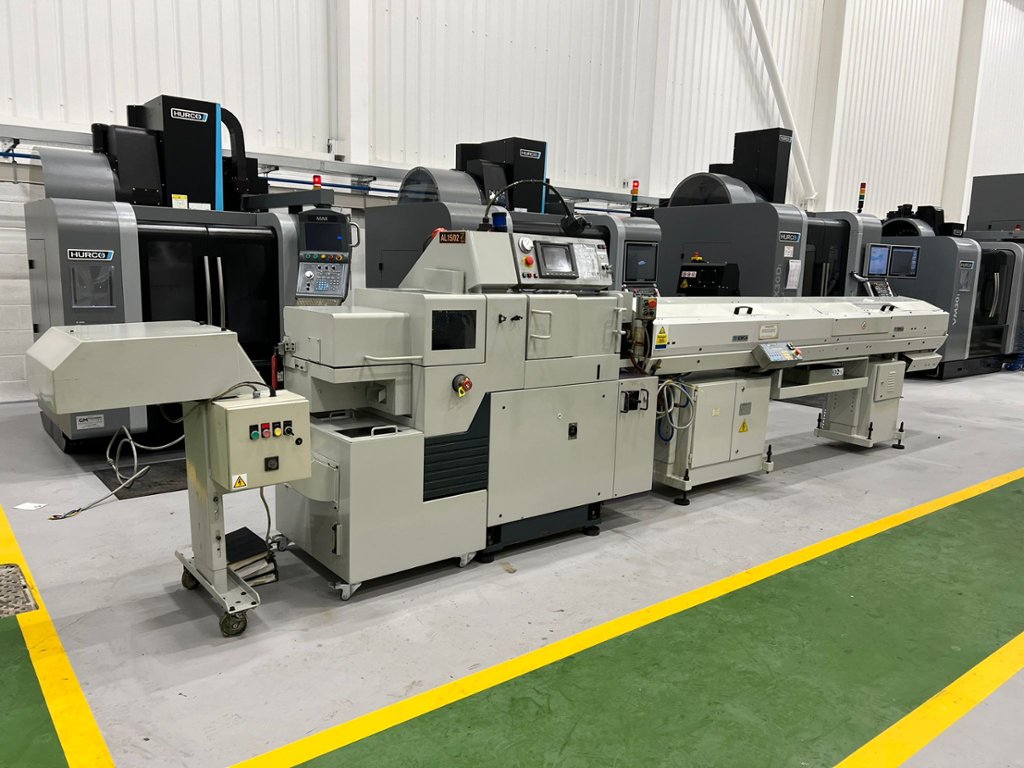

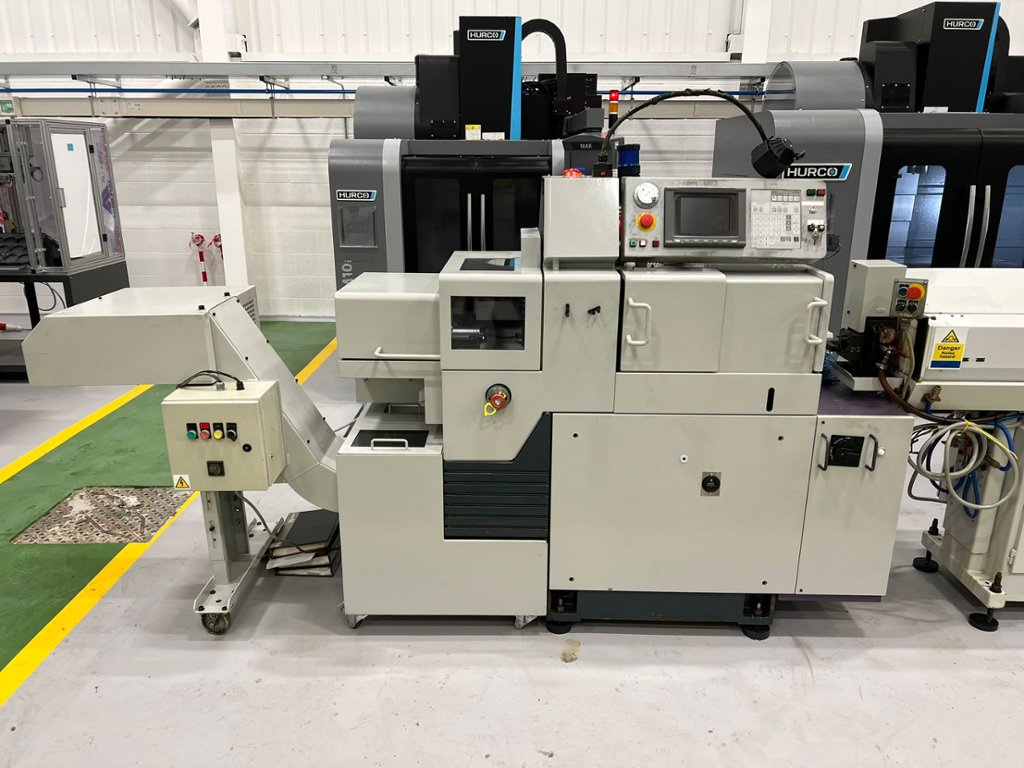

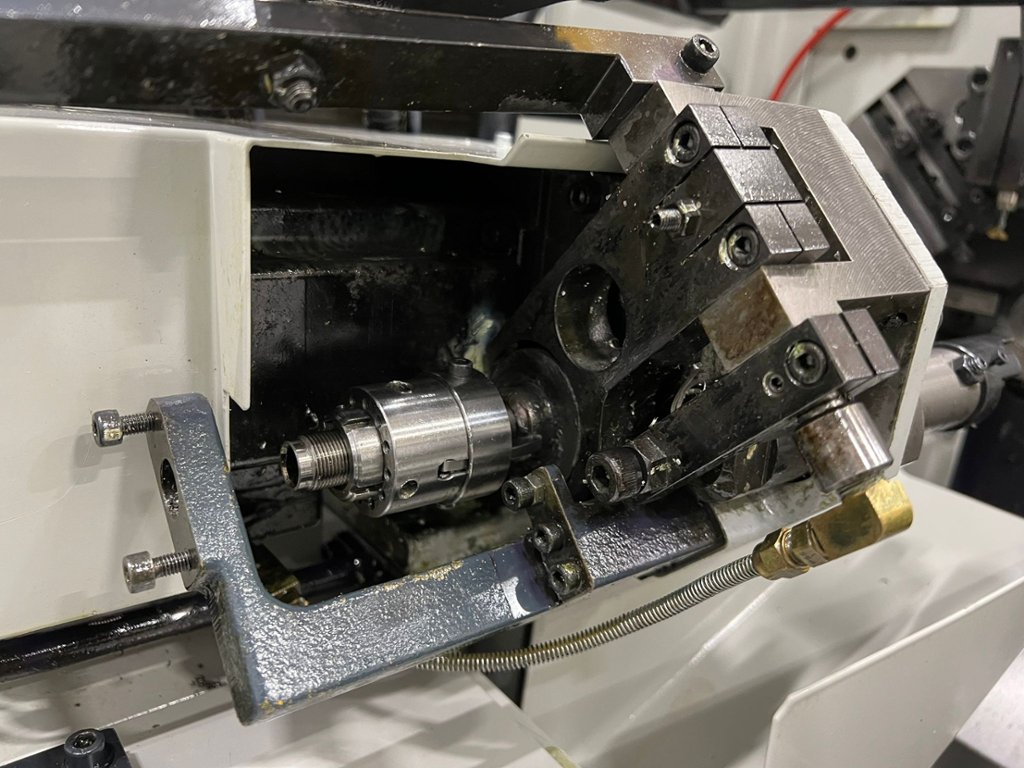

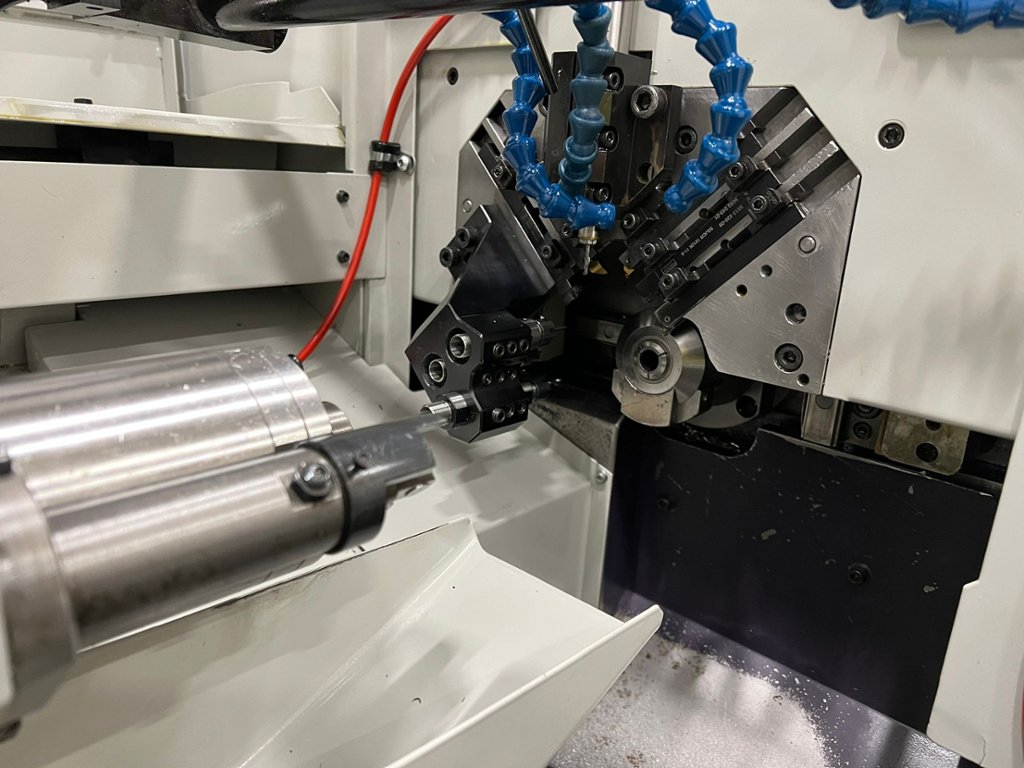

Lot 3: CITIZEN B12 Sliding Head CNC Lathe with IMECA Mini Boss 325CNC Barfeed. Year 1997

This lot has been archived

Bidding on this lot has finished

Description

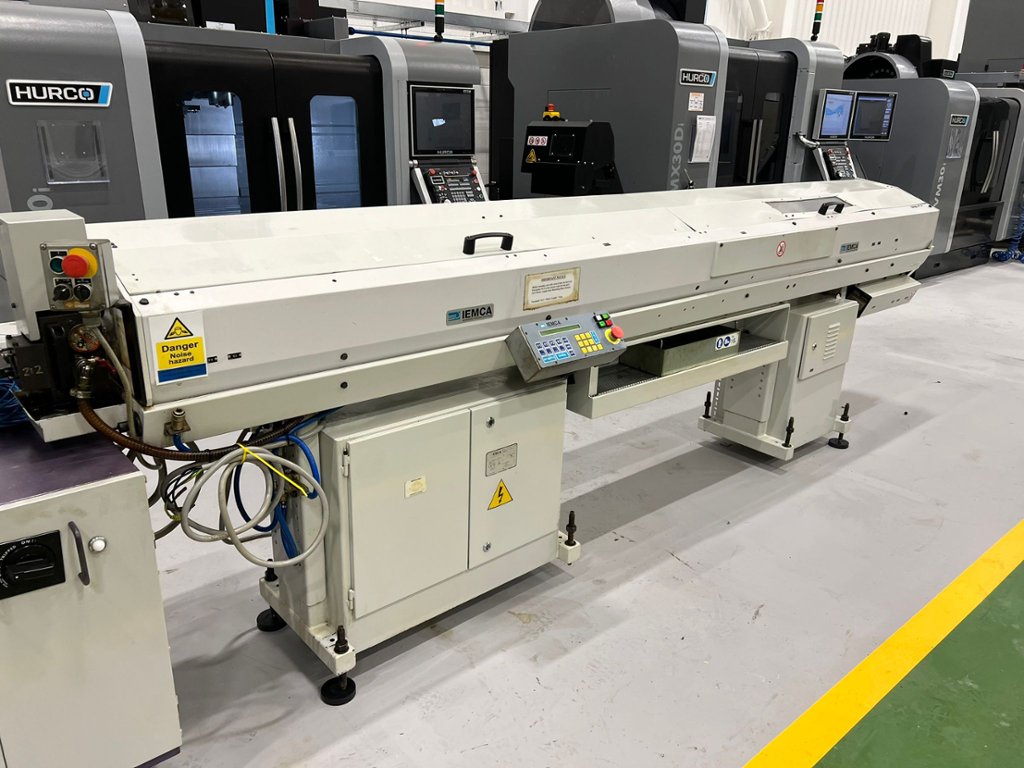

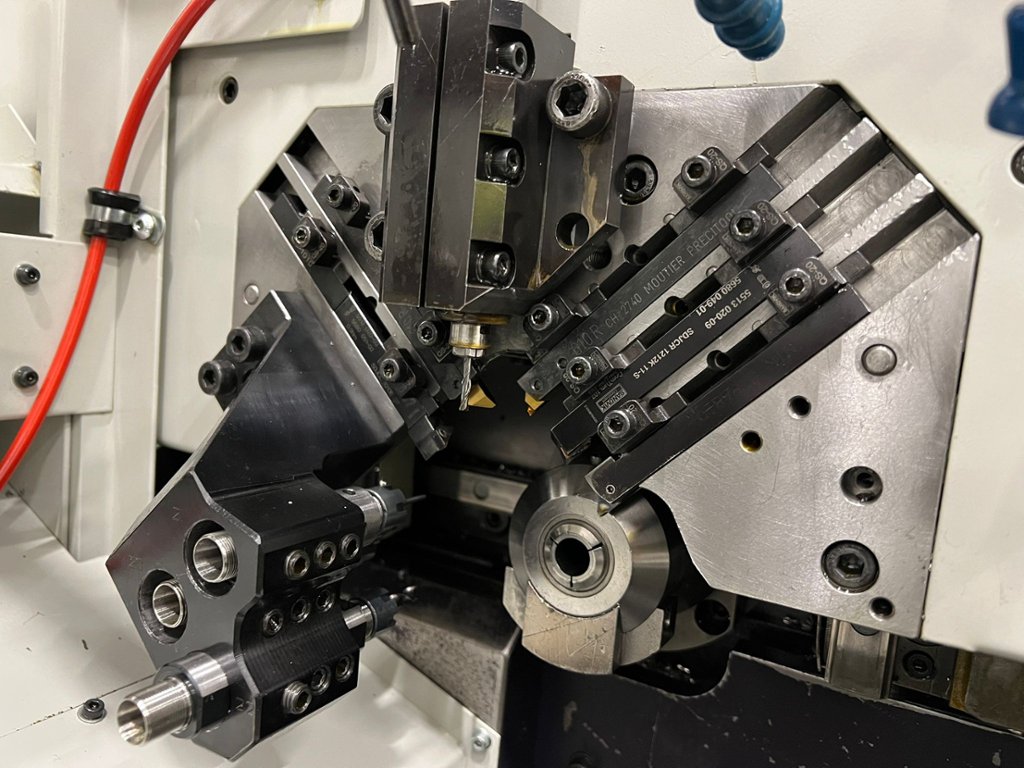

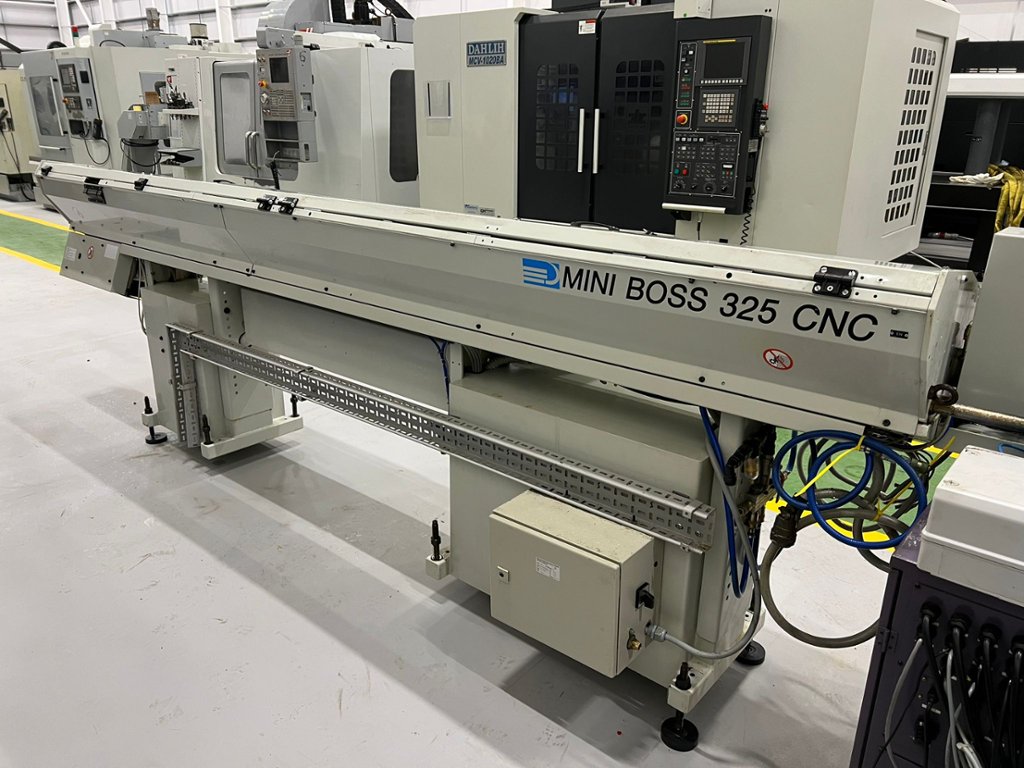

Maximum machining dia. 12mm. Maximum machining length 135mm. Maximum drilled hole dia. 6mm. Maximum dia. for tapping M6. Spindle thro’ hole dia. 14mm. Spindle speeds 100 – 12,000 rpm. Spindle collet chuck FC096-M. Guide bushing WFG541-M. Drill chuck AR11 & ER11. No. of mountable tools – Byte 5 Drilling 3. Tool size Byte 10mm x 10mm x 120mm. Sleeve 20mm dia. Rapid feedrate X&Y 21m/min. Z 15m/min. Least input increment X/Y/Z 0.001mm. Bar length 2500mm. Centre height of bar 1000mm. Motor rating – Spindle drive 1.5/2.2kW (15 minutes rated). X/Y/Z axis feed motors 0.3kW. Chuck opening/closing control motor & separator control motor 0.2kW. Coolant motor 0.18kW. Lubrication motor 0.002kW. Input power capacity 4Kva. Year 1997. Machine complete with IMECA Mini Boss 325CNC Barfeed (1997)

Machine dimensions L x W x H 1840mm (with swarf conveyor 2900mm) x 770mm x 1540mm. Approximate weight 900kg. Bar Feed dimensions L x W x H 4000mm x 600mm x 1250mm. Approximate weight 850kg
