ONLINE AUCTION SALE - SALE OF CNC & CONVENTIONAL MACHINE TOOLS, GEARCUTTING & SHEET METAL EQUIPMENT (170720)
Auction details
| Sales Starts | 21 Feb 2024 @ 09:00 |
|---|---|
| Sales Ends | 14 Mar 2024 @ 13:00 |
| Auction Catalogue |
Description
On instructions received due to the liquidation of Vector Precision Engineering Ltd and others and removed for convenience of sale
ONLINE AUCTION OF APPROXIMATELY 75 MACHINES - LOADED FREE TO FLATBED TRANSPORT
CNC Lathe & Mills by HURCO, BROADBENT STANLEY,HAAS, XYZ, MAZAK, HARRISON, HARDINGE BRIDGEPORT etc
Conventional Machines by COLCHESTER,XYZ,HARRISON, DEAN SMITH & GRACE, JONES & SHIPMAN, KITCHEN & WALKER,HERBERT etc
Sheet Metalworking machines by EDWARDS PEARSON, PEARSON, CINCINNATI, KINGSLAND, EDWARDS, BOXER.
Gearcutting Machines by SYKES, GLEASON & HEIDENREICH & HARBECK
Sales includes various electric motors,compressors,vices,rotary tables,surface tables,inspection equipment & much more
All lots subject to a 15% Buyers Premium
Auction closes from 1pm on Thursday 14th March, 2024
Collection Details
All lots in the sale can be loaded free of charge to flatbed transport commencing TUESDAY 19TH MARCH, 2024 by appointment only. Smaller items can be palletised and loaded to courier transport for £50 per pallet.
ALL LOTS MUST BE COLLECTED NO LATER THAN WEDNESDAY 27TH MARCH, 2024
Viewing Details
Viewing is by appointment only with the auctioneers, the equipment has been moved into storage in Oldham, Greater Manchester. No minors will be allowed on site.
Notice To Purchasers
If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licences will be required and it is the buyer’s responsibility to make the necessary enquiries prior to bidding. Please note under no circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.
Available Lots
Lots 26-50 of 166

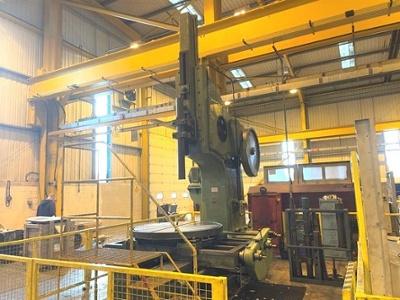

Lot 26: BUTLER 30inch Slotting Machine
Minimum stroke 12”. Maximum stroke 30”. Cycles per min 7,9,11,15,19,24. Machine complete with slotting bars and tooling.
PLEASE NOTE THIS MACHINE IS DISMANTLED & LYING IN STORAGE IN HALIFAX. CAN BE LOADED FREE OF CHARGE TO FLAT BED TRANSPORT.

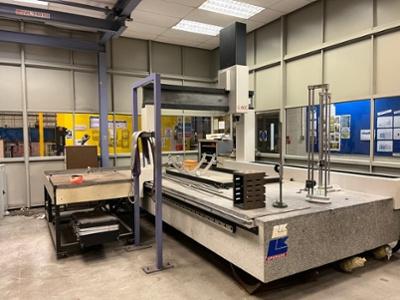

Lot 27: LK Metrology G80C Co-ordinate Measuring Machine with Renishaw PH10M Probe
Complete with PC containing recently updated software. Table size 3365mm x 1900mm, NMC300 control

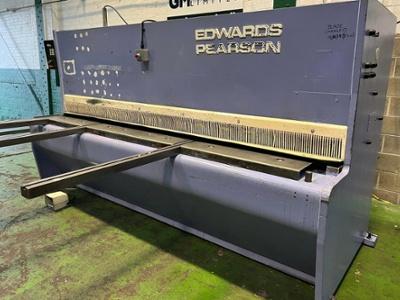

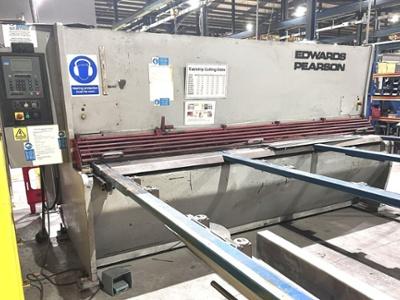

Lot 28: EDWARDS PEARSON Model VE10/3000 Hydraulic Guillotine with Swissax 2000 NC Backgauge.(1993)
Capacity in Mild Steel 10mm. Capacity in Stainless Steel 8mm. Capacity in Aluminum 13mm. Maximum cutting length 3080mm. Top blade rake angle 0°30’/2°30’. Backgauge Length 5/1000. No.of clamping jacks 14. Backgauge speed 200mm/sec. Hydraulic oil capacity ...
Lot 29: EDWARDS PEARSON Model V13/3000 Hydraulic Guillotine with Cybelec DNC60 NC Backgauge (approx 1993)
Capacity in Mild Steel 13mm. Capacity in Stainless Steel 10mm. Capacity in Aluminum 16mm. Maximum cutting length 3080mm. Top blade rake angle 0°30’/2°55’. Backgauge Length 5/1000. No.of clamping jacks 14. Backgauge speed 200mm/sec. Hydraulic oil capacity ...

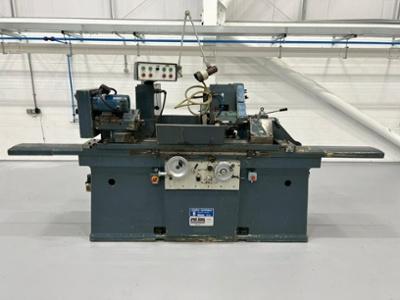

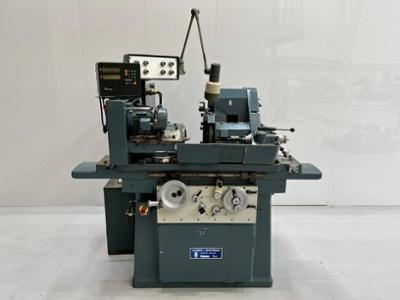

Lot 30: JONES & SHIPMAN 1311 EIU Universal Cylindrical Grinder. (1985)
Centre height 127mm. Maximum dia. ground with new grinding wheel 250mm. Distance between centres 457mm. Workhead speeds (6) 40-320 rpm. Grinding wheel size (dia x width x bore) 300mm x 25mm x 127mm. Single swivel wheelhead. Adjustment of table (included ...
Lot 31: JONES & SHIPMAN 1307EIU Universal Cylindrical Grinder. (1980)
Centre height 127mm. Maximum dia. ground with new grinding wheel 250mm. Distance between centres 457mm. Workhead speeds (6) 40-320 rpm. Grinding wheel size (dia x width x bore) 300mm x 25mm x 127mm. Single swivel wheelhead. Adjustment of table (included ...

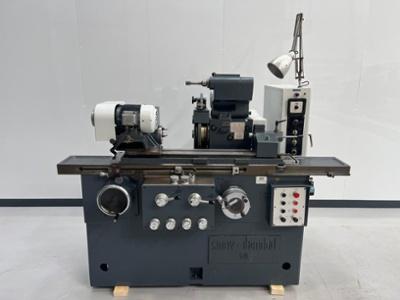

Lot 32: SNOW DANOBAT 50 Cylindrical Grinding Machine with Internal Grinding Attachment
Wheelhead speed 1700rpm. Centre height 100mm. Distance between centres 550mm. Swivel Table. Internal Attachment. Lo volt light. Serial number 285.415.16.2.72

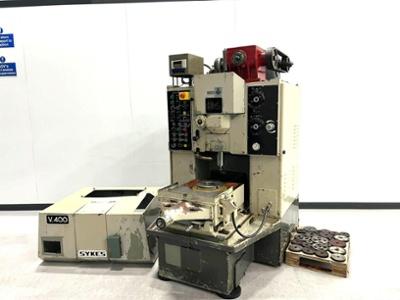

Lot 33: SYKES V400 Gear Shaper with Change Gears
Maximum dia External gears 400 mm. Internal gears 380mm. Maximum Pitch Mod. 6 (4 D.P). Maximum Helix Angle 45°. Cutter Stroke 0-100mm. Stroke adjustment 0.50mm. Spindle dia. 70mm. Spindle Speeds 50-1000 strokes per minute.. Table dia. 250mm. Table bore ...

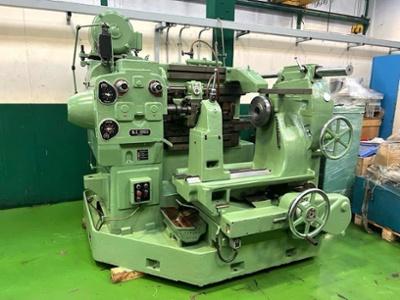

Lot 34: SYKES 3C Double Helical Gear Shaper complete with change gears
Capacities: Maximum dia. 41 in (1041 mm). Pitch 36 – 2.1/2 DP. 0.7 – 10 mm Mod. Face Width (Spur or single helical gear) 0 – 7.1/2” (0-190.5 mm). Double helical gear 0 – 10”(0 – 254 mm).Internal Gear 0 – 6 in (0 – 152 mm). Work Spindle bore 3.13/16 ...

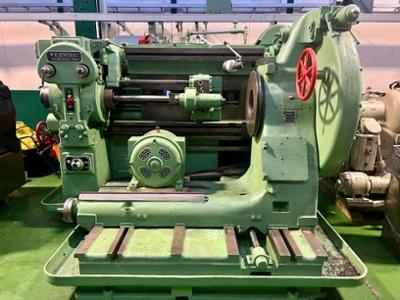

Lot 35: SYKES Model 5E Gear Generator for Double Helical (Herringbone) Single Helical & Internal Gears.
Pitch range (minimum) 1.5 DP. 17 Module.Pitch range (maximum) 16 DP. 17 Module. Helix angle range 0 – 45 degrees.Spindle bore 9.875”/250mm.Maximum distance Tailstock to face of work spindle 48” /1219 mm.Standard cutter diameter 6” P.C.D.Standard ...

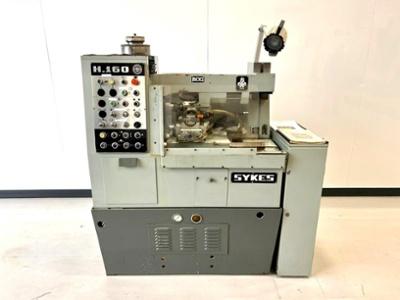

Lot 36: SYKES H160 Horizontal Gear Hobbing Machine
Workpiece: Maximum work dia. 160mm. Max. Module 2.5. 10 DP. Capacity: Minimum vertical centre distance 6mm. Maximum vertical centre distance 120mm. Maximum vertical feed travel 118mm. Minimum distance hob centre to spindle face 85mm. Maximum distance ...

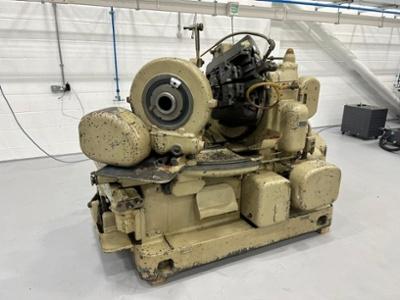

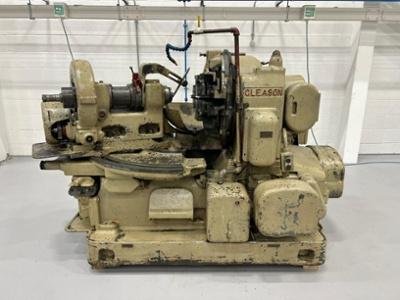

Lot 37: GLEASON 12 Straight Bevel Gear Generator
Rougher & Finisher. Change Gears & Setting Gauges. Machine Serial No. 16236
Lot 38: GLEASON 12 Straight Bevel Gear Generator
Rougher & Finisher. Change Gears & Setting Gauges. Machine Serial No. 19223
Lot 39: HEIDENREICH & HARBECK 26HS High Speed Straight Bevel Gear Generator. (1972)
Nominal capacity 280mm/11″ dia. Largest conical face 143mm/5.63″. Maximum pitch 8 MOD/3DP. Spindle bore 135mm/5.3″. Rougher & Finisher. Change gears. Large qty of accessories. Machine serial no. 80-0249-0244

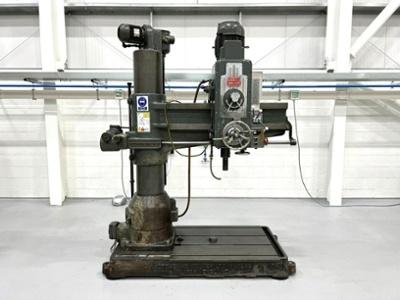

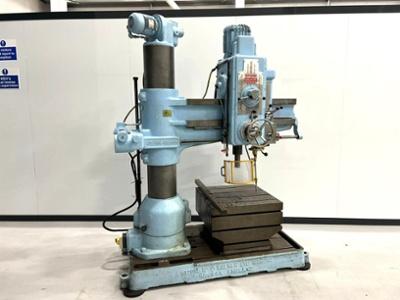

Lot 40: KITCHEN & WALKER Model E2 48” Radial Arm Drilling Machine with Box Table. (1977)
Radius of Arm 48″. Spindle Taper No.4 Morse. Spindle Speeds 25 – 1560rpm. Quill travel 14″. Drilling Capacity 2 1/2″. Power Feeds 0.0035 – 0.041″/rev. Box Table 32″ x 24″ x 20″. DC Telescopic Brake/Guard. Coolant Pump.
Lot 41: KITCHEN & WALKER Model E2 48” Radial Arm Drilling Machine with Box Table. (1978)
Radius of Arm 48″. Spindle Taper No.4 Morse. Spindle Speeds 25 – 1560rpm. Quill travel 14″. Drilling Capacity 2 1/2″. Power Feeds 0.0035 – 0.041″/rev. Box Table 32″ x 24″ x 20″. DC Telescopic Brake. Coolant Pump.

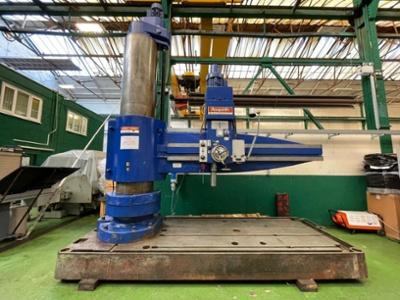

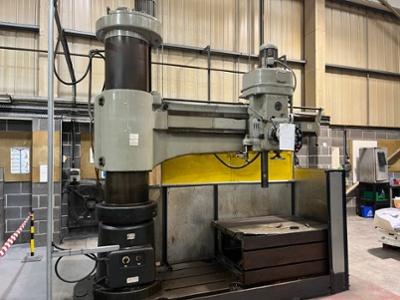

Lot 42: ASQUITH 6PT 25-120″ Radial Arm Drilling Machine. (1980)
Max distance Centre of column to centre of spindle 10′ (3048mm). Spindle speeds 9.5 -1560 rpm. Spindle taper No. 6 Morse Taper. Spindle motor 12.5 HP. Feed rate 0.051mm-3.18mm. Quill travel 16″ (406mm). Vertical travel of Arm 65″ (1651mm). Horizontal ...

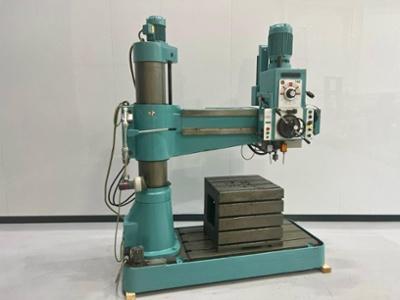

Lot 43: BERGONZI T40 1250mm Radial Arm Drill with Box Table
Spindle taper 3MT. Spindle speeds 50-1300 rpm. Spindle brake. Coolant. CI Box Table 580mm x 600mm x 635 high. 40mm capacity in Mild Steel. Capacity in Cast Iron 50mm. Hydraulic Locking of Headstock. Manual Locking of Arm. Safety Brake. Coolant.Dimensions ...
Lot 44: H.CEGIELSKI - POZNAN (HCP) WR50 7ft Radial Arm Drilling Machine with Box Table. (1972)
Spindle taper 5MT. Serial No. 1496/23322

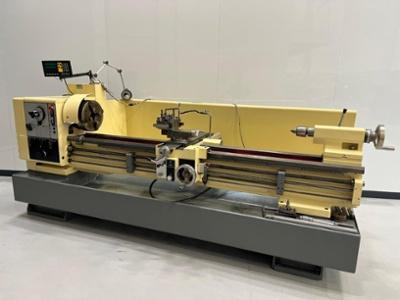

Lot 45: HARRISON M400 x 80” Gap Bed Centre Lathe with DRO
Swing over bed 420mm. Swing in gap 610mm. Swing over cross slide 254mm. Spindle nose D1-8. Distance between centres 2032mm. Spindle speeds 40-2000 rpm. Quick change toolpost. 4 x Toolholders. Spindle bore 65mm. Tailstock taper 5MT. 305mm dia. 3 jaw chuck.315mm ...

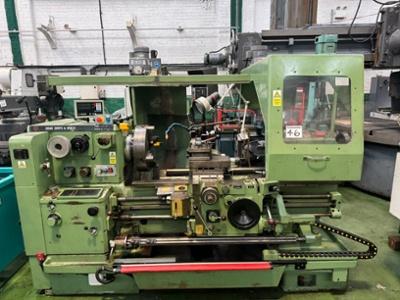

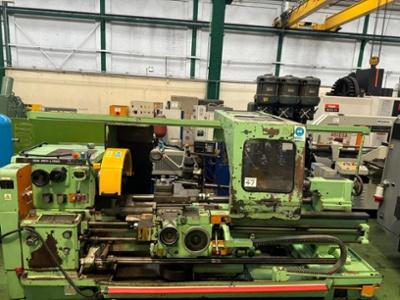

Lot 46: DEAN SMITH & GRACE Type 1910 x 40” (1016mm) Straight Bed Centre Lathe (1982)
Swing over bed 495mm. Swing over cross slide 267mm. Swing in gap 737mm Width of gap in front of spindle nose 286mm. Width across bed shears 445mm. Distance between centres 1016mm. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 81mm. Spindle ...
Lot 47: DEAN SMITH & GRACE Type 1910 x 80” (2032mm) Gap Bed Centre Lathe (1985)
Swing over bed 495mm. Swing over cross slide 267mm. Swing in gap 737mm Width of gap in front of spindle nose 286mm. Width across bed shears 445mm. Distance between centres 2032mm. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 81mm. Spindle ...

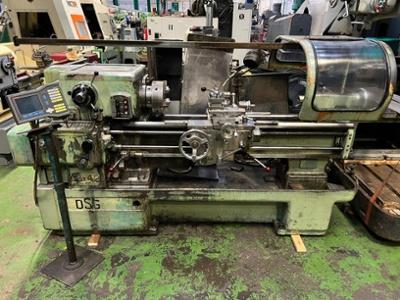

Lot 48: DEAN SMITH & GRACE Type 13 x 42 Centre Lathe (1962)
Swing over bed 13''. Distance between centres 42''. Spindle speeds 49 -1400 rpm. Serial No.34398-10-62. Sliding guard. Anilam DRO. 4 way toolpost. Drilling Attachment. Fitted with 3 jaw chuck.
Lot 49: DEAN SMITH & GRACE Type 18 x 60 Centre Lathe with Heidenhain DRO
Swing over bed 18''. Distance between centres 60''. Spindle speeds 6.5-600 rpm. Serial No.28988. Heidenhain DRO. 4 way toolpost. Fitted with 2 x 3 jaw chucks.

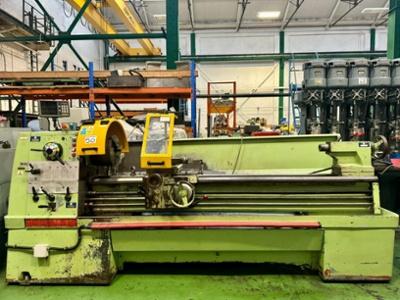

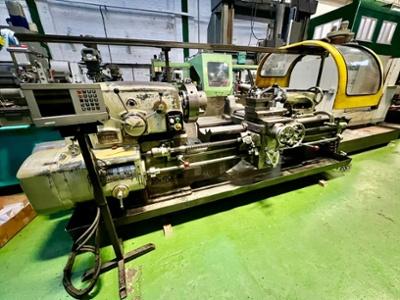

Lot 50: COLCHESTER Mastiff 1400 Centre Lathe x 80'' Between Centres with Anilam DRO
Swing over bed 525mm. Swing over cross slide 260mm. Swing in Gap
700mm. Distance beteen centres 2000mm. Main motor 12 HP
Spindle Bore 90mm. Speeds 20 - 1400 rpm. 3 and 4 jaw chucks.
Faceplate. Chuck giard & toolpost guard. Kicksafety stop guard.
fixed ...
