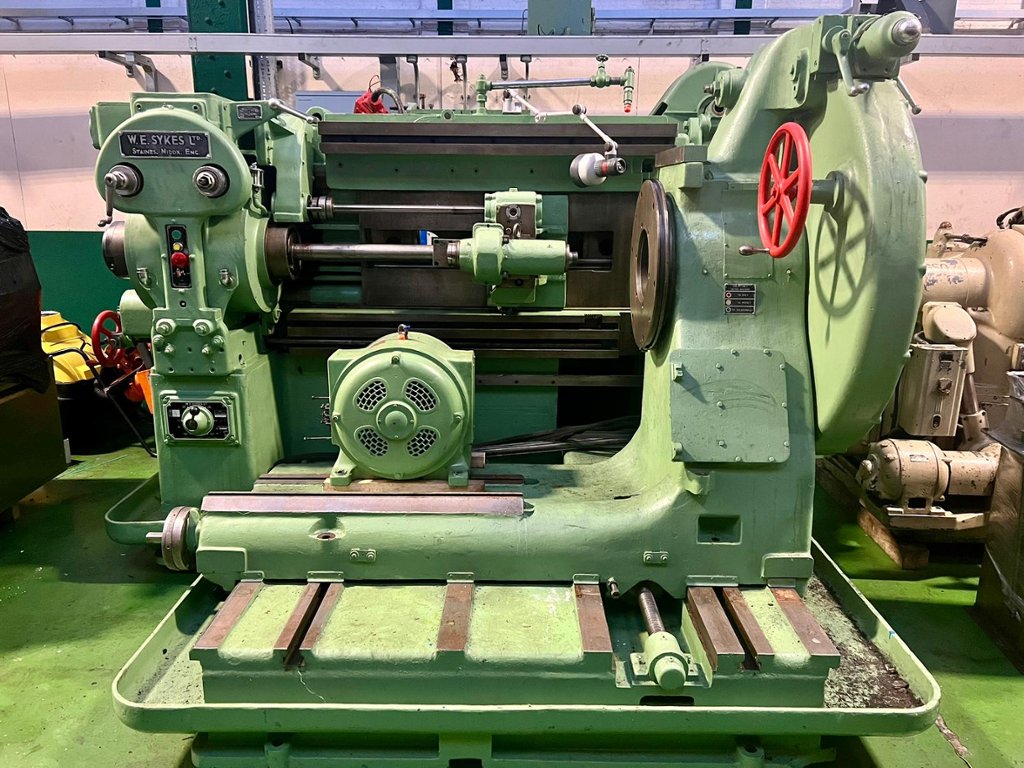

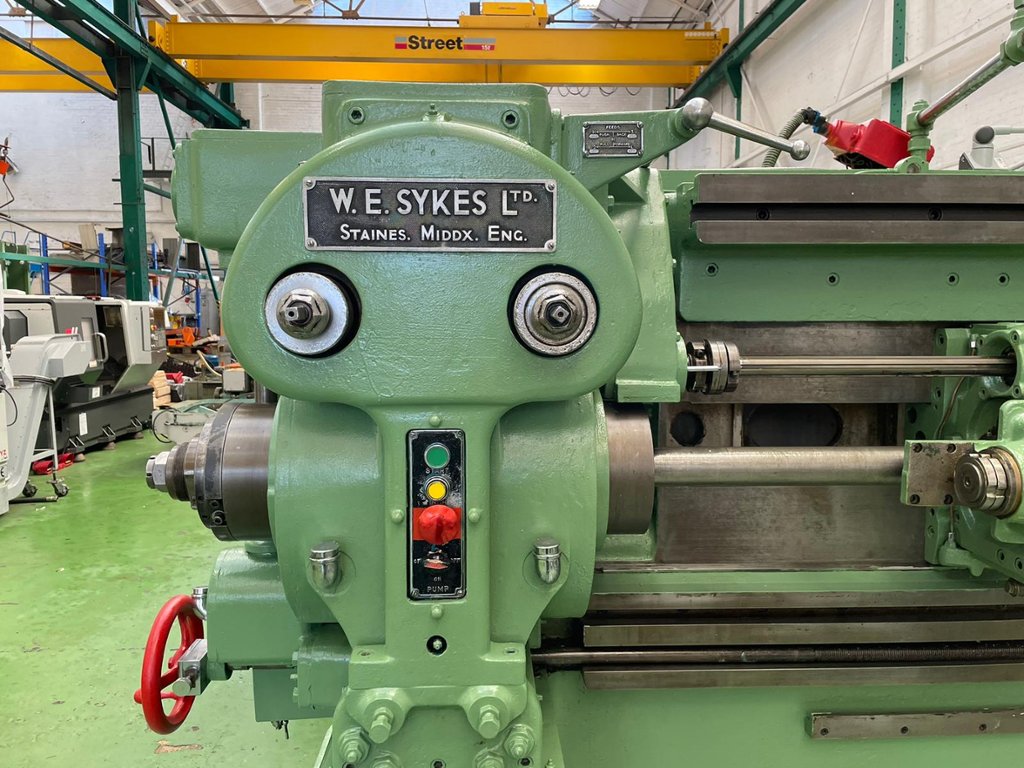

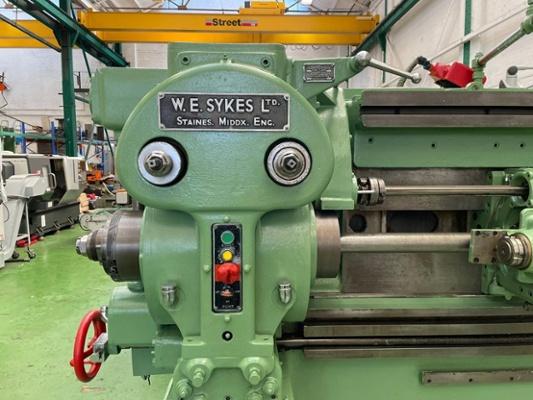

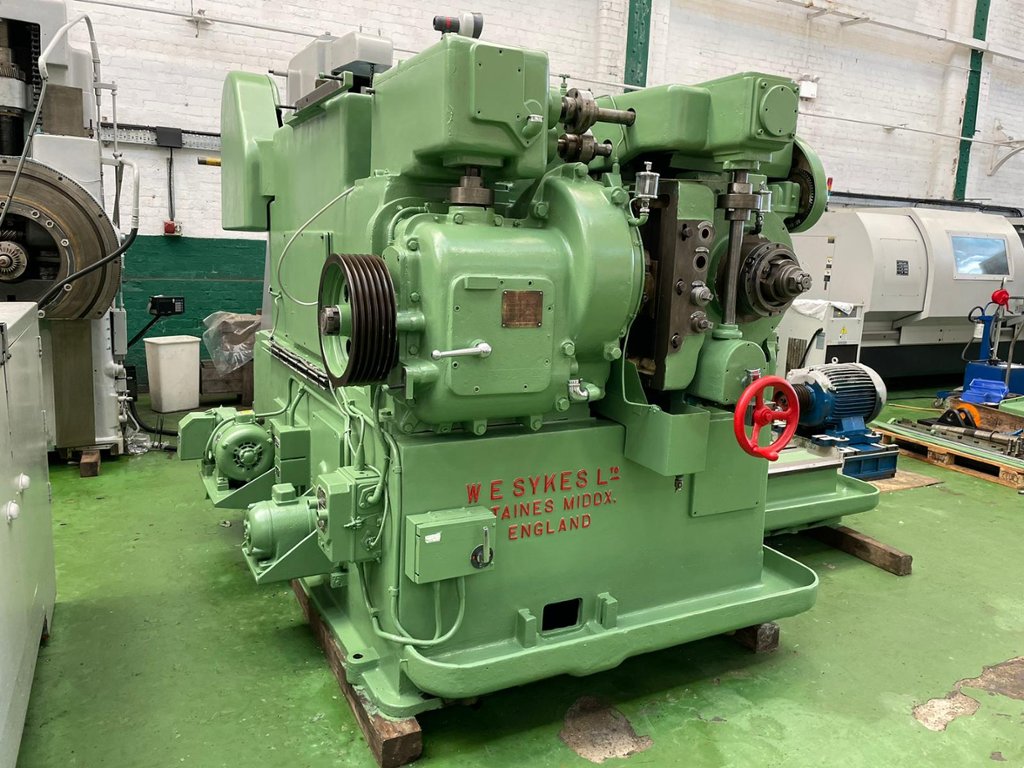

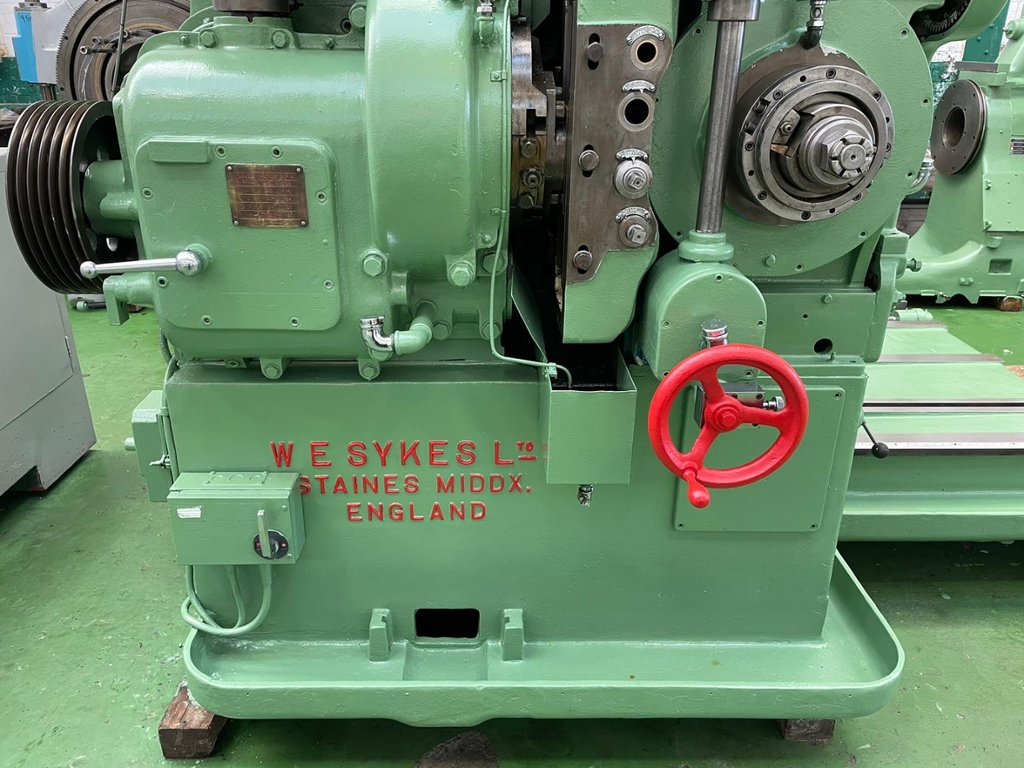

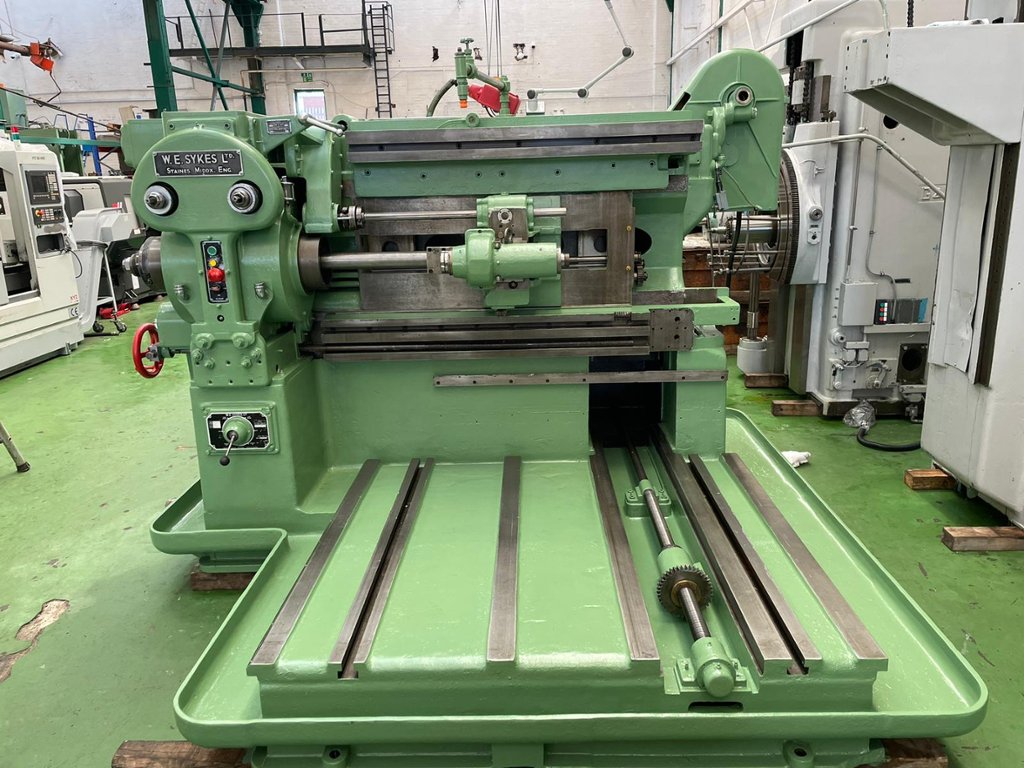

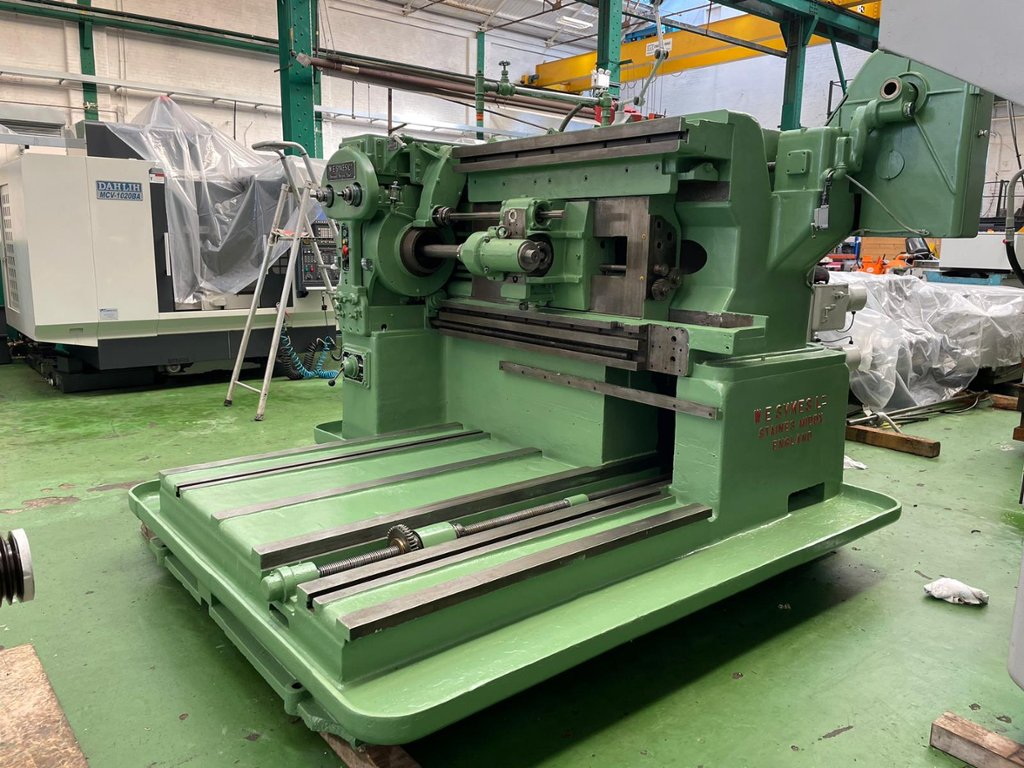

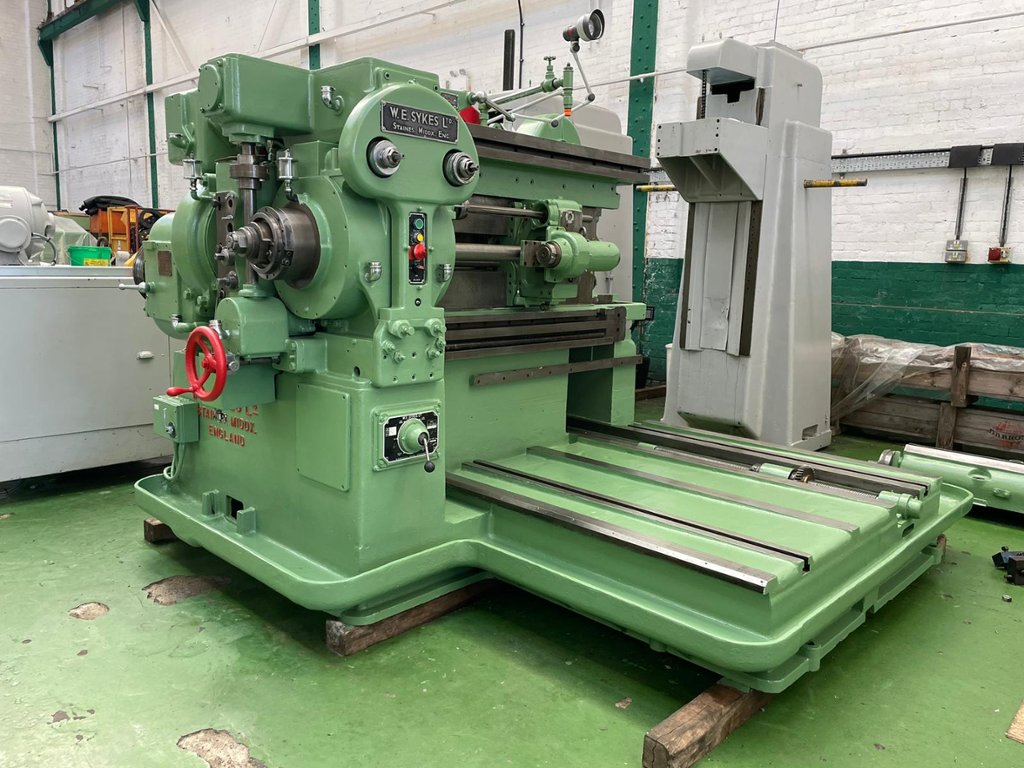

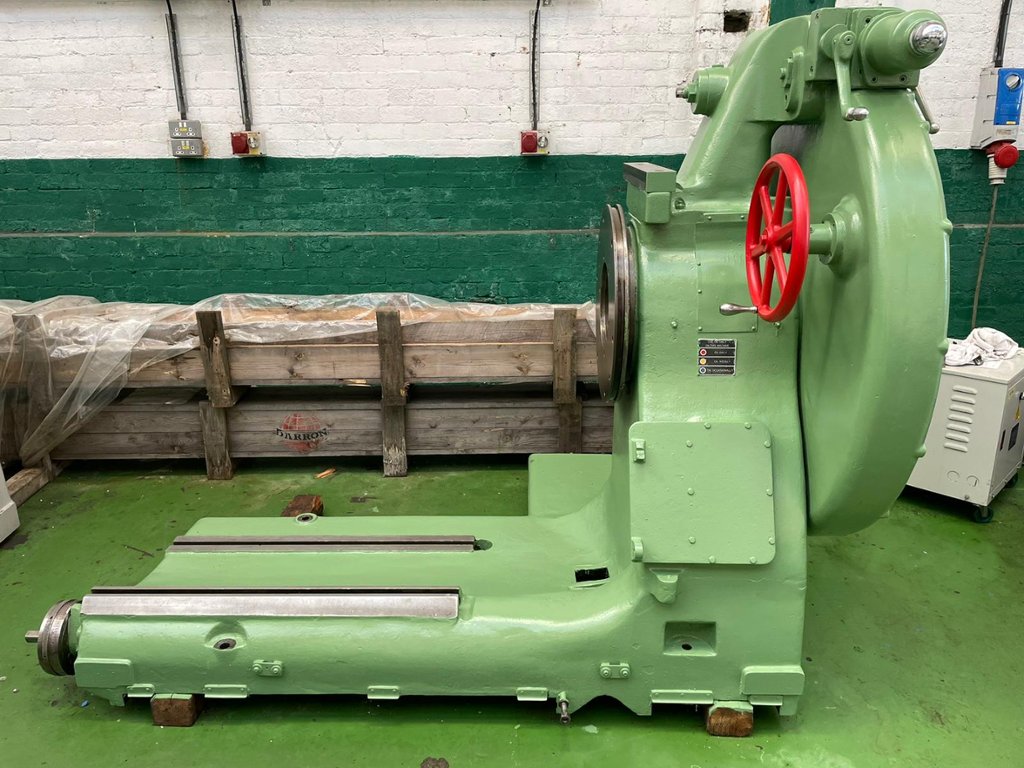

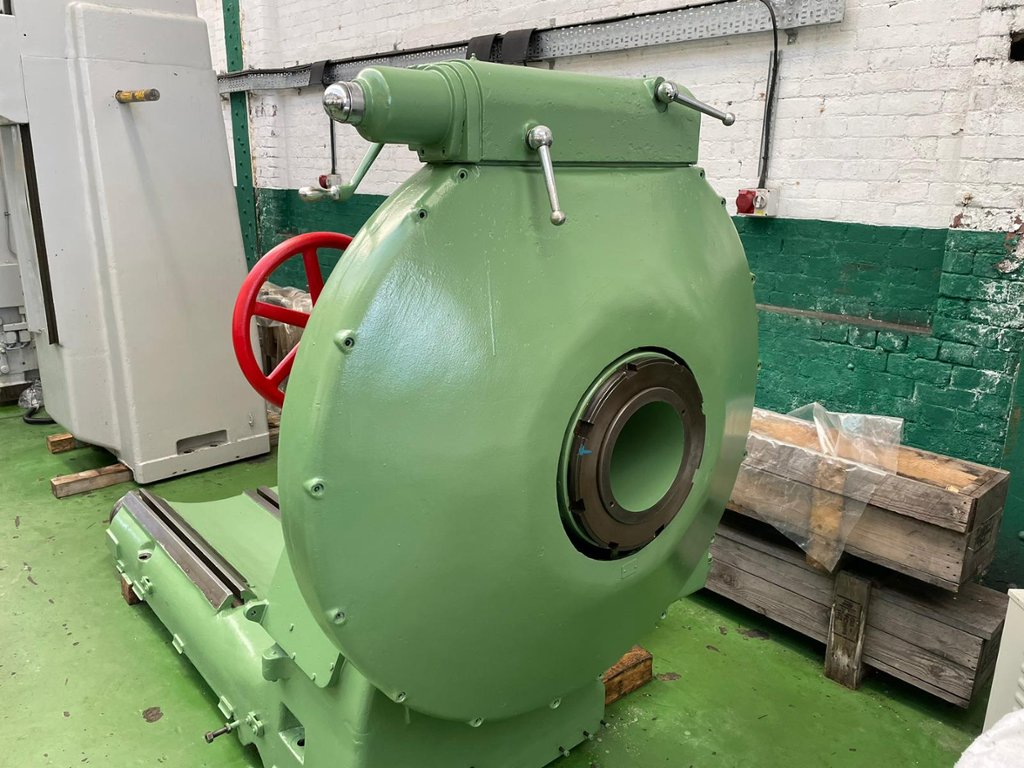

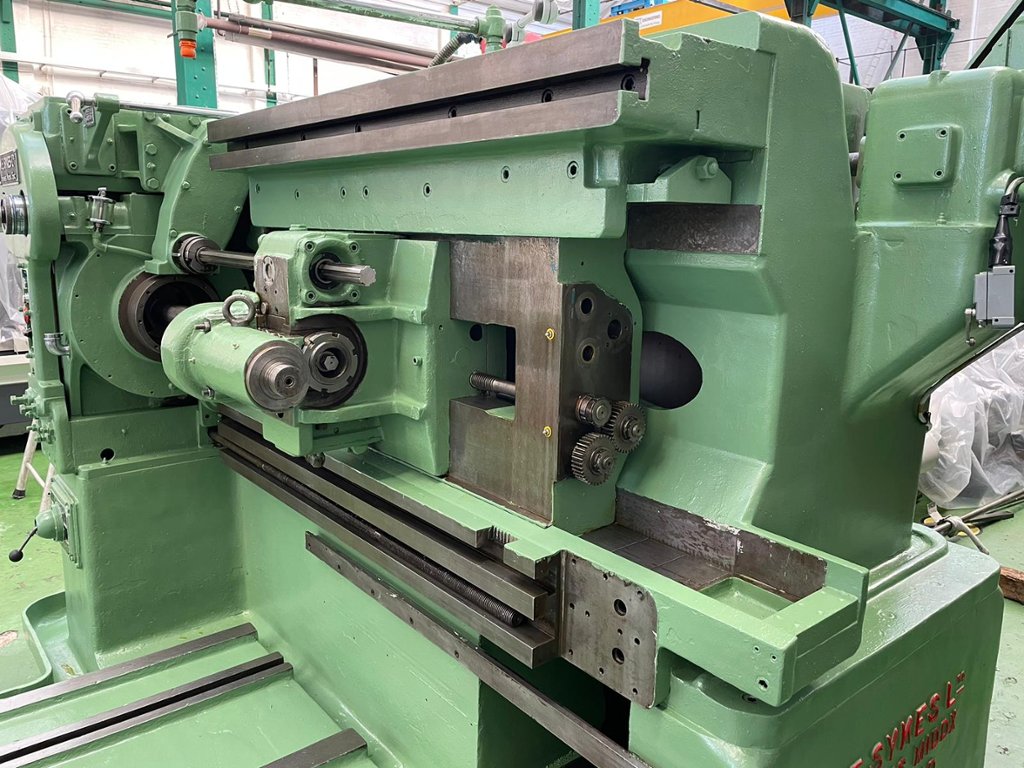

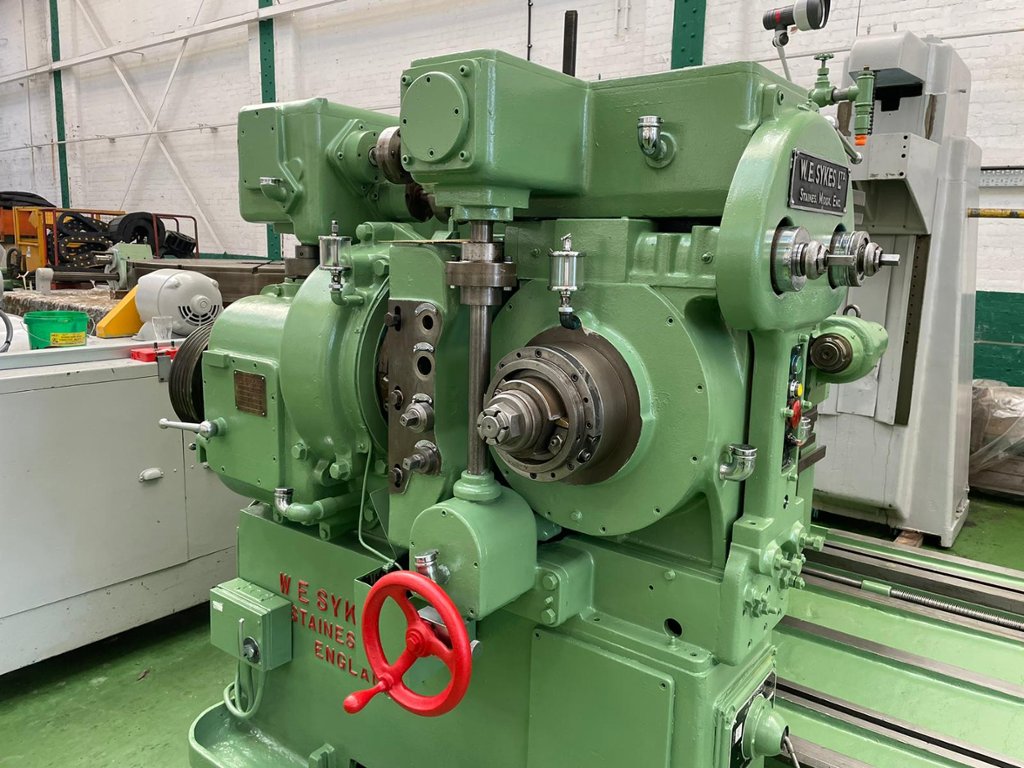

Lot 35: SYKES Model 5E Gear Generator for Double Helical (Herringbone) Single Helical & Internal Gears.

Pitch range (minimum) 1.5 DP. 17 Module.Pitch range (maximum) 16 DP. 17 Module. Helix angle range 0 – 45 degrees.Spindle bore  9.875”/250mm.Maximum distance Tailstock to face of work spindle 48” /1219 mm.Standard cutter diameter    6” P.C.D.Standard cutter bore 3.1/2”. External gears - Maximum dia. 63/1600 mm.Maximum face width 18”/457 mm.Maximum face with for spur or single helical 10”/254 mm. Internal Gears - Maximum dia. 66”/ 1676 mm.Maximum face width 8” /203mm.Maximum PCD 66”- (2 x rim thickness).No.of Cutting speeds 8. Range of Cutting speeds 15 – 120 rpm.No. of Feeds 4.Range of Feeds (with 6” dia. Cutter) 0.012” – 0.033”/0.3mm – 0.84 mm. MOTORS: Main motor (2) 10 HP /7.5 KW. Saddle traverse motor 1 HP/0.75 kW.Coolant pump motor 0.75 HP/0.56 kW.Approx weight 19,000 kgs.

Please note the machine has only been used for the cutting of internal splines only and is missing one of the cutter boxes.
