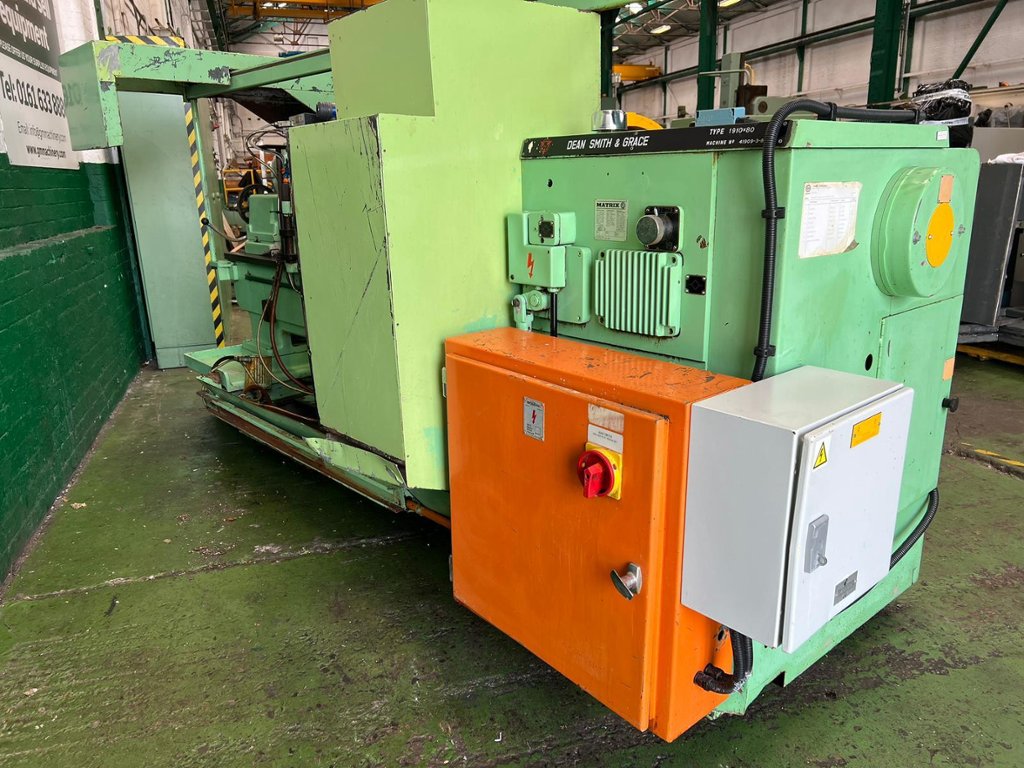

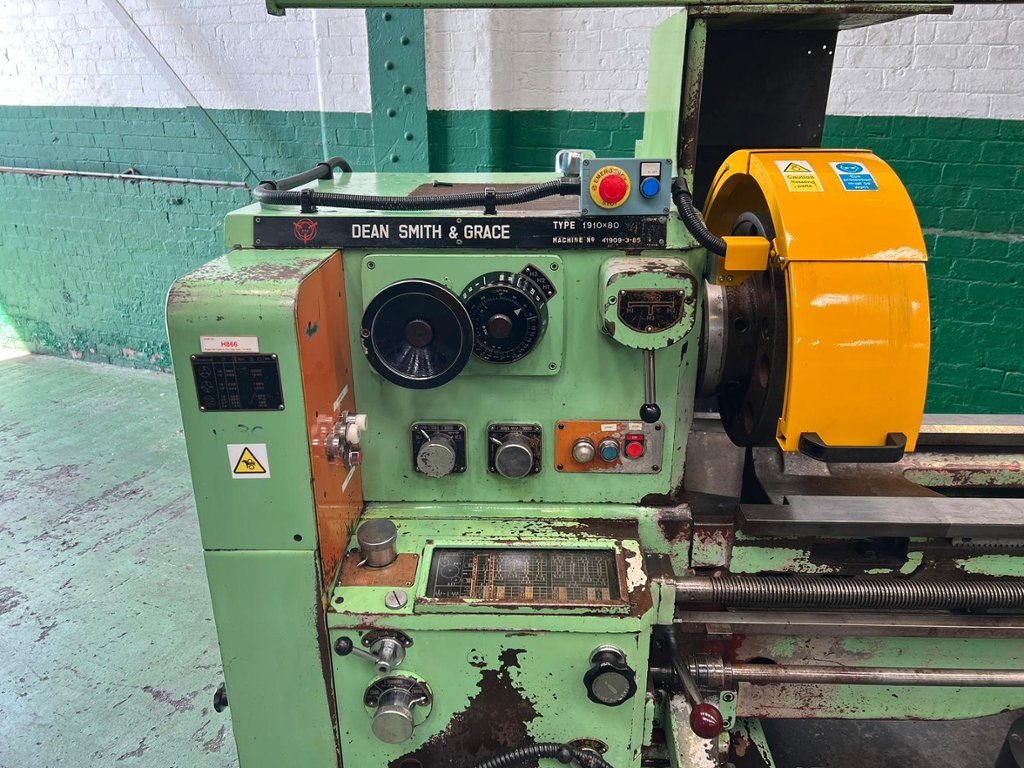

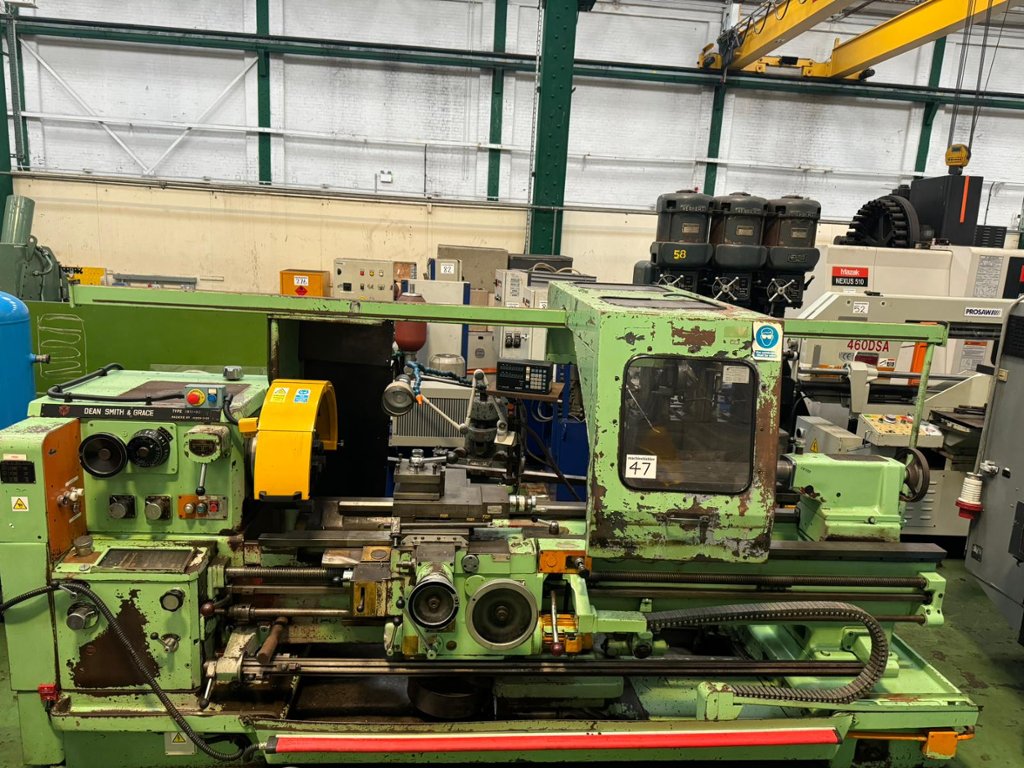

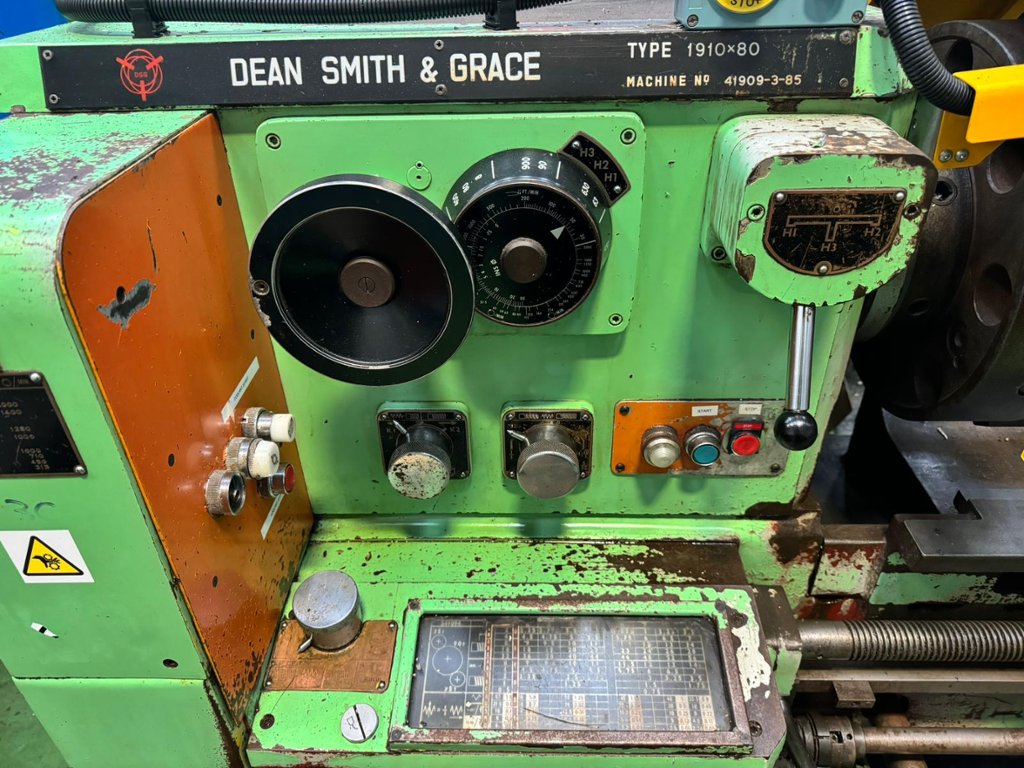

Lot 47: DEAN SMITH & GRACE Type 1910 x 80” (2032mm) Gap Bed Centre Lathe (1985)

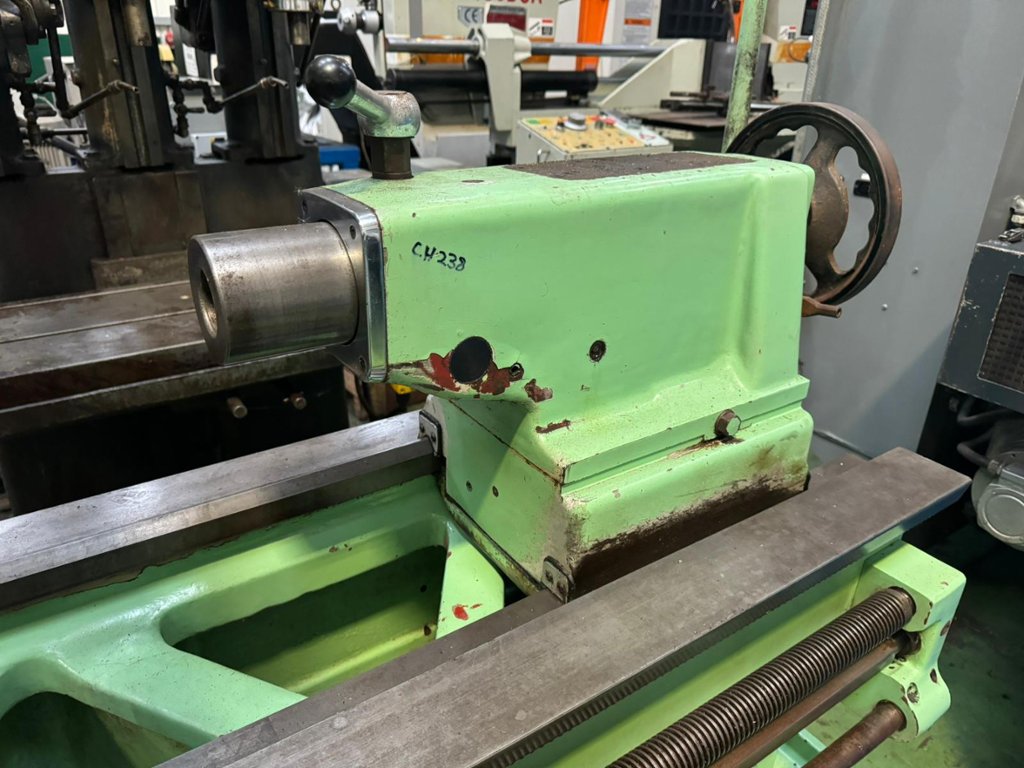

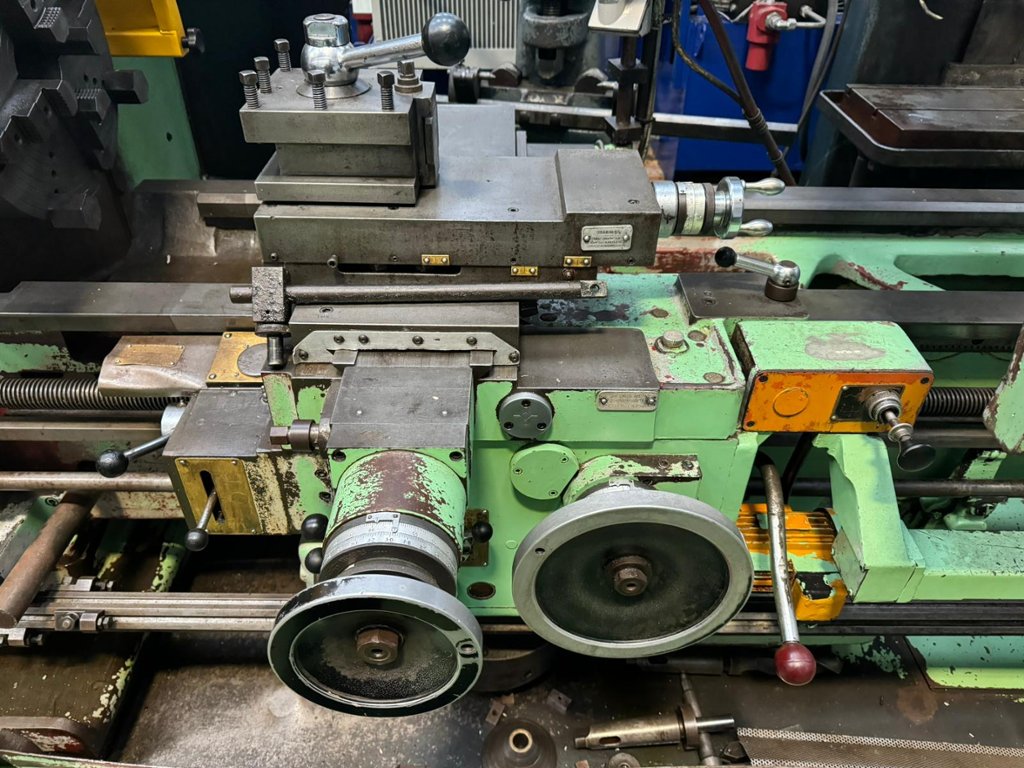

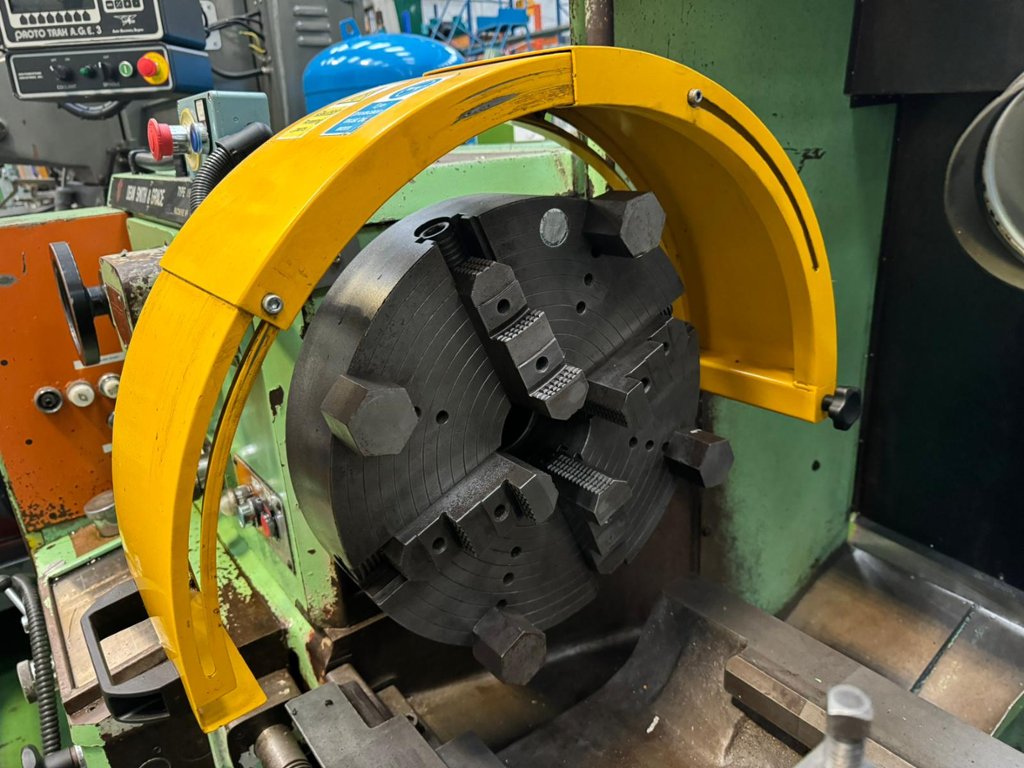

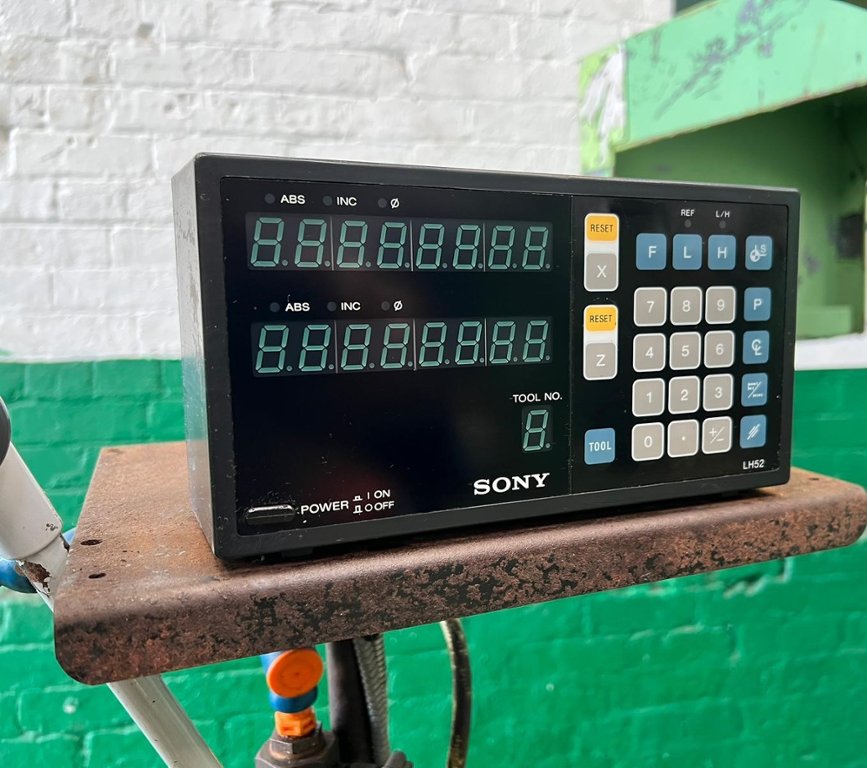

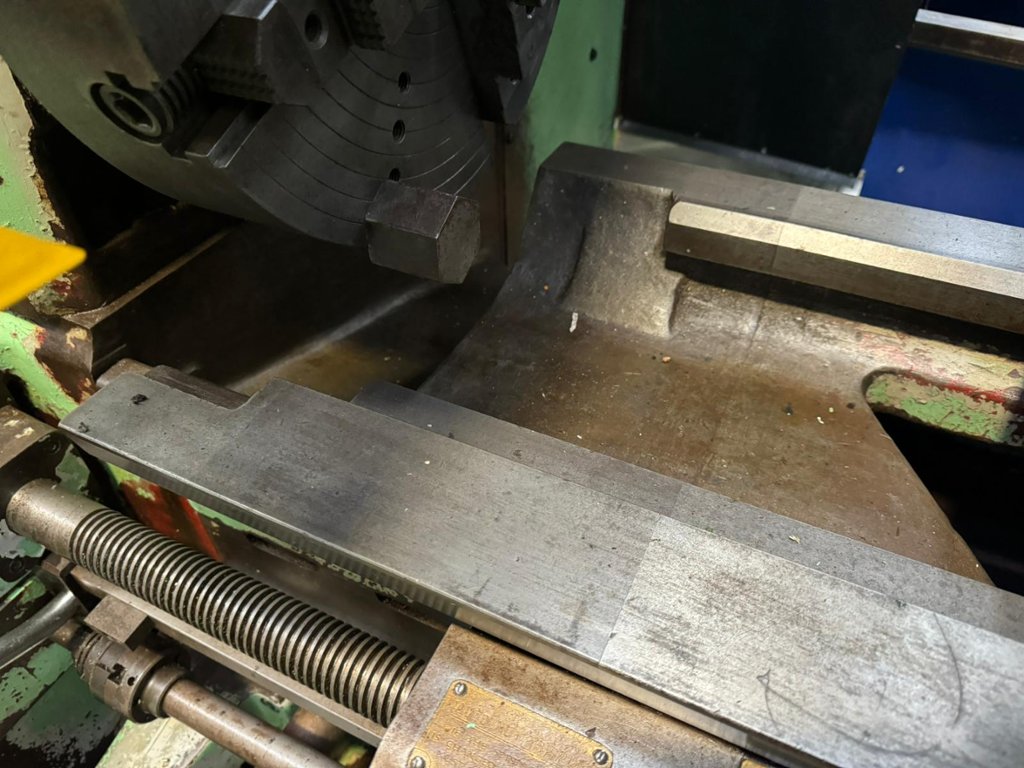

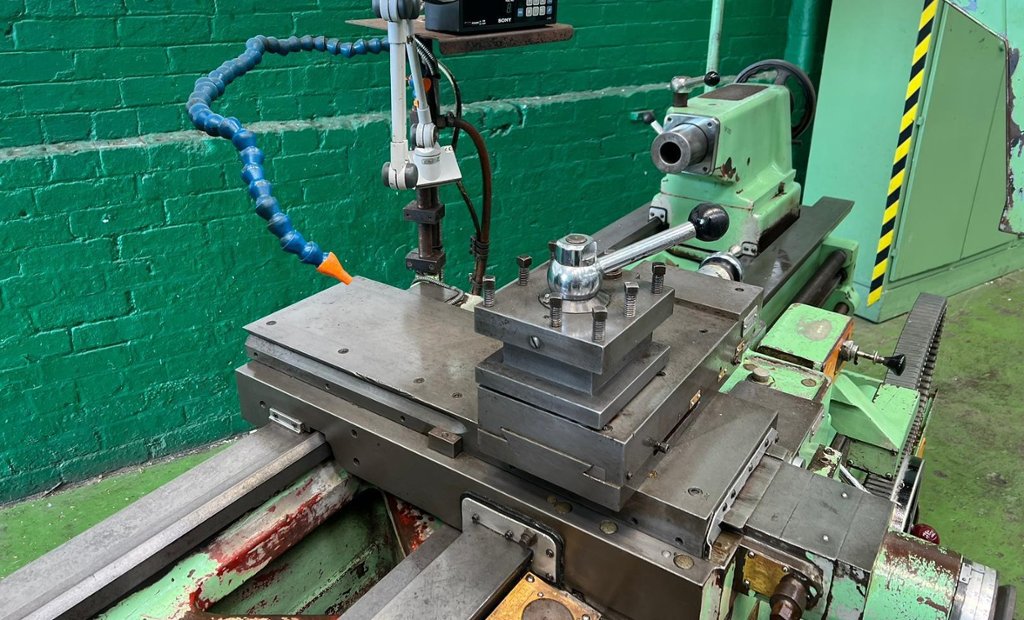

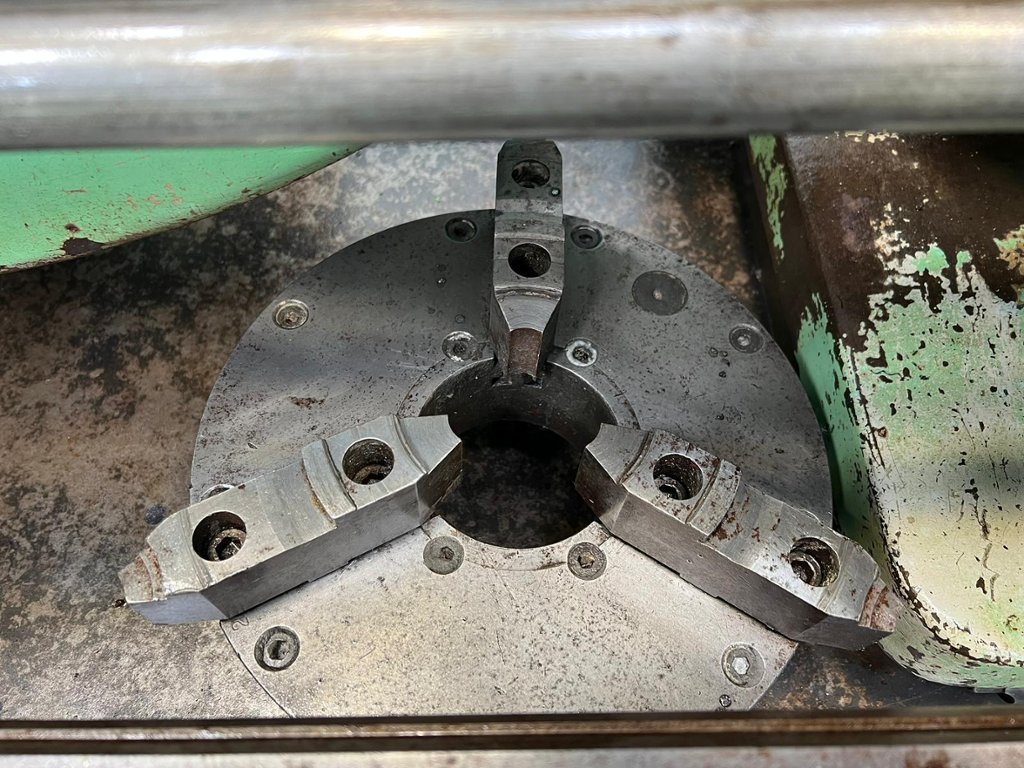

Swing over bed 495mm. Swing over cross slide 267mm. Swing in gap 737mm Width of gap in front of spindle nose 286mm. Width across bed shears 445mm. Distance between centres 2032mm. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 81mm. Spindle power 11.25 kW. Longitudinal feeds 0.056 – 1.6mm/rev. Cross feeds 0.28 – 0.8/rev. Fine belt drive feeds 0.009 – 0.033mm/rev.. Threads per inch (45) 2 – 56 TPI. Imperial pitches (42) 1/8 – 5”. Metric pitches (49) 0.5 – 120mm.Diametral pitches (63) 0.75 – 112. Module pitches (47) 1 – 56. Tailstock quill dia.76mm. Tailstock taper 4 morse. Quill travel 305mm. Cross slide travel 451mm. Compound slide travel 127mm. Machine complete with 3 & 4 jaw chucks. 4 way toolpost. Coolant. Chuck guard. Kick emergency stop. Sony 2 axis DRO. 3 point roller steady.Machine dimensions L x W 4000mm x 1500mm. Approximate weight 3940 kg.
