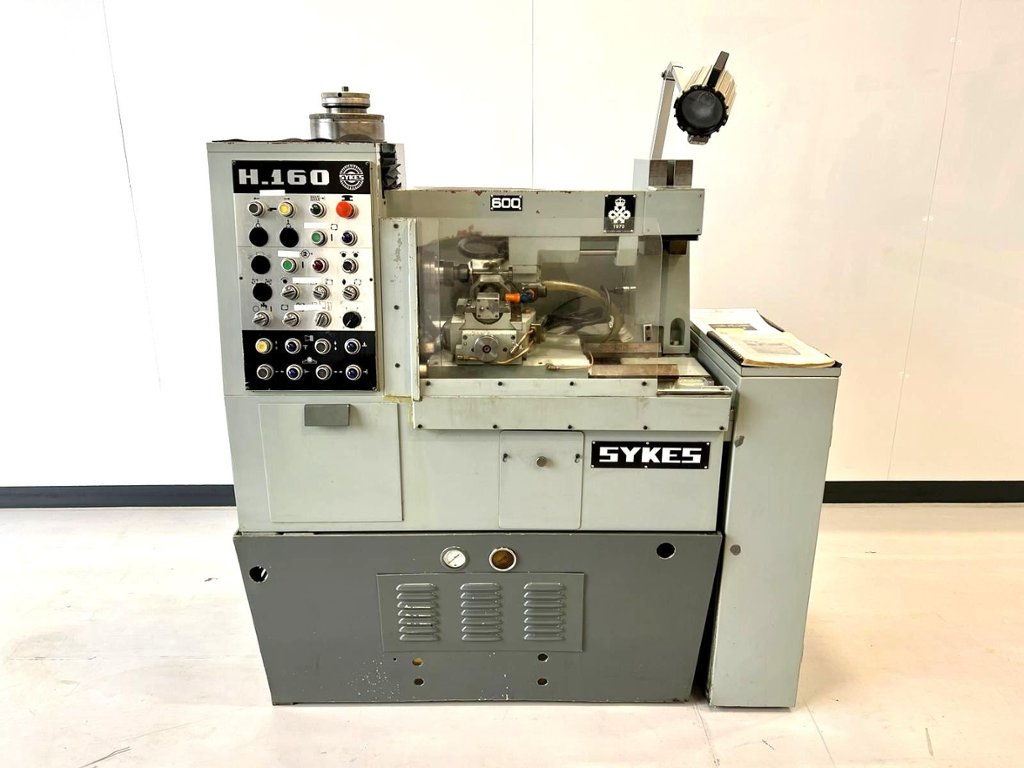

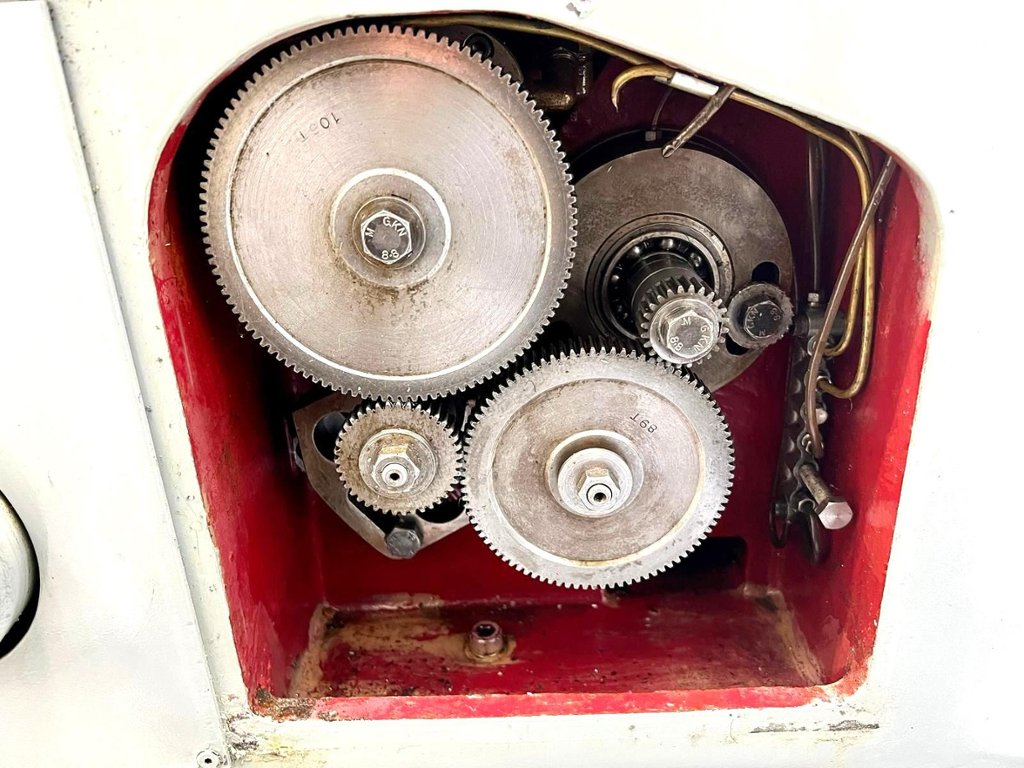

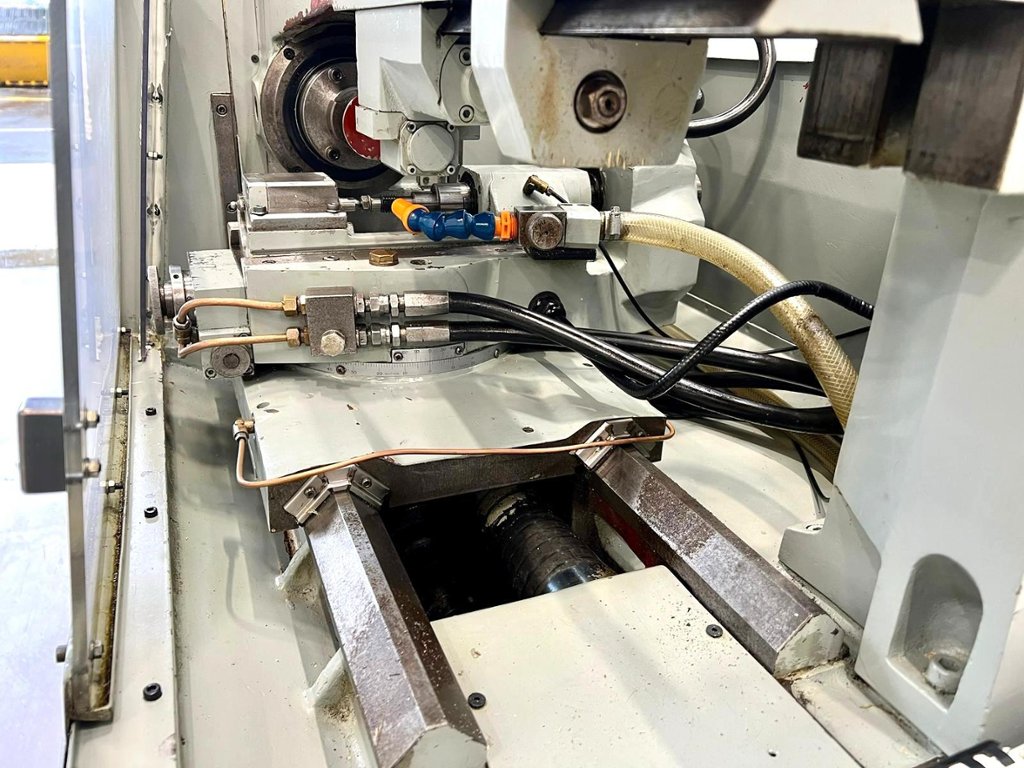

Lot 36: SYKES H160 Horizontal Gear Hobbing Machine

This lot has been archived

Bidding on this lot has finished

Description

Workpiece: Maximum work dia. 160mm. Max. Module 2.5. 10 DP. Capacity: Minimum vertical centre distance 6mm. Maximum vertical centre distance 120mm. Maximum vertical feed travel 118mm. Minimum distance hob centre to spindle face 85mm. Maximum distance hob centre to spindle face 355mm. Maximum horizontal feed travel 270mm. Maximum distance work spindle face to tailstock centre 485mm. Maximum hob dia. 76mm. Maximum hob length 70mm. Maximum hob shift distance 46mm. Worktable face dia. 76mm. Worktable thro’ bore 50mm. Table Wormwheel dia. 174mm. Feeds – Horizontal 0.08mm – 2.5mm/rev. Vertical Infinitely variable. Hob Speeds 160 – 900 rpm. Main motor 3HP (1500 rpm). Rapids 0.5 HP (1500 rpm). Lubrication motor 0.5HP (1500rpm). Coolant pump motor 0.33HP (3000 rpm).Machine dimensions L x W x H 1200mm x 640mm x 1590mm. Approximate weight 1900 kg.

Click on images to enlarge
