PRIVATE TREATY SALE - HARTFORD PBM115AG CNC Horizontal Table Type Boring & Milling Machine.Year of manufacture 2012 (170697)

Description

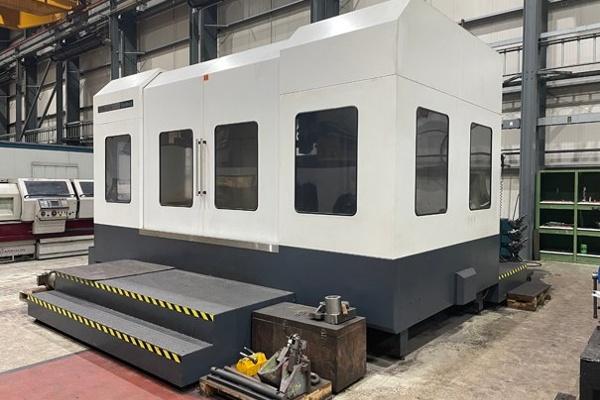

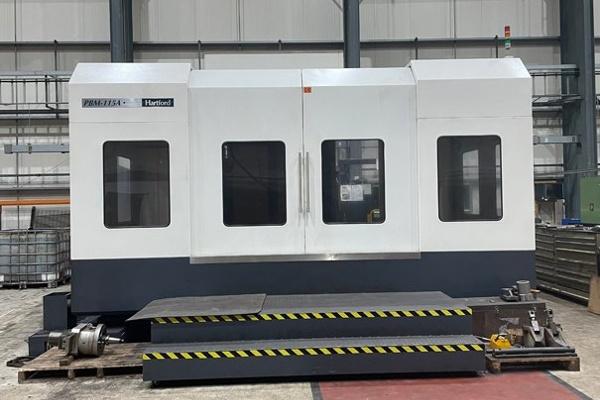

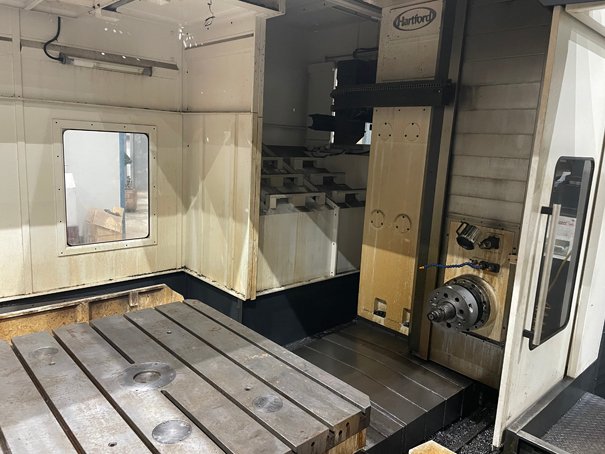

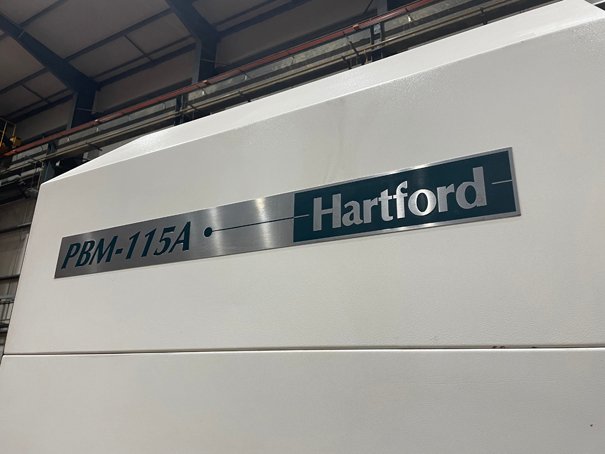

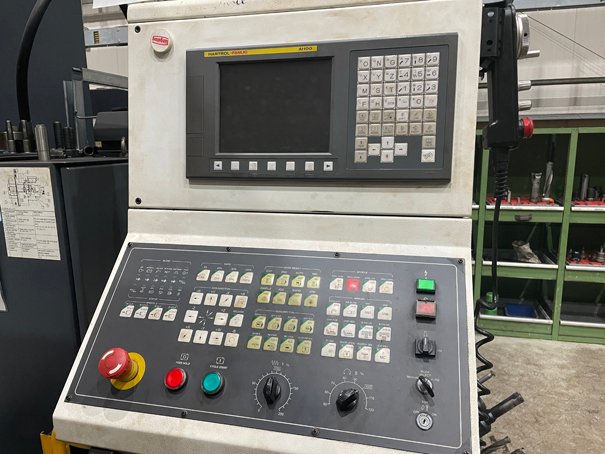

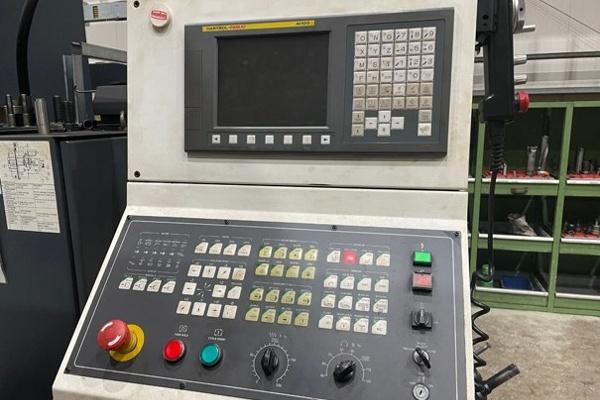

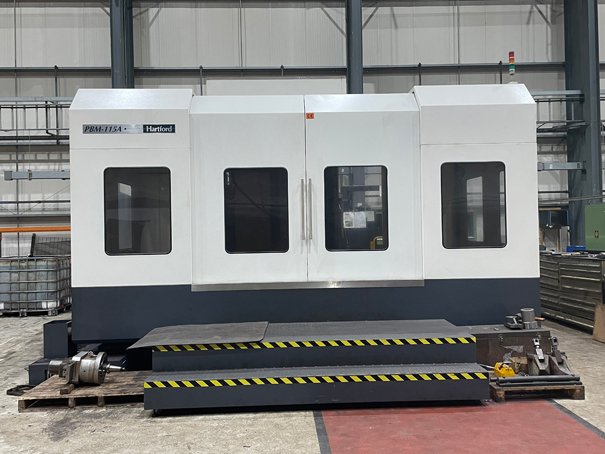

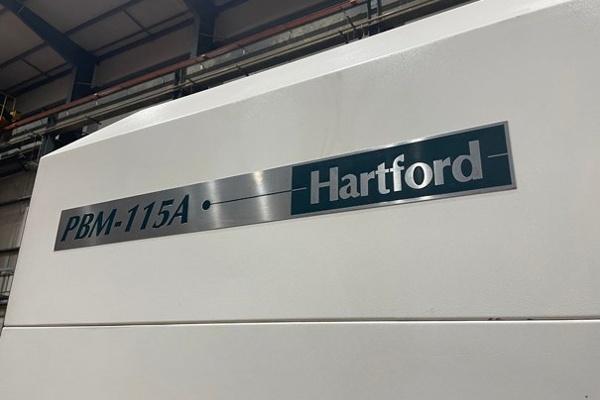

HARTFORD PBM115AG CNC Horizontal Table Type Boring & Milling Machine with FANUC 0i-MD Control. Year of manufacture 2012

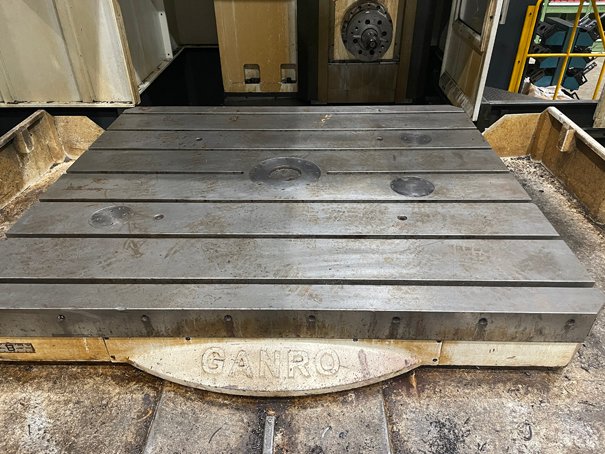

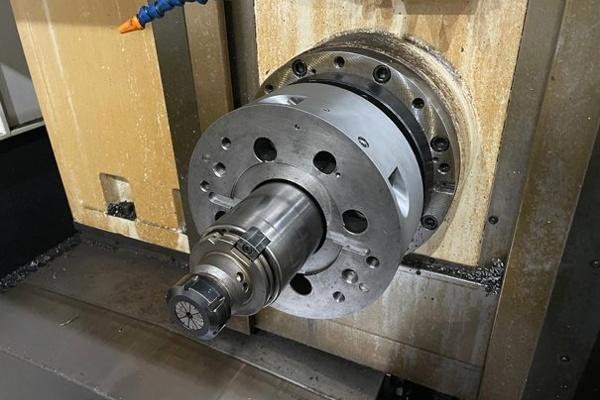

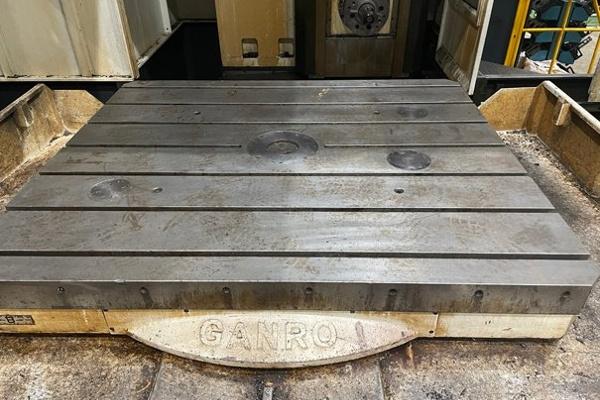

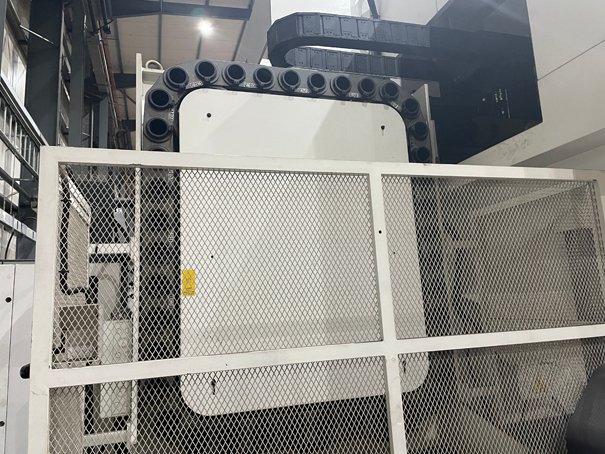

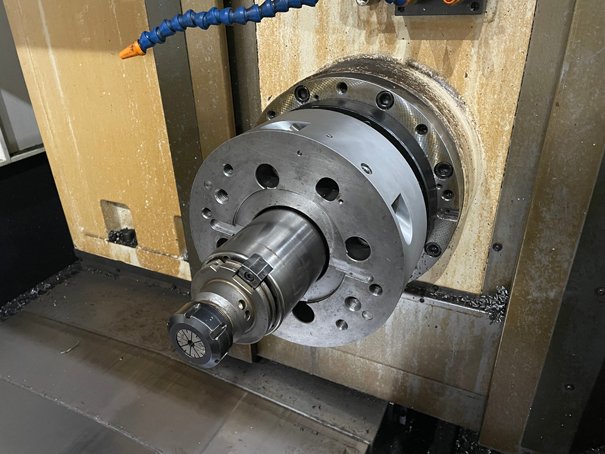

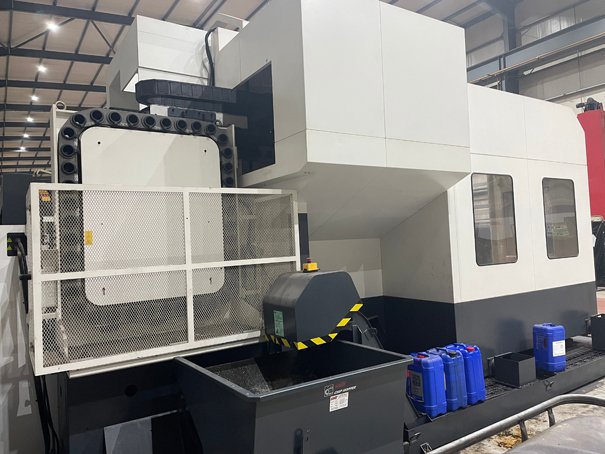

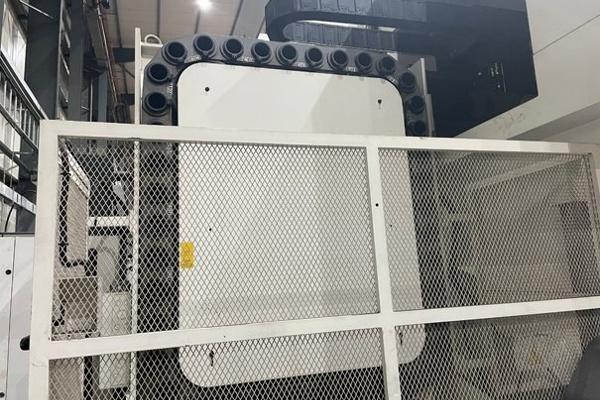

Table size 1400mm x 1600 mm. Tee Slot Dimensions (size x number x pitch) 27 x 7 x 200 mm. Spindle dia. 100 mm. Spindle taper 50 ISO. Spindle sleeve 225mm dia. Spindle Speeds to 3000 rpm (Geared Head). Max table loading 7000Kg. Travels X/Y/Z/W 2000/1600/1500/500mm. Spindle power 18.5kW. Feedrate 1 - 5000 mm/min. Rapids X/Y/Z 10m/min. Rapids W 6m/min. Automatic Toolchanger (40 tools). Max standard tool diameter 125 mm. Max oversize tool dia. 250 mm. Max tool length 400 mm. Max tool weight 25Kg. Fully Enclosed Guarding for Through Spindle Coolant (20 Bar). Spindle support. 3 Axis Linear Scales. Oil Cooler. Link Type Swarf Conveyor and Tipping Skip.

Power requirement 60KVA. Electrical Supply 415V 3Phase. 50Hz. Air Pressure 6.5Kg/CM2.

Machine Cutting Time 2095 Hours. Machine has had very little use and is in exceptional condition.

In addition to the machine we are offering on behalf of the client the following related accessories

COGSDILL 2.1/16" & 5.1/8" Seat Pocket/Outfacing Bars

ITS CH16 Contouring Head

These items are for sale by Negotiation directly with the auctioneers and priority will be given to the purchaser of the main HARTFORD PBM115AG CNC Horizontal Borer

All agreed prices will be subject to a 15% Buyers Premium

If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licences will be required and it is the buyer’s responsibility to make the necessary enquiries prior to bidding. Please note under no circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.
