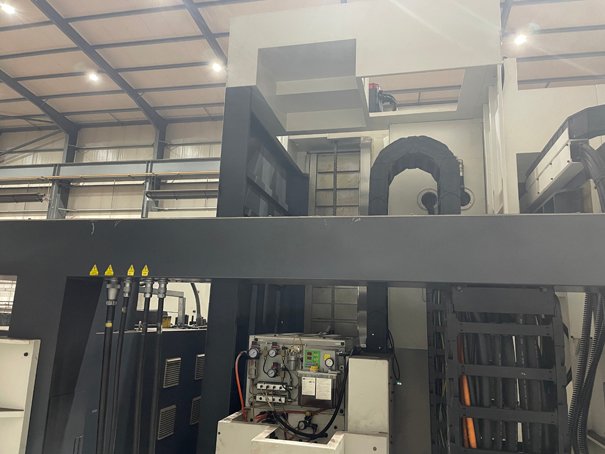

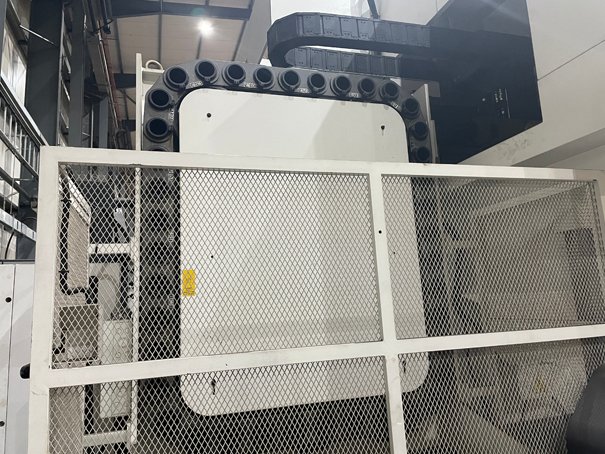

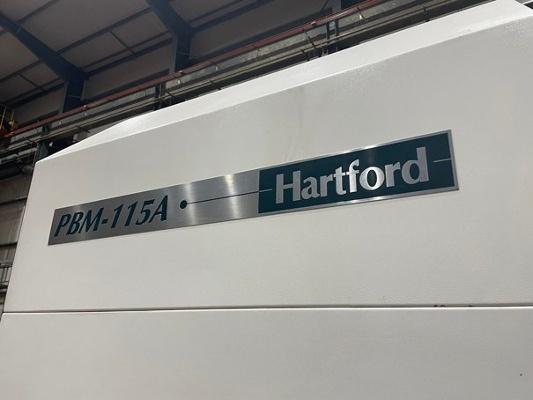

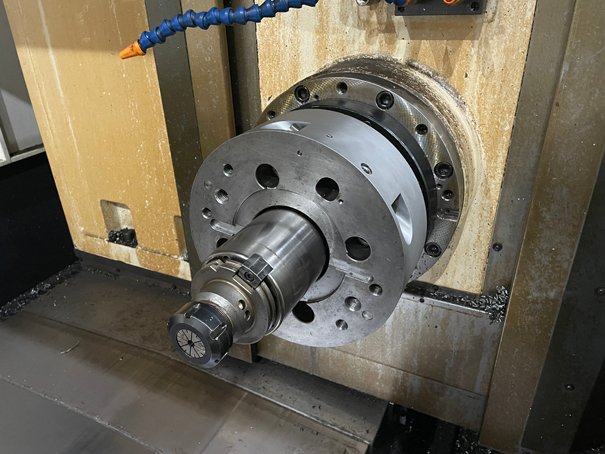

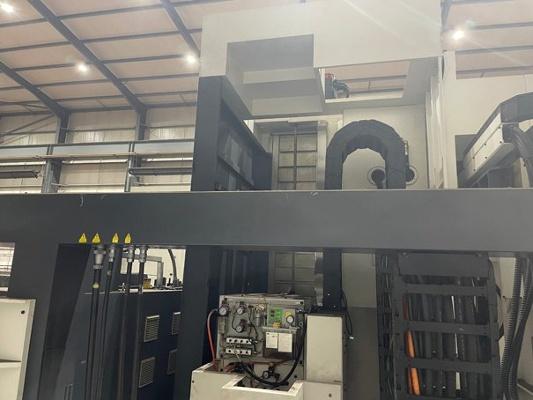

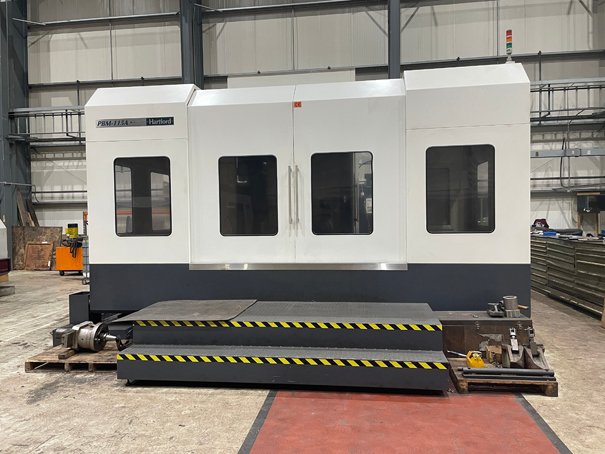

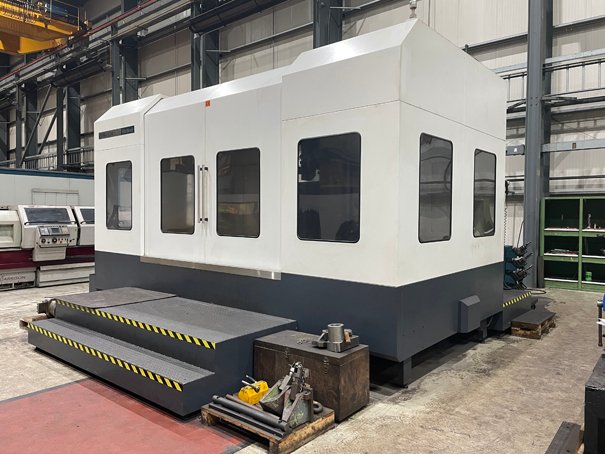

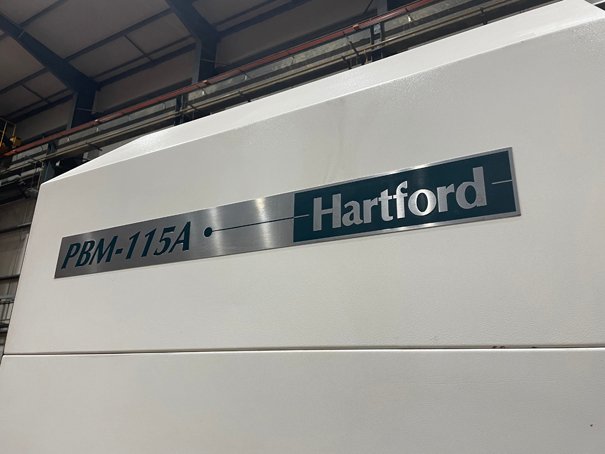

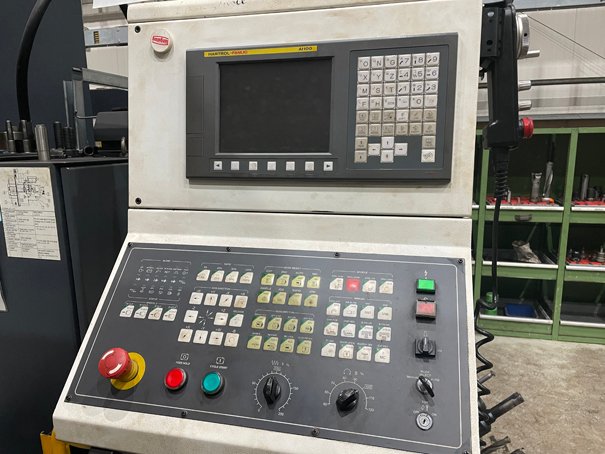

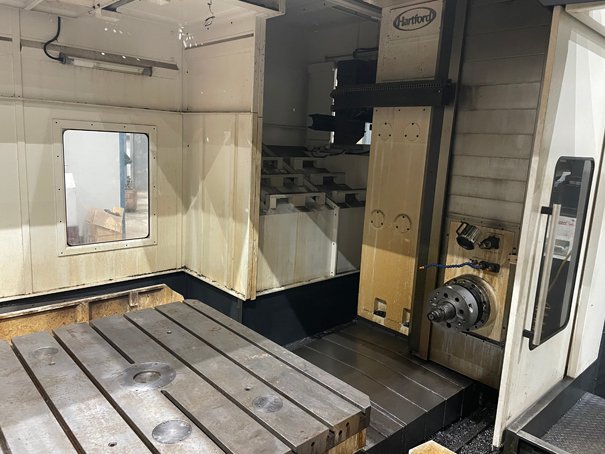

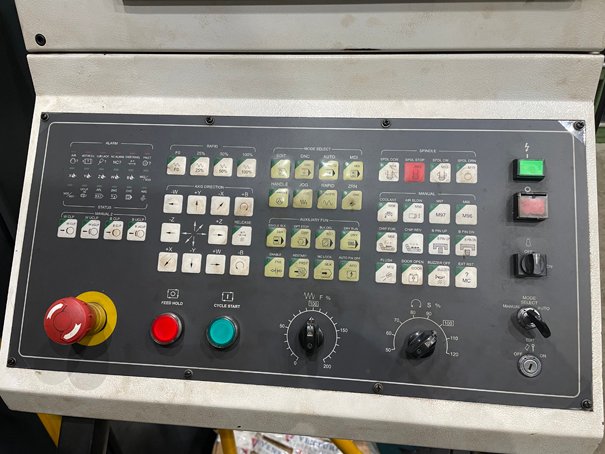

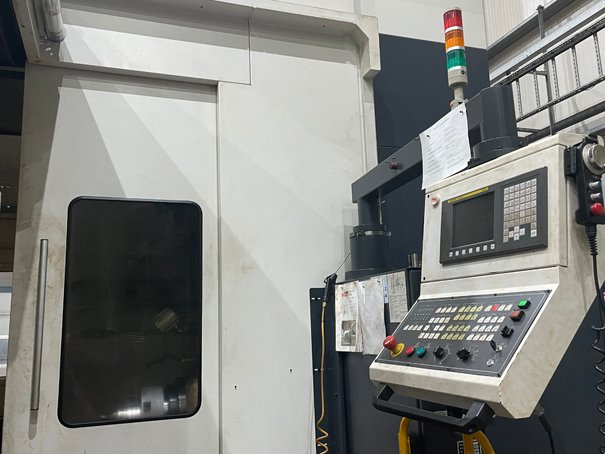

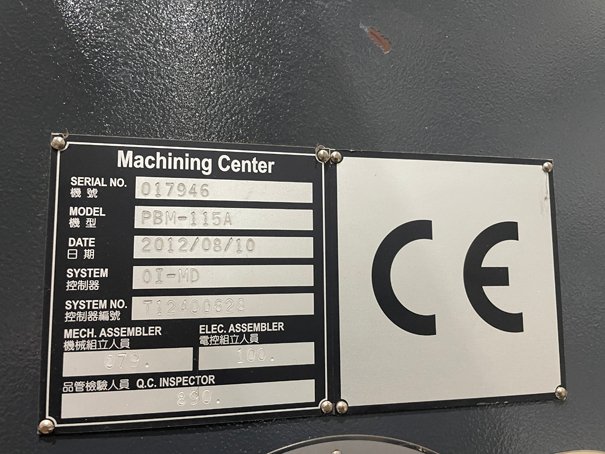

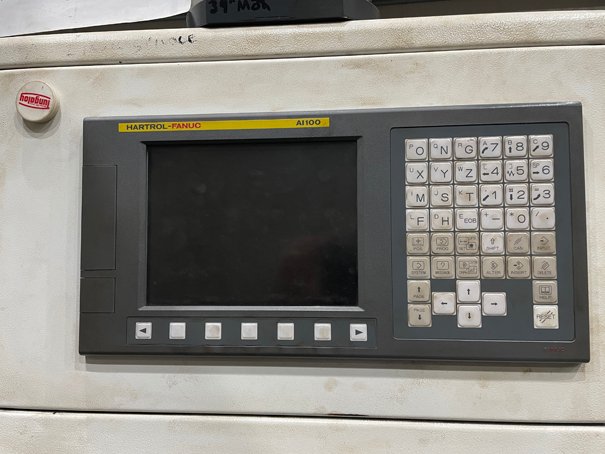

Lot 1: HARTFORD PBM115A CNC Table Type Horizontal Boring & Milling Machine with Fanuc 0i-MD Control. Year of manufacture 2012. (170697)

Private Treaty Sale (by negotiation)

See attached guide prices

Guide price:£225,000

Description

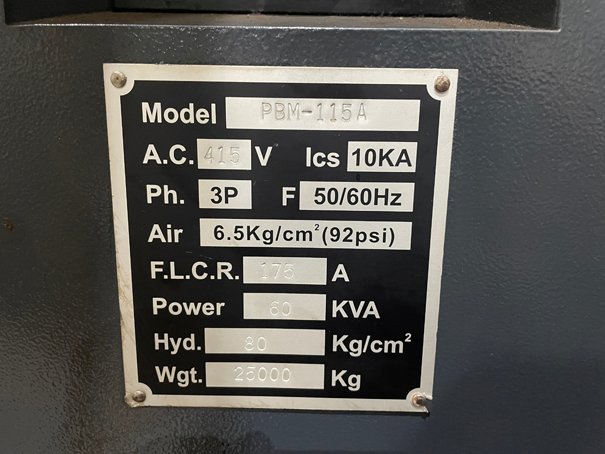

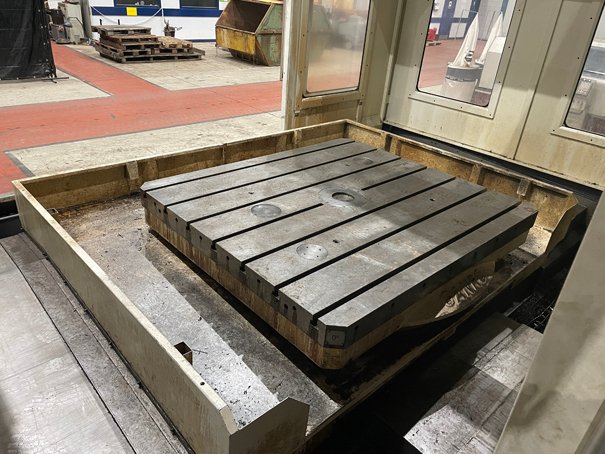

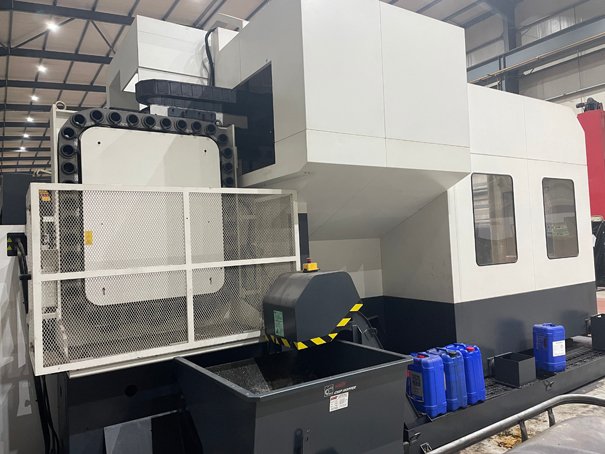

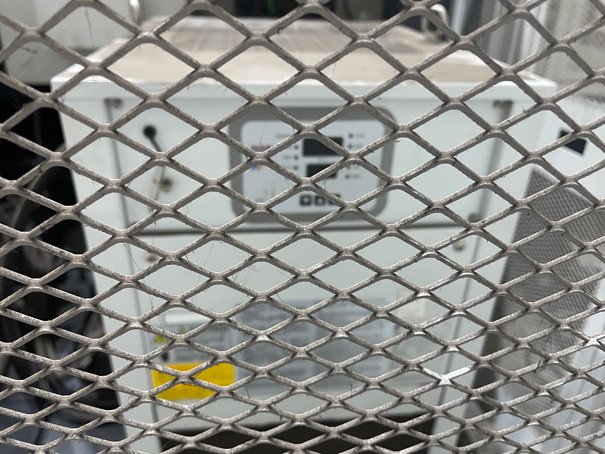

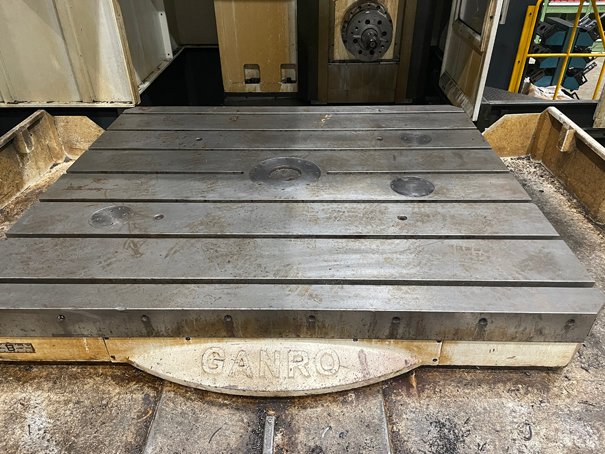

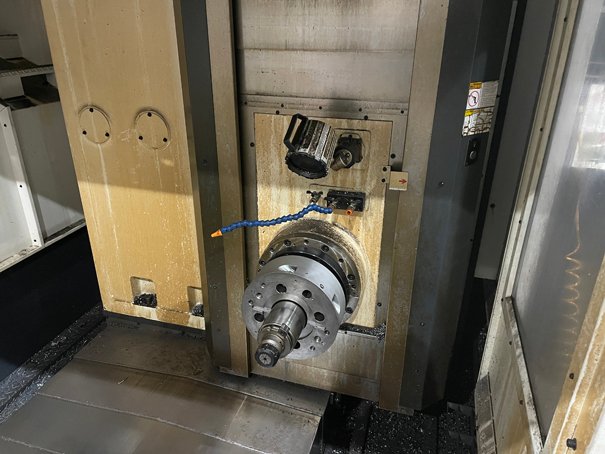

Table size 1400 x 1600 mm. Table Tee Slot Dimensions (size x number x pitch) 27 x 7 x 200 mm. Max table load 7000Kg. Travels X/Y/Z/W 2000/1600/1500/500mm. Spindle Taper 50 ISO. Max Spindle Speeds 3000rpm. Spindle Drive 4 Shift Gear. Spindle Dia. 100 mm. Spindle Sleeve 225 mm. Feedrate 1 - 5000 mm/min. Tool magazine Carousel Tool capacity 40. Max standard tool diameter 125 mm. Max oversize tool diameter 250 mm. Max tool length 400 mm. Max tool weight 25Kg. Spindle Motor 18.5kW. Power requirement 60KVA. Electrical Supply 415V 3Phase. 50Hz. Air Pressure 6.5Kg/CM2. 3000rpm. Geared Head 26kW. Fully Enclosed Guarding for CTS. Through spindle coolant 20 Bar. 3 Axis Linear Scales. Oil Cooler. Link Type Swarf Conveyor and Tipping Skip. Hartford 310mm Long Spindle Support.

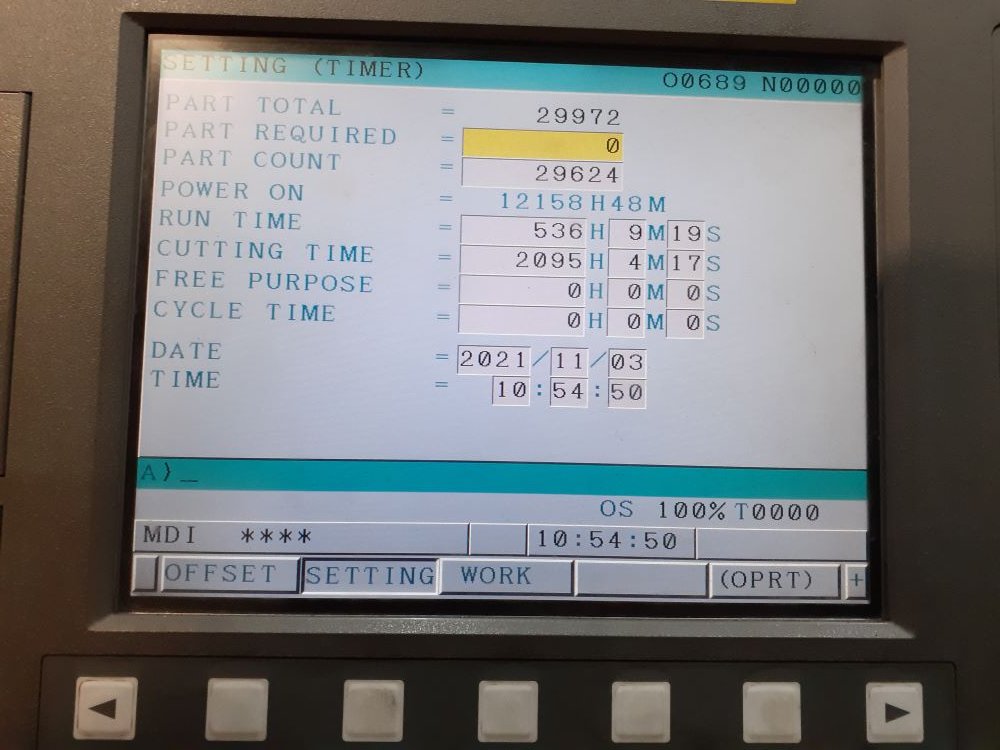

Machine Cutting Time 2095 Hours. Machine has had very little use and is in exceptional condition.

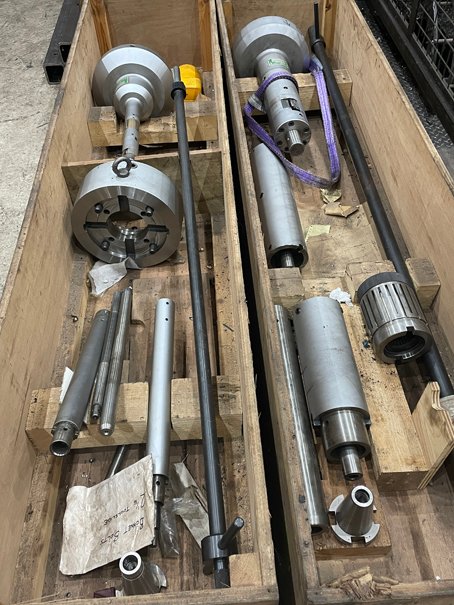

In addition to the machine we are offering on behalf of the client the following related accessories

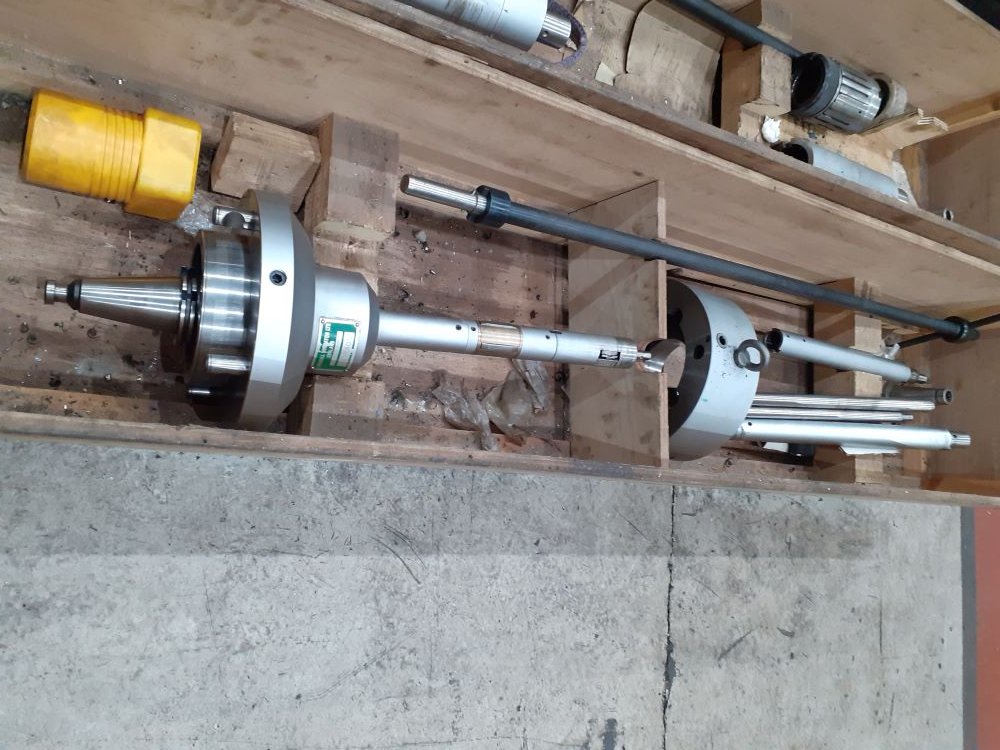

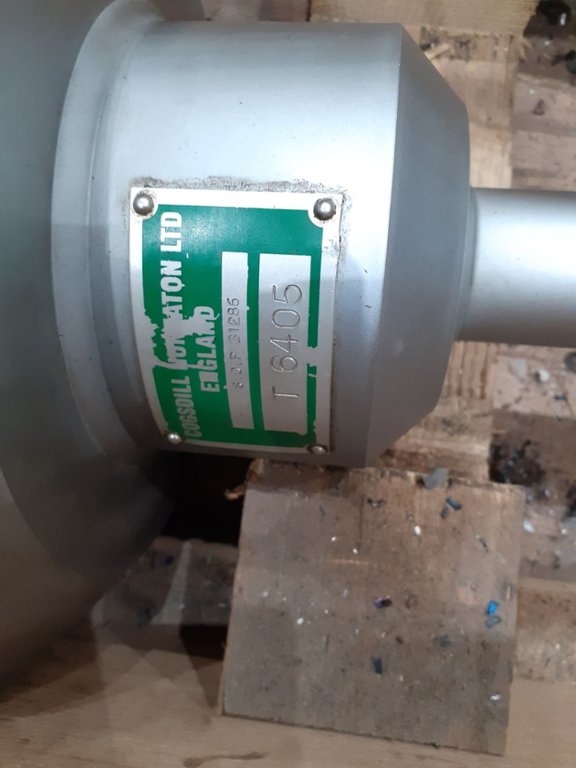

COGSDILL 2.1/16" & 5.1/8" Seat Pocket/Outfacing Bars

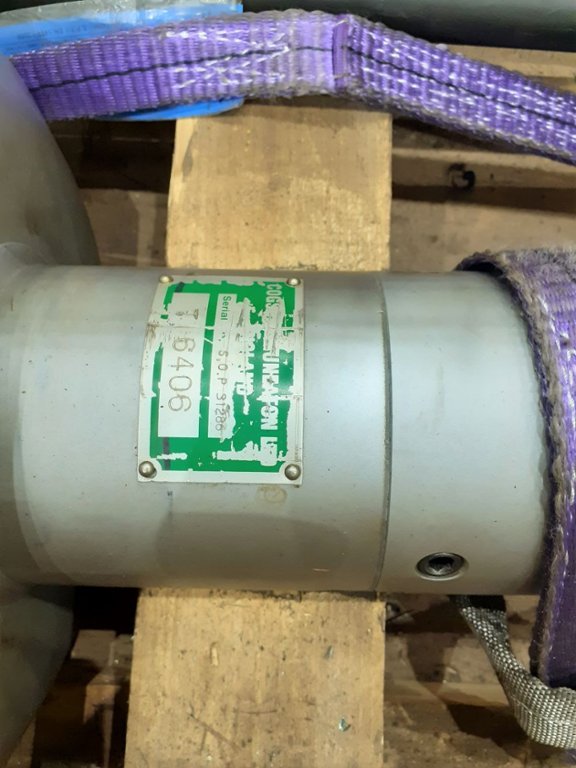

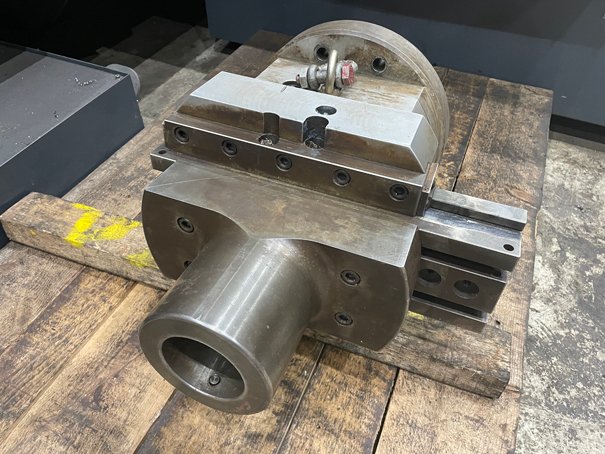

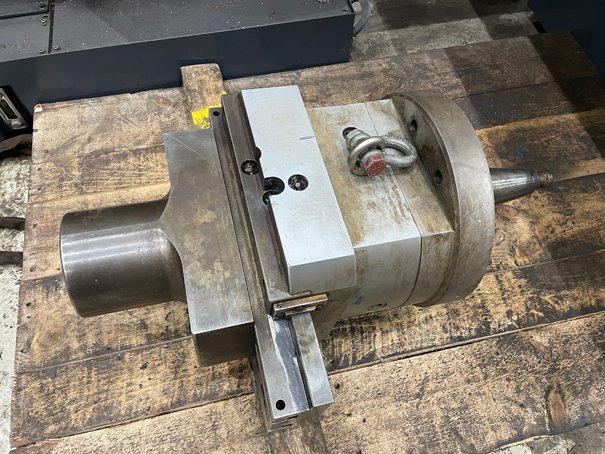

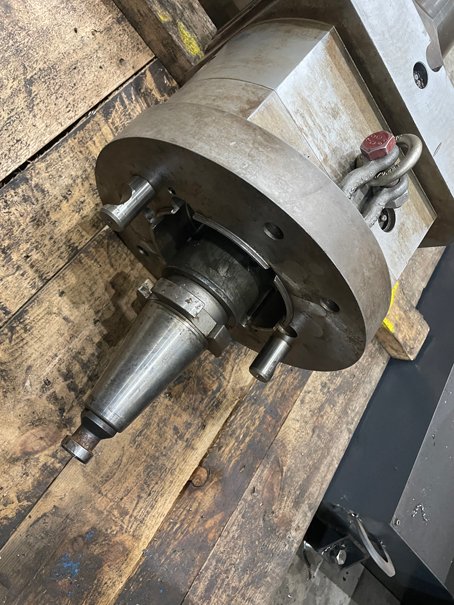

ITS CH16 Contouring Head

These additional items are for sale by Negotiation directly with the auctioneers and priority will be given to the purchaser of the main HARTFORD PBM115AG CNC Horizontal Borer

All agreed prices will be subject to a 15% Buyers Premium

Private Treaty Guide Prices

Other information

Please refer to the terms & conditions if you wish to negotiate on this item.
