ONLINE AUCTION SALE - GEAR MANUFACTURING EQUIPMENT (170747)
Auction details
| Sales Starts | 25 Jun 2025 @ 14:00 |
|---|---|
| Sales Ends | 10 Jul 2025 @ 13:00 |
| No. of Lots | 15 |
| Auction Catalogue |
Description
ONLINE AUCTION OF GEAR MANUFACTURING EQUIPMENT

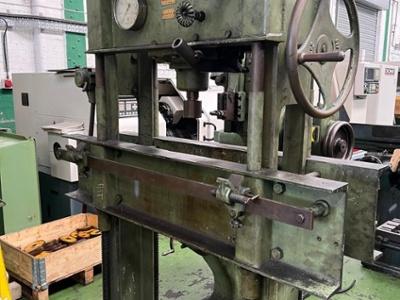

LORENZ SZA Rack Cutting Machine. SYKES V400 Gear Shaper. MAXICUT 3A Gear Shaper. WMW MODUL ZFWZ 250/5 IIA Gear Hobbing Machine. LEES BRADNER HT12 x 54 Thread & Worm Milling Machine. GLEASON 650 Hypoid Bevel Gear Generator. 3 x GLEASON 24 Straight Bevel Gear Generators. GLEASON 54 Straight Bevel Gear Generator. 2 x REISHAUER NZA Gear Grinders. ORMEROD 12'' Slotter. WAVIS 6'' Slotter. LAYCOCK 60 Ton H Frame Hydraulic Press.
Buyers Premium 18%
Collection Details
ALL LOTS MUST BE COLLECTED NO LATER THAN FRIDAY 18th JULY, 2025.
Viewing Details
Lots can be inspected strictly by appointment with machinebidder. Tel: 0161 345 3000. Please note the locations as follows:-
LOTS 1 to 5 & 13 to 15 inclusive - Can be viewed in Oldham, Greater Manchester and can be loaded free of charge to flat bed vehicles.
LOT 6 - Can be viewed in Halifax, West Yorkshire and can be loaded free of charge to flat bed vehicles.
LOTS 7 - 12 - Can be viewed in Greater Manchester by appointment and removal would be the responsibility of the purchaser.
All visitors will need to wear Personal Preventative Equipment (PPE). No minors are allowed on the various sites.
Available Lots
Lots 1-15 of 15

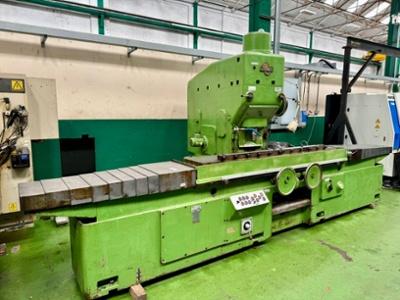

Lot 1: LORENZ SZA Rack Cutting Machine
Table size 2200mm x 360mm. Maximum workpiece width 400 mm. Maximum workpiece length 2200 mm. Max. module: 8 /10. Maximum stroke 180mm. Maximum dia. of Cutter 127mm. Maximum workpiece weight 800kg. Maximum power requirement 12 kW.Machine dimensions L ...

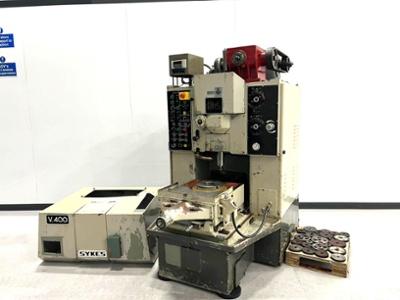

Lot 2: SYKES V400 Gear Shaper
Maximum dia External gears 400 mm. Internal gears 380mm. Maximum Pitch Mod. 6 (4 D.P). Maximum Helix Angle 45°. Cutter Stroke 0-100mm. Stroke adjustment 0.50mm. Spindle dia. 70mm. Spindle Speeds 50-1000 strokes per minute.. Table dia. 250mm. Table bore ...

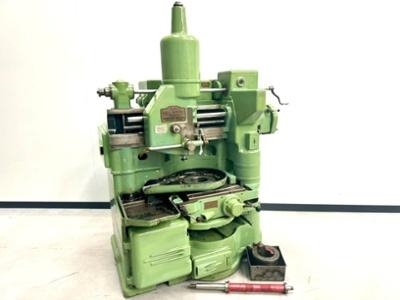

Lot 3: MAXICUT 3A Gear Shaping Machine
Capacity (External, Spur & Helical Gears) 457mm). Capacity (Internal, Spur & Helical Gears) 457mm.Maximum face width 127mm. Maximum helix angle for helical gears using a 101.6mm cutter 36°. Diameter of cutter spindle nose 31.75 mm. Minimum dia. of disc ...

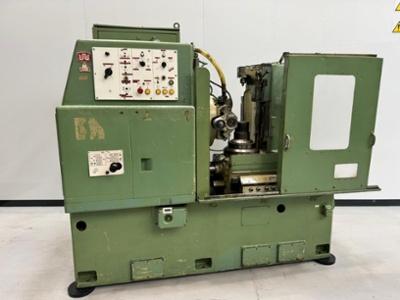

Lot 4: WMW Modul ZFWZ 250/5 IIA Gear Hobbing Machine
Maximum diameter 250 mm. Maximum width 275 mm. Module 5. Hob speed 50 – 400 rpm.Maximum diameter of the milling cutter 145 mm. Tailstock taper Morse 4. Change gears as lotted. Machine dimensions 2650mm x 1280mm x 1865mm. Approximate weight 5 tons.

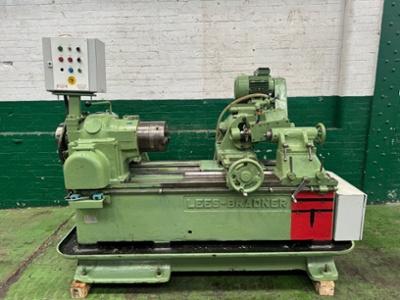

Lot 5: LEES BRADNER HT12 x 54 Thread & Worm Milling Machine with Large Spindle Bore
Max Part diameter 12". Max diameter swing 18". Max part cut length 54". Max Part Length from work spindle face - tailstock 54". Max part through work spindle 6". Max cutter Diameter 7". Machine dimensions 72'' x 54''. Approximate weight 3400kg

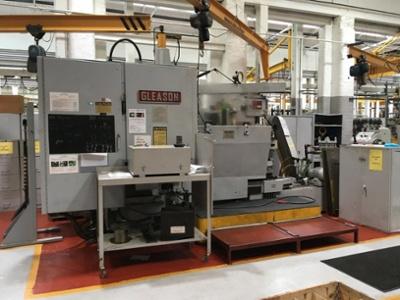

Lot 6: GLEASON 650 Hypoid Bevel Gear Generator
Extreme ratio 10:1.Roof angle range 0º to 90º. Gear diameter – Maximum 34” (863.6mm).Examples of maximum gear pitch diameters with 35º gear spiral angle using 19.7” (500mm) dia. cutter at the following ratios: 1 x 1 – 28.50” (723.90mm). 2 x 1 – 34.00” ...

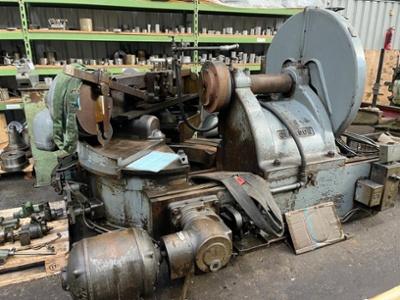

Lot 7: GLEASON 24 Straight Bevel Gear Generator
Longest Cone Distance (1-3/4" Stroke): 18". Shortest Cone
Distance 0. Maximum Pitch Angle (Shafts @ 90 Degrees) 84 Deg. 18'.
Minimum Pitch Angle 5 Deg. 42'. Extreme Ratio 10 - 1. Maximum Pitch
Diameter
10-1 Ratio 35-1/2". 2-1 Ratio 31-3/4". 1-1 Ratio ...
Lot 8: GLEASON 24 Straight Bevel Gear Generator
Longest Cone Distance (1-3/4" Stroke): 18". Shortest Cone
Distance 0. Maximum Pitch Angle (Shafts @ 90 Degrees) 84 Deg. 18'.
Minimum Pitch Angle 5 Deg. 42'. Extreme Ratio 10 - 1. Maximum Pitch
Diameter
10-1 Ratio 35-1/2". 2-1 Ratio 31-3/4". 1-1 Ratio ...
Lot 9: GLEASON 24 Straight Bevel Gear Generator
Longest Cone Distance (1.3/4" Stroke) 18". Shortest Cone
Distance 0. Maximum Pitch Angle (Shafts @ 90 Degrees) 84 Deg. 18'.
Minimum Pitch Angle 5 Deg. 42'. Extreme Ratio 10 - 1. Maximum Pitch
Diameter
10-1 Ratio 35.1/2". 2-1 Ratio 31.3/4". 1-1 Ratio ...
Lot 10: GLEASON 54 Straight Bevel Gear Generator
Maximum pitch 0.94 DP 27 Mod. Minimum pitch 8 DP 3 Mod. Maximum circular pitch 3.3/8''. Maximum face width 14''. Maximum pitch dia @ 8:1 ratio 60''. Maximum pitch dia @ 2:1 ratio 60''. Maximum pitch dia. 1:1 ratio 54''. Max Cone distance 38.25". Min ...

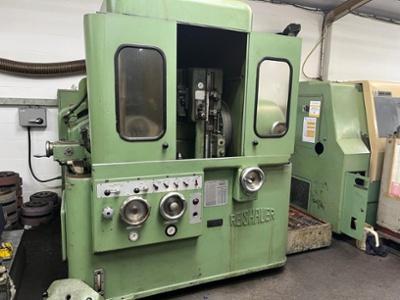

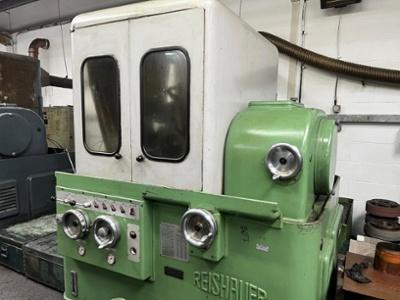

Lot 11: REISHAUER NZA Gear Grinding Machine
Maximum work dia. 300mm. Minimum work dia. 10mm. Maximum no.of teeth 130. Minimum number of teeth 12. Maximum pitch 5 module. Minimum pitch 0.5 module.Maximum helix angle (left & right hand) 45°. Maximum grinding length 170mm. Maximum grinding pressure ...
Lot 12: REISHAUER NZA Gear Grinding Machine
Maximum work dia. 300mm. Minimum work dia. 10mm. Maximum no.of teeth 130. Minimum number of teeth 12. Maximum pitch 5 module. Minimum pitch 0.5 module.Maximum helix angle (left & right hand) 45°. Maximum grinding length 170mm. Maximum grinding pressure ...

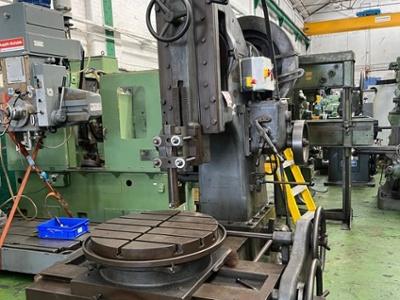

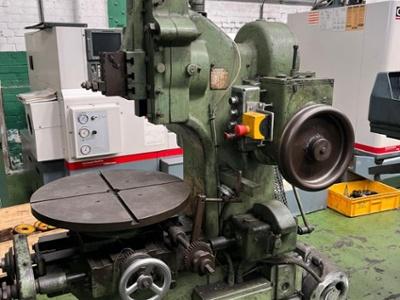

Lot 13: ORMEROD 12'' Slotting Machine with Rotary Table
Stroke capacity 4'' - 12''. Cutting speed range 12-47 feet per minute. Pulley speed 430 rpm. Serial No. 5547
