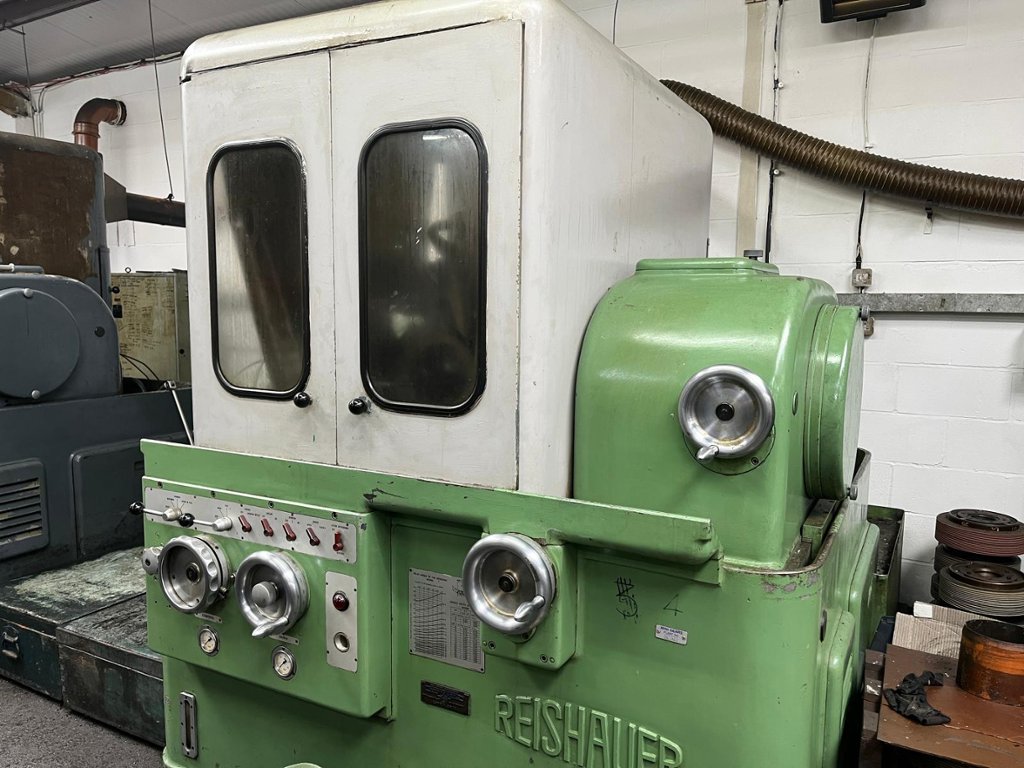

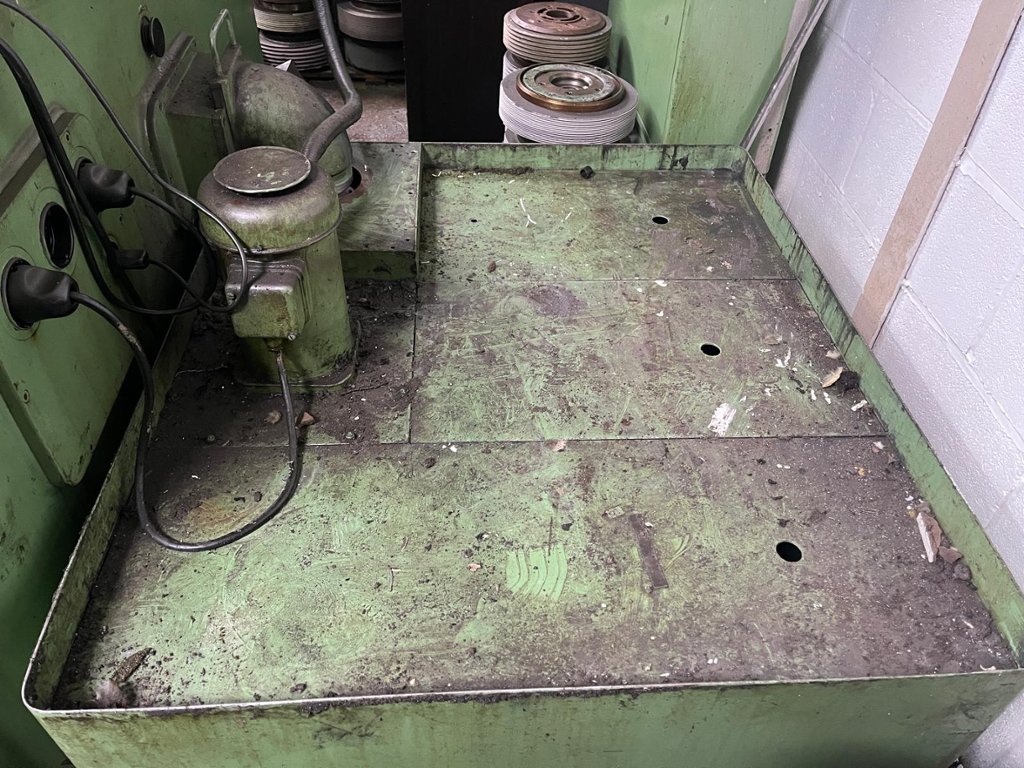

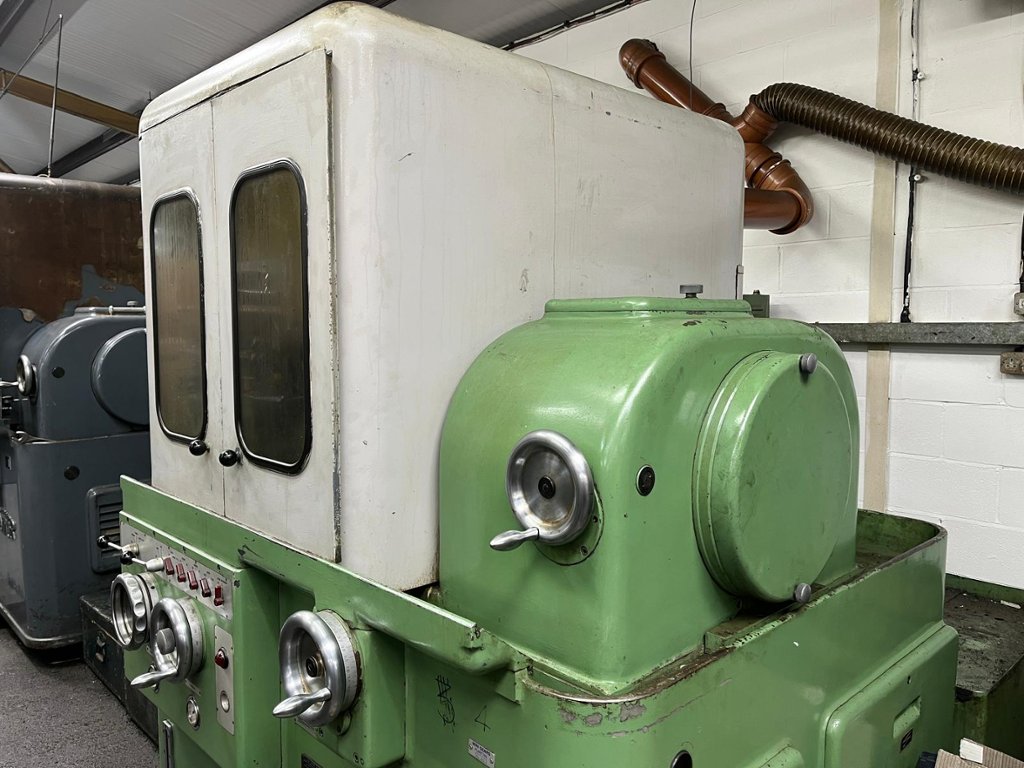

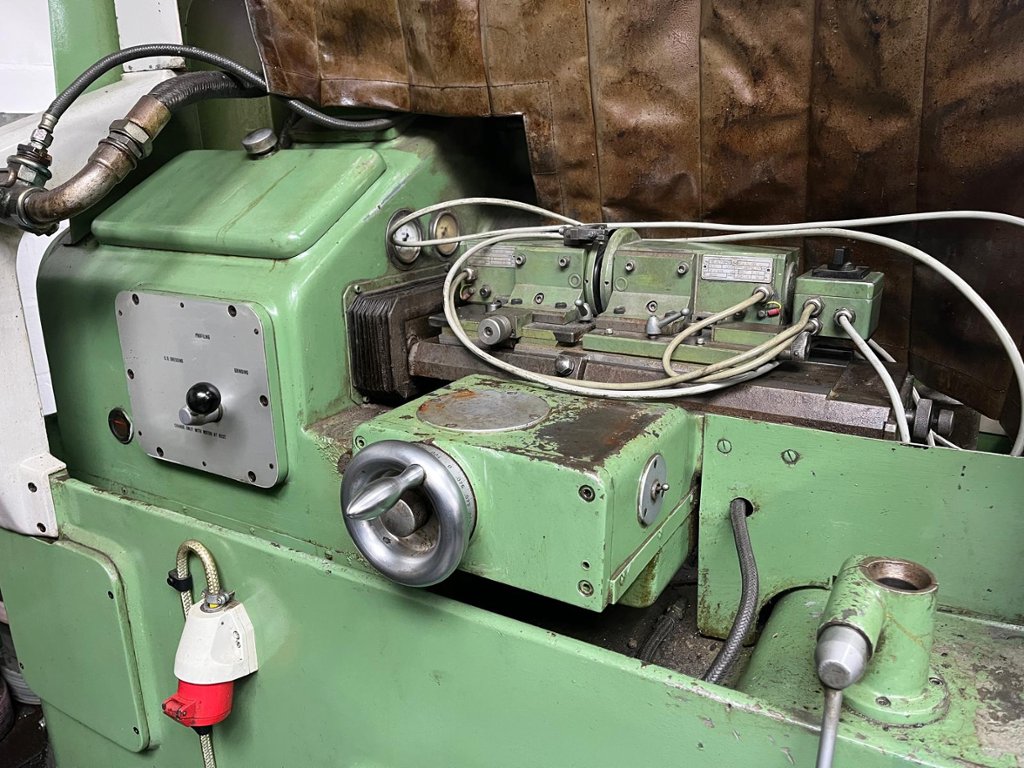

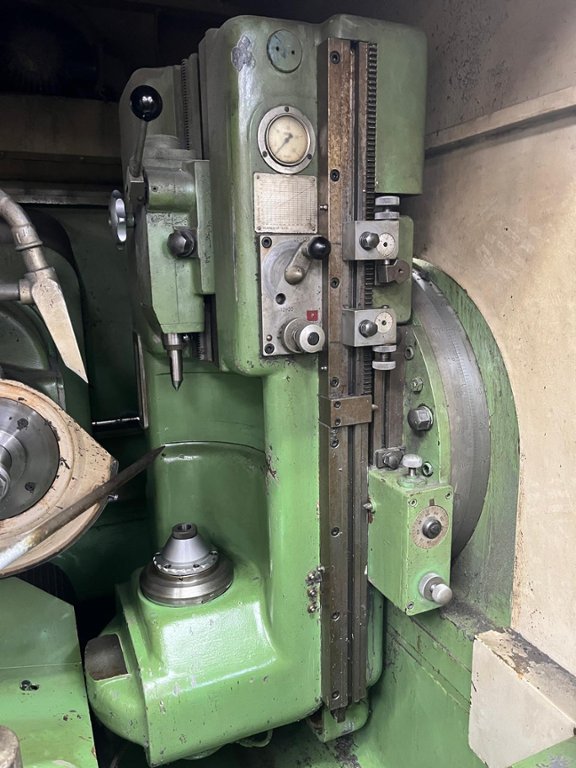

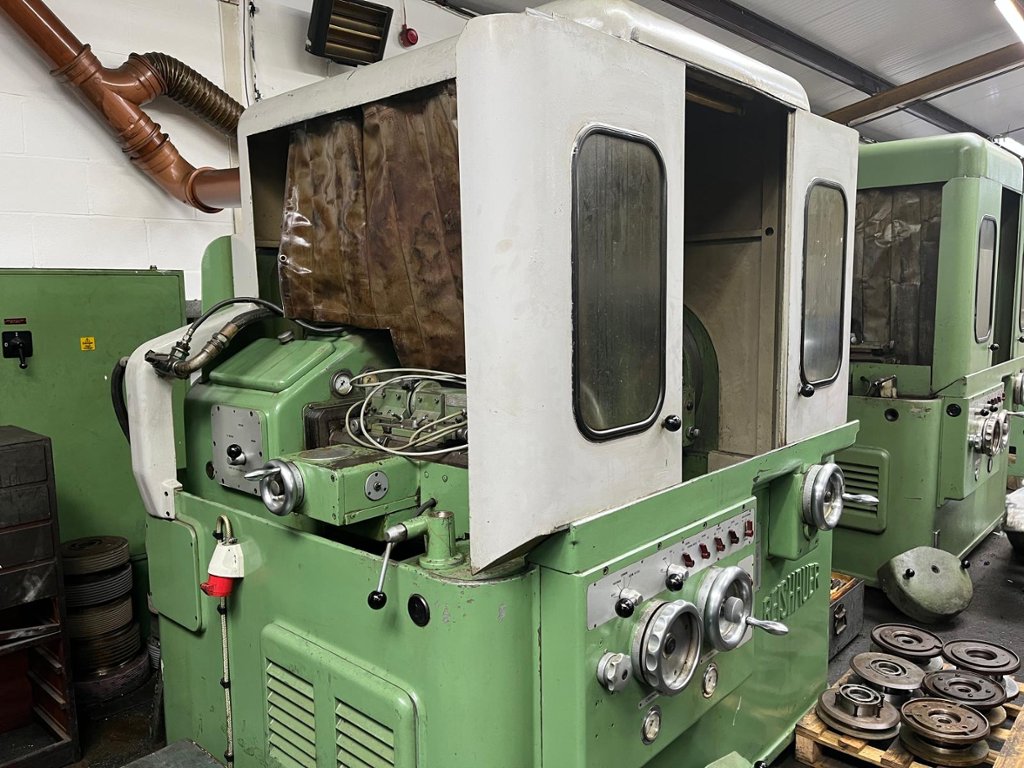

Lot 11: REISHAUER NZA Gear Grinding Machine

This lot has been archived

Bidding on this lot has finished

Description

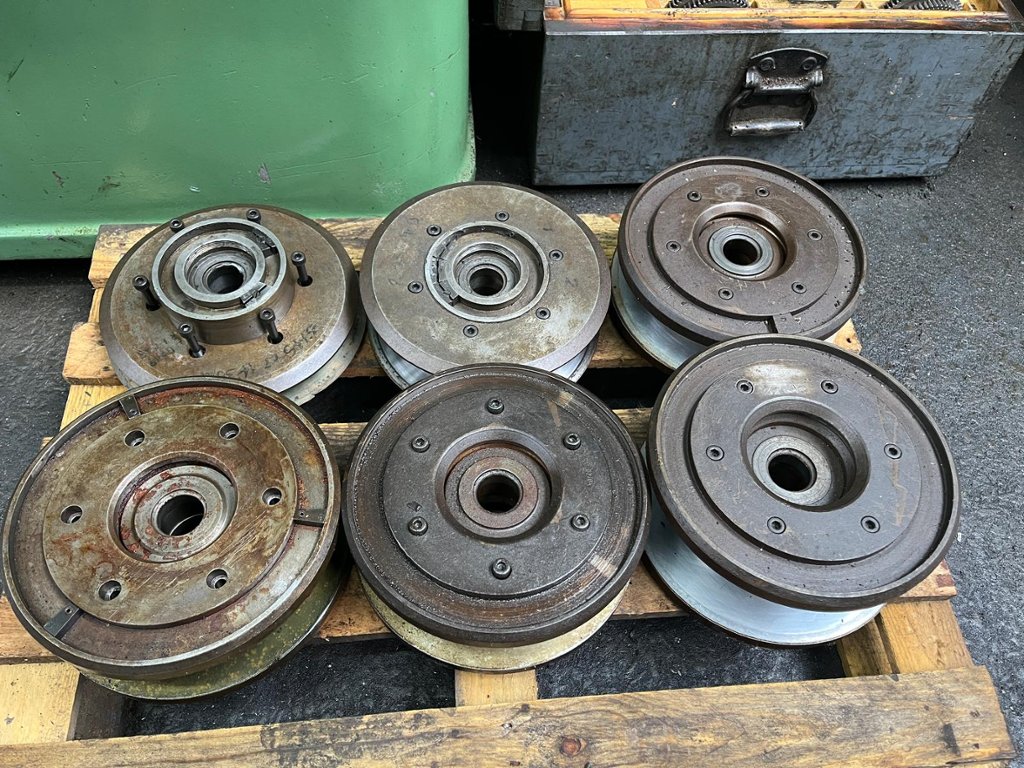

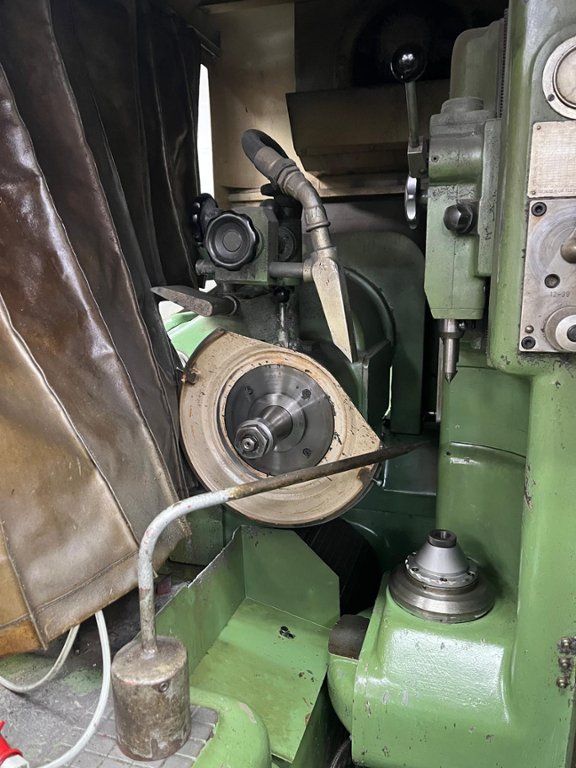

Maximum work dia. 300mm. Minimum work dia. 10mm. Maximum no.of teeth 130. Minimum number of teeth 12. Maximum pitch 5 module. Minimum pitch 0.5 module.Maximum helix angle (left & right hand) 45°. Maximum grinding length 170mm. Maximum grinding pressure angle 30°. Minimum grinding pressure angle 14° 30'. Machine complete with a qty of wheel hubs. Wheel dresser. Machine dimensions L x W x H 2075mm x 1900mm x 2000mm. Approximate weight 5800 kg.

Other information

Please read the terms & conditions before you bid on this item.
