ONLINE AUCTION SALE - GEAR MACHINERY, MACHINE TOOLS & STORAGE EQUIPMENT (170706)
Auction details
| Sales Starts | 6 Sep 2022 @ 09:00 |
|---|---|
| Sales Ends | 22 Sep 2022 @ 13:00 |
| Auction Catalogue |
Description
COLLECTIVE AUCTION SALE - On behalf of various vendors
Machine Tools: HARDINGE Conquest GT CNC Lathe with Fanuc 18T Control. MAHO MH800 T CNC Milling Machine with Heidenhain Control. HARDINGE KL1 Precision Centre Lathe. FADAL Model 9/04-1 Vertical Machining Centre with Fadal 88HS Control.(1996). DSG Model 1609 CT Surfacing & Boring Lathe. Dean Smith & Grace Type 1307 Gap Bed Centre Lathe. Snow 12" dia. Ring Grinder. CHURCHILL NB Surface Grinder. STARTRITE 24-V-10 Vertical Bandsaw. DO-ALL 26 Vertical Bandsaw. PRATT & WHITNEY 1.1/2B Jig Borer. ARCHDALE Sensitive Radial Arm Drill. ADCOCK & SHIPLEY 2E Horizontal Mill. Gear Shapers: SYKES 3C Double Helical. SYKES 1B Horizontal. FELLOWS 6AH. 2 x FELLOWS 6A . 2 x GLEASON 12" Straight Bevel Gear Generators. GLEASON 14" Coniflex Straight Bevel Gear Generator. GLEASON Shaper Cutter Grinder. DRUMMOND Maxicut 2A. HEIDENREICH & HARBECK 26 HS Bevel Gear Generator. SYKES V10A Gear Shaper. Gleason Shaper Cutter Grinder. Gear Hobbers & Planers: BARBER-COLMAN 16/56 Horizontal Gear Hobber. SYKES H150 Horizontal Gear Hobber. JOWETT Thread Milling & Hobbing Machine. SUNDERLAND 5B Gear Planer. HEY NO.20 Gear Tooth Chamfering & Rounding Machine. MAHR Type 890 Gear Tester
Miscellaneous: 3 x Double Ended Grinders. AGATHON 175AW D/E Precision Grinder/Lapper. MITUTOYO PJ300 Shadowgraph. S&B No.6 Flypress. 7 x BOTT Steel Tooling Cabinets. Large Qty of Various Tooling Cabinets.
All lots are subject to a 15% Buyers Premium
Collection Details
All items can be loaded free of charge to Flat Bed Vehicles. Containers cannot be packed at the premises. ALL LOTS MUST BE COLLECTED NO LATER THAN 3.30PM ON FRIDAY 30TH SEPTEMBER, 2022.
Viewing Details
The equipment can be viewed in storage at PARK WORKS, CLEGG STREET, BOLTON, BL2 6BL on TUESDAY 20th SEPTEMBER between 9.30am - 3.30pm. All visitors to the site without exception will need to wear appropriate Personal Protective Equipment (PPE). No minors will be allowed on the site.
Notice To Purchasers
If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licenses will be required and it is the buyers responsibility to make the necessary enquiries prior to bidding. Please note under any circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.
Available Lots
Lots 1-25 of 51

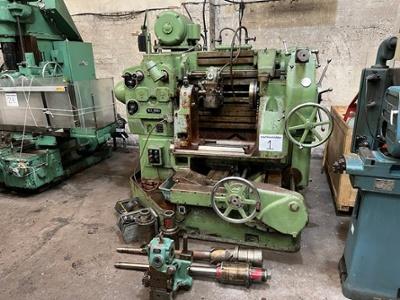

Lot 1: SYKES 3C Double Helical Gear Shaper Complete With Change Gears
Capacities: Maximum Dia 41" (1041mm). Pitch 36 - 2.1/2 Dp.0.7-10mm Mod. Face Width (Spur Or Single Helical Gear) 0 - 7.1/2" (0 - 190.5mm). Double Helical Gear 0 -10" ( 0 - 254mm). Internal Gear 0 - 6" (0-152mm). Work Spindle Bore 3.13/16" (97mm). Cutting ...

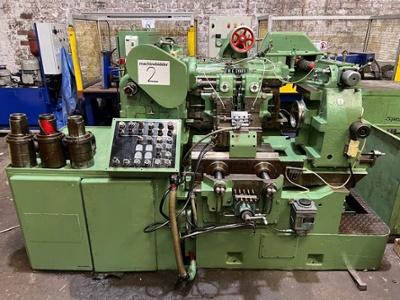

Lot 2: SYKES 1B Horizontal Gear Shaper
433 mm diameter x 127 mm face x 10 mod (2.5DP) for spurs, helicals, herringbones with appropriate guides fitted, well equipped. With change gears & photocopied handbook. Complete with 2 x spur guides.Serial No. MP284/3

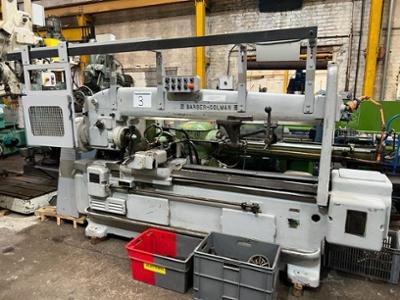

Lot 3: BARBER-COLMAN 16/56 Horizontal Gear Hobbing Machine
Suitable for the cutting of spur/helical gears, pinions, splines, and other workpieces of similar profile up to 16″ (400mm) pitch diameter, and 56″ (1422 mm) face width. Maximum rated diametral pitch (nominal) 6 DP (4.2 module).Maximum diameter of workpiece ...

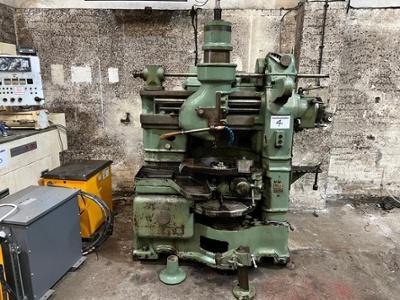

Lot 4: FELLOWS 6A Type Gear Shaper
18"(457mm) Max Dia. 5" 127mm) Max Stroke. 5"(127mm) Max Face Width. 3DP (8Mod).Change Gears. Fitted with 4" riser block. 3" Bore.

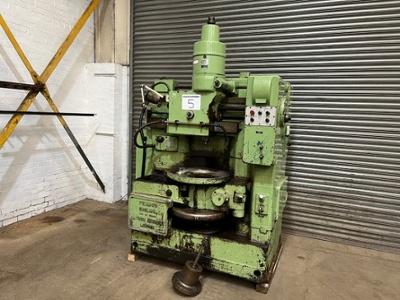

Lot 5: FELLOWS 6AH Gear Shaping Machine
Max Dia 20" (508mm). Max Face Width 5" (127mm). Max Pitch 3.5DP. 8" riser block. 5.3/4" bore

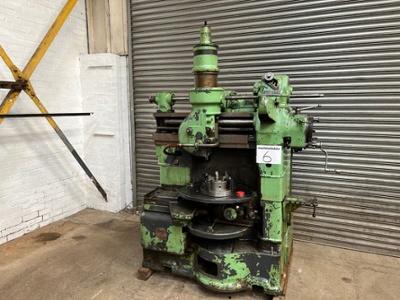

Lot 6: FELLOWS 6A Type Gear Shaper
8" Riser Block Fitted. 18" (457mm) Max Dia. 5" (127mm) Max Stroke. Max Face Width 3DP (8mod). Change Gears. Fitted with 8" riser block. 3" bore.

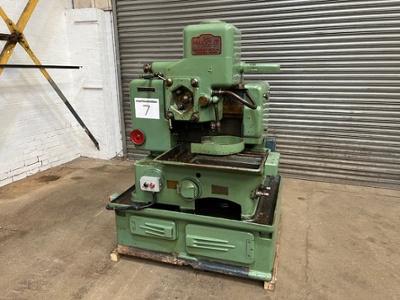

Lot 7: DRUMMOND Maxicut 2A Gear Shaping Machine
No Coolant Pump. Maximum Gear Dia. 200mm. Max Mod 4. Max Stroke Length 50mm. Spindle Dia 70mm. Change Gears. Serial No. FC-46-1333

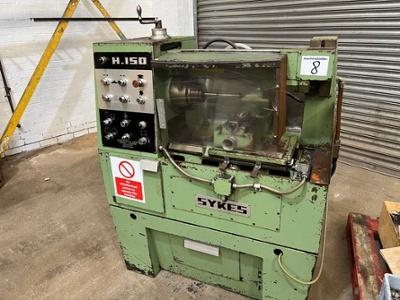

Lot 8: SYKES H150 Horizontal Gear Hobbing Machine
Work Piece Dia. 160mm. Capacity 10DP (MOD 2.5). Table Size 108mm. Hob Dia 76mm. Hob Length 70mm. Hob Shift 46mm. Hob Slide Travel 270mm. Speeds 160-900rpm. Selection Of Hobs & Change Gears

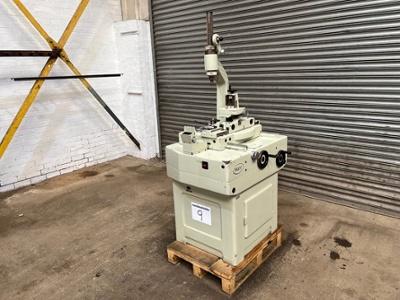

Lot 9: MAHR Type 890 Involute Gear Tester for Spurs & helicals.
Infintely variable for tooth profile,base circle & pressure angle. External & Internal gears, even surface finish.Maximum dia. 21".Pitch 0.5 mod to 15 module. With workholding bracket.

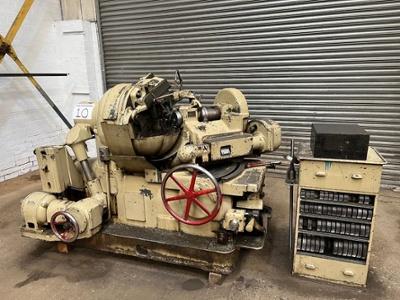

Lot 10: GLEASON 12" Straight Bevel Gear Generator
Rougher & Finisher. Change Gears. Setting Guages. Serial No. 16236. Longest Cone Distnace 12" (305mm). Extreme Ratio 10:1. Max Module 8.5 ( 3DP). Max Dia Capacity 17" (431mm)

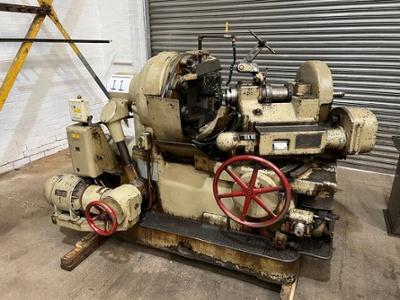

Lot 11: GLEASON 12" Straight Bevel Gear Generator
Rougher & Finisher. Change Gears. Setting Guages. Serial No. 19223. Longest Cone Distnace 12" (305mm). Extreme Ratio 10:1. Max Module 8.5 ( 3DP). Max Dia Capacity 17" (431mm)

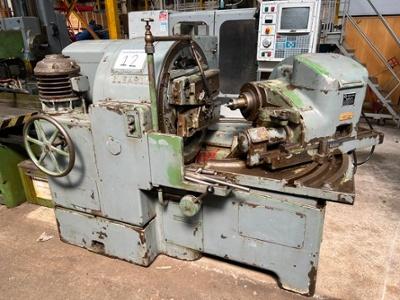

Lot 12: GLEASON 14" Coniflex Straight Gear Generator
Capacity to Cut straight bevel gears and pinions up to 24"
Diameter, 3.5" face-width.
Maximum cone distance (2.75" 3.5" face) 12", Max. Cone
distance (1" face) 11.1/8".
Minimum Cone distance 0". Max. pitch angle (angular gears)
105 degrees. Max. Pitch ...

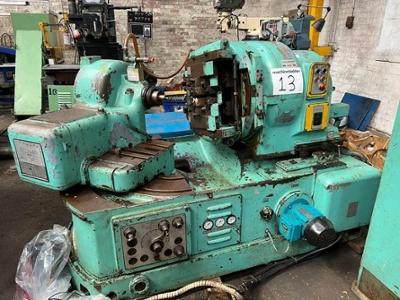

Lot 13: HEIDENREICH & HARBECK (H&H) 26HS High Speed Straight Bevel Gear Generator. Year 1972
Nominal capacity 280mm/11" dia.Largest conical face 143mm/5.63".Maximum pitch 8 MOD/3DP. Spindle bore 135mm/5.3". Rougher & Finisher. Change gears. Large qty of accessories. Machine serial no. 80-0249-0244

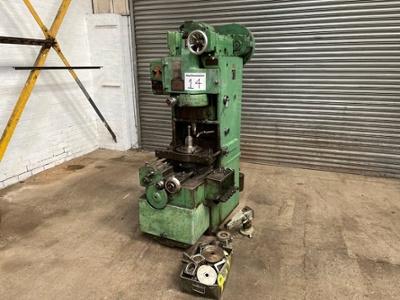

Lot 14: SYKES V10A Gear Shaper
Max Stroke 2.1/2" (63.5mm) x 10"(254mm) PCD Dia x 5DP. Change Gears. Tail Stock. Crank Speeds 149-622rpm

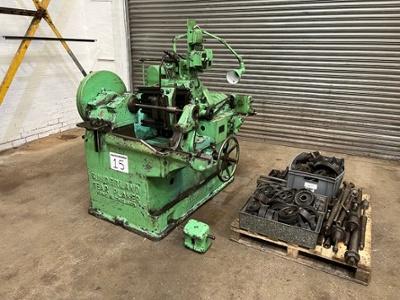

Lot 15: SUNDERLAND 5B Spur & Helical Gear Planer
24" (609mm) Dia x 5" (127mm) Face. Change Gears. Steadys. Arbors

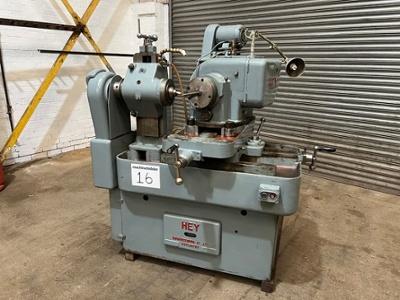

Lot 16: HEY NO.20 Gear Tooth Chamfering & Rounding Machine with Change Gears & Cams
Serial No.2744-67. Maximum 20" (508mm) Dia. Complete with change gears & 3 Cams 1 x 8-9 DP, 1 x 6-7 DP & 1 x 13-16 DP Rounding Cam. Machine manual.

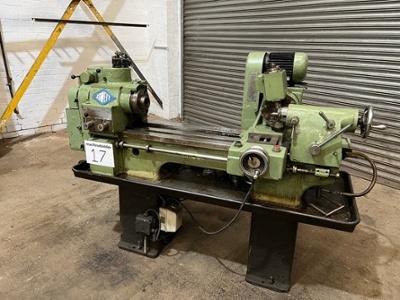

Lot 17: JOWETT Thread Milling & Hobbing Machine
Spindle Speeds 85-185rpm. 6.1/2" centre height. Spindle Bore 1.3/4"( 44mm). 30" between centres.

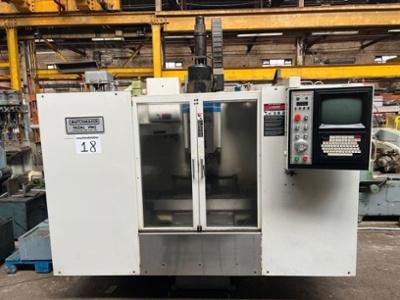

Lot 18: FADAL Model 9/04-1 Vertical Machining Centre with Fadal 88HS Control. Year 1996.
Table size 990mm x 406mm. Long travel 558mm.Vertical travel 508mm.Cross travel 406mm.Spindle taper CAT40.Spindle power 15 HP.21 Position toolchanger.

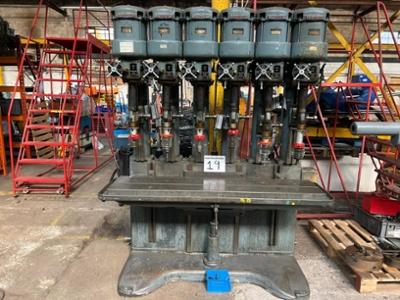

Lot 19: HERBERT 6 Spindle Drilling Machine
Table size 68” x 15.1/2”. Spindle speeds 106 - 2850rpm. 3mt.

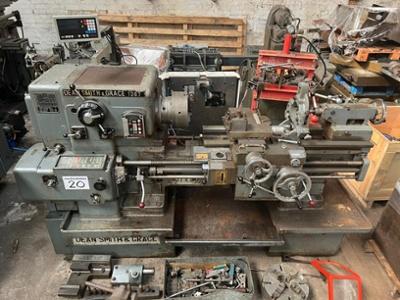

Lot 20: DEAN SMITH & GRACE 1307 x 30 Gap Bed Centre Lathe
3 & 4 Jaw Chucks, Fixed Steady, Newall DRO, Drill Attachment, Quick Change Toolpost & Holders. Serial No. 39584-4-73

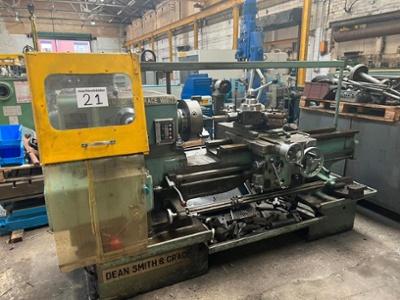

Lot 21: DEAN SMITH & GRACE 1609 CT Surfacing & Boring Lathe
Cross sliding turret & tooling. 3 jaw Chuck Dia 310mm.Year 1973

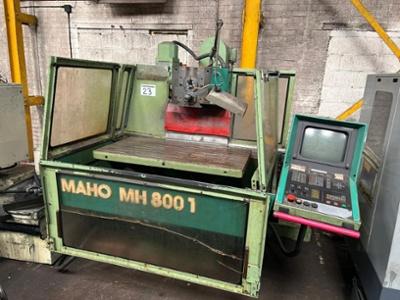

Lot 23: MAHO MH800T CNC Universal Milling Machine with Heidenhain Control
Table size 1100mm x 600mm.Lont travel 800mm. Cross travel 500mm. Vertical travel 450mm.Spindle speeds 63-3150 rpm. Spindle taper 40 ISO.Heidenhain Conreol. Coolant Tank. Swivel Vertical Head.

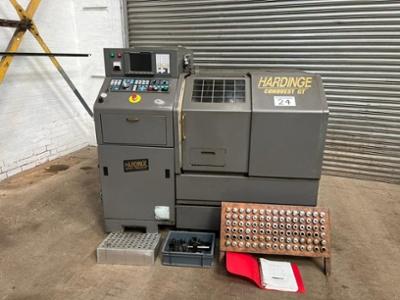

Lot 24: HARDINGE Conquest GT (Gang Type) CNC Lathe with Fanuc 18T Control
Maximum swing over bed 298mm.Max swing over tooling top plate 67.3mm. X travel 299mm.Z travel 286mm.Spindle flange A2-4". Thro' spindle bore 27mm. Spindle speeds 60-6000 rpm.
