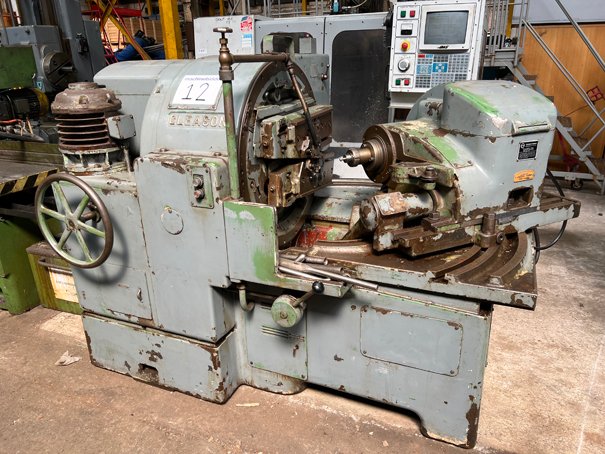

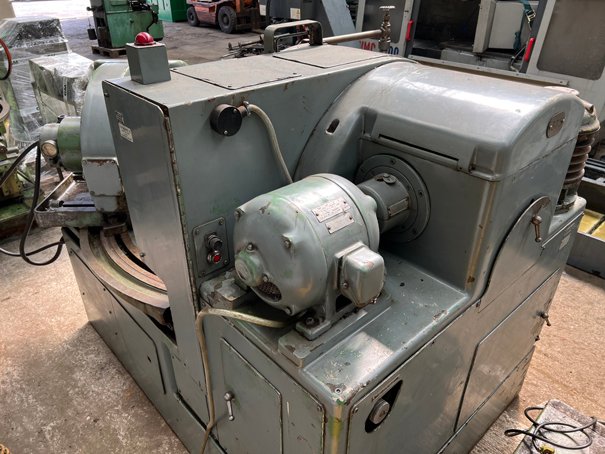

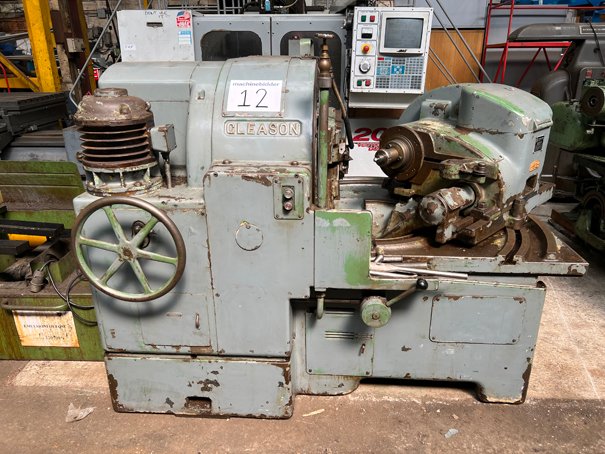

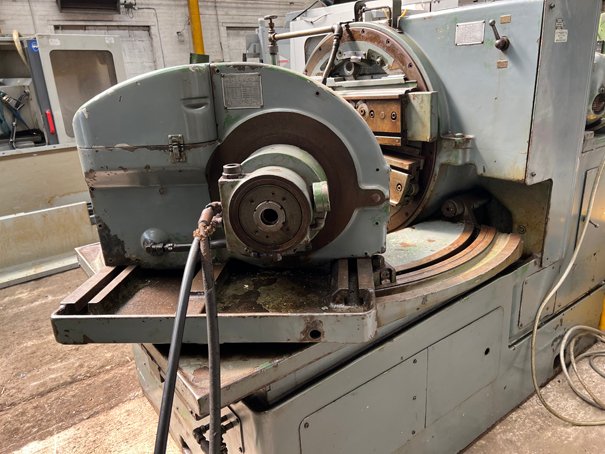

Capacity to Cut straight bevel gears and pinions up to 24"
Diameter, 3.5" face-width.
Maximum cone distance (2.75" 3.5" face) 12", Max. Cone
distance (1" face) 11.1/8".

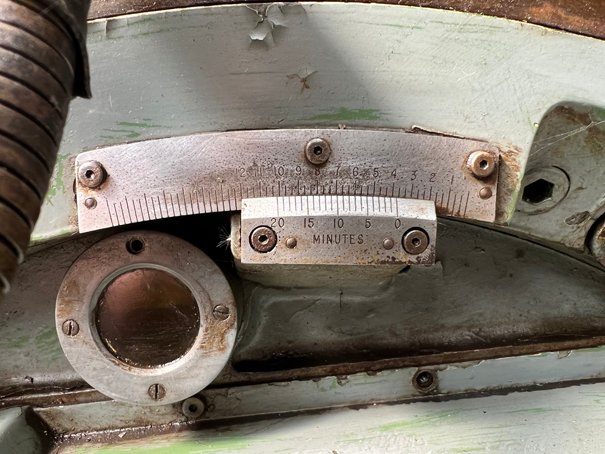

Minimum Cone distance 0". Max. pitch angle (angular gears)
105 degrees. Max. Pitch angle (90-deg shafts) 84 degrees/18min.
Min. pitch angle 5 degrees/42min. Maximum Ratio 10/1. Maximum Face
width 3.5". Maximum Stroke length 0.5" 4.5". Index range, Inclusive
5-100 (+up to 200). Maximum pitch, nominal 3 DP (8.5 module),

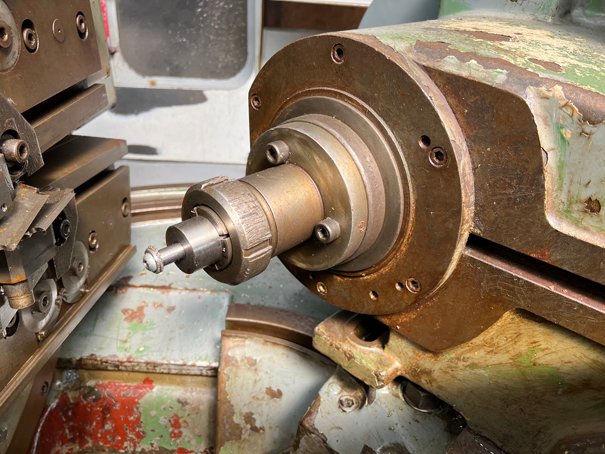

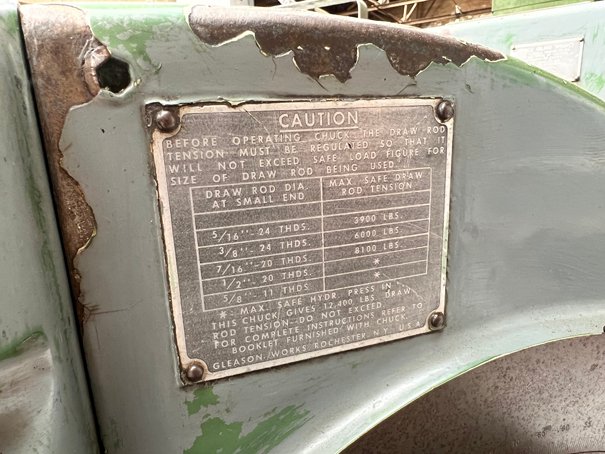

Diameter of hole in work spindle (large end) 3.906", Spindle taper
per foot 0.609". Depth of spindle taper 6". Diameter of spindle
thru-hole 3.063". Spindle nose to centre line 2.5” to 15", 13 x

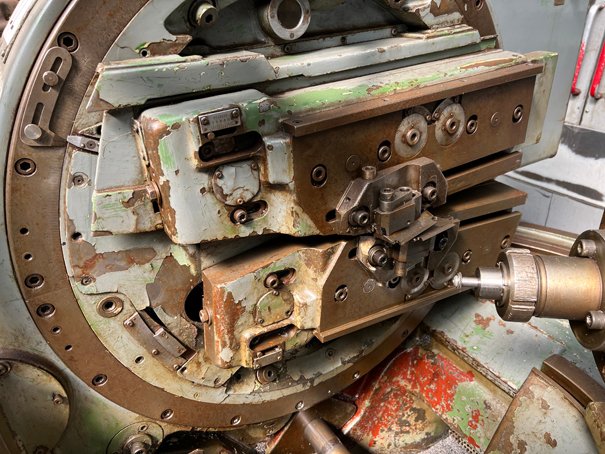

tool speeds in strokes per Min. 64 to 495. 16 x feeds from 10

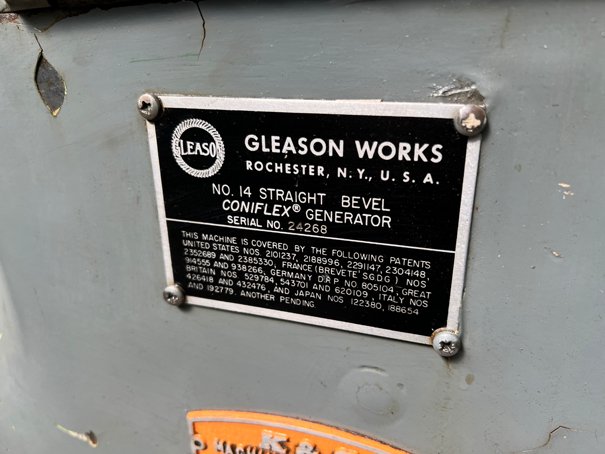

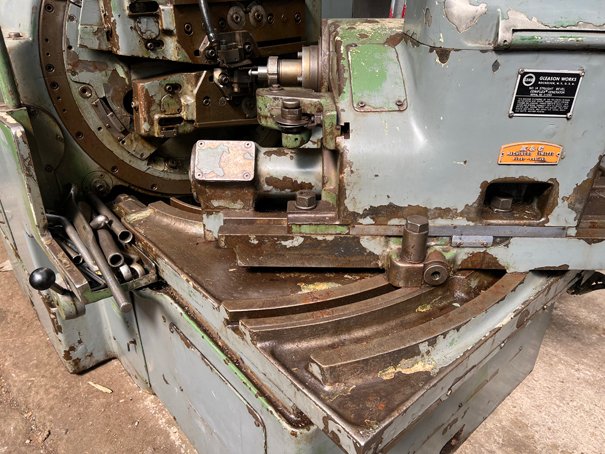

seconds to 2 minutes, 11 seconds per tooth. Machine Serial No. S/N

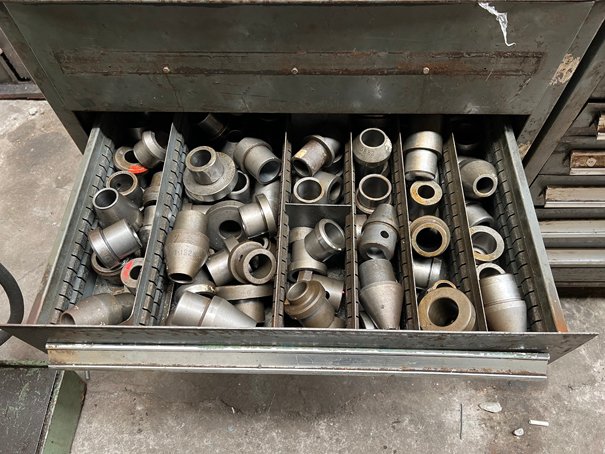

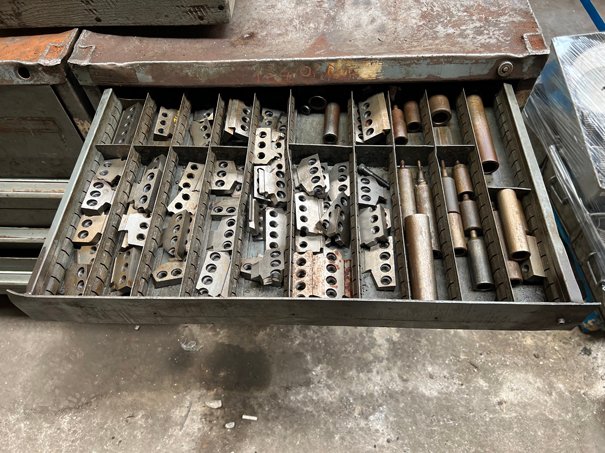

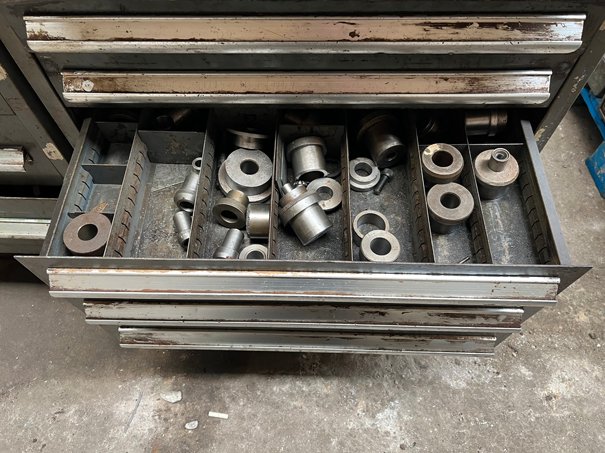

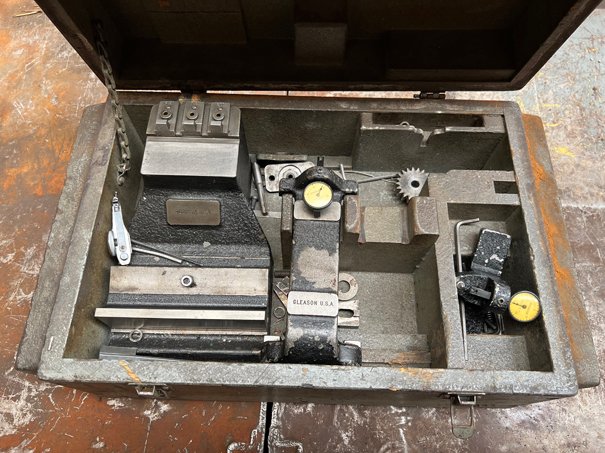

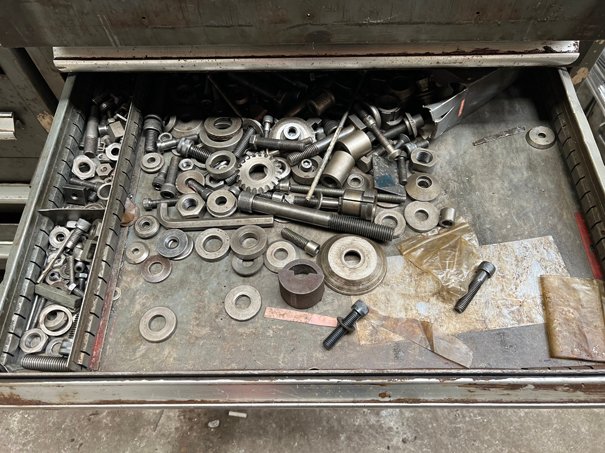

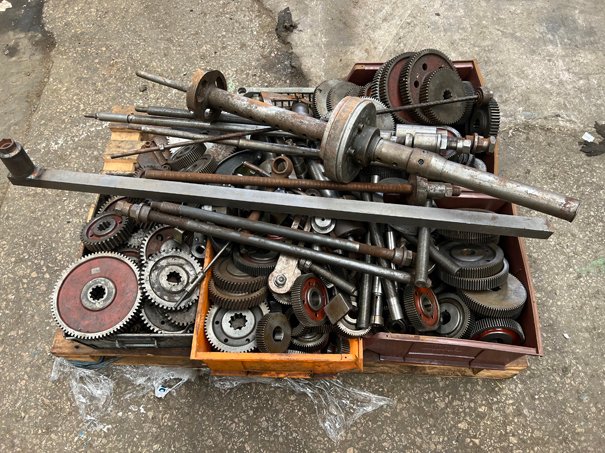

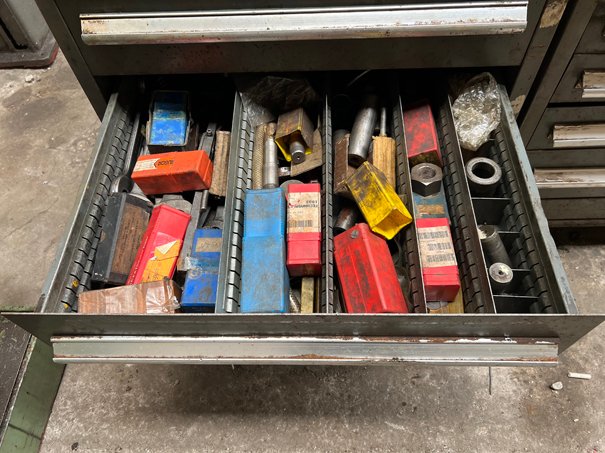

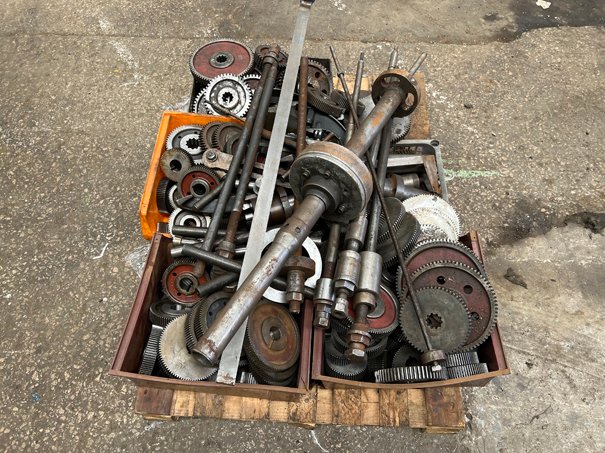

24268. Machine complete with Setting Gauges, Change Gears, Large
selection of Cutters and Cutter Holders.
