PRIVATE TREATY SALE - LATE CNC LATHES & MACHINING CENTRES (170673)

Sale details

Description

By order of a retained client

CNC LATHES & MACHINING CENTRES: HARTFORD LG1000 Vertical Machining Centre. Year 2010.XYZ 1010 Vertical Machining Centre. Year 2008. XYZ SMX5000 CNC Mill. Year 2012. HURCO VM10 Vertical Machining Centre. Year 2011.HAAS TM1P Vertical Machining Centre. Year 2016.HAAS UMC750 5 Axis Vertical Machining Centre. Year 2017. HAAS ST20 CNC Lathe with Servo Bar 300 Multi Barfeed. Year 2011.XYZ 355 CNC Lathe with Prototrak SLX Control. Year 2012.XYZ PRO2000 CNC Turret Mill with Prototrak MX3 Control. Year 1997

CONVENTIONAL EQUIPMENT: CHESTER MDM411VS Turret Mill.DEVLIEG 2B-36 Spiramatic with Airlift Table. JONES & SHIPMAN 1300 Cylindrical Grinder. JONES & SHIPMAN 540P Surface Grinder.. SEALEY Horizontal Bandsaw. MEDDINGS Bench Drills. Fast Tap 400 Tapper.CLIMAVENT LW11P Wet Collector. ROTOBROACH in case. Linishing Machine

INSPECTION EQUIPMENT: STATUS CMM Machine with RENISHAW PH10T Probe. GRANITE Table with FARO Arm (Box available)
FARO Arm in box

FABRICATION EQUIPMENT: Mobile Welding Benches x 2. LINCOLN ELECTRIC Fume Extraction Unit. THERMAL ARC Fabricator 330 Mig Welder. JASIC TIG200P AC/DC Welder. TECARC Compact MIG 311 Welder. A Frame. Oxy Acetylene on Trolley

COMPRESSORS: KAESER SK22 & SM12T Screw Compressors with Air Receivers

Many more items to be lotted

Collection Details

The successful buyers or their designated machinery removal contractors are responsible for the collection and removal from site. Please note there are no overhead cranes or lifting facilities.

Method Statements and Risk Assessments must be forwarded to the auctioneers for checking along with a valid certificate of insurance prior to work commencing. The equipment must be removed from site no later than Friday 1st May, 2020.

Due to the Covid 19 outbreak machinebidder can organise the disconnection, uplifting,loading & delivery of items directly to your premises if required.

Viewing Details

On site viewing in Chester, UK is strictly by appointment directly with our offices on 0161 345 3000. All visitors to the site without exception will need to wear appropriate Personal Protective Equipment (PPE). No minors will be allowed on the site. Please note whilst on site machinebidder staff will keep a minimum of 2 metres distance from visiting parties and are instructed not to shake hands or have any contact whatsover.

Notice To Purchasers

If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licences will be required and it is the buyer’s responsibility to make the necessary enquiries prior to negotiation.

Please note under any circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.

Available Lots

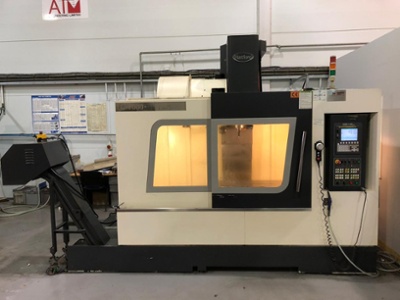

Lot 1: HARTFORD LG1000 Vertical Machining Centre. Fanuc 0iMD-PB Control. Year 2010

Table size 1150 x 510mm. XYZ travels 1000mm x 510mm x 630mm. Spindle taper BT40.Spindle speeds to 8000 pm. Motor power 7.5kW. Swarf Conveyor.Fanuc 0IMD-PB Control

Private Treaty Sale (by negotiation)

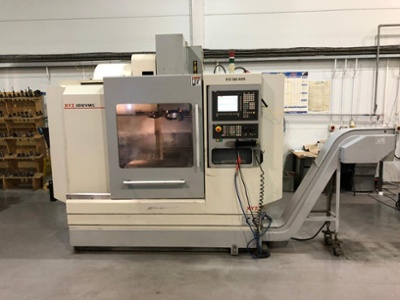

Lot 2: XYZ 1010 Vertical Machining Centre with Siemens Sinimerik 810D Control. Year 2008

Table size 1200mm x 450mm. XYZ travels 1000mm x 509mm x 509mm. Spindle taper BT40.Spindle speeds to 8000 pm. Motor power 11kW. Swarf Conveyor. Siemens Sinumerik 810D Powerline Control

Private Treaty Sale (by negotiation)

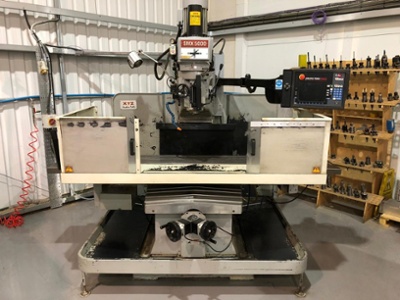

Lot 3: XYZ SMX5000 CNC Mill. Prototrak SMX Control.Year 2012

Table size 1930mm x 356mm.XYZ travels 1524mm x 596mm x 540mm.Spindle taper 40 ISO.Spindle speeds 40-5000 rpm. Proto Trak Control

Private Treaty Sale (by negotiation)

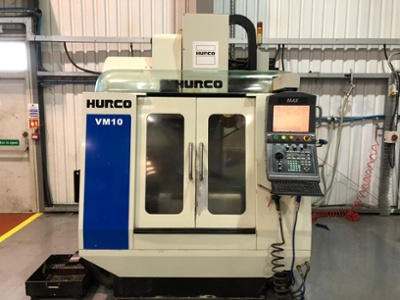

Lot 4: HURCO VM10 Vertical Machining Centre. Winmax Control. Year 2011

Table size 762mm x 355mm. XYZ travels 660mm x 355mm x 457mm. Spindle taper 40 ISO.Spindle speeds to 10000 rpm.Hurco Winmax Control

Private Treaty Sale (by negotiation)

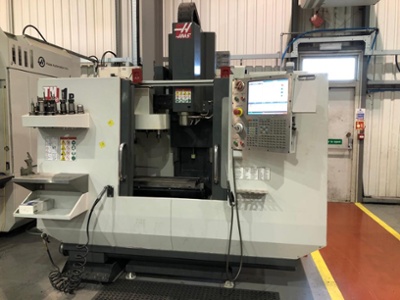

Lot 5: HAAS TM1P Vertical Machining Centre. Haas Control. Year 2016

Table size 1213mm x 267. XYZ travels 762mm x 305mm x 406mm. Spindle taper BT40.Spindle speeds to 6000 rpm.Haas Control

Options: Rigid Tapping. High Speed Machining

Private Treaty Sale (by negotiation)

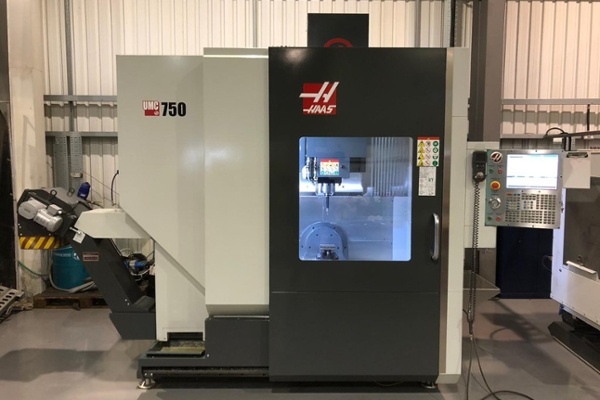

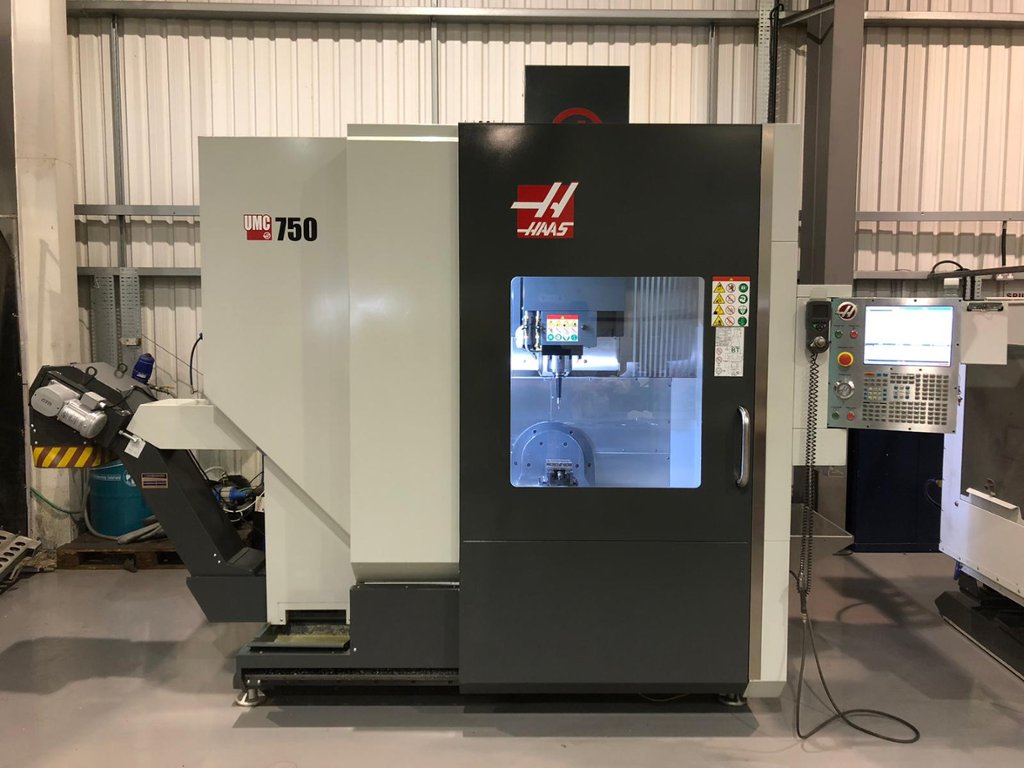

Lot 6: HAAS UMC750 5 Axis Vertical Machining Centre. Haas Control. Year 2017

Table dia 500mm.Max weight on table 300kgs.XYZ travels 762mm x 508mm x 508mm.B axis tilt + 110 degrees - 35 degrees. C axis rotation 360 degrees. Max speed 50 degrees per second. Spindle taper BT40. Spindle speeds to 12,000 rpm. pindle power 22.4 kW. ...

Private Treaty Sale (by negotiation)

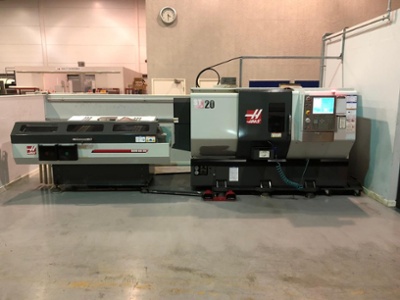

Lot 7: HAAS ST20 CNC Lathe with Servo Bar 300 Multi Barfeed. Haas Control. Year 2011

Max swing 806mm. Swing over slide 527mm.Max cutting dia.381mm. Max cutting lenth 533mm.Spindle speeds to 4000 rpm.Bar capacity 51mm. Fitted with 200mm dia. 3 jaw chuck. Servo Bar 300 Multi Barfeed. Haas Control

Private Treaty Sale (by negotiation)

Lot 8: XYZ 355 CNC Lathe with Prototrak SLX Control. Year 2012 - SALE AGREED

Swing over bed 360mm. Swing over cross slide 225mm. Distance between centres 1000mm. Spindle speeds 50-4000 rpm. Spindle bore 52mm. Fitted with 4 way toolpost. 3 jaw chuck. Proto Trak SLX Control

Private Treaty Sale (by negotiation)

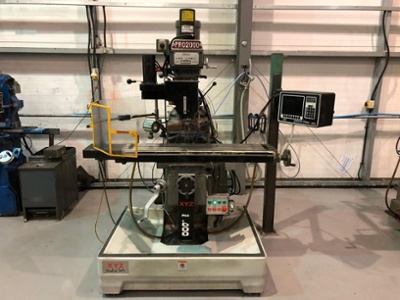

Lot 9: XYZ PRO2000 CNC Turret Mill with Prototrak MX3 Control. Year 1997

Table size 1270mm x 254mm. XYZ travels 762mm x 406mm x 406mm. Spindle taper R8. Spindle speeds 60-4200 rpm. Proto Trak MX3 Control

Private Treaty Sale (by negotiation)

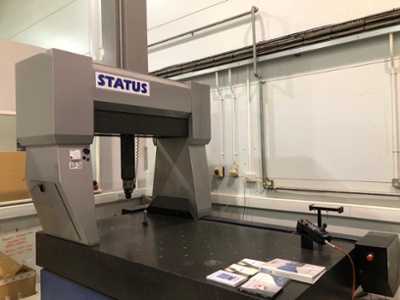

Lot 10: STATUS CMM Machine with RENISHAW PH10T Probe

Overall size of table 2350mm x 1511mm. Working width 1219mm.Height under cross beam 889mm. Granite table height 889mm. Renishaw PH10 Probe. Complete with Software Package, Computer & Keyboard

Private Treaty Sale (by negotiation)

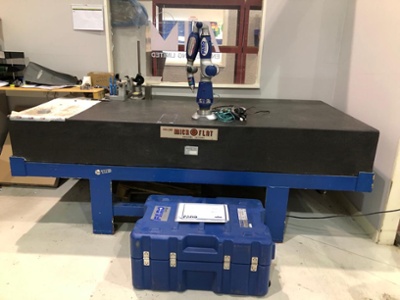

Lot 11: GRANITE Inspection Table with FARO Inspection Arm (Box available)

Table size 2438mm x 1219mm. Height of table 863mm.Granite table comoplete with FARO Inspection Arm

Private Treaty Sale (by negotiation)

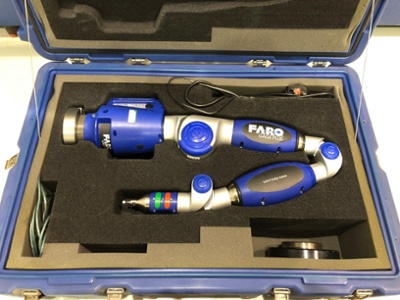

Lot 12: FARO Inspection Arm in Box

Accuracy Specification 5+8L/1000 (um). Last Calibrated 11 March 2019

Private Treaty Sale (by negotiation)

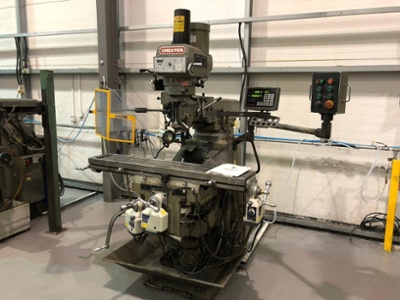

Lot 13: CHESTER MDM411VS Turret Mill

Model MDM4HVS. Serial Number NX0604021. Year 2006. Safety Guards. SINO SDS2MS Digital Readout

Private Treaty Sale (by negotiation)

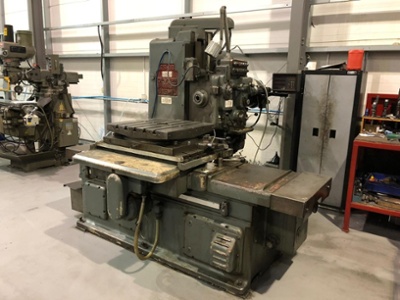

Lot 14: DEVLIEG 2B-36 Spiramatic with Airlift Table

Table 36" x 24". Spindle Taper 40ISO. Spindle Speeds 42 - 2000rpm. 3 Axis Digital Read Out.Complete with 24" x 24" Airlift Table. Serial Number 131937.

Private Treaty Sale (by negotiation)

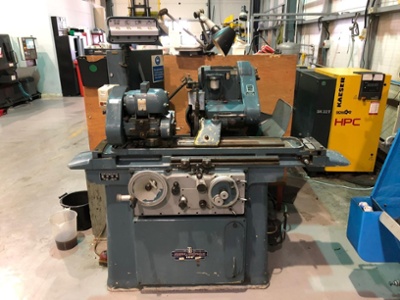

Lot 15: JONES & SHIPMAN 1310 Cylindrical Grinder with Internal Attachment

Swing over bed 8"  x 18" Between Centre. Complete with Internal Attachment

Private Treaty Sale (by negotiation)

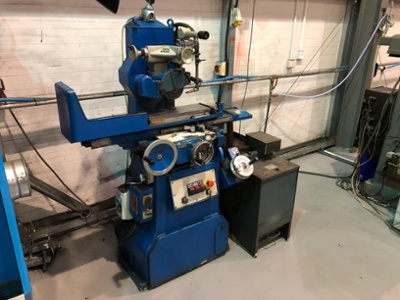

Lot 16: JONES & SHIPMAN 540P Surface Grinder

Machine complete with Magnetic Chuck. Optidress Attachment. Power rise & fall to wheelhead

Private Treaty Sale (by negotiation)

Lot 17: KAESER SK22 Scew Compressor with air receiver - SALE AGREED

Year 2012. Serial Number 1226. Max Working Pressure 16 Bar. Rated Voltage 230V/1/50Hz.

Private Treaty Sale (by negotiation)

Lot 18: KAESER SM12T Screw Compressor with air receiver - SALE AGREED

Year 2011. Serial Number 2060. Rated Power 7.5Kw. Motor Rated Speed 2930/1/min. Max Wprk Pressure 8 Bar. Ambient Temperature 3 degrees

Private Treaty Sale (by negotiation)

Lot 19: MEDDINGS Bench Drill - SALE AGREED

Details to follow

Private Treaty Sale (by negotiation)

Lot 20: MEDDINGS Bench Drill - SALE AGREED

Details to follow

Private Treaty Sale (by negotiation)

Lot 21: FAST TAP 400 Tapping Machine - SALE AGREED

Details to follow

Private Treaty Sale (by negotiation)

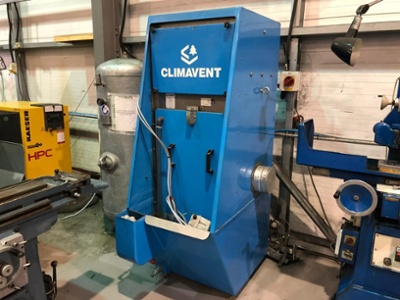

Lot 22: CLIMAVENT LW11P Wet Collector

Serial Number PDI 2088. Motor 1.5k.w. 415V. 3 Phase.

Private Treaty Sale (by negotiation)

Lot 23: ROTOBROACH in case

Details to follow

Private Treaty Sale (by negotiation)

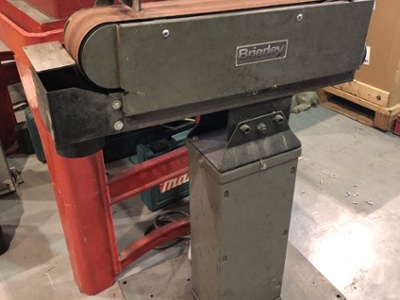

Lot 24: LINISHING Machine

Details to follow

Private Treaty Sale (by negotiation)

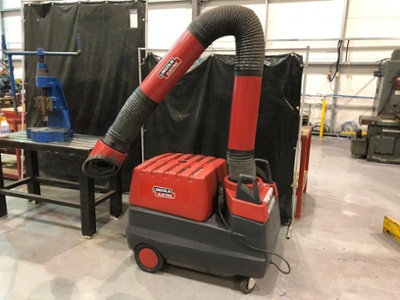

Lot 25: LINCOLN ELECTRIC Fume Extraction Unit

Details to follow

Private Treaty Sale (by negotiation)
