ONLINE AUCTION SALE - CNC & MANUAL MACHINE TOOLS, GENERAL ENGINEERING & WORKSHOP EQUIPMENT (170725)
Auction details
| Sales Starts | 11 Jul 2024 @ 09:00 |
|---|---|
| Sales Ends | 25 Jul 2024 @ 13:00 |
| Auction Catalogue |
Description
ONLINE AUCTION SALE - CNC & MANUAL MACHINE TOOLS, GENERAL ENGINEERING & WORKSHOP EQUIPMENT (170725)
CNC & CONVENTIONAL MACHINE TOOLS
XYZ DPM5000 CNC Bedmill with ProtoTrak AGE3 Control (2000). HURCO TM8 CNC Lathe with WinMax Control. Year 2005. SEMCO LC-50RS Milling Machine with Heidenhain DRO. XYZ PRO3000 CNC Milling Machine with ProtoTrak MX2 Control (1995). BRIDGEPORT Series 1 2HP Turret Mill with Slotting Attachment & DRO. ARBOGA RLM3508 Radial Arm Drilling Machine. HERBERT 3 Spindle Drilling Machine. BRIERLEY ZB32/R Drilling Grinder. CHRISTEN Type 2-23 Drill Grinding Machine.
MISCELLANEOUS

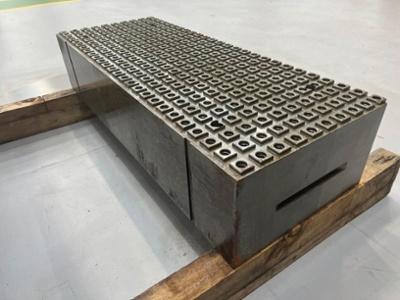

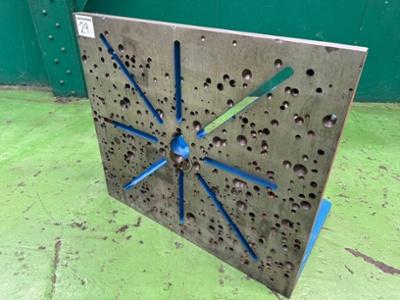

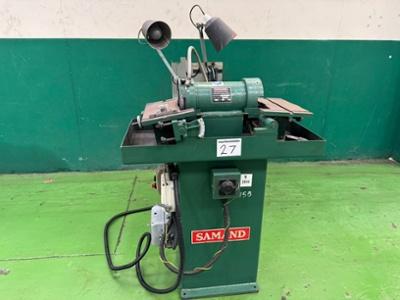

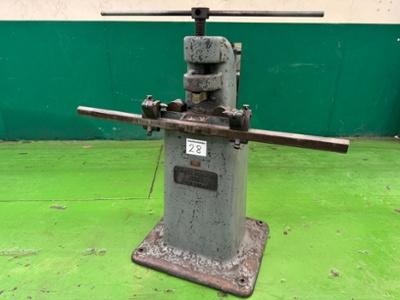

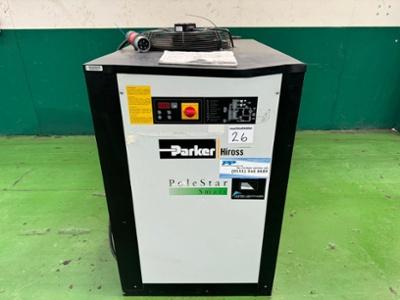

3 x HURCO Machine Vices. 2 x KEMMLER MP-80A 8'' Heavy Duty Machine Vices. Various Machines Vices. Heavy Duty Cast Iron Tombstone with tapped clamping holes. T Slotted Cast Iron Cubes. Angle Plates. HERBERT Arbor Press. 2 x SAMAND Double Ended Lapper/Grinders. MIGATRONIC LTE2000 Tig Welder. PARKER Hiross Polestar Smart Refrigeration Dryer (2014)
BUYERS PREMIUM 18%
Collection Details
Equipment can be loaded to Flat Bed transport free of charge and must be collected no later than Friday, 8th August 2024. Export packing can be quoted at extra cost.
Viewing Details
Viewing is by appointment only with the auctioneers at their premises in Oldham, Greater Manchester. Please call 0161 345 3000 to arrange your visit. Visiting parties will need to wear Personal Protection Equipment. Please note no Minors will be allowed on the premises.
Notice To Purchasers
If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licences will be required and it is the buyer’s responsibility to make the necessary enquiries prior to bidding. Please note under no circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.
Available Lots
Lots 1-25 of 30
Lot 2: SEMCO LC-50RS Milling Machine with Heidenhain DRO
Table Size: 1066mm x 228mm. Longitudinal Table Trave 711mm. Cross Travel 304mm. Head Vertical Travel on Column 406mm. Power Quill Travel 127mm. Spindle power 2.2kW. Distance From Spindle Centre to Column Ways 393mm. Max. Distance Spindle Nose to Table ...
Lot 3: XYZ PRO3000 CNC Milling Machine with ProtoTrak MX2 Control (1995)
Table size 1371mm x 304mm. Spindle taper BT40. Spindle speeds 70-3600 rpm. Powered drawbar.Coolant Pump. Lubrication system.Serial No.7576
Lot 6: HERBERT 3 Spindle Drilling Machine
Table size 885mm x 390mm. 2 x power downfeed. 1 x manual feed.Spindle taper 3MT. Rise & fall table.
Lot 25: CHRISTEN Type 2-23 Drill Grinding Machine
Max wheel dia. 6''. Max speed 2780 rpm. Serial No.777
Lot 4: ARBOGA RLM3508 Radial Arm Drilling Machine with Box Table
Min/Max distance spindle centre to column face 14 5/8″- 39 3/4″ Min/Max distance spindle nose to baseplate 202 – 46 1/4″. Quill Movement 7. 5/8″. No.4 Morse Taper. Spindle speeds 80 – 860 rpm. Feeds 0.004” – 0.016”/rev. Volt 415V. 0.65HP. Lo volt light. ...
Lot 5: HURCO TM8 CNC Lathe with WinMax Control. Year 2005
Maximum swing 525mm dia. Maximum Cutting Diameter 356mm. Maximum Cutting Length 483mm.Bar capacity 51mm.10 station turret. Spindle speed 4,800 rpm. Spindle nose A2-6. Spindle power 16 kW. X travel 203mm. Z travel 508mm. Tailstock. Toolsetter. Swarf conveyor. Parts catcher. Rigid tapping. 3D Graphics. Machine complete with 3 jaw 200mm dia. powered chuck. Turret tooling. Bar puller. Coolant.
Machine dimensions L x W x H. 2950mm x 2300mm x 2032mm high. Approx weight 3700 kg
