ONLINE AUCTION SALE - CNC & Conventional Machine Tools, Tooling & Factory Equipment (170711)

Auction details

Sales Starts 21 Nov 2022 @ 09:00
Sales Ends 8 Dec 2022 @ 13:00
Auction Catalogue

Description

On instructions of the Directors of THREADING SYSTEMS LTD due to retirement

CNC & Conventional Machine Tools, Tooling & Factory Equipment.

CNC Machines
XYZ SMX 3500 Milling Machine with ProtoTrak SMX Control (2019). XYZ SMX SLV Turret Mill with ProtoTrak SMX Control (2018). XYZ SM3500 Turret Mill with ProtoTrak SM Control.Requires repair.(2001). XYZ SM2000 Turret Mill with ProtoTrak SM Control (2002). XYZ PRO3000 Turret Mill (1997). XYZ PROTURN SLX425 x 1250mm CNC Lathe with ProtoTrak SLX Control (2013).

Conventional Machines
HARRISON M400 x 60” GB Centre Lathe. JONES & SHIPMAN 1400P Hydraulic Surface Grinder. MAGERLE F10 Hydraulic Surface Grinder. THOMPSON MATRIX Hydraulic Surface Grinder 1400mm x 357mm Table. THOMPSON MATRIX T4C Hydraulic Surface Grinder. Table size 1920mm x 310mm with wheel crushing facility. MATRIX No.16 Universal Thread Grinder.TOS Varnsdorf WH63 Horizontal Borer. CINCINNATI 207MK Horizontal Milling Machine. EUROMETAL FU32A-S Universal Mill (2012). 4 x CINCINNATI Model 100 Production Milling Machines. ARCHDALE Horizontal Production Milling Machines. JONES & SHIPMAN 310 Tool & Cutter Grinder. DORMER 108 Drill Point Grinder. KEMPER Smart Master Mobile Fume Extractor. MUREX Transmig 305S Mig Welder. BOX & PAN Folder 50” with Segmental Tooling. CAST IRON 6’ x 4’ Fabricators Table. Bench Type Tapping Machine with collets. ACCU-CUT SO280E Horizontal Bandsaw (2004). JAESPA 250mm Semi Auto Horizontal Bandsaw STARRETT 250mm Horizontal Bandsaw. CLARKSON Tool & Cutter Grinder. WILSON Hardness Tester. A Frame with Manual Chain Block. Horizontal Linisher. Spindle Tooling, Machine Vices. Inspection Equipment. Much more…. .

COMPRESSORS: HPC Airtower II Screw Compressor. HPC Plusair Compressor with TA5 Air Dryer. HYDROVANE 23 Screw Compressor.

TOYOTA 7FGCU30 Gas Forklift Truck 3,000kg Capacity (2006).

Buyers Premium 15%

Collection Details

Because of the lack of lifting facilities we have appointed a machinery removal specialist to handle the removal of the main machinery from site. This will include electrical disconnection, coolant removal and loading to flat bed vehicle(s). These loading prices will be posted soon on each lot and added to the successful purchasers invoice. Please note items cannot be loaded to shipping containers at the site. ALL LOTS MUST BE COLLECTED NO LATER THAN 3.30PM ON MONDAY 19th DECEMBER, 2022.

Viewing Details

The equipment can be viewed at the works at THREADING SYSTEMS LTD, PARK WORKS, PARK ROAD, DUKINFIELD, SK16 5LX on TUESDAY 6th December, 2022 between 9.30am - 3.30pm. All visitors to the site without exception will need to wear appropriate Personal Protective Equipment (PPE). No minors will be allowed on the site.

Notice To Purchasers

If you are purchasing the equipment with the intention of exporting from the UK you must comply with all the necessary UK export conditions associated with this type of equipment. In certain instances Export Licenses will be required and it is the buyers responsibility to make the necessary enquiries prior to bidding. Please note under any circumstances must the goods be used to support equipment for the armed or internal security forces of Countries subject to UN, EU or OSCE arms embargo.

Available Lots

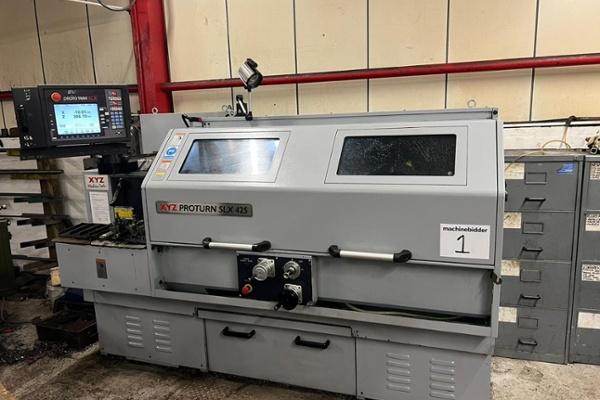

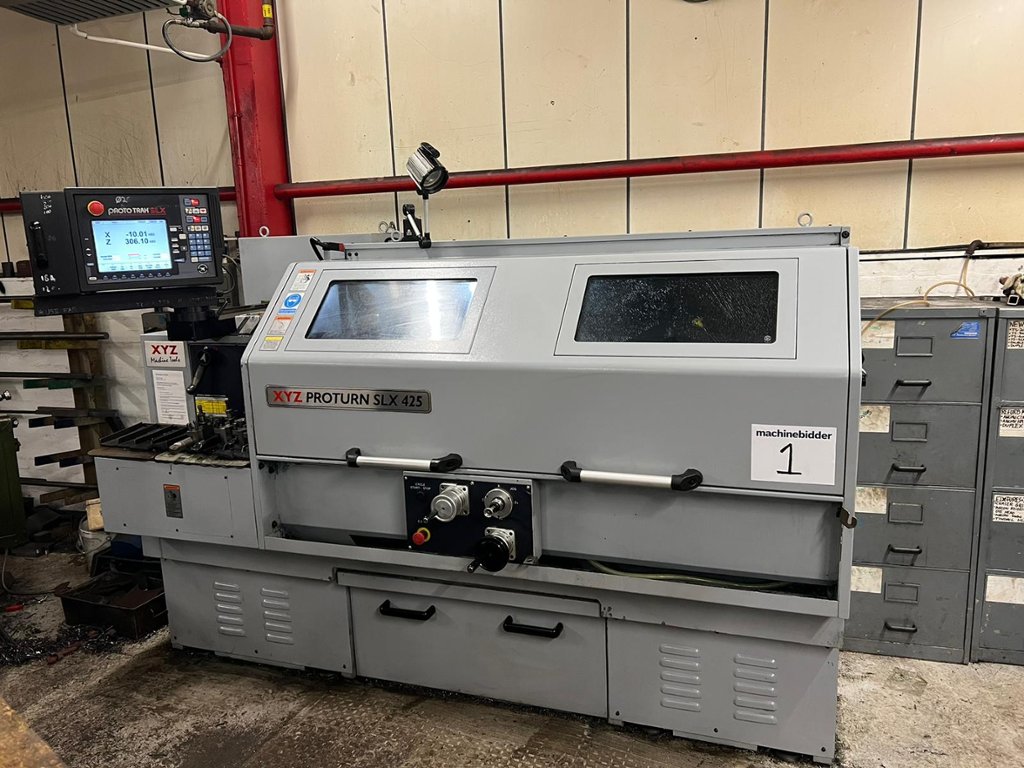

Lot 1: XYZ PROTURN SLX425 x 1250mm CNC Lathe with ProtoTrak SLX Control.Year 2013

Swing over bed 480mm. Swing over cross slide 257mm. Distance between centres 1250mm. Spindle speeds 25-2500rpm. Fitted with 3 jaw chuck. Quick Change Toolpost. 6 x Toolholders.Selection of Chuck Jaws.Coolant. Enclosed Guarding. ProtoTrak SLX Control. ...

Bidding on this lot has finished

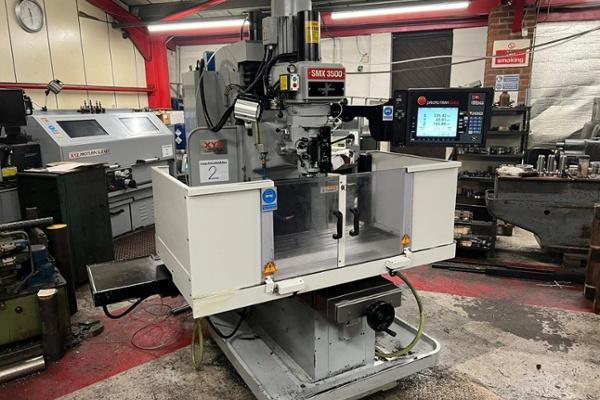

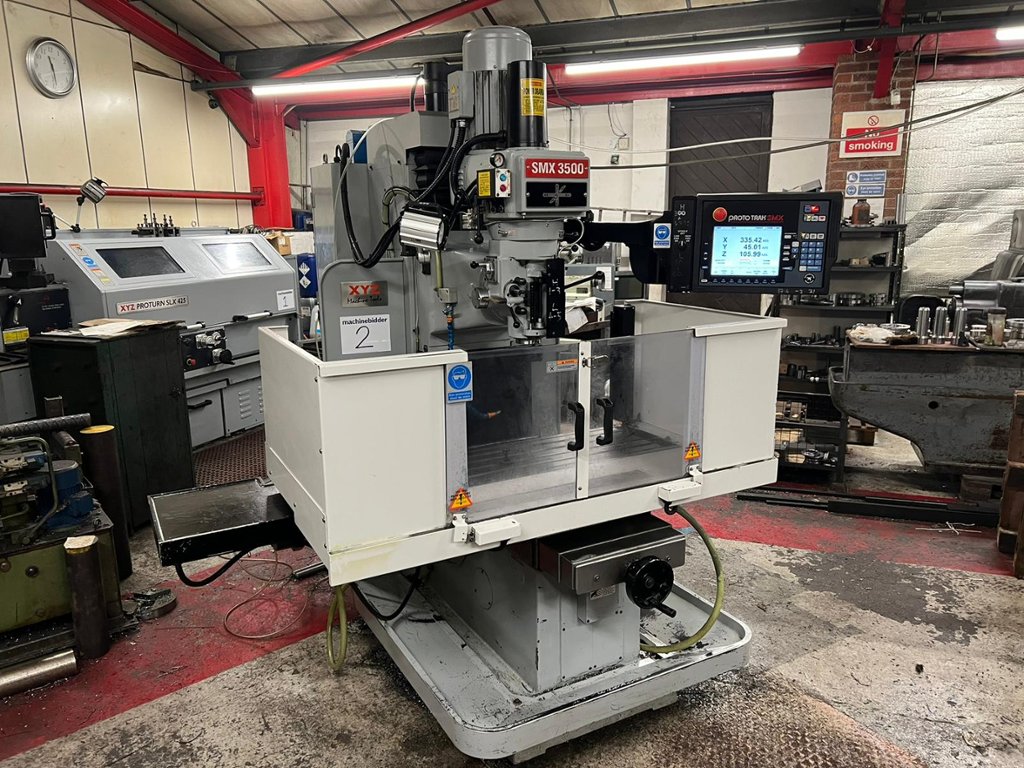

Lot 2: XYZ SMX 3500 CNC Bed Milling Machine with ProtoTrak SMX Control. Year 2019

Table size 1370 x 356mm. Long travel 787mm. Cross travel 508mm. Head travel 508mm. Spindle speeds 40-5000 rpm. Spindle taper 40 ISO. ProtoTrak SMX Control.Enclosed Guarding. Serial No.13218. Year 2019.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, ...

Bidding on this lot has finished

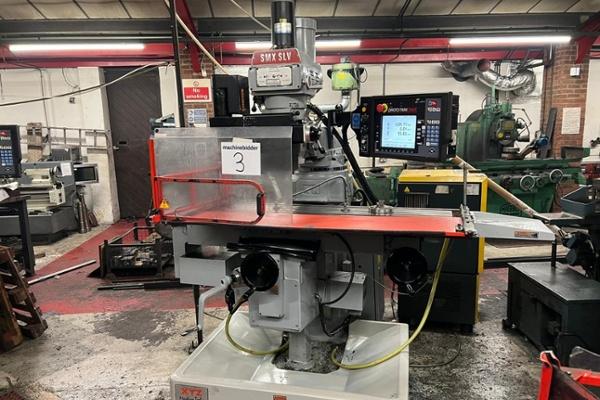

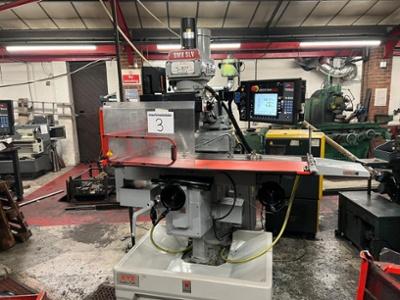

Lot 3: XYZ SLV Turret Mill with ProtoTrak SMX Control. Year 2018

Table size 1473mm x 305mm. Long travel 1000mm. Cross travel 410mm. Vert travel 400mm. Spindle speeds 70-3600 rpm. Spindle taper 40 ISO. Table Guarding. ProtoTrak SMX Control. Serial No.13005. Year 2018.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, ...

Bidding on this lot has finished

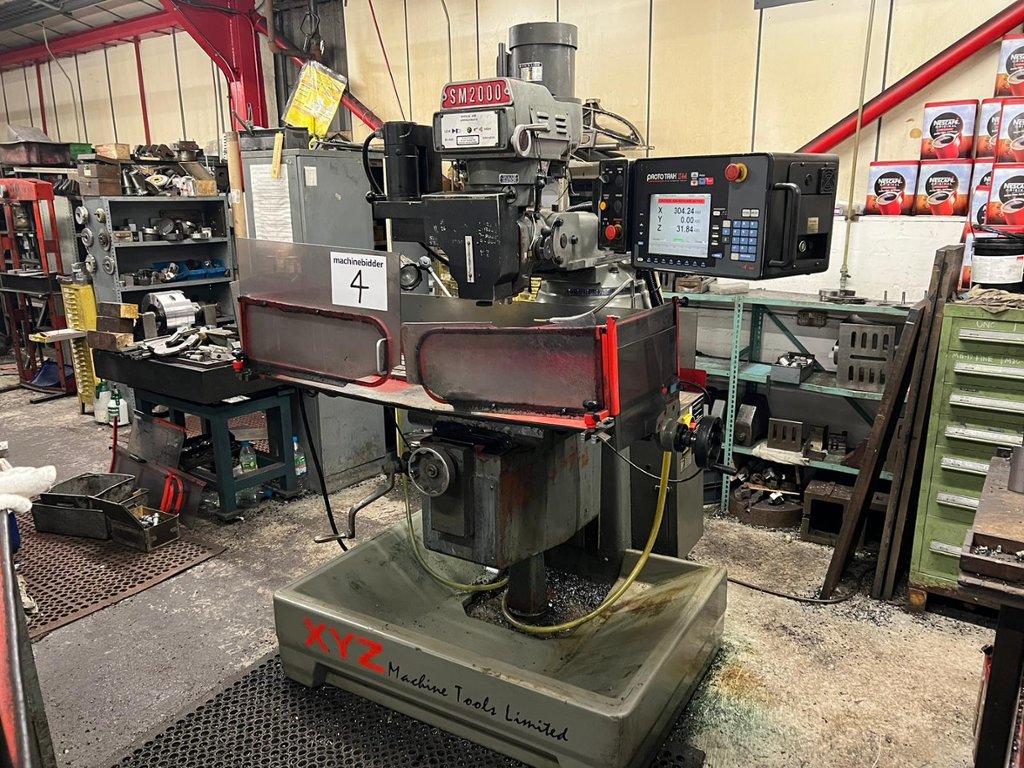

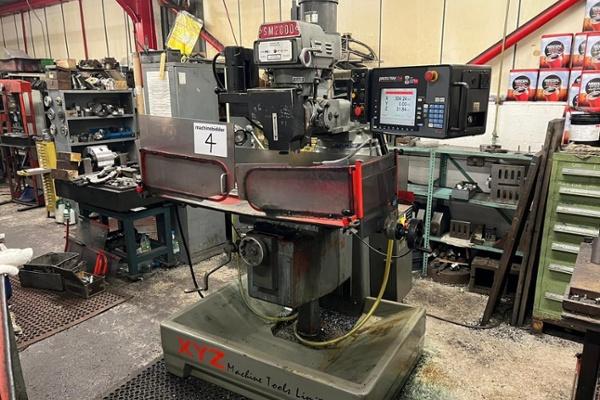

Lot 4: XYZ SM 2000 Turret Mill with ProtoTrak SM Control. Year 2002

Table size 1270mm x 260mm. Long travel 762mm Cross travel 406mm x Vertical travel 406mm. Spindle speeds 60-4200rpm. Spindle taper R8. Table Guarding.ProtoTrak SM Control. Serial No.9703. Year 2002

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT ...

Bidding on this lot has finished

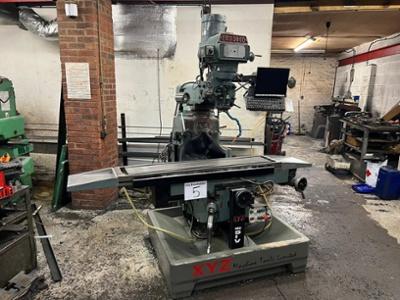

Lot 5: XYZ PRO 3000 Turret Mill

Table size 1470mm x 305mm. Long travel 813mm. Cross Travel 431mm. Vertical 406mm. Spindle speeds 70-3600 rpm.Spindle taper 40 ISO. Serial No.8425. Year 1997.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE ...

Bidding on this lot has finished

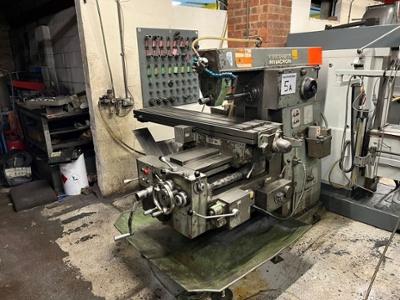

Lot 5a: CINCINNATI 207MK Horizontal Milling Machine

Table size 1510mm x 350mm. Long travel 850mm. Cross travel 349mm. Vertical travel 476mm. Spindle taper 50 ISO. Spindle speeds 25 – 1500rpm. Arbor & Arbor support. Serial No.13J23P1ADE-30.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL ...

Bidding on this lot has finished

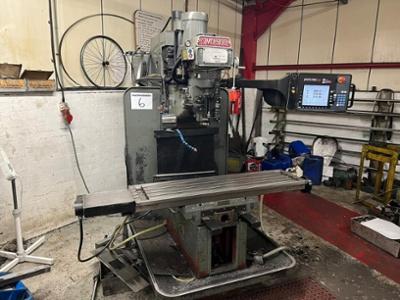

Lot 6: XYZ SM 3500 Bed Mill with ProtoTrak SM Control. Year 2001 (Requires Repair)

Table size 1270mm x 355mm. Long travel 780mm. Cross travel 510mm. Head travel 510mm. Spindle taper 40 ISO. Spindle speeds 70-3600 rpm.Machine requires repair due to broken part as photographed.Serial No.9695. Year 2001

LOADING CHARGE INCLUDES ELECTRICAL ...

Bidding on this lot has finished

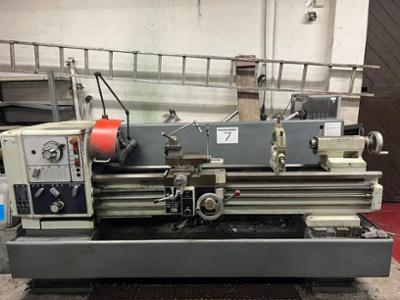

Lot 7: HARRISON M400 x 60" Gap Bed Centre Lathe

Swing over bed 420mm. Swing over cross slide 254mm. Distance between centres 1524mm. Spindle speeds 40-2000 rpm.254mm dia 3 jaw chuck. 4 Way Toolpost. Fixed Steady. Selection of Chuck Jaws.Chuck Guard. Coolant. Serial No. 404128

LOADING CHARGE INCLUDES ...

Bidding on this lot has finished

Lot 8: JONES & SHIPMAN 1400P Hydraulic Surface Grinder with Magnetic Chuck

Fitted with 610mm x 205mm Magnetic Chuck.Hydraulic Tank. Grinding Wheel Guard. Powered Rise & Fall Wheelhead.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE £150 + VAT THIS WILL BE ADDED TO YOUR SALES ...

Bidding on this lot has finished

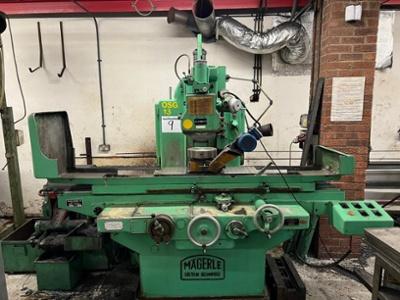

Lot 9: MAGERLE F10 Hydraulic Surface Grinder with Magnetic Chuck

Fitted with Magnetic Chuck. Table.Max Spindle Speed 2000 rpm. Wheel Dresser. Coolant/Filtration Unit. Serial No.410

PLEASE NOTE BOWERS ROTARY MAGNETIC CHUCK NOT INCLUDED (See Lot 71)

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & ...

Bidding on this lot has finished

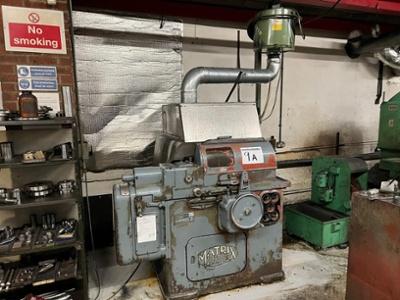

Lot 9a: MATRIX No.16 Universal Thread Grinding Machine with Filtermist

Maximum Thread Diameter 180 mm. Maximum Clamping Length 300 mm.Max. Angle Pitch +20° & -20°. Grinding Wheel Diameter 304 mm. Serial No (Inspection No 1028). Re-Conditioned 1978 AMR 6014. PLEASE NOTE: The Milling Cutter shown inside the machine is not ...

Bidding on this lot has finished

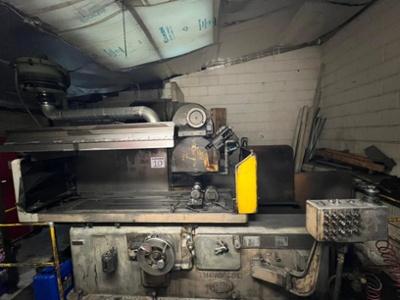

Lot 10: THOMPSON MATRIX Hydraulic Surface Grinder with Wheel Crushing Facility

Table size 1920mm x 310mm. Long travel 1250mm. Cross travel 310mm.Max height under grinding wheel 457mm. Max Grinding wheel dia.508mm. Grinding wheel speeds 1000 rpm.Wheel Dresser. Wheel Crushing Facility

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, ...

Bidding on this lot has finished

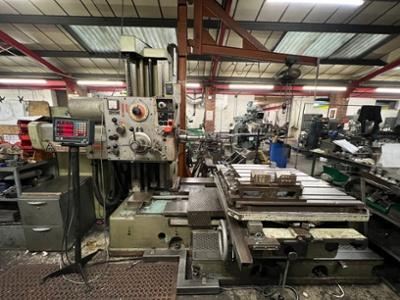

Lot 11: TOS Varnsdorf WH63 Table Type Horizontal Borer. Year 1978

Table size 890mm x 800mm. Travels 900mm x 700mm x 1000mm. Spindle travel 560mm. Spindle speeds 28-1800rpm. Spindle taper 4MT (Fitted with 40 ISO Adaptor). Indexing Table. Fagor DRO. Serial No.106-08. Year 1978

Spindle Tooling for this machine is being ...

Bidding on this lot has finished

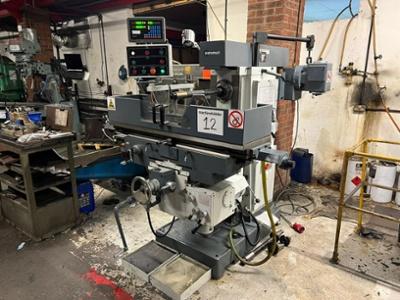

Lot 12: EUROMET FU32A-S Horizontal Milling Machine with Vertical Milling Attachment. Year 2012

Table size 1320mm x 360mm. Swivel table. Longitudinal travel 1000mm. Cross travel 300mm.Vertical travel 400mm. Spindle speeds 58 – 1800 rpm. Spindle taper 50 ISO. Main motor power 4 kW. Arbor support. Pendant Control. Vertical Millling Attachment.

LOADING ...

Bidding on this lot has finished

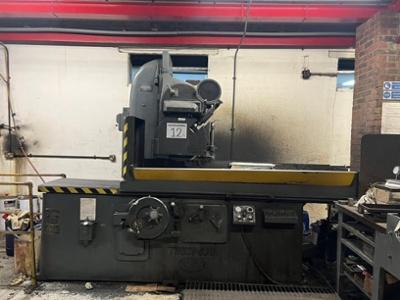

Lot 12a: THOMPSON MATRIX Hydraulic Surface Grinder

Table size 1400mm x 357mm. Long travel 1040mm. Cross travel 357mm.Max height under wheelhead 457mm. Max grinding wheel dia.508mm. Grinding wheel speeds 1000 rpm. Wheel Dresser.Coolant/Filtration.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT ...

Bidding on this lot has finished

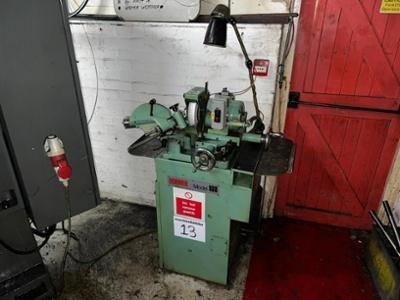

Lot 13: DORMER 108 Drill Point Grinder

Maximum wheelhead speed 2800 rpm. Max wheel dia. 200mm. Machine Serial No. DS1171.

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE £50 + VAT THIS WILL BE ADDED TO YOUR SALES INVOICE.

Bidding on this lot has finished

Lot 14: STARTRITE EFI Pillar Drill - LOT WITHDRAWN

Spindle speeds 125-2800 rpm. No.3MT. - LOT WITHDRAWN

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION & LOADING TO FLAT BED VEHICLE £50 + VAT THIS WILL BE ADDED TO YOUR SALES INVOICE.

Bidding on this lot has finished

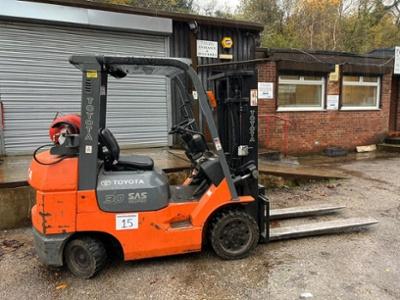

Lot 15: TOYOTA Model n7FGCU30 Gas Forklift Truck. 3000kg Capacity. Year 2006.

Complete with Forks.Solid Tyres.Tyre size 21x8x15. Year 2006

LOADING CHARGE INCLUDES LOADING TO FLAT BED VEHICLE £100 + VAT THIS WILL BE ADDED TO YOUR SALES INVOICE.

This item will need to be retained until after Monday 19th December, 2022

Bidding on this lot has finished

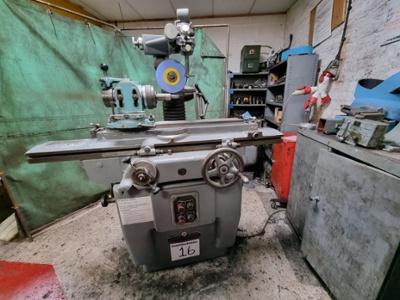

Lot 16: JONES & SHIPMAN 310 Tool & Cutter Grinder

Complete with Workhead. Centres.Serial No.BO 45089

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE £150 + VAT THIS WILL BE ADDED TO YOUR SALES INVOICE.

Bidding on this lot has finished

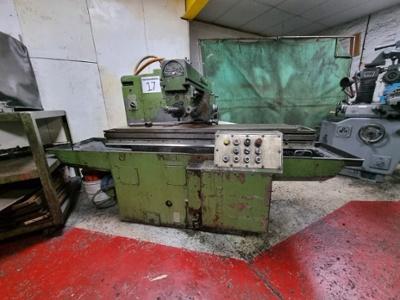

Lot 17: CINCINNATI Model 100 Horizontal Production Milling Machine

Overall table size 1610mm x 304mm.Working table size 1375mm x 304mm. Spindle speeds 40 - 1600rpm. Complete with Arbor Support & Arbor. Serial No.11B1P5WE-51

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE ...

Bidding on this lot has finished

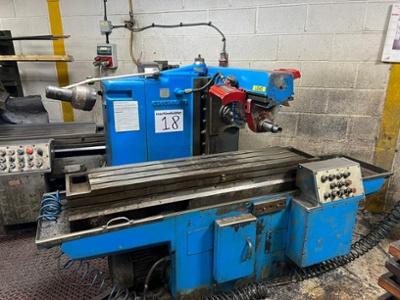

Lot 18: CINCINNATI Model 100 Horizontal Production Milling Machine

Overall table size 1610mm x 304mm.Working table size 1375mm x 304mm. Spindle speeds 40 - 1600rpm. Complete with Arbor Support & Arbor. Serial No.11B724P5PE-1

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE ...

Bidding on this lot has finished

Lot 19: CINCINNATI Model 100 Horizontal Production Milling Machine

Overall table size 1610mm x 304mm.Working table size 1375mm x 304mm. Spindle speeds 40 - 1600rpm. Complete with Arbor Support & Arbor. Serial No.11B724P5SE-27

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE ...

Bidding on this lot has finished

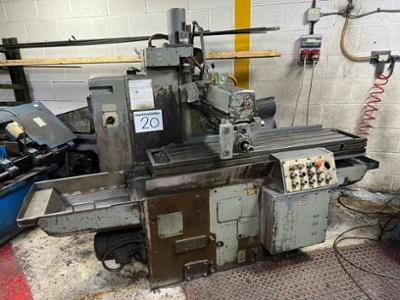

Lot 20: CINCINNATI Model 100 Horizontal Production Milling Machine

Overall table size 1610mm x 304mm.Working table size 1375mm x 304mm. Spindle speeds 40 - 1600rpm. Complete with Arbor Support & Arbor. Serial No.11B1C5UE-9

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE ...

Bidding on this lot has finished

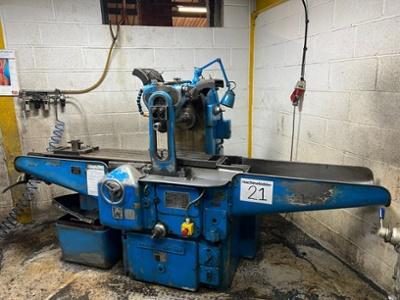

Lot 21: ARCHDALE 24" Horizontal Production Milling Machine

Table size 1473mm x 292mm. Spindle speeds 50 - 212rpm.Complete with Arbor Support,Arbor & Front support. Serial No.HM9908

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE £250 + VAT THIS WILL BE ADDED TO ...

Bidding on this lot has finished

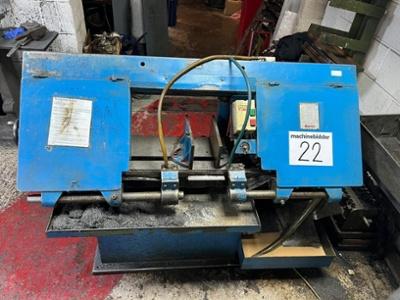

Lot 22: STARTRITE 250mm Capacity Horizontal Bandsaw

LOADING CHARGE INCLUDES ELECTRICAL DISCONNECTION, COOLANT REMOVAL & LOADING TO FLAT BED VEHICLE £50 + VAT THIS WILL BE ADDED TO YOUR SALES INVOICE.

Bidding on this lot has finished
