March Collective Auction Sale
Auction details
| Sales Starts | 20 Feb 2014 @ 09:00 |
|---|---|
| Sales Ends | 6 Mar 2014 @ 15:00 |
Description
Upon instructions received from various vendors
CNC & Conventional Machine Tools
Viewing Details
The majority of lots are lying at our auction site at The Acorn Centre, Oldham, OL1 3NE certain items are located in Bolton, Lancashire. Please ring for confirmation
Available Lots
Lots 1-25 of 30

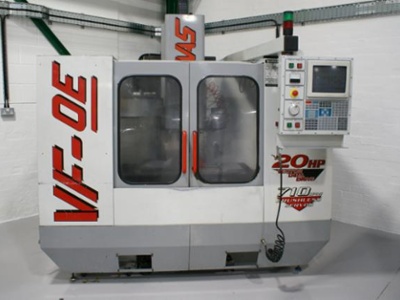

Lot 1: HAAS VF0E Vertical Machining Centre with Haas Control
Table Size 914mm x 356mm. Traverses XYZ 762mm x 406mm x 508mm.Auto Tool Changer 20 Station.Spindle taper BT40. Spindle Speed 7500rpm. Spindle Motor Power 15 HP Haas Control. Swarf Auger. Year 1998.

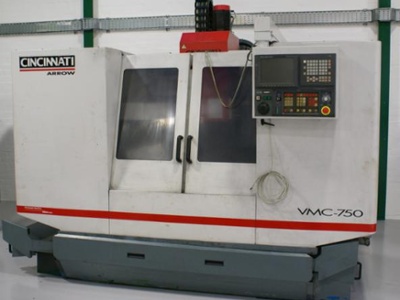

Lot 2: CINCINNATI Arrow 750 Vertical Machining Centre with Fanuc 18iM Control
Year of manufacture 1999.Table Size 865mm x 510mm Traverses XYZ 762mm x 510mm x 560mm.Spindle Motor Power: 7.5kW. Spindle Speed: 40-6000 rpm.Spindle taper BT 40.Tool Change 21. Fanuc 18iM Control. Year 1999.

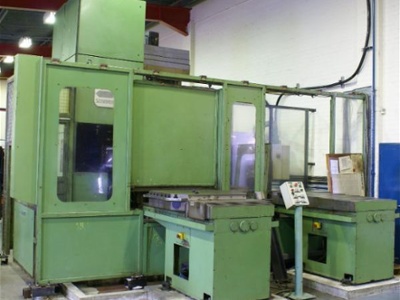

Lot 3: SCHARMANN Eco-Cut 1 Twin Pallet Horizontal Machining Centre
Spindle dia. 130mm. Spindle taper 50 Int.Spindle speeds 12 - 3000 rpm.Spindle motor power 14/22 Kw.No of pallets 2. Size of pallets 1000mm x 850mm.Feeds 0-6,000mm/min.Rapids 0-12,000 mm/min.No of tools (ATC) 61.X axis 2000mm.Y axis 1200mm. Z axis 1000mm. ...
Lot 4: DEAN SMITH & GRACE Pony 1508ci CNC Lathe
Swing over bed 380mm. Swing over cross slide 200mm.X axis 250mm.Z axis 1000mm. Spindle bore 50mm.Spindle speeds 20-4500 rpm.Sauter Disc Type Turret.Siemens 840i Control with Shopturn Software. 210mm Hydraulic 3 Jaw Chuck.Parts Catcher.Swarf Conveyor

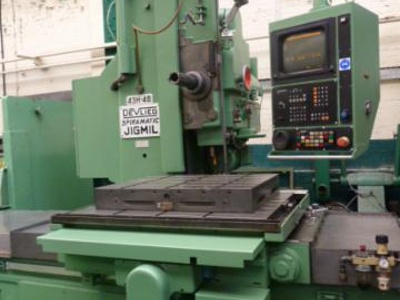

Lot 5: HERBERT DEVLIEG 43H48 Jigmill with Heidenhain TNC355 Control
Table size 48" x 35". Spindle dia. 4". Spindle taper 50 ISO. Spindle speeds 21-1000.Table loading 2160Kgs. Heidenhain TNC355 Control. Serial No. 19/14069
Lot 6: DEVLIEG 54R80 CNC Jig Milling Machine
Spindle dia 5". Spindle Taper 50 Int . Spindle Speeds 30-3000 rpm.Table size 80"x 40".Spindle Drive 30 hp. Axes travel X80 Y80 :Z24”. W20". Rotary Index table 40" x 40". Max.Weight 5 tons.Allan Bradley 8600 CNC Control. Serial No 10125. Year 1981 ...

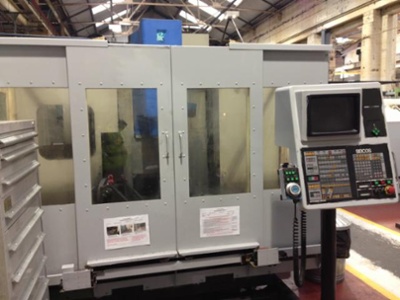

Lot 8: HITACHI SEIKI VK45 Vertical Machining Centre
Traverses X Y Z: 762 x 457 x 457mm, Table Size 889 x 482mm, Spindle speed 6000rpm, Spindle taper BT40, Spindle Motor 7.5kW, Seicos Control, 30 Station ATC, coolant

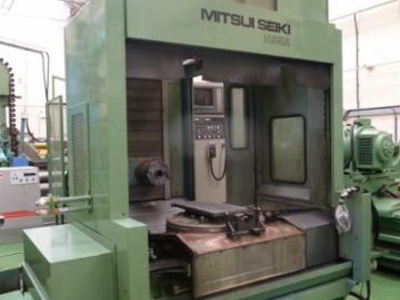

Lot 9: MITSUI SEIKI HS5A Twin Pallet Horizontal Machining Centre
Pallet sizes 630mm x 630mm. X Y Z Travels 850mm x 700mm x 750mm. Spindle Taper BT50. 180 Auto Tool Changer.B Axis 1 degree indexing. Spindle Speeds 4500 rpm.Coolant/Filtration. Filter unit, Oil Cooler.Swarf Conveyor. 2 Spare Pallets.Tooling. Fanuc 15M ...

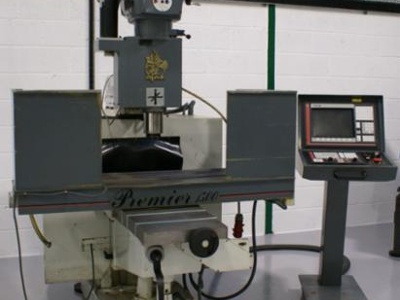

Lot 10: AJAX Premier 1500 CNC Vertical Turret Milling Machine
Table Size 1472mm x 280mm. X Axis Travel 820mm.Y Axis Travel 455mm.Z Axis Travel 450mm.Quill Travel 150mm.Spindle taper 40 ISO.Speeds 50-3750 rpm (inf. var).Spindle Motor 3.7kW (5HP).Interlock guards. Slideway guards. Auto Lubrication. Coolant .Power ...

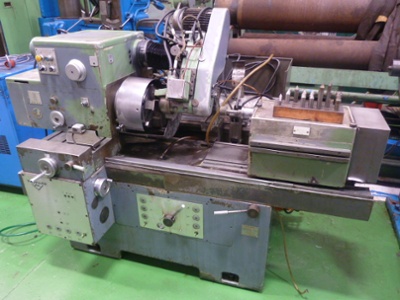

Lot 11: VOUMARD 52A Internal Grinding Machine
Maximum grinding internal diameter 200mm. Maximum grinding depth 200mm. Maximum stroke 500mm. Face Grinding Attachment. Year 1968.

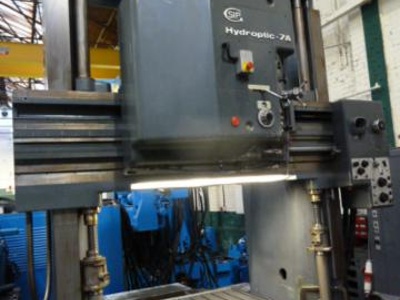

Lot 12: SIP 7A Jig Boring Machine
Machine Serial No.3304. Nominal table travel 55” 1400mm.Nominal spindle head travel 40” 1000mm.Vertical quill travel 12” 300mm.Table length 61.75” 1570mm.Table width 40.5” 1024mm.Maximum distance spindle nose to table 71” 1805mm.Minimum distance ...

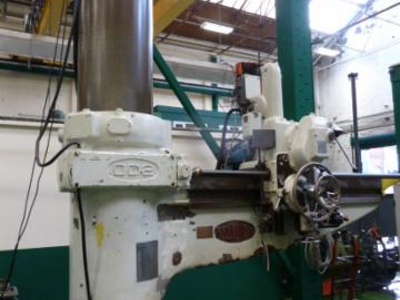

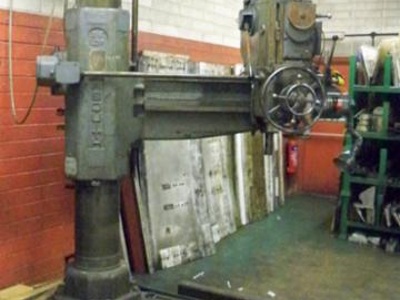

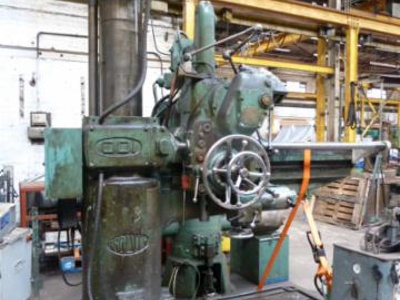

Lot 13: ASQUITH OD2 7ft Heavy Duty Radial Arm Drill with Box Table
Spindle taper 5MT. Spindle speeds 31-830 rpm.Feeds 0.0083 - 0.027"/rev. Safety Brake.Coolant. Length 130" x Width 54" x Height 150". Weight approx 8 Tons.
More Photos Added Soon
Lot 13: ASQUITH OD2 7ft Heavy Duty Radial Arm Drill with Box Table
Spindle taper 5MT. Spindle speeds 31-830 rpm.Feeds 0.0083 - 0.027"/rev. Safety Brake.Coolant. Length 130" x Width 54" x Height 150". Weight approx 8 Tons.

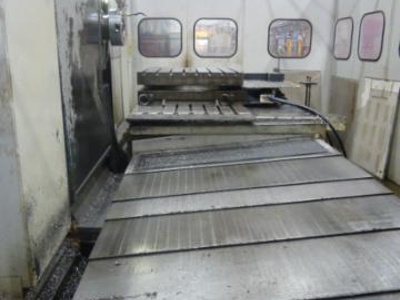

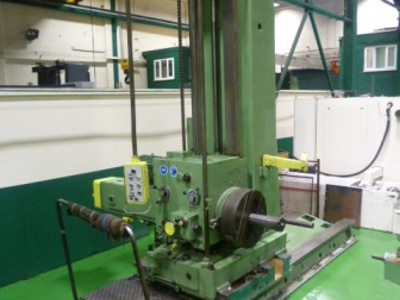

Lot 14: WOTAN 100mm Spindle Floor Boring Machine
Spindle dia. 110 mm.Spindle taper 50 ISO.Spindle speeds - A 134 - 1000rpm.Facing Head/Spindle – B 7 – 105 rpm.Spindle travel 900 mm.Spindle motor 19.8 HP.Vertical travel of headstock 1676 mm.Longitudinal travel of column 3302 mm.Cross travel of column ...

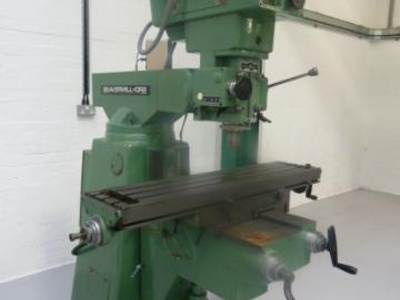

Lot 17: BEAVERMILL Model DR2 MK2 Turret Mill with DRO
Table size 44" x 10". Spindle Speeds 50-3000 rpm. Spindle Motor 3kW. Microwizard 2 Axis DRO. Serial No. 1329

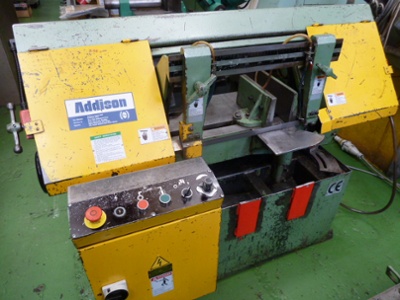

Lot 24: COSEN MH1016 Horizontal Bandsaw
COSEN MH1016 Horizontal Bandsaw. 300mm Capacity. Mitre Cutting.Coolant.
