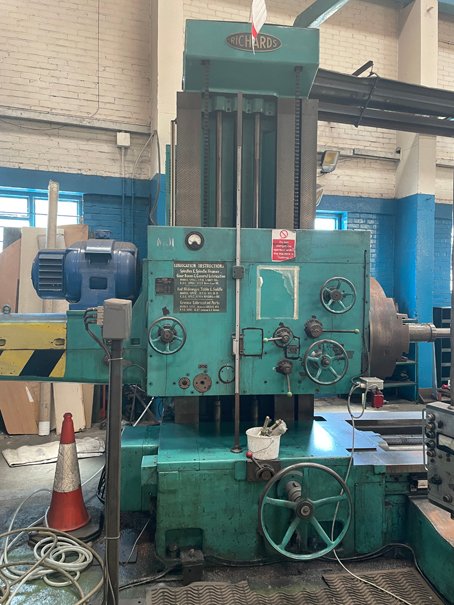

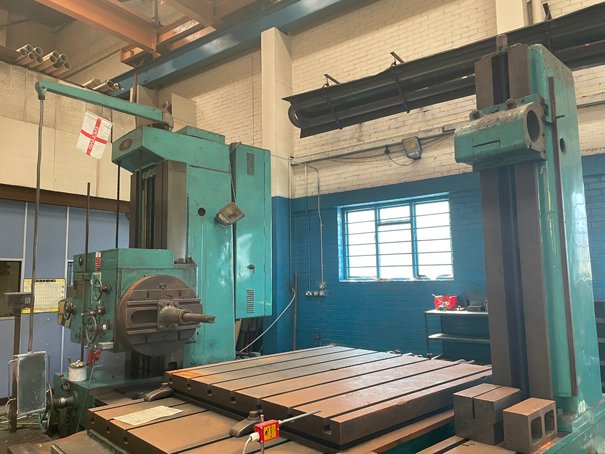

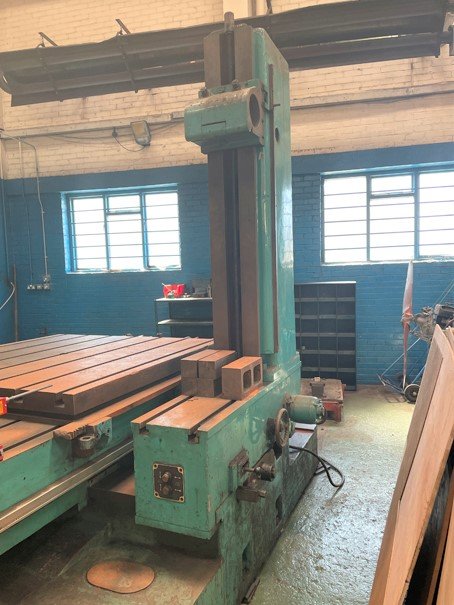

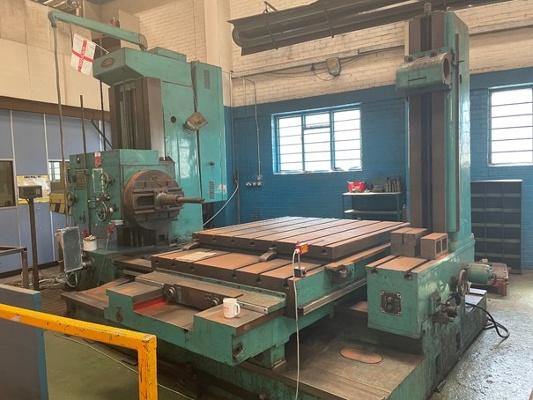

Lot 1: RICHARDS WB50 Heavy Duty Table Type Horizontal Boring Mill

Current bid:
£1,600
Increment:£200
Bids:4
Ends in:21 Oct 2021 @ 13:00 (2h 51m 25s)
Bid now
£
Auto bid
£

Description

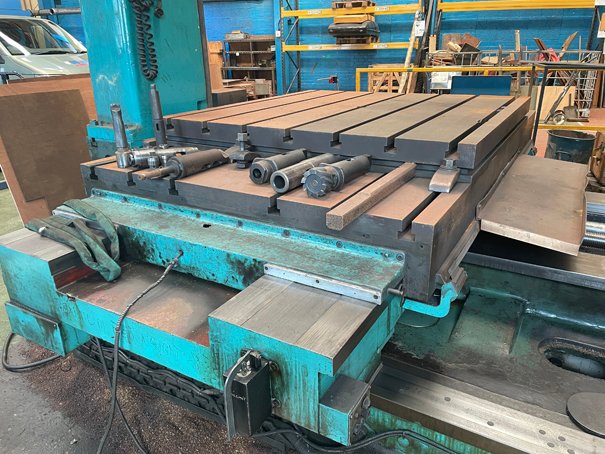

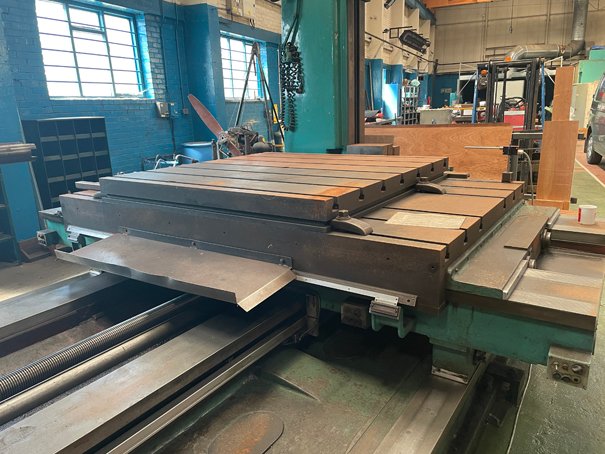

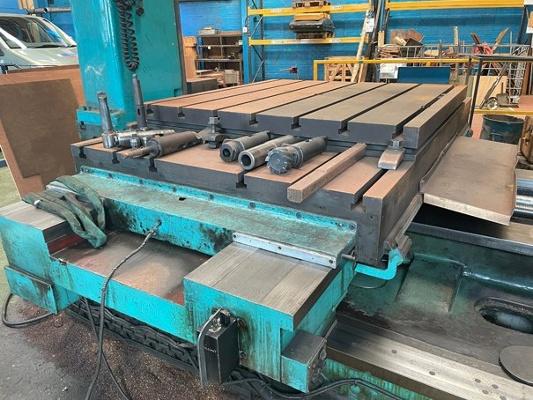

Main Table Size 96" x 60". Top Table Size 60" x 60". Spindle dia. 5". Spindle taper 7 Morse Taper. Spindle travel 36". Vertical Travel of Head 75". Longitudinal Travel of Table 84". Cross Travel of Table 84". Height of Spindle above Main Table (Min/Max) 5.1/2"/80.1/2". Spindle speeds 125 - 500 rpm. Facing Head & Spindle Combined 7 - 160 rpm. Rapid Traverses - Spindle Frame Vertical & Tables Long & Cross 35"/minute. Traversing Spindle & Facing Slide (Radial) 20"/minute. Maximum facing Capacity 54". Maximim Distance from Facing Slide to Outer Boring Steady 153". Total Weight of Machine 37 Tons

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
