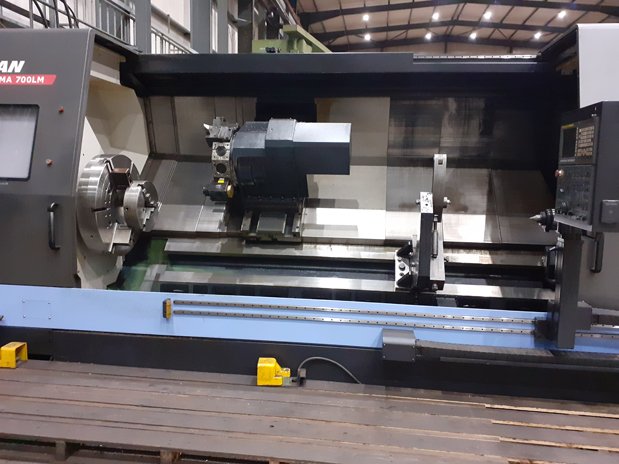

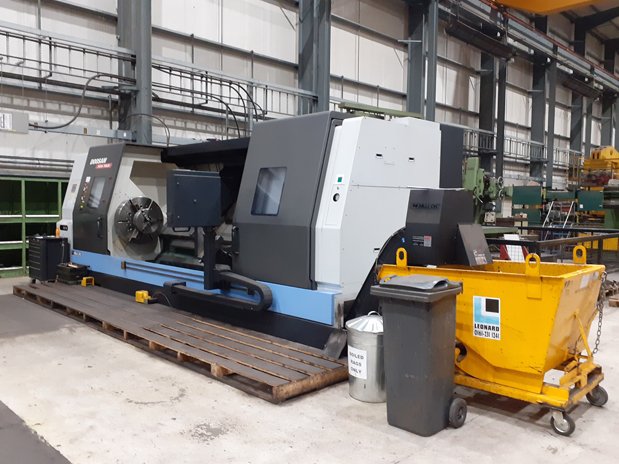

Lot 1: DOOSAN 700LM CNC Slant Bed Lathe with Fanuc 32i - Model A Control. Year of Manufacture 2011 SALE AGREED

This lot has been archived

Description

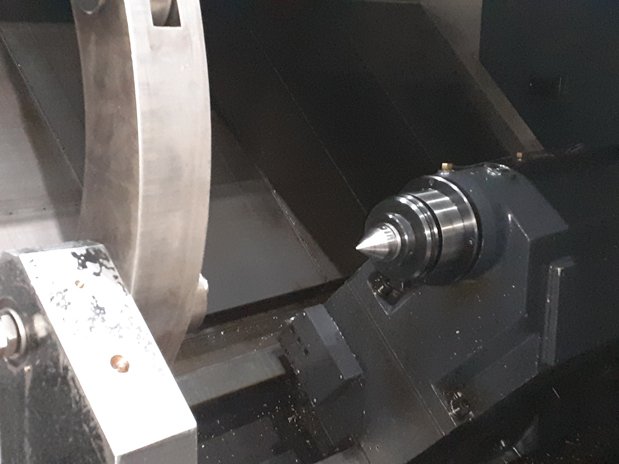

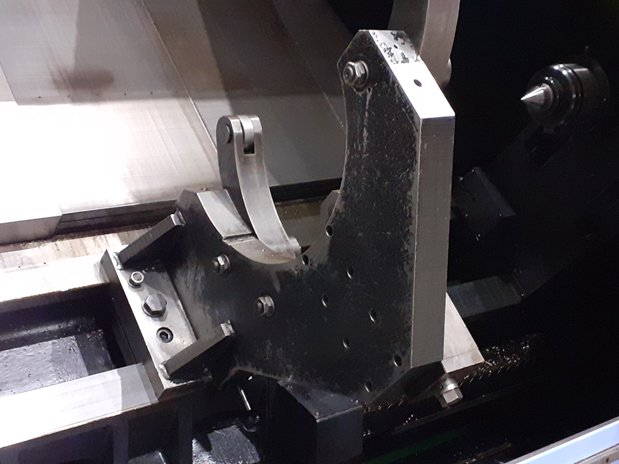

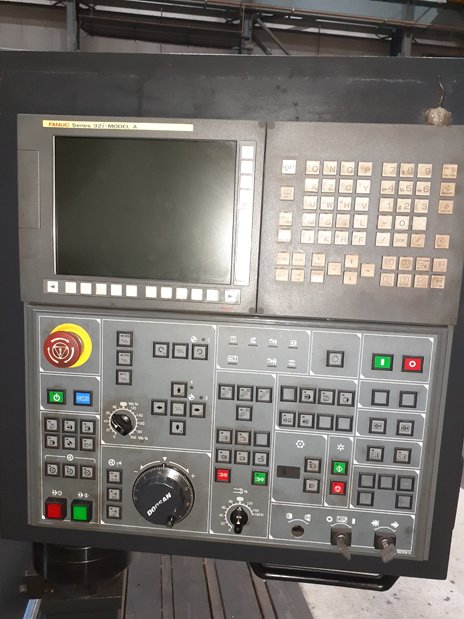

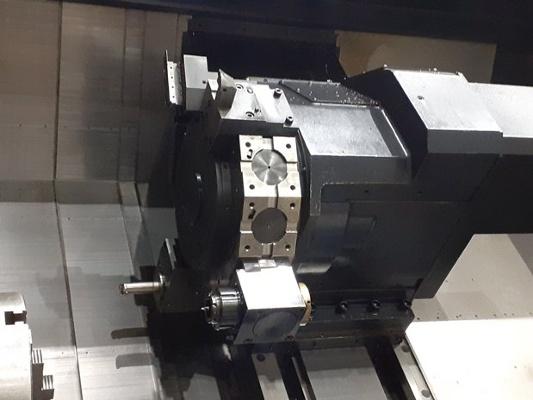

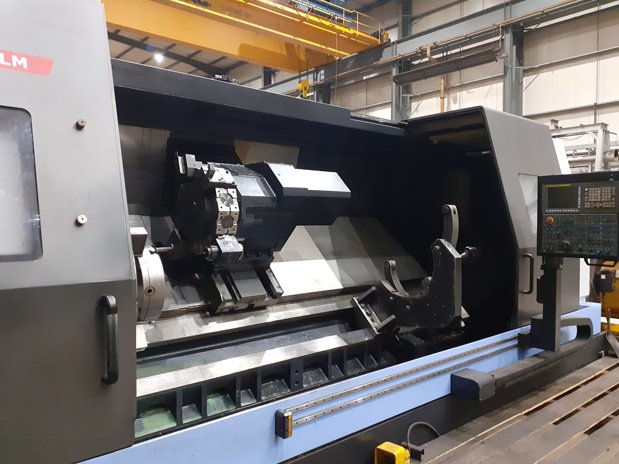

Maximim turning dia. 900mm. Maximum turning length 3200mm. X axis 470mm. Z axis 3235mm. C Axis. X/Z Rapids 12m/10m per min.12 station turret all with driven tool capability. Tailstock. Spindle bore 166.5mm. 600mm dia. Hydraulic 3 jaw chuck. Spindle nose A1-15. Spindle power 45 kW. Spindle speeds to 1500rpm. Milling speeds 3000 rpm. Milling power 11kW. Swarf conveyor. Machine complete with 2 x manual steadies up to 700mm dia. Qty of Preci-Max Live Toolholders. Boring Bar 80mm dia. x 120mm long. Fanuc 32i Control. Year of Manufacture 2011 (Installed 2012)

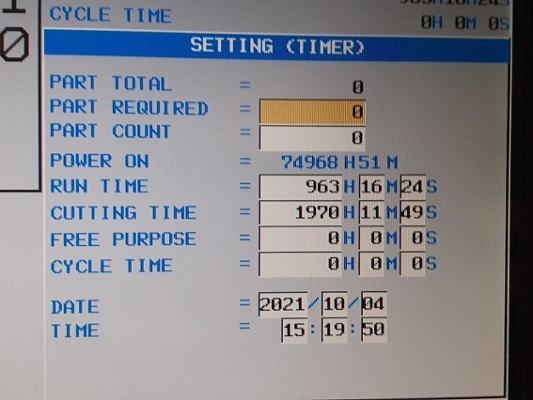

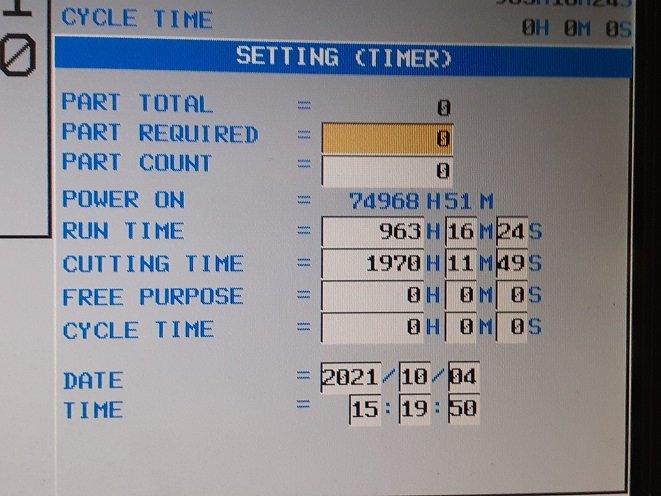

Cutting Hours 1970

Machine dimensions L x W x H 7360mm x 2766mm x 2590mm. Approximate weight 21,800 kgs.

SALE AGREED
