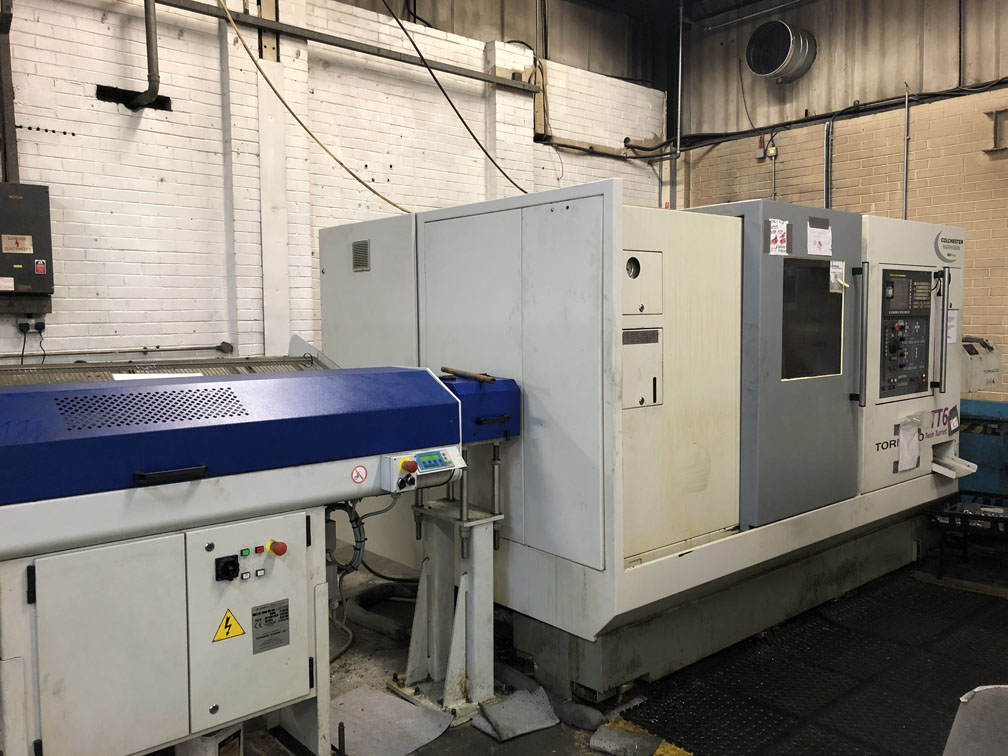

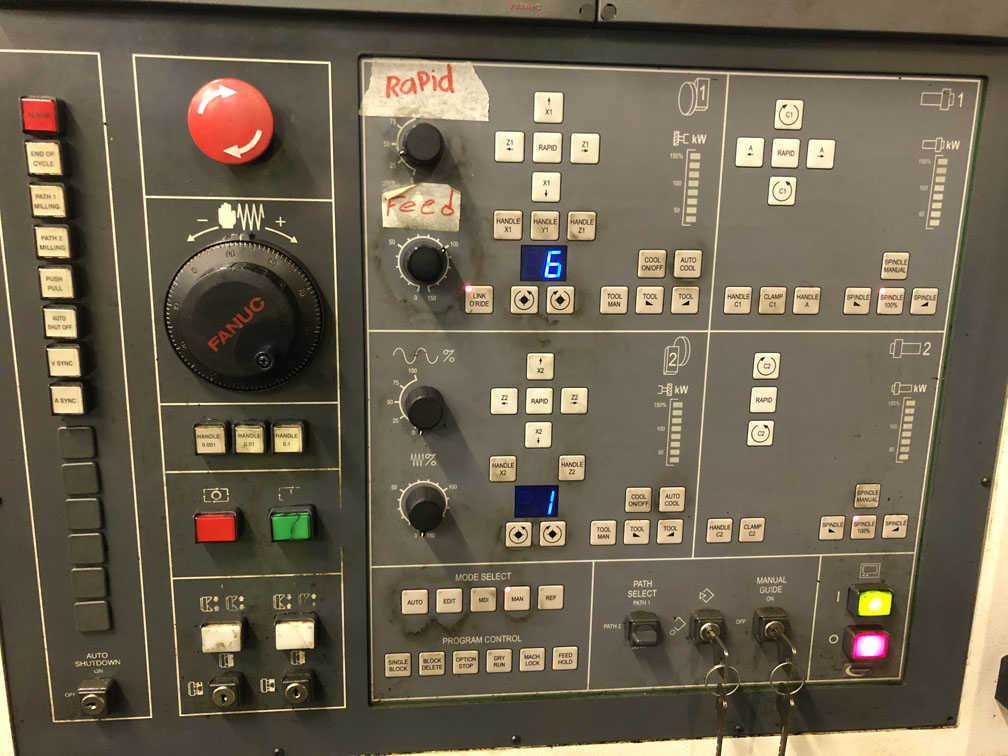

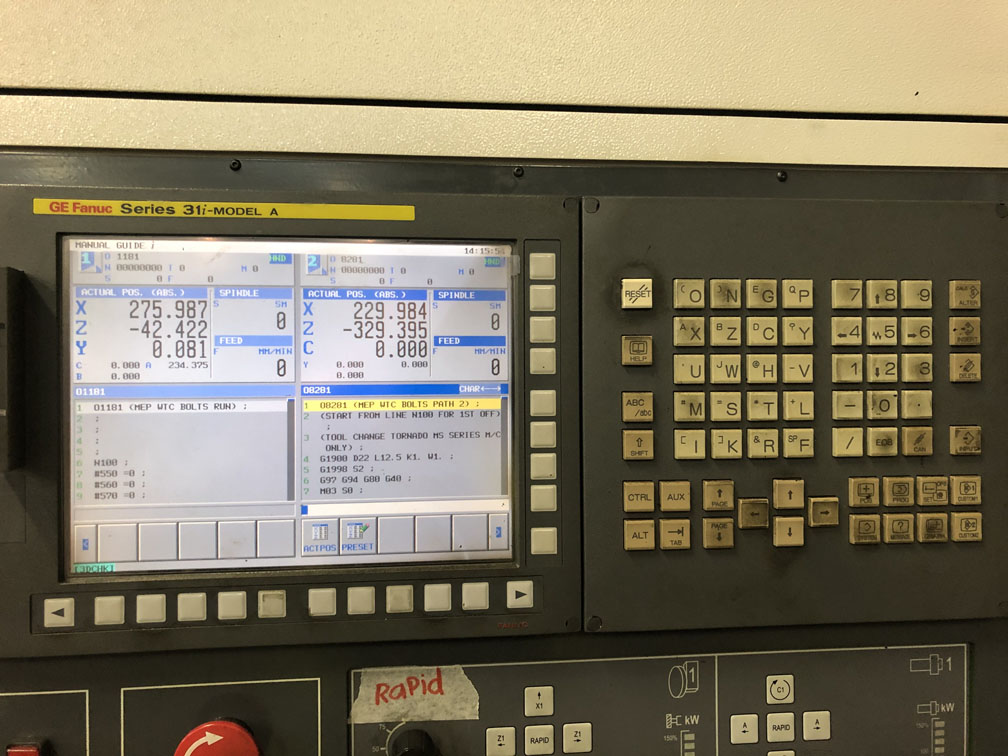

Lot 1: COLCHESTER Tornado TT6 Twin Turret 8 Axis CNC Lathe with GE Fanuc 31i- Model A Control. Year 2010.

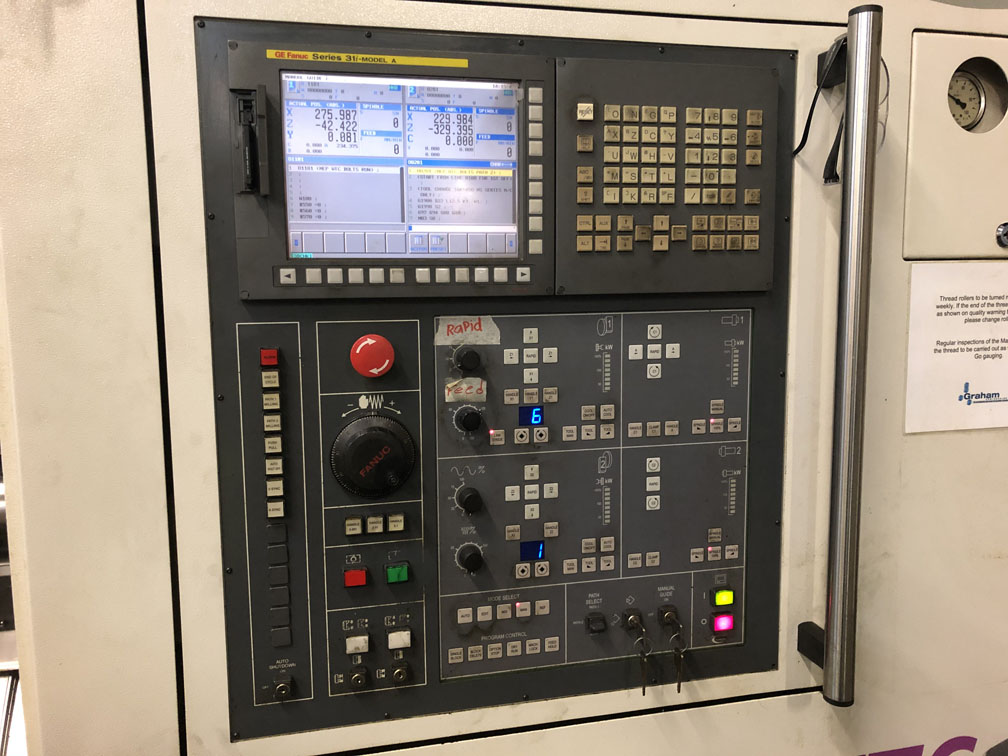

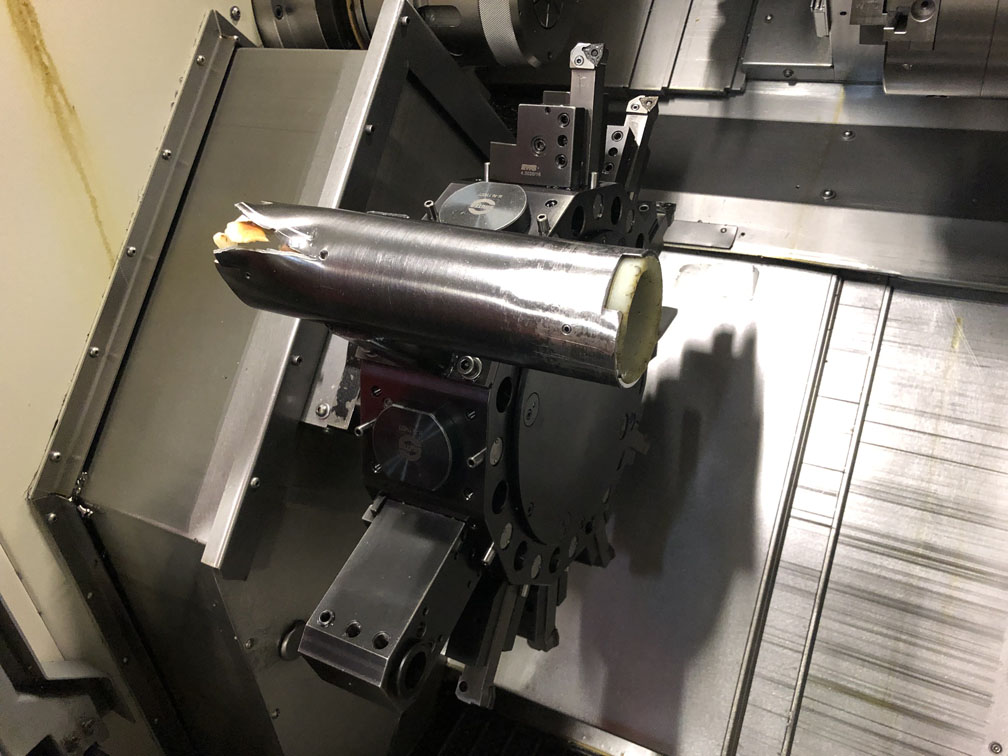

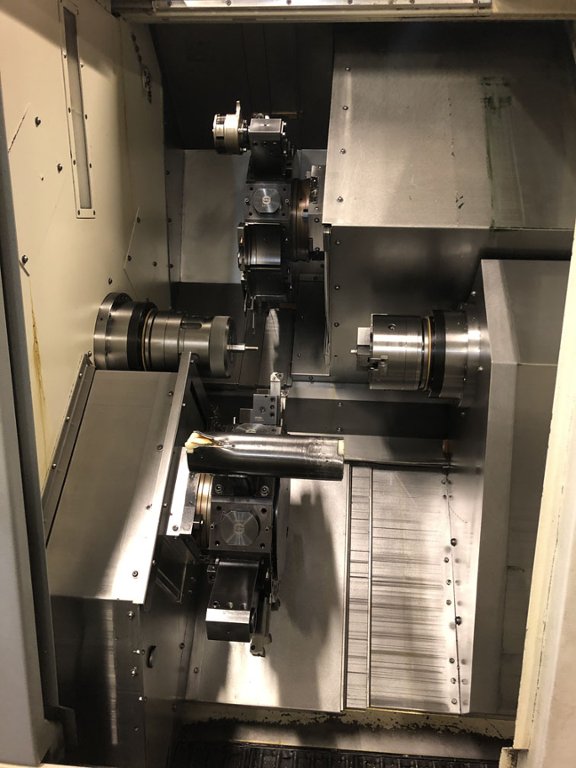

Maximum turning dia 175mm. Maximum turning length 563mm. Z1 Axis travel 175mm. Y1 axis travel 80mm (+- 40mm). Spindle(s) LH & RH)  Bore 64mm. Spindle nose A2-5. Chuck dia.175mm. Drawtube capacity  56mm. Spindle speeds to 6000rpm. Spindle power 11kW. 2 x 12 station turrets (all driven capacity).30 VDI.Driven tool speeds to 5000 rpm. Power of driven tool 1.5kW. Fanuc-GE 31i-A CNC Control

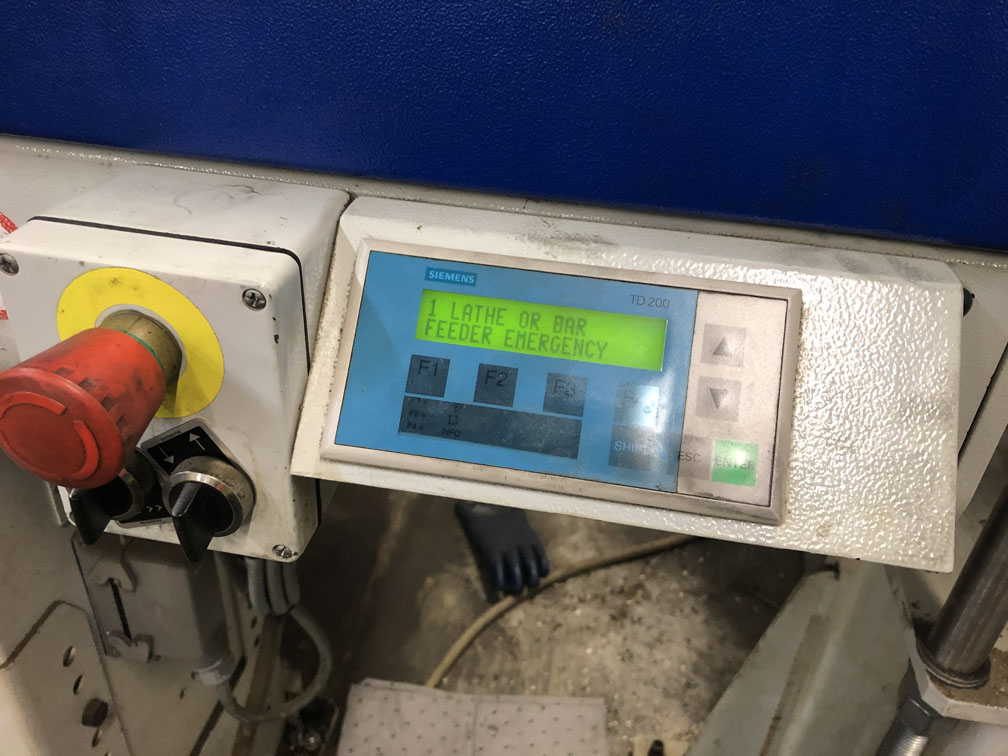

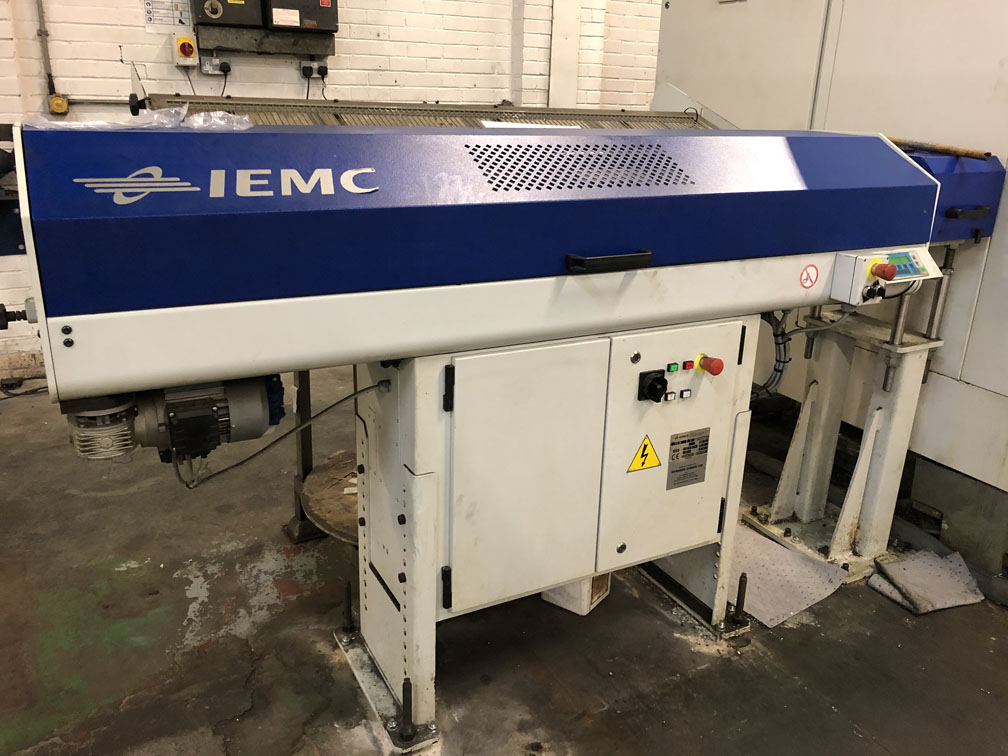

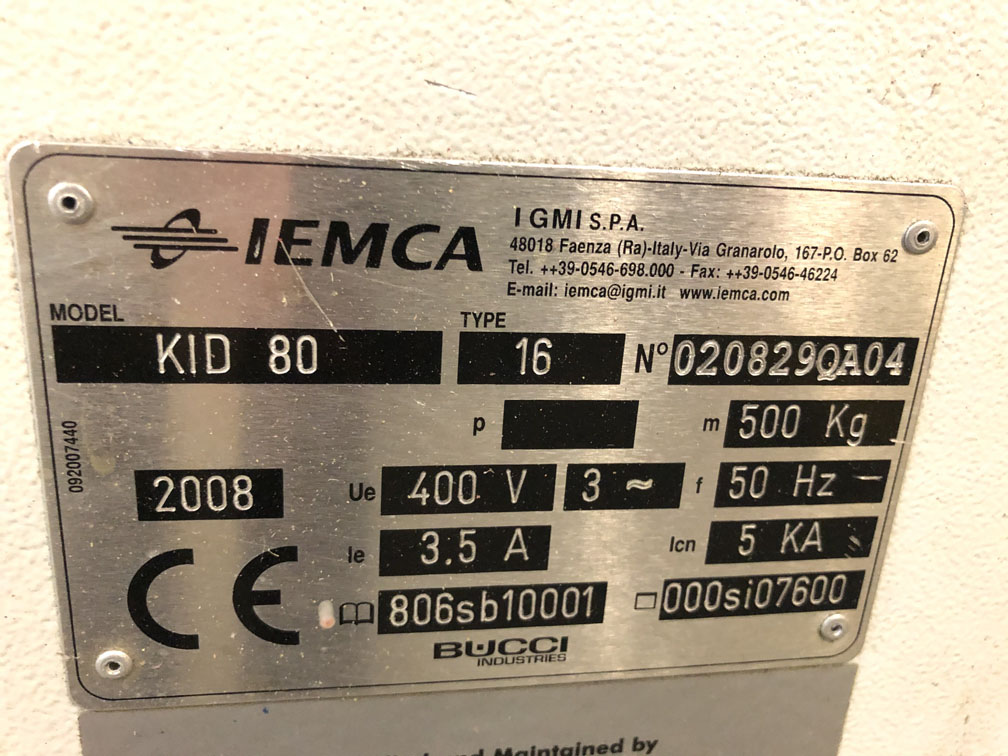

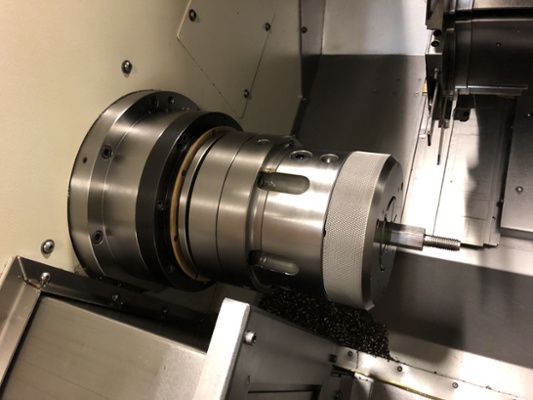

Machine has a 3 jaw chuck for main spindle & collet chuck. 3 jaw chuck fitted on sub spindle.IEMCA KID70 Barfeed with magazine

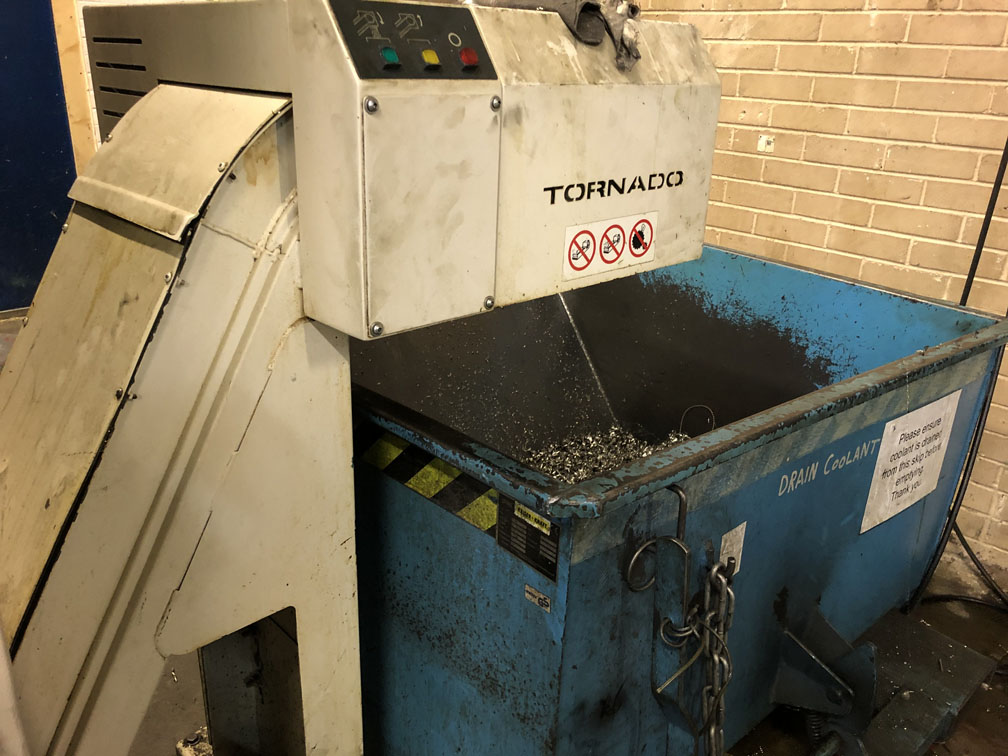

Machine dimensions: Machine and swarf conveyor  Dimensions: 3886mm x 2000mm x 2000mm high. Barfeed length 2387mm. Machine weight 7,000 kgs.

See attached manufacturers brochure & specification (non binding)
