Description

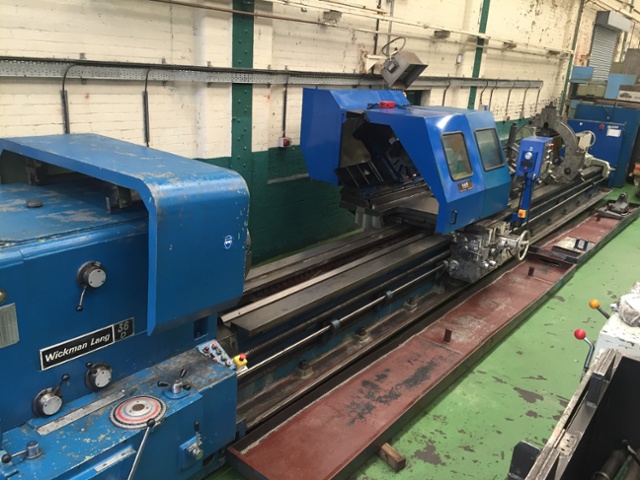

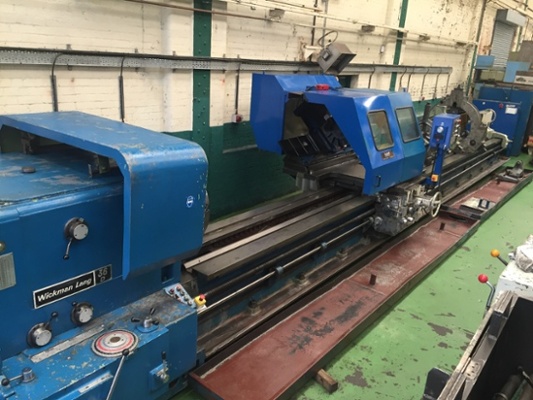

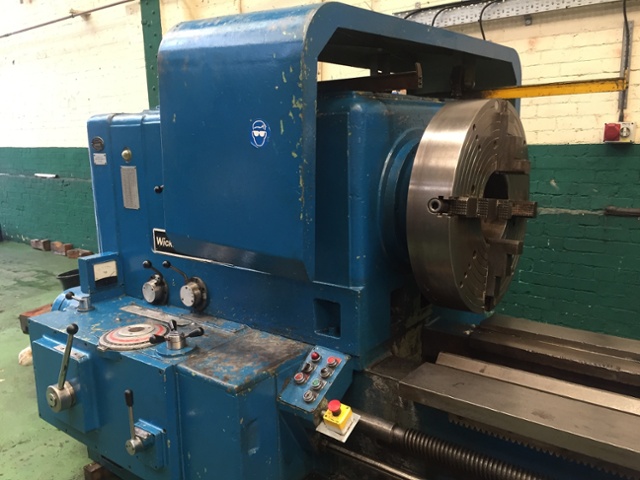

Swing over bed 37". Maximum swing over cross slide 25" (without CNC mounting plate). Swing over Audit CNC mounting plate 21".Bed length from chuck face to end of bed 420". Maximim distance from chuck face to turret face (Max turning lenth) 440.5". Spindle speeds 6.2 - 232 rpm. Spindle bore 5". 4 jaw chuck dia. 27". Tailsock quill dia. 6". Quill taper 7MT. Quill travel 20". Main motor 50 kW.

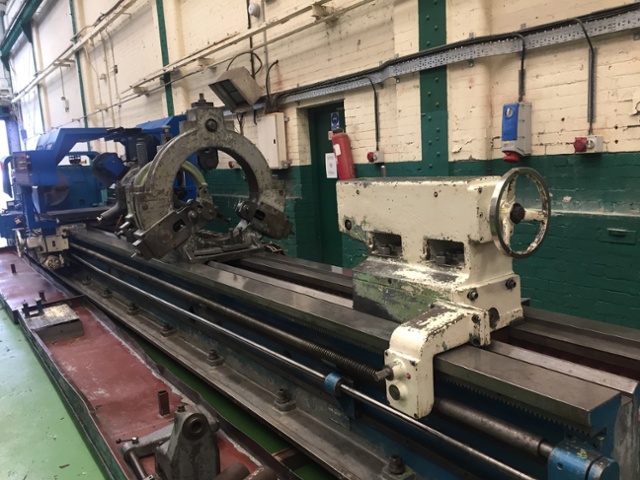

3 x 3 Point roller steadies 27" dia, 21" dia. & 13" dia.

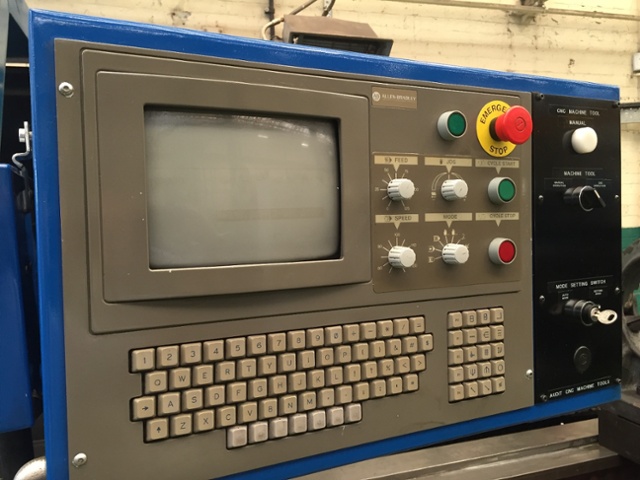

Allen Bradley 8600T – Osia A-B 8600 CNC control system. 2 Axis H1000 Audit System

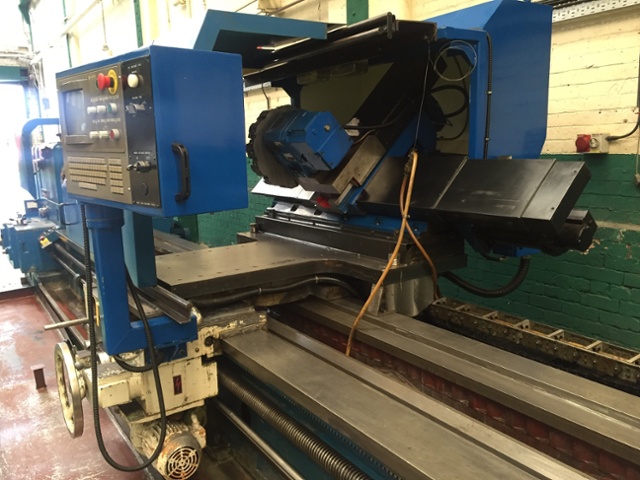

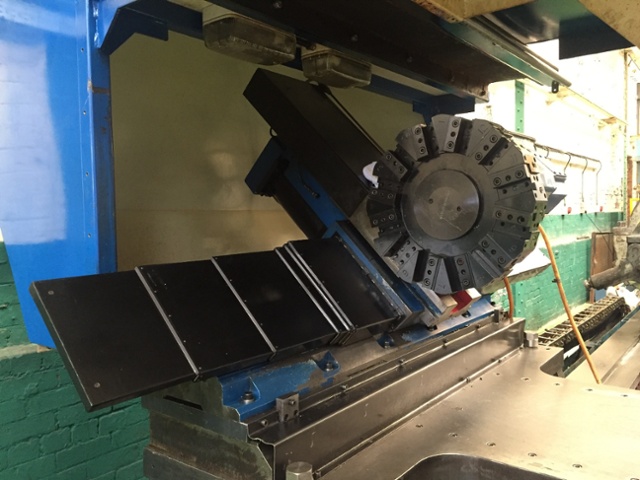

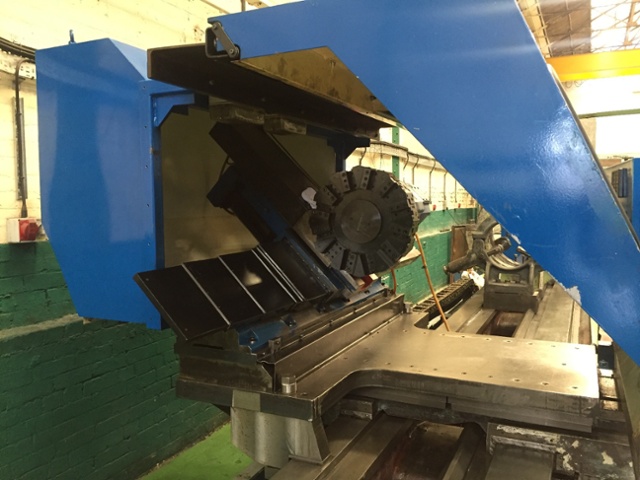

X Cross Axis travel 13.3/4" Radial. Z Long Travel 39.3". Turret Type Duplomatic BSV-N200 - Bi Directional. Tool disc model CTD100-12-32-440R. No. of stations 12. Max tool section 1.1/4" x 1.1/4". Feedrate 0- 32'/min.
Overall machine dimensions 511" x 96" x 78" high. (To top of Audit System 86").
Machine was retrofited with the new AUDIT System in June 2009
This machine is located in Oldham, Lancashire and can be & loaded onto a flat bed trailer or Eurotrailer for £250.
