Description

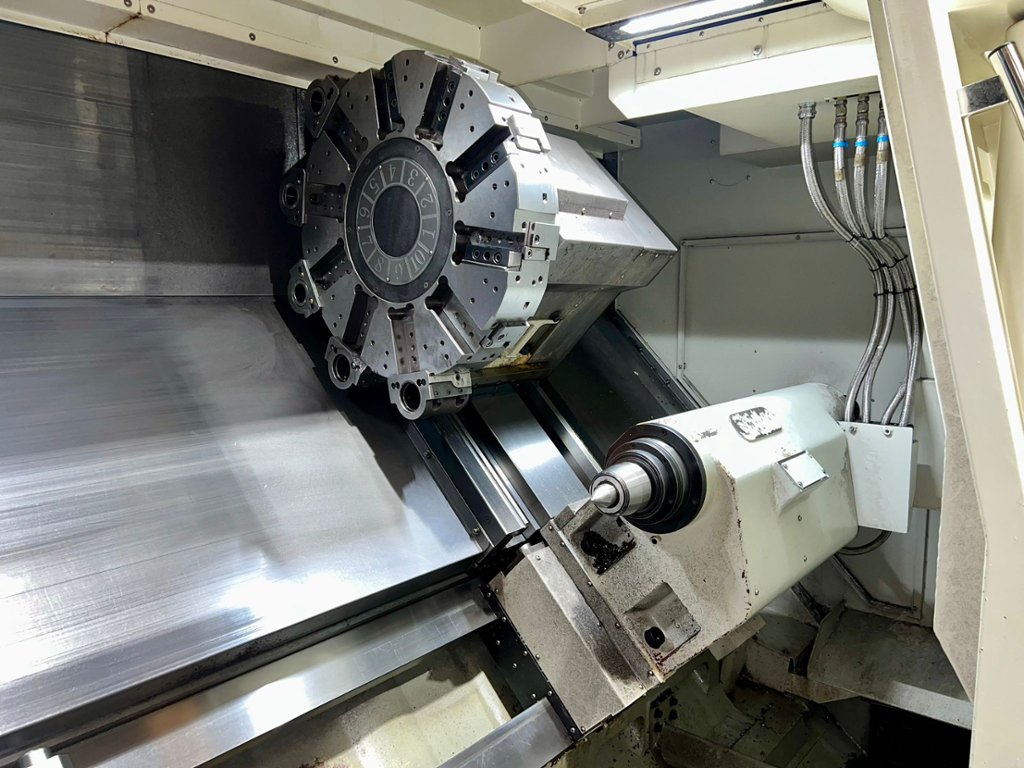

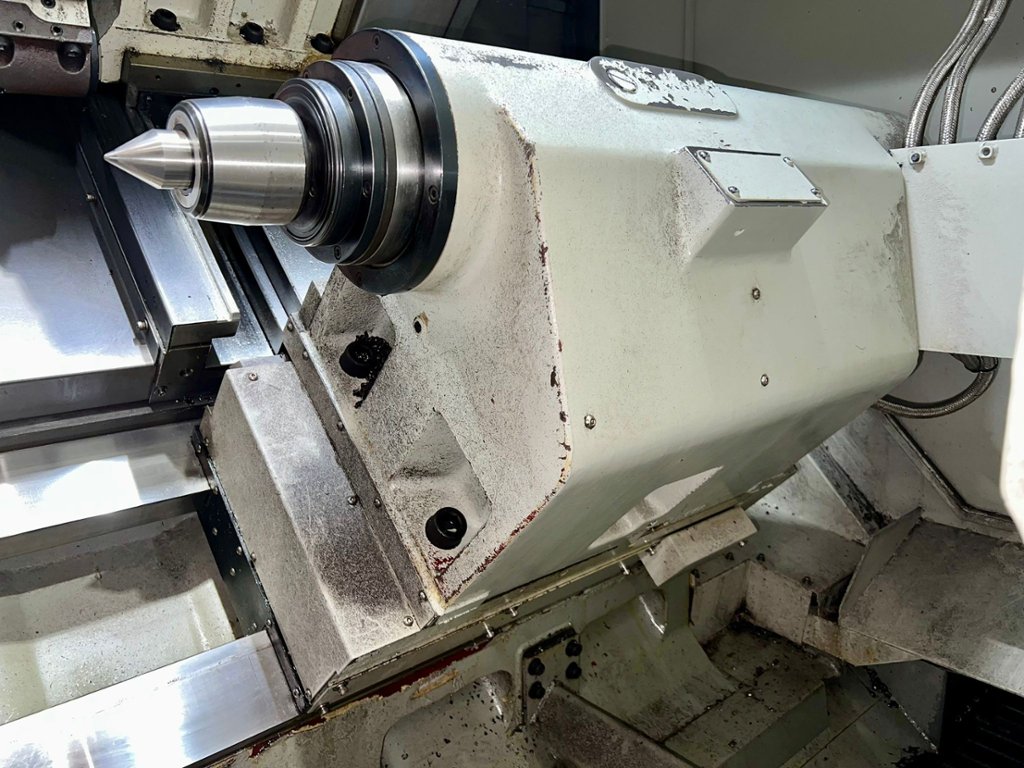

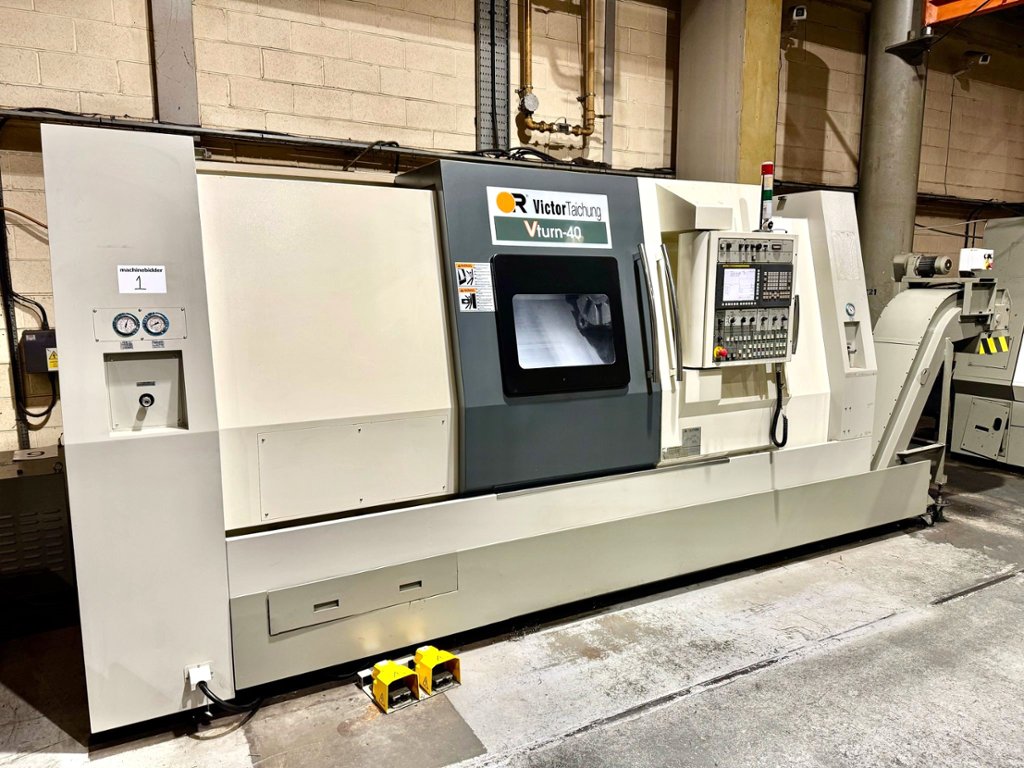

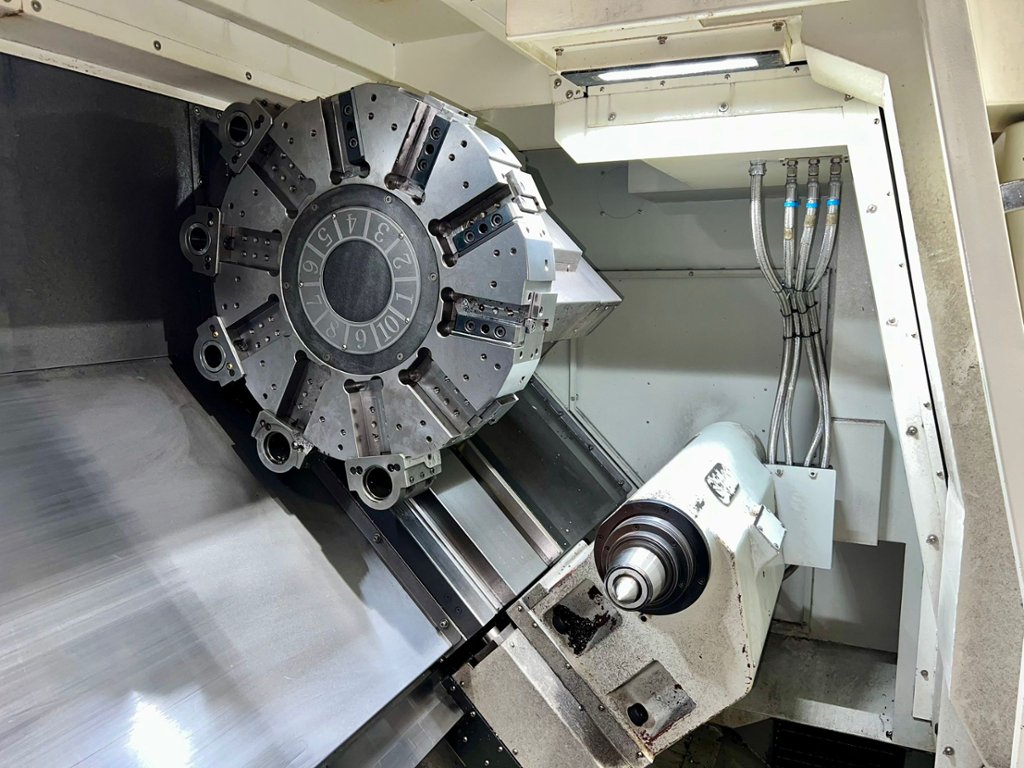

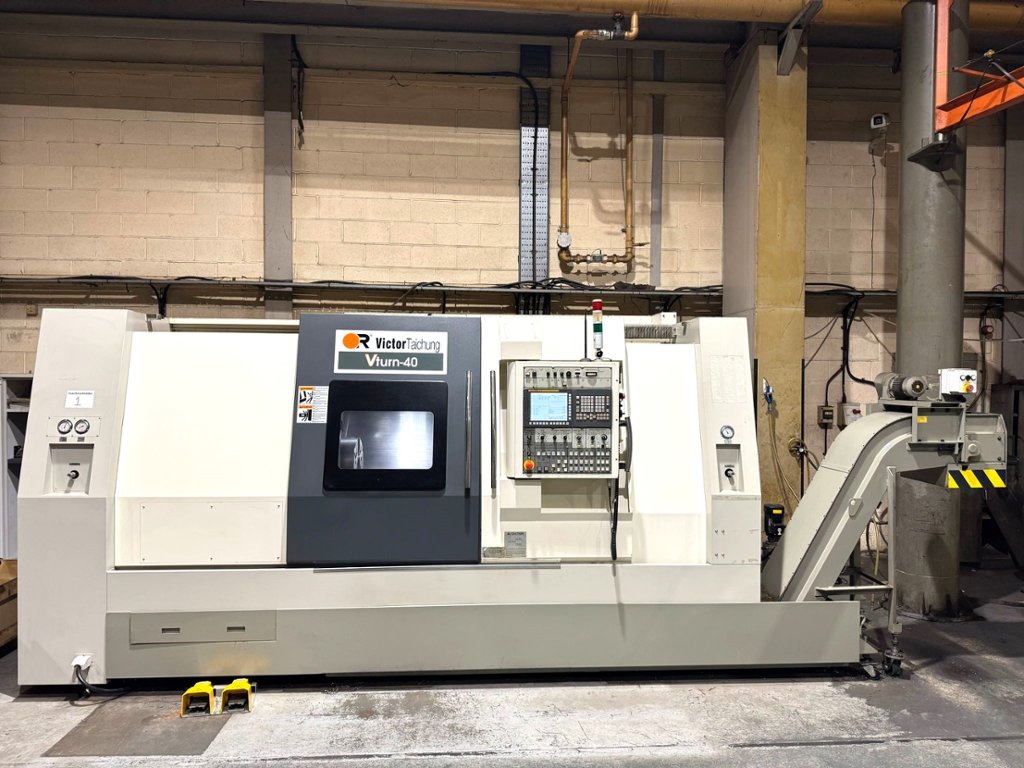

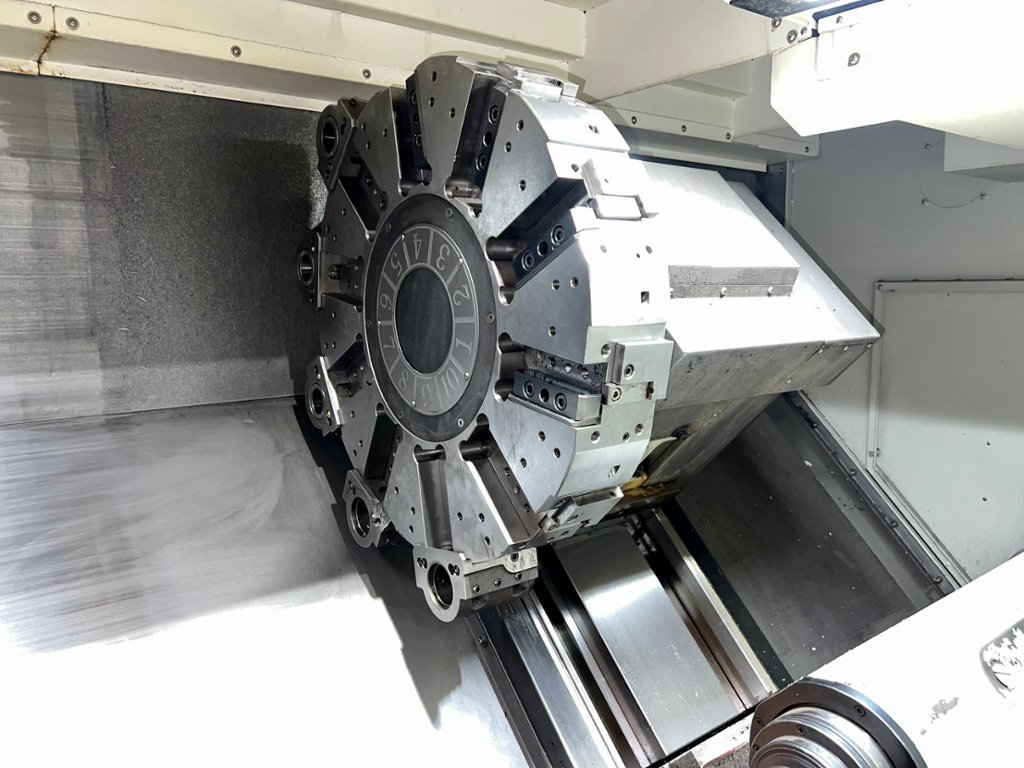

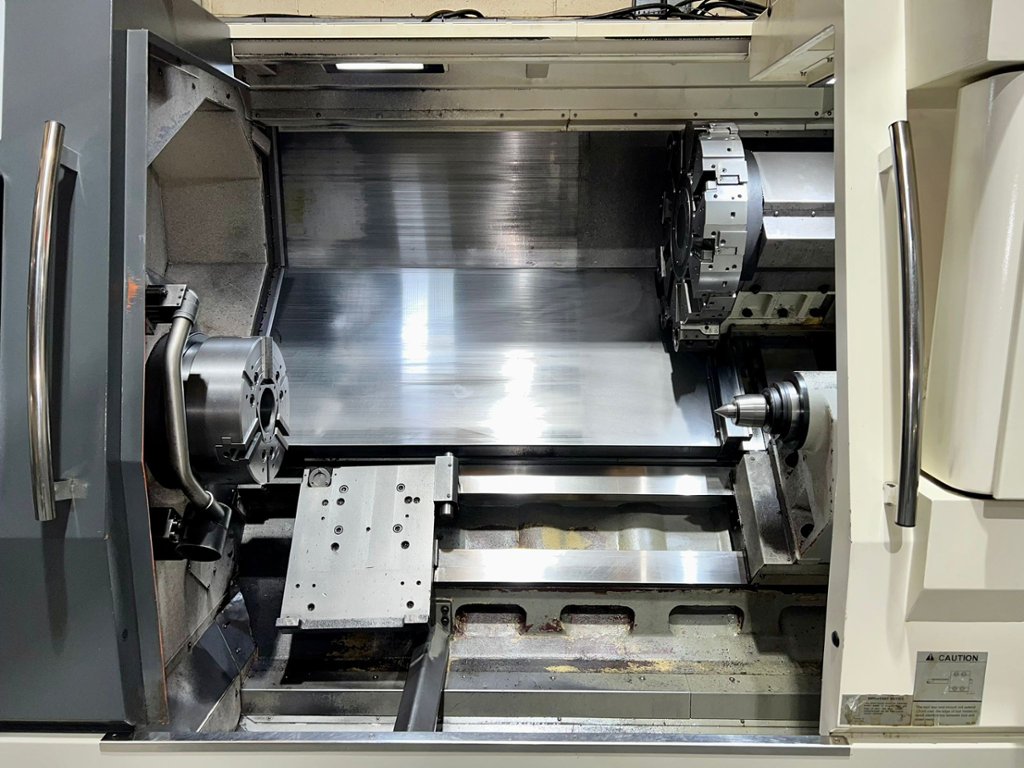

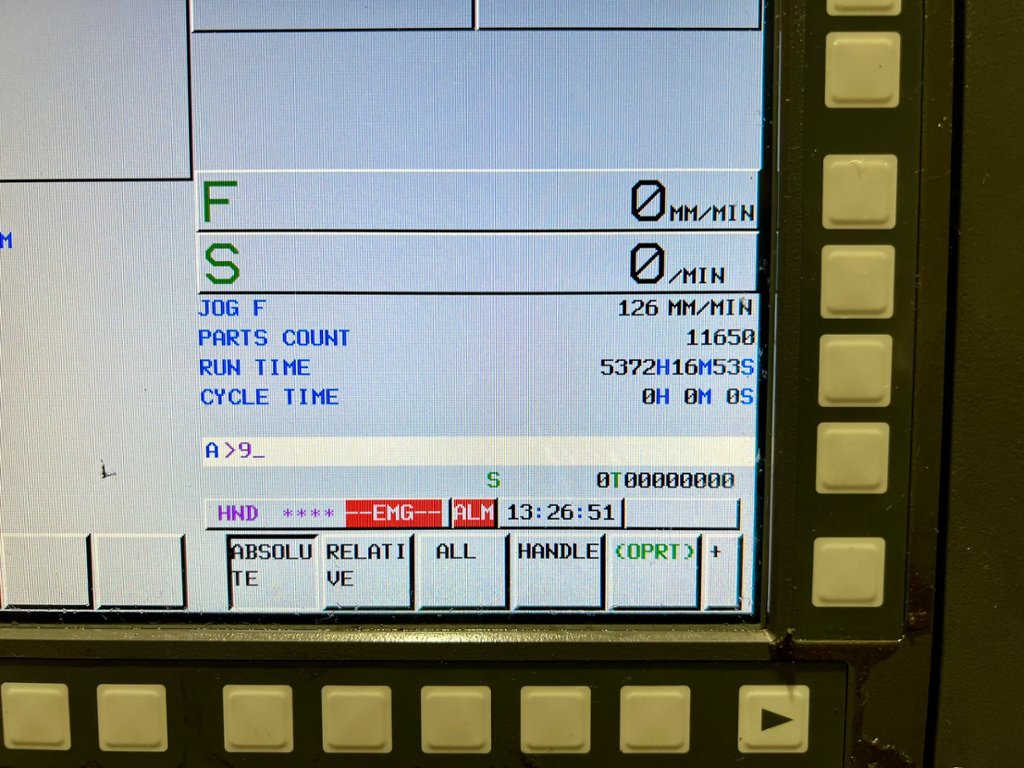

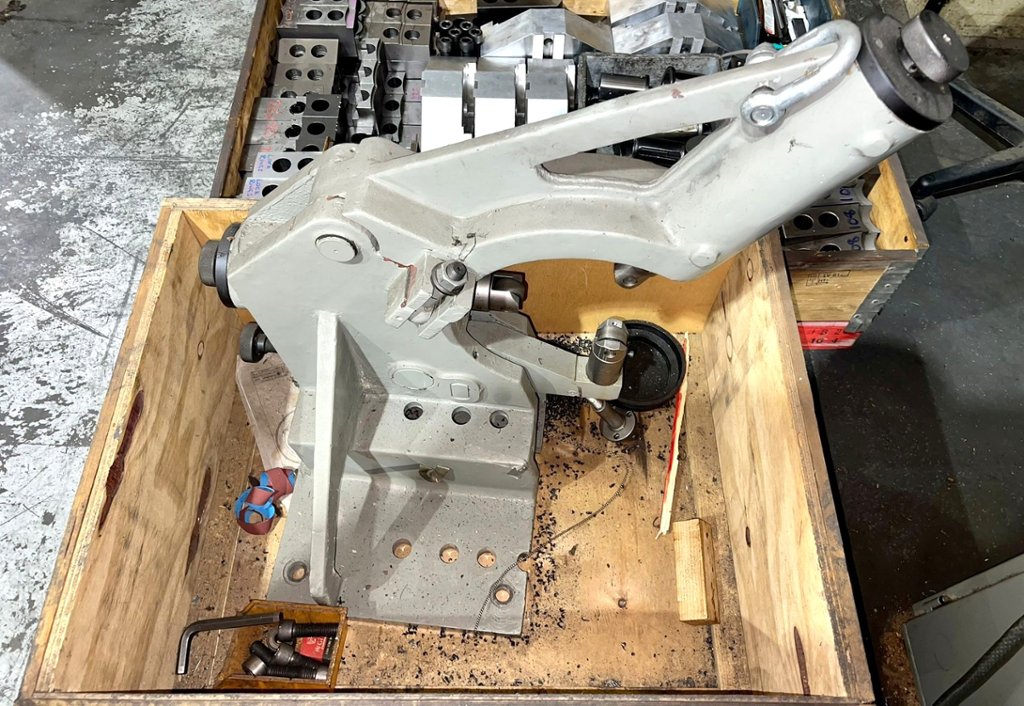

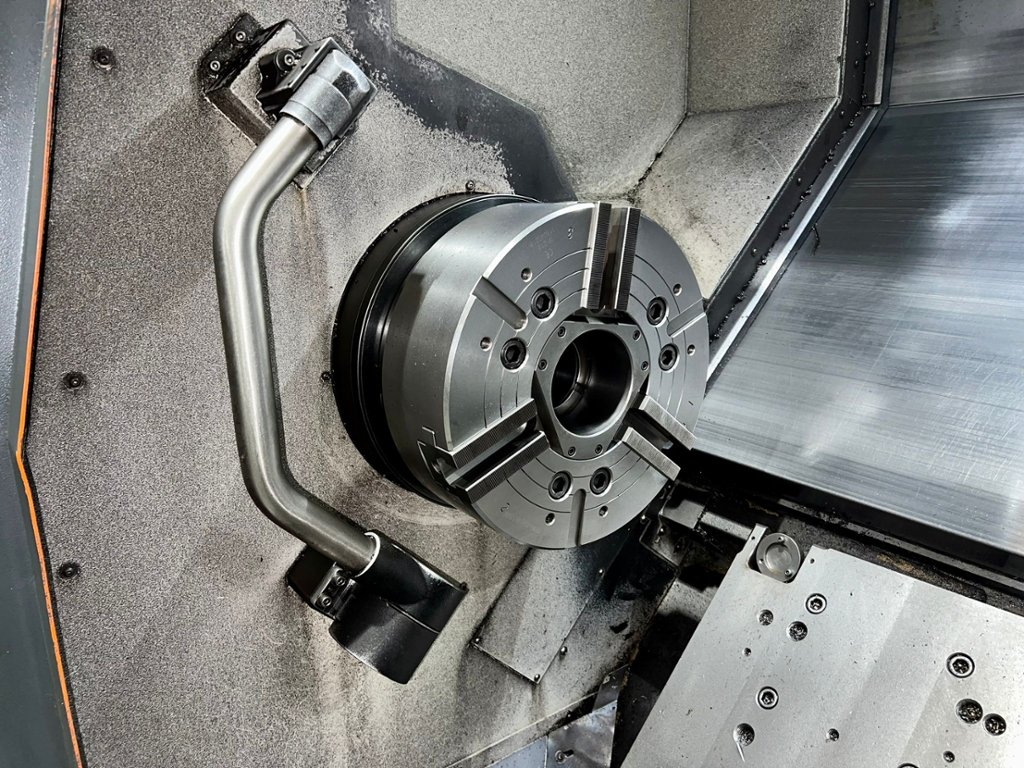

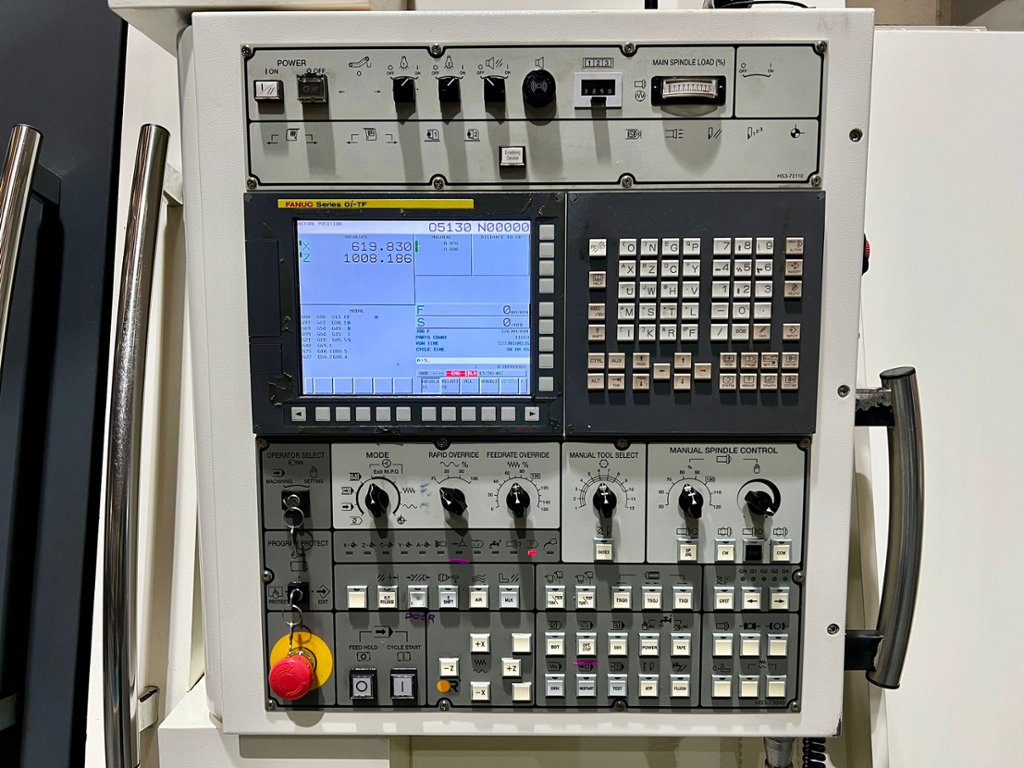

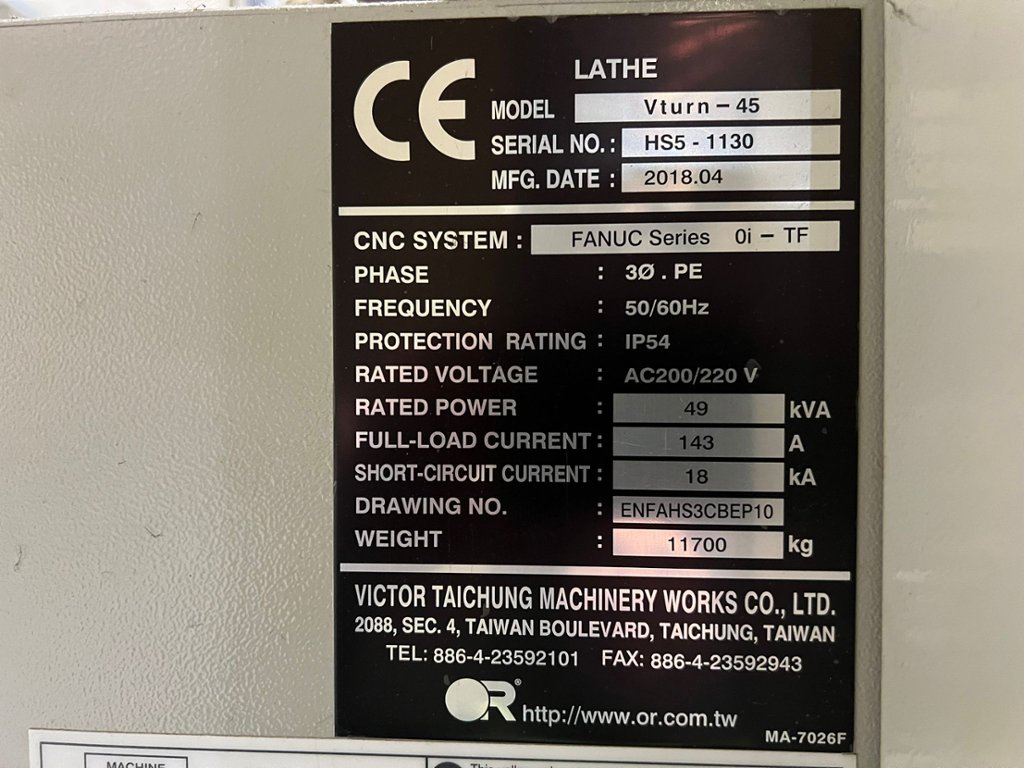

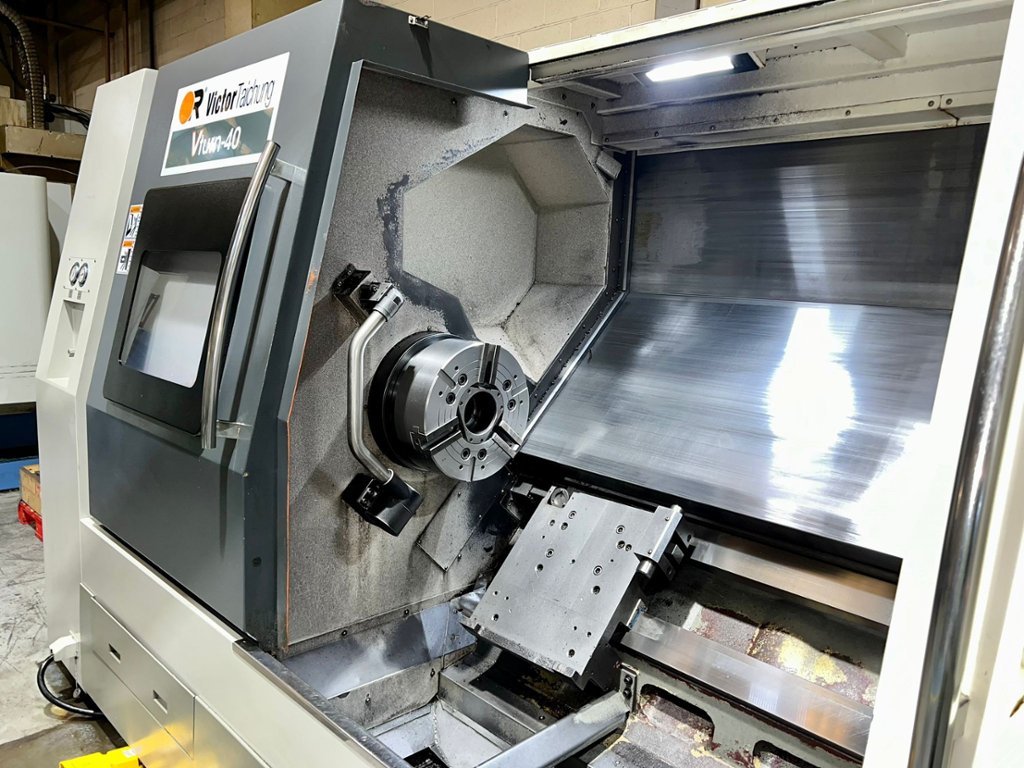

Swing over bed 780mm. Standard turning dia. 520mm. Maximum turning dia. 620mm. Swing over carriage 620mm. Distance between centres 1325mm. X/Z Axis travel 310+30mm/1250mm. Spindle bore 135mm. Bar capacity 117.5mm. Rapids X/Z 24/24m/min. X/Z Feed motors 4/4kW. X/Z Ball screw dia. x pitch 36mm x P8/50mm x P10. Maximum spindle speed 2000 rpm. Spindle motor power geared ( Cont/30min/15min) 30/37/45 kW. Spindle nose A2-11''. 10 station turret. Tailstock quill dia. 150mm. Quill stroke 150mm. Quill taper 5MT. Total power requirement 50 kVA. Coolant tank capacity 600 litres. Machine is fitted with a 381mm dia. 3 jaw chuck. 3 Point Open Ended Steady 30mm-300mm capacity. Approximate machine size 5300mm x 2700mm x 2200mm high. Approximate weight 12,700 kg. Fanuc Series 0i-TF Control. Machine Serial No. HS5 -1130. Year 2018.
OFFERS WILL BE CONSIDERED BY EMAIL IF RECEIVED WITHIN 48 HOURS PRIOR TO THE AUCTION CLOSING
Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
