Description

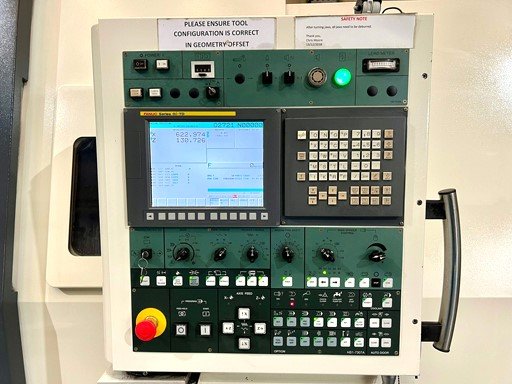

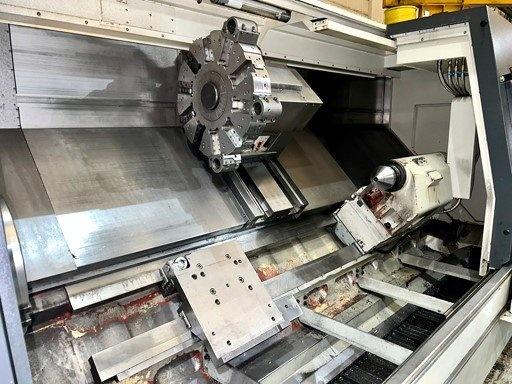

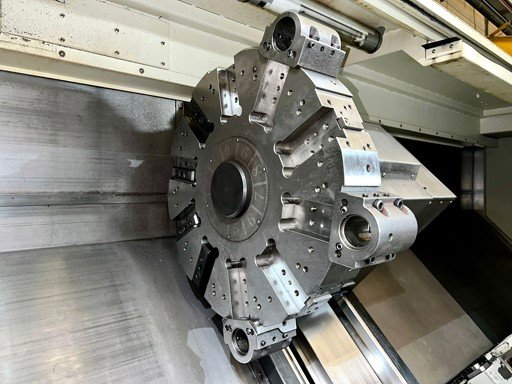

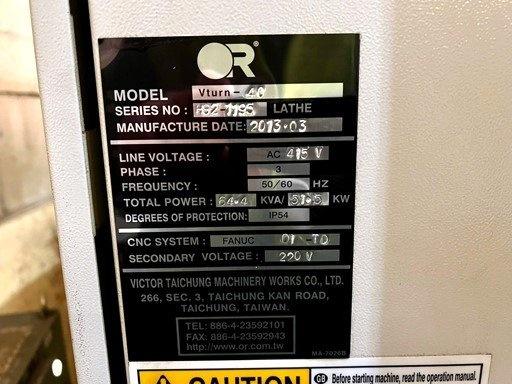

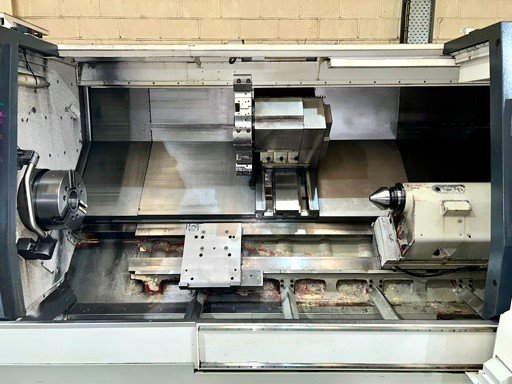

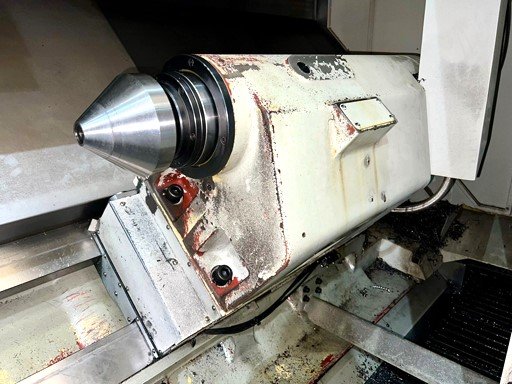

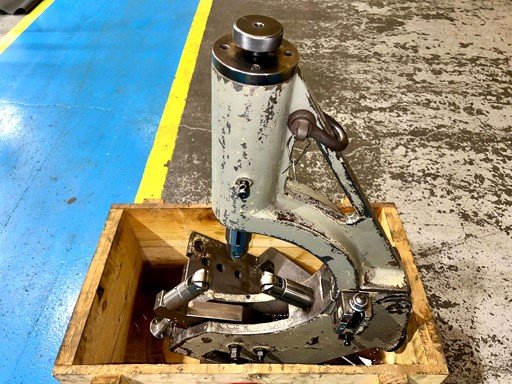

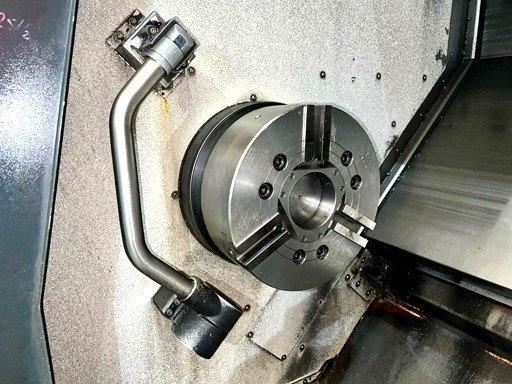

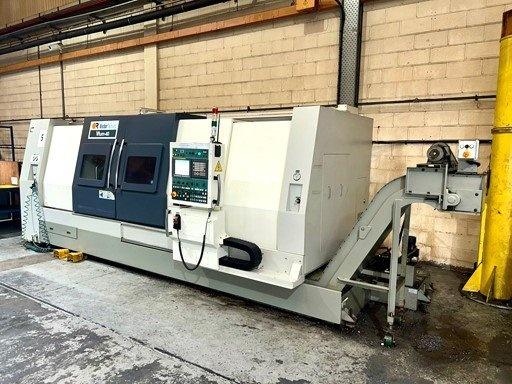

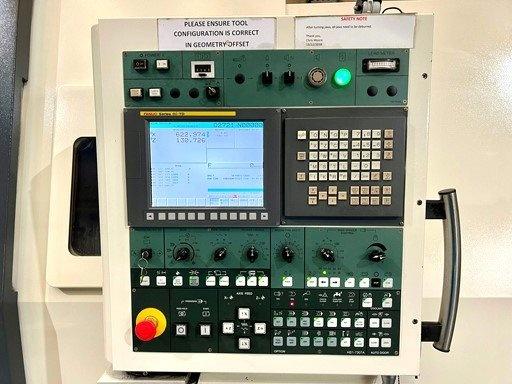

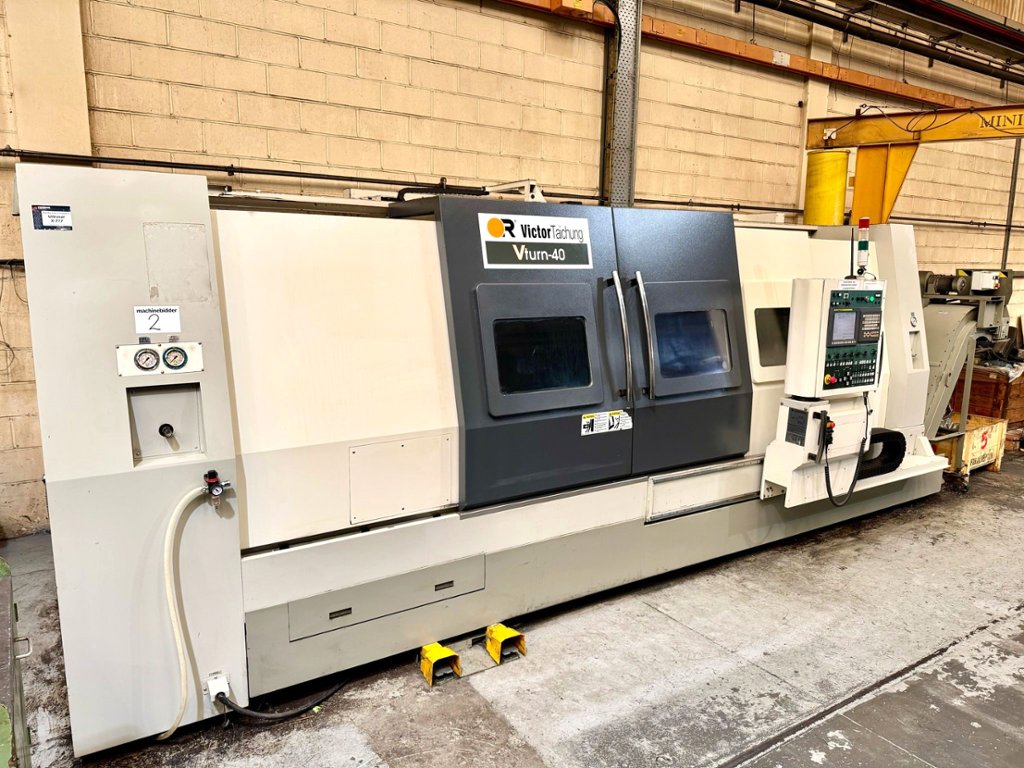

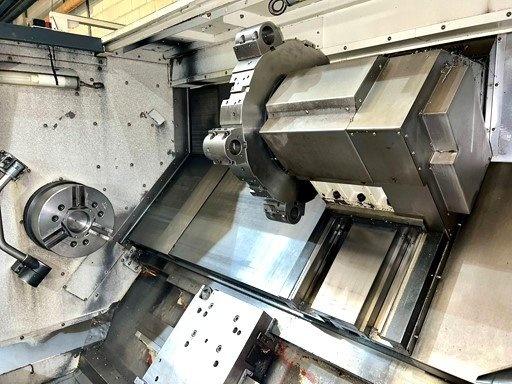

Swing over bed 780mm. Standard turning dia. 520mm. Maximum turning dia. 620mm. Swing over carriage 620mm.Distance between centres 2275mm. X/Z Axis travel 310+30mm/2200mm. Spindle bore 105mm. Bar capacity 91mm.Rapids X/Z 20/20m/min. X/Z Feed motors 4/7kW. X/Z Ball screw dia. x pitch 36mm x P8/50mm x P16. Maximum spindle speed 2500 rpm. Spindle motor power geared ( Cont/30min/15min) 30/37/45 kW. Spindle nose A2-11''. 10 station turret. Tailstock quill dia. 150mm. Quill stroke 150mm. Quill taper 5MT. Total power requirement 50 kVA. Coolant tank capacity 700 litres. Machine is fitted with a 381mm dia. 3 jaw powered chuck. 3 point Open Ended Steady 280mm-400mm dia. capacity. Approximate machine size 7100mm x 2700mm x 2200mm high. Approximate weight 15,500 kg. Fanuc Series 0i-TC Control. Machine Serial No. HS2-1195. Year 2013.
