Description

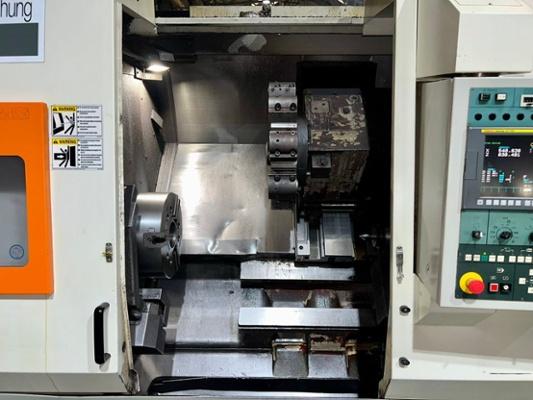

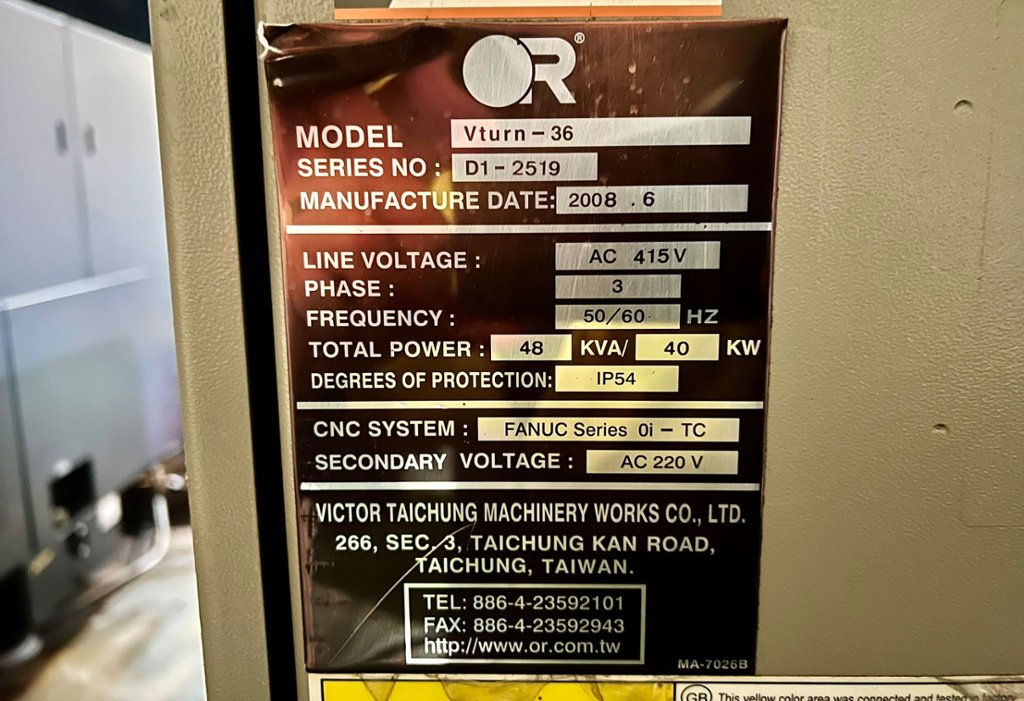

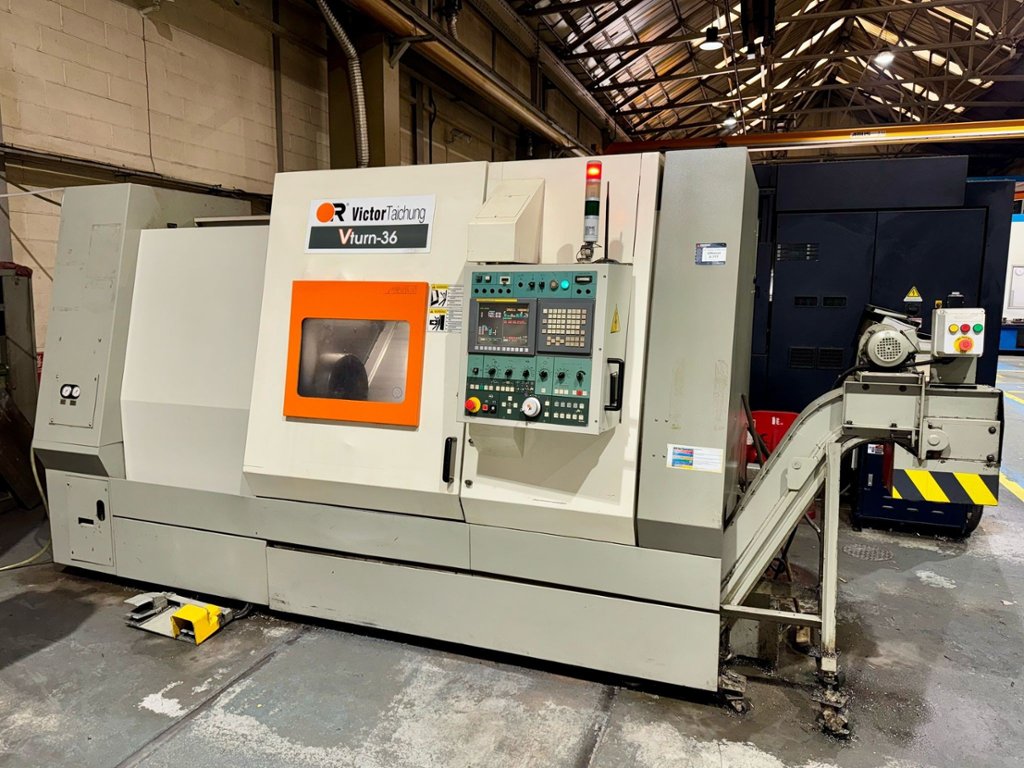

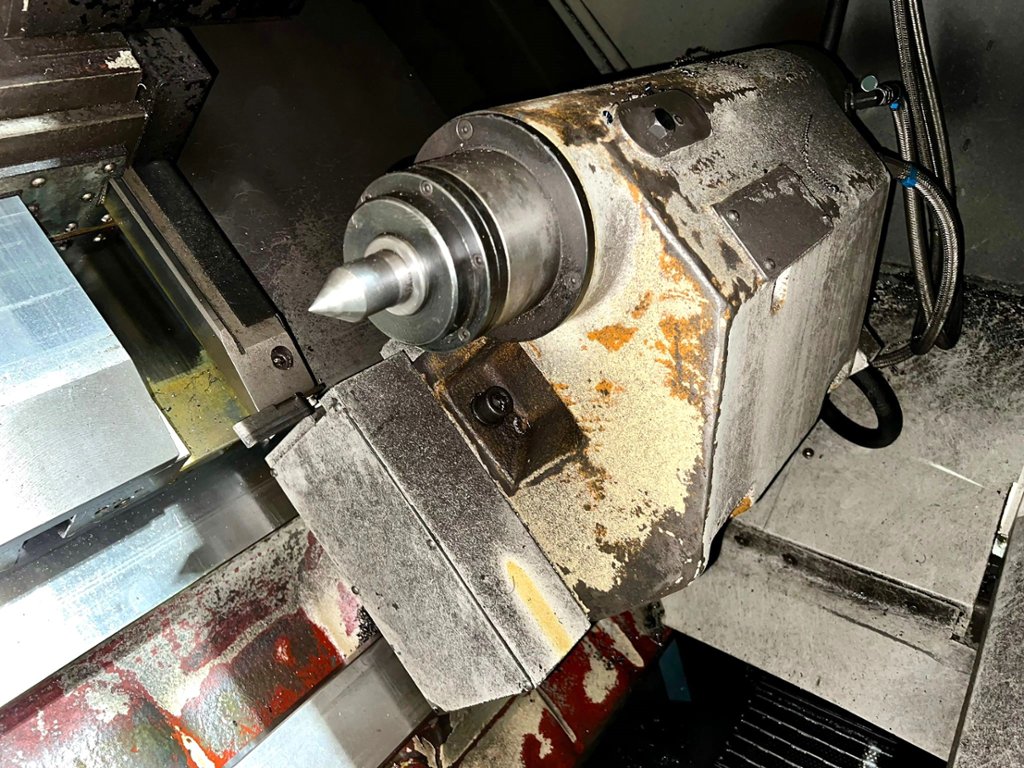

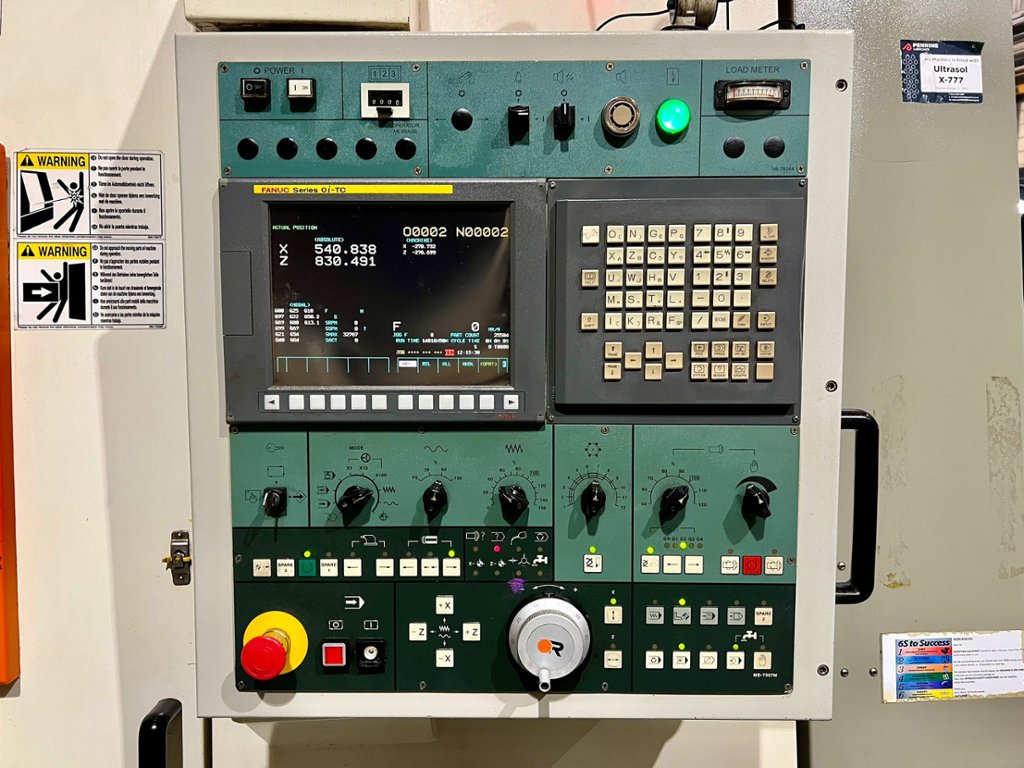

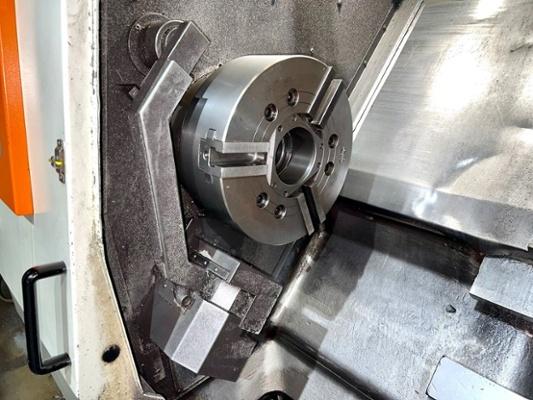

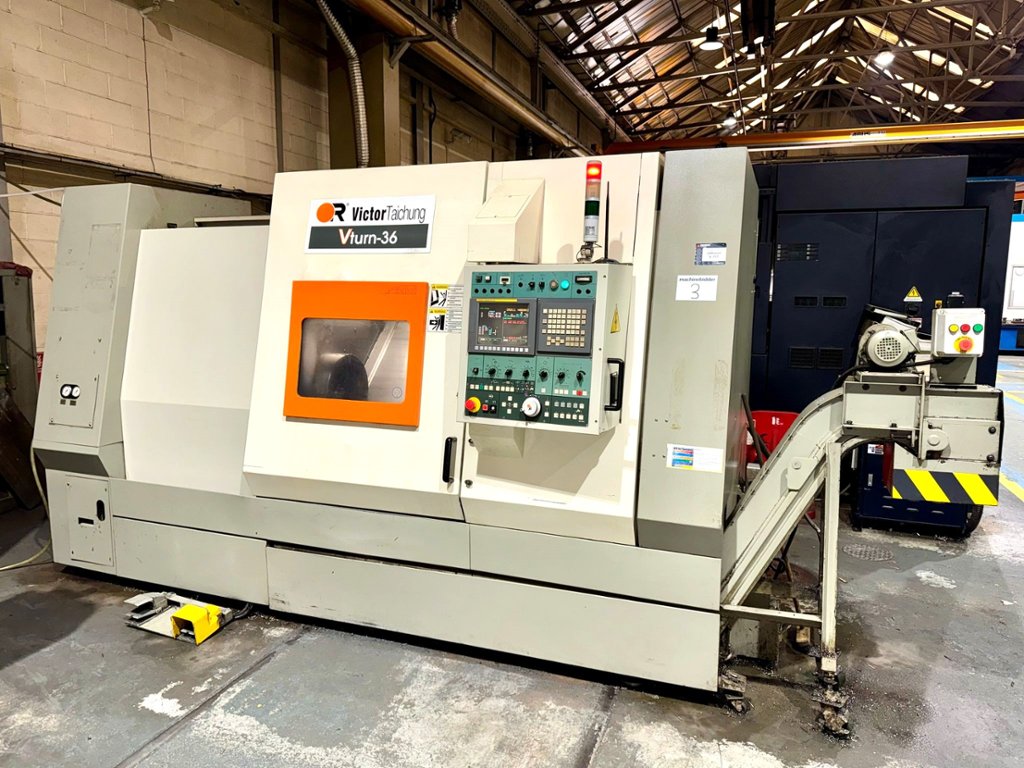

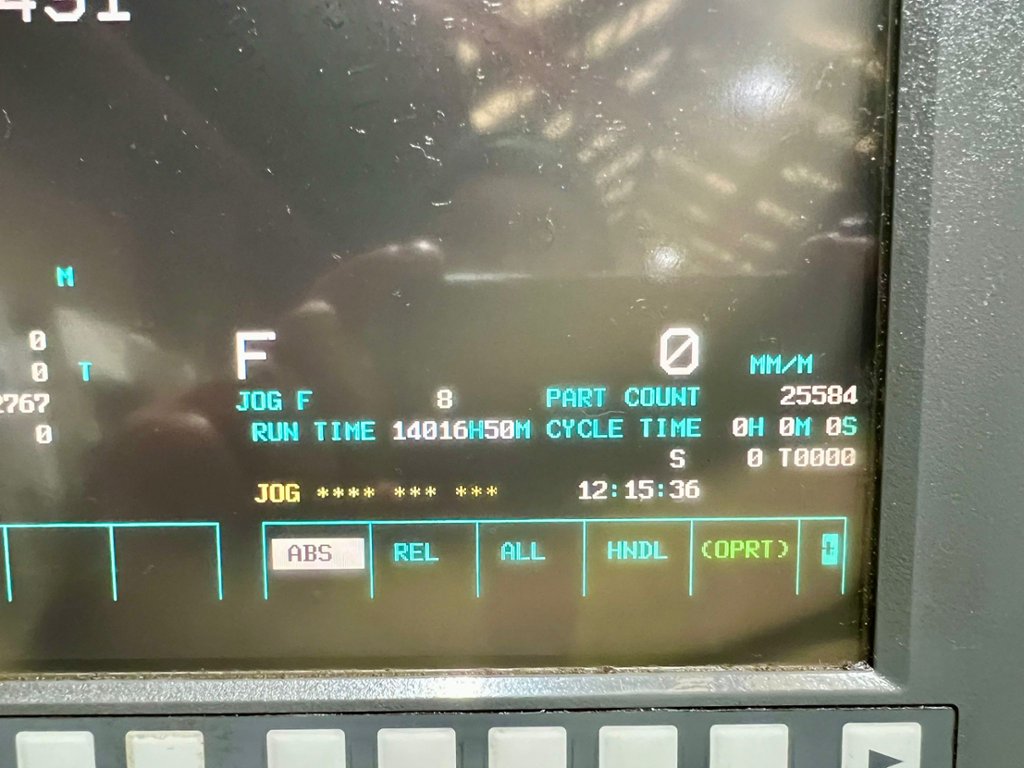

Swing over bed 650mm.Standard turning dia. 445mm. Maximum turning dia. 550mm. Swing over carriage 550mm. Distance between centres 898mm. X/Z Axis travel 275 +30mm/855mm. Spindle bore 105mm. Bar capacity 91mm. Rapids X/Z 12/15m/min. X/Z Feed motors 3/4 kW. X/Z Ball screw dia. x pitch 36mm x P6/50mm x P10. Maximum spindle speed 2500 rpm. Spindle motor power (geared) 22/26 kW. Spindle nose A2-8''. 10 station turret. Tailstock quill dia. 110mm. Quill stroke 100mm. Quill taper 4MT. Total power requirement 38 kVA. Coolant tank capacity 130 litres. Machine is fitted with a 381mm dia.3 jaw powered chuck. Approximate machine size 4700mm x 2300mm x 2200mm high. Approximate weight 8,400 kg. Fanuc Series 0i-TC Control. Machine Serial No. D1-2519. Year 2008.
