Description

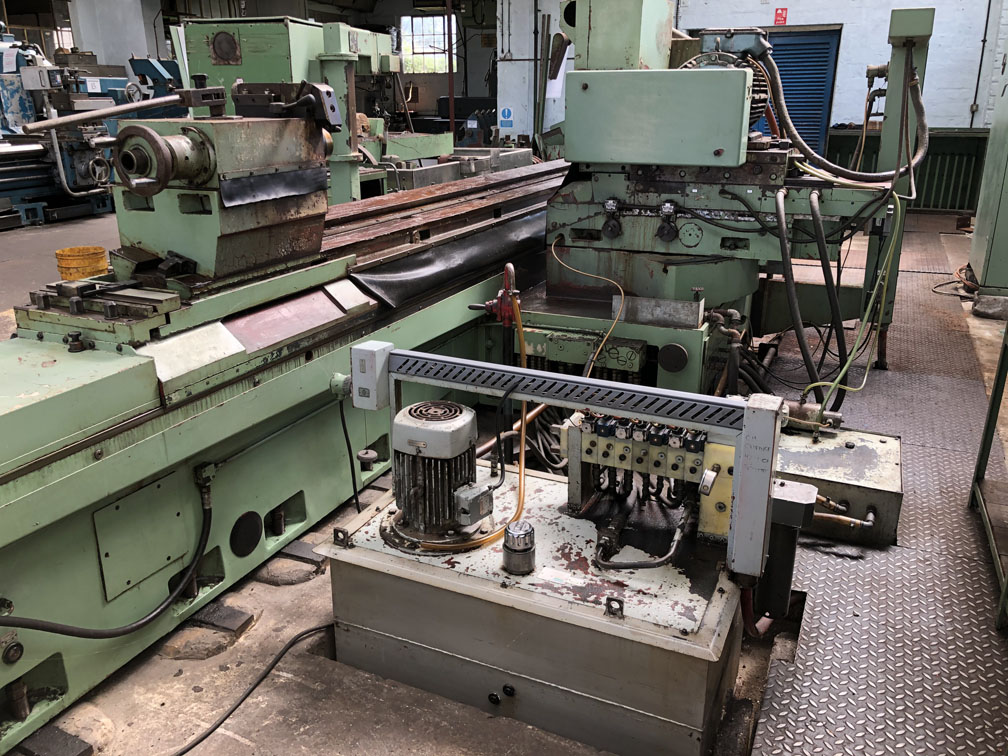

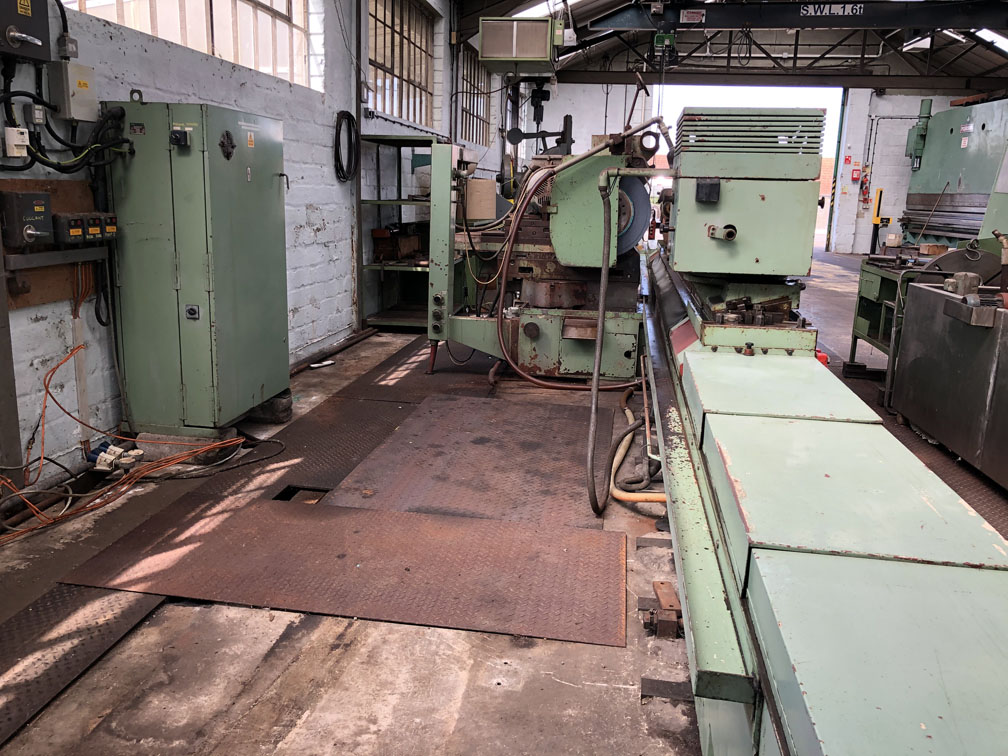

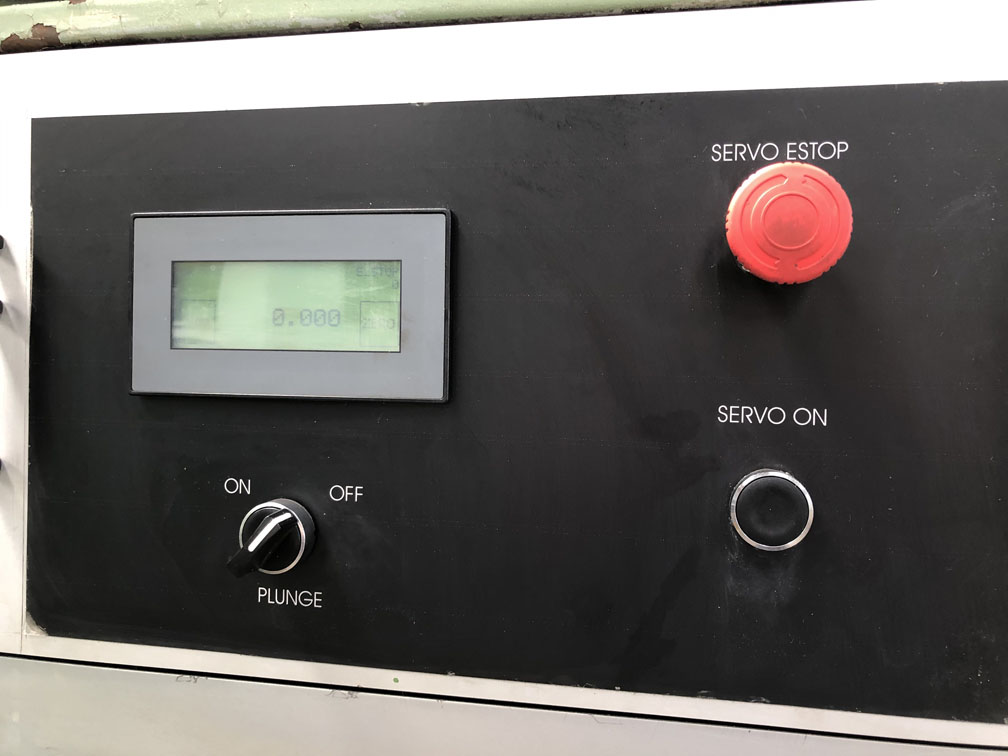

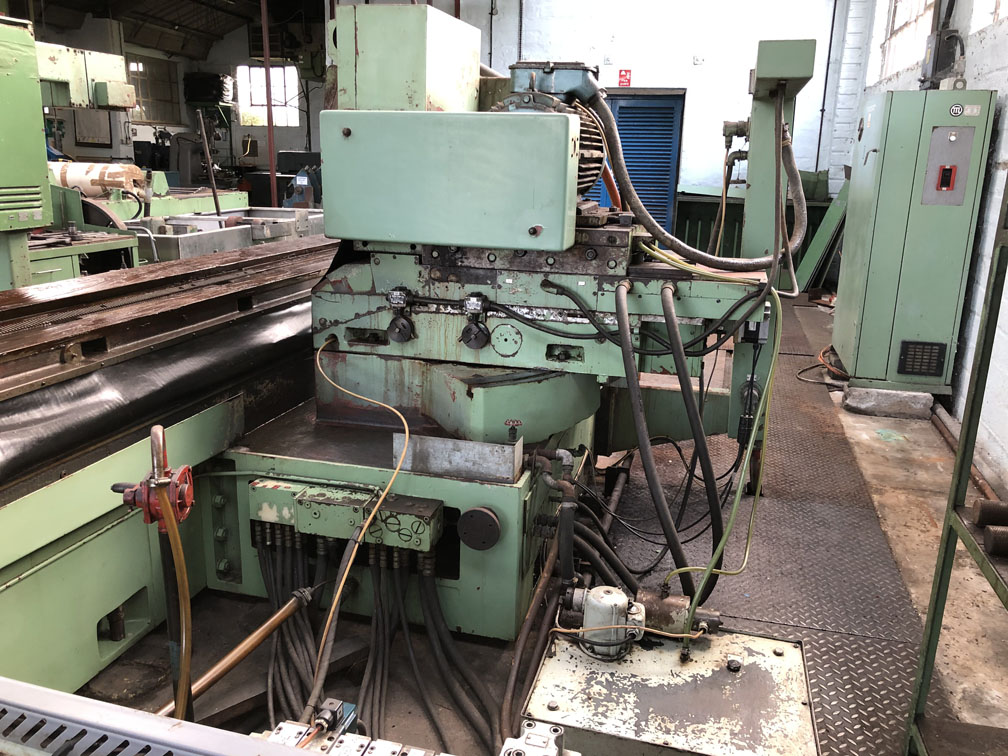

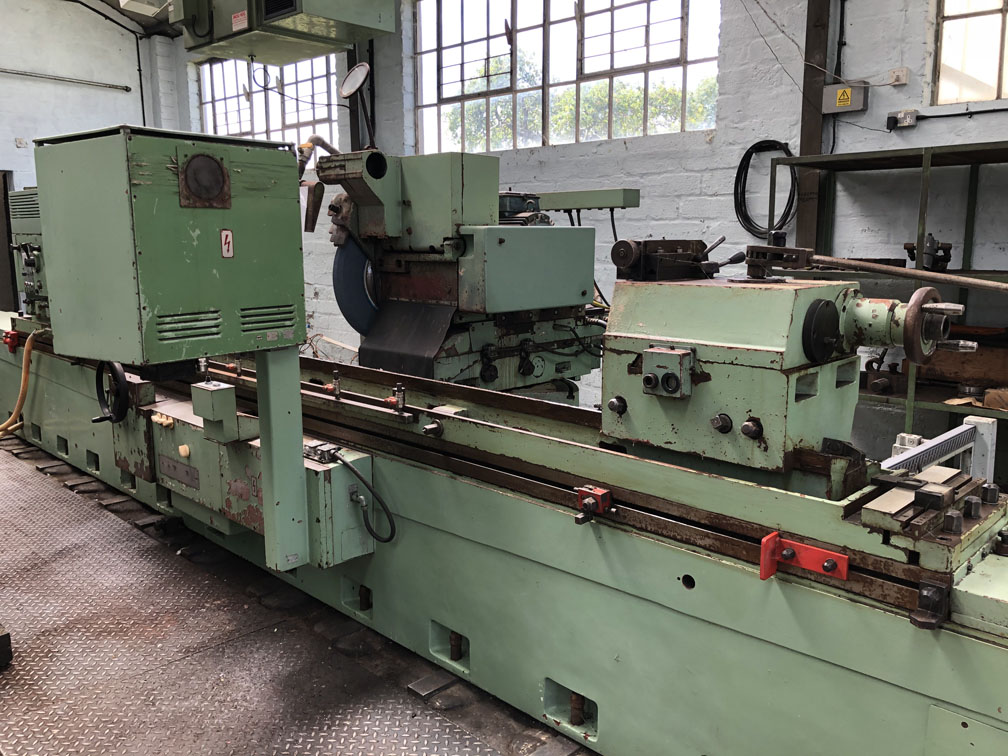

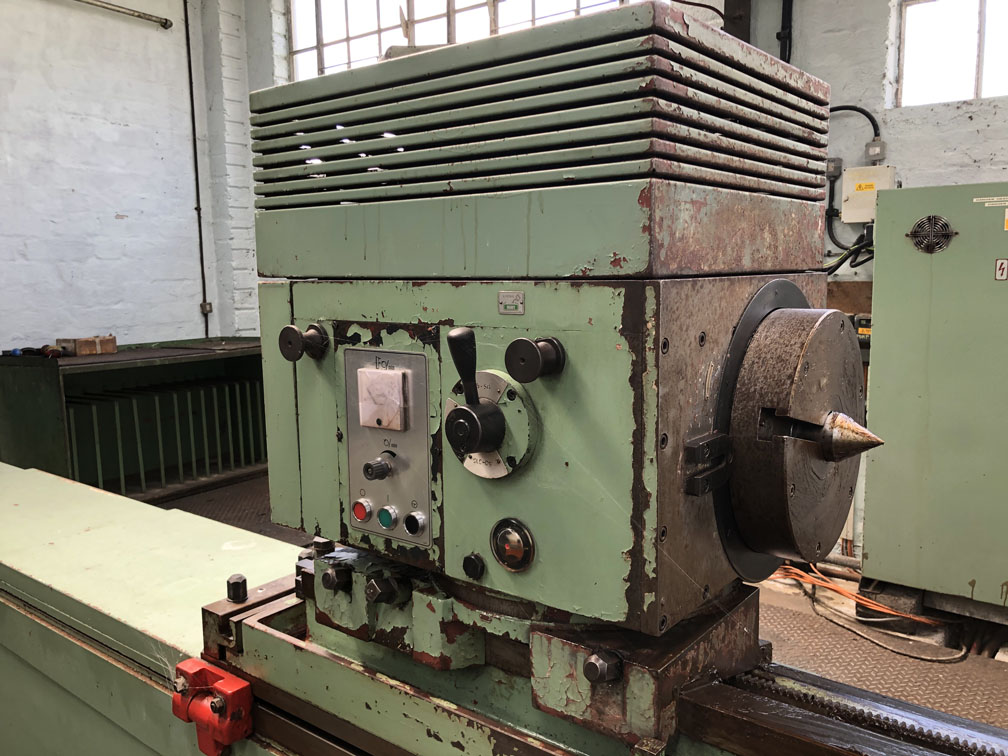

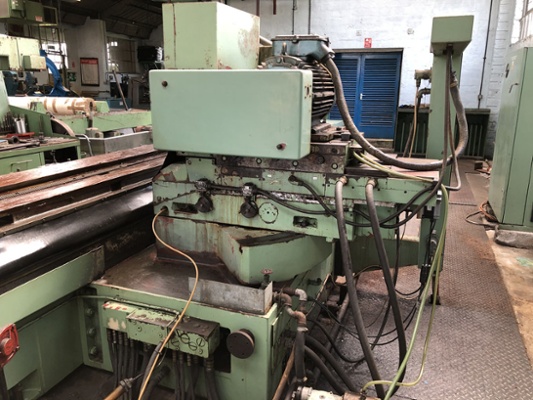

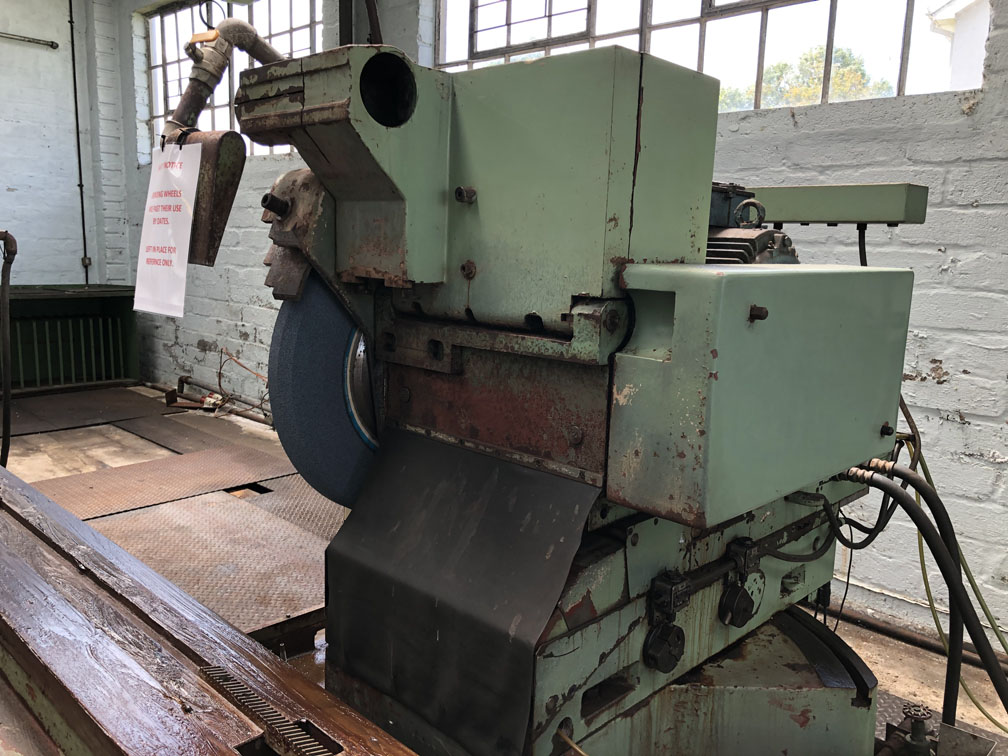

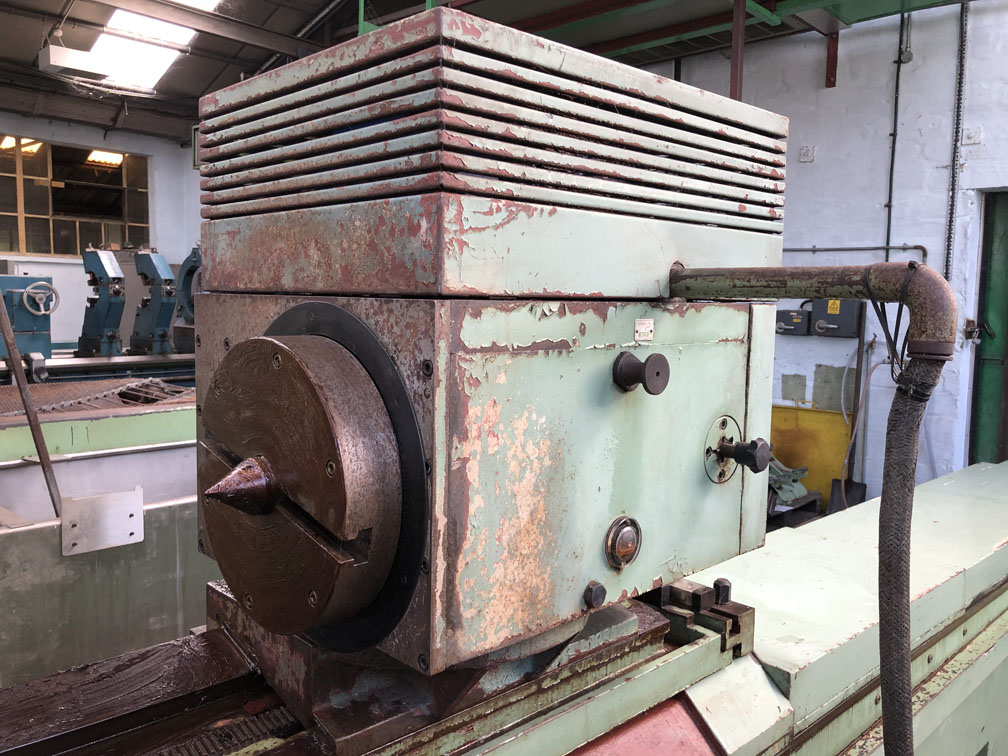

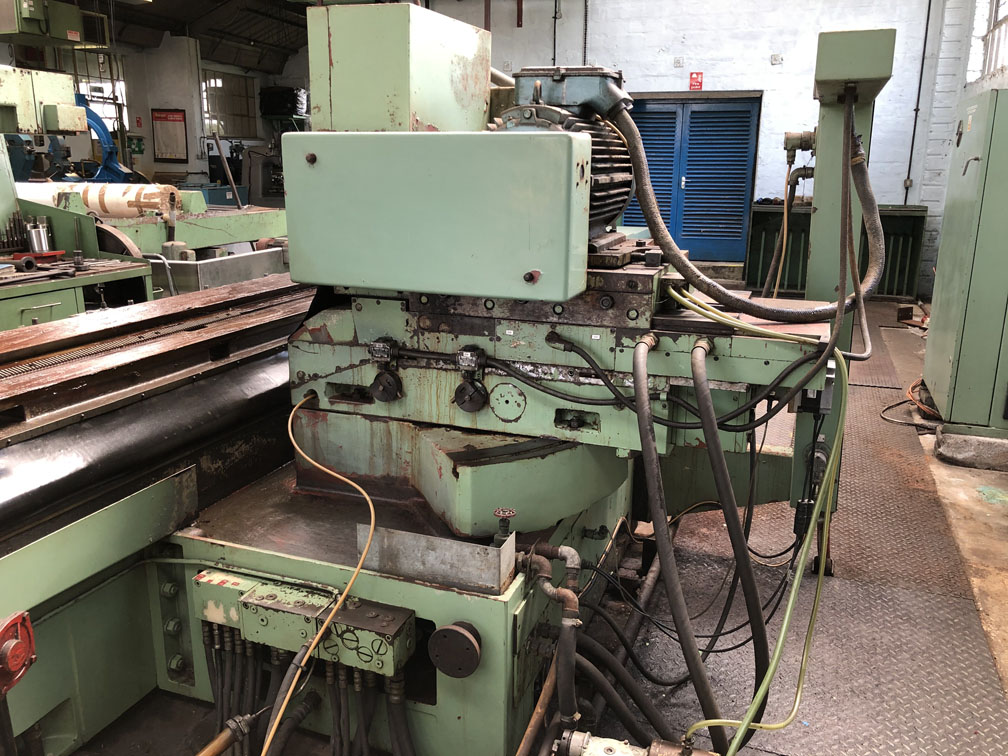

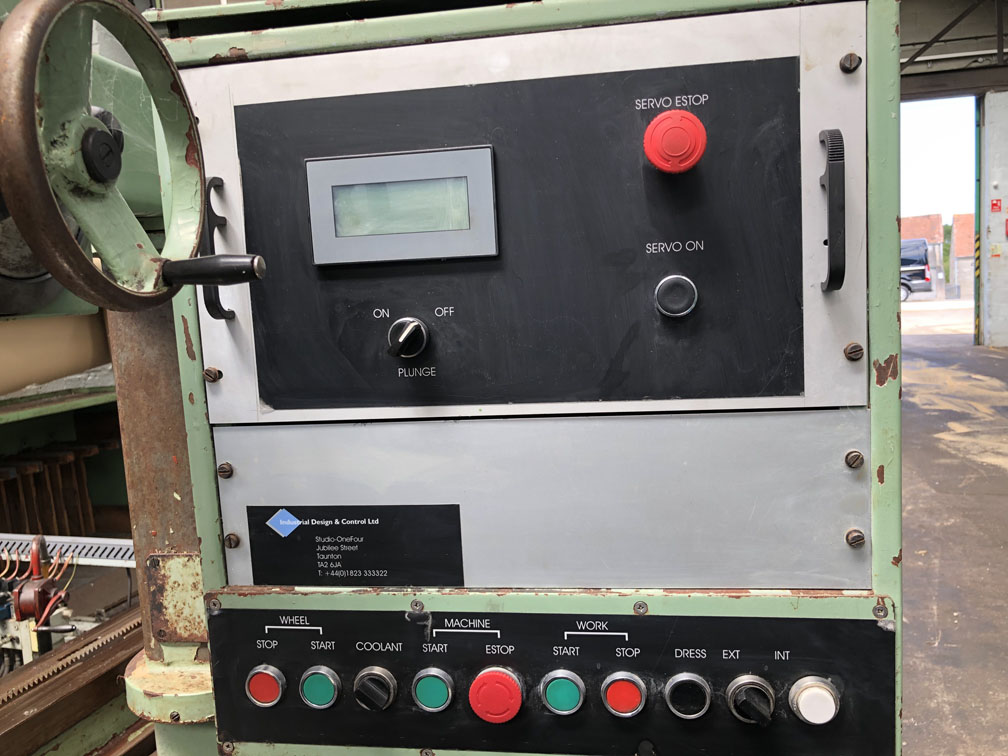

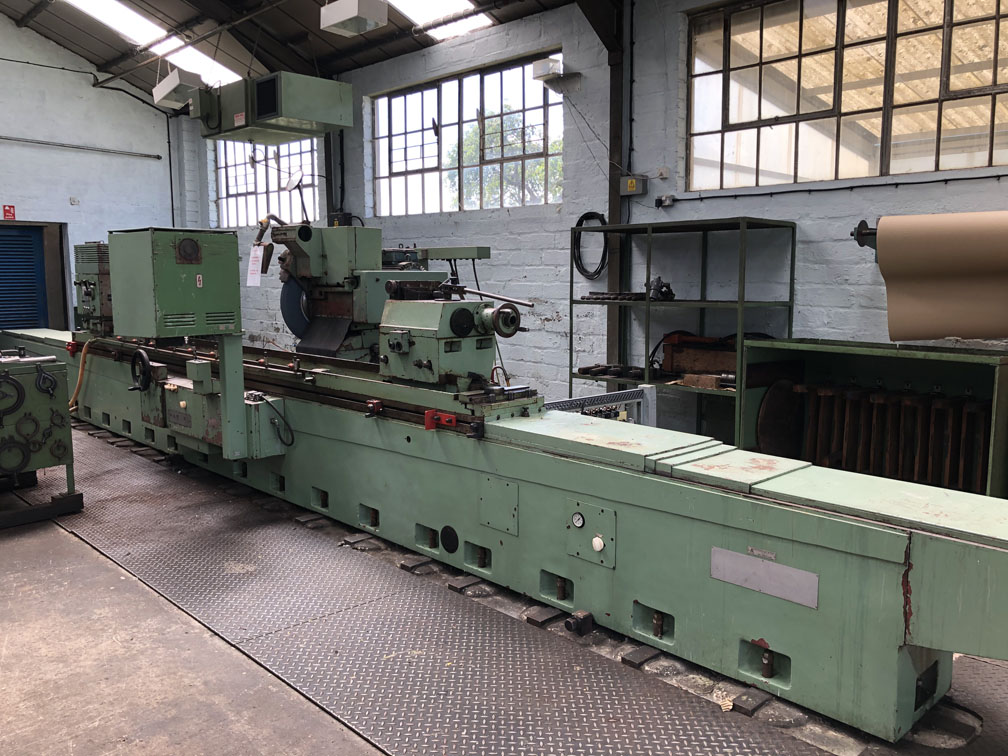

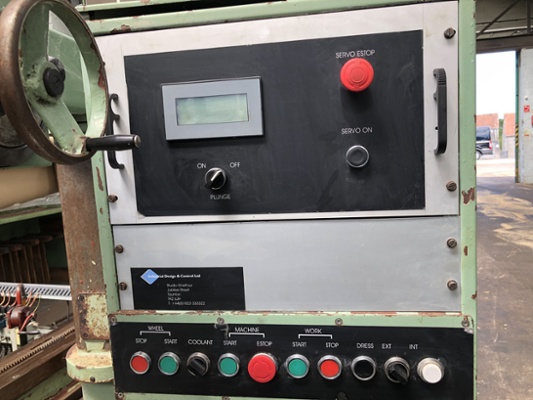

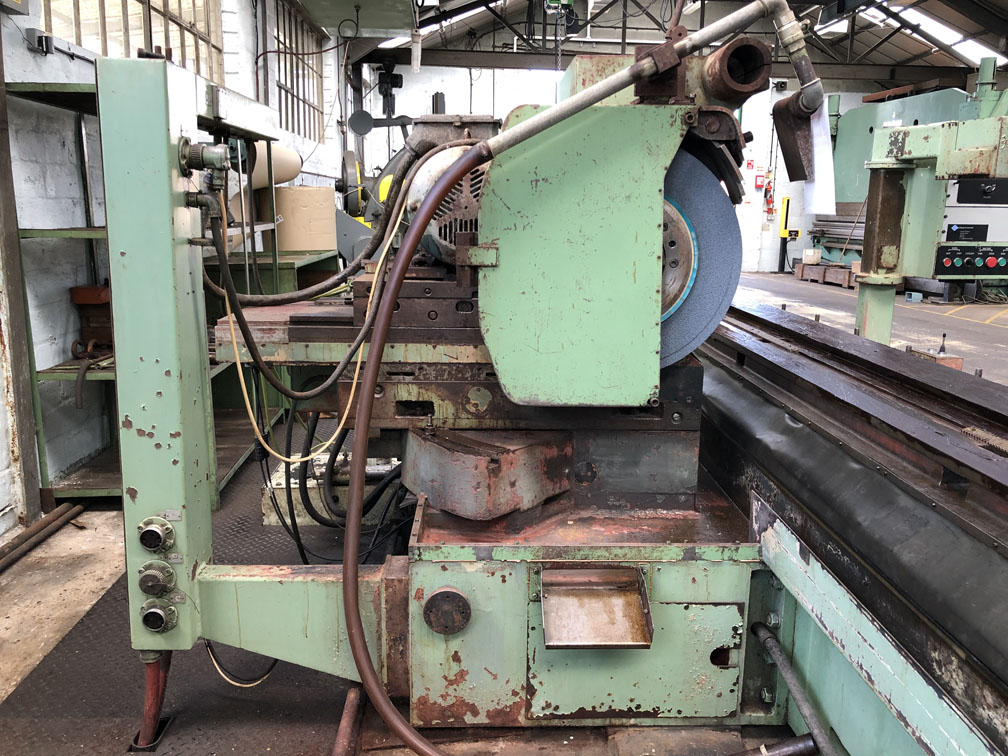

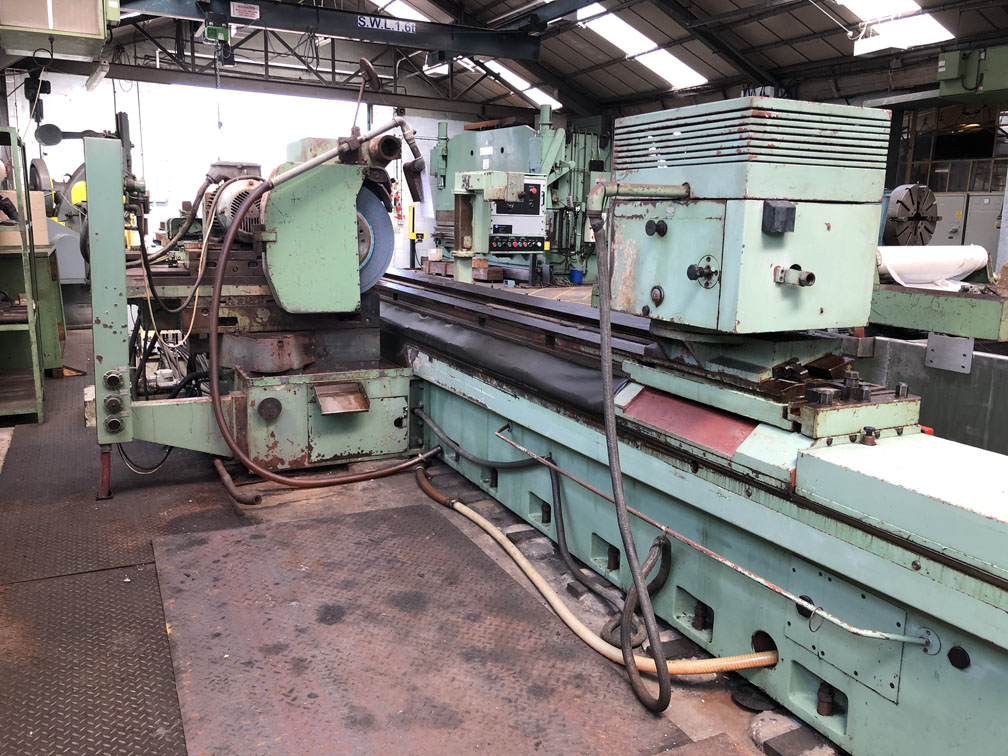

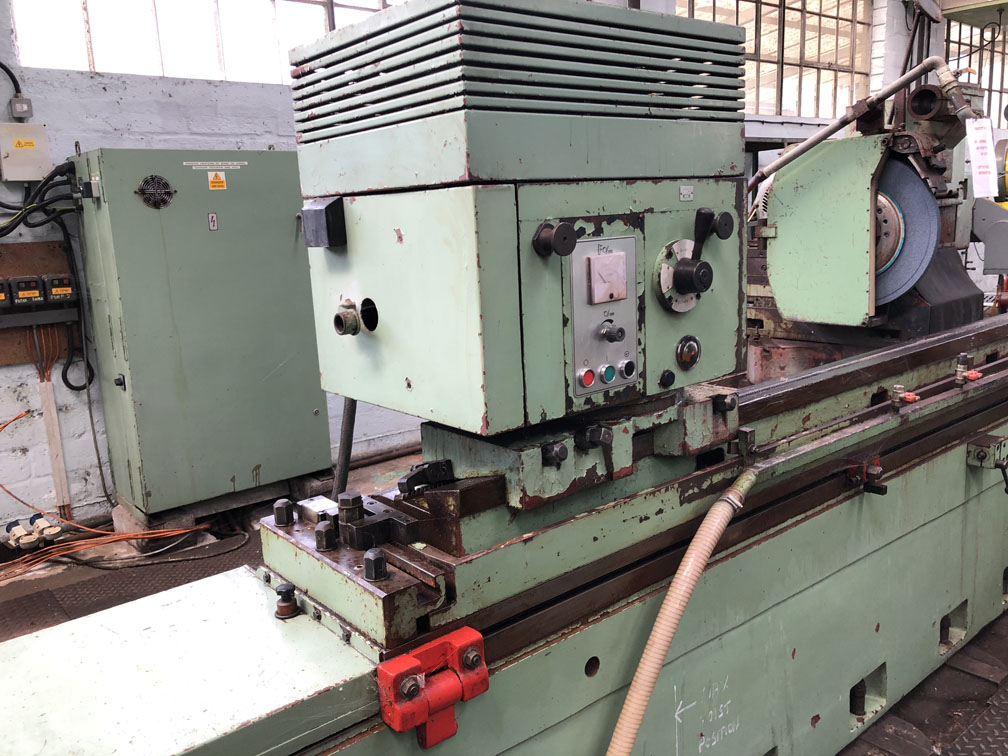

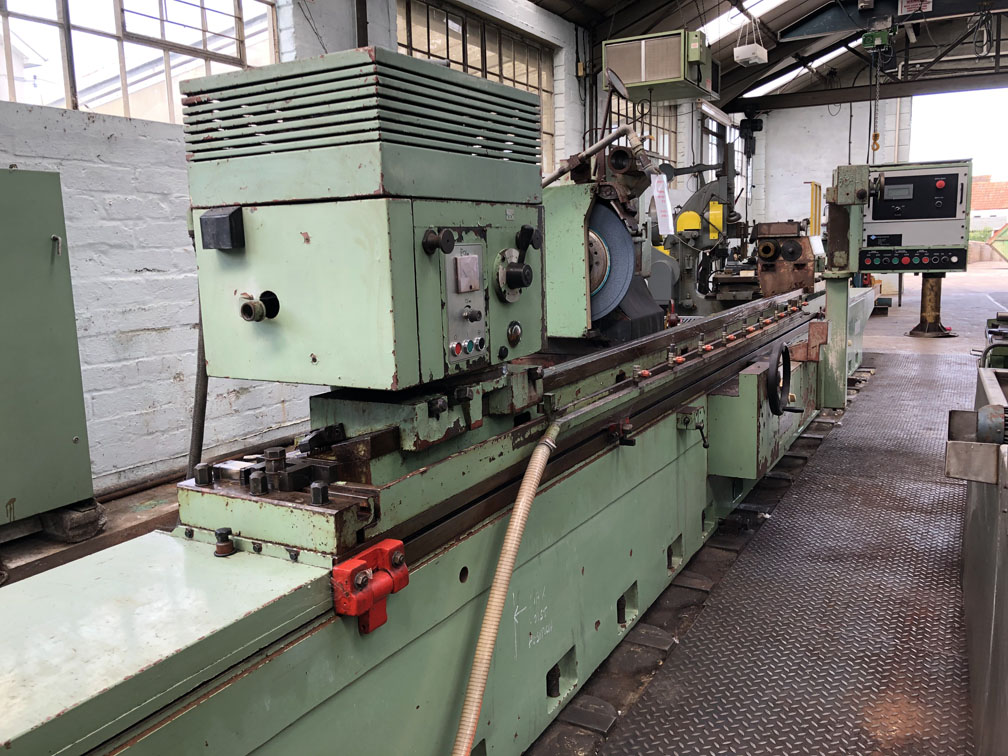

Maximum swing over bed 630mm. Maximum distance between centres 4000mm. Maximum table swivel 4 degrees. Internal grinding minimum dia. x length 100mm x 500mm. Workhead faceplate dia. 340mm dia. Auto incremental infeed. Maximum infeed/outfeed 120mm/min. Adjustable Tailstock. Swivel workhead. Swivel wheelhead. Maximum weight ground 2500kgs. Grinding wheel dimensions 750mm x 100mm x 305mm. Wheelhead speeds 840mm & 970 rpm. Wheelhead motor 15 kW. Workhead motor 3 kW. Workhead speeds 435 - 2800 rpm. Retrofitted by Industrial Design & Control

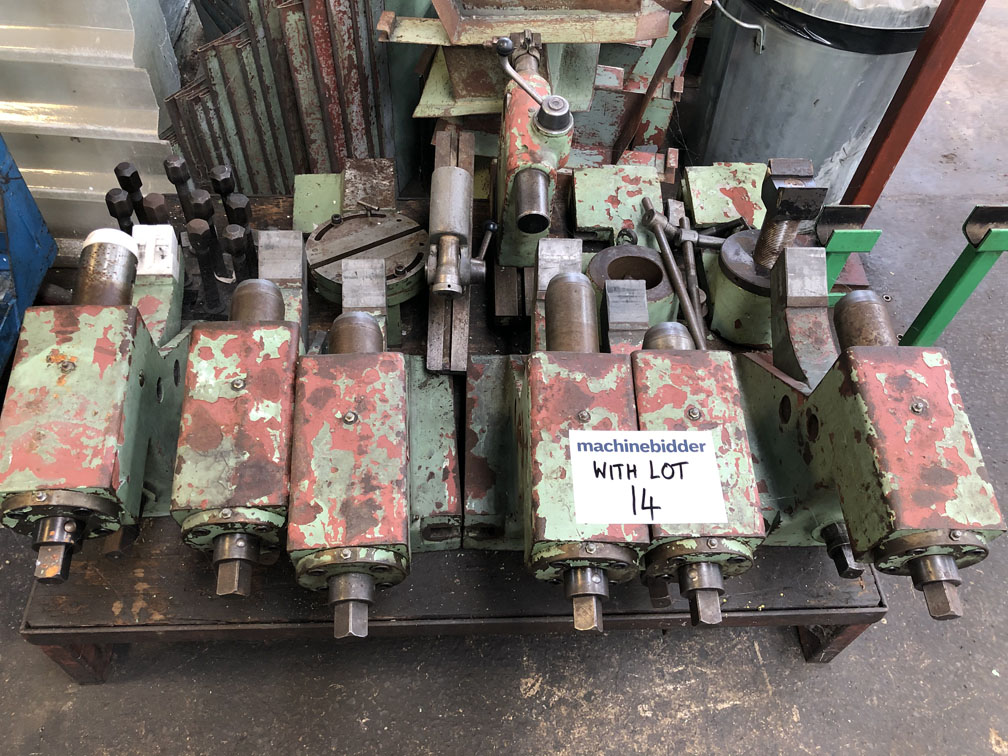

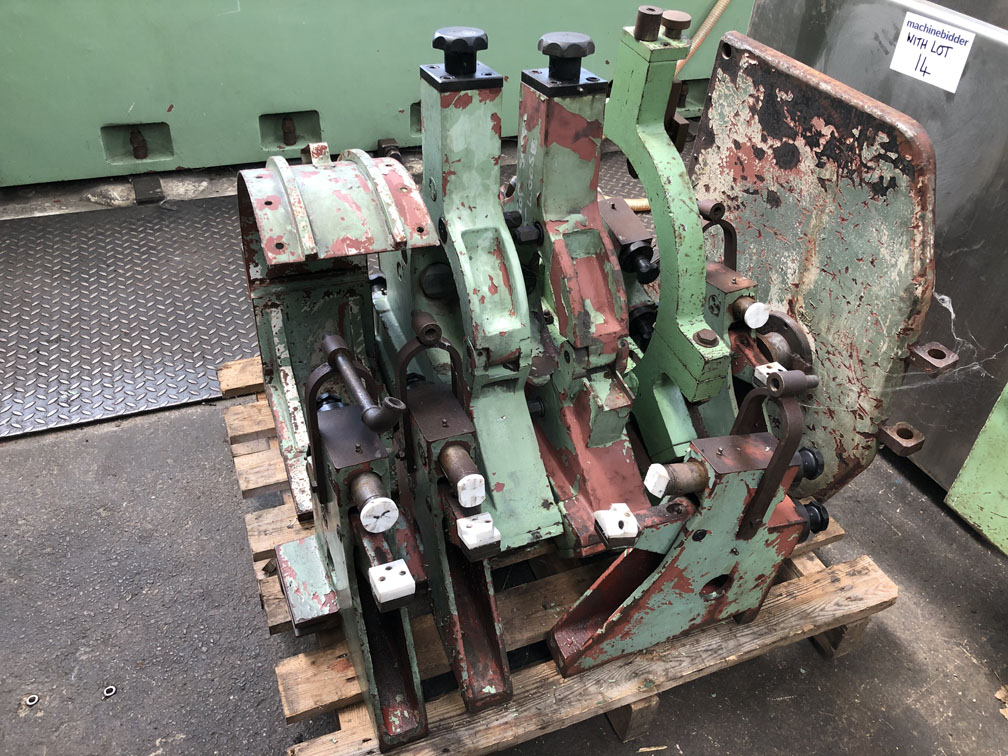

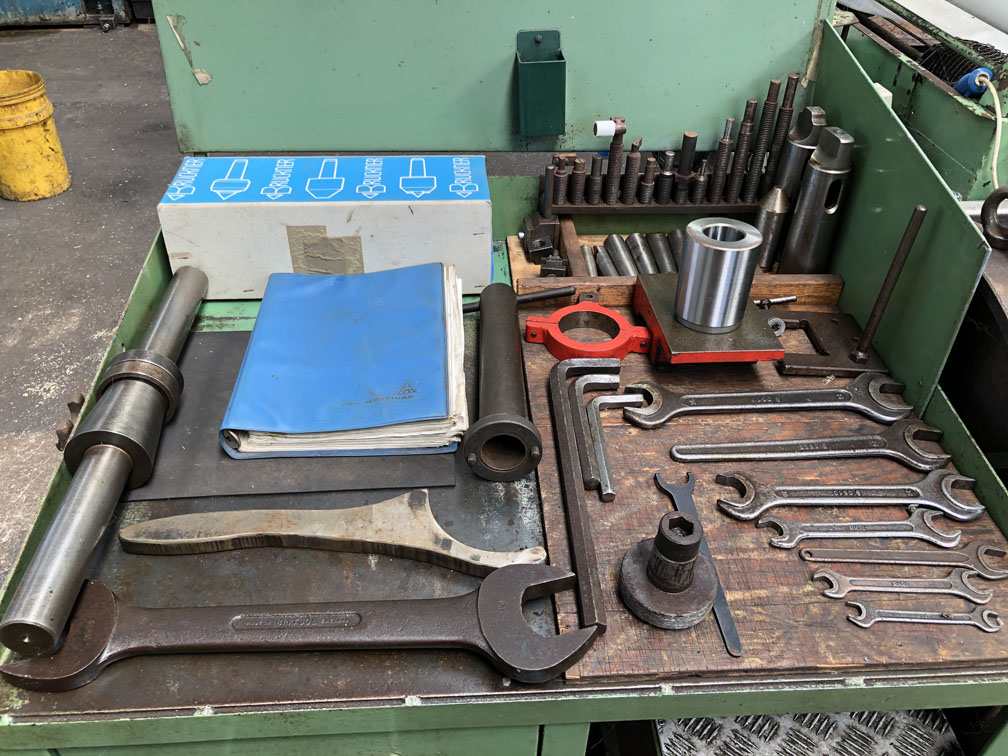

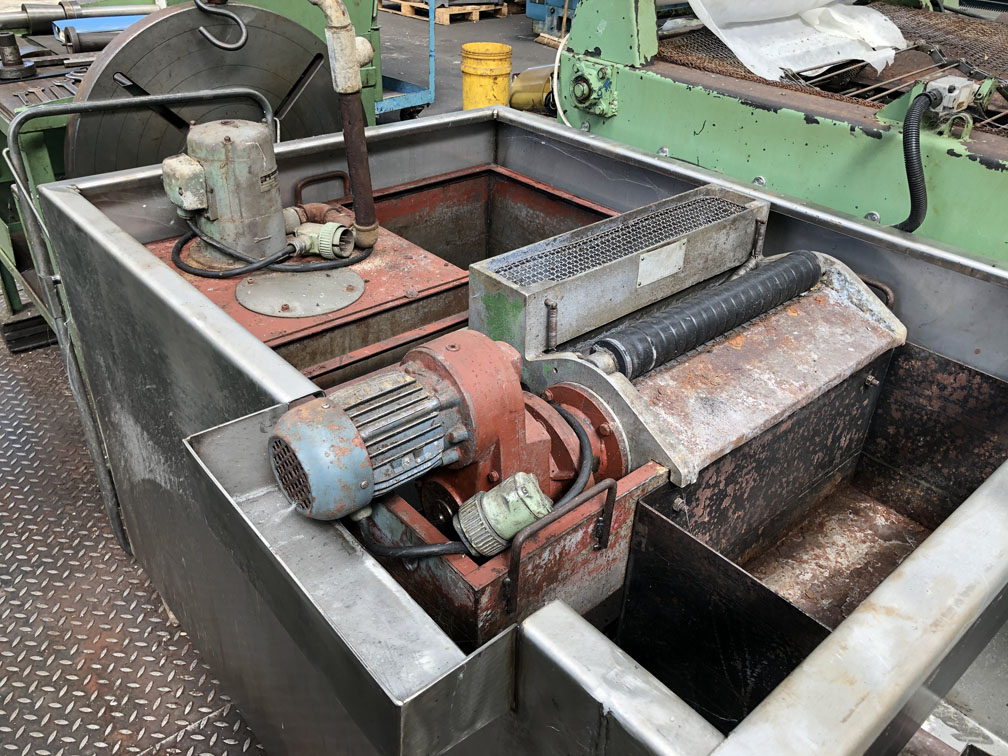

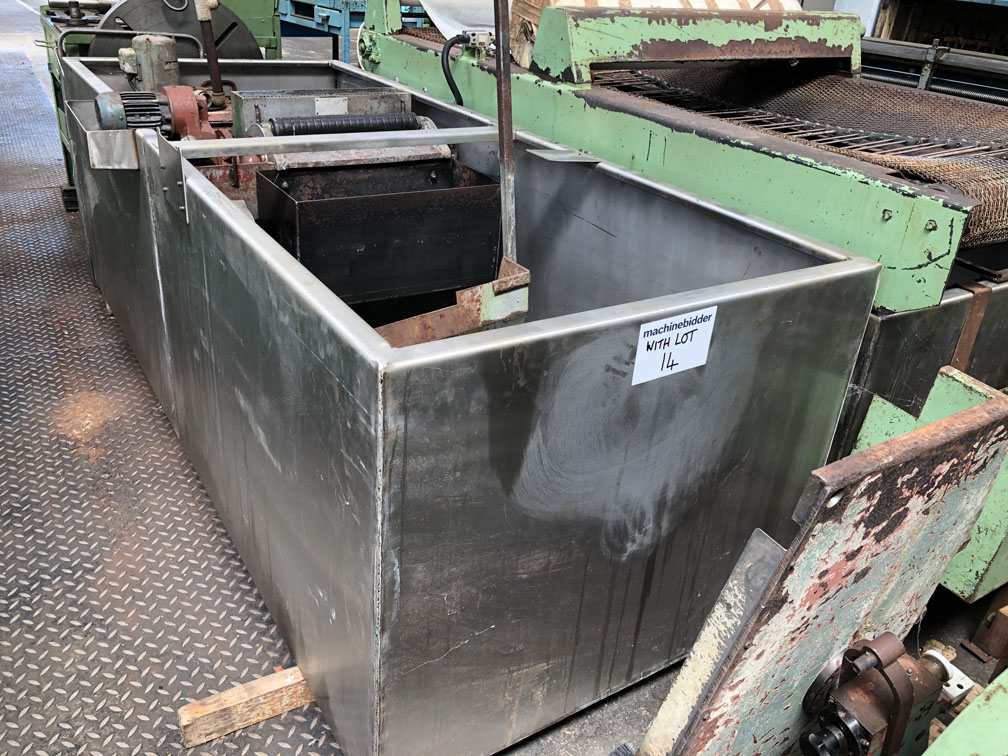

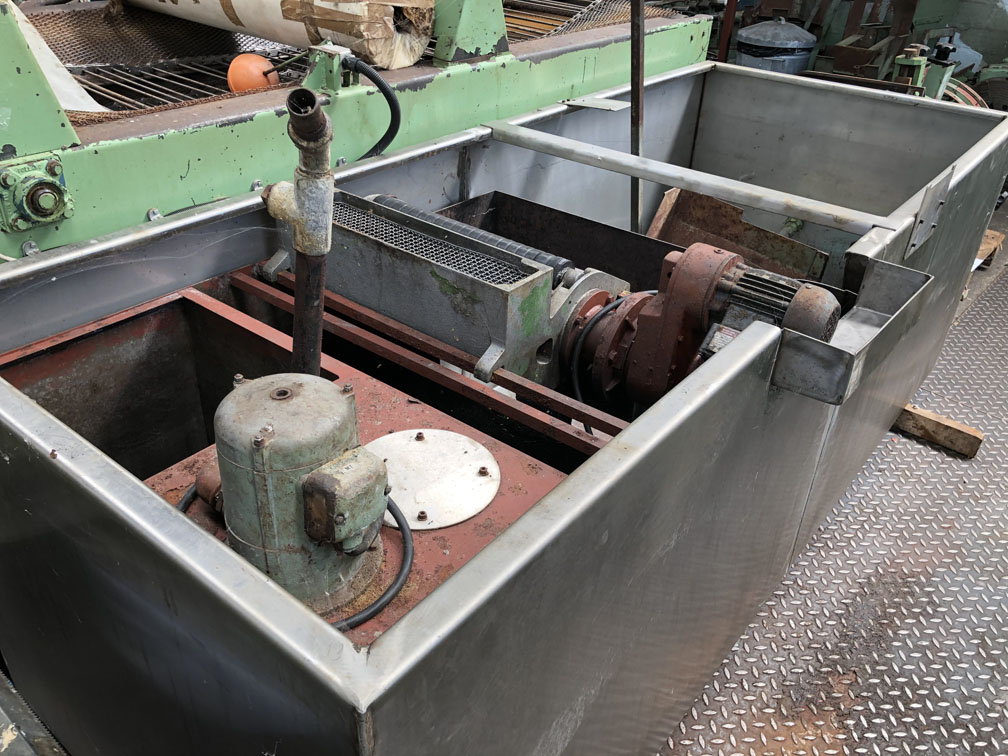

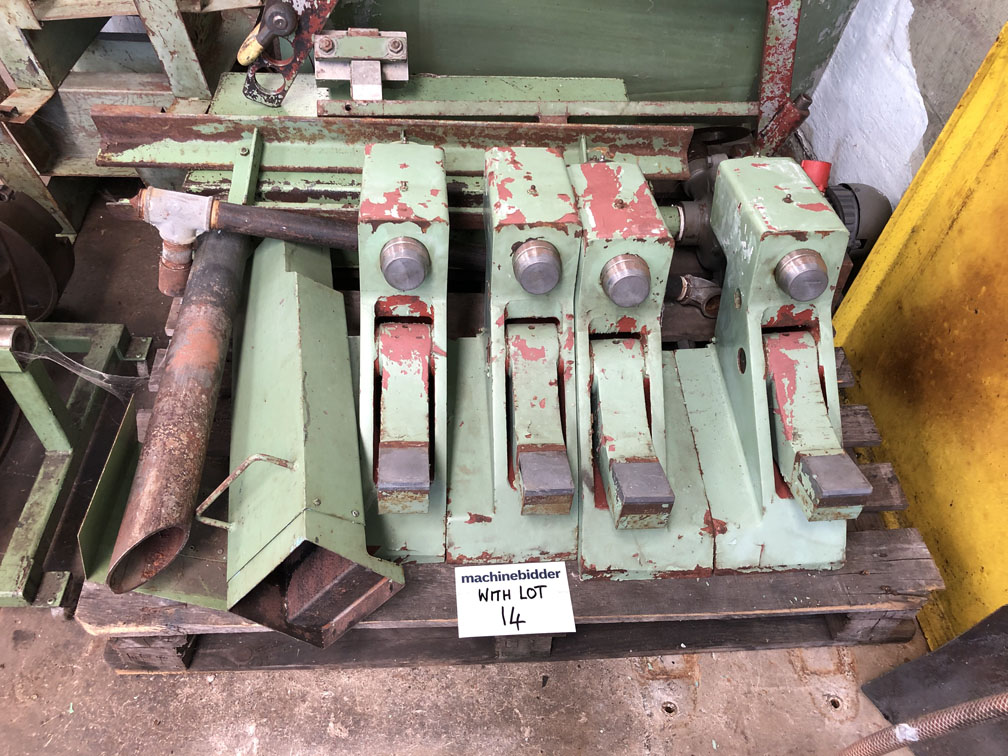

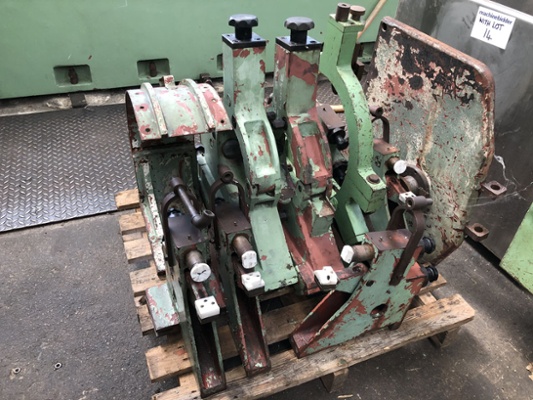

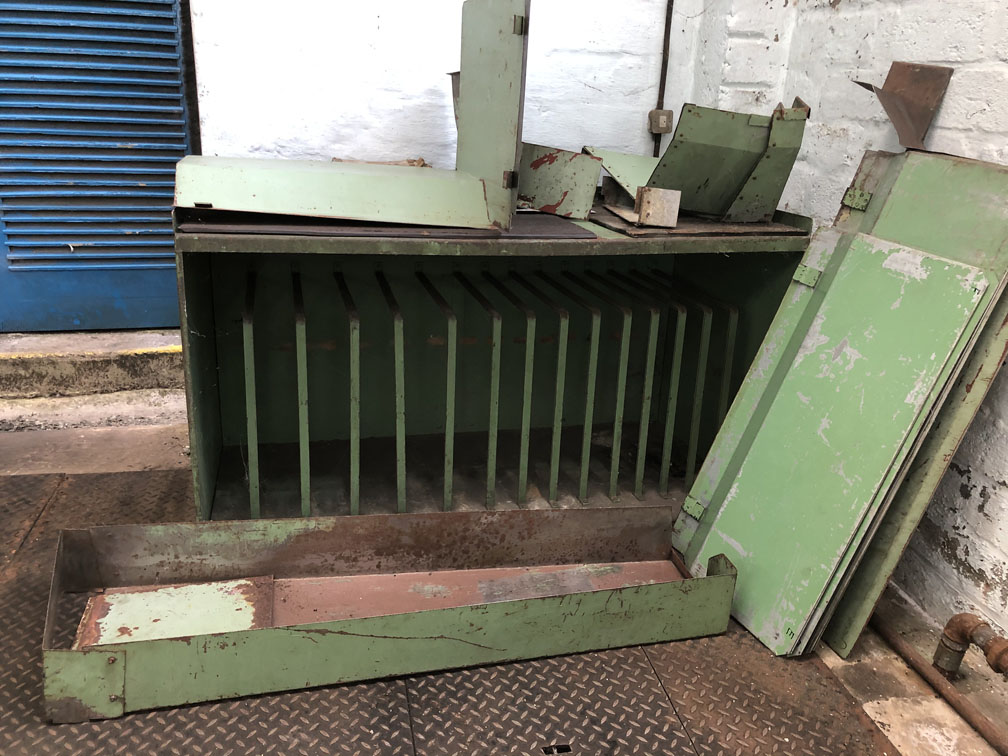

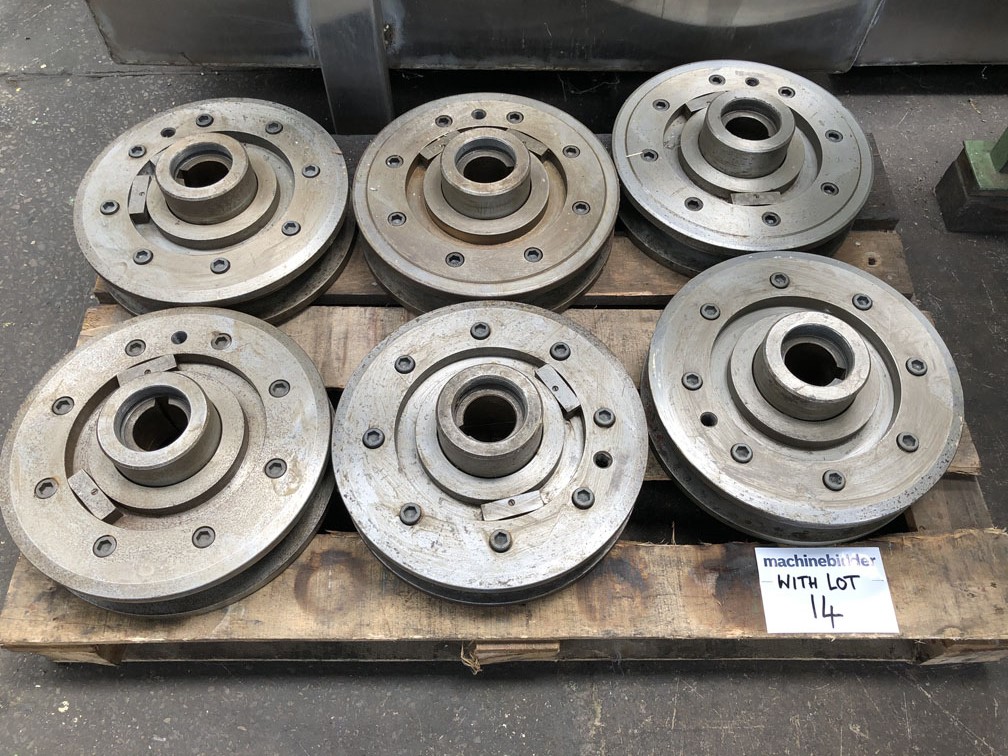

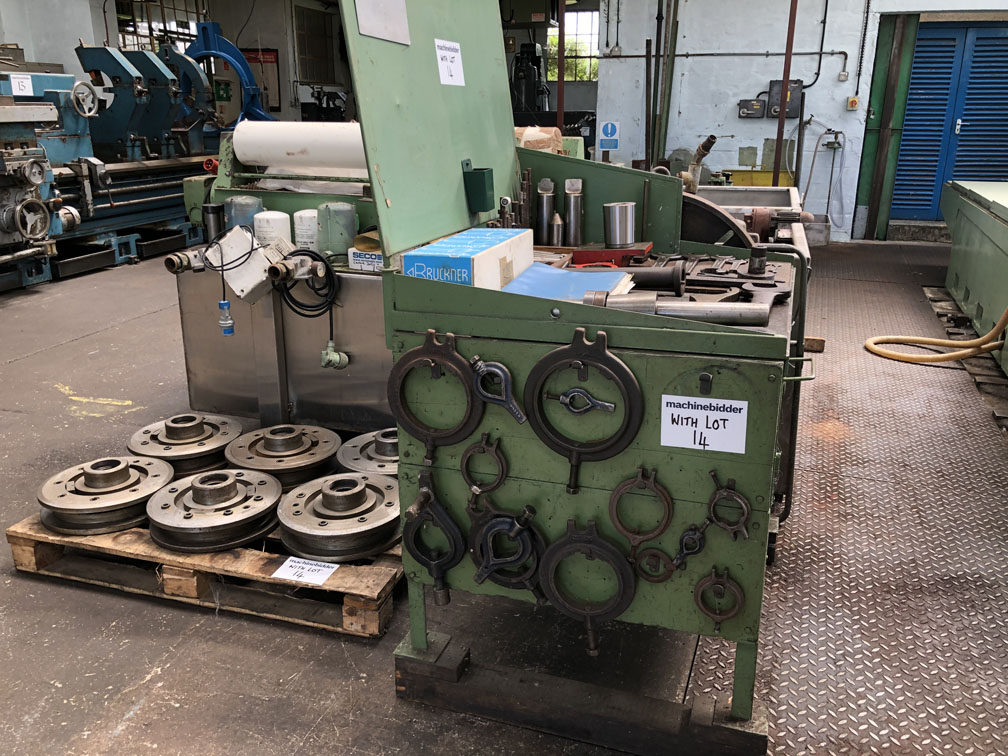

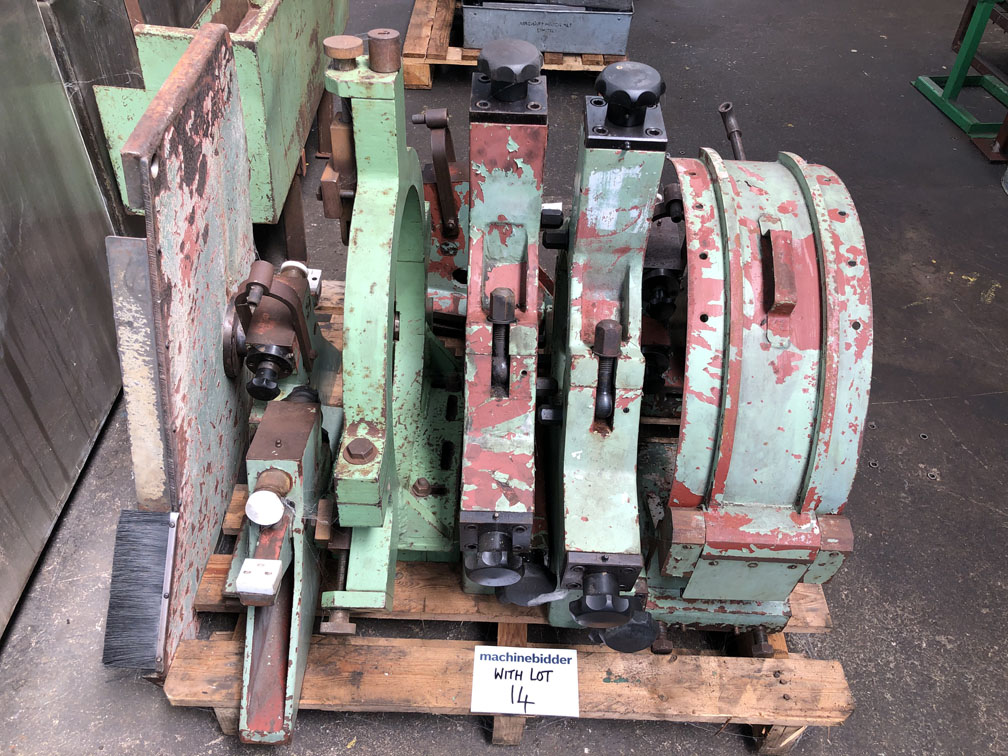

6 spare wheel flanges 380mm dia x 60mm bore. 9 x 2 point grinding steadies. 2 x 3 point steadies pad type steadies. 1 x 3 point roller steady. 6 x 2 point pad type steadies. Dressing attachment. Machine levelling attachment. Internal grind attachment. Coolant/Clarifier capacity 500 litres.

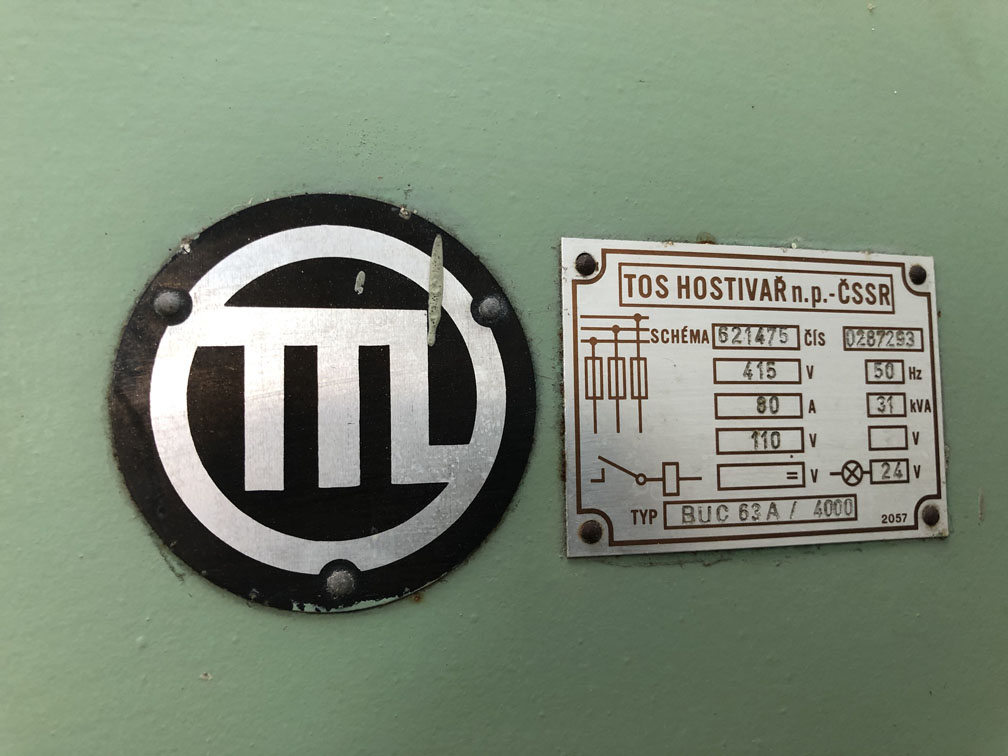

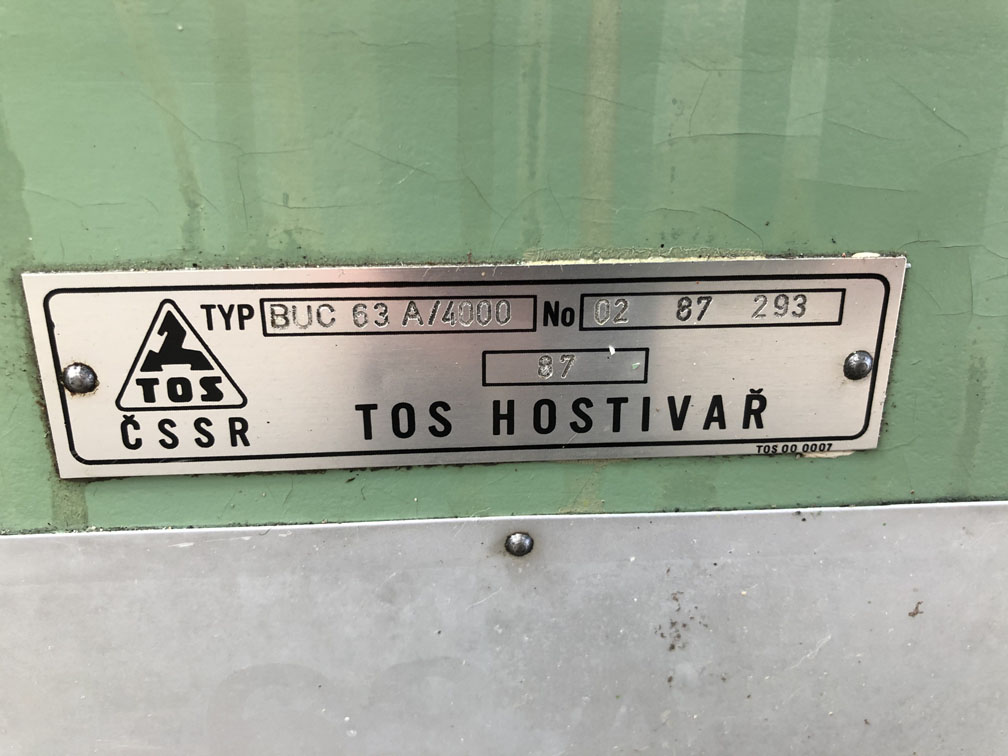

Machine serial no. 0287293. Year 1979
Machine dimensions 12020mm long x 2700mm wide x 1900mm high. Approximate weight 17,400 kgs.

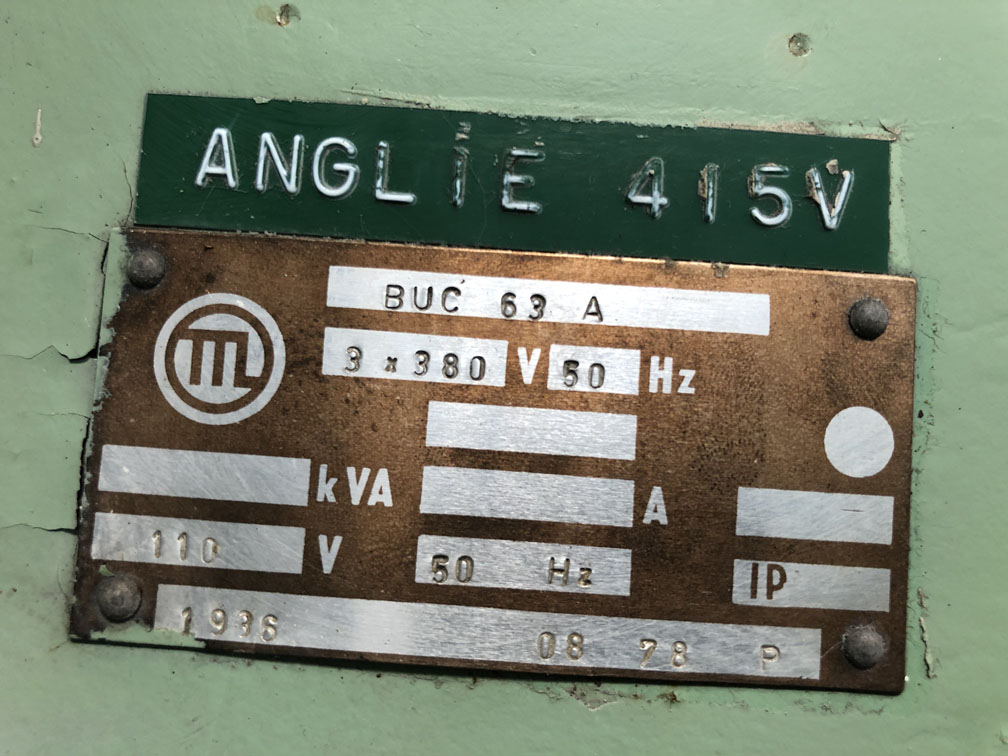

Electrical cabinet 960mm x 520mm x 1600mm high.
SALE AGREED
Video
Other information
Please refer to the terms & conditions if you wish to negotiate on this item.
