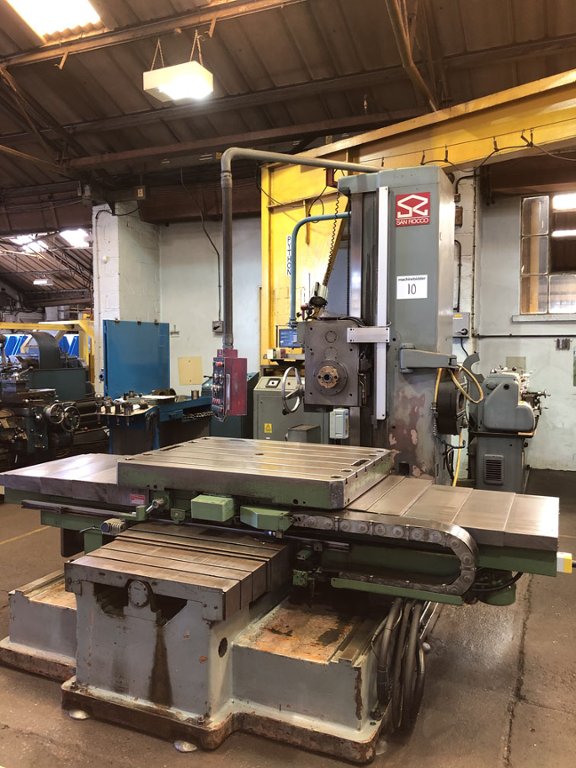

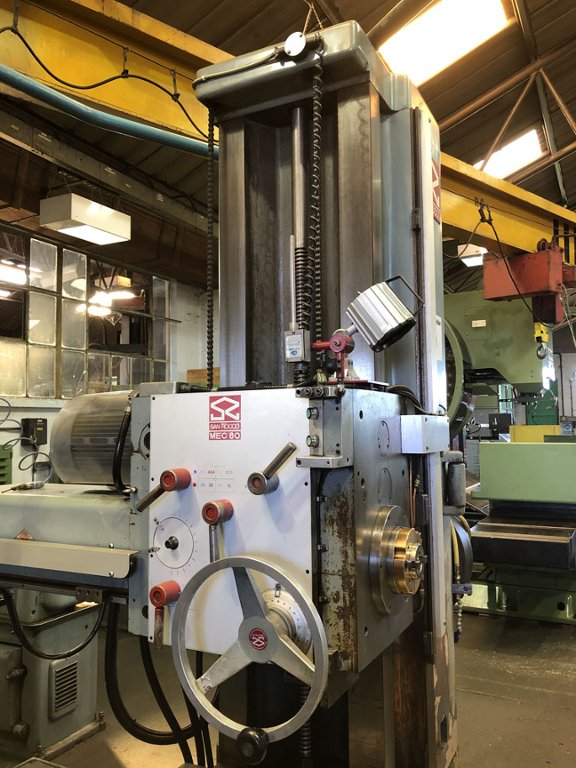

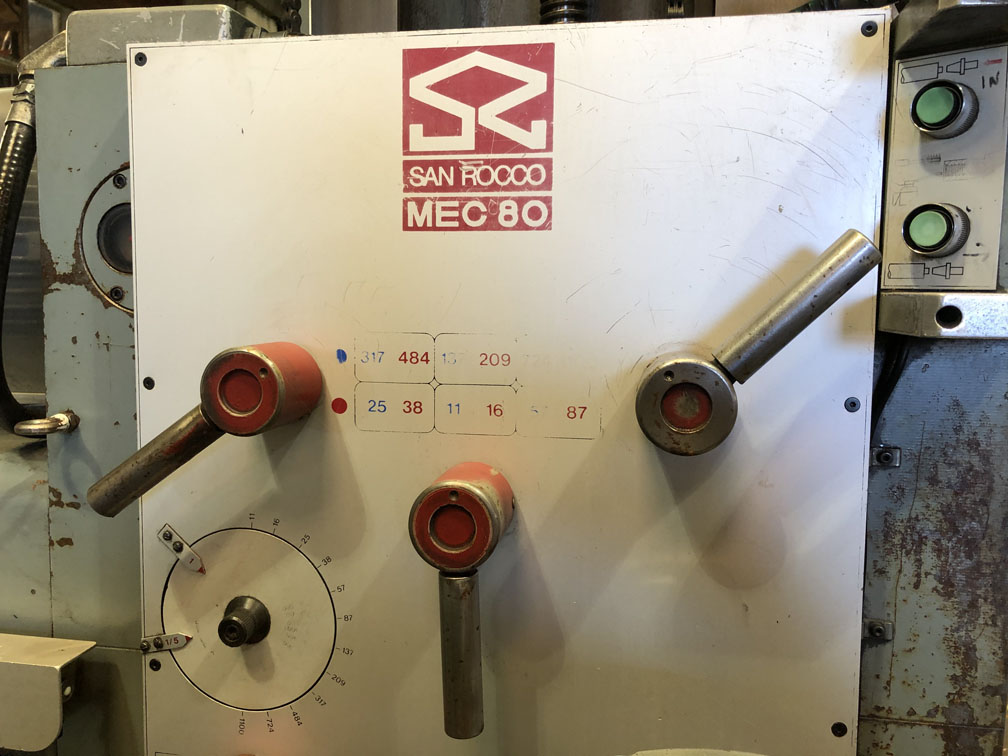

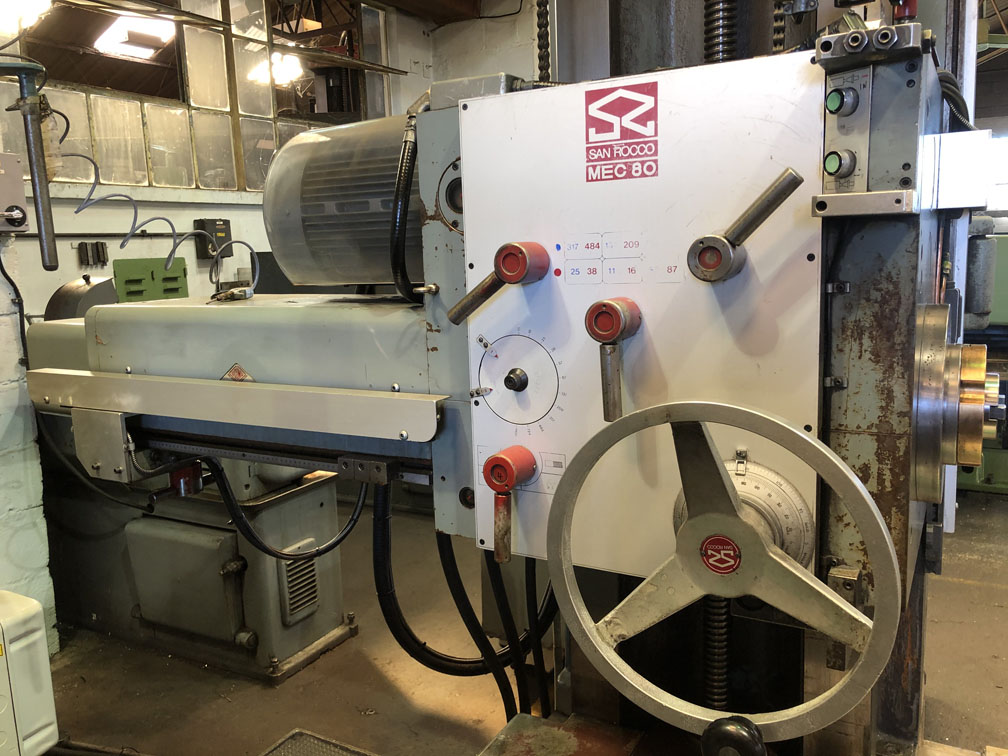

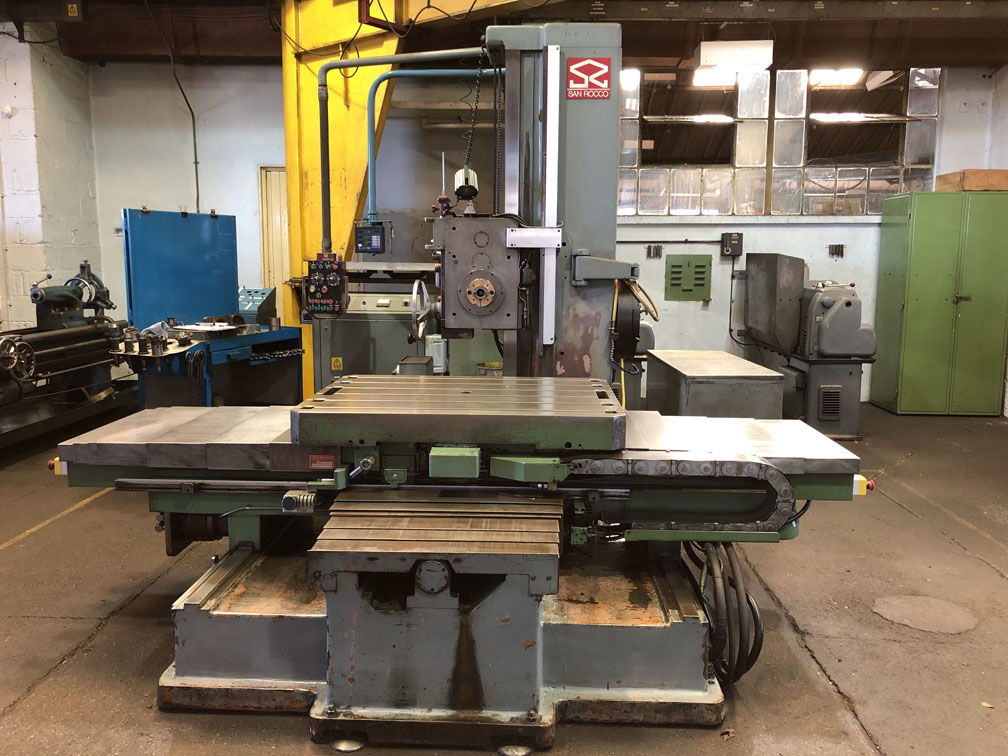

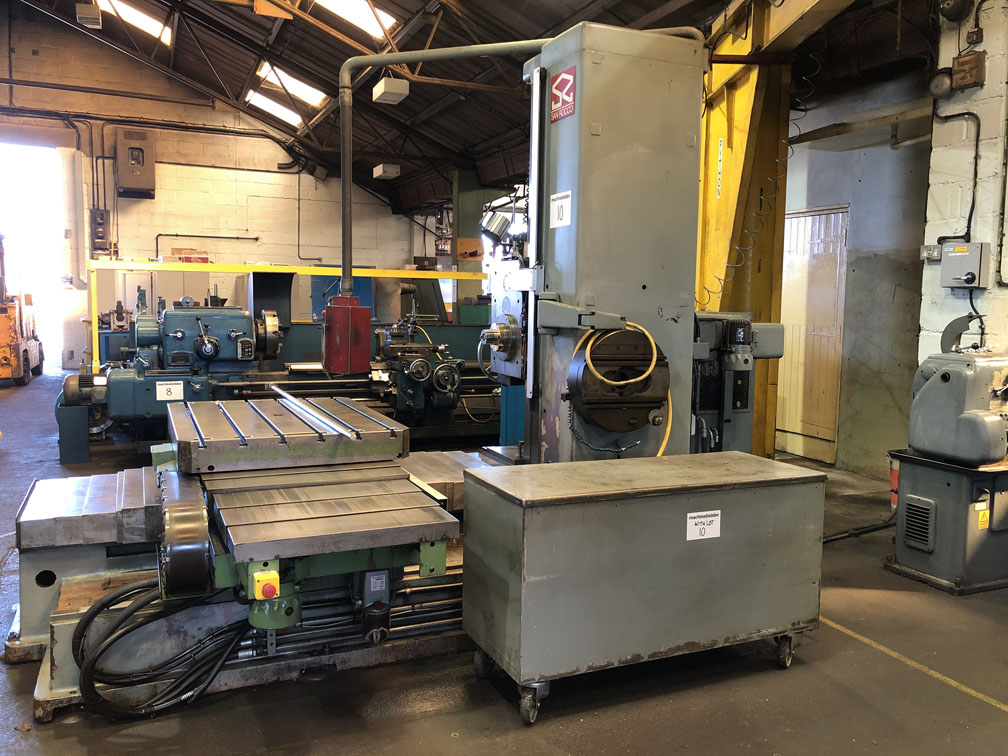

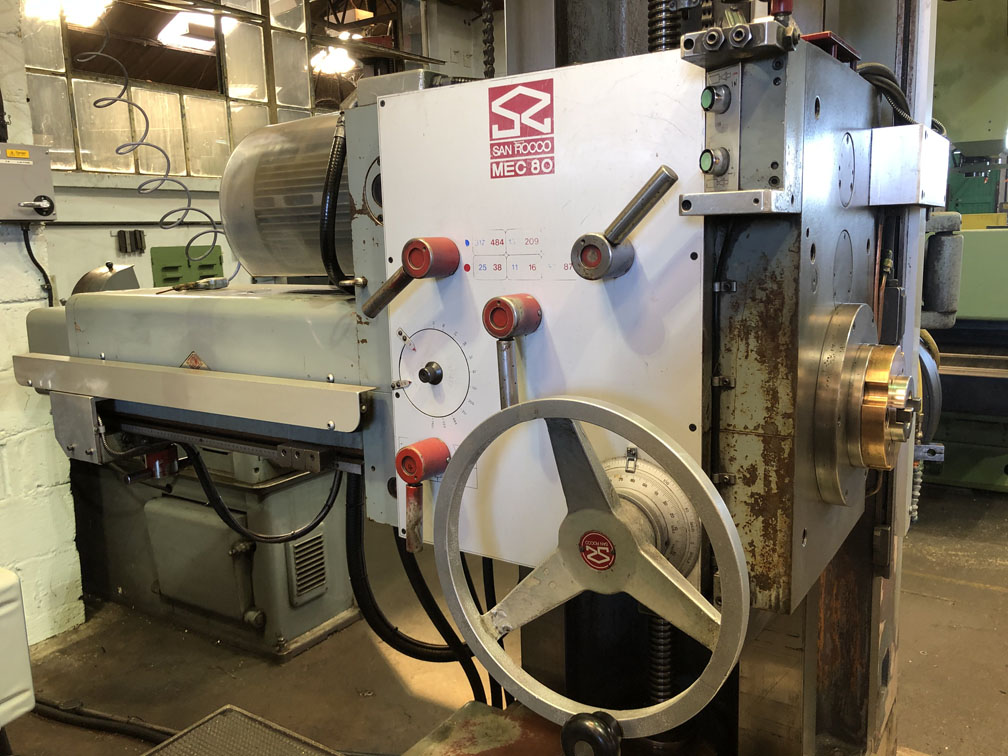

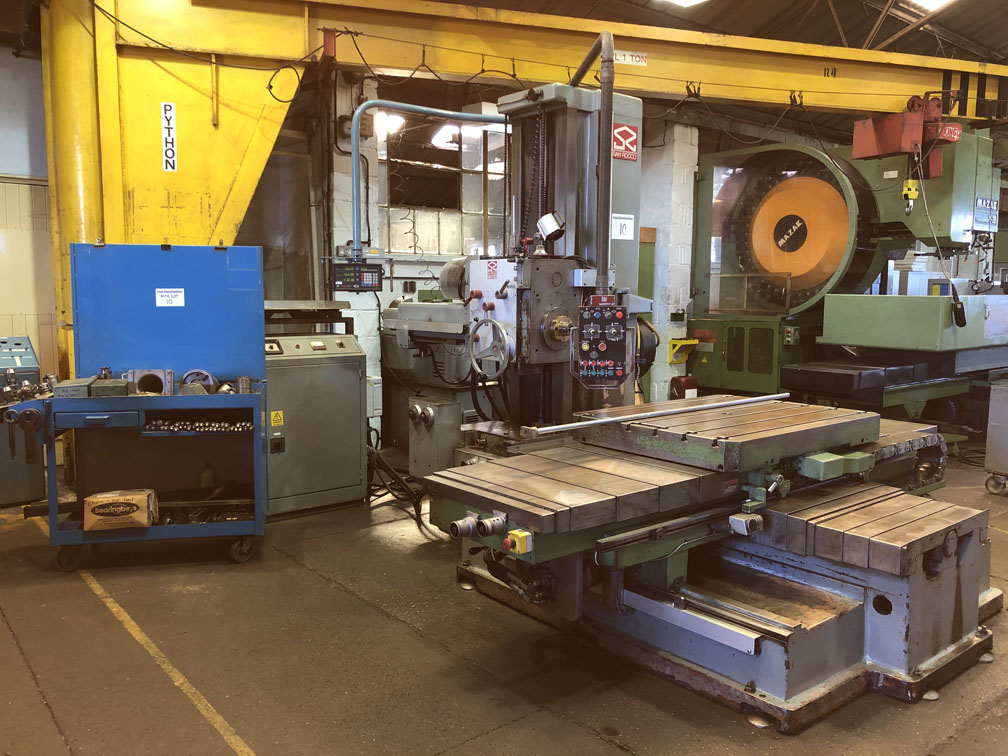

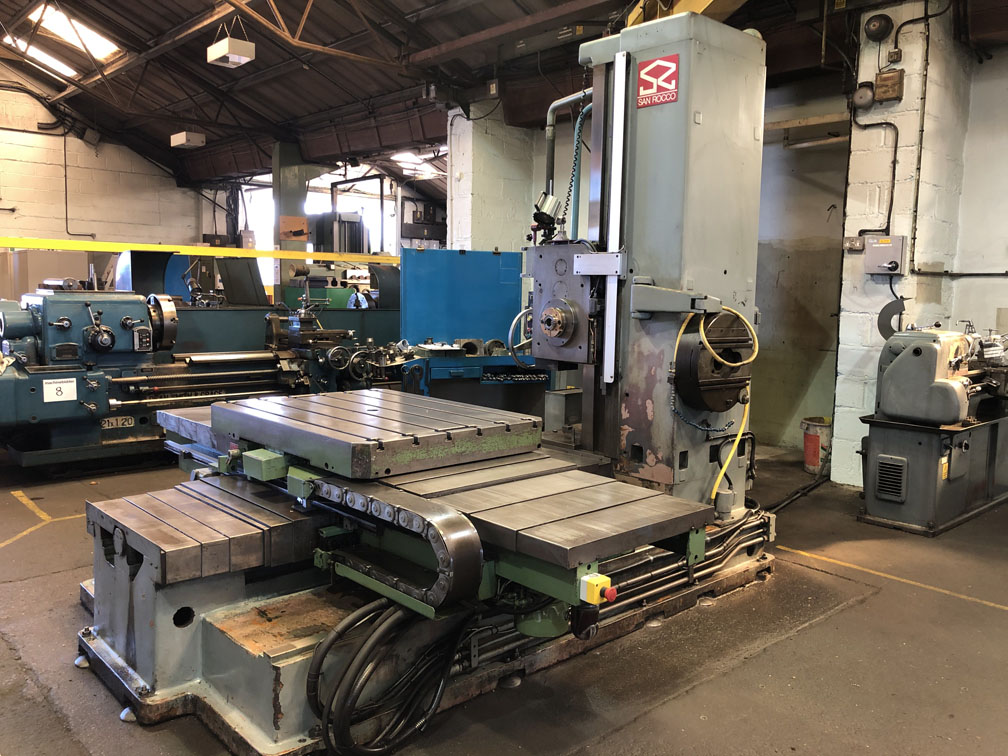

Lot 10: SAN ROCCO MEC80 Table Type Horizontal Borer with Newall DP8 Digital Readout - SALE AGREED

Private Treaty Sale (by negotiation)

Description

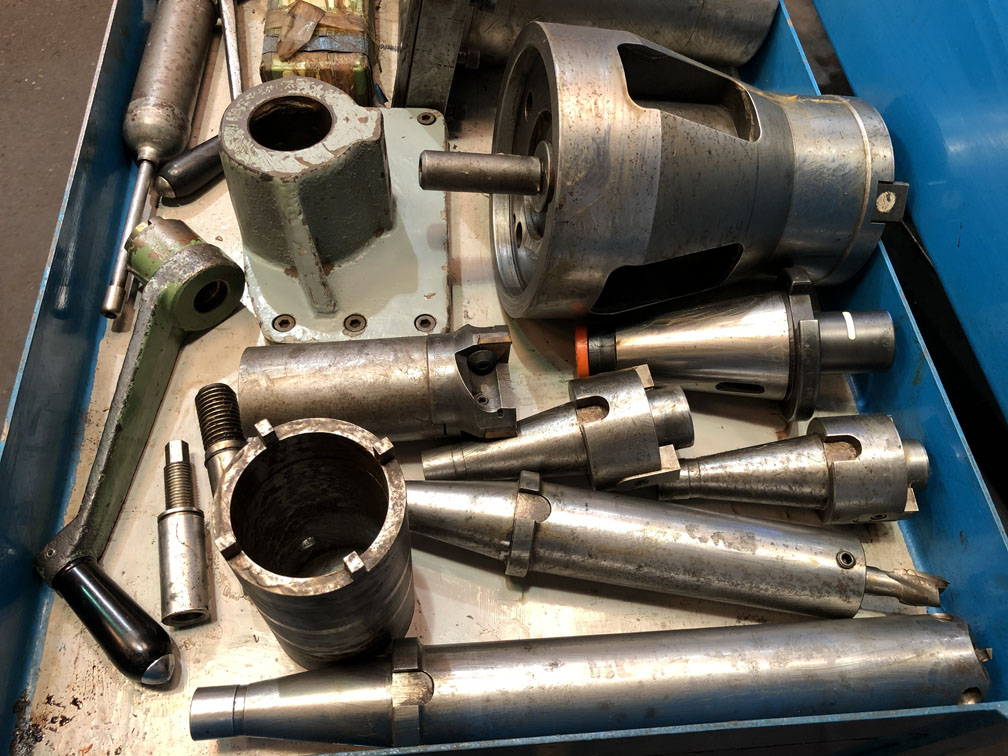

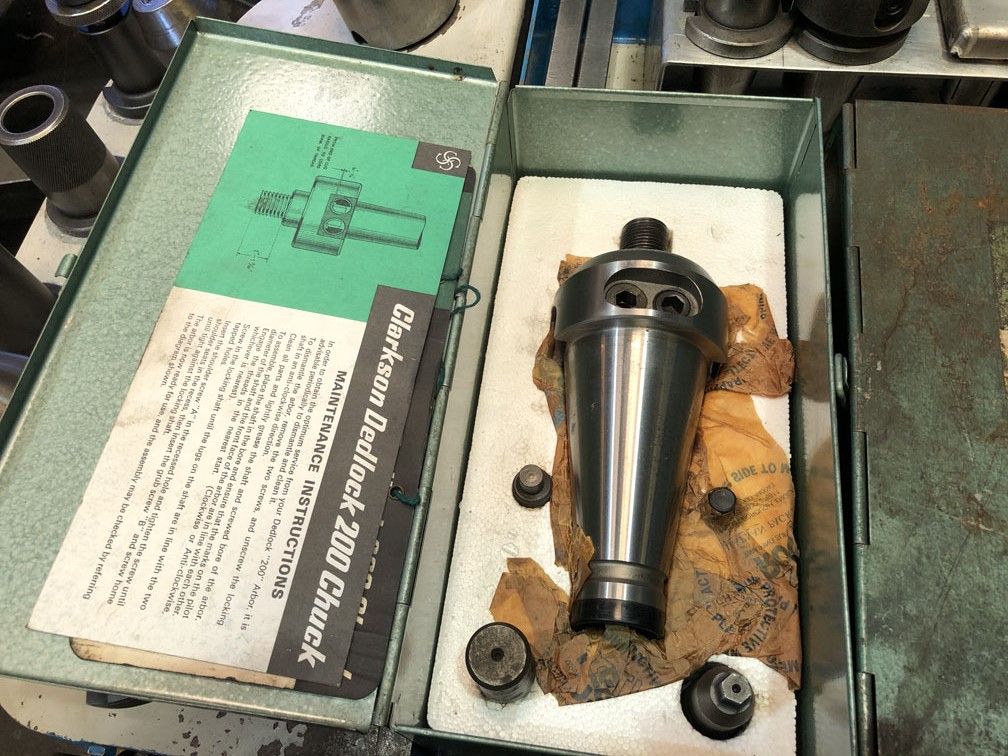

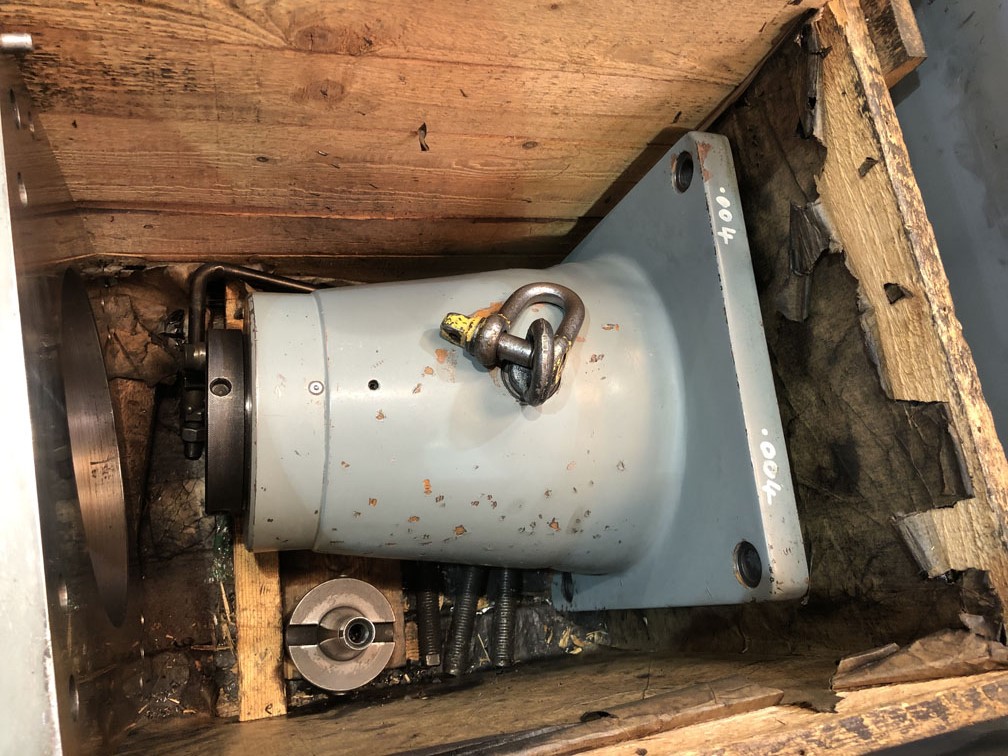

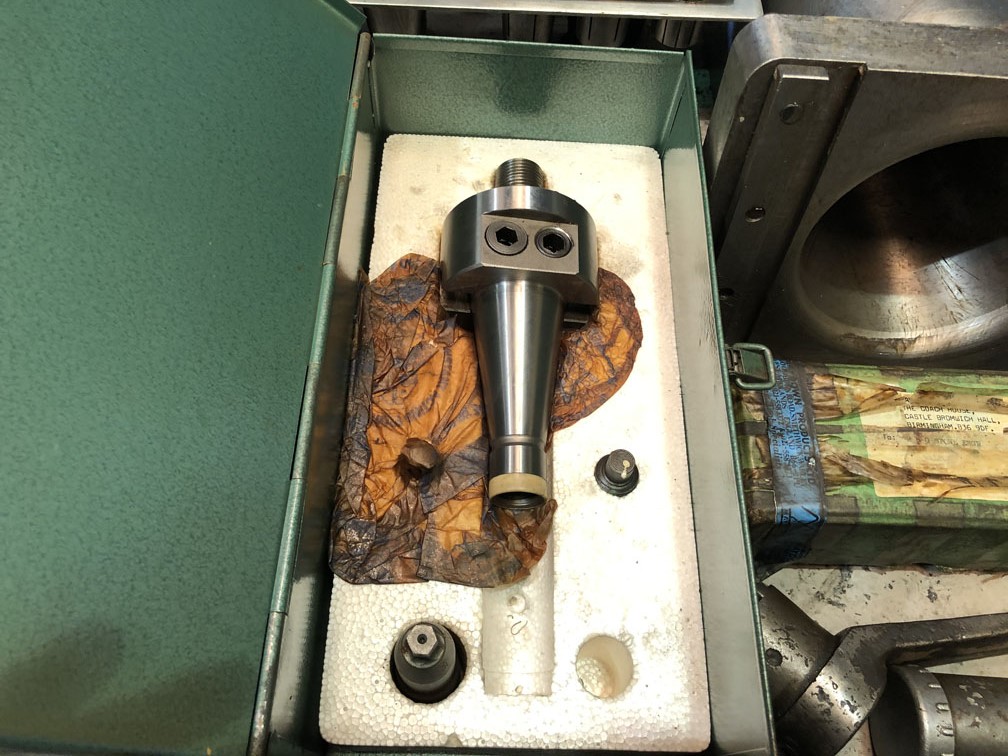

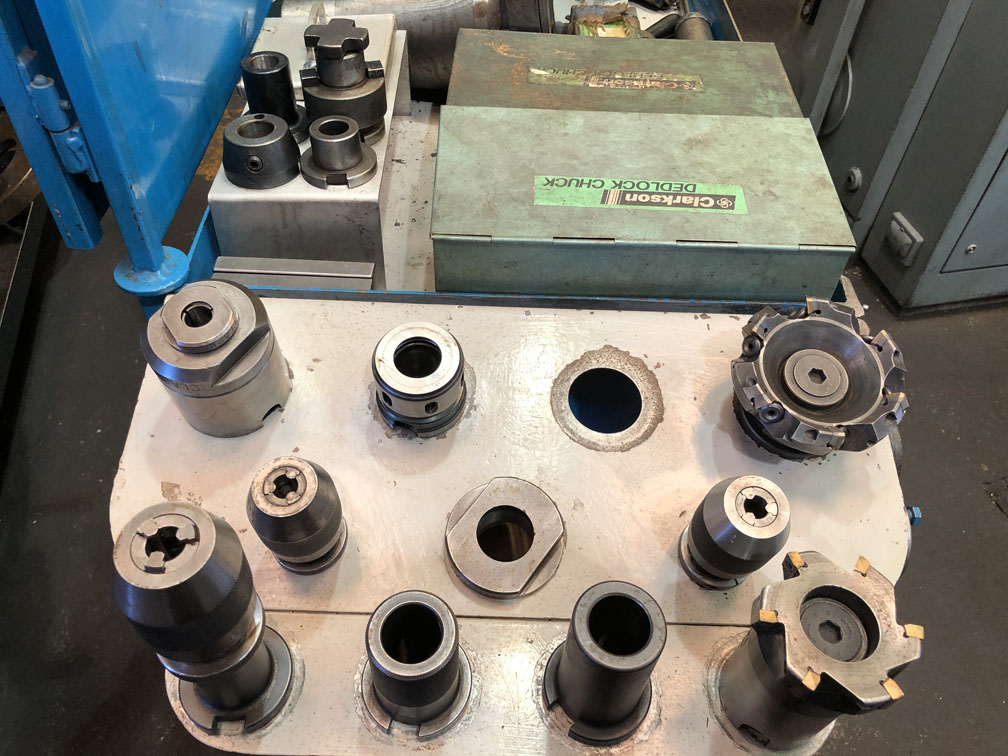

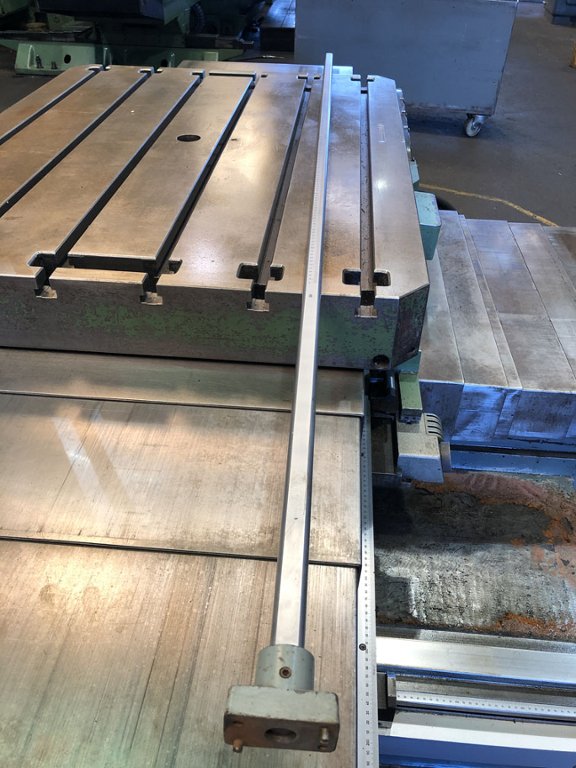

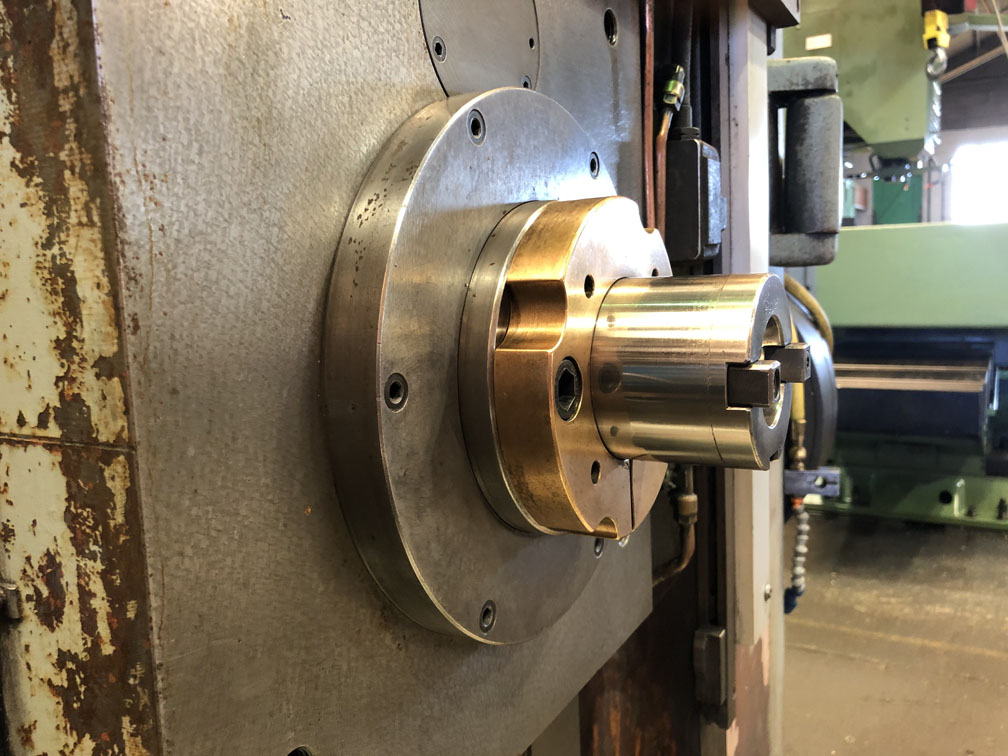

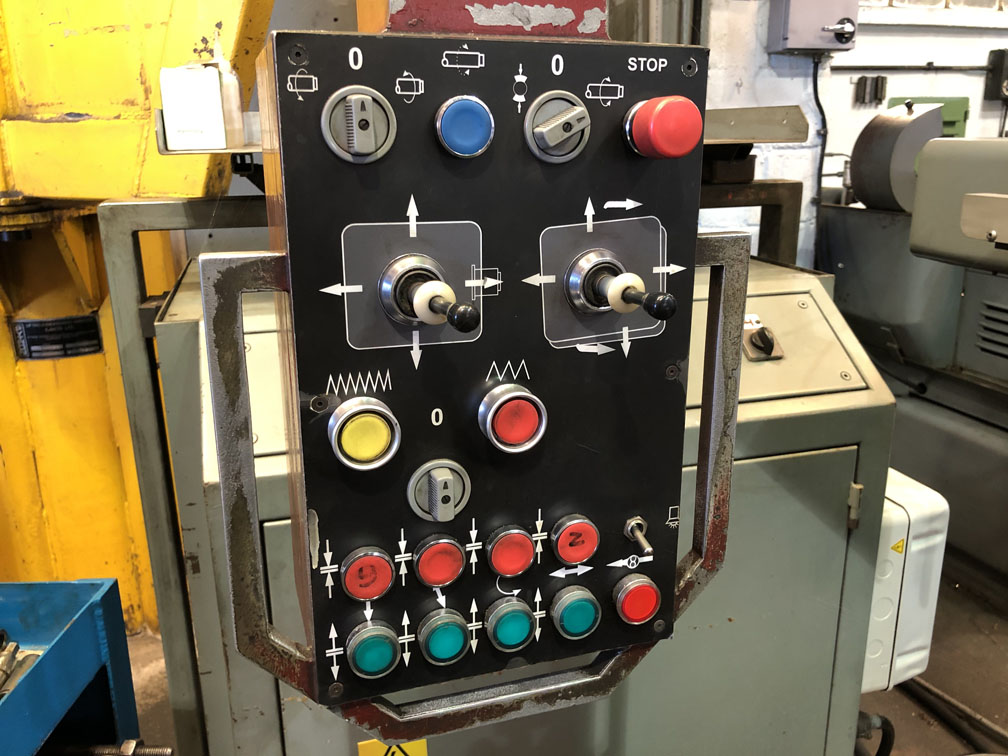

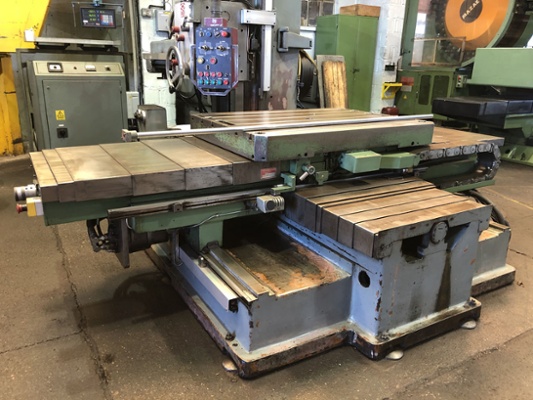

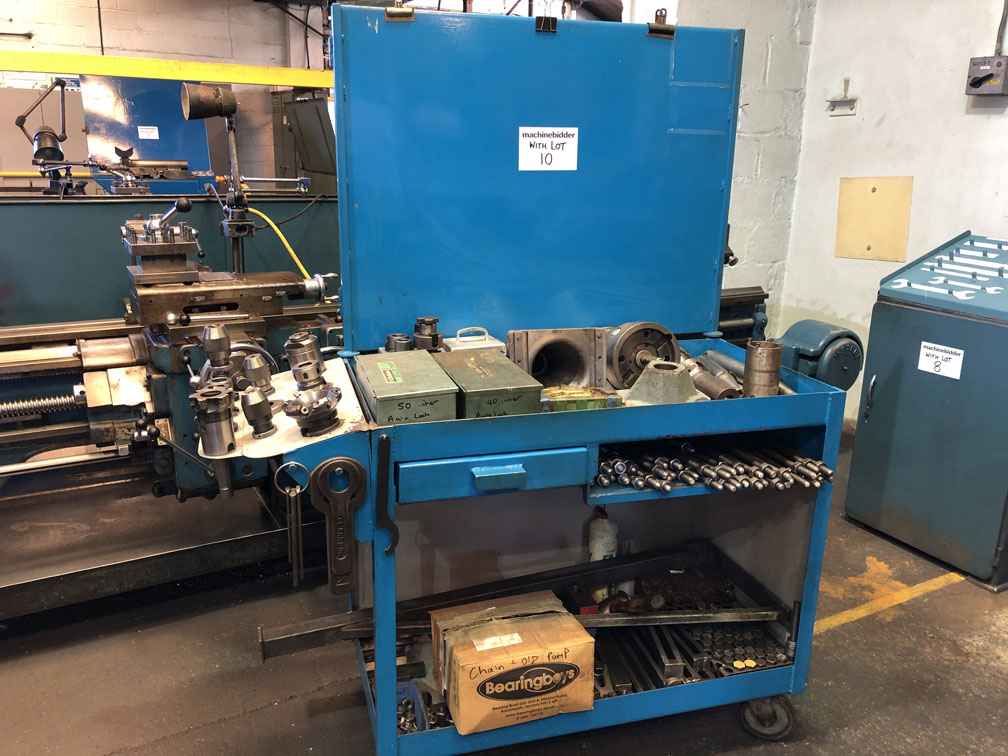

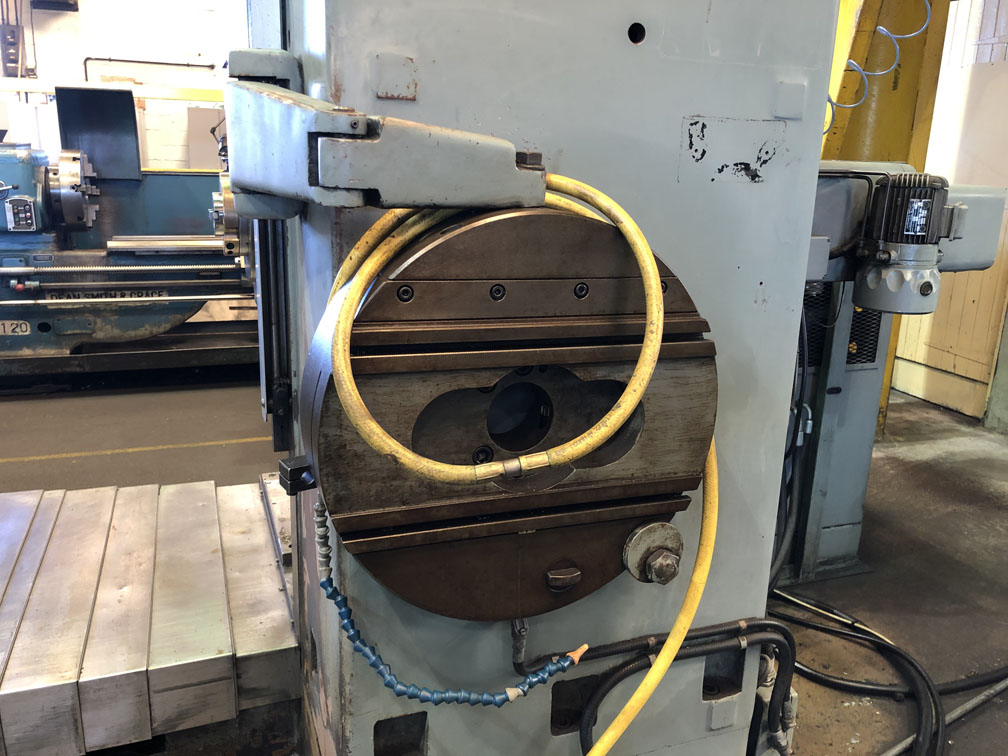

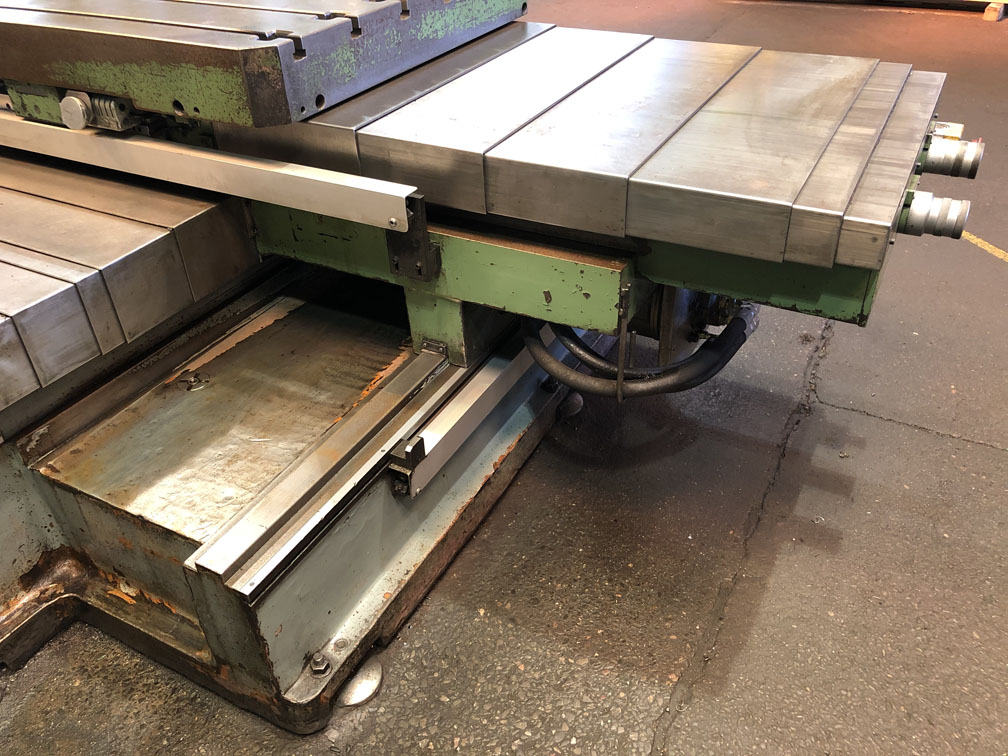

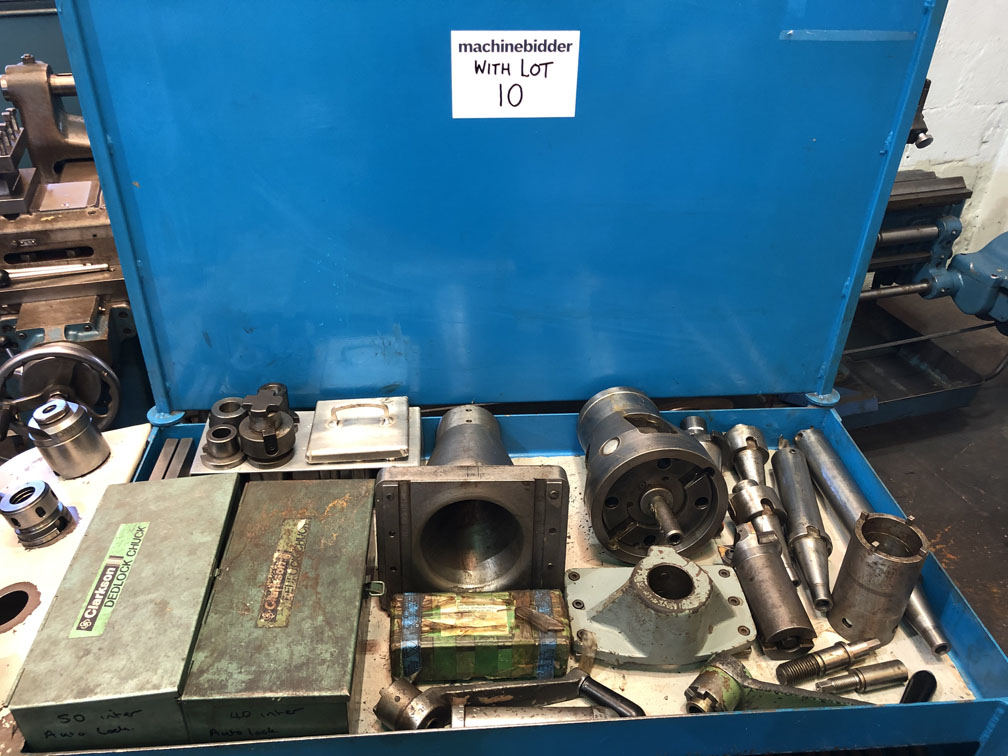

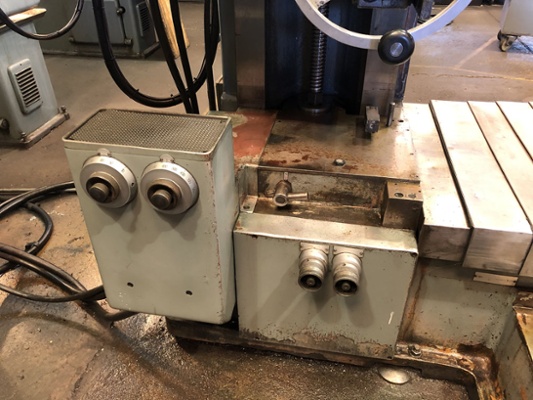

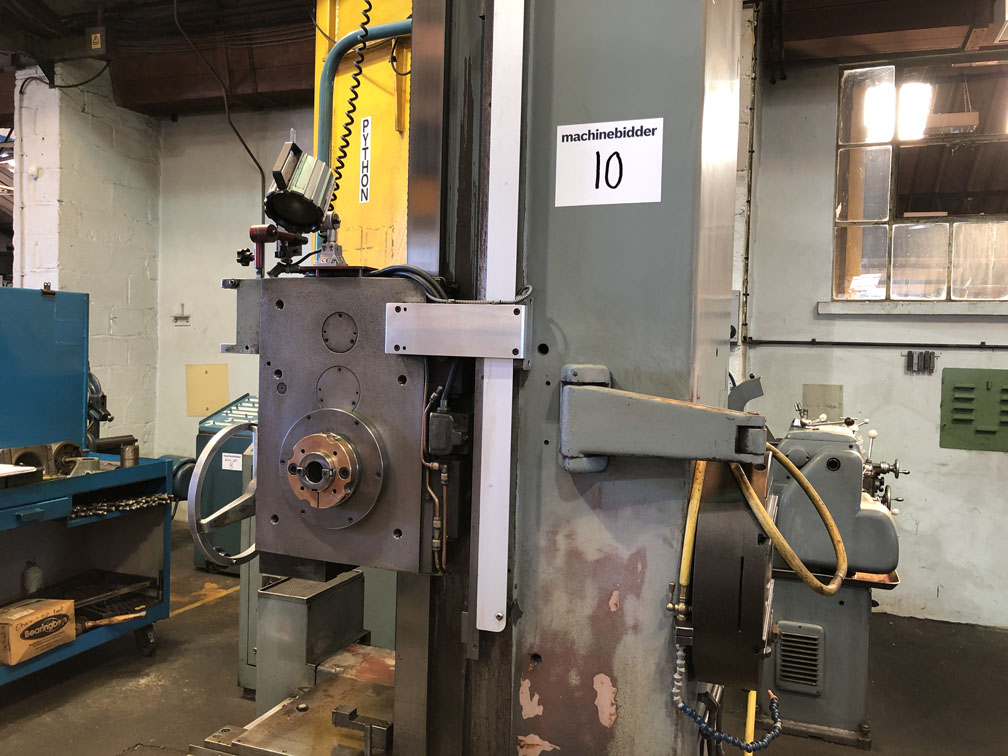

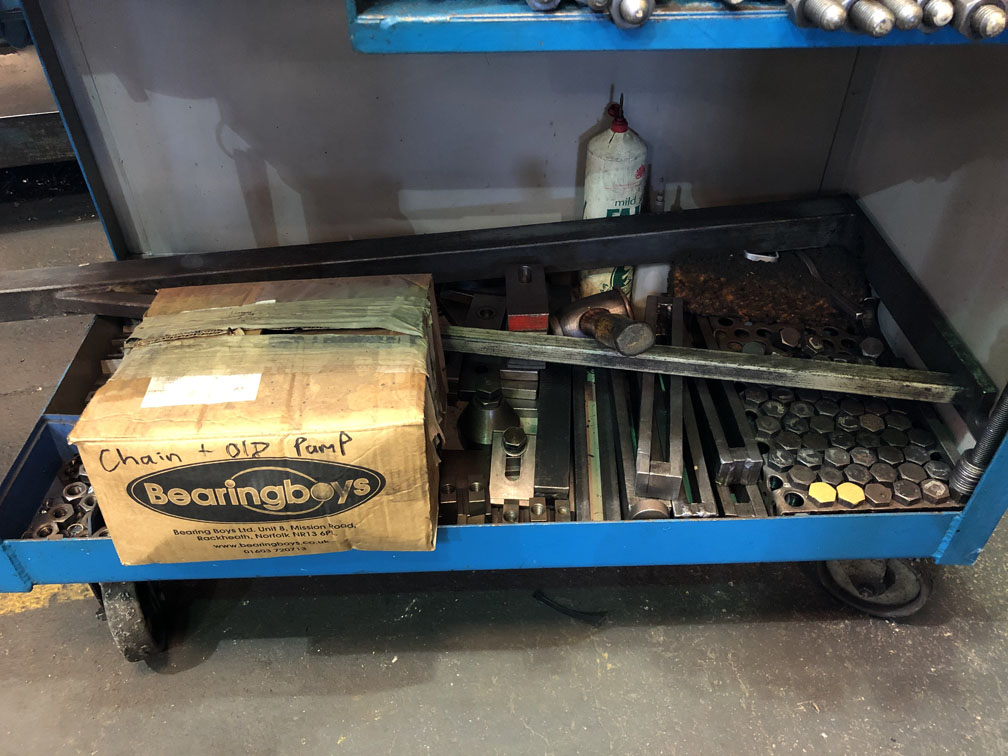

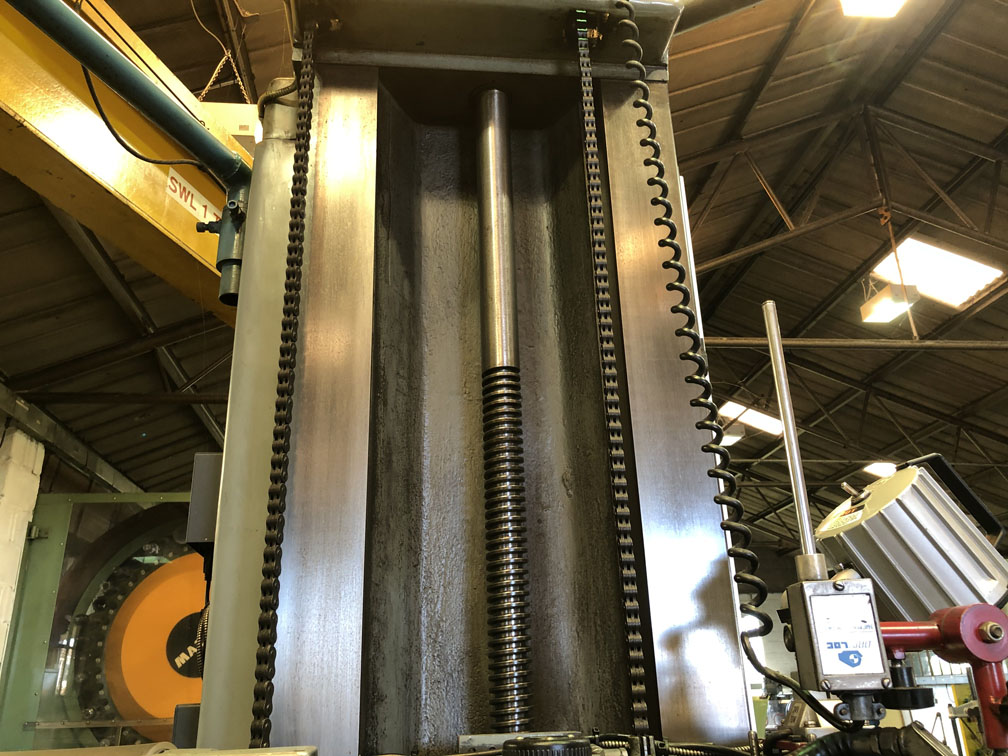

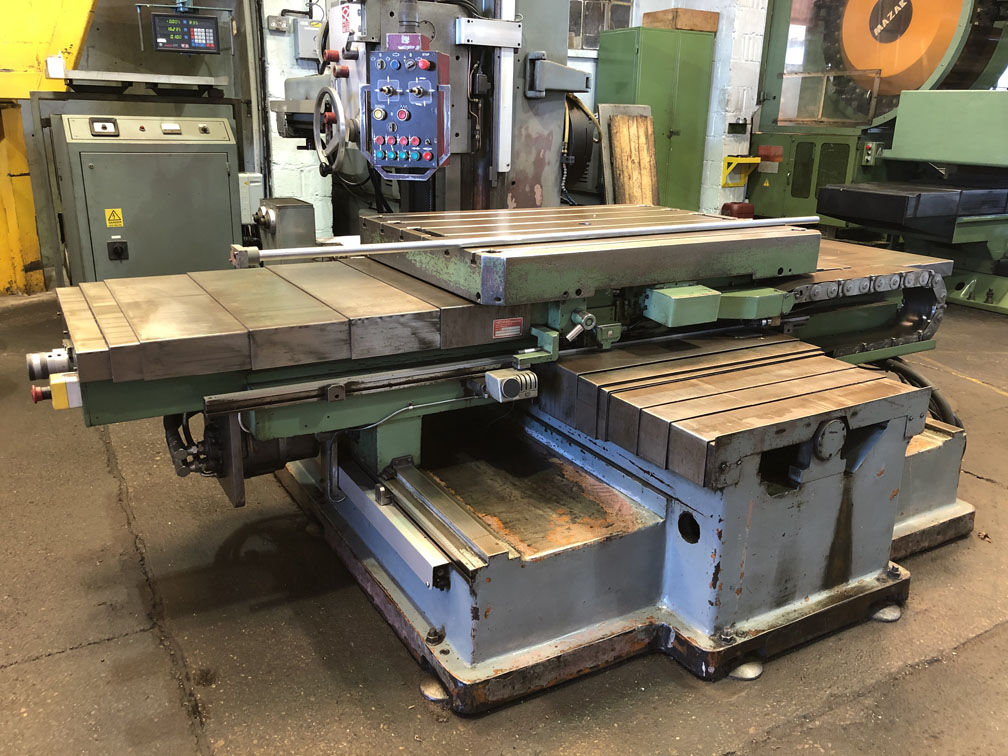

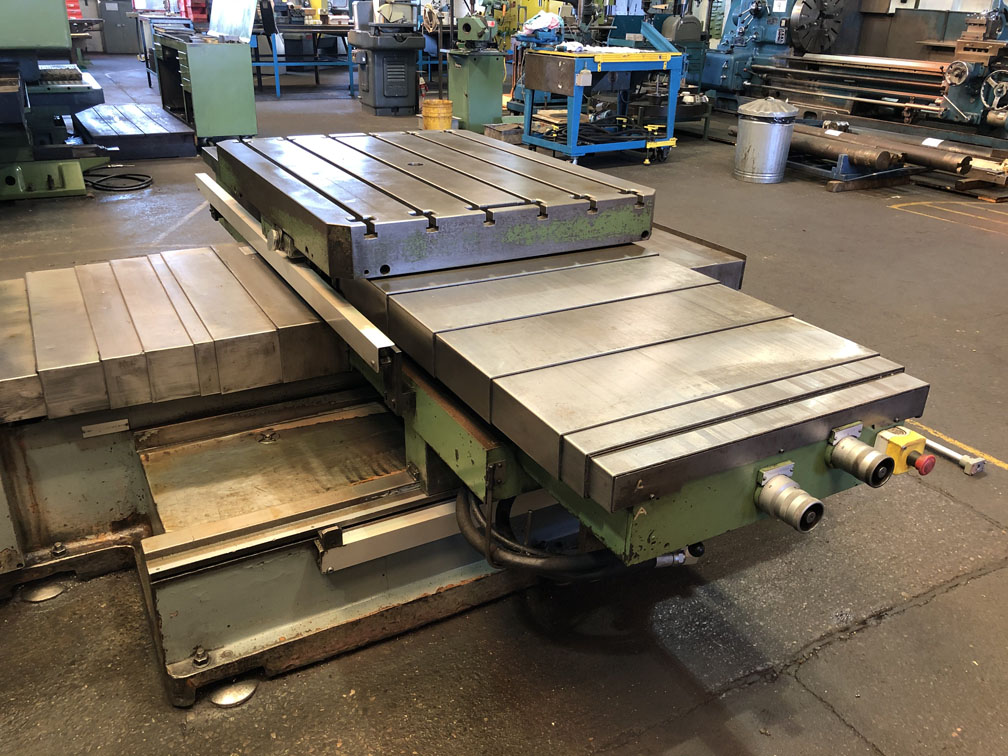

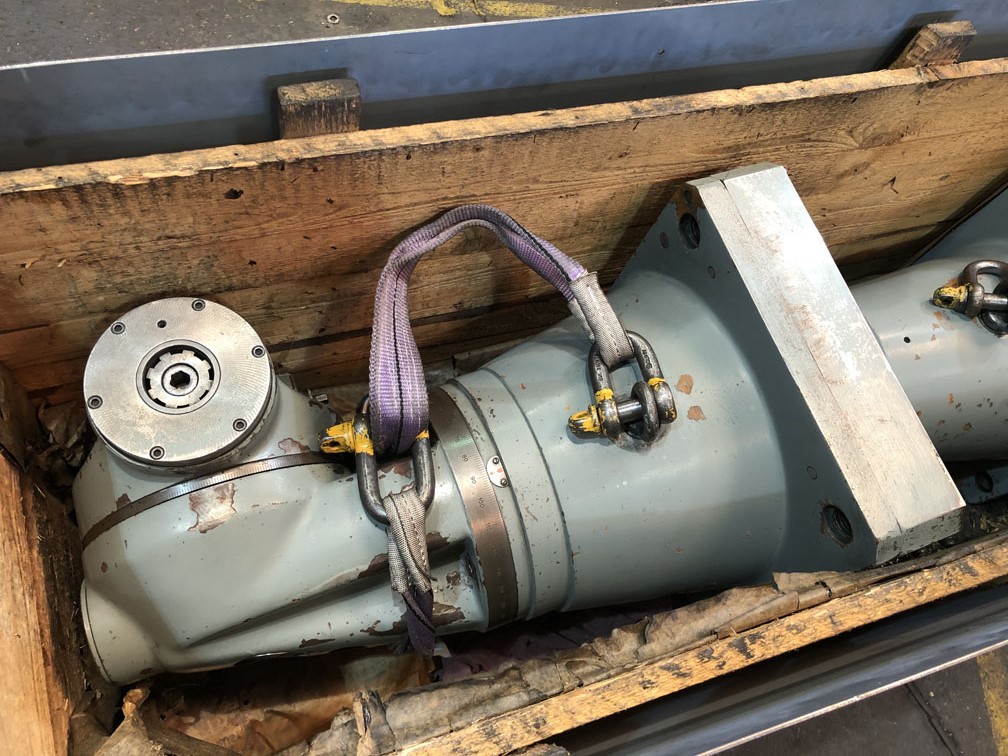

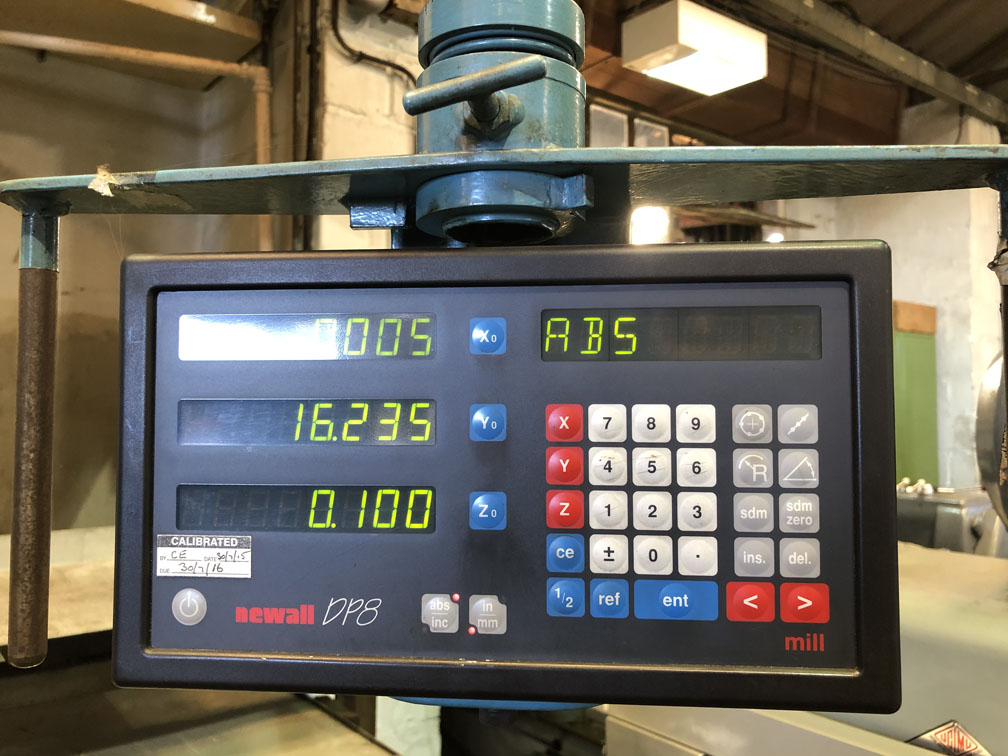

Spindle dia. 80mm. Spindle taper 40 ISO. Spindle travel 600mm. Spindle speeds 11 - 1100 rpm. Vertical travel 1000mm. Longitudinal travel 1000mm. Cross travel 1500mm. Feeds Vertical & cross travel feed 10-1000 mm/min. Longitudinal feeds 1 - 1000mm/min. Table dimensions 1220mm x 920mm. Table loading 1500 kgs. Table rotation 0.02 - 1.7 rpm. Rapid table rotation 4 rpm. Spindle motor 10HP. Feed motor 4 HP.Rapid traverse long/cross 2400mm/min. Pendant control. 2 x Autlock Chucks. Boring snout.Spindle tooling. Clamping equipment.460mm dia. facing head. Newall DP8 Digital readout (Vernier scale still with the machine but removed to house DRO) Steel mobile container containing spindle support and double swivel vertical milling attachment.

Dimensions 4400mm x 3150mm x 2730mm high. Approximate weight 8000 kgs

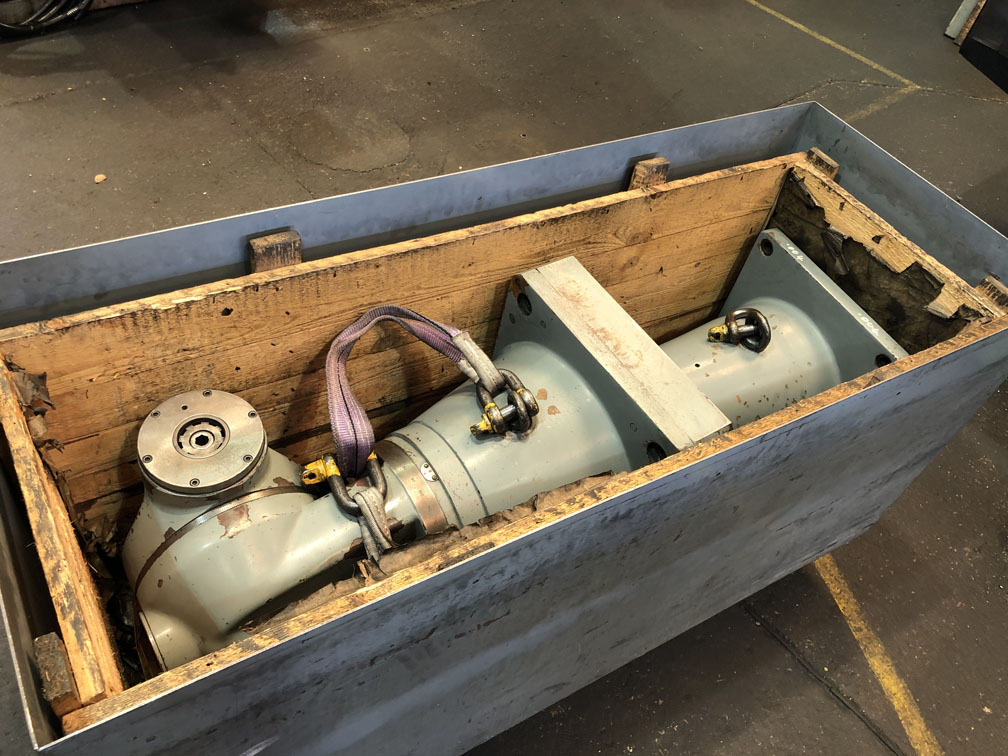

Container with Milling attachments 1350mm x 540mm x 800 high.

SALE AGREED

Video

Other information

Please refer to the terms & conditions if you wish to negotiate on this item.
