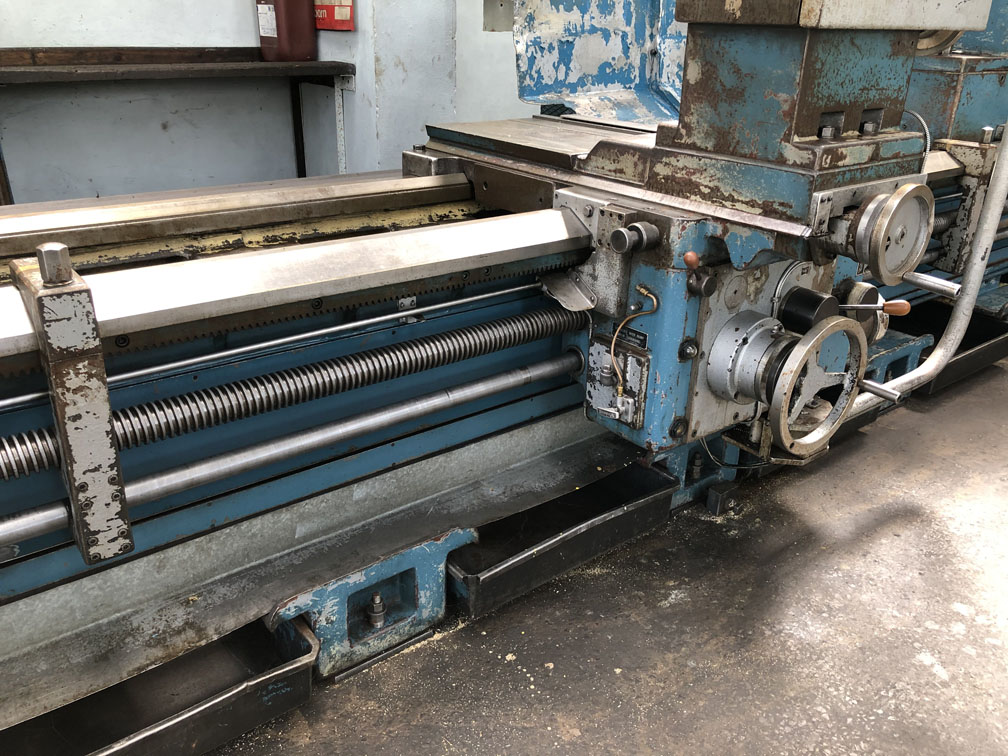

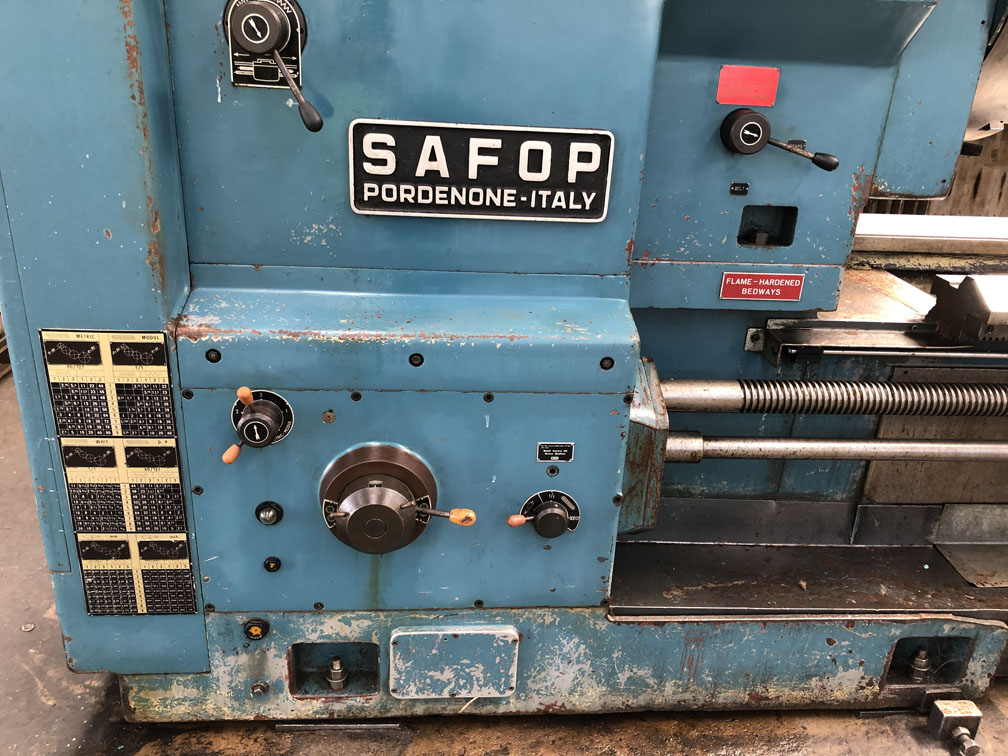

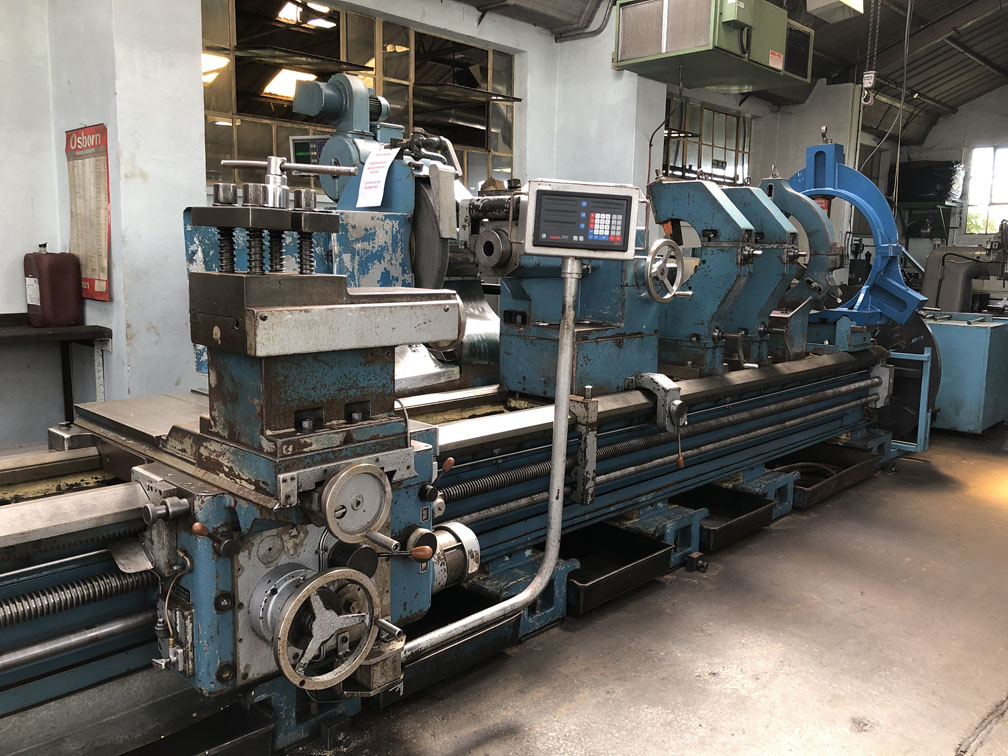

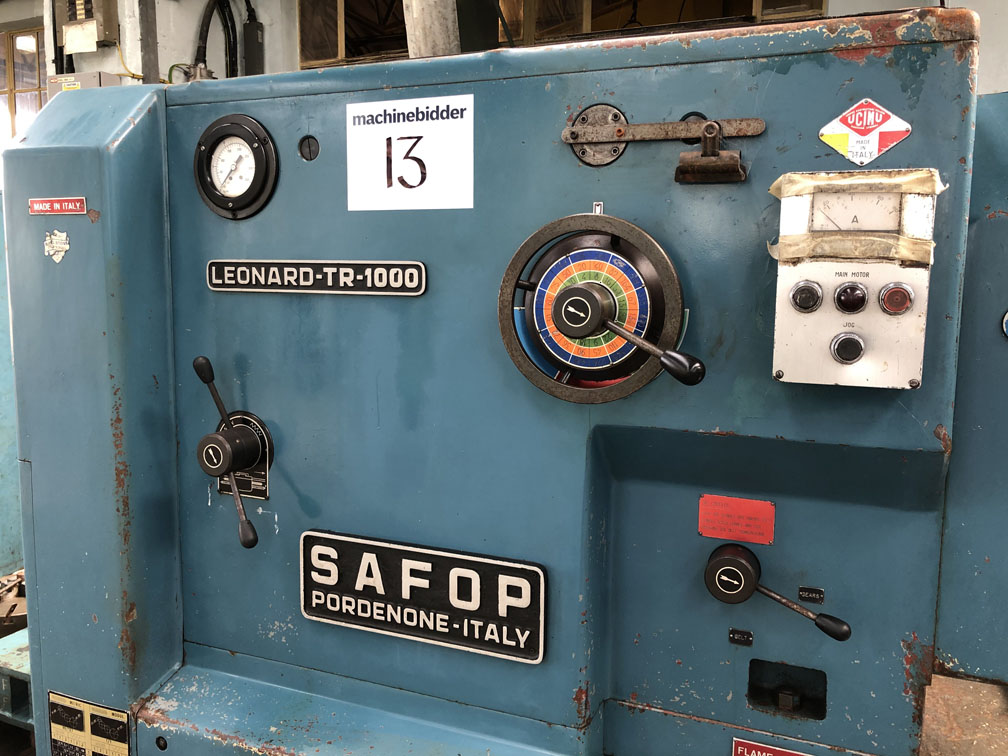

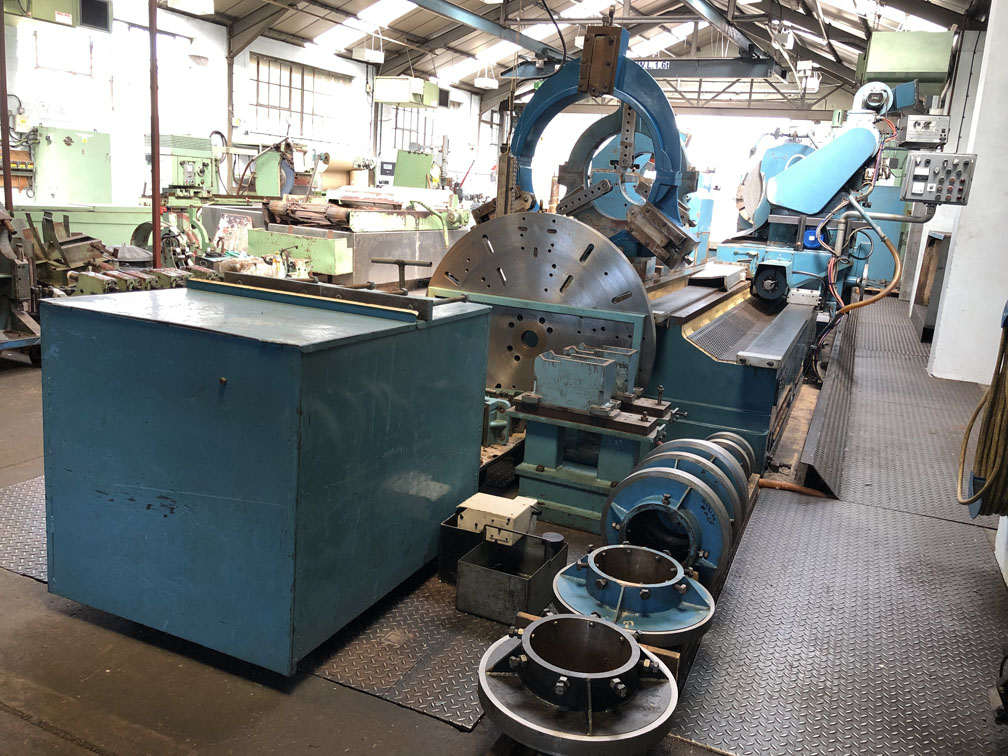

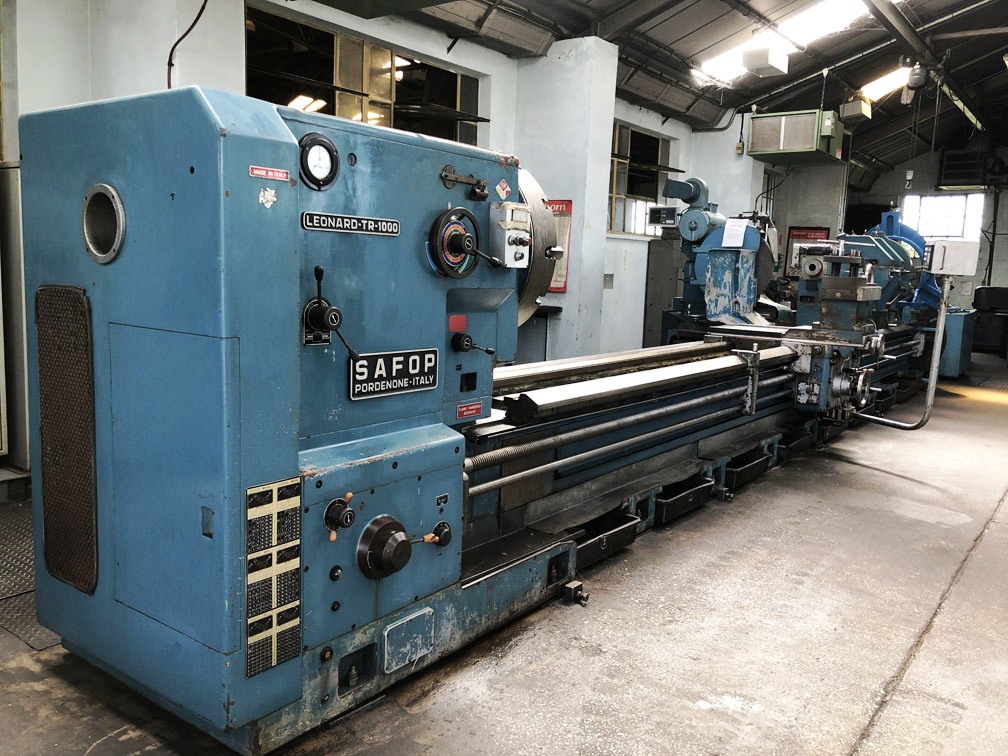

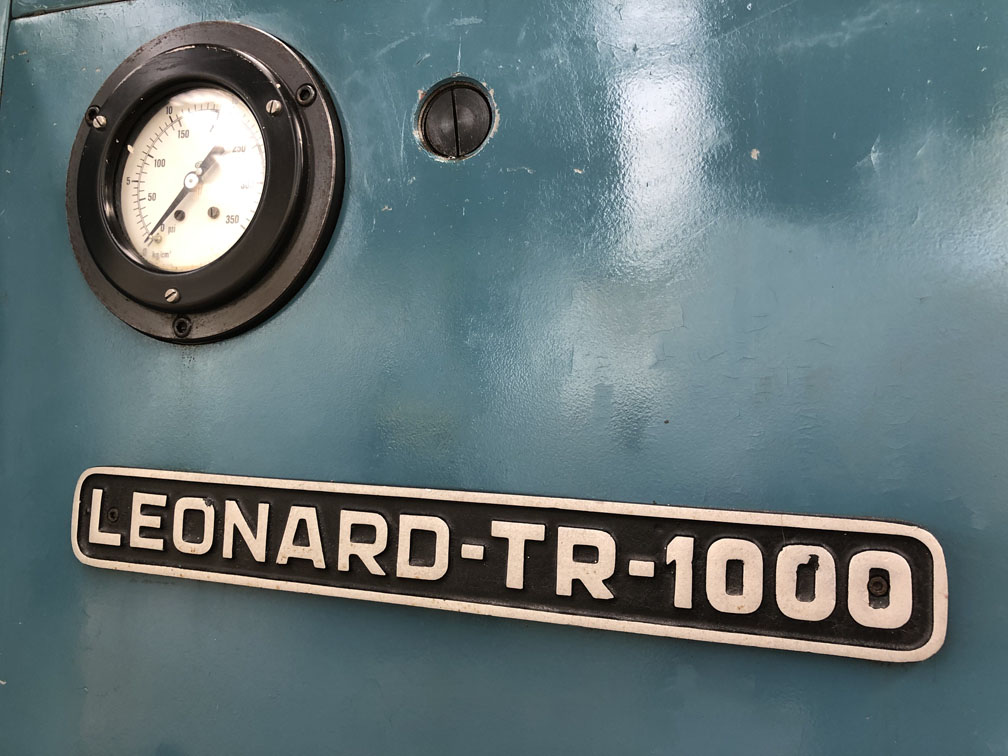

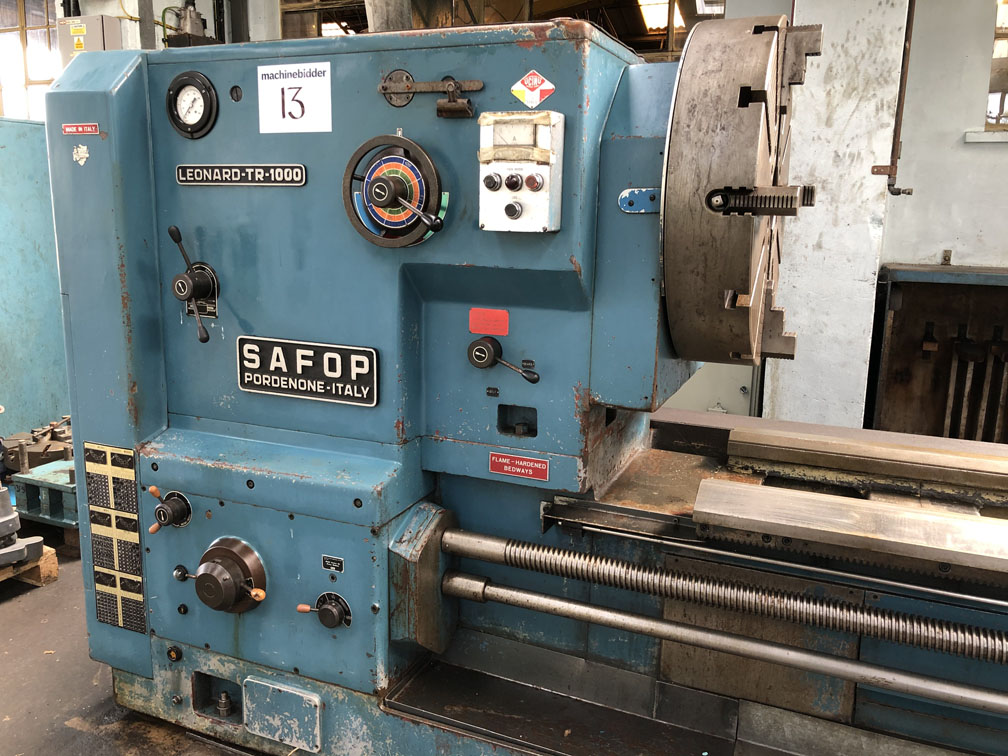

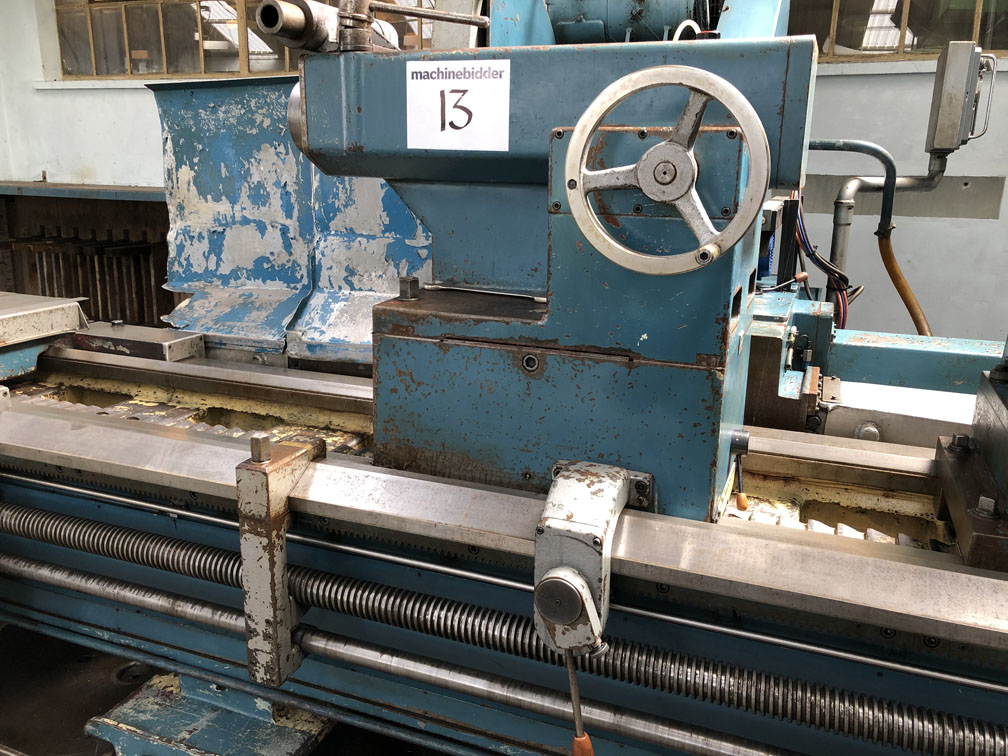

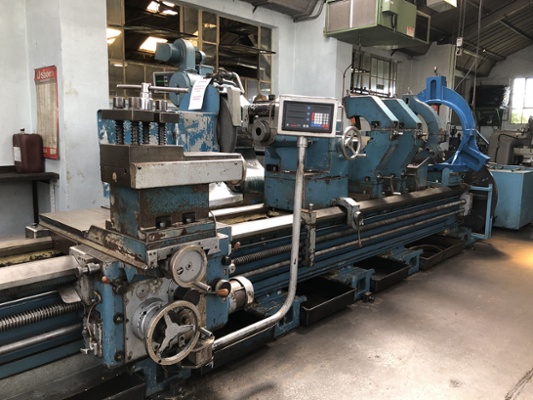

Lot 13: SAFOP Leonard TR1000 Combined Centre Lathe & Cylindrical Grinding Machine

This lot has been archived

Description

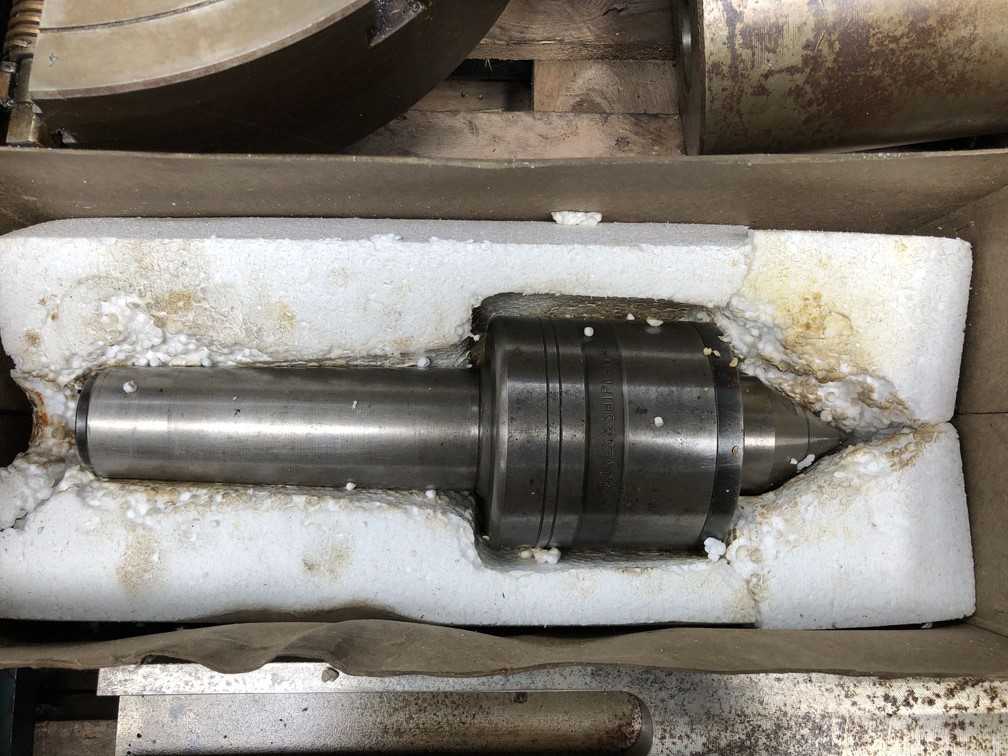

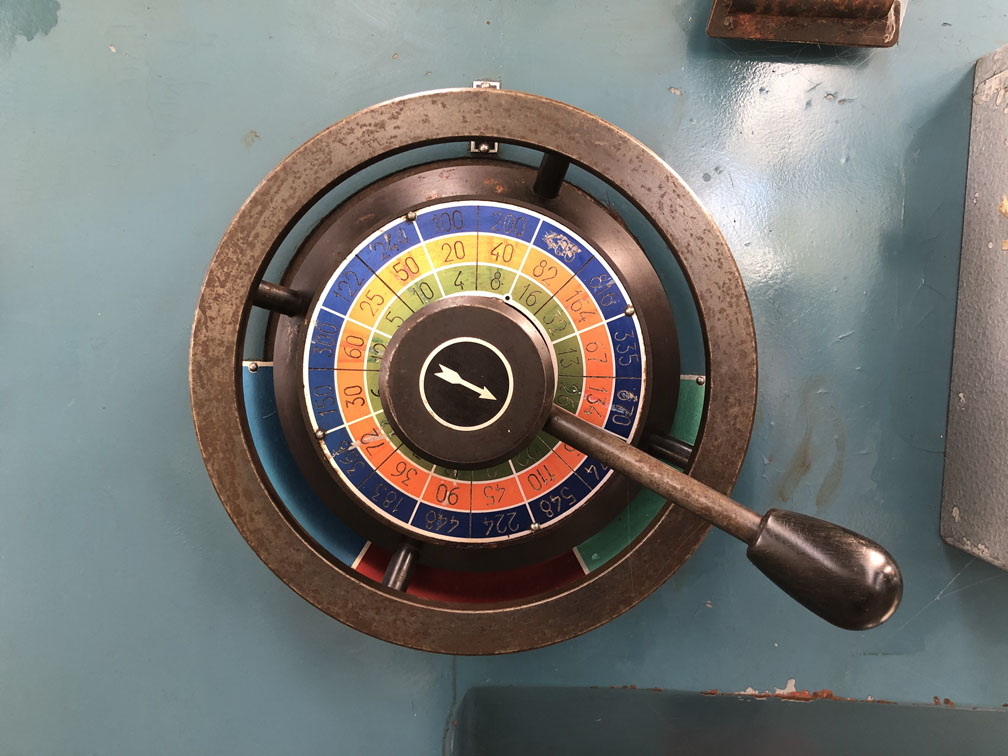

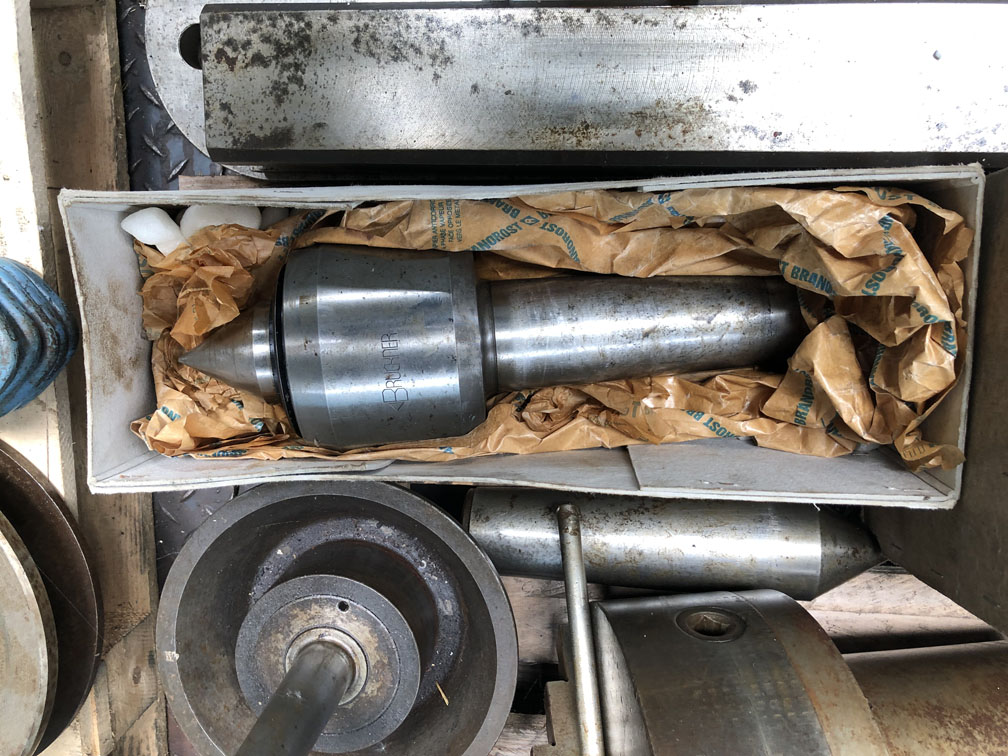

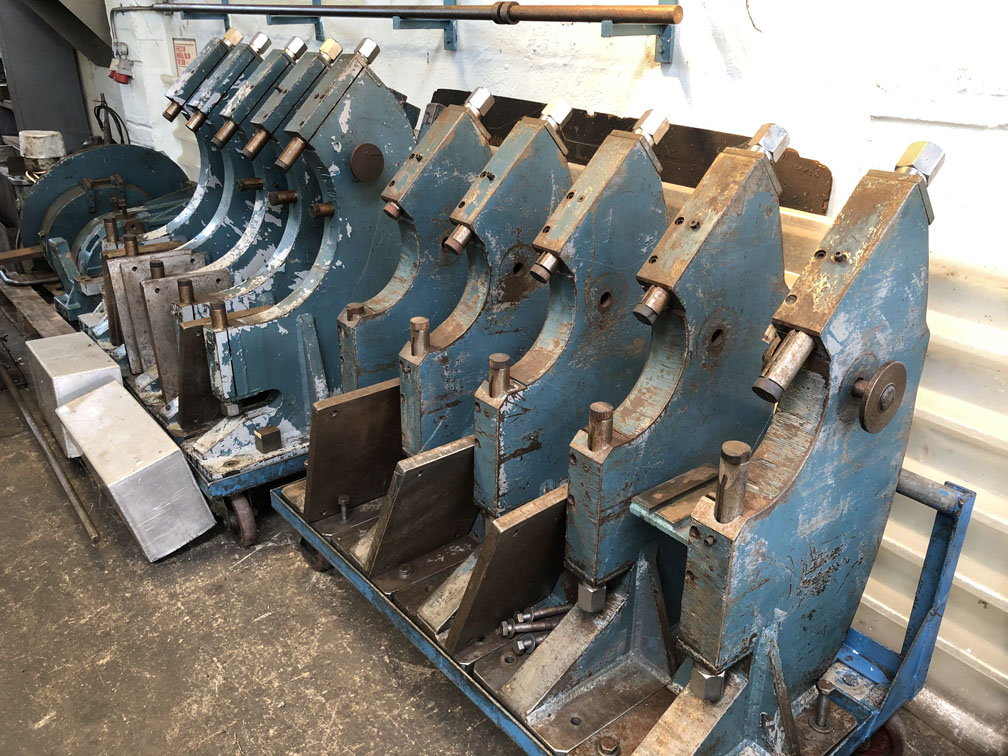

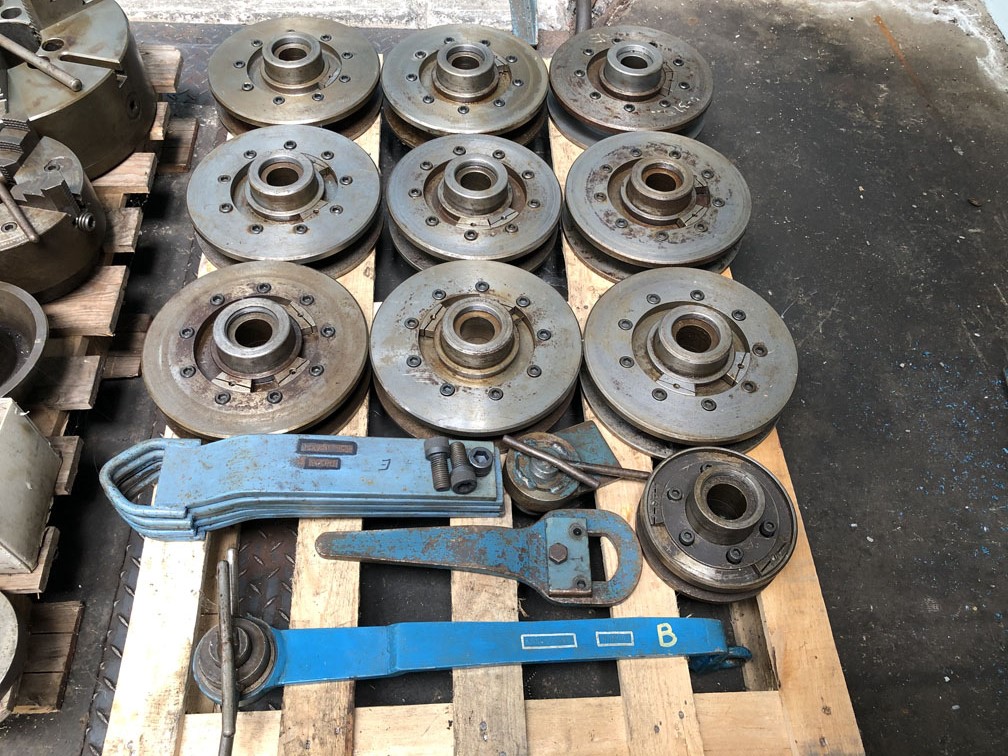

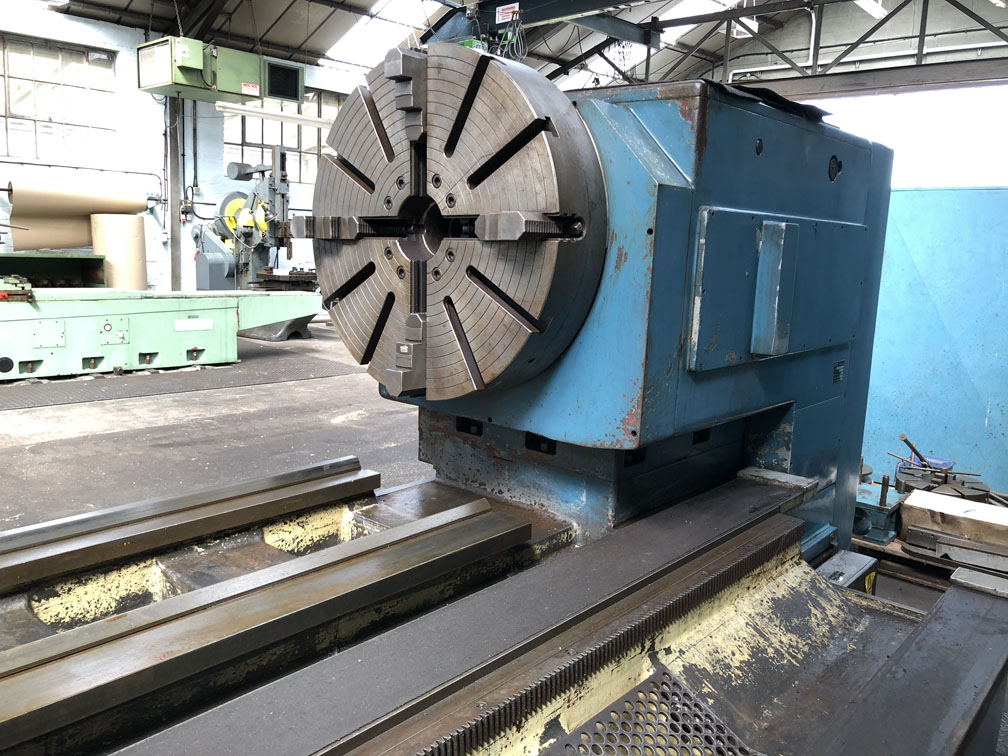

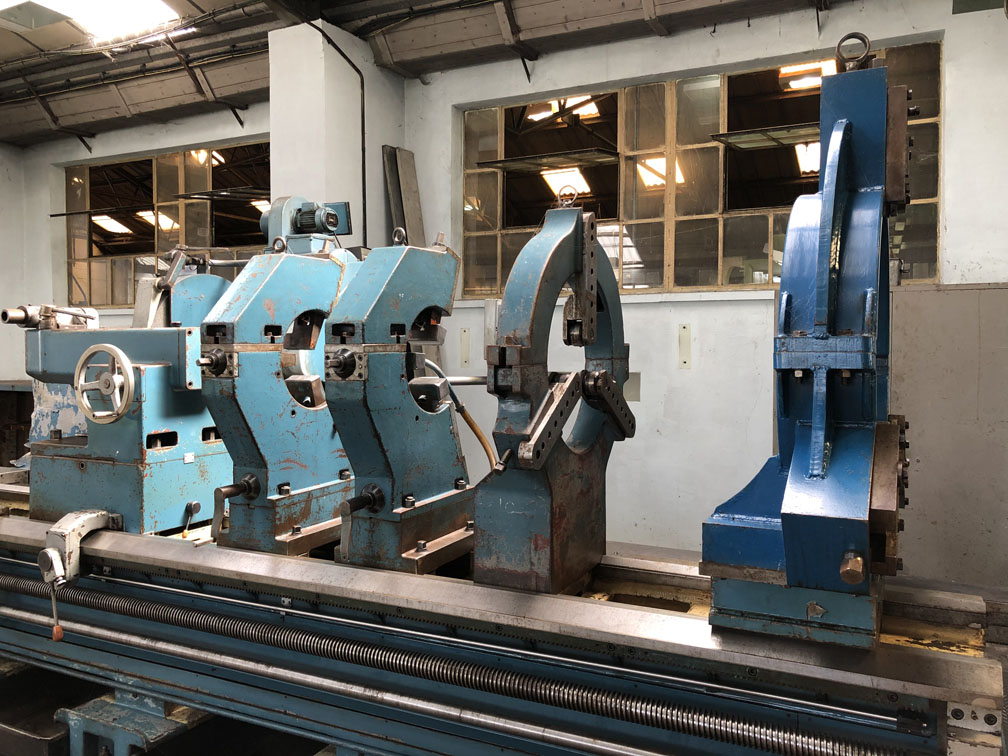

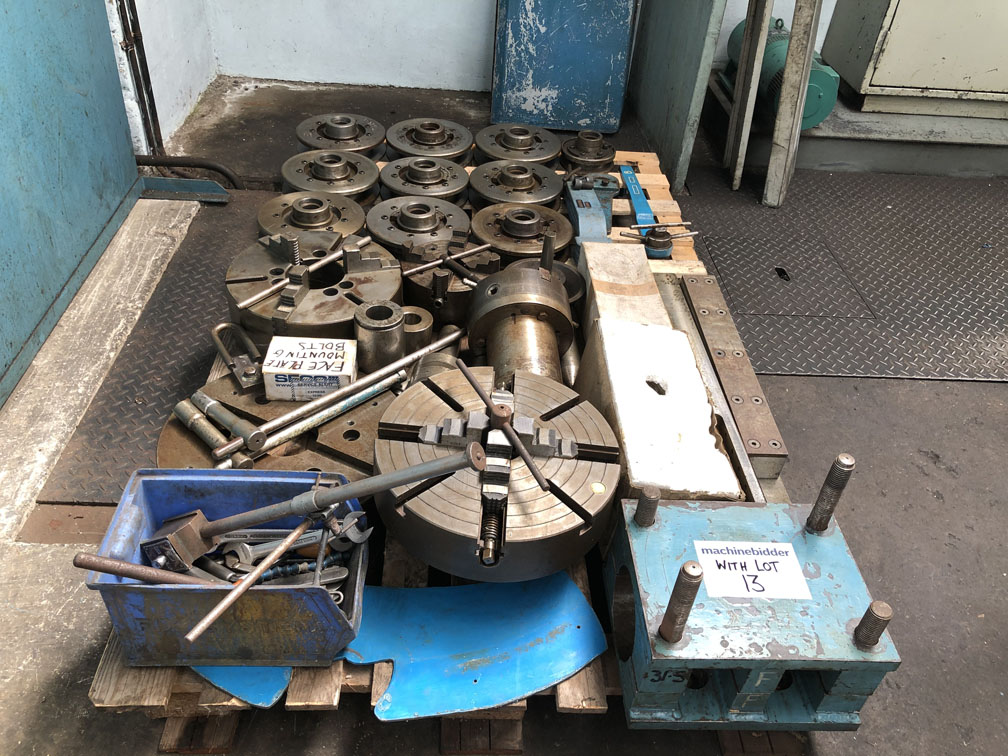

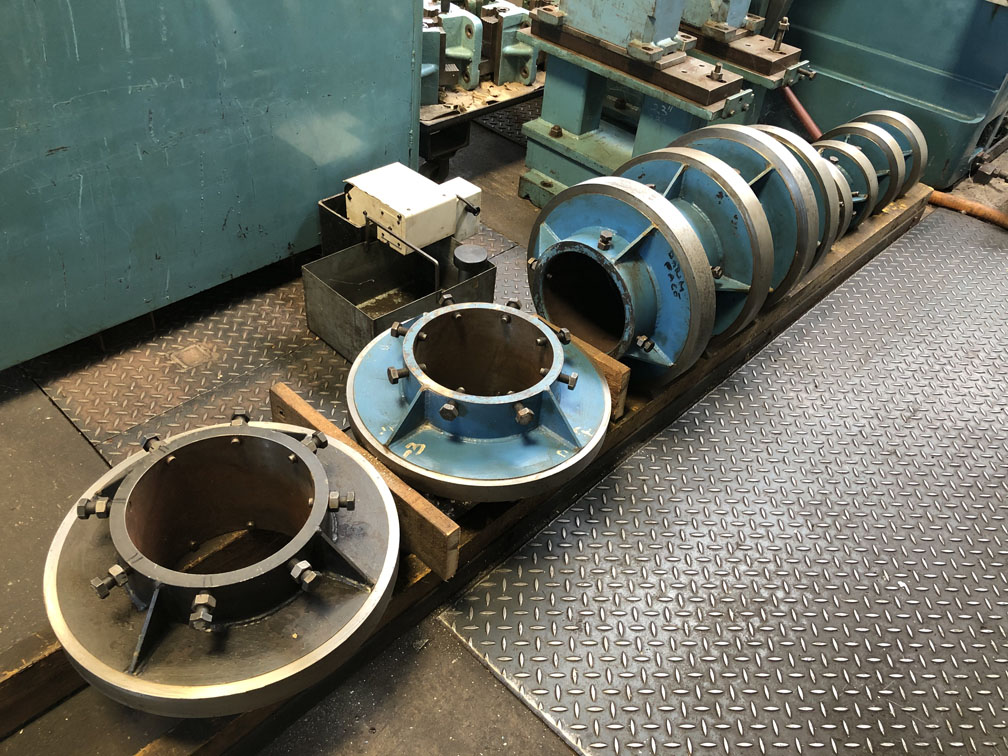

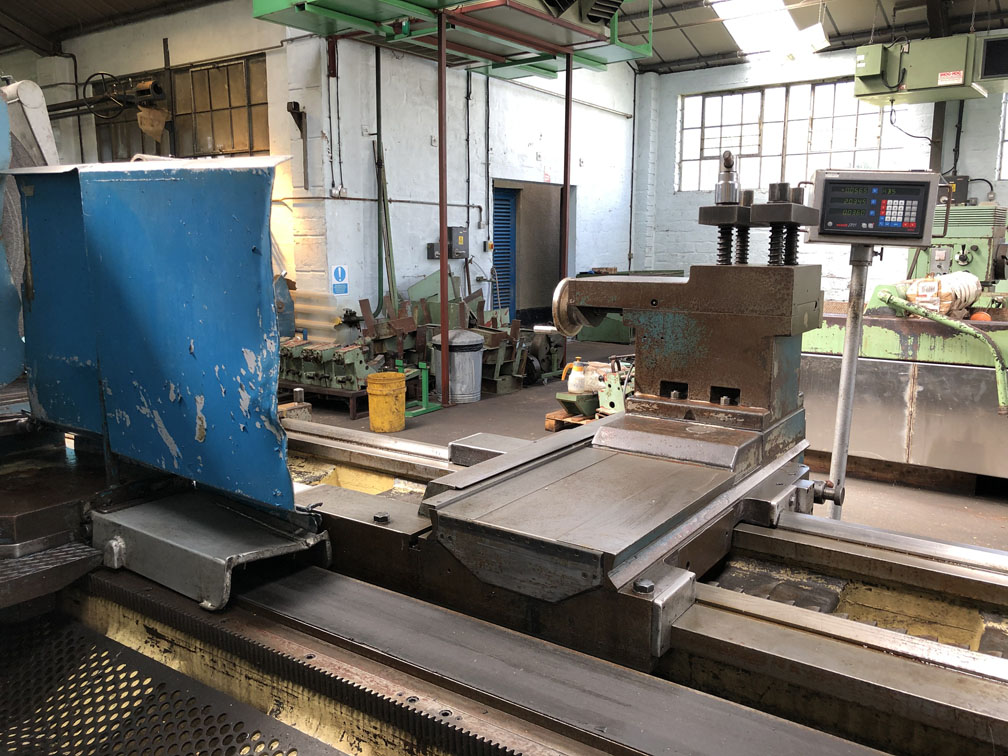

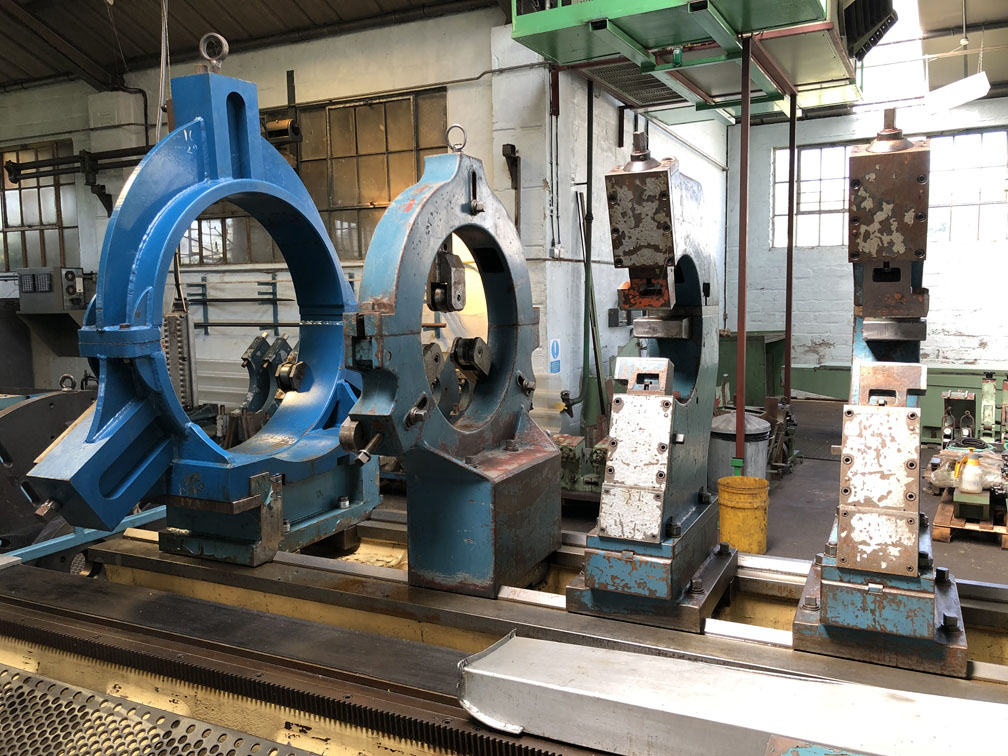

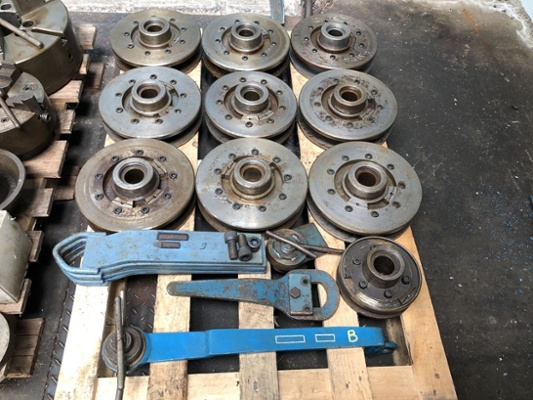

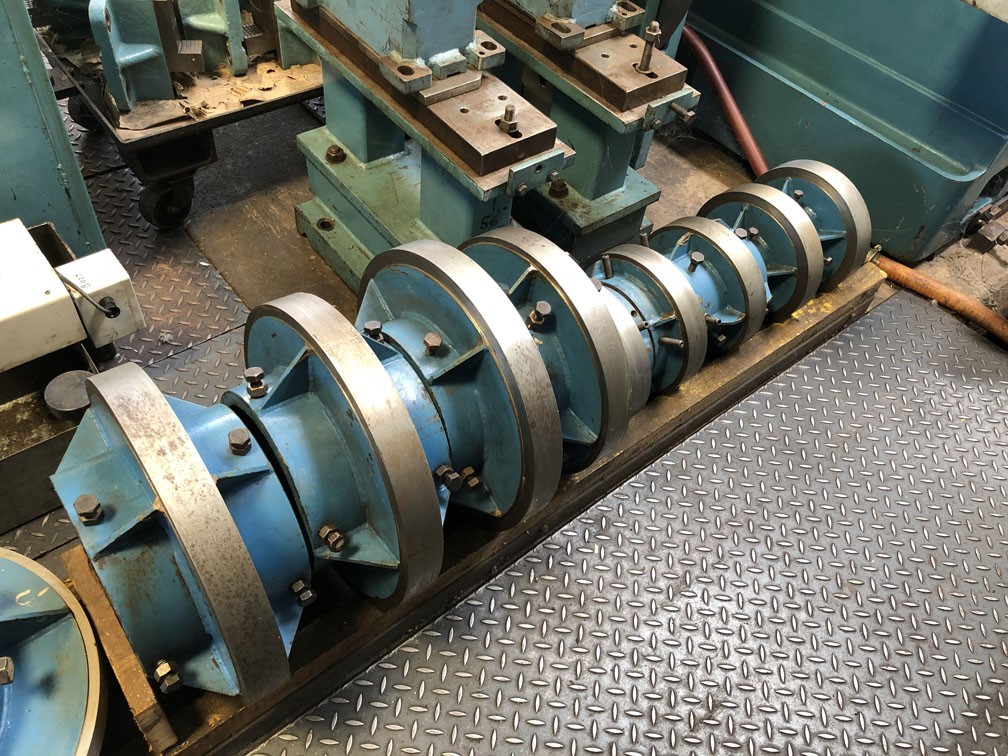

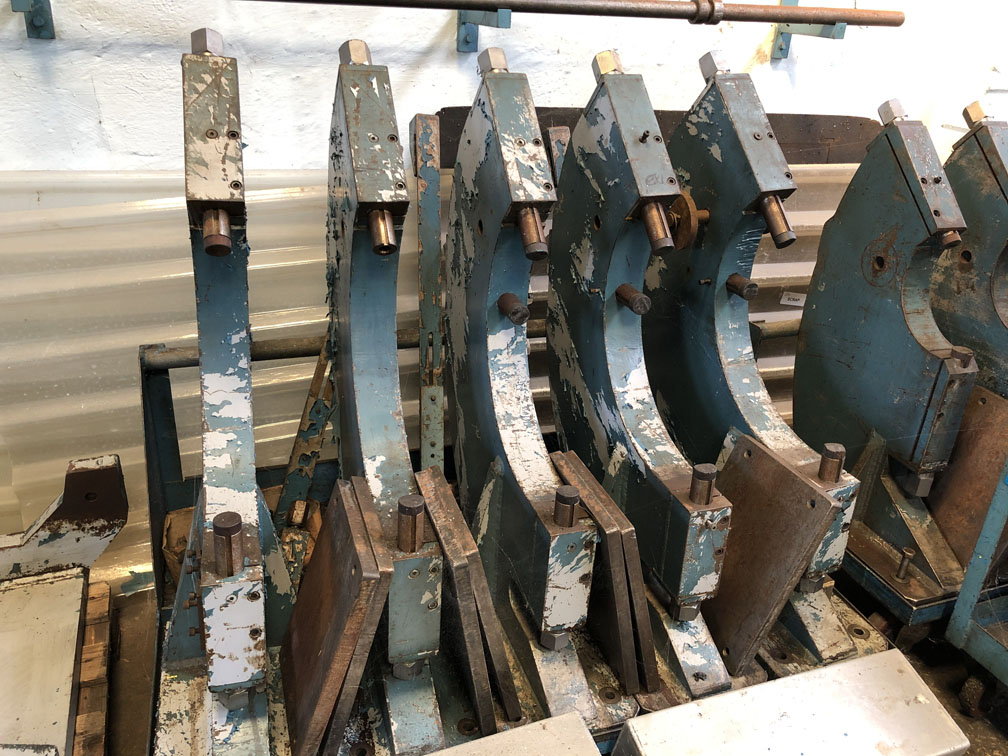

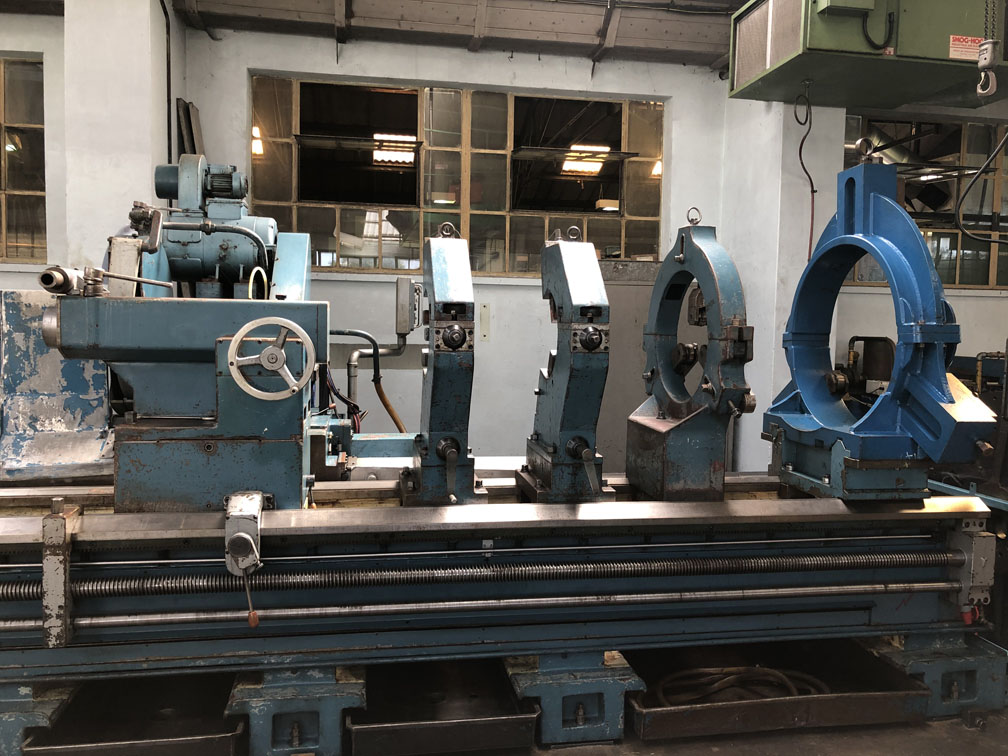

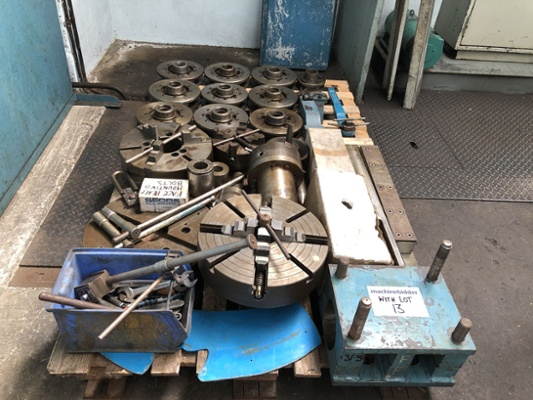

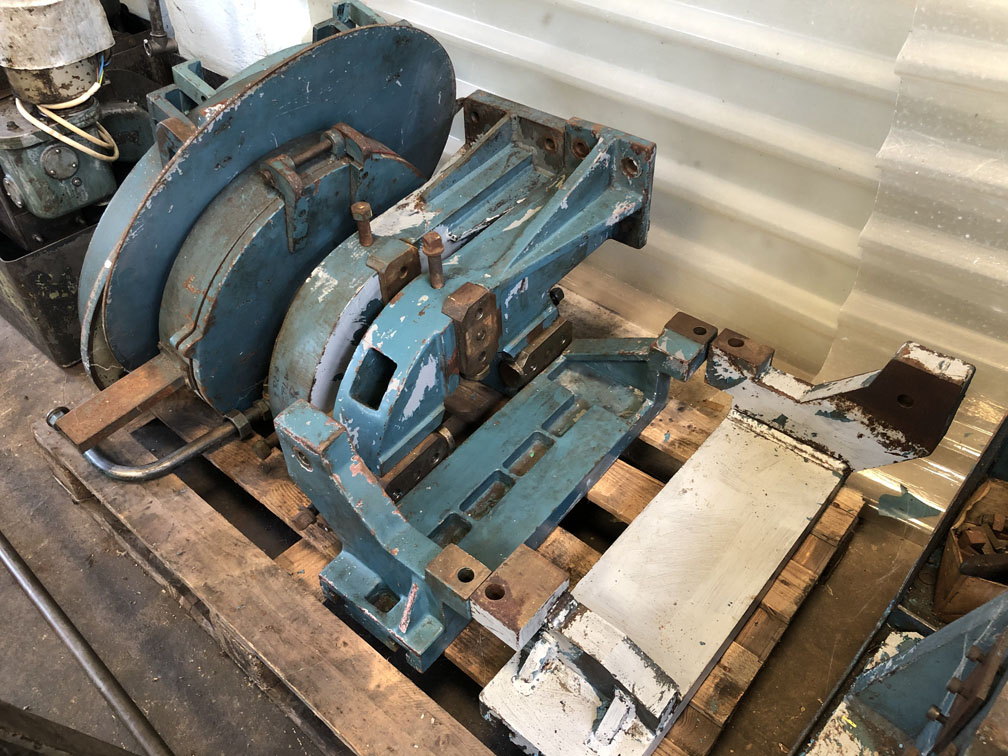

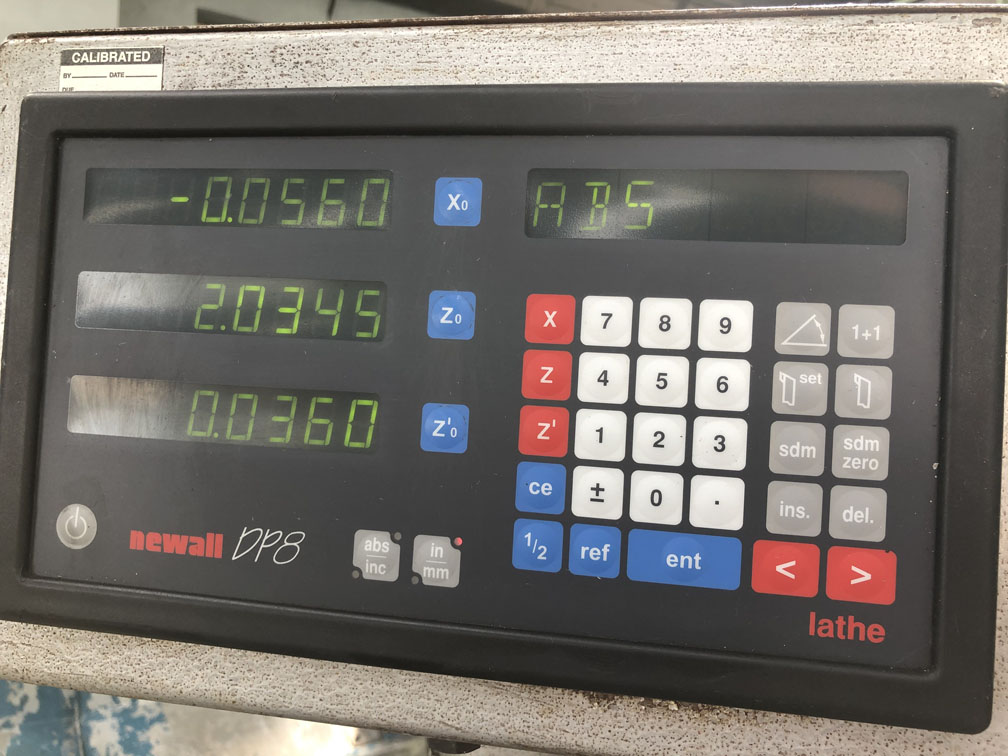

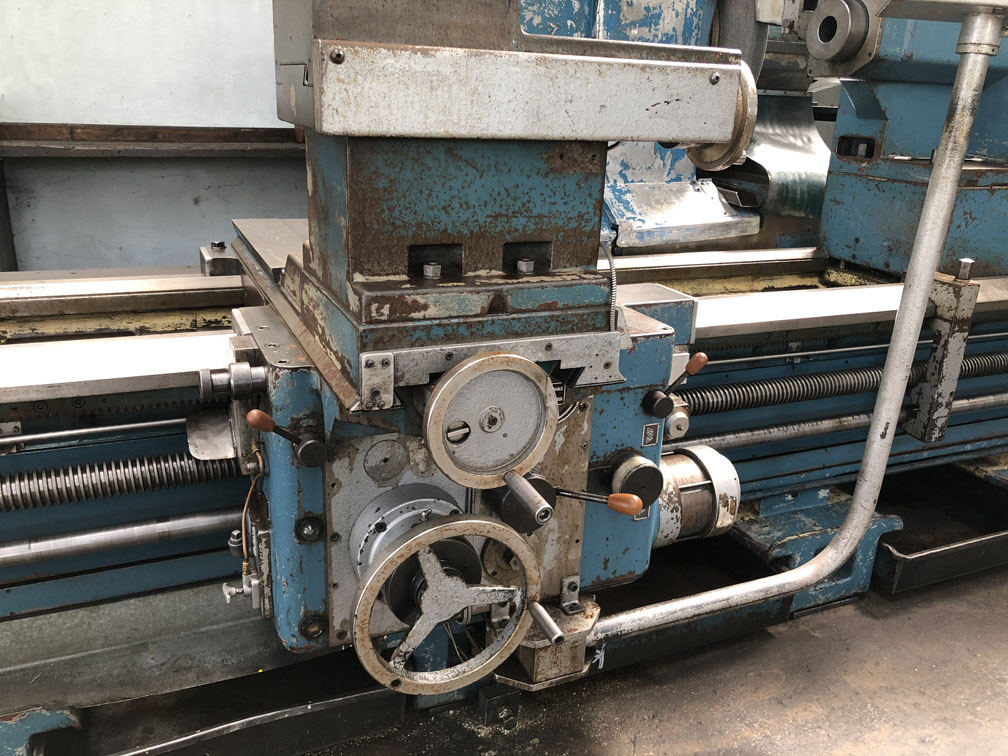

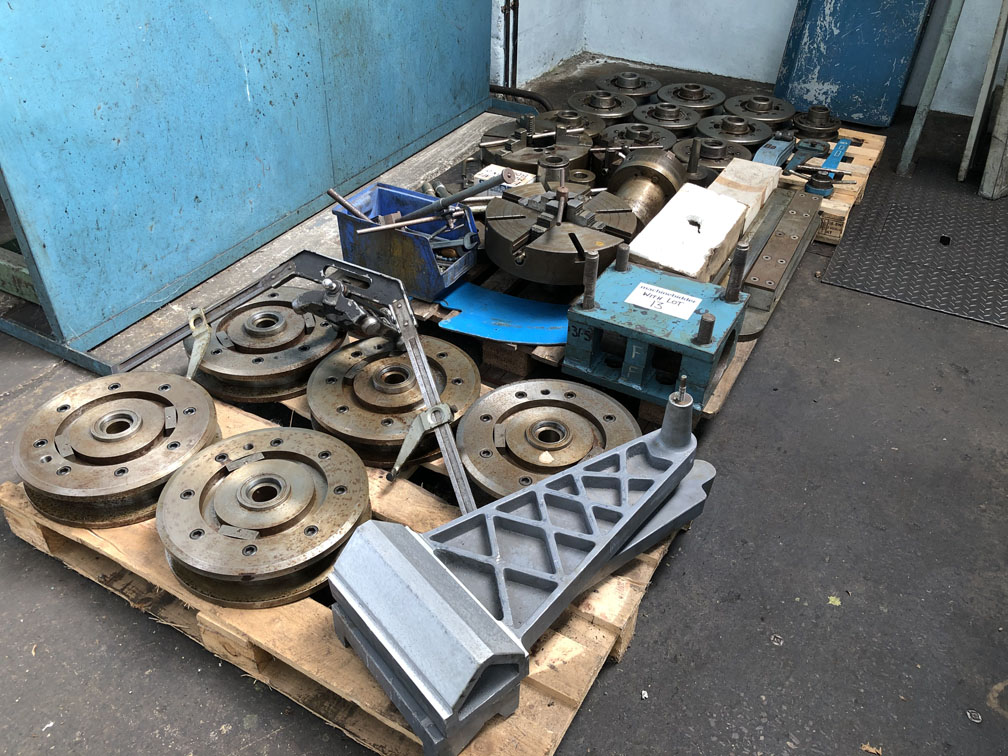

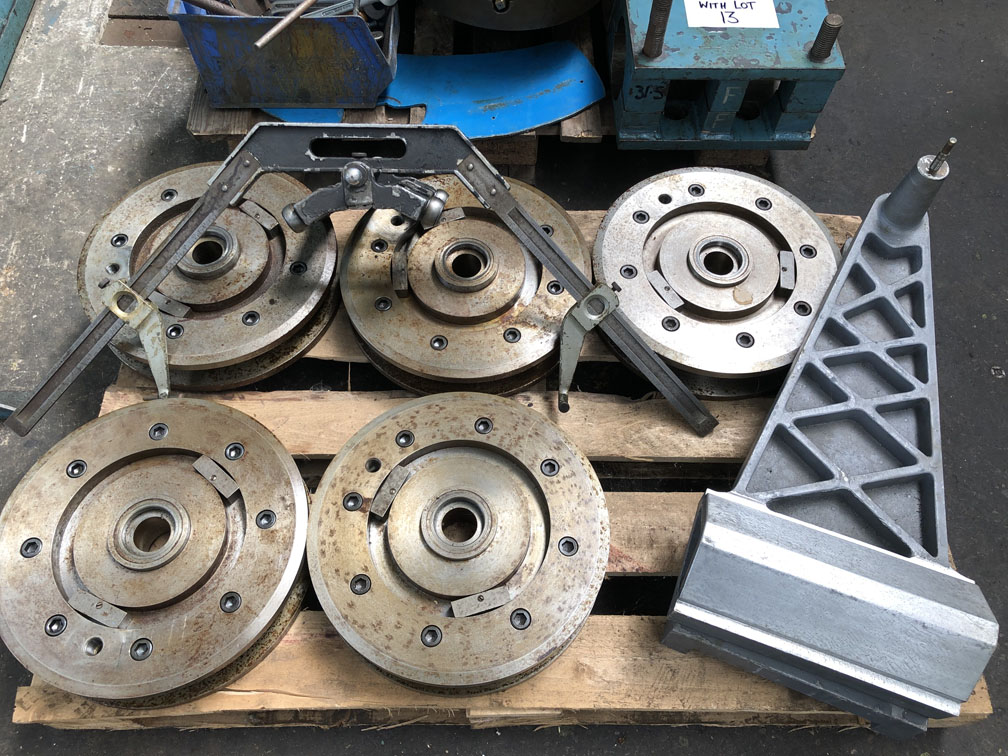

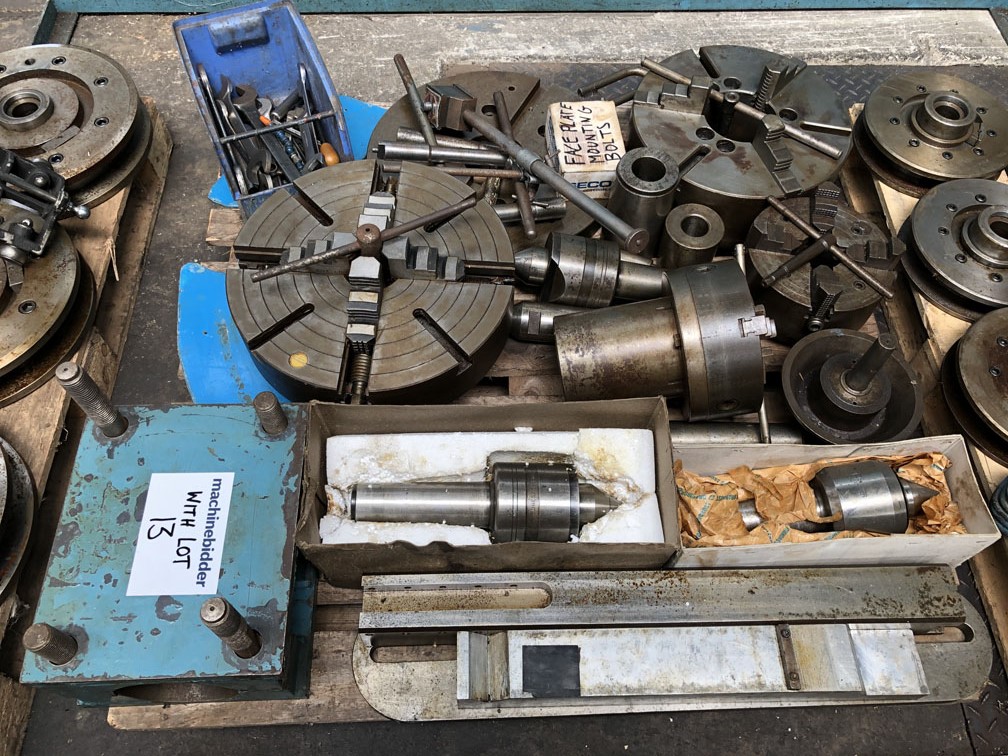

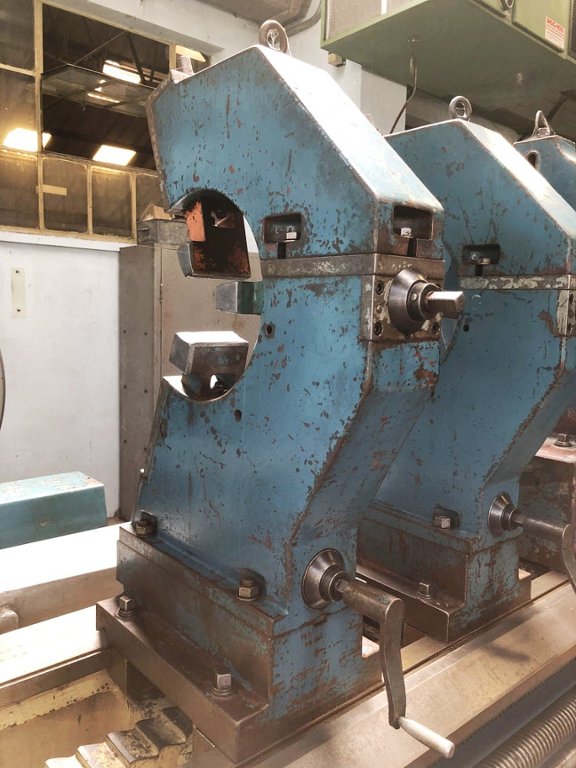

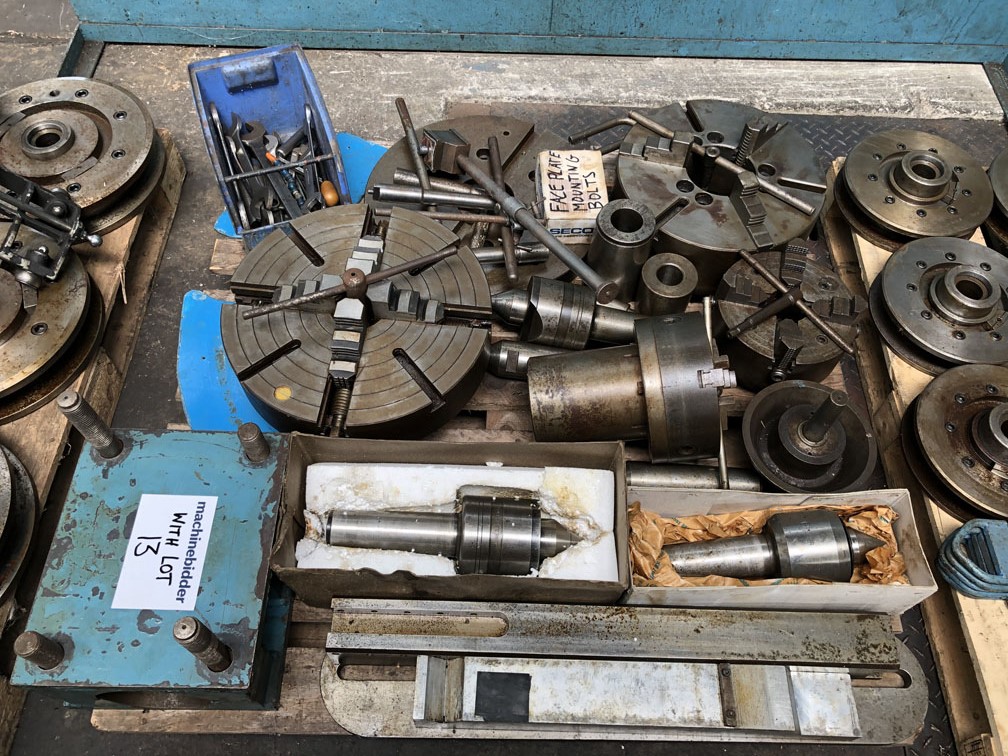

Swing over bed 1220mm. Swing over cross slide 1016mm. Distance between centres 7500mm. Spindle bore 102mm. Maximum weight between centres 10,000kgs (unsupported). Spindle speeds 4 - 816 rpm. Fitted with 800mm dia. 4 jaw. Newall DP8 Digital readout. Rapid traverse to saddle. 4 screw toolpost clamping on compound slide.1 x 770mm dia. 3 point roller steady. 1 x 530mm dia. 3 point roller steady. 1 x 530mm dia.3 point roller steady.2 x 3 point pad type open sided steady 450mm bore (capacity 330mm approx). 1 x 3 point pad type open sided steady 530mm bore (capacity 230mm approx). Faceplate 1225mm dia. with 4 faceplate jaws. 4 x steady inserts 250mm OD x 90mm bore. 1 x steady insert 370mm OD x 200mm dia. bore. 3 x steady inserts 400mm OD x 200mm bore. 2 x steady inserts 450mm OD x 230mm bore. 5 x 2 point pad steadies 240mm capacity. 5 x 3 point pad steadies 500mm capacity.2 x 3 point steadies 170mm capacity. 5 x 380mm dia. grinding wheel flanges. 9 x 280mm dia grinding wheel flanges. 1 x 170mm dia. grinding wheel flanges. 380mm dia. 3 jaw chuck. 400mm dia. 4 jaw chuck. 225mm dia. 4 jaw chuck. 230mm dia. 3 jaw chuck. Bruckner revolving centre. Jones & Shipman revolving centre. 2 x machine levelling brackets. Boring bar 580mm long x 80mm x 70mm section. Boring bar 760mm long x 75mm x 75mm section.Faceplate fasteners. Coolant/Filtration tank 2300mm long x 1000mm x 1500mm.

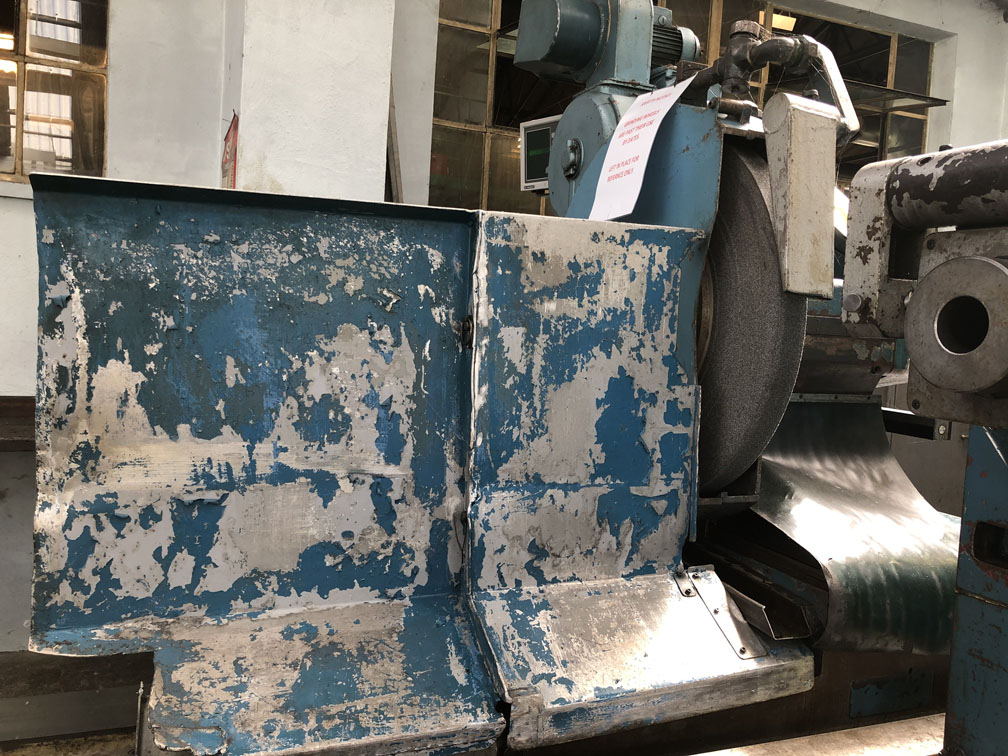

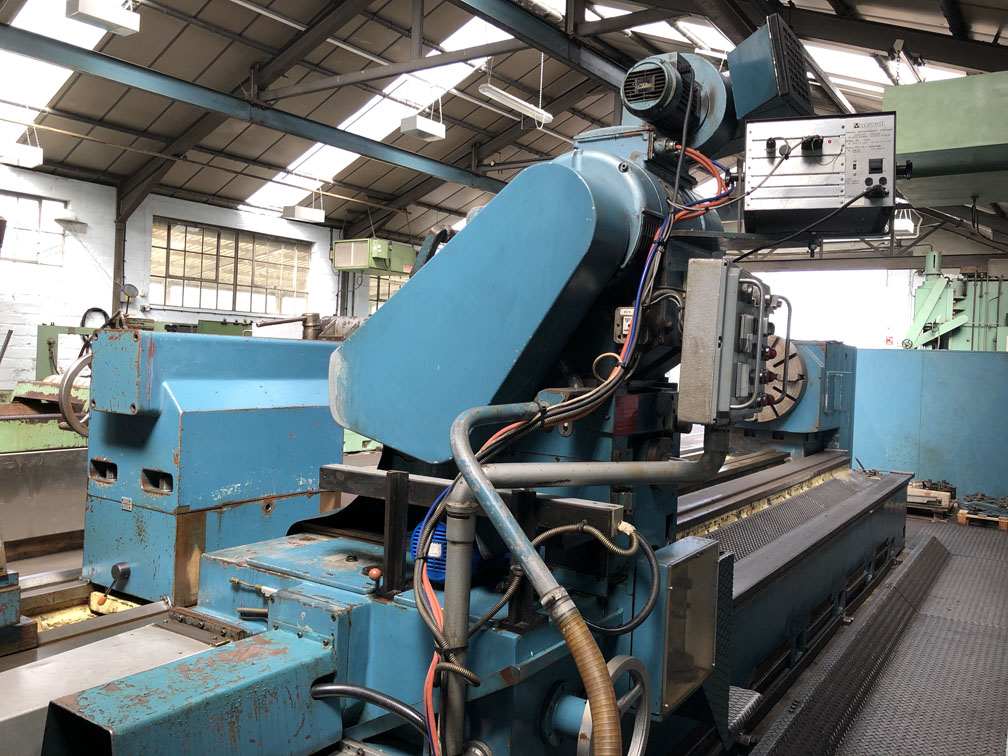

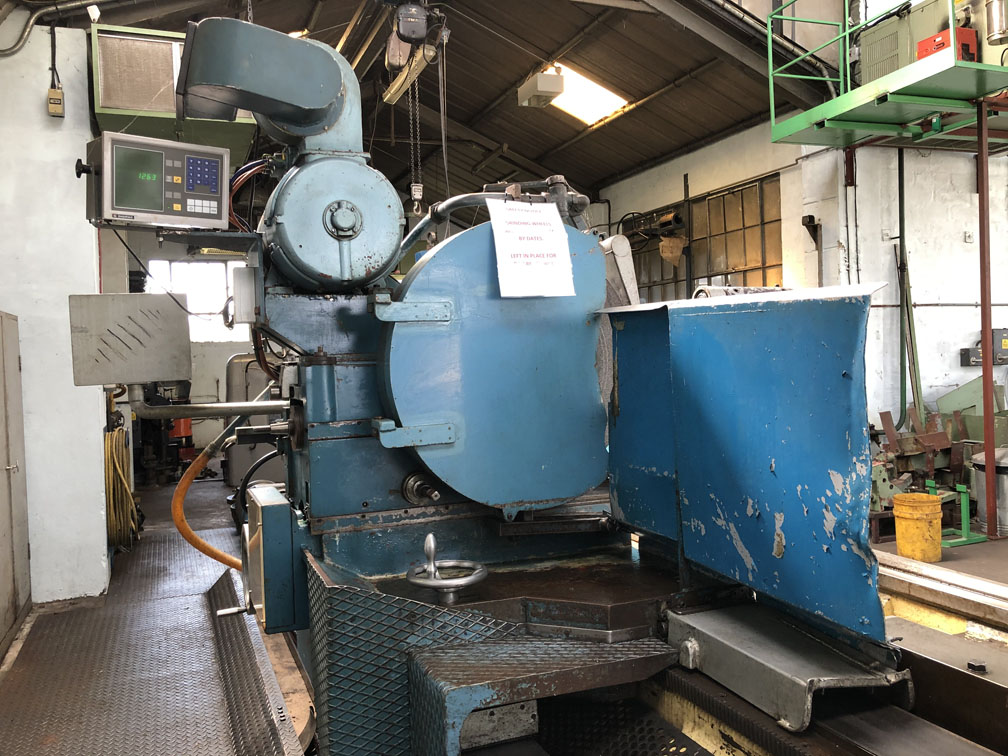

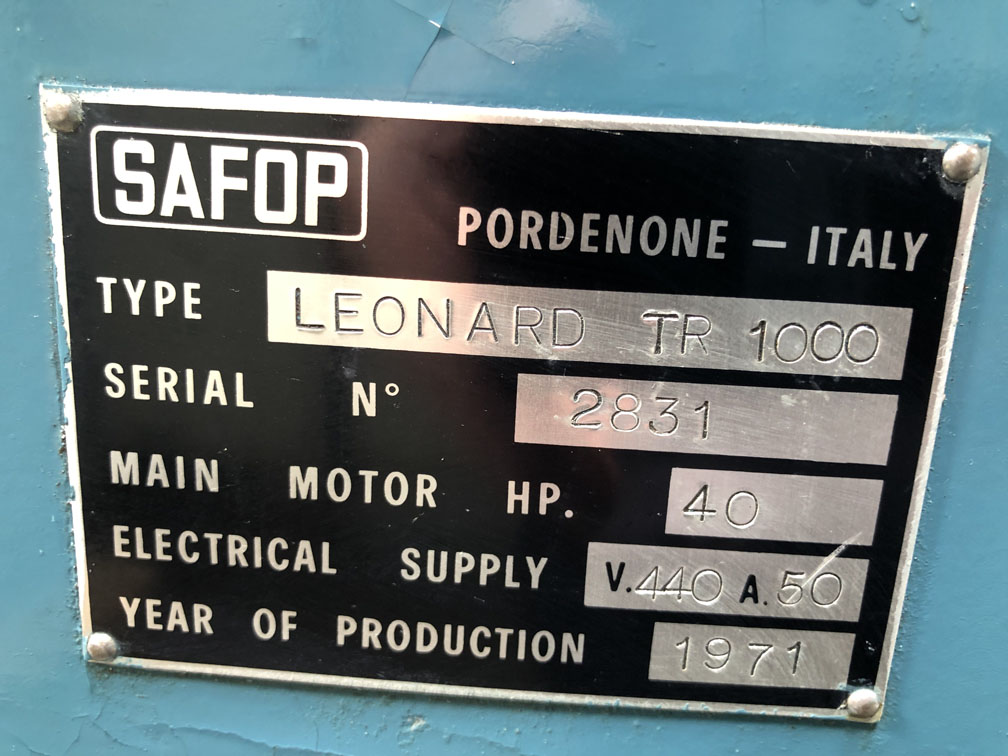

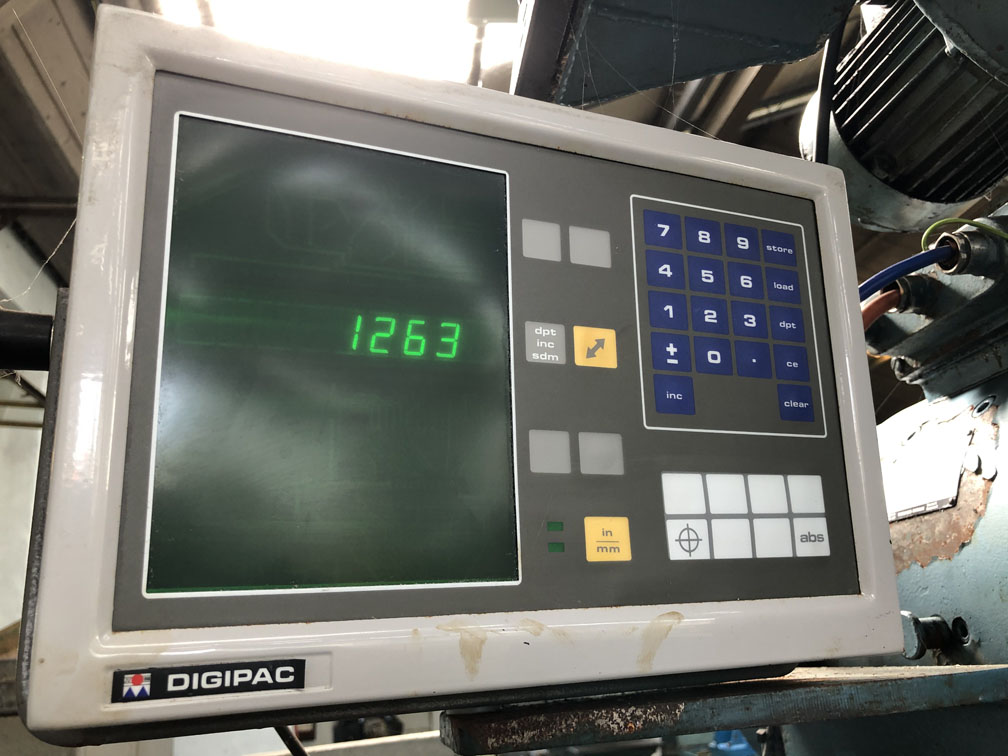

Maximum grinding dia. 1067mm. Maximum grinding length traverse 7264mm. Maximum grinding dia. 1067mm. Minimum grinding dia. 76mm. Maximum weight 10,000 kgs. Sony Digipac Digital readout. Blue steel container for grinding wheels. Machine serial no. 2831. Year 1972

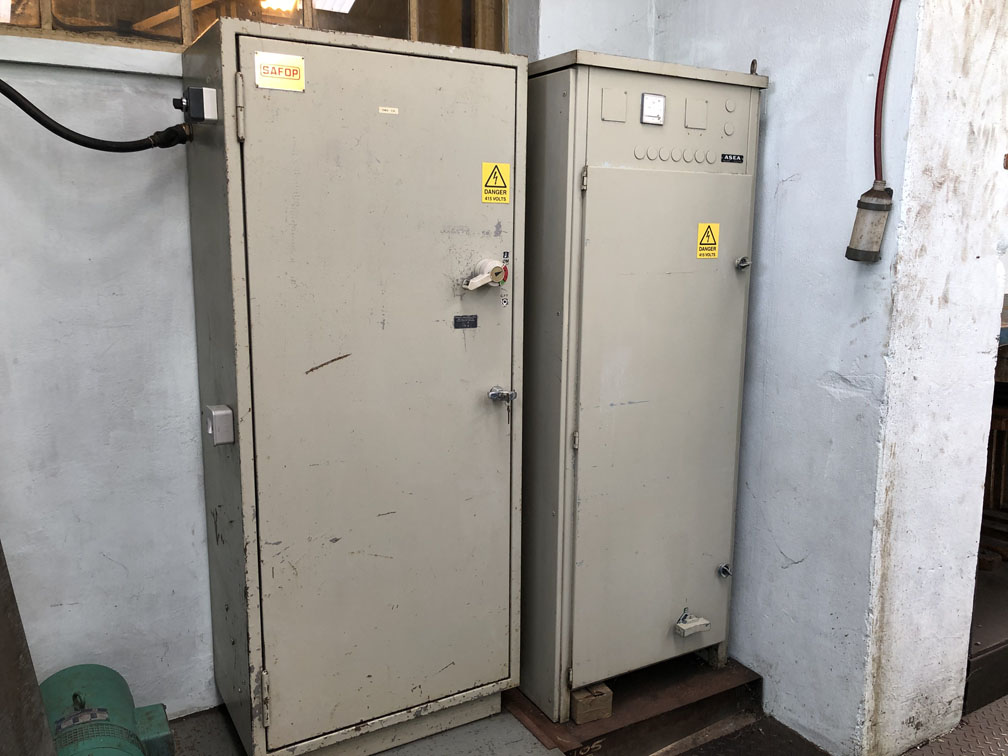

Electrical cabinet 1 dimensions 800mm x 450mm x 1700mm high

Electrical cabinet 2 dimensions 640mm x 500mm x 1700mm high

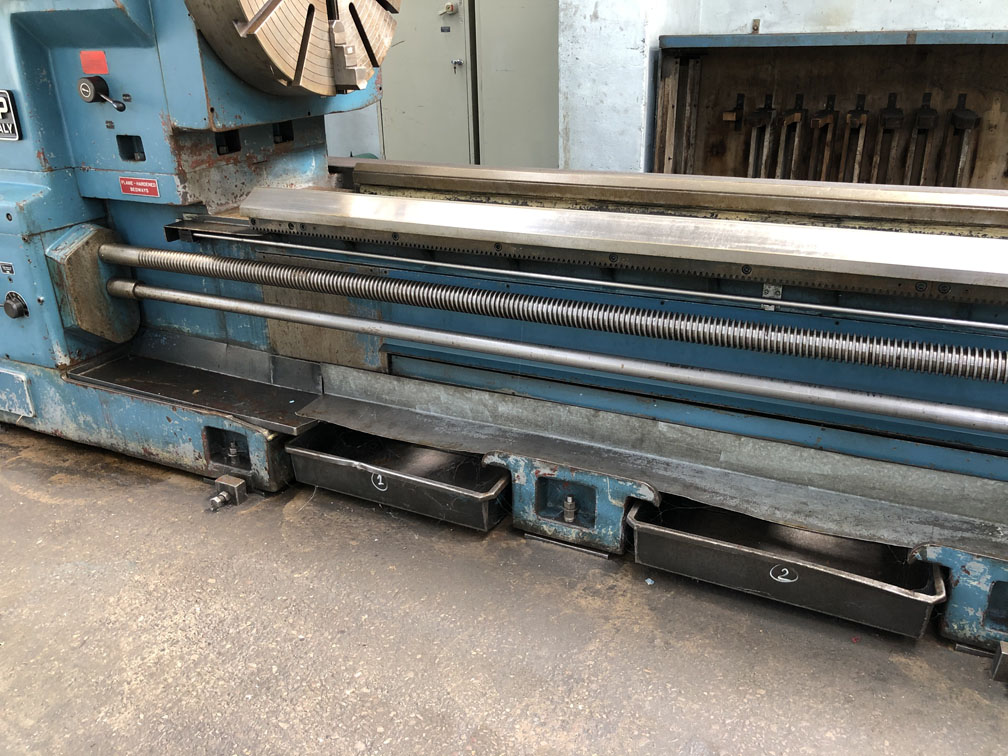

Machine overall dimensions 10320mm long x 2560mm wide x 2370mm high. Approximate weight 25 Tons

DISCONNECTION & LOADING CHARGE TO SUITABLE FLATBED/OPEN TOP TRANSPORT £3,000

PLEASE SEE ATTACHED LOADING CHARGES & CONDITIONS
