Description

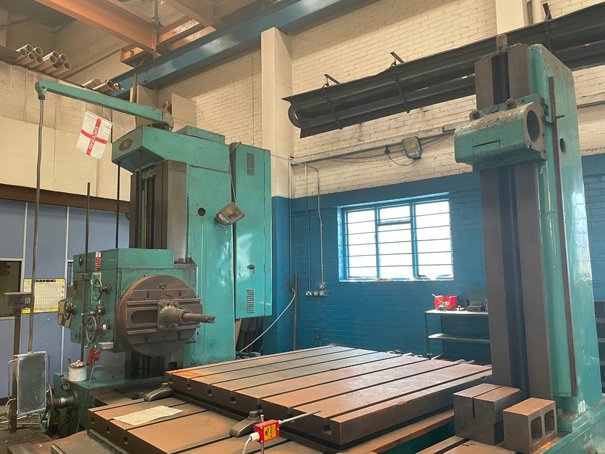

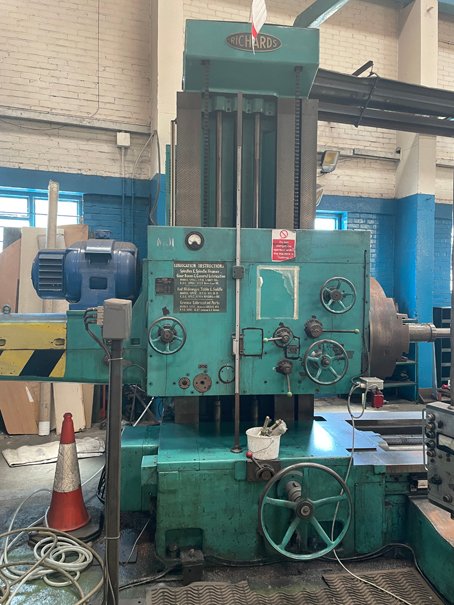

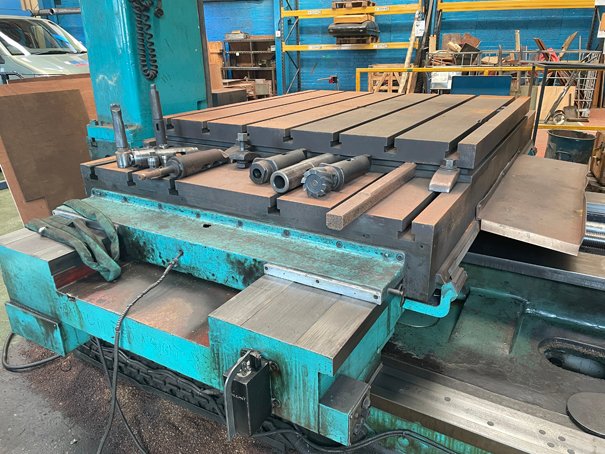

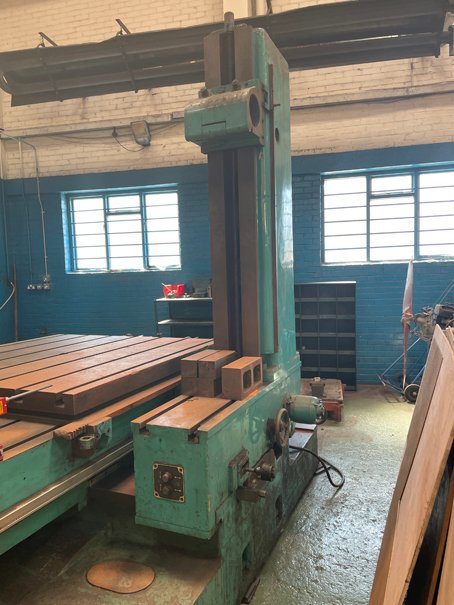

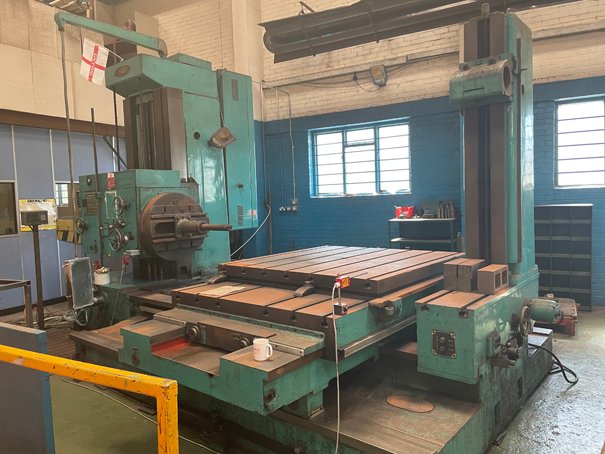

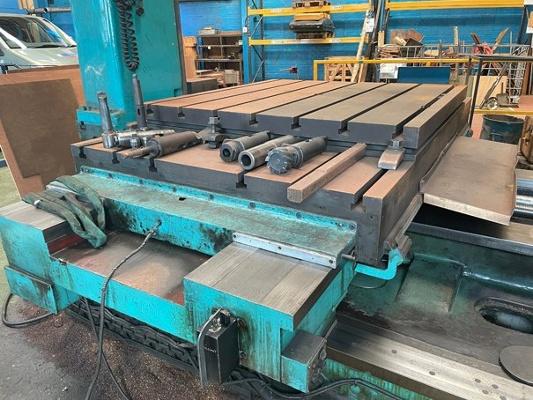

Main Table Size 96" x 60". Top Table Size 60" x 60". Spindle dia. 5". Spindle taper 7 Morse Taper. Spindle travel 36". Vertical Travel of Head 75". Longitudinal Travel of Table 84". Cross Travel of Table 84". Height of Spindle above Main Table (Min/Max) 5.1/2"/80.1/2". Spindle speeds 125 - 500 rpm. Facing Head & Spindle Combined 7 - 160 rpm. Rapid Traverses - Spindle Frame Vertical & Tables Long & Cross 35"/minute. Traversing Spindle & Facing Slide (Radial) 20"/minute. Maximum facing Capacity 54". Maximim Distance from Facing Slide to Outer Boring Steady 153". Total Weight of Machine 37 Tons
