This lot has been archived
Description
Max wheel diameter 300 mm. Gear width 170 mm.Module (Min)0.5. (Max) 5. Max clamping length: 420 mm
Max angle of teeth 45 degrees. Slide stroke 200 mm. Helical lead (Min)200 mm. (Max) 6000 mm. Max diameter of grinding wheel 350 mm. Max width of grinding wheel 84 mm.Total power requirement: 9 kW

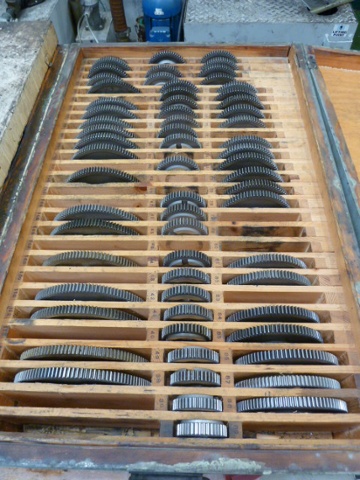

Machine complete with coolant/filtration tank. Change Gears. Balancing Equipment. Electrical Cabinet. Guarding.
Serial No. 81181-25
Approx weight 4500 kgs
Machine & accessories will be loaded free of charge to flat bed transport or Eurotailer (sliding top).
Containers can be loaded for £500 per container
