This lot has been archived
Description
Max. Gear With/Without Bracket 200 / 250 mm. Module 2.5 / 3. Hobbing Length 160 mm.Max. Length Of Workpiece 300 mm. Table dia. 150 mm. Table Bore 55 mm. Hob Carriage -Swivel 180 °. Hob Size dia. 65mm X 90 mm
Hob Shifting, Max. 90 mm. Hob Spindle Speeds 140 – 450 rpm. Feed Range, Axial 0.25 – 3 mm/rev. Feed Range, Radial 0.16 – 0.96 mm/rev. Feed Range, Tangential 0.065 – 0.785 mm/rev. Change Gears.

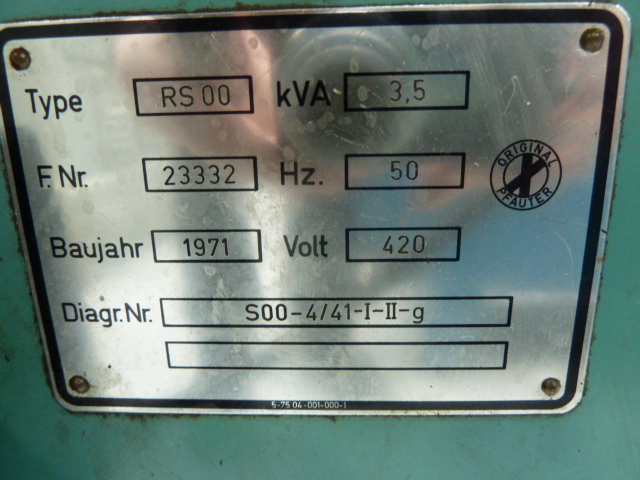

Serial No. 23332. Year 1971.
Machine & accessories will be loaded free of charge to flat bed transport or Eurotailer (sliding top).
Containers can be loaded for £500 per container
Other information
Please read the terms & conditions before you bid on this item.
