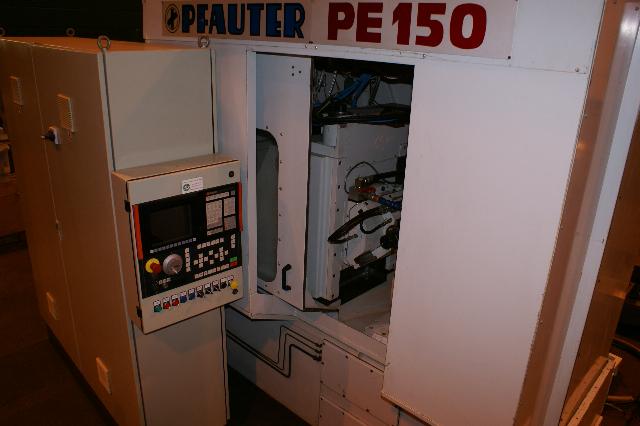

Lot 1: Pfauter PE150 CNC Gear Hobbing Machine with NUM 1060 Control.Year 1986.Rebuilt/Retrofitted 2002
This lot has been archived
Description

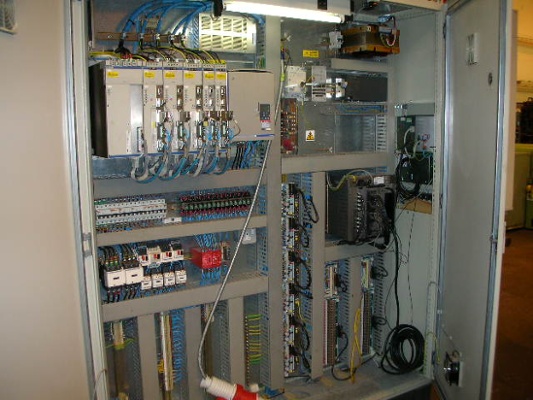

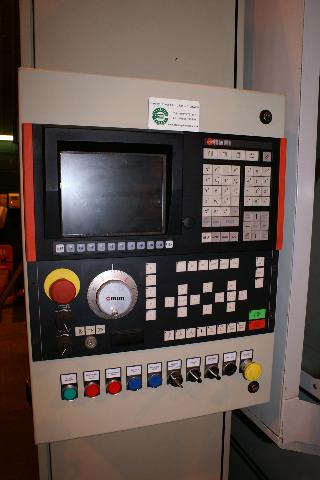

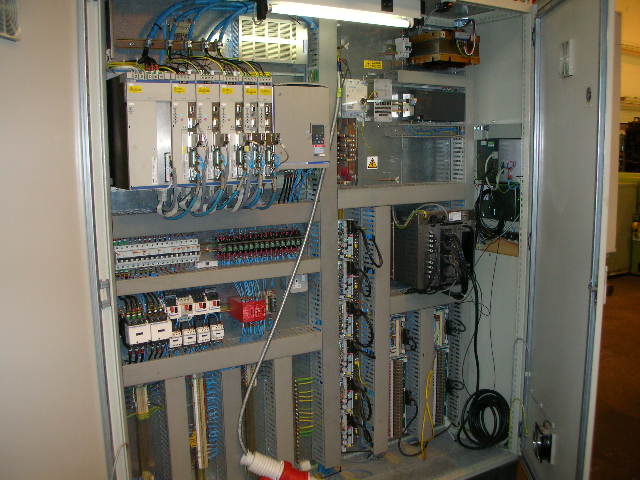

Table dia. 160mm.Table bore dia. 63mm.Table speeds 1‐80 rpm. Maximum Workpiece dia. 150mm.Maximum Module 3.Maximum DP 8. Maximum hob dia. 130mm.Maximum hob length 220mm. Minimum/Maximum centre distance between hob & workpiece 0‐ 160mm.Taper for hob arbors 40 ISO.Maximum hob shift 170mm. Maximum hob head swivel angle +/‐ 45 degrees.Hob speed 150‐600 rpm.Table speed 1‐40 rpm.Feeds - Axial/Radial/Tangential 0-1500mm/min.Rapid traverses Axial/Radial/Tangential 3000mm/min.Hob Drive 7.5Kw.Total power requirement 50 Kva.CNC System NUM1060. Drives NUM.

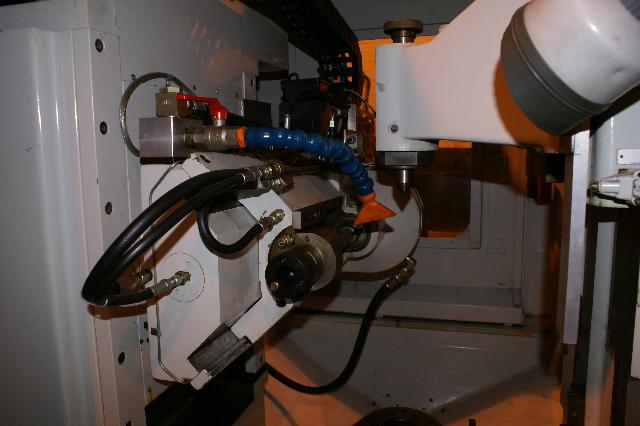

Axes under control are as follows :- Hob Spindle.Work Spindle.Radial Feed.Axial Feed.Tangential Feed/Hob Shift.Hob Swivel.

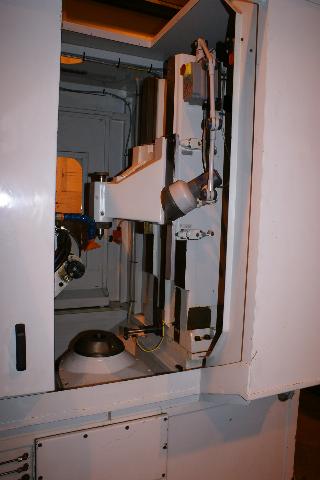

Machine equipped with totally enclosed guards, swarf conveyor, Filtermist, programming manuals, operators manuals.
Weight of machine 6000 kgs.
Length 205".Width 148".Height 118"
Machine complete with Filtermist & Hob Arbor.
