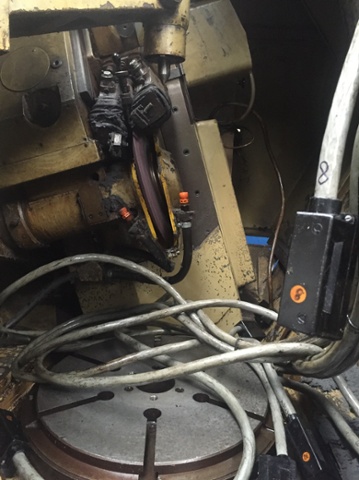

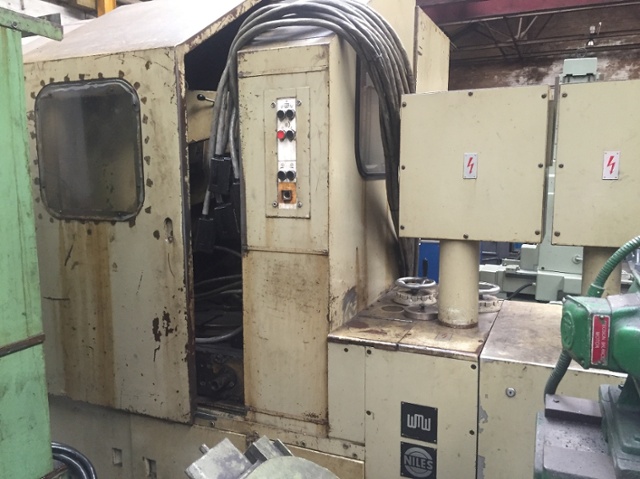

Lot 72: NILES ZSTC630 2P Gear Grinding Machine

Table dia. 500mm. Max 630 mm, Min 50 mm, Number of teeth 10 – 140, Max pitch 12 Module, Helix angle 45°, Max face width 160 mm, Max length of stroke 170 mm, Range of double strokes 75 - 350 per min, (Ram strokes stepless adjustable), Max weight of work piece 400 kg, Wheel size:- Max 350 mm, Min 270 mm, Wheel speed 1690 rpm, Motor Total Connected load 8Kw, Electrics 380-3-50, Complete With: Crowning Facility, Dresser, Tail Stock Removable, Wheel Arbour, Change Gears, Totally Enclosed Guarding, Coolant Supply.

LOCATED AT PARK WORKS, CLEGG STREET, BOLTON, BL2 6BL

PLEASE NOTE

THIS ITEM CAN BE LOADED FREE OF CHARGE TO A FLAT VEHICLE OR STANDARD EUROTRAILER.
