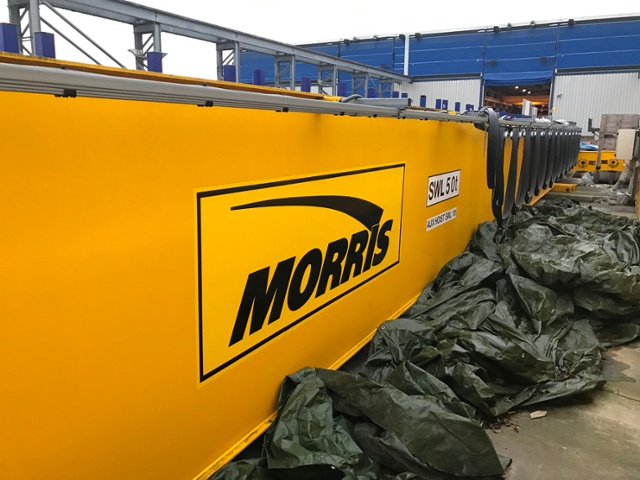

Lot 1: MORRIS 8 wheeled 4-S4 Double Girder Overhead Crane. 50Ton/10Ton Capacity. Year 2008

Safe Working Load of Bridge 50 Tonnes. Main/Auxiliary Hoist 50/10 Tonnes. Span 14 metres. Height of Lift 9.99 metres. Crane Construction Classification A4. Crane weight 12,770 kgs. Wheel load (maximum with full load) 136.6 kN. Hoisting speed (50 Ton) 3.2/0.5m/min 2 x 15/2.5kW 60% ED Dual Speed. Hoisting Speed (10 Ton) 5/0.83 m/min 9/1.4 kW 60% ED Dual Speed. Cross Traverse Speed 5 to 20 m/min 2 x 1.50 kW 40% ED Variable inverter. Mobile Pendant Control. Current Supply 400 Volts, 3 Phase, 50 hZ. Enviroment Indoors (5 to + 40 degrees C. Pain Specification IPQR26 RAL 1003.

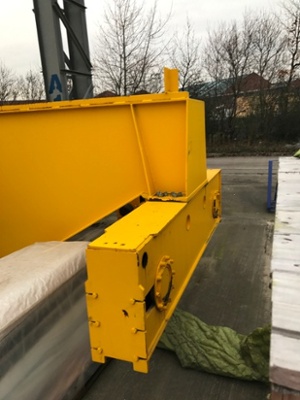

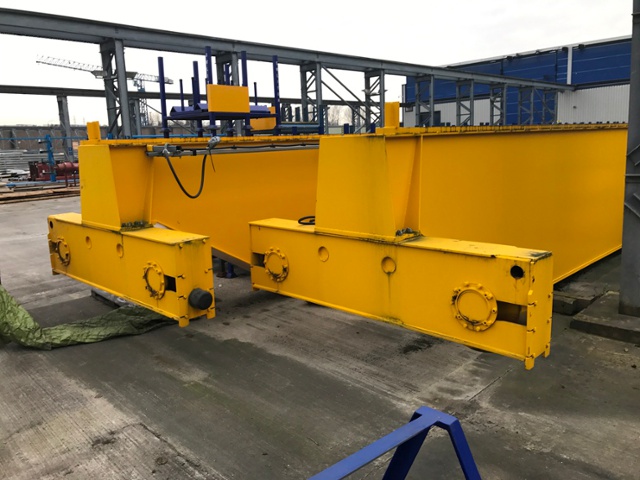

Crane has been partially dismantled and is lying on the floor in storage in Leeds.
