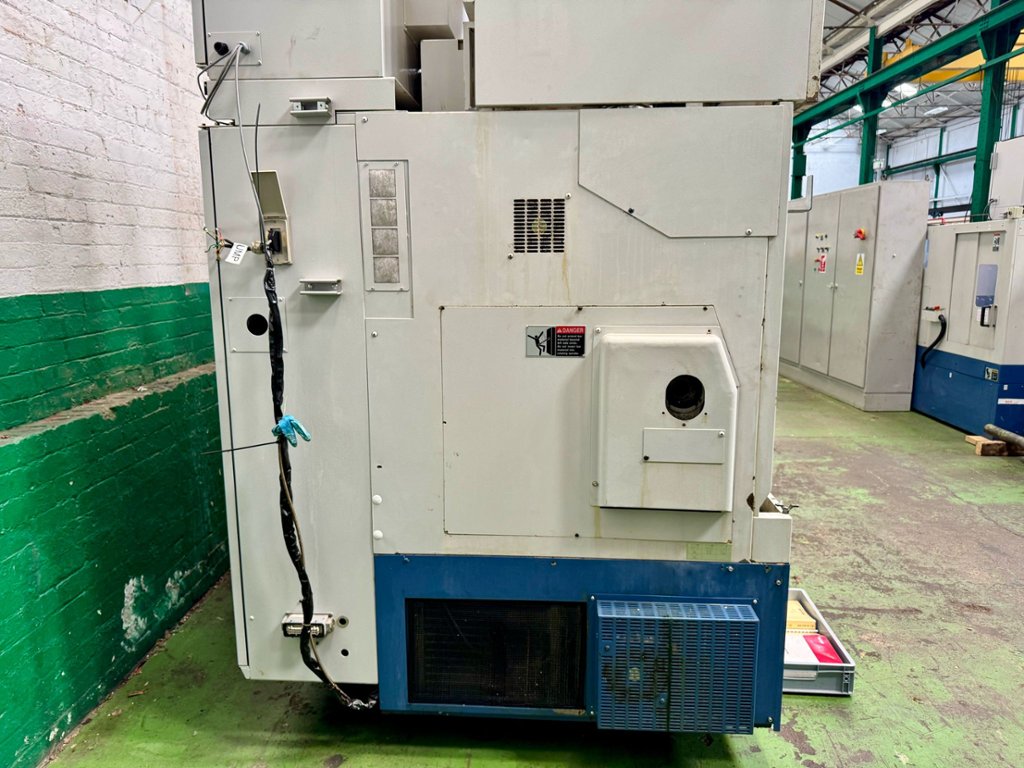

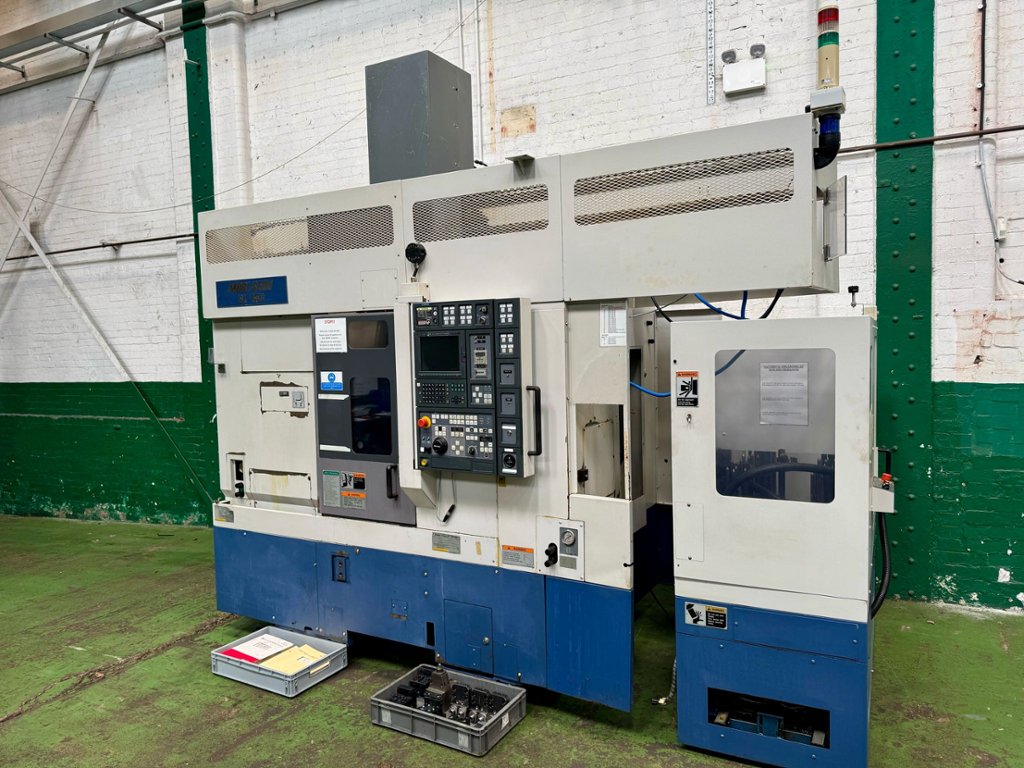

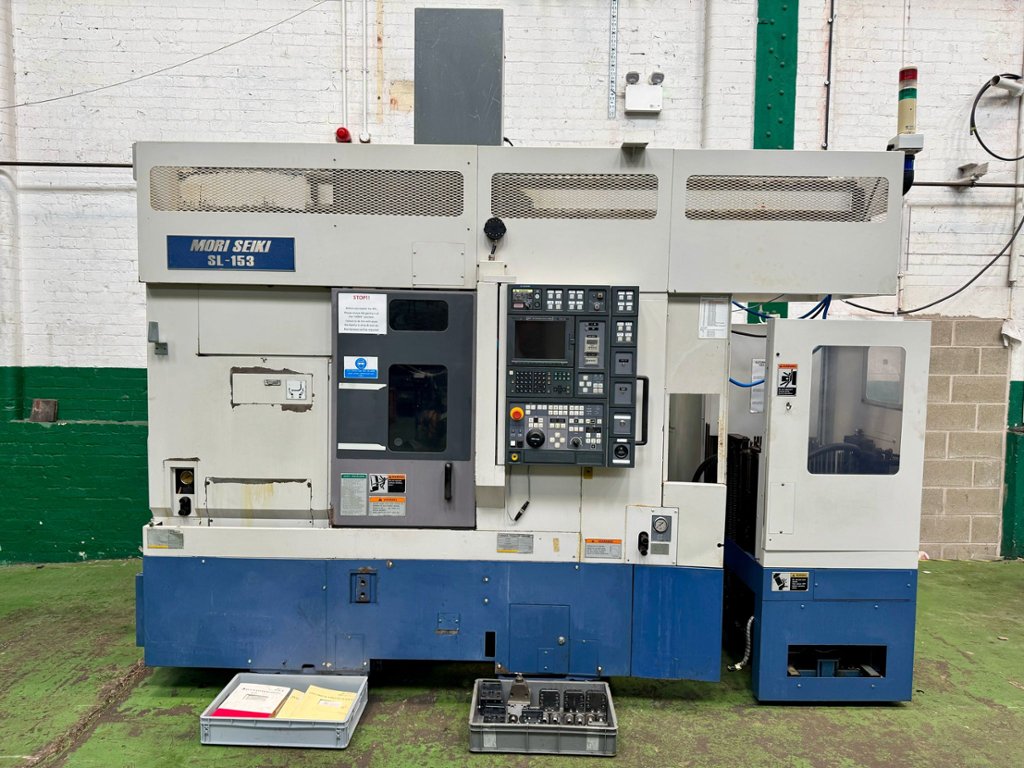

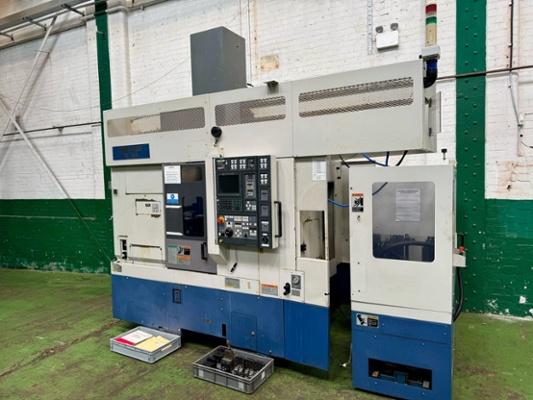

Lot 2: MORI SEIKI SL-153SY 5 Axis CNC Lathe with Sub Spindle, Barfeed, Gantry Loader and Stacking Unit Fanuc MSG 501 Control. Year 2001
Description

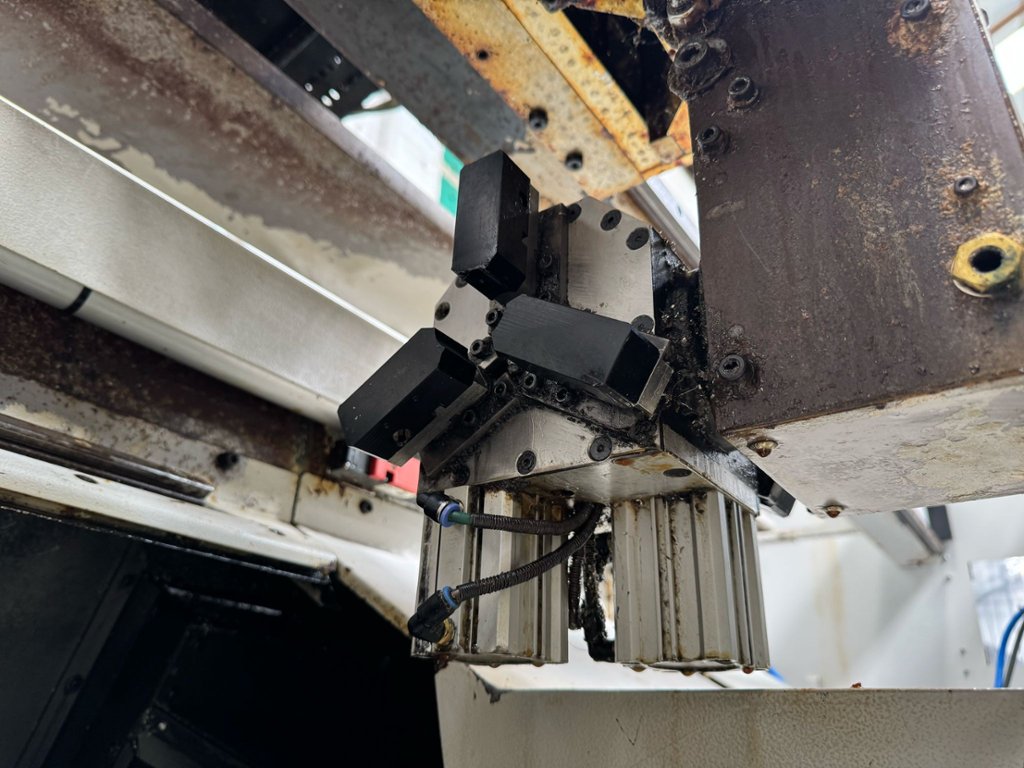

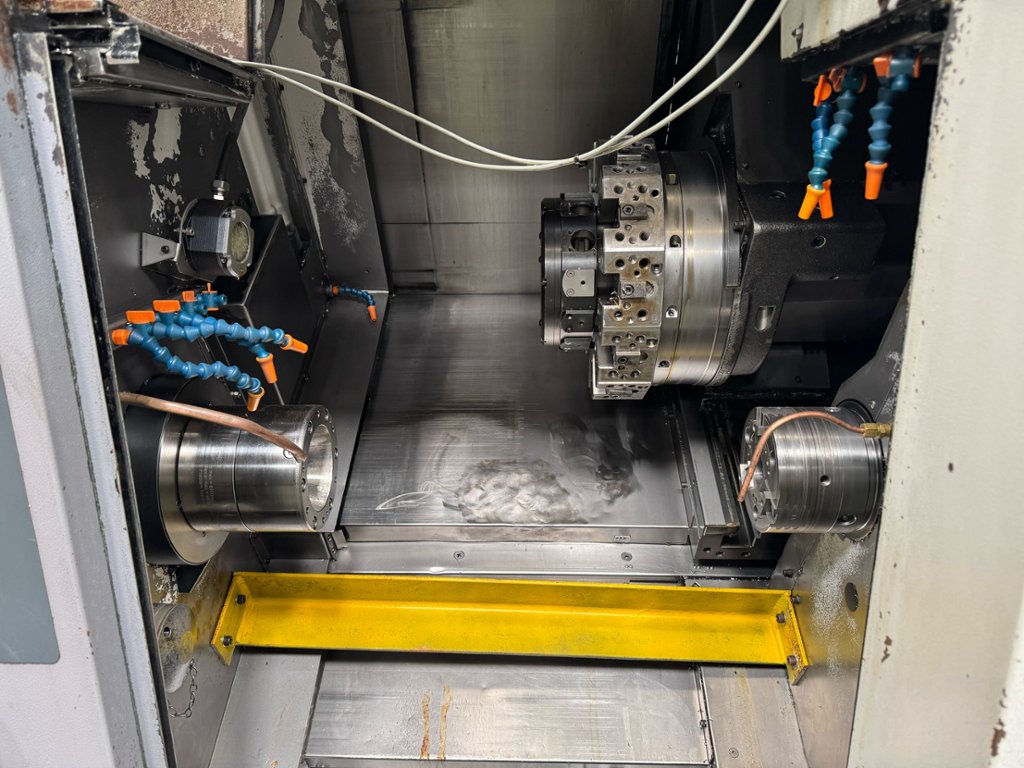

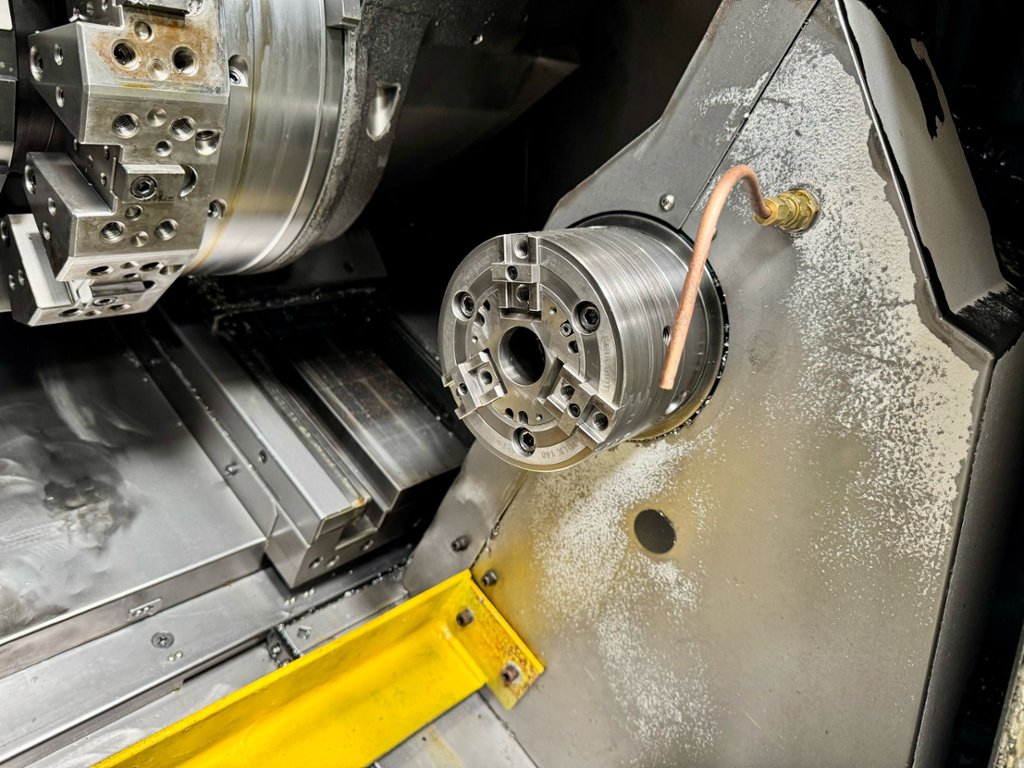

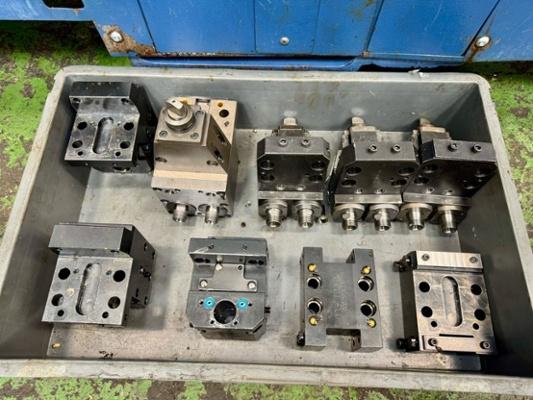

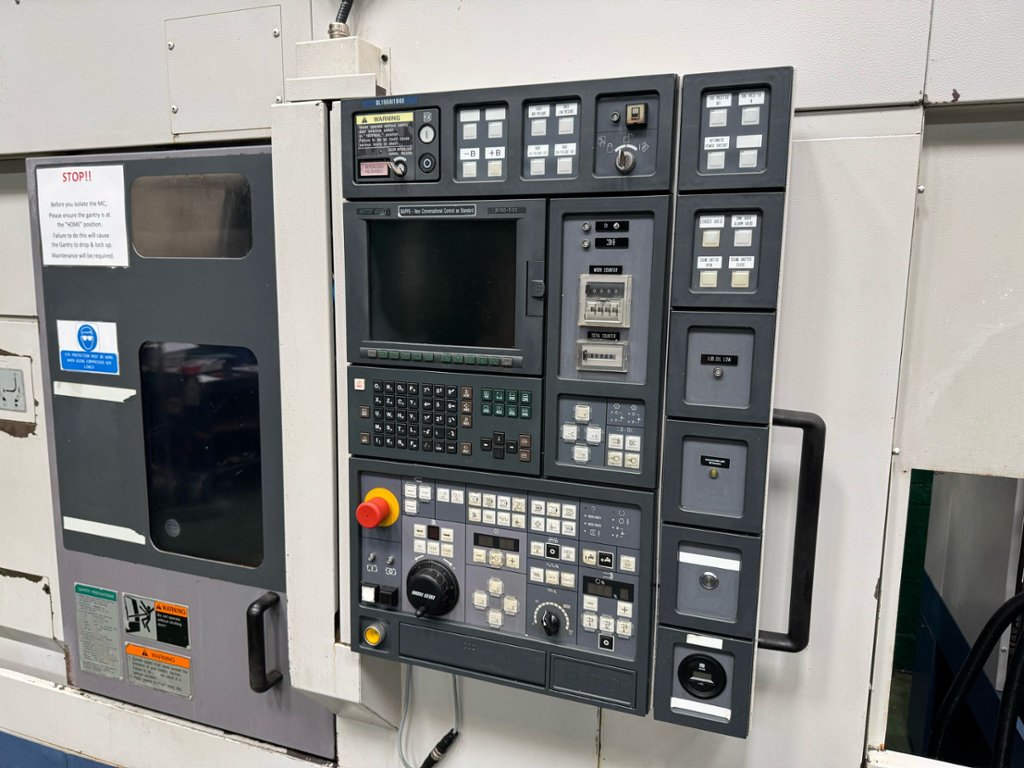

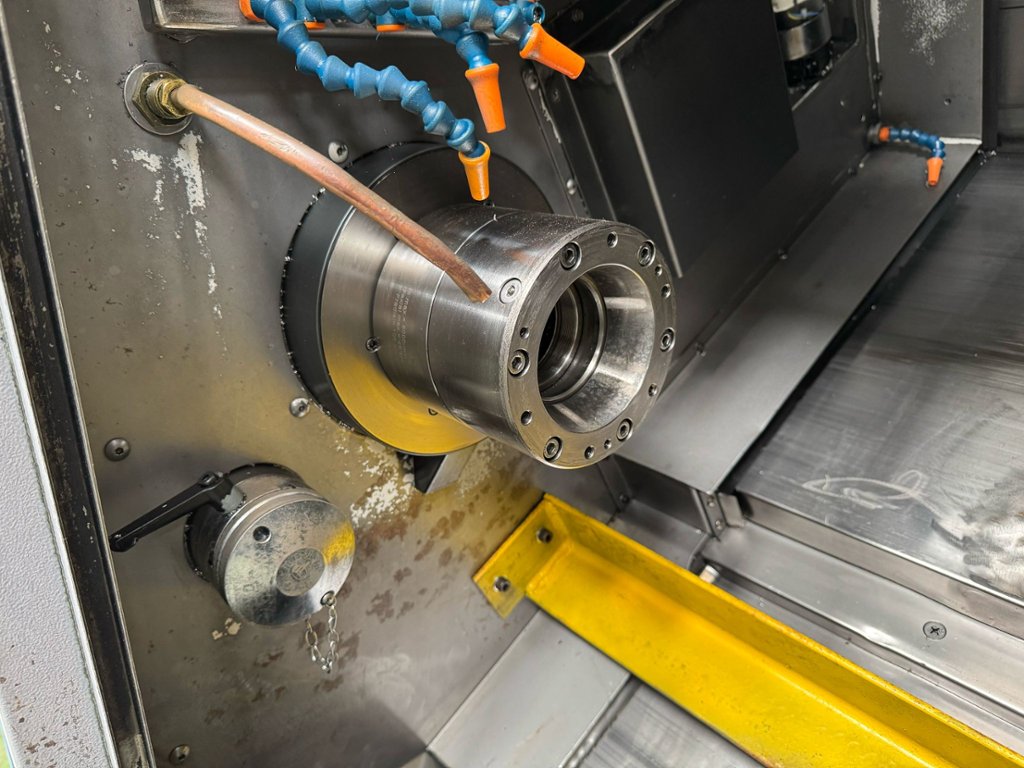

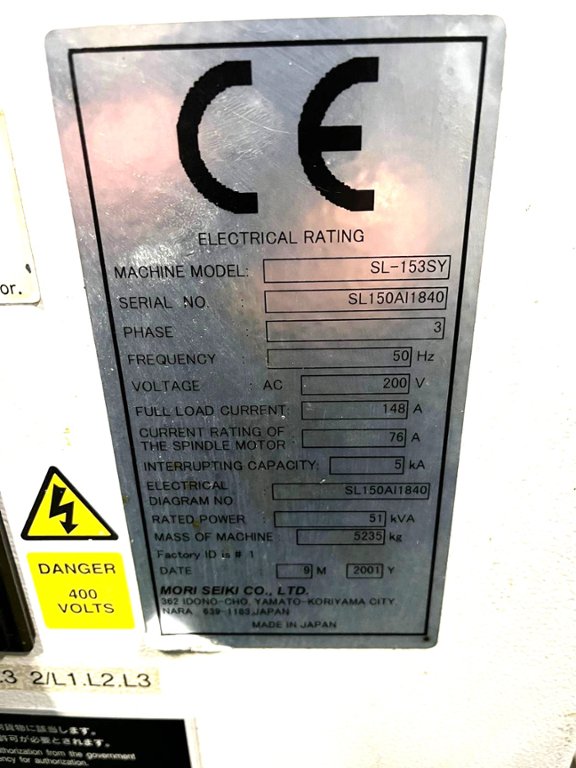

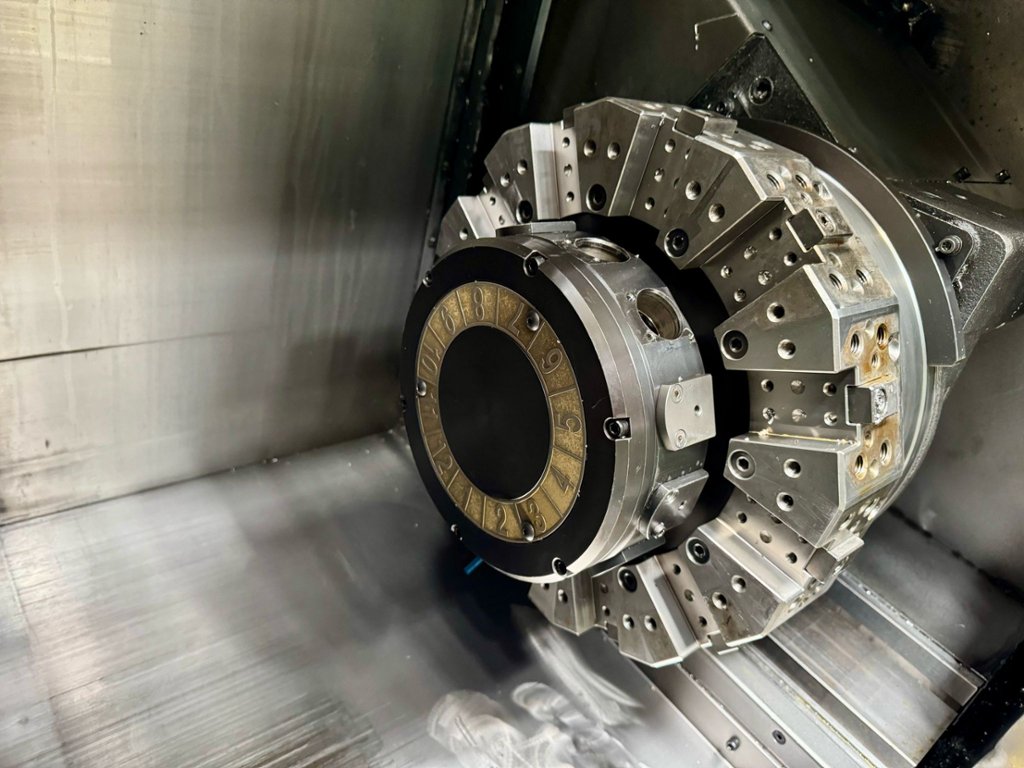

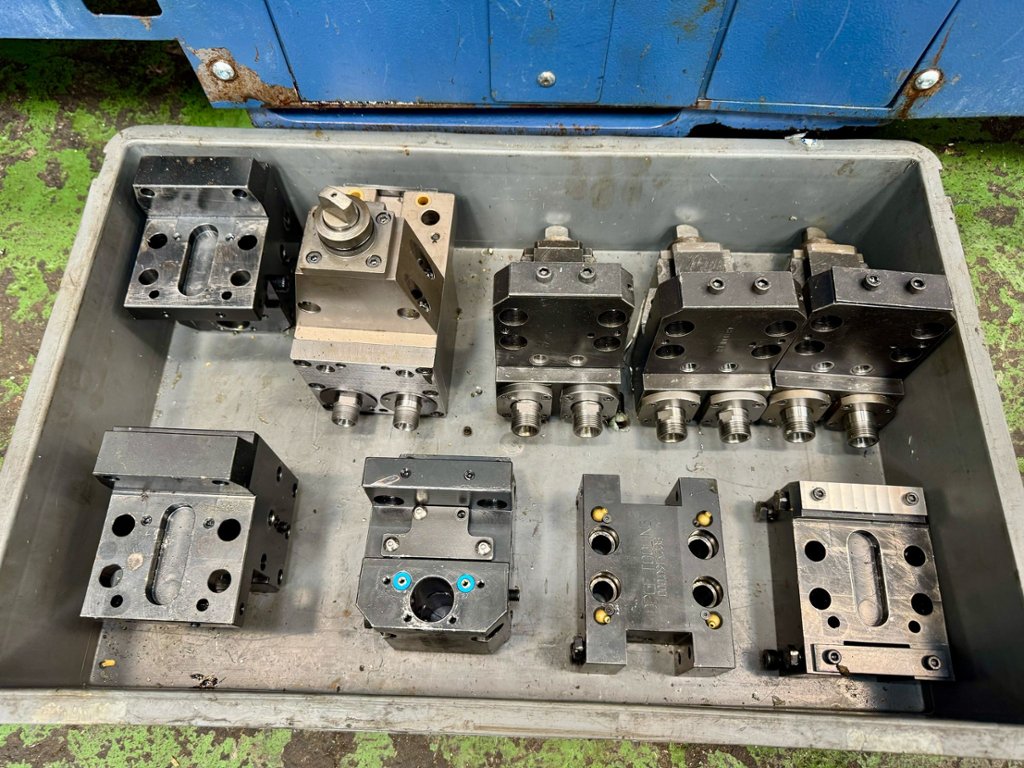

Main spindle nose A2-5 fitted with HAINBUCH SRANNTOR Collet Chuck. Spindle power 7.5 kW. Spindle speeds to 5000 rpm. Max. bar diameter 56mm. Maximum turning dia. 300mm.C axis indexing precision 0.001 [°]. Sub spindle nose A2-5 fitted with FORKARDT 140mm dia. 3 Jaw Chuck. Spindle speeds to 5000 rpm. Max bar dia. 43mm. Max turning dia. 300mm. C axis indexing precision 0.001 [°]. Travel 520mm. Rapids 24m/min. Distance between Main spindle and sub spindle 750mm. Main turret no. of positions 12. Live turret no. of positions 12. Driven tool speeds 3000 rpm. Power of live tools 3.8 kW. X/Y travels 215mm/490mm. Y axis +40/-30 mm. Machine complete with LNS Quick Load Servo II Barfeed and Overhead Gantry. MSG – 501 (Fanuc) CNC Control. Swarf conveyor & component conveyor. Collet Chuck on main spindle. Forkardt 3 jaw chuck on sub spindle. Toolholders as lotted.Machine Serial No. SL150A11840. Year 2001
Overall dimensions: Overall Length including barfeed 5600mm. Overall width with rear swarf conveyor 3048mm. Height to the top of gantry loader 3048.
Barfeed dimensions L x W x H 2050mm x 1500mm x 1450mm,
