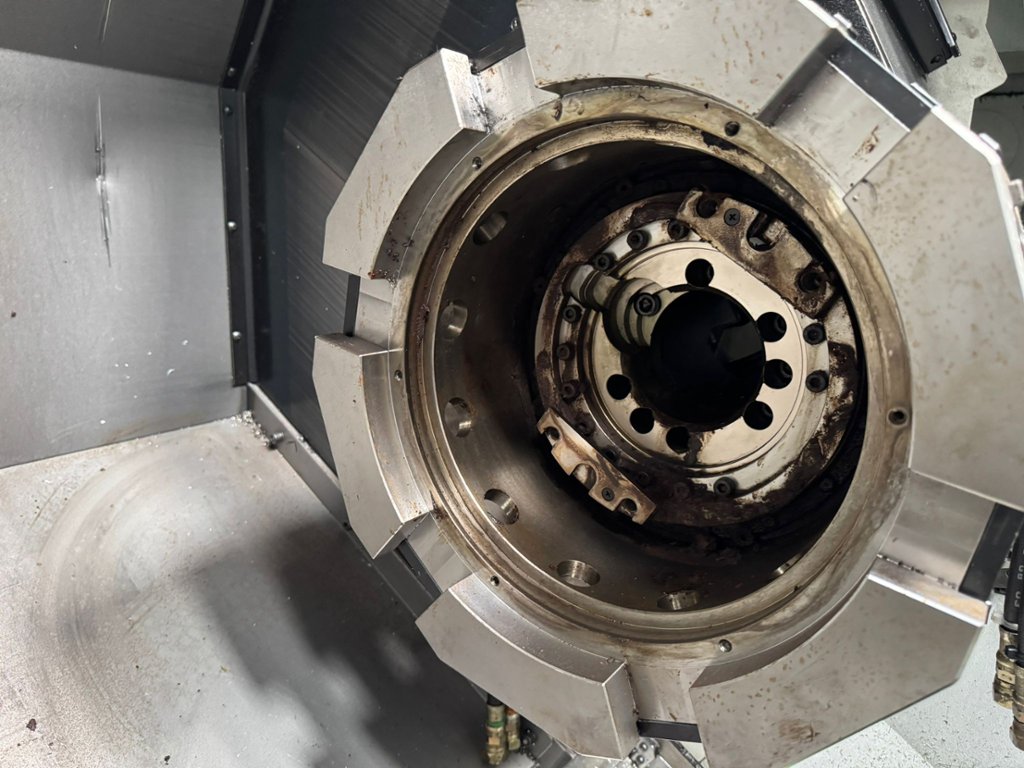

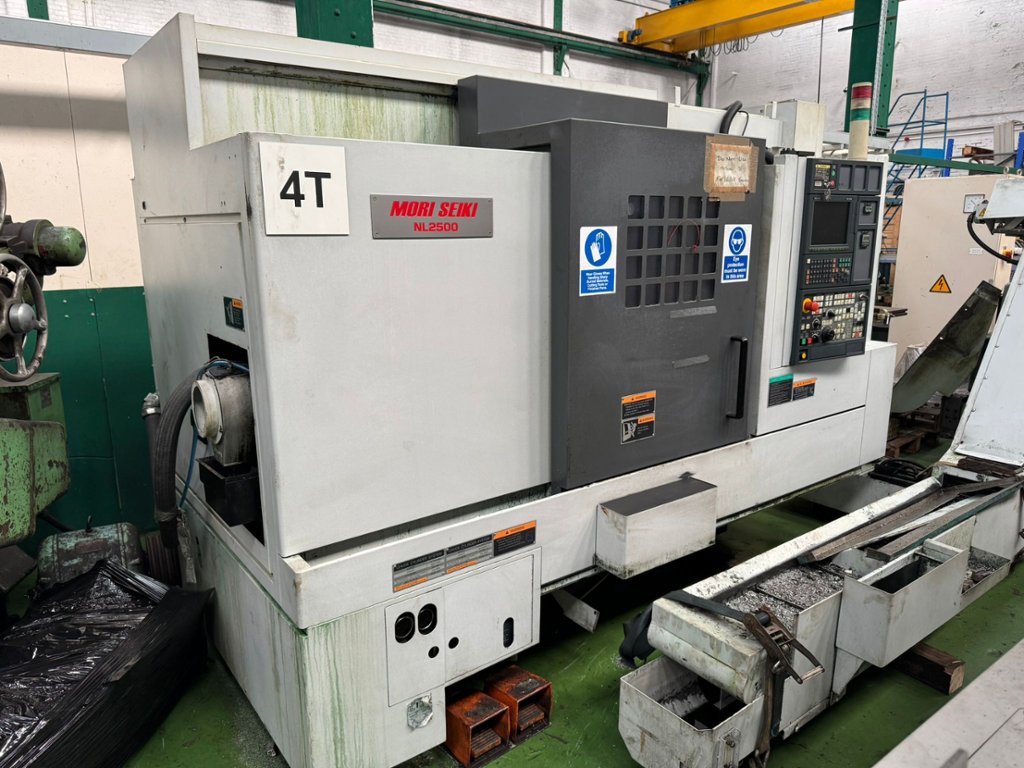

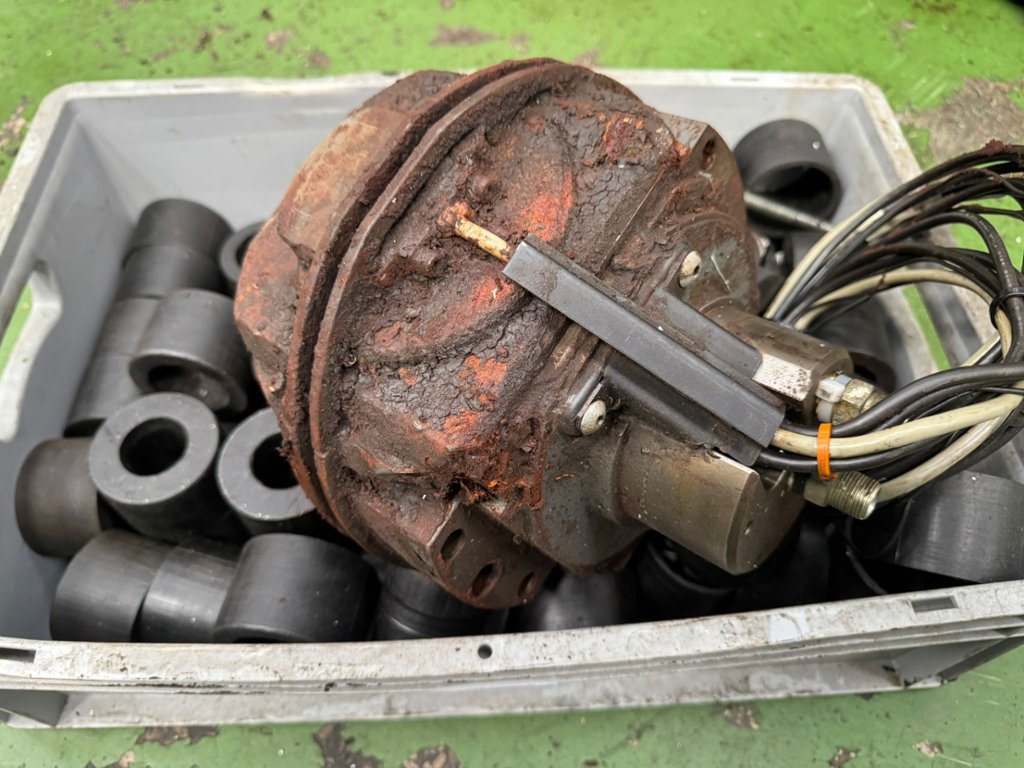

Lot 16: MORI SEIKI NL2500SY x 700mm Multi Tasking CNC Lathe. Sub spindle. Live Tooling. Y Axis. MSX-850BM MAPPS III Control. Year 2007. (Needs a Turret repair)
Description

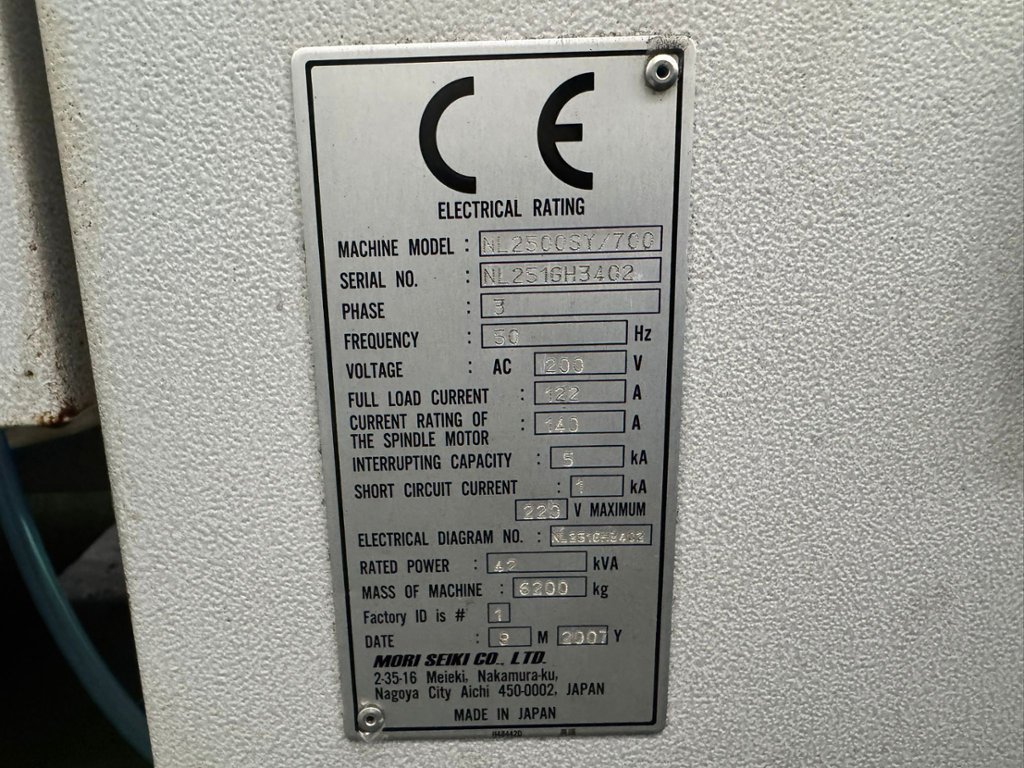

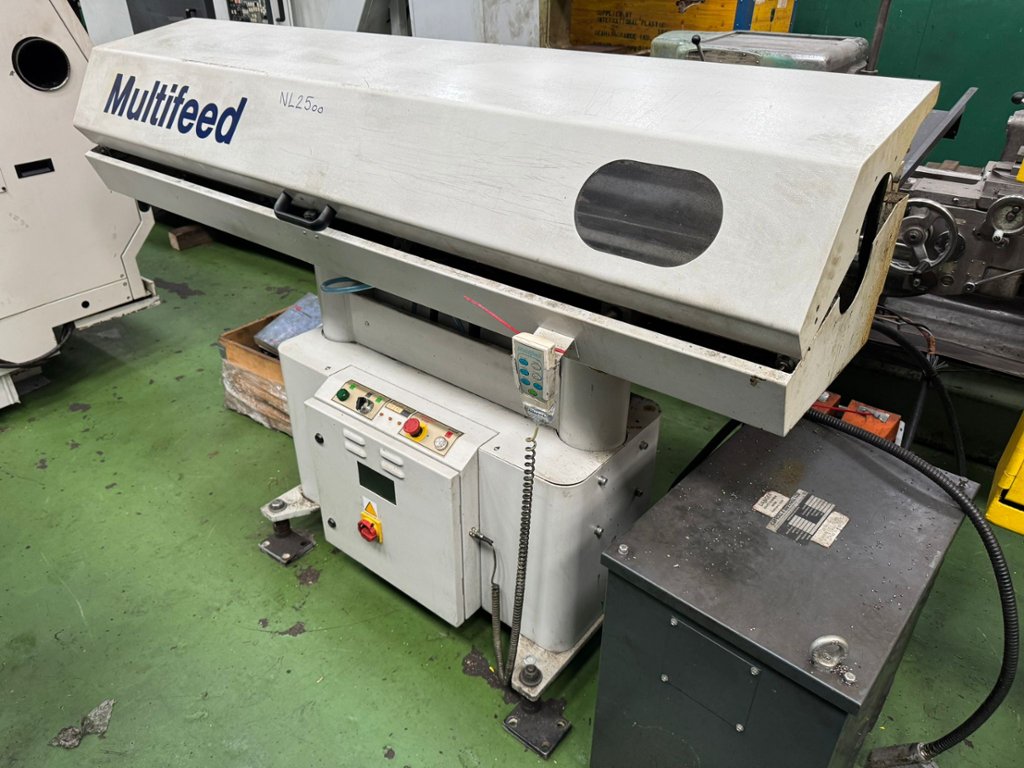

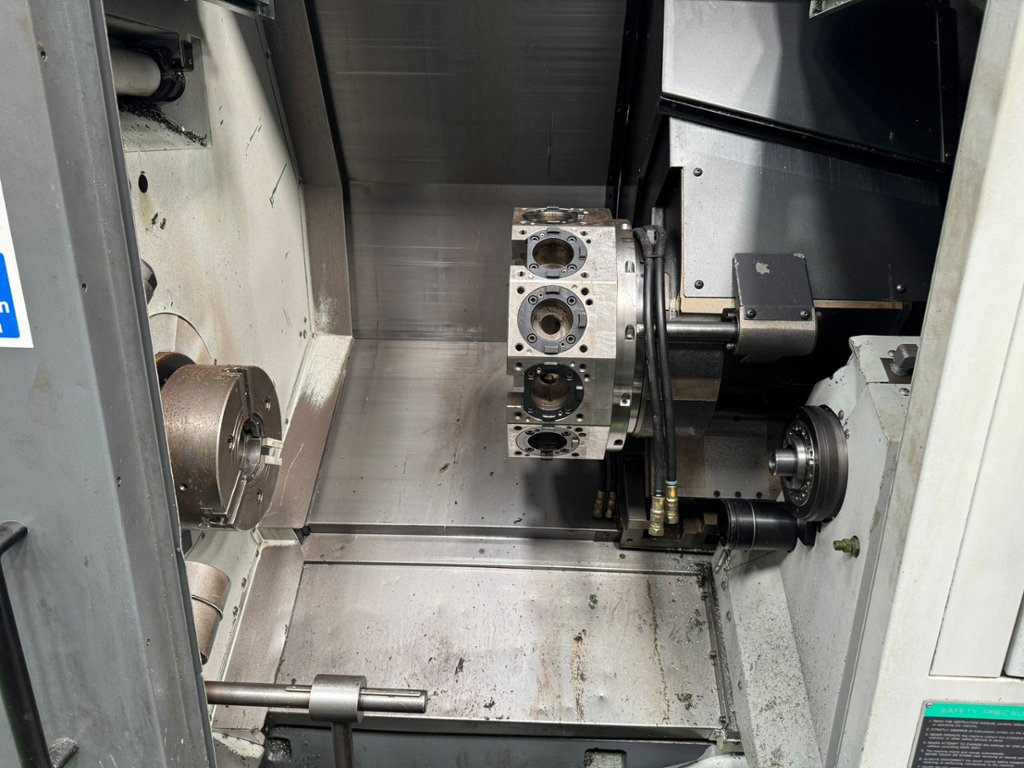

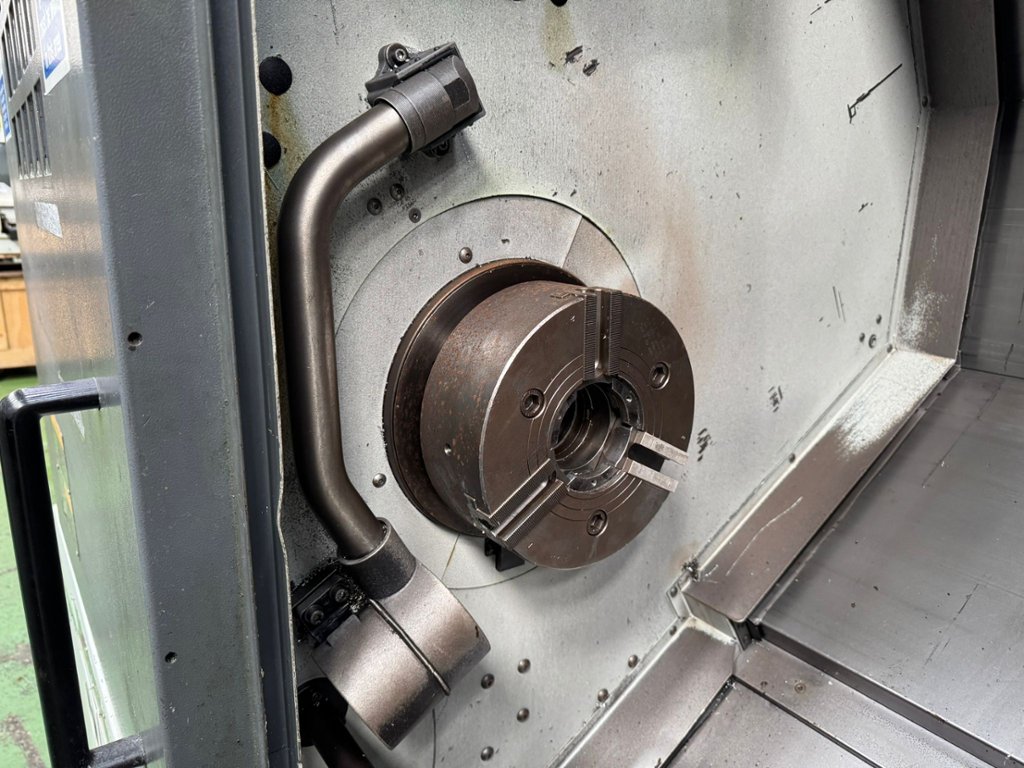

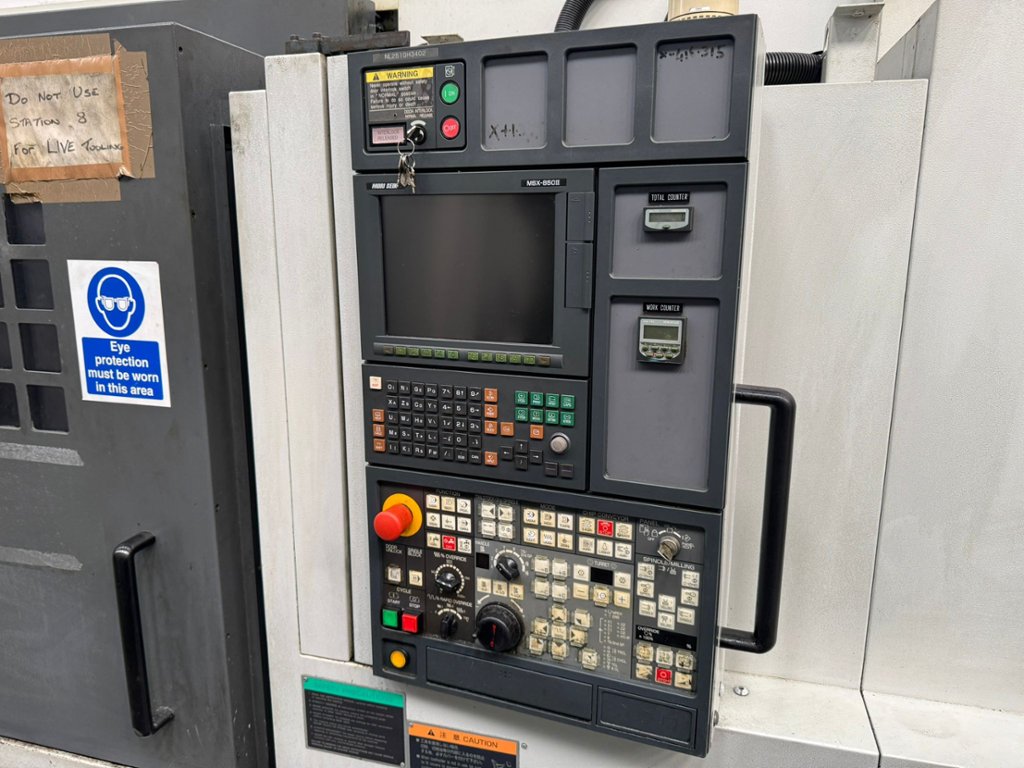

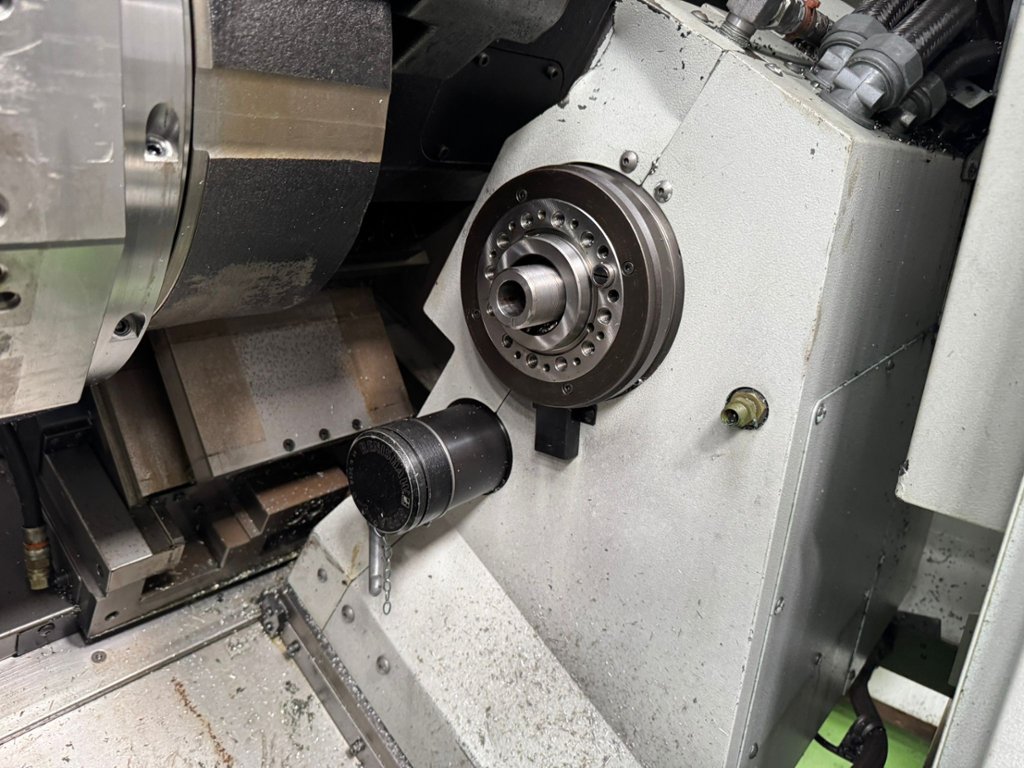

Main spindle: Spindle nose A2-8. Maximum turning dia. 366mm. Spindle speeds 4000 rpm. C Axis indexing 0.001°. Maximum bar capacity 80mm. Spindle power 18.5kW. Sub Spindle: Spindle nose A2-5. Maximum turning dia. 190mm. Spindle speeds 6000 rpm. C Axis indexing 0.001°. Maximum bar capacity 51mm. Spindle power 11kW. Travel 760mm. Turret: No.of positions 12. No of driven positions 12. X/Z stroke 260mm/795mm. Live tool speeds 6000 rpm. Live tools power 5.5 kW. Hydrafeed Multifeed arfeed MX-1B. Swarf conveyor. MSX-850BM MAPPS III Control. Serial No. NL251GH3402. Year 2007. - Machine dimensions: 4414mm x 2370mm x 2115 mm. Approximate weight 6200 kg.
