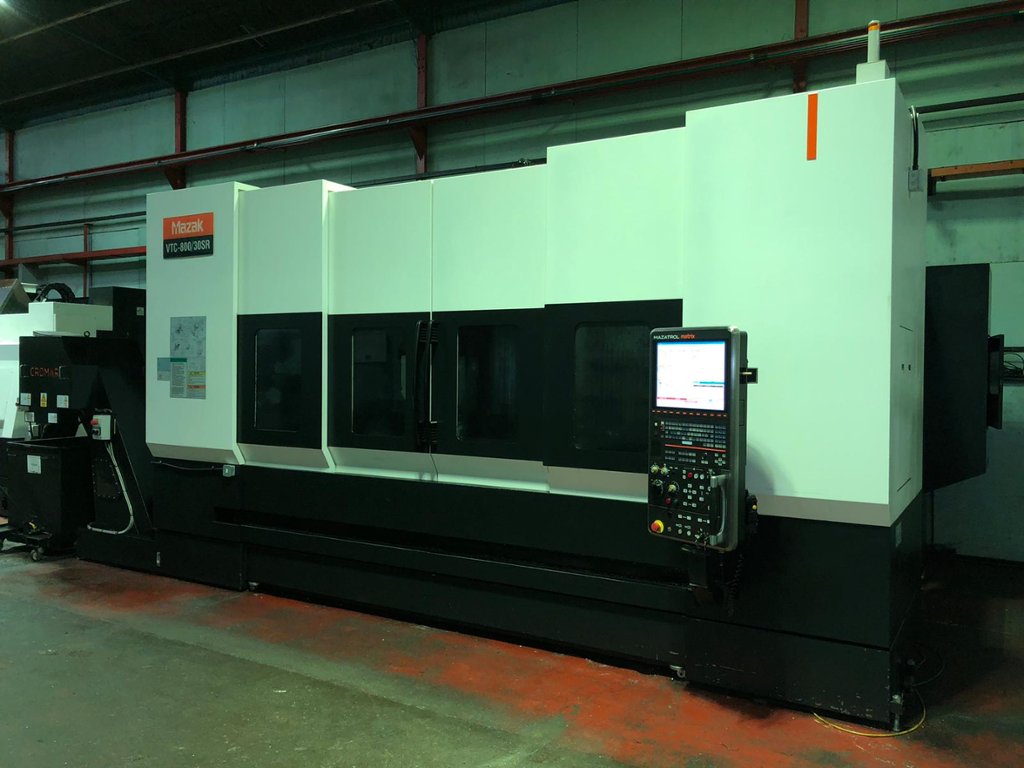

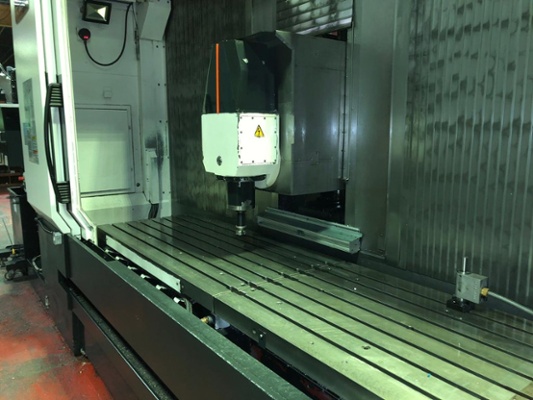

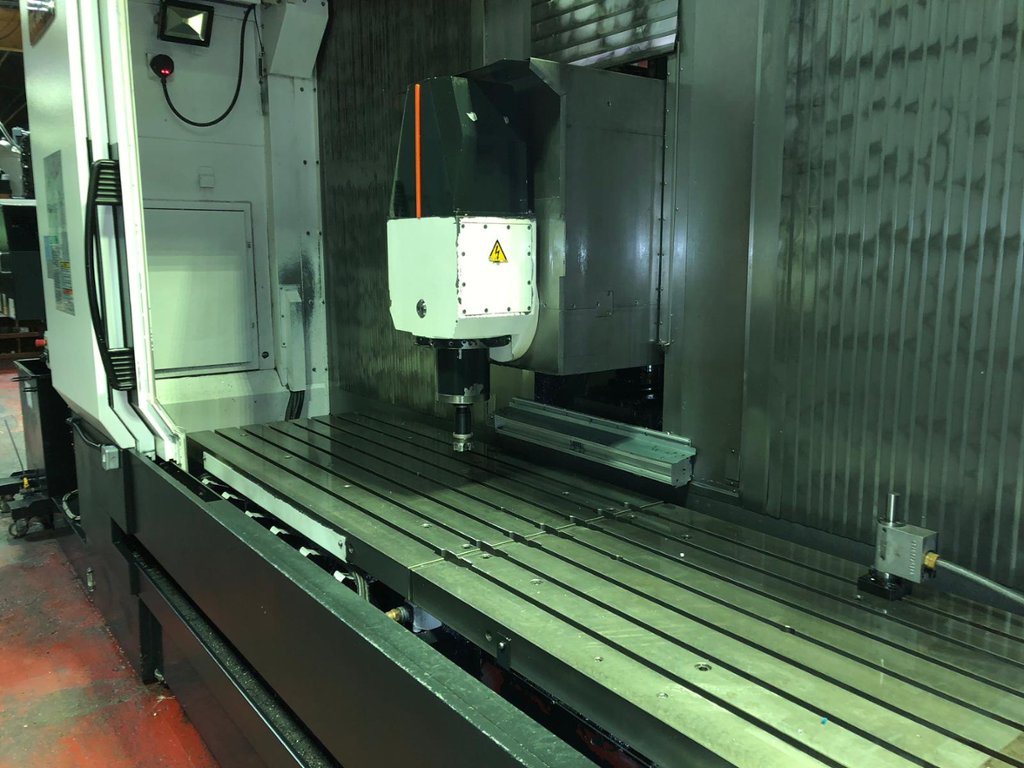

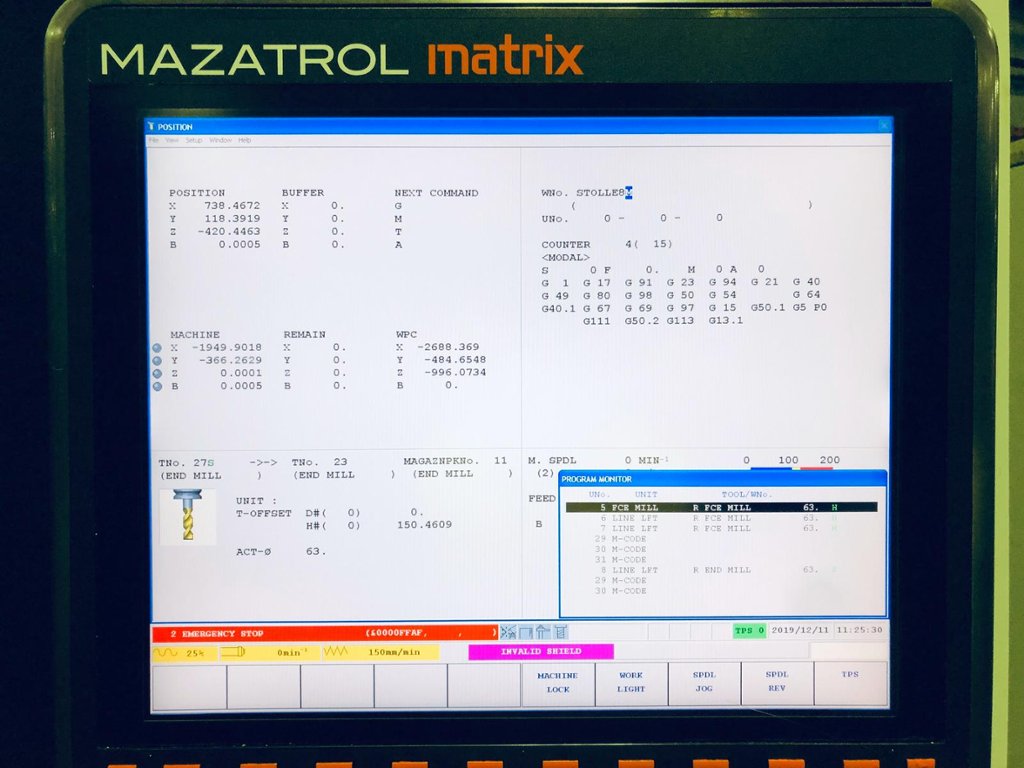

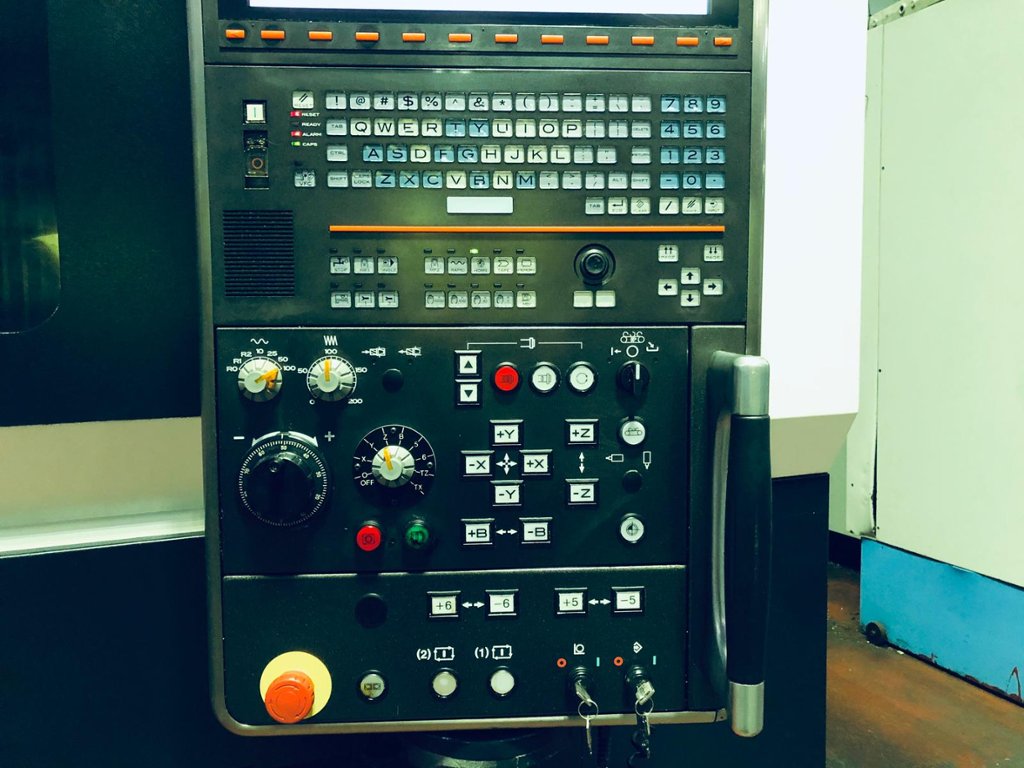

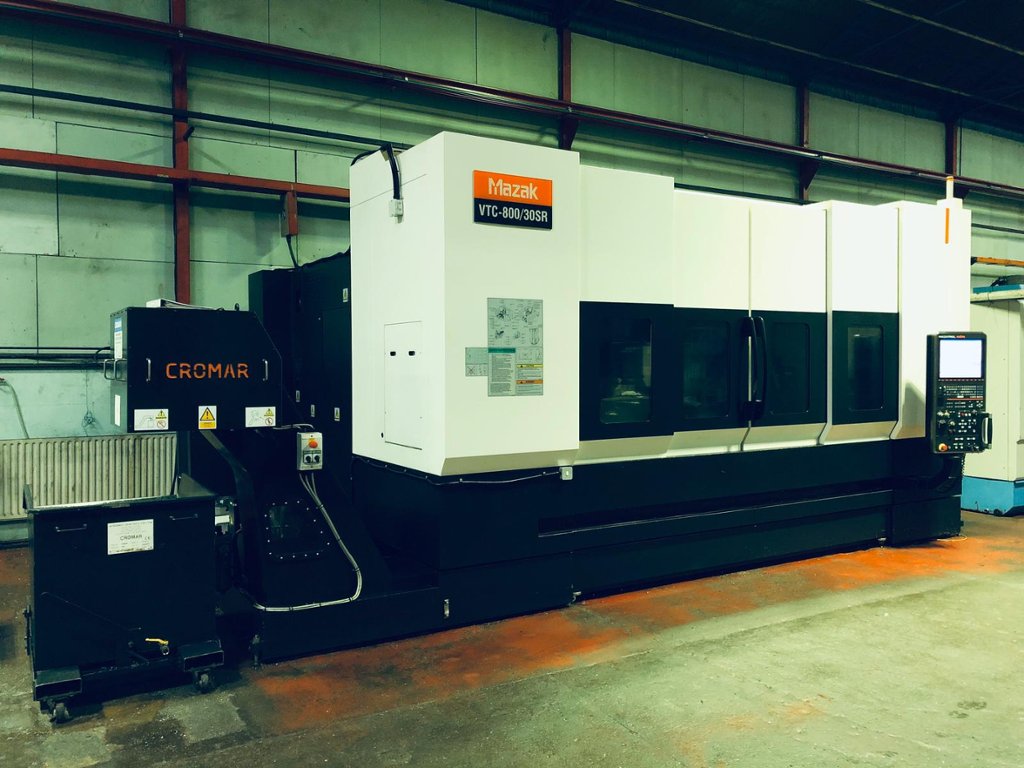

Lot 3: MAZAK VTC 800/30 SR 5 Axis Vertical Machining Centre. Mazatrol Matrix CNC Control. Year 2011

This lot is sold by private treaty

Description

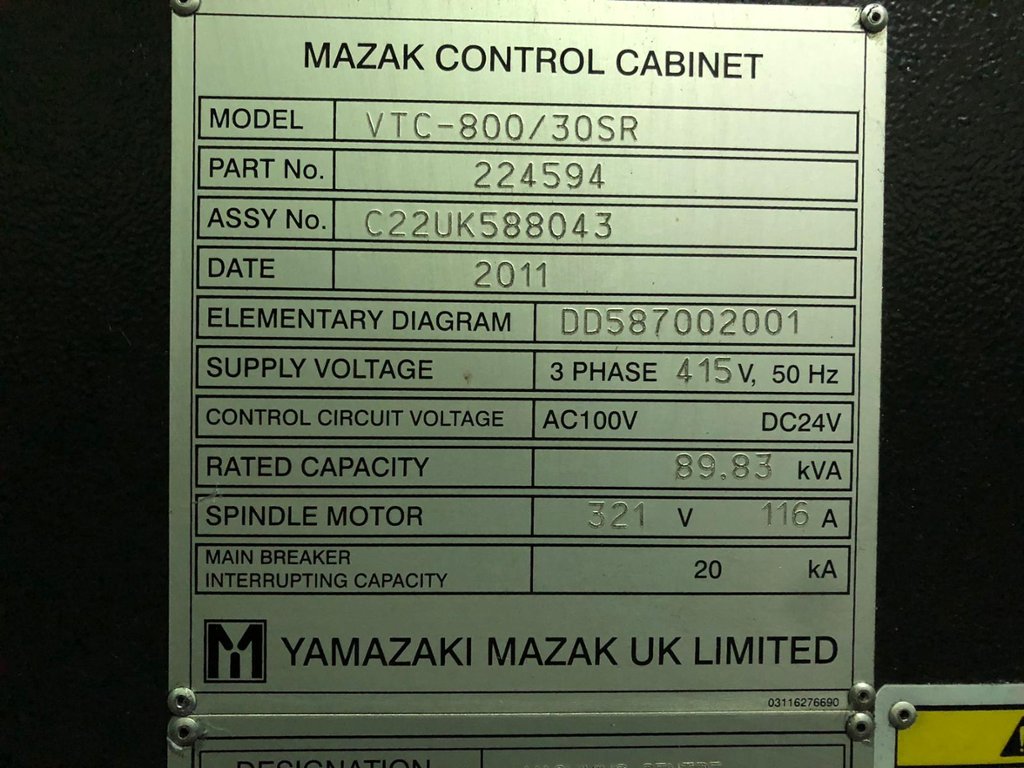

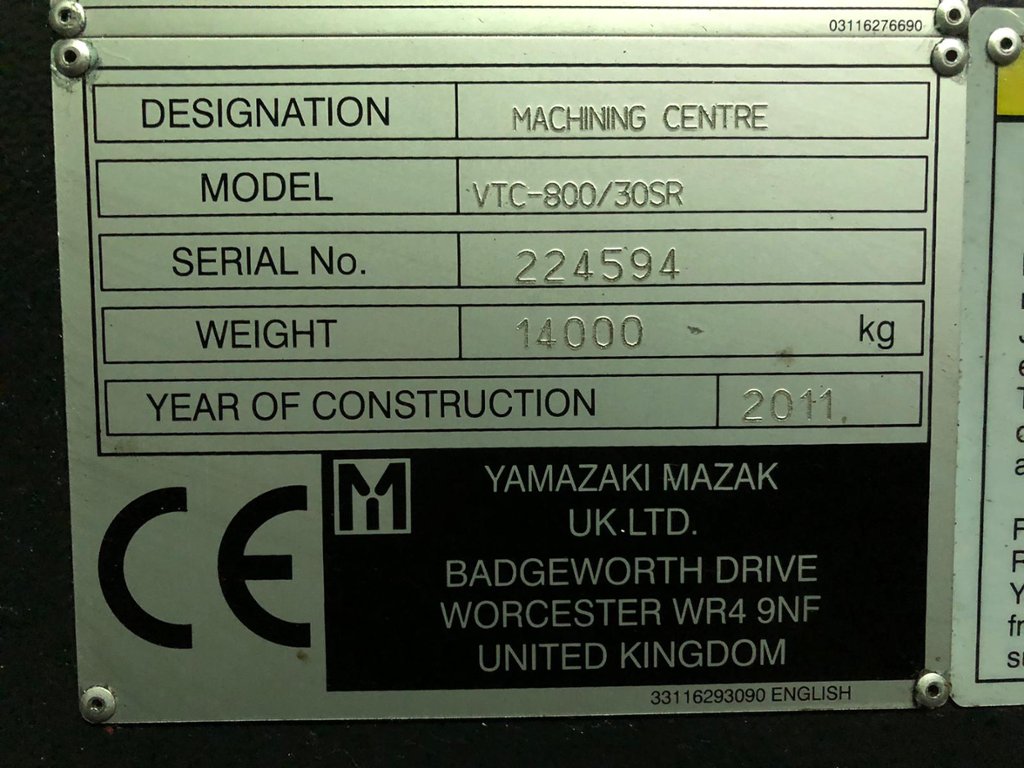

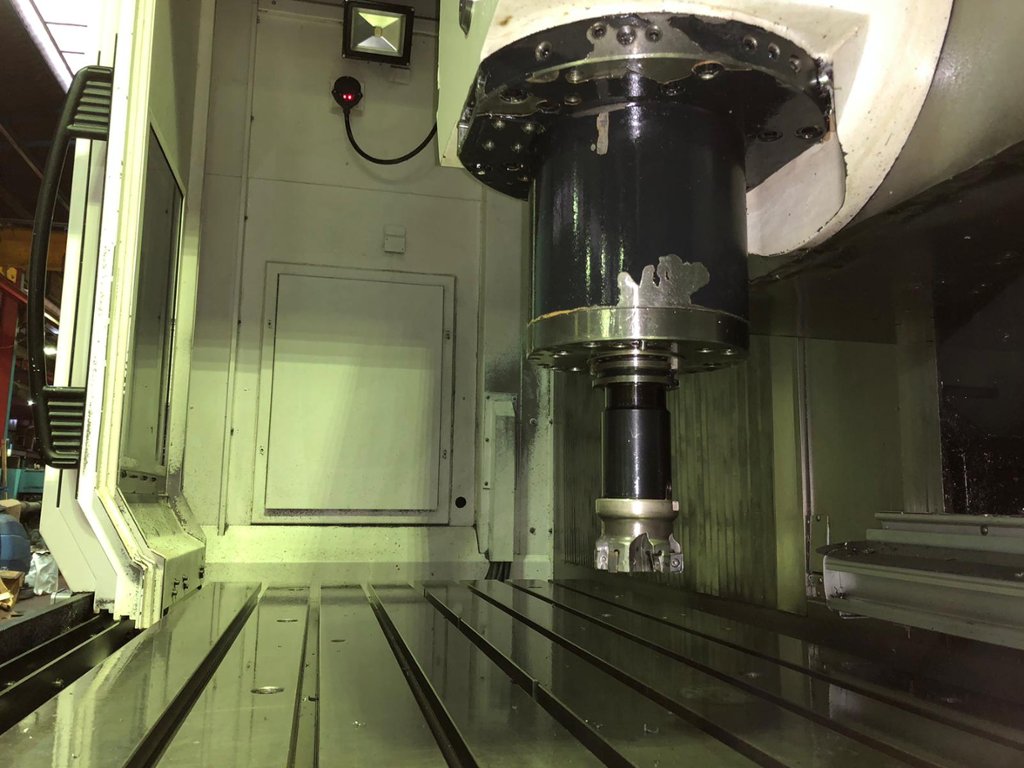

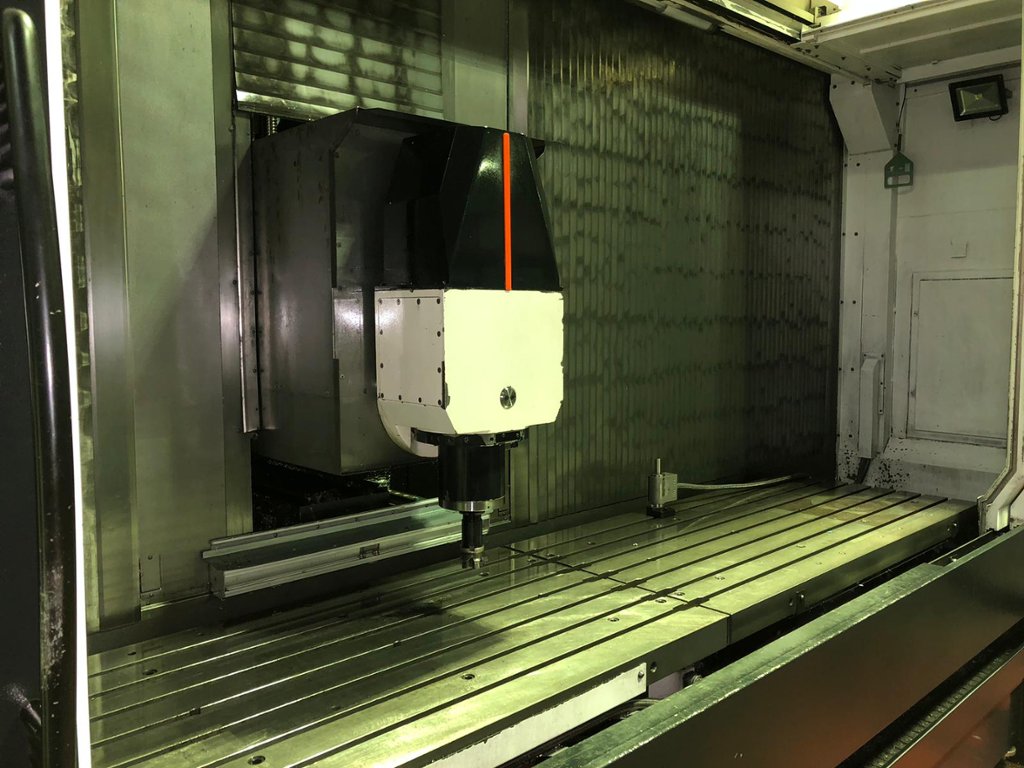

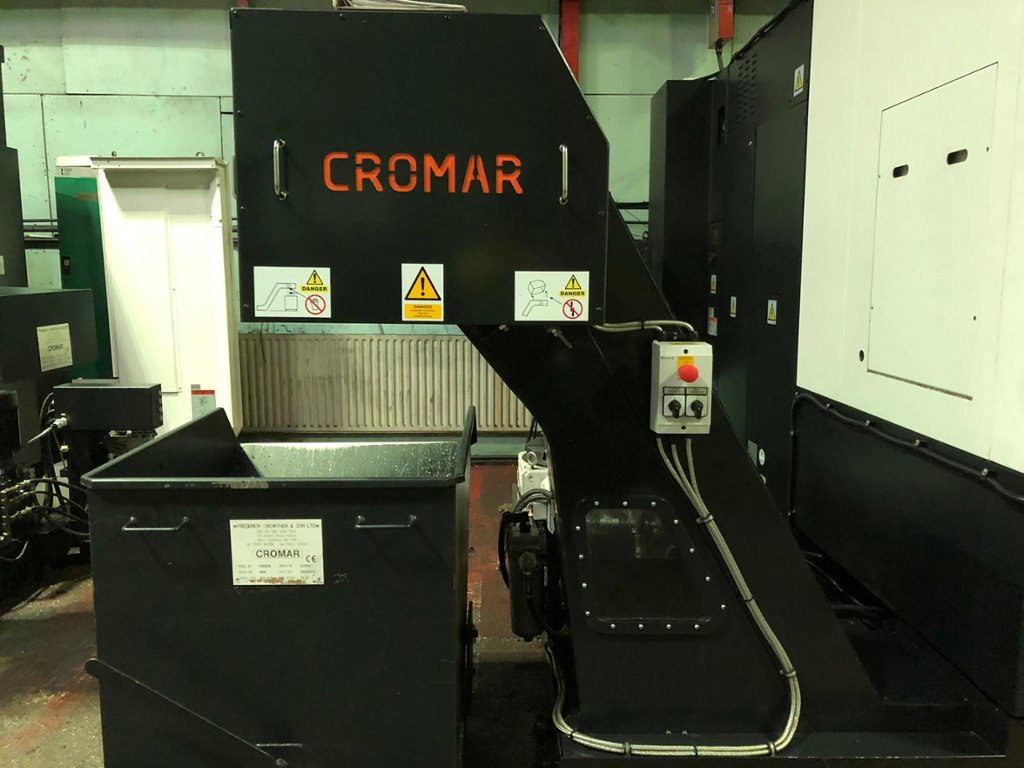

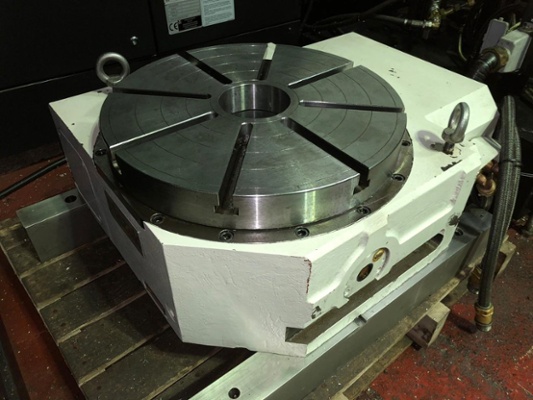

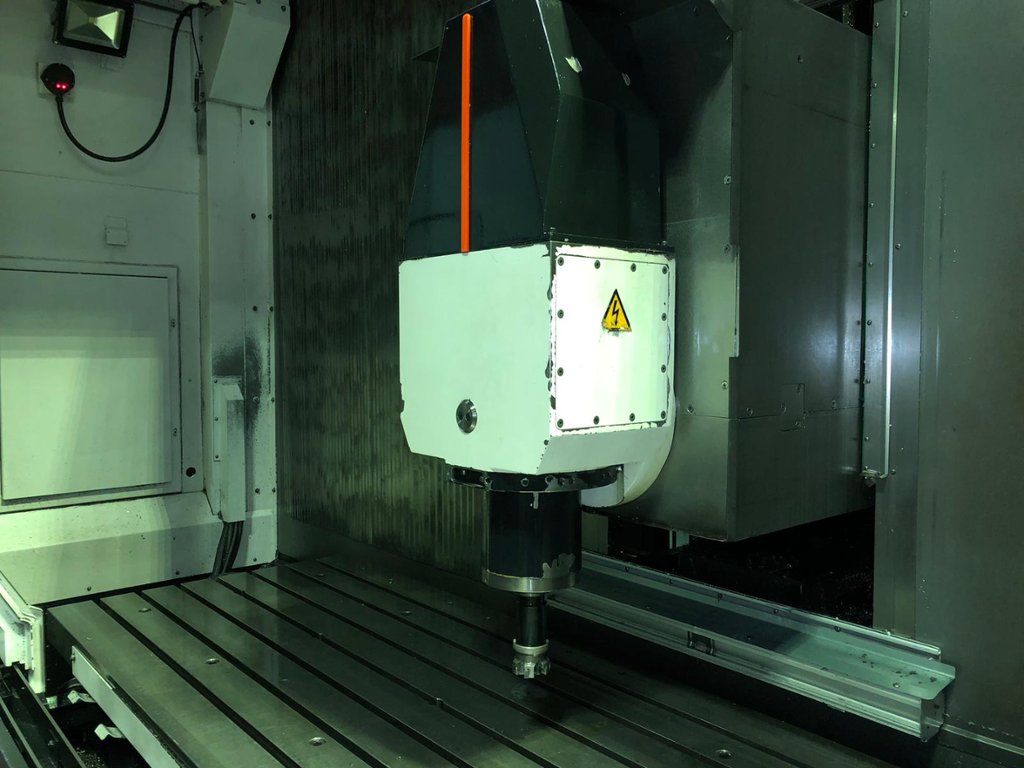

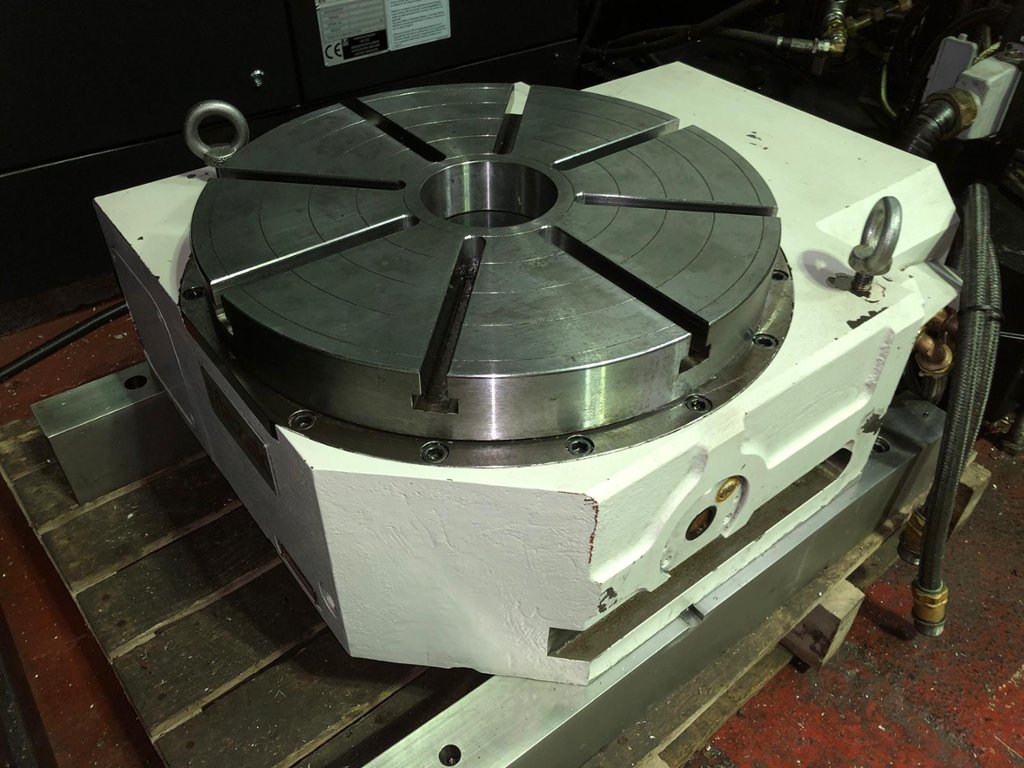

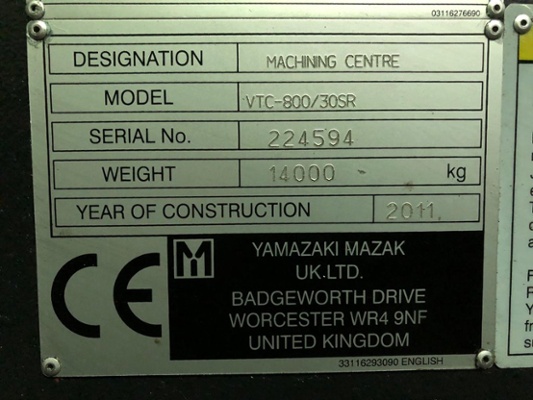

Table size 3500mm x 820 mm. Table loading 2500kgs. X axis 3000mm. Y axis (column back & forth) 800mm. Z axis (Distance from spindle end to table top) min 140mm max 720 mm. B-axis (swivel head) +/- 110°. ATC 48 tools. Spindle speeds 35 – 18,000 rpm. Thro’ spindle high pressure coolant (70 bar). Spindle taper 40 (7/24 taper). Rapids X,Y,Z & B axis 50m/min. Renishaw probe. 500mm dia. NC Rotary table. Motor power 35 kW. Swarf Conveyor. Serial No.224594. Year 2011

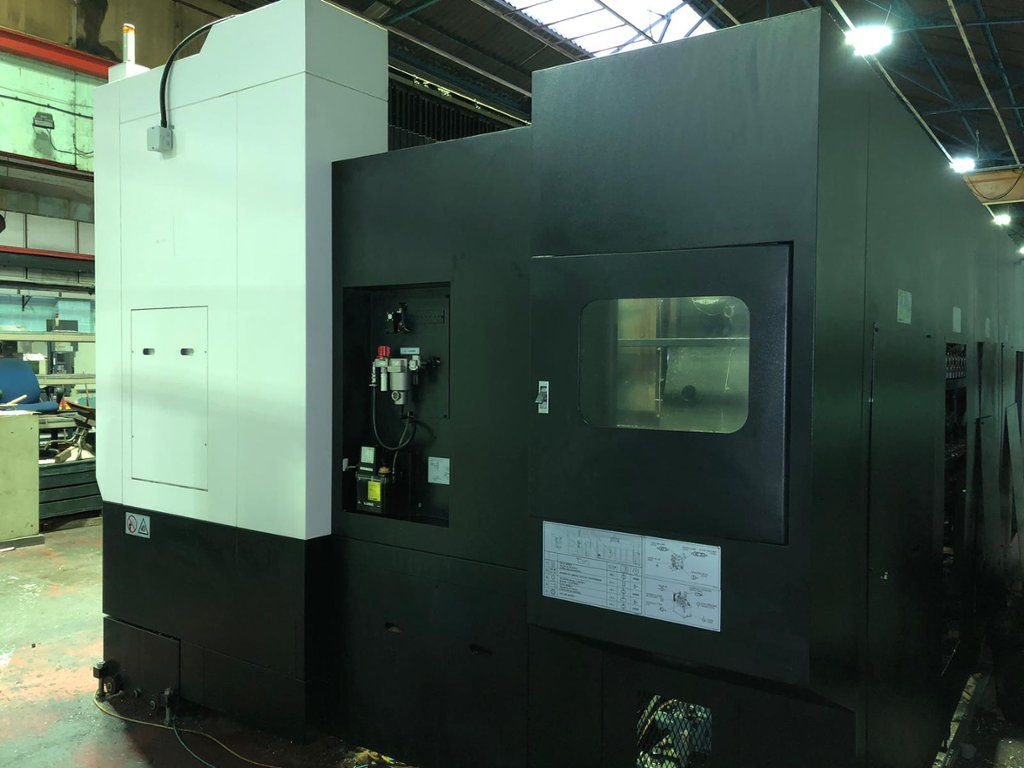

Machine dimensions L x W x H 5250mm without swarf conveyor) x 3550mm x 3152mm high. Approximate weight 15,800 kgs.

Video

Other information

Please refer to the terms & conditions if you wish to negotiate on this item.
