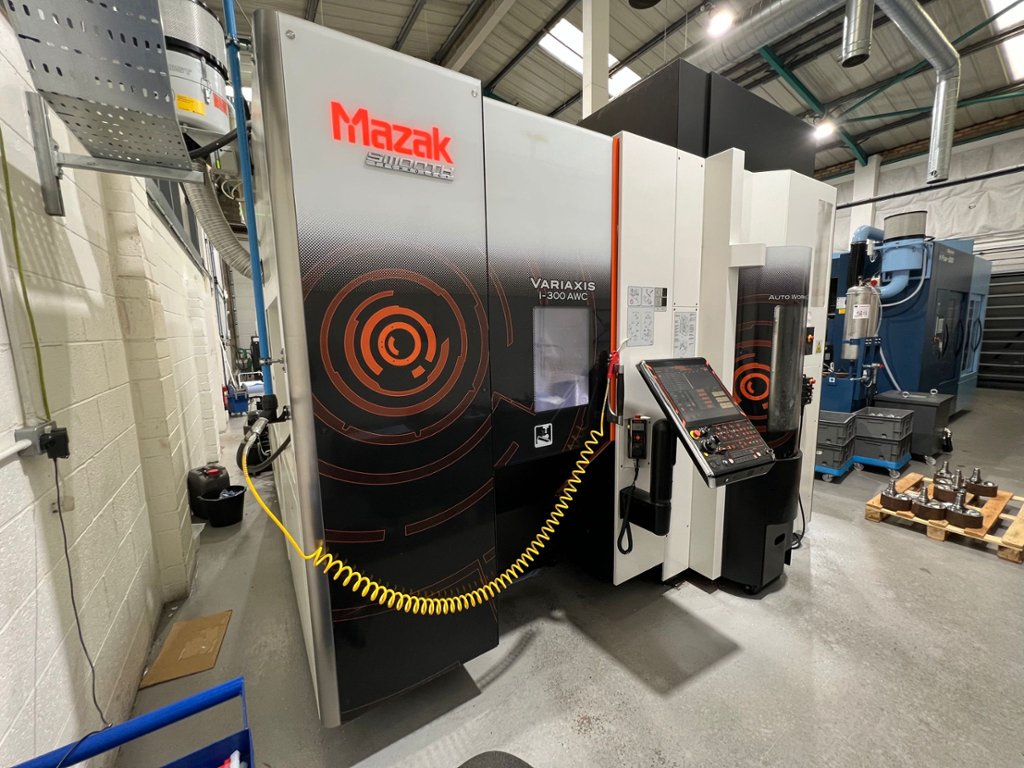

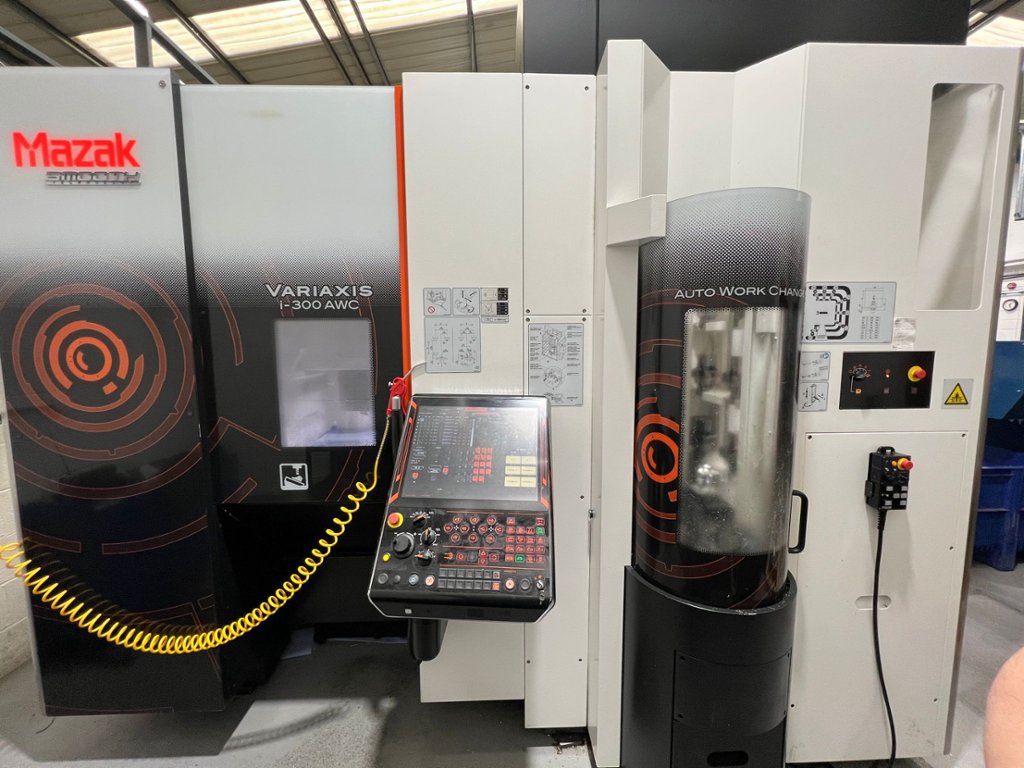

Lot 1: MAZAK VARIAXIS i300 AWC 5 Axis Vertical Machining Centre with Smooth Control. New 2018. Installed 2019

Capacity: Maximum workpiece dia.350mm. Maximum workpiece height 315mm. X axis stroke (saddle right/left movement) 350mm. Y axis stroke (column back/forth movement) 550mm. Z axis stroke (spindle up/down movement)510mm. A Axis travel (table tilt) 0.0001° x 1500000. C axis travel (table rotation) 0.0001° x 3600000. Maximum table load (evenly distributed) 60 kg. Spindle: Spindle taper 7/24 taper No.40. Spindle speeds 35-12,000 rpm. Main motor (AC inverter motor) 40% ED rating 22 kW. Main motor (AC inverter motor) continuous rating 15 kW. Main motor maximum torque 143Nm. Feed Rates: Rapids X/Y/Z 60/60/56 m/min. A/C 18000 degrees/min. Cutting feed rate X/Y/Z 56000mm/min. No. of simultaneous controlled axes 5.

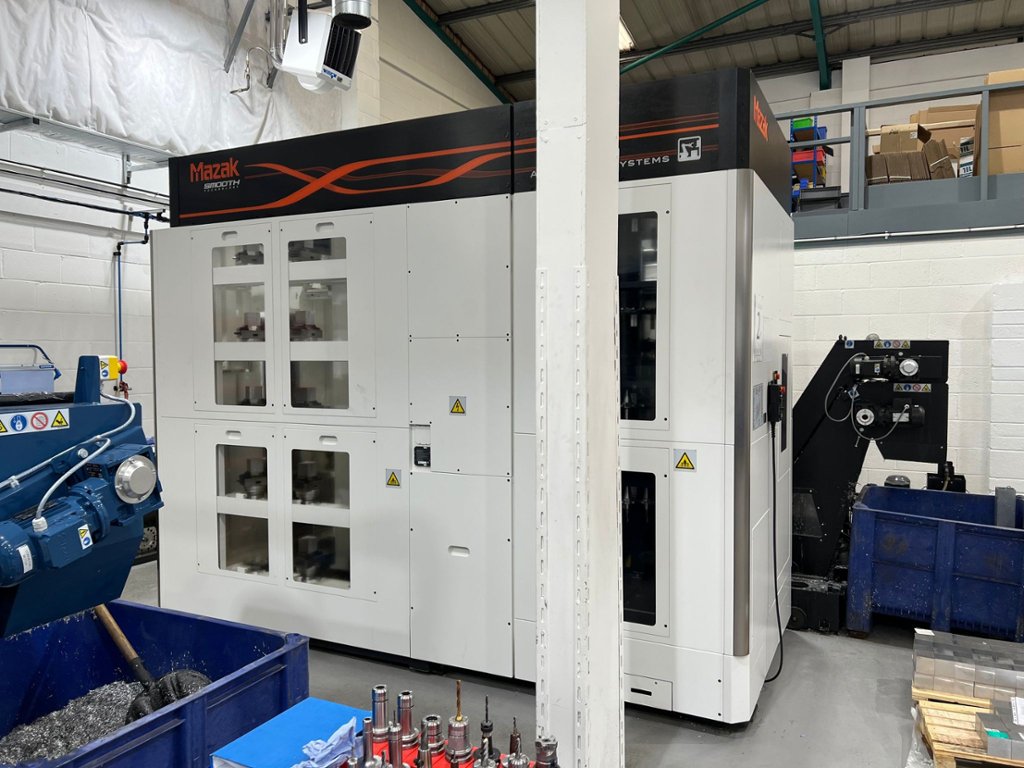

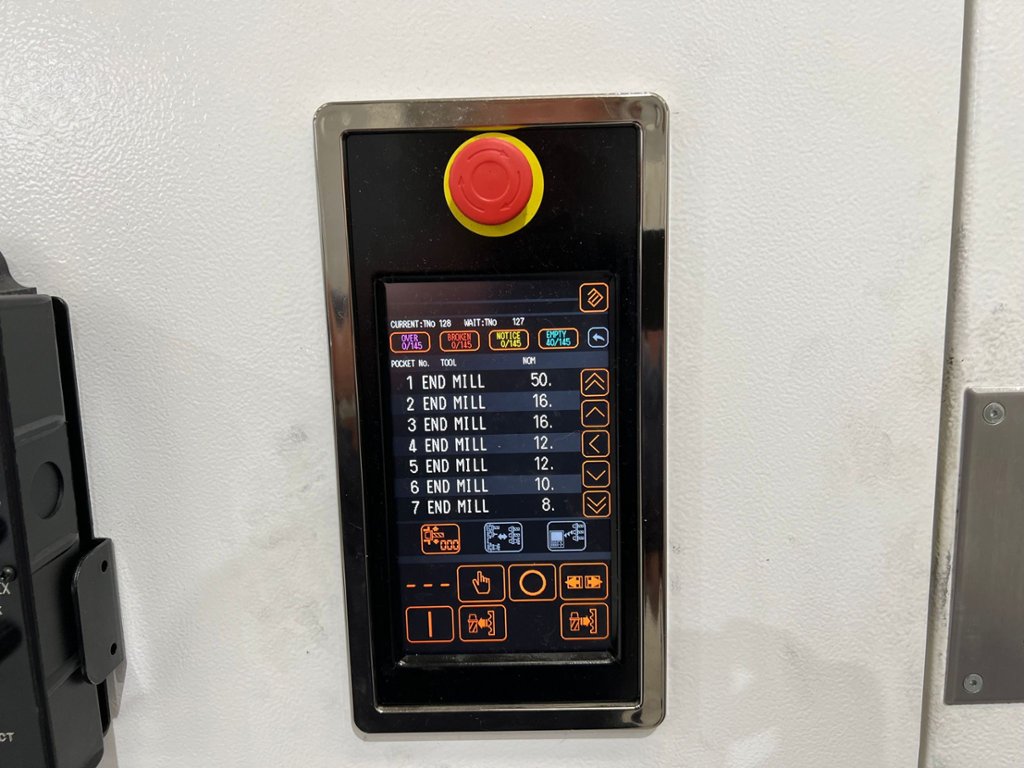

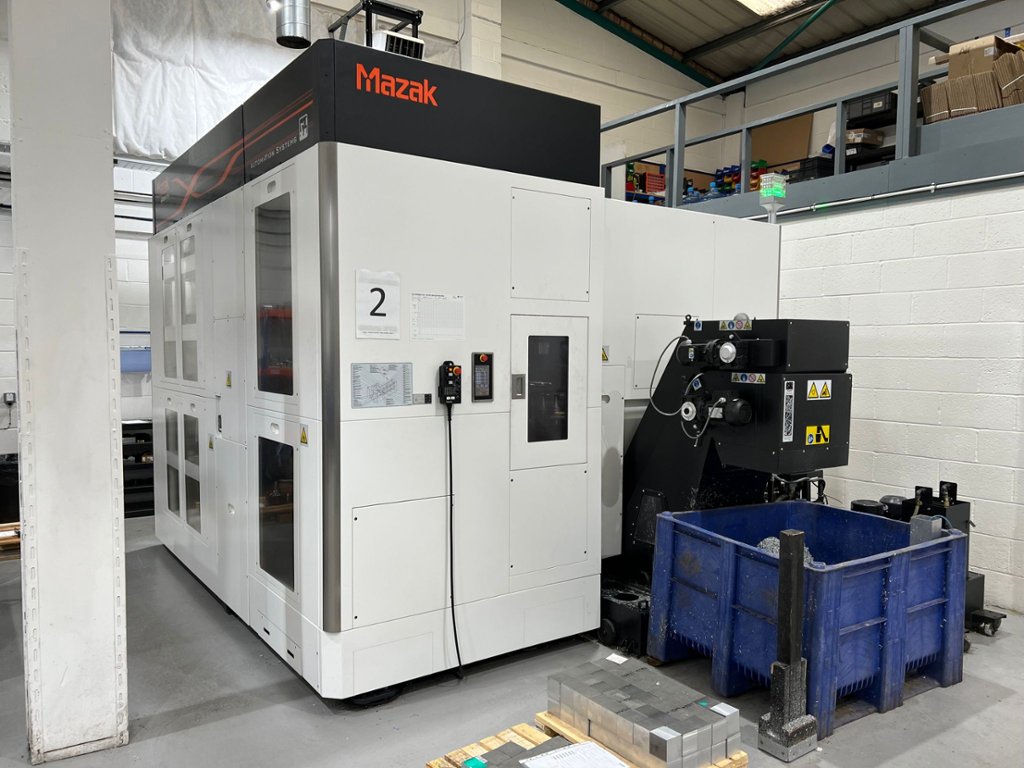

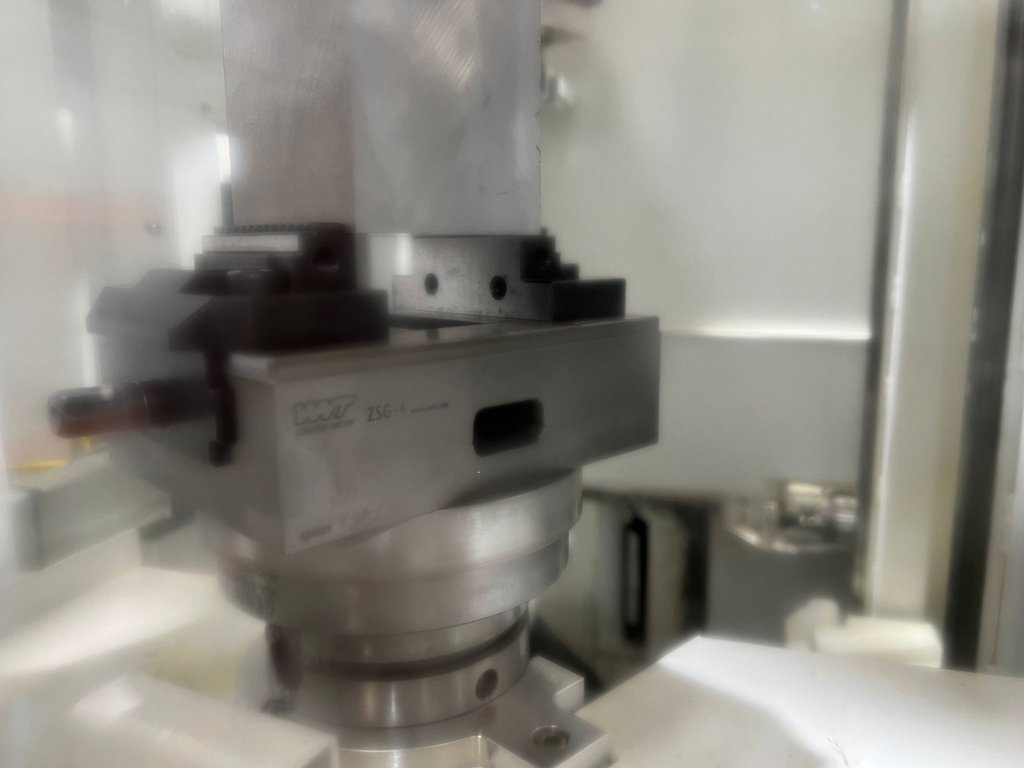

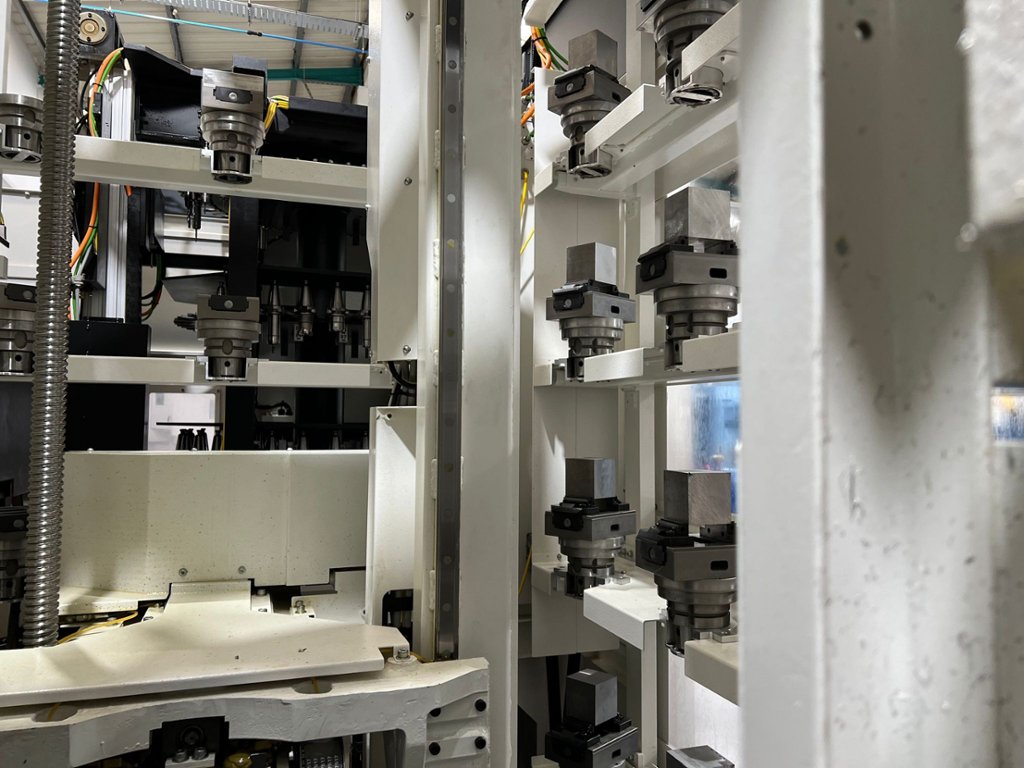

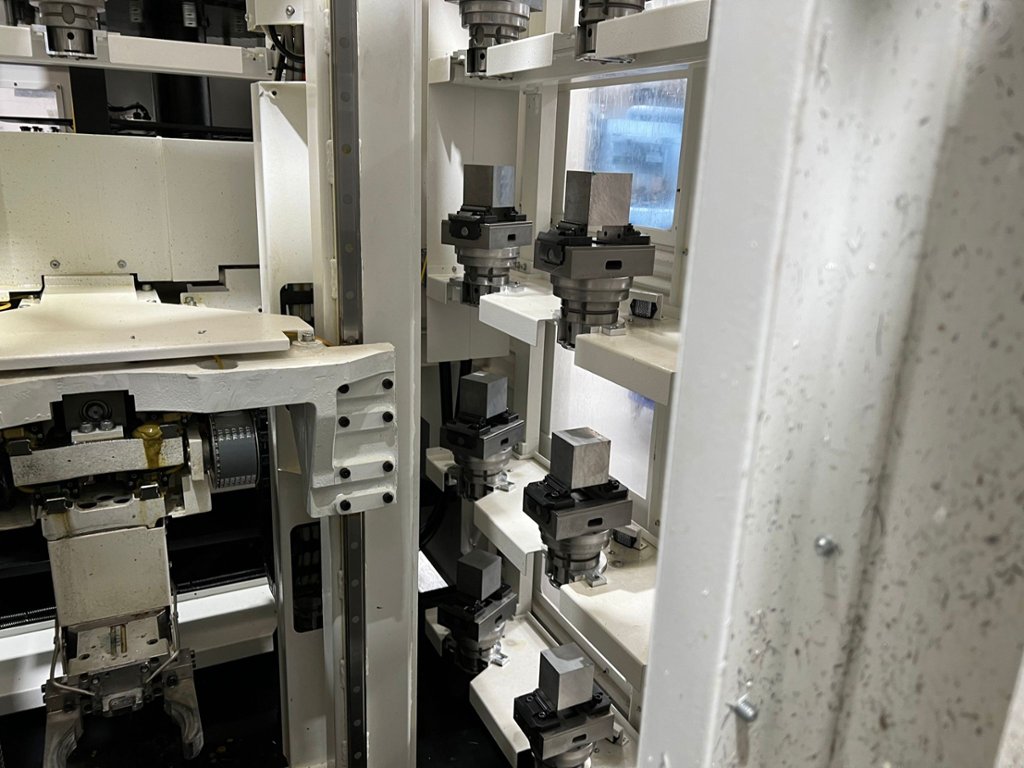

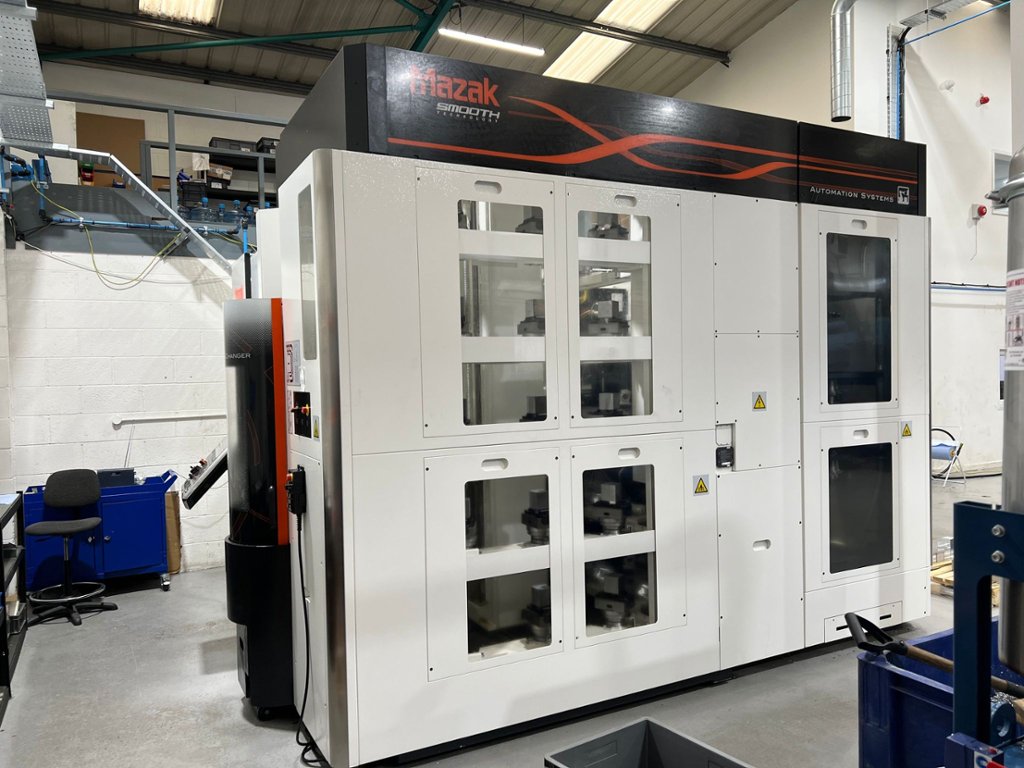

AWC (Automatic Workpiece Changer): No. of workpiece holders 32. Clamp interface HSK-A100. Maximum workpiece dia. 350mm. Maximum workpiece height 315mm. Workpiece holder mass 60 kg. Loader feedrate A axis (with workpiece) 9.5m/min (without workpiece 25m/min. Loader feedrate B axis 80m/min. Loader feedrate C axis 30m/min. Loader stroke A axis 299 °. Loader stroke A axis 950mm. No. of loading stations 1. No. of workpiece stocker stations including standby stations 34. ATC & Tool Magazine: Tool storage capacity 145. Tool selection method Fixed address, auto shorter path selection. Tool shank type BT40. Retention bolt type Yamazaki ANSI type. Maximum tool dia 90mm (with adjacent tool) . Maximum tool dia. 130mm (without adjacent tool). Maximum tool length (from reference face of taper) 350mm.Maximum weight of tool 8 kg. Maximum tool moment 6.5 Nm.

Coolant tank capacity 400 Litres.

Machine Dimensions L x W x H 4930mm x 3430mm x 2968mm. Approximate weight 15,600 kg

Machine has been removed for convenience of sale and is now is storage in Greater Manchester
