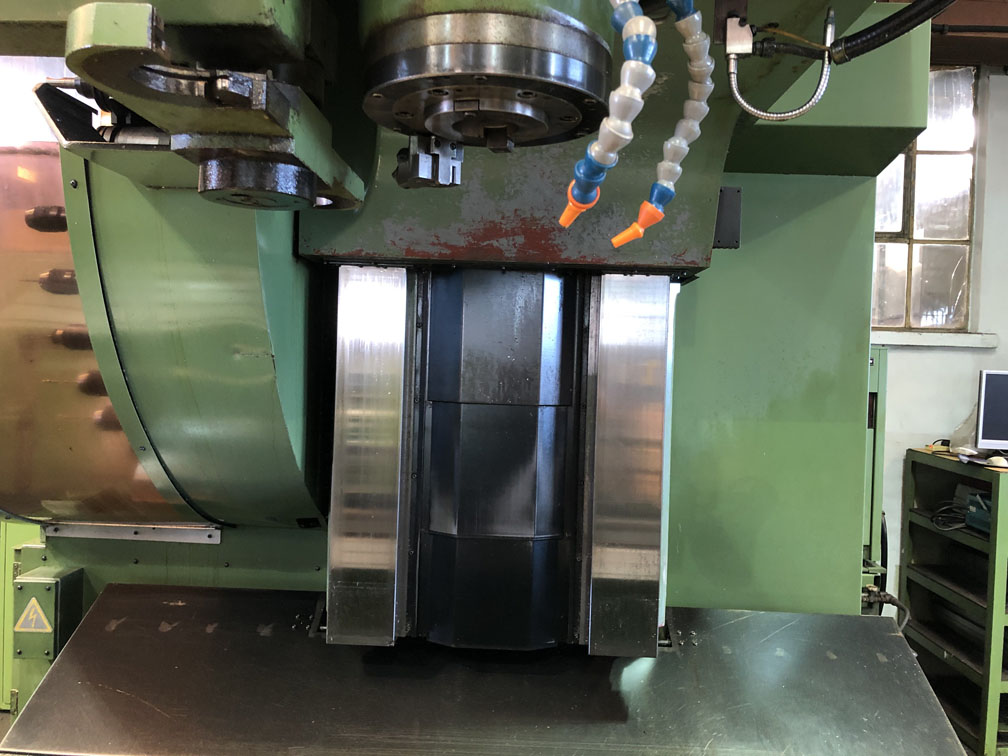

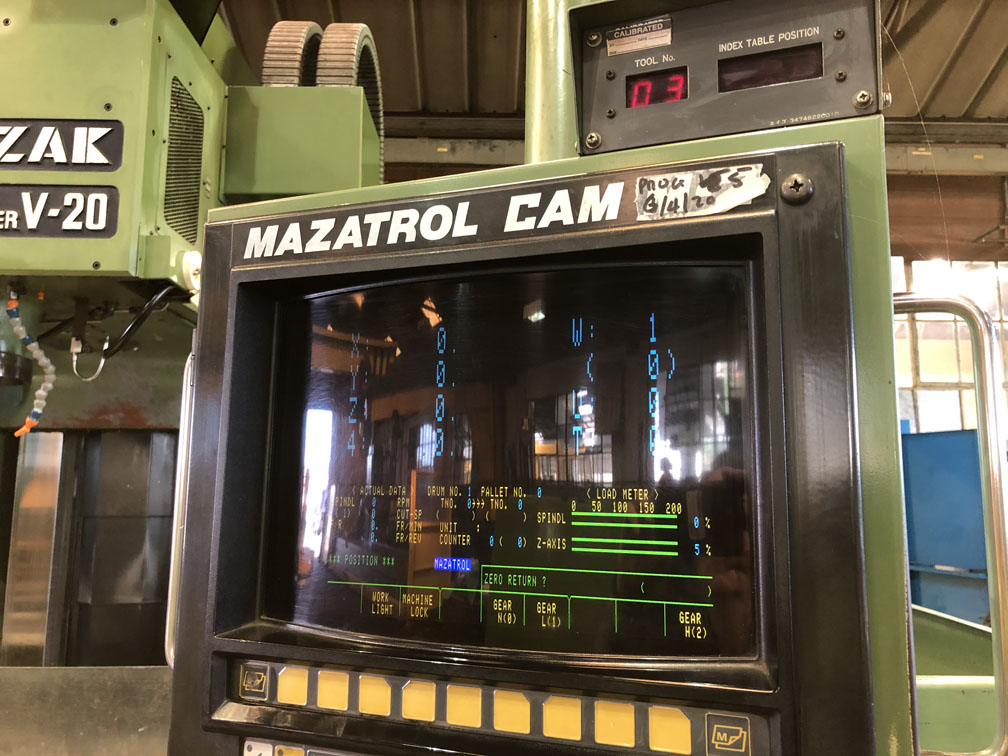

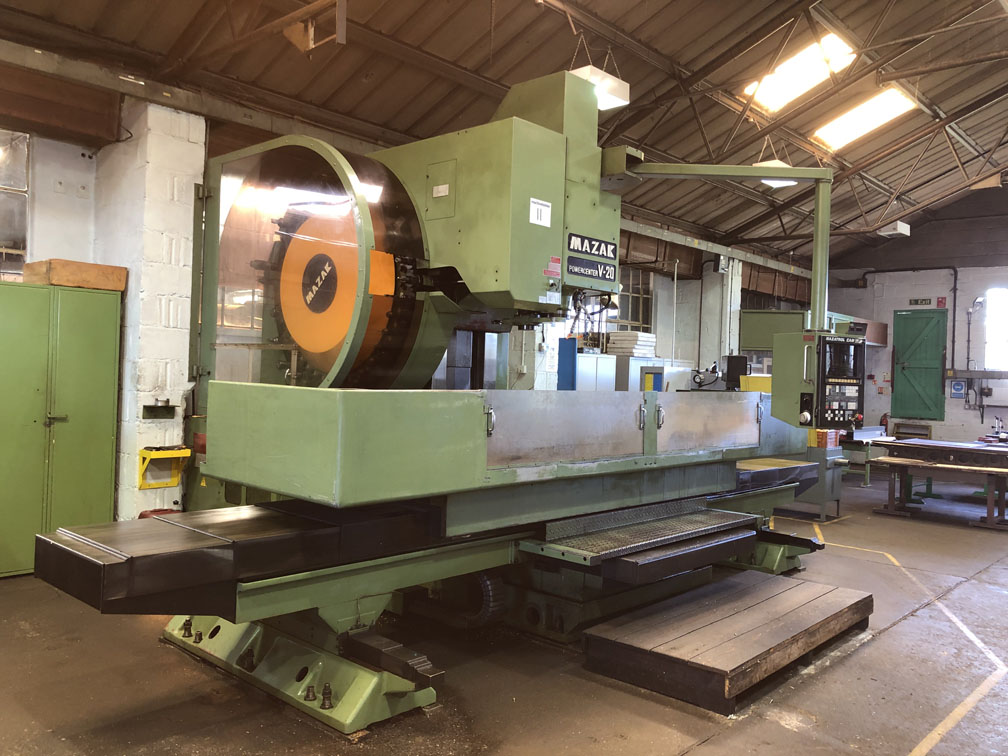

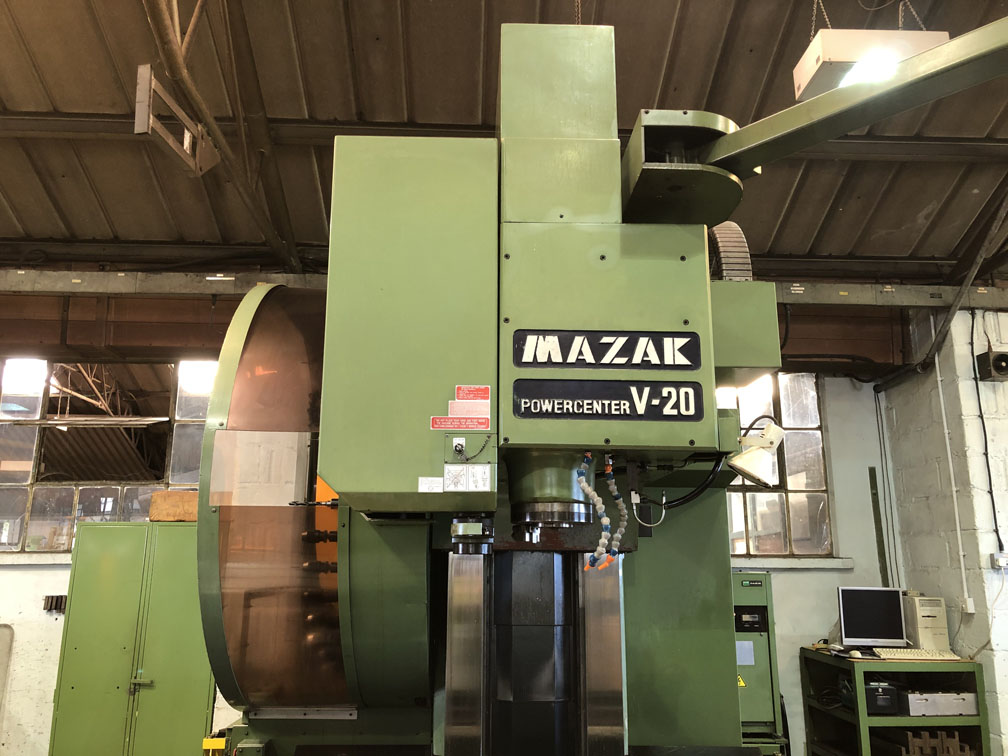

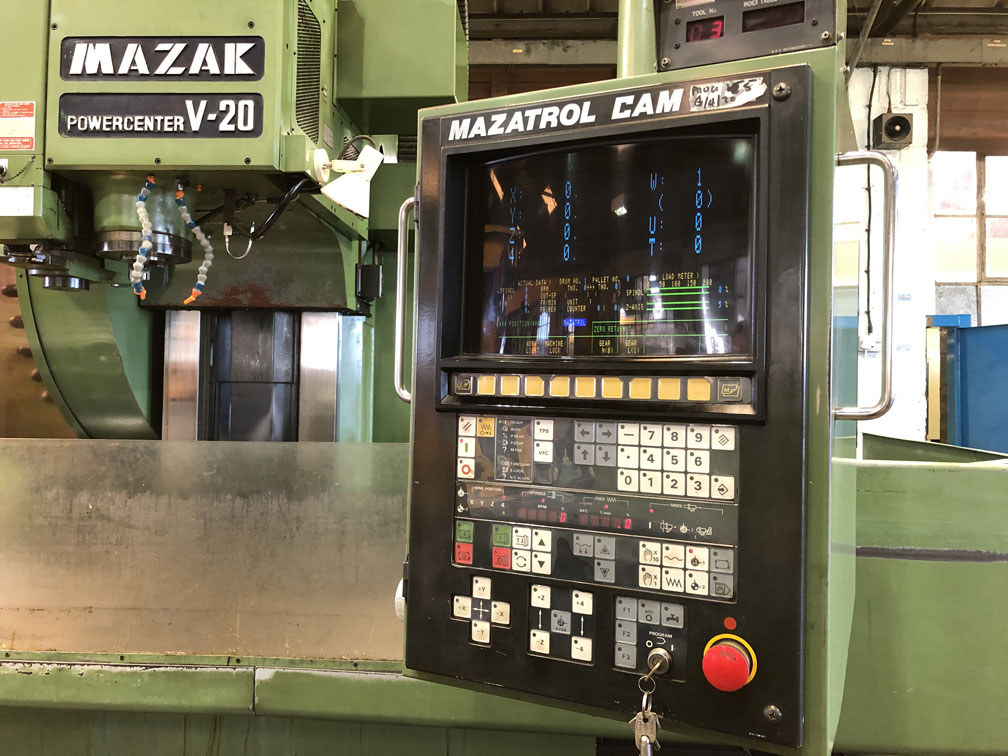

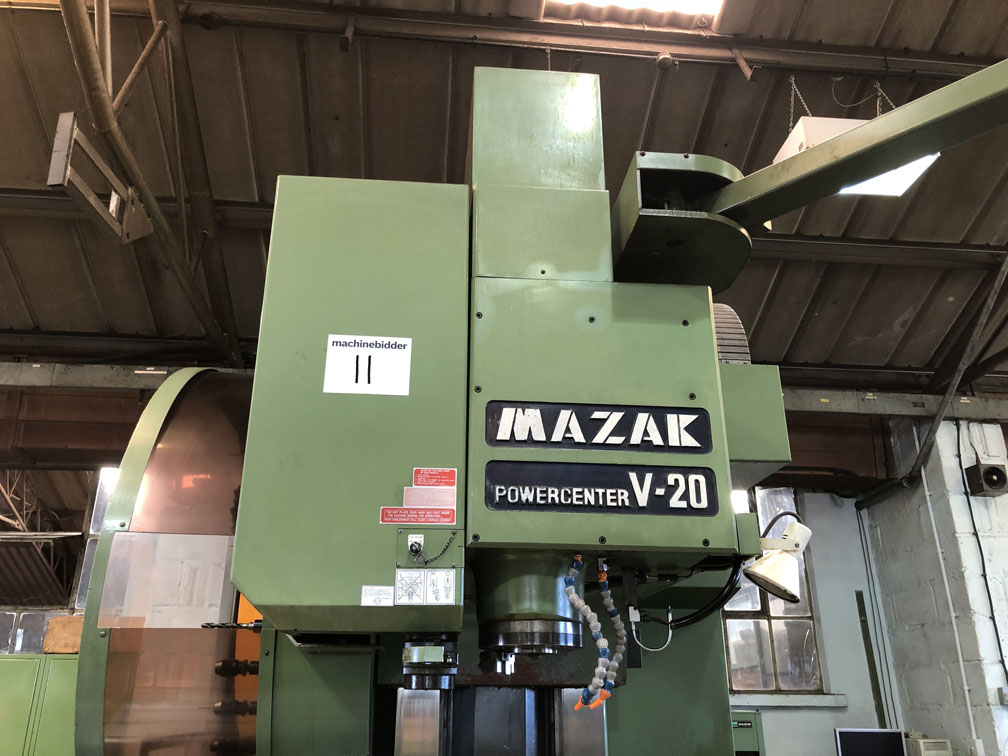

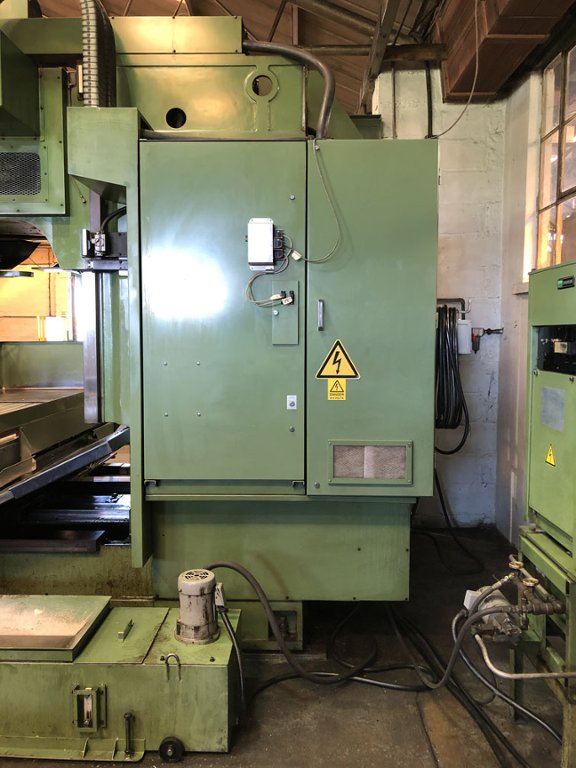

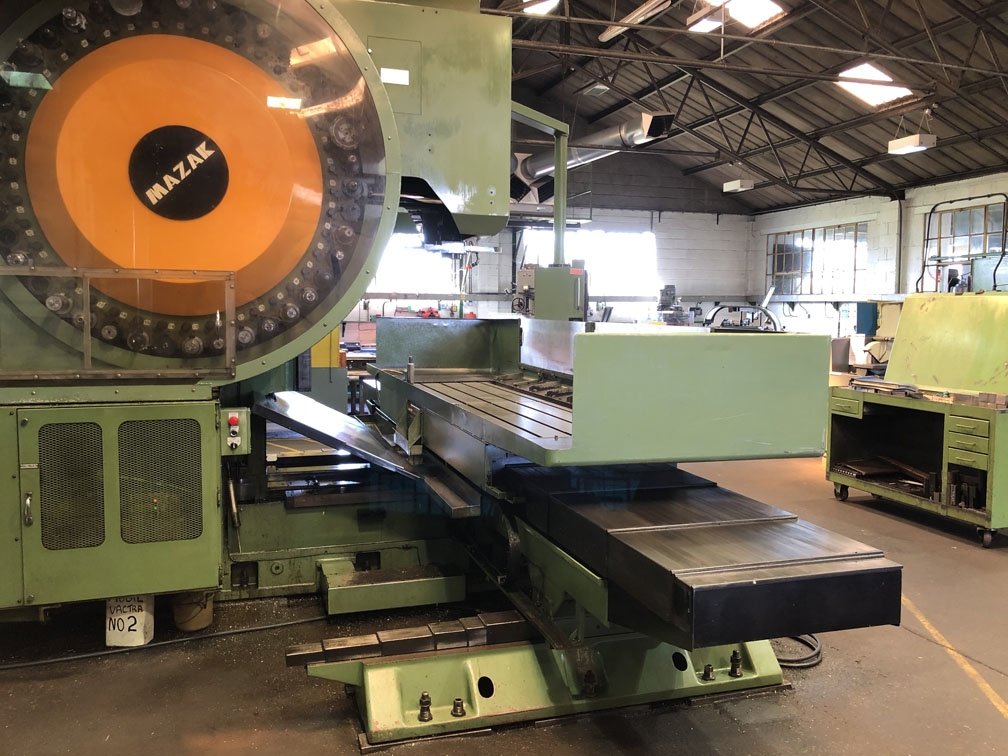

Lot 11: MAZAK Powercenter V-20E Vertical Machining Centre with Mazatrol Cam Control

Private Treaty Sale (by negotiation)

Description

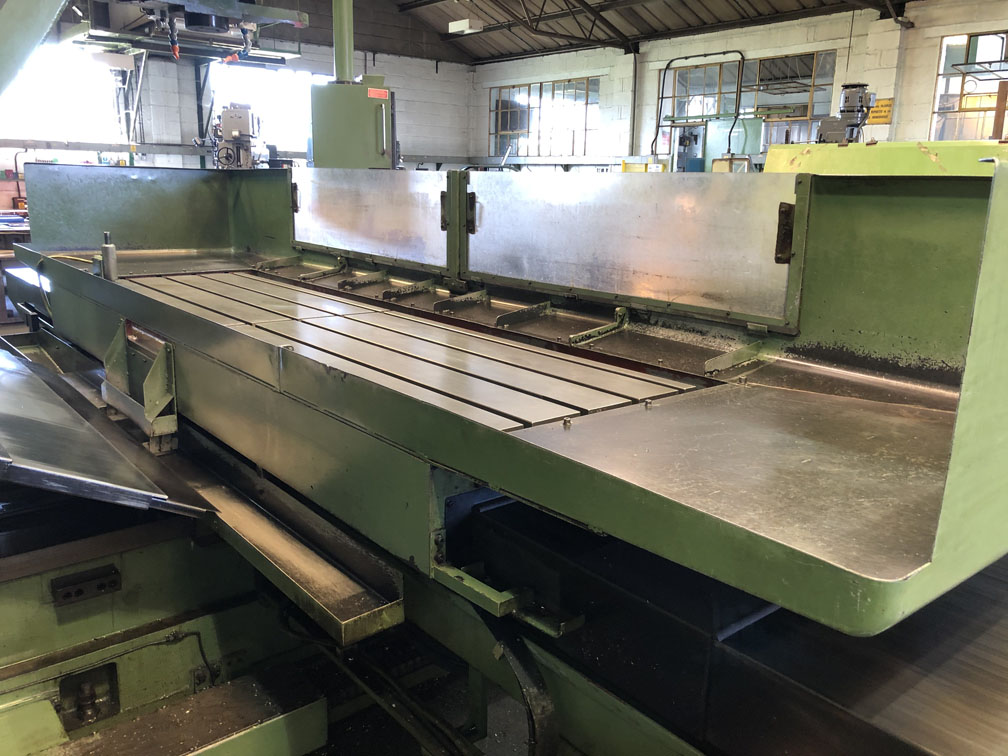

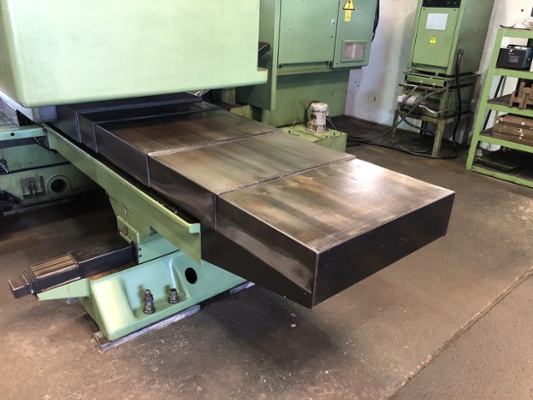

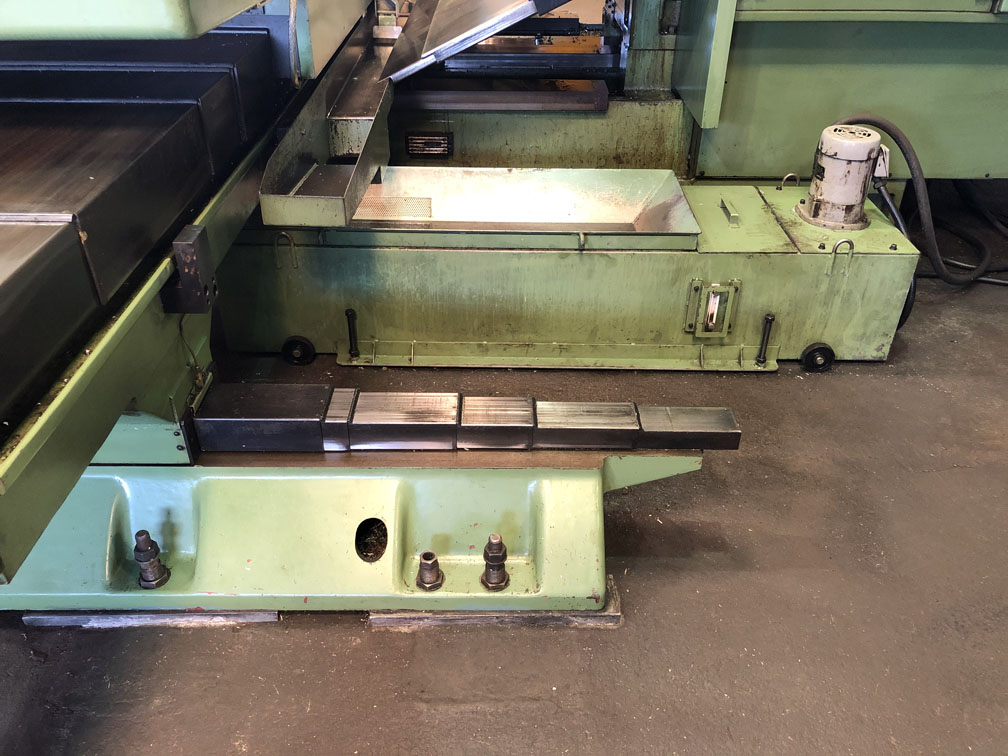

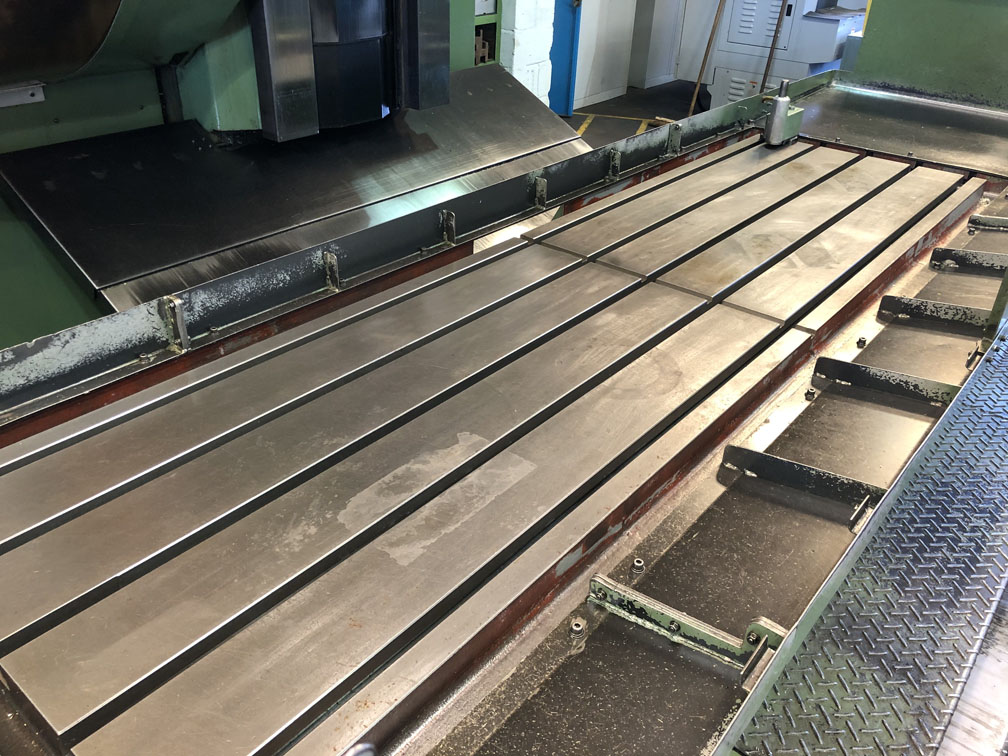

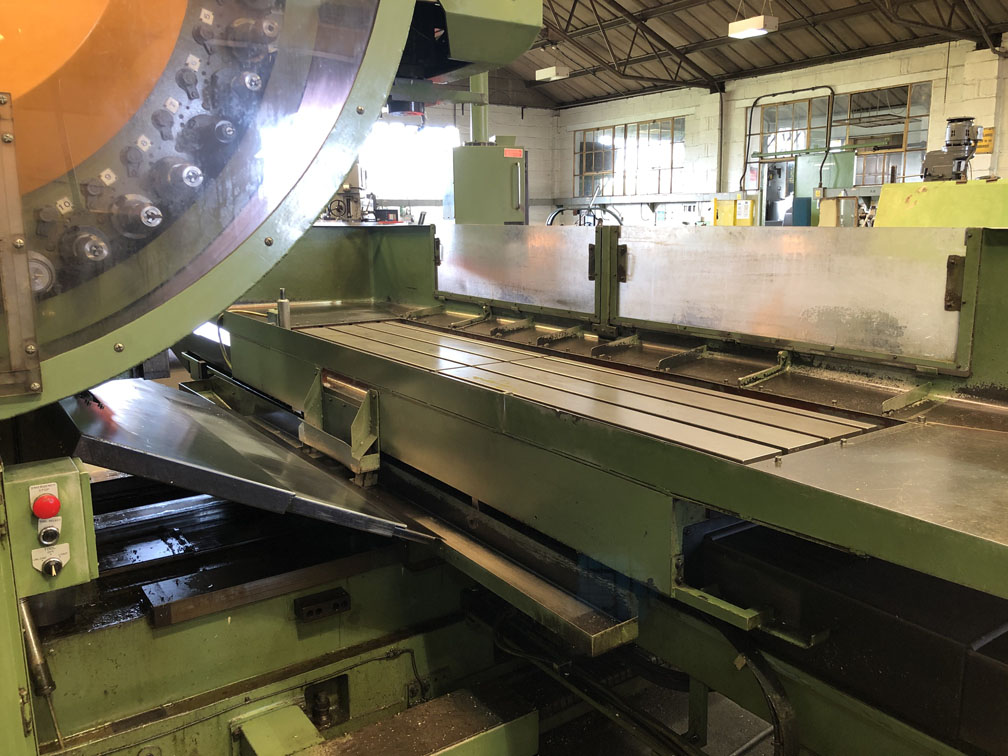

Table size 2740mm x 750mm. Longitudinal travel 2600mm. Cross travel 810 mm. Vertical travel of head 750mm. Maximum table loading 3000 kgs.

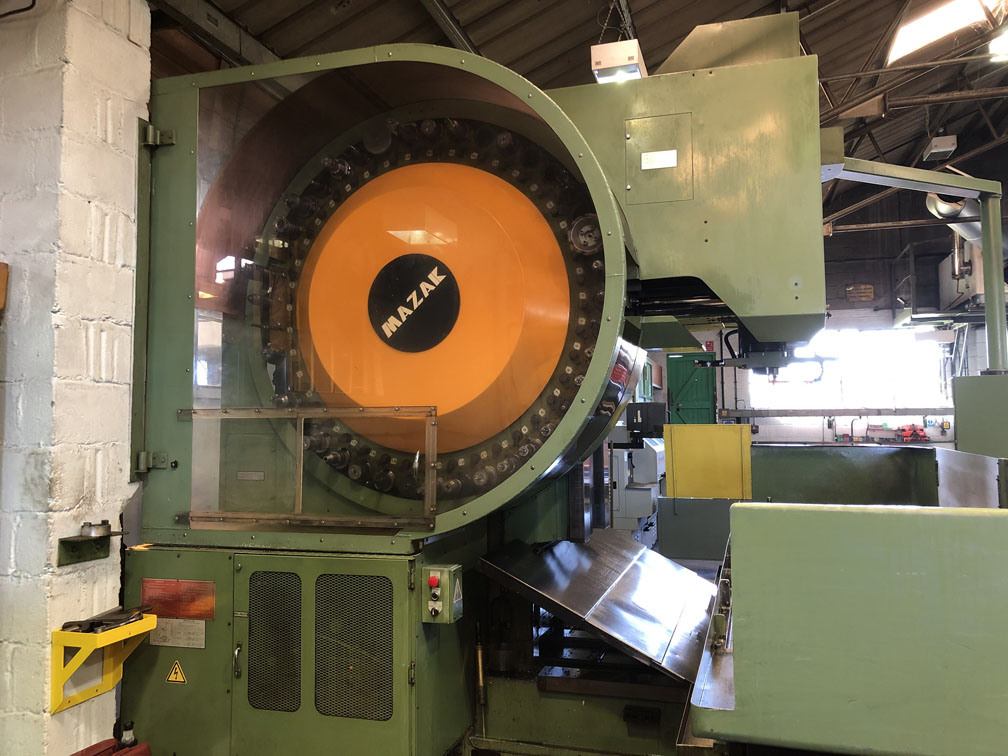

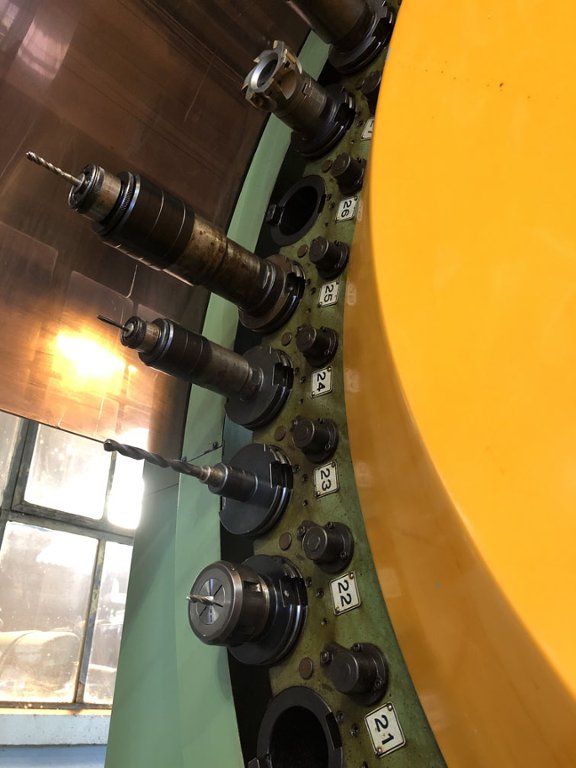

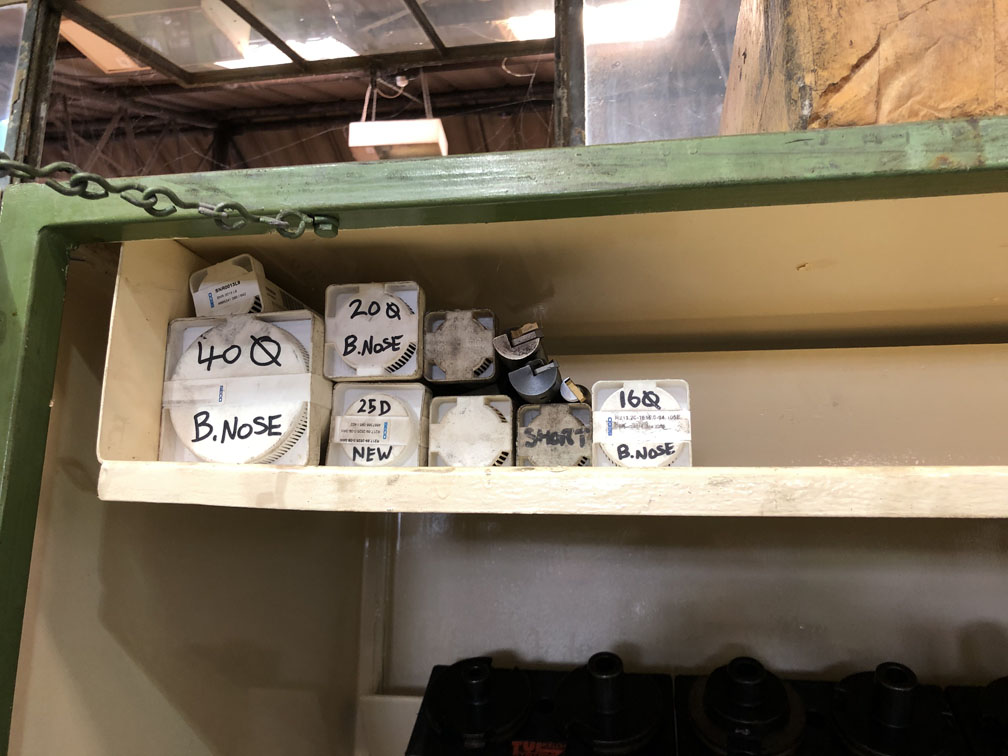

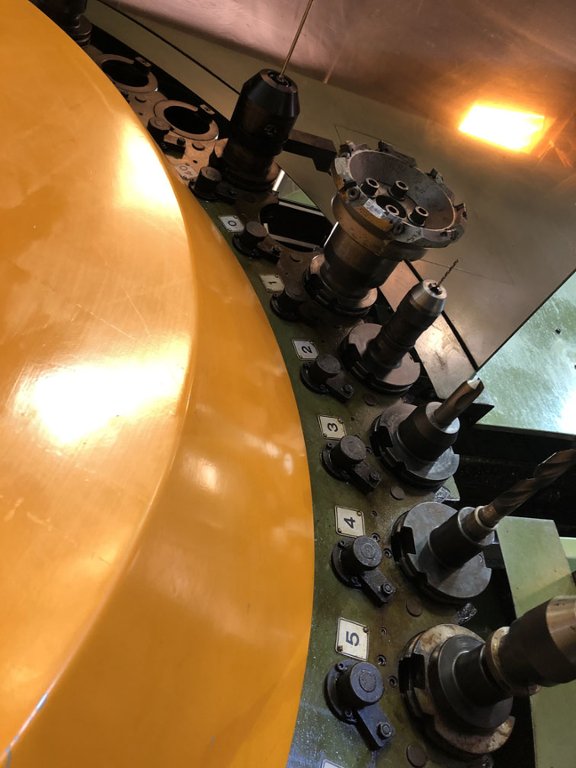

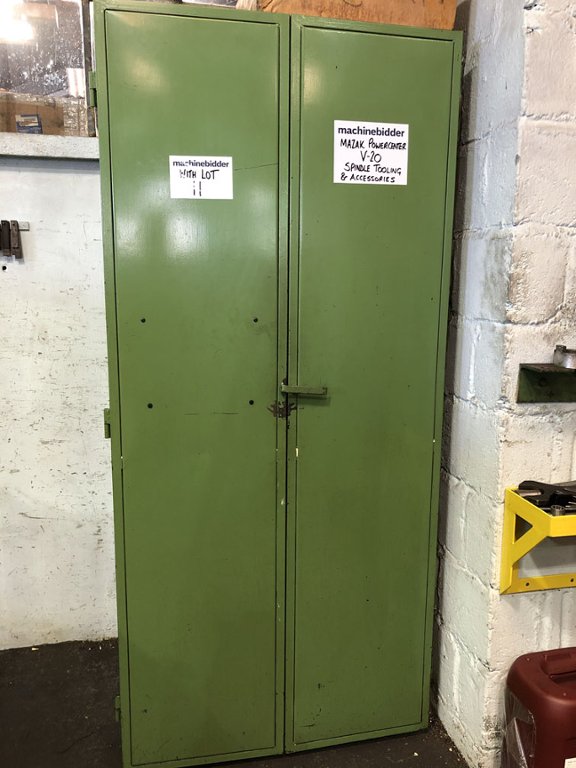

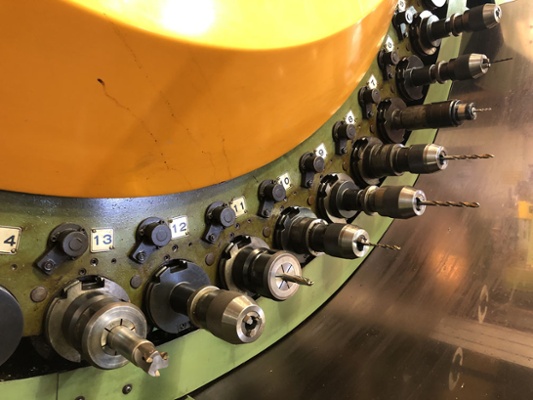

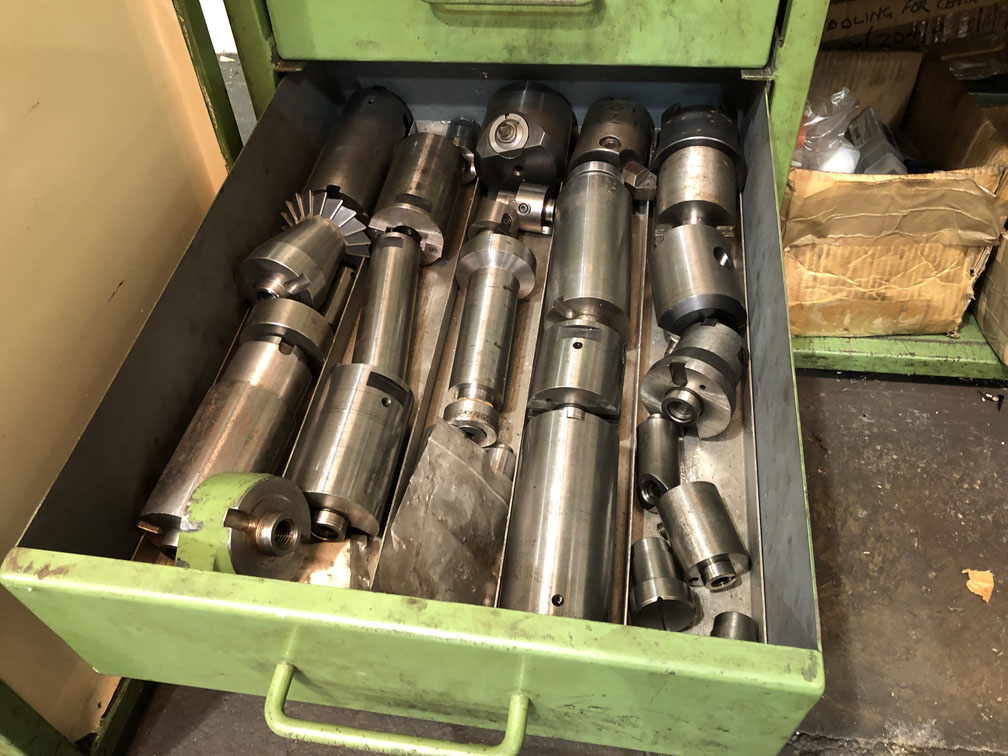

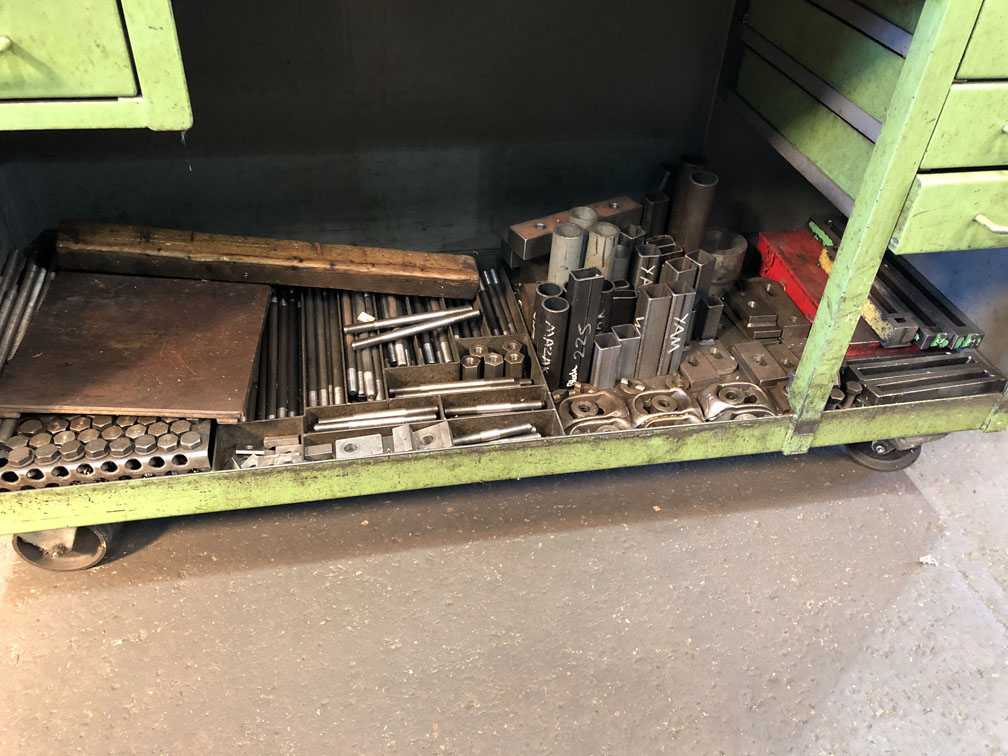

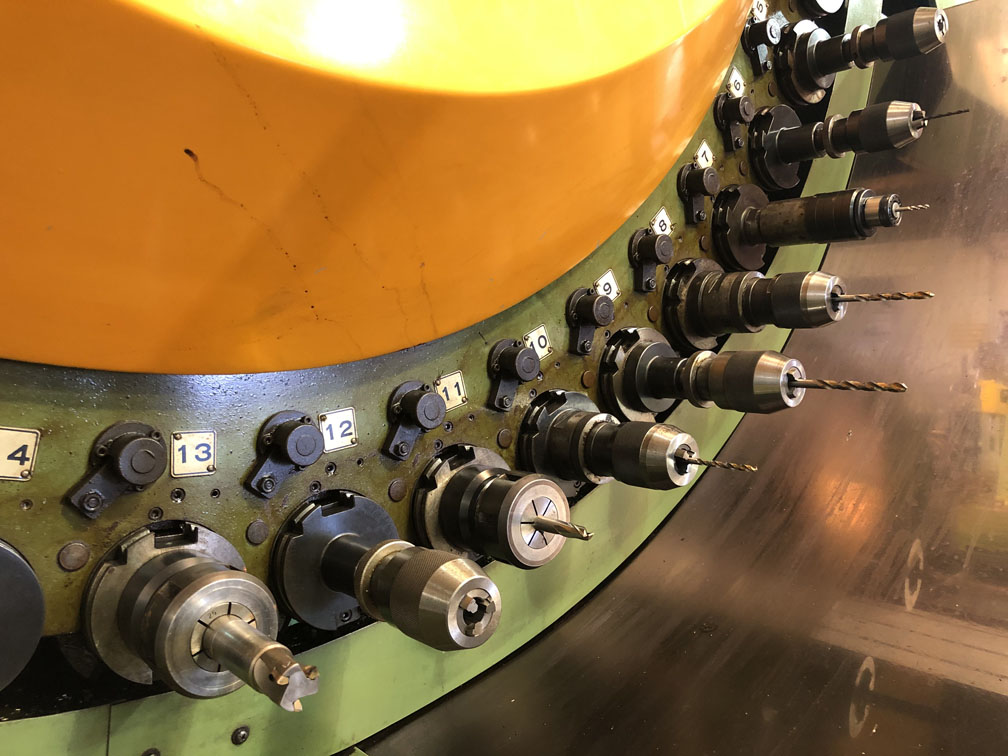

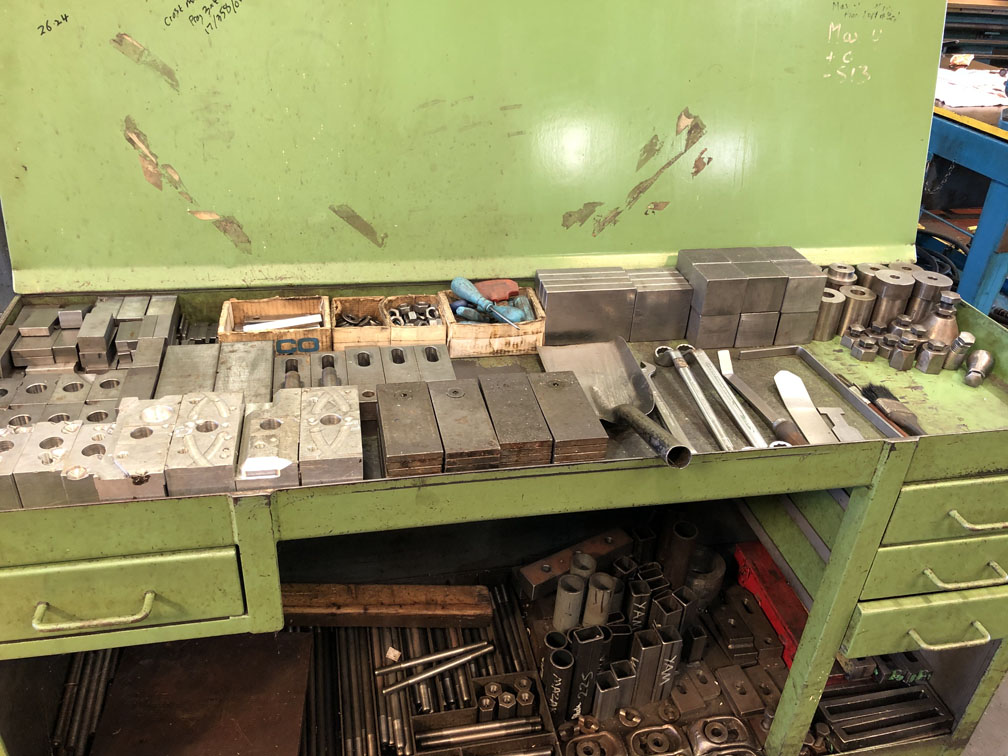

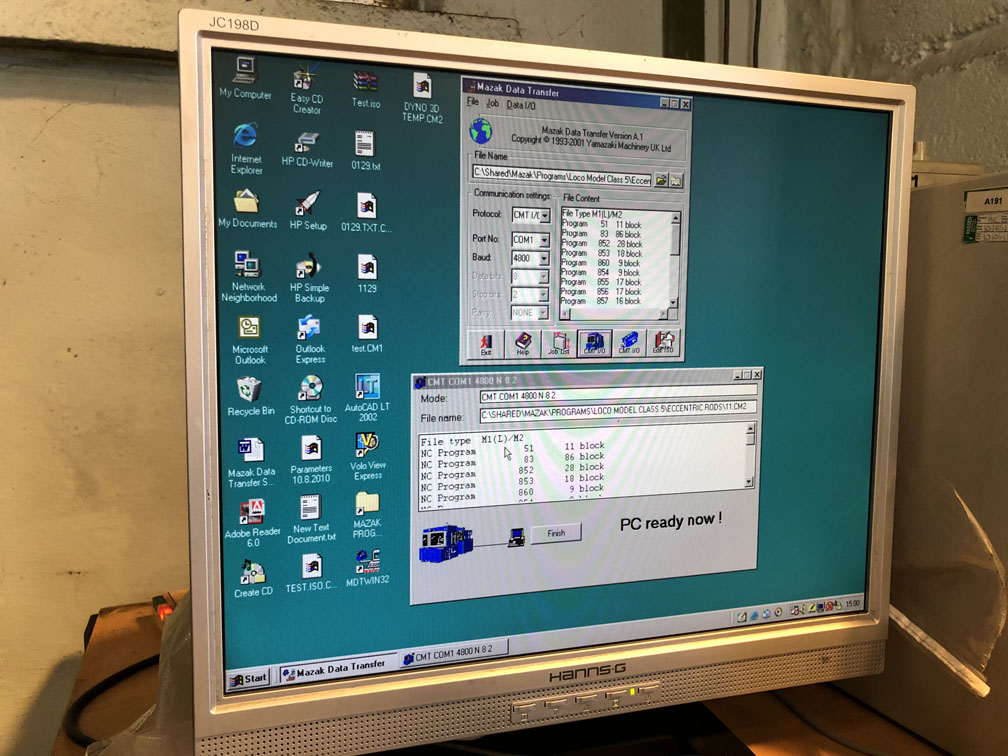

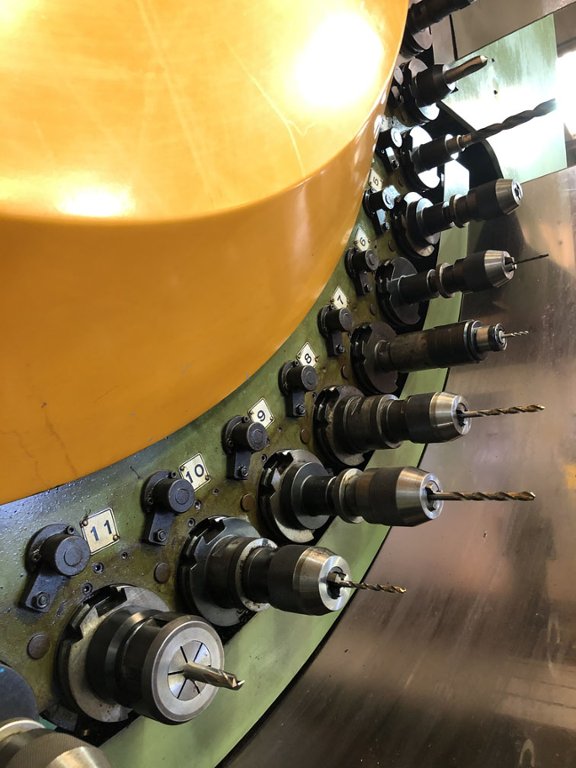

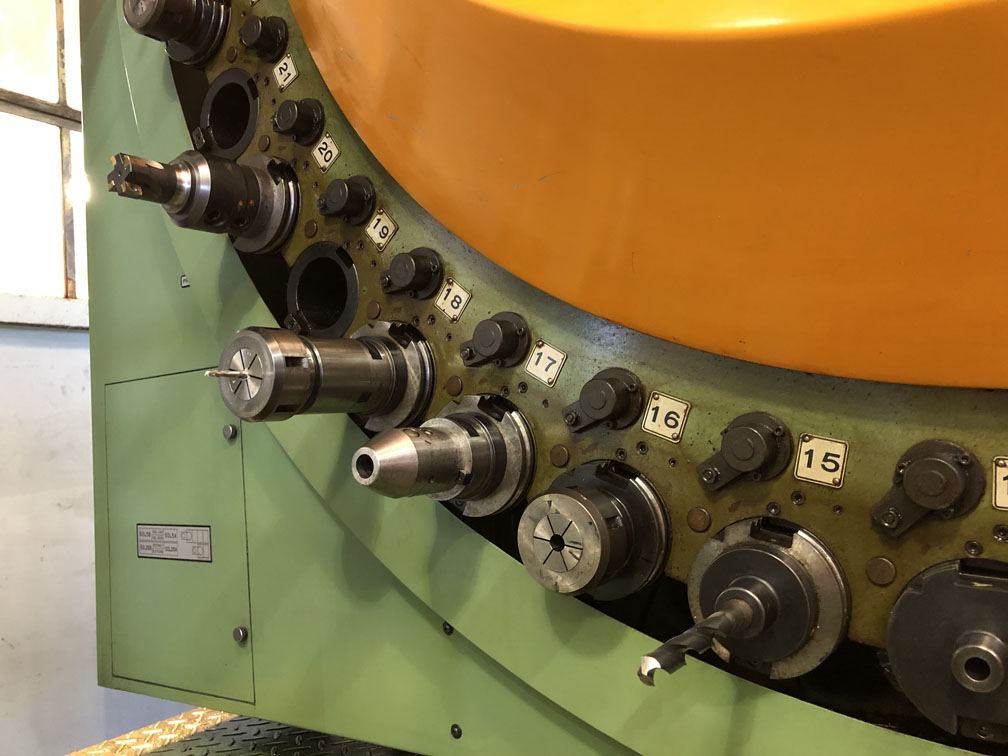

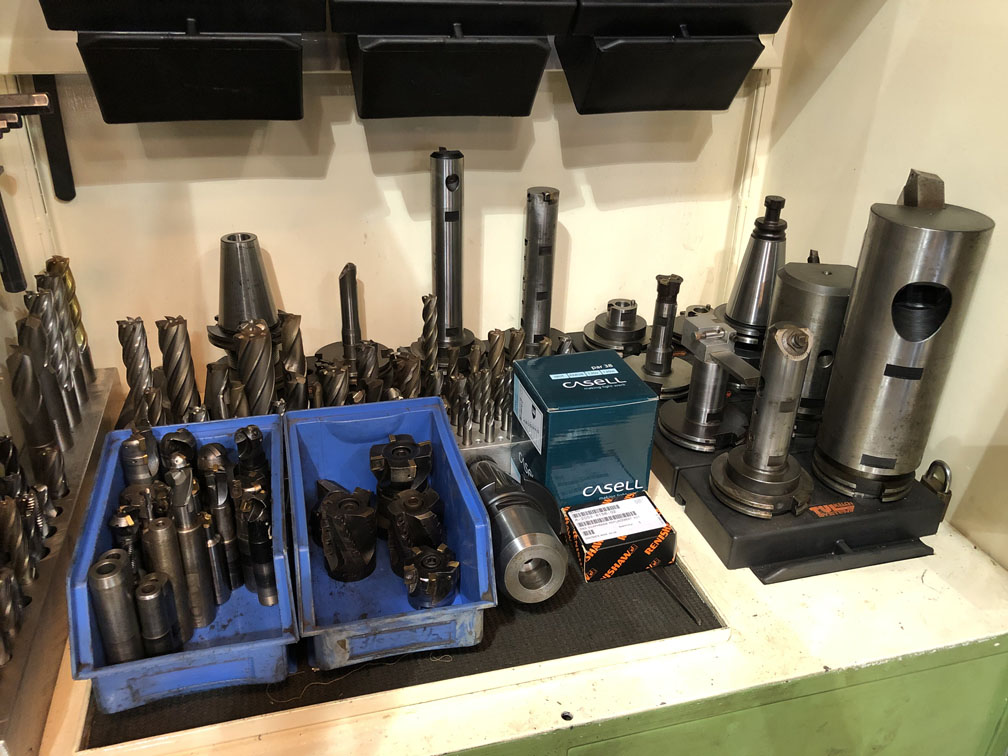

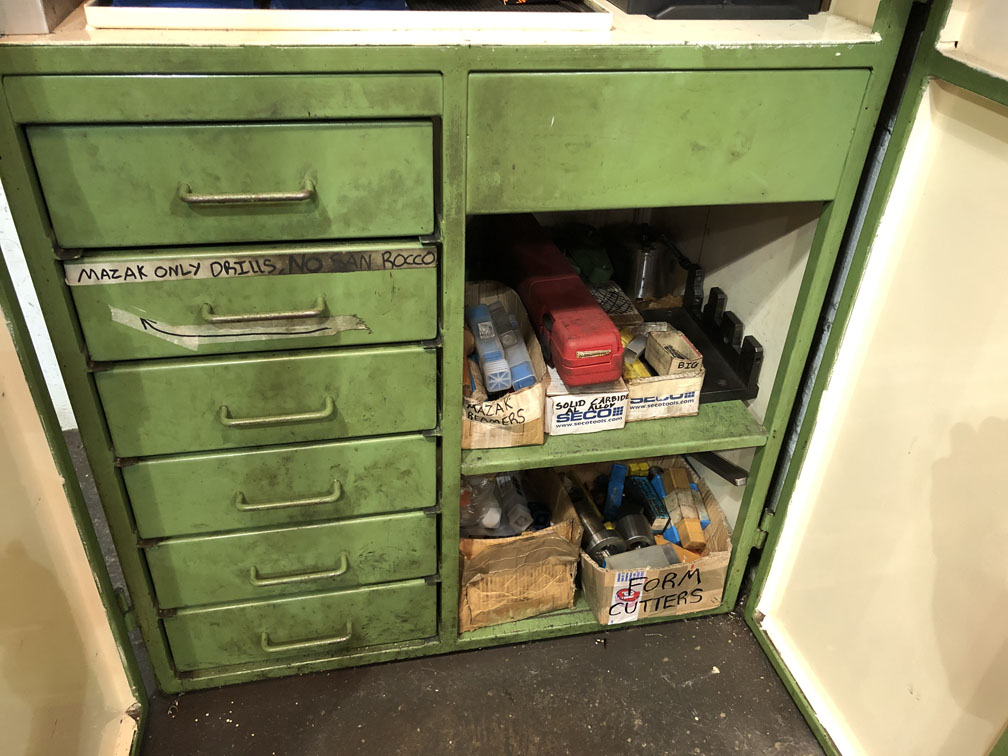

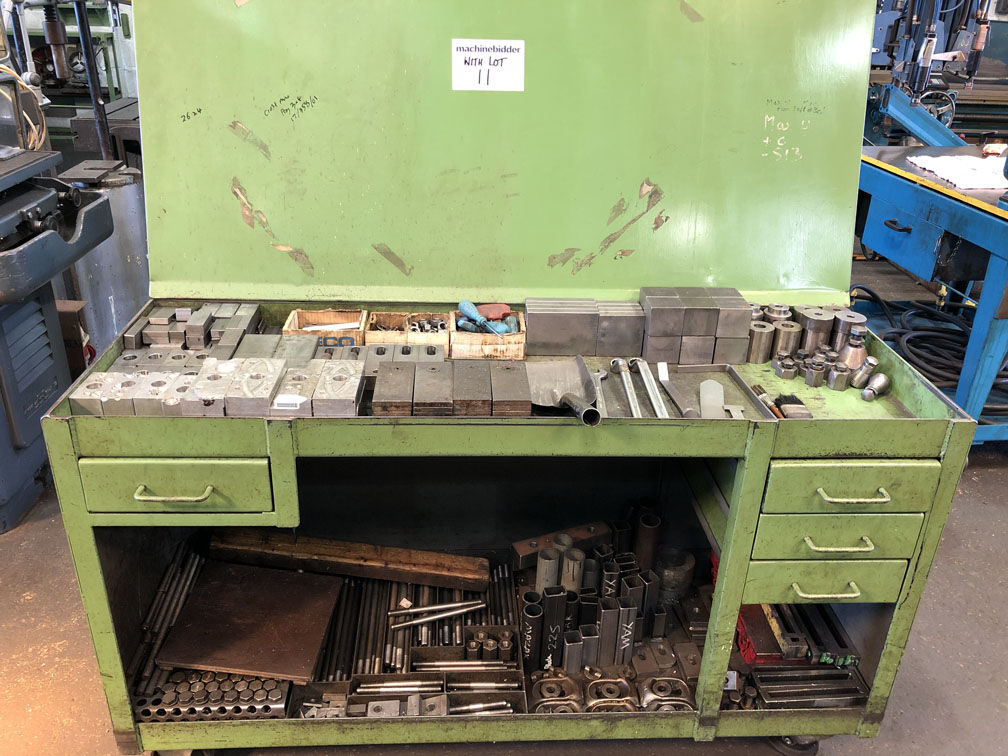

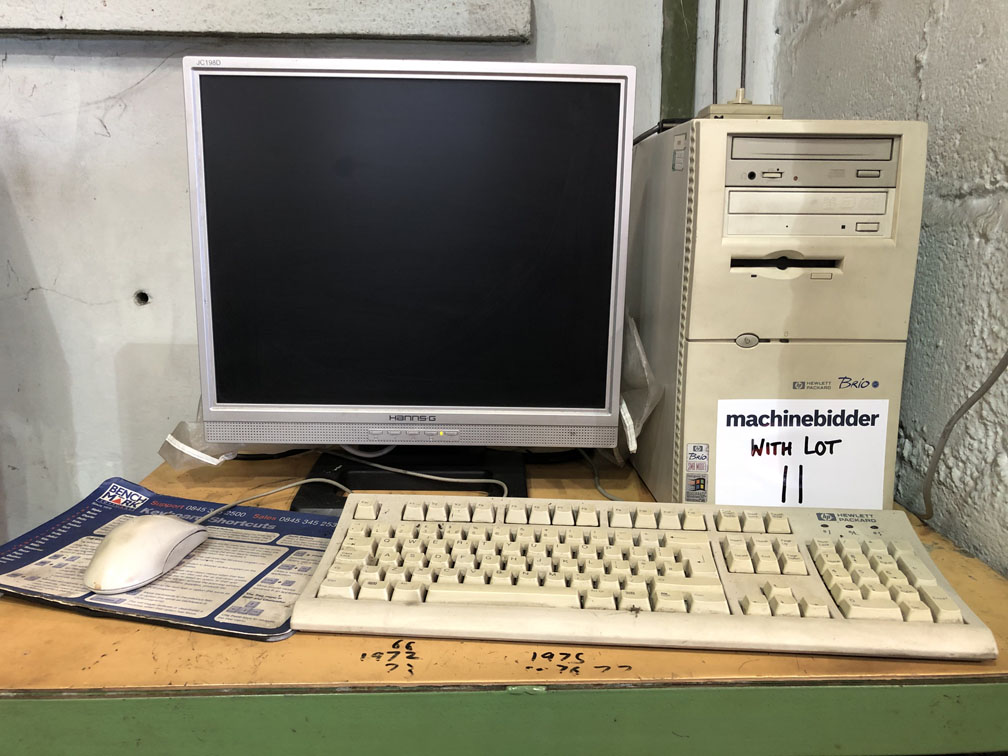

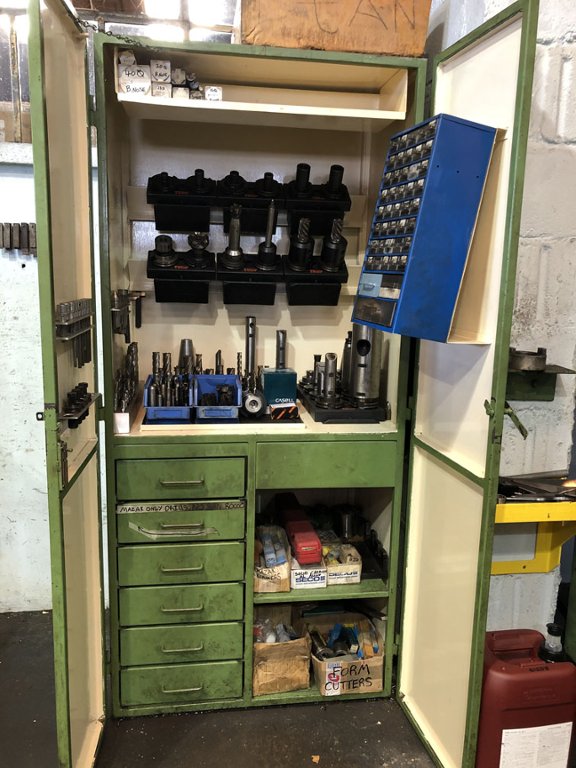

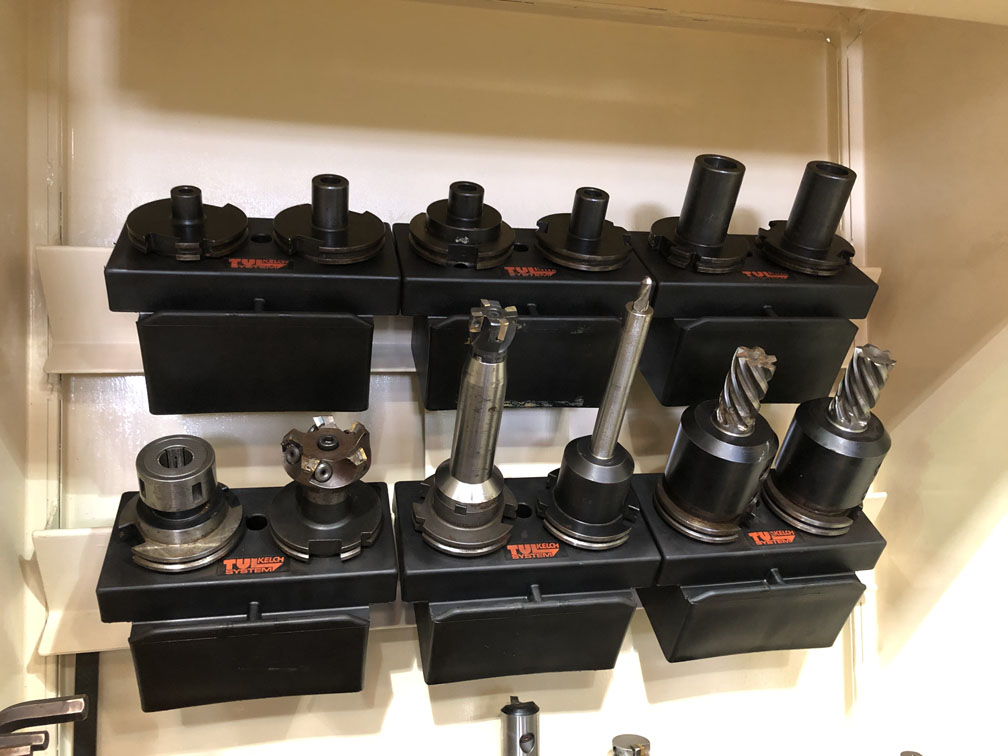

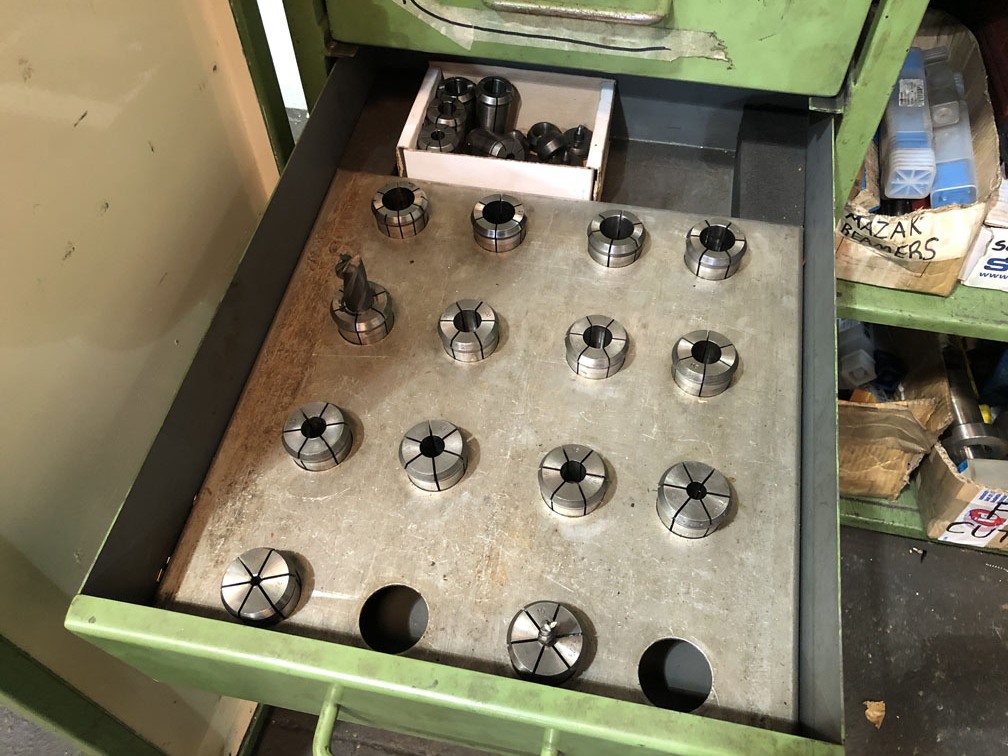

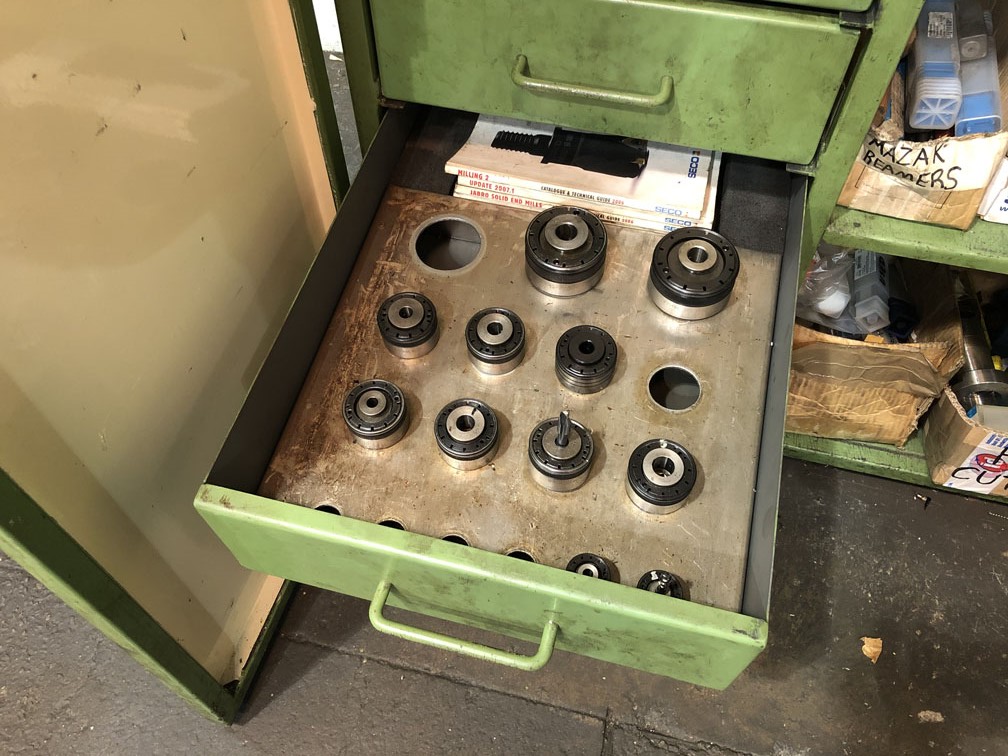

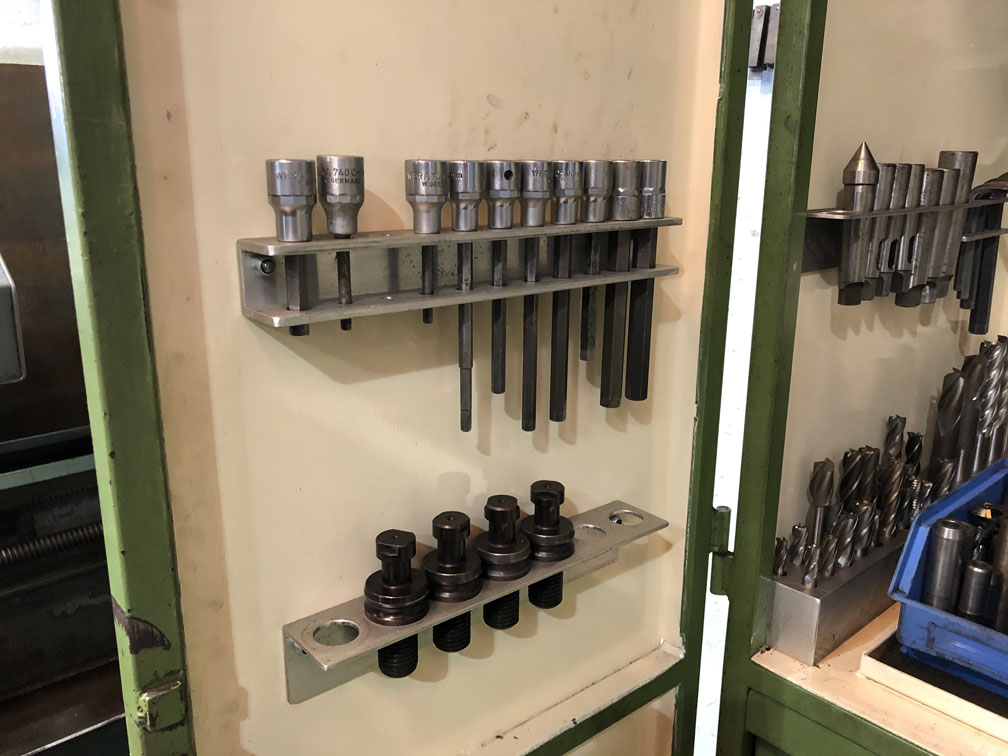

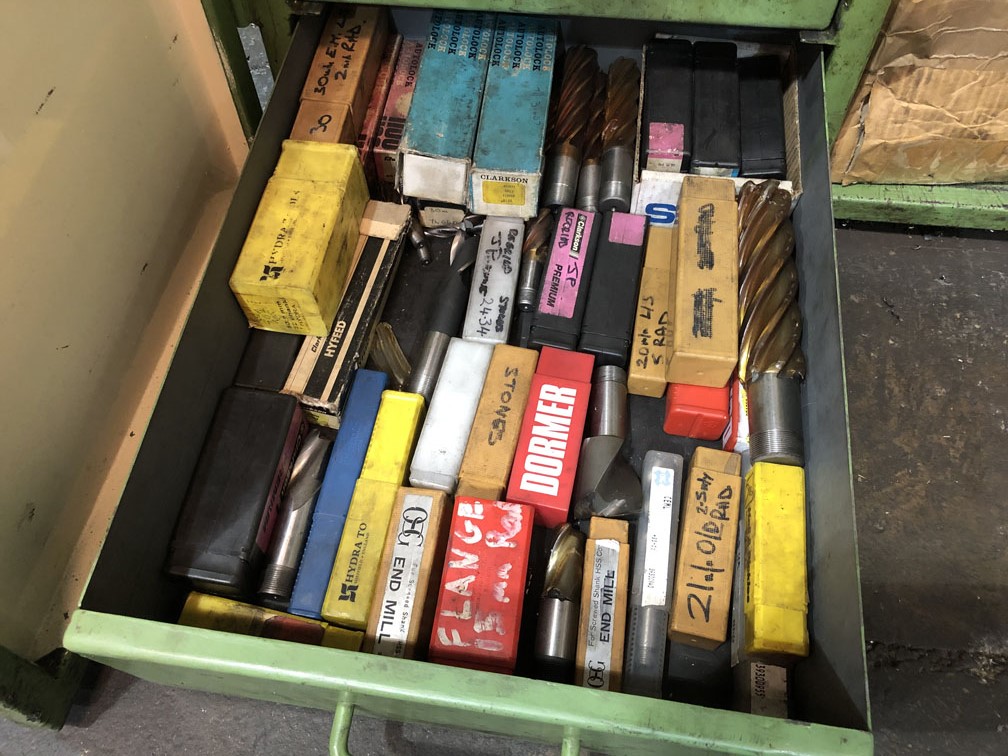

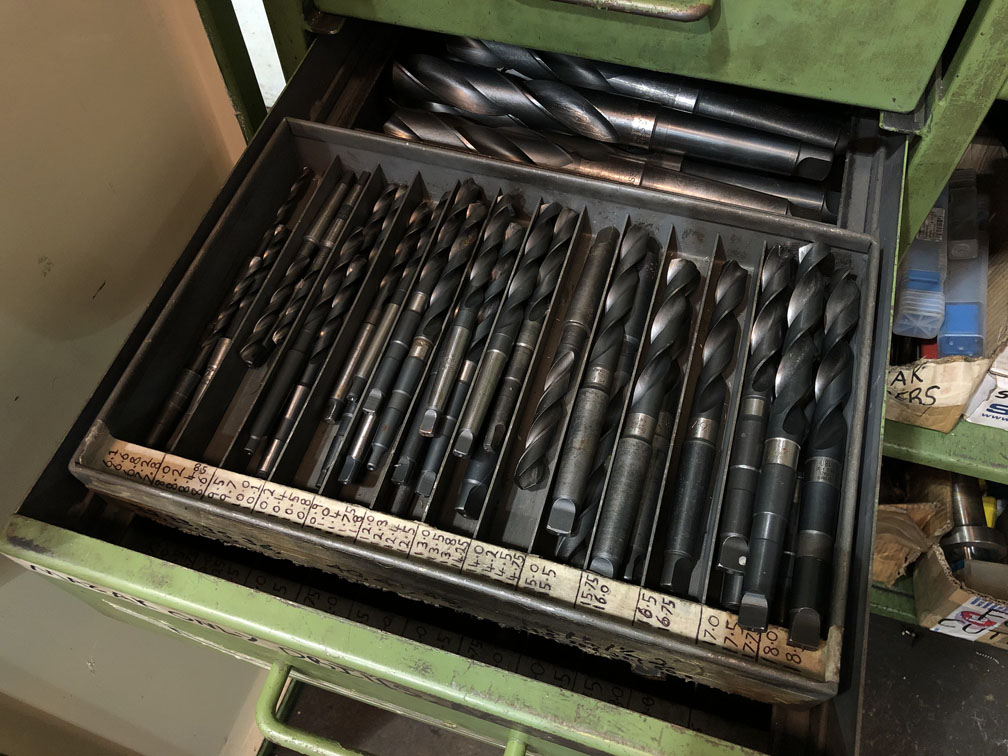

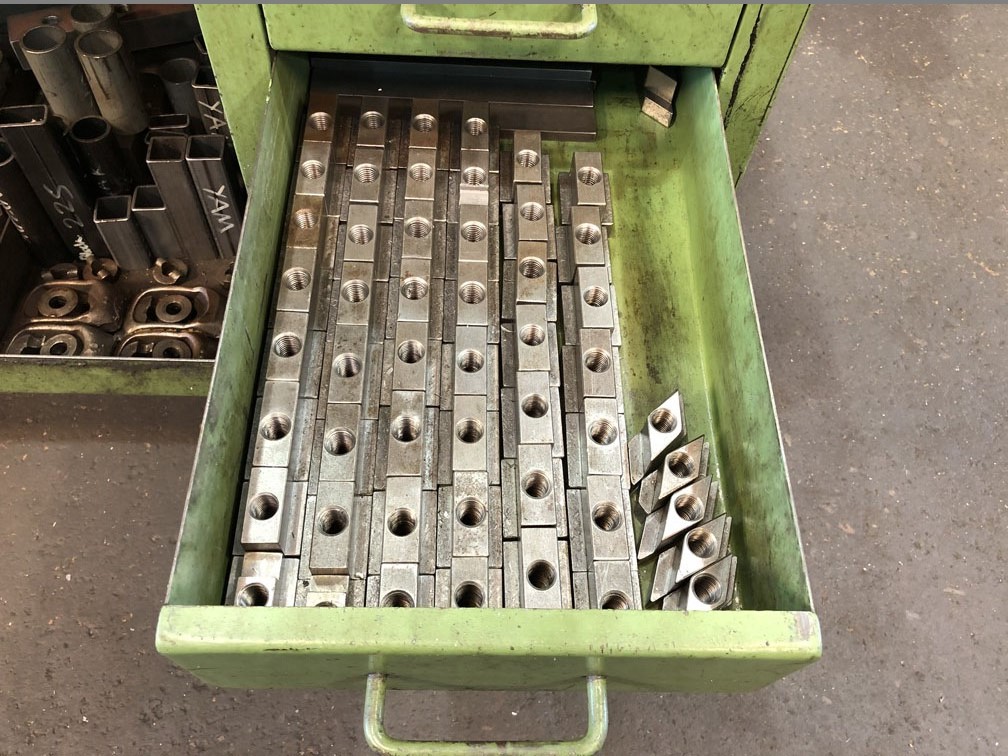

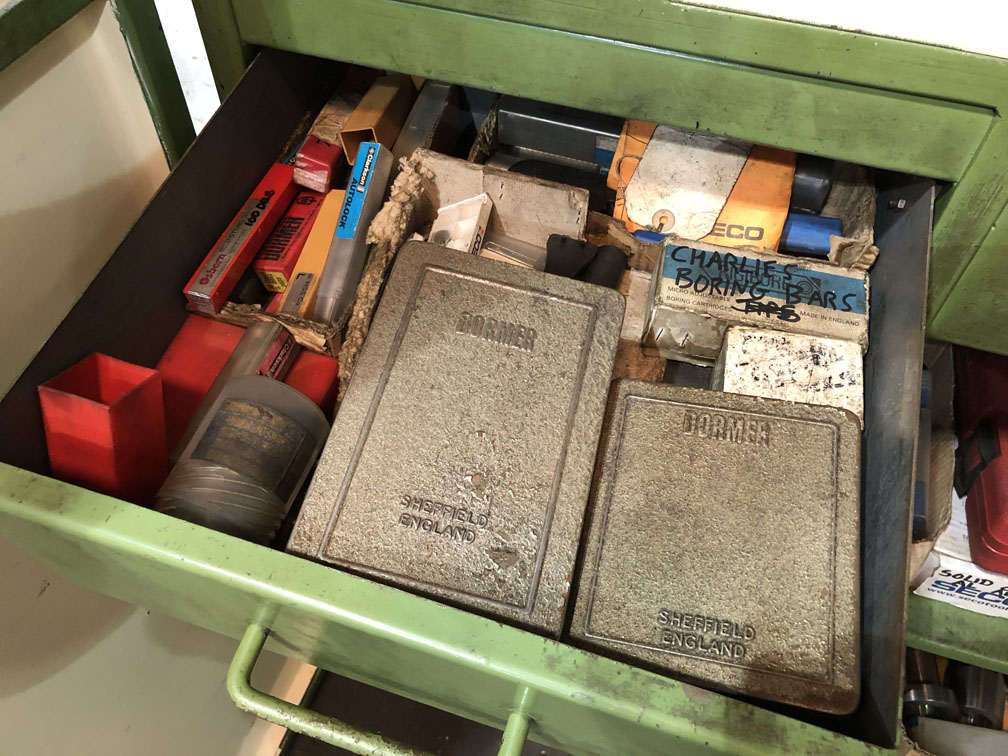

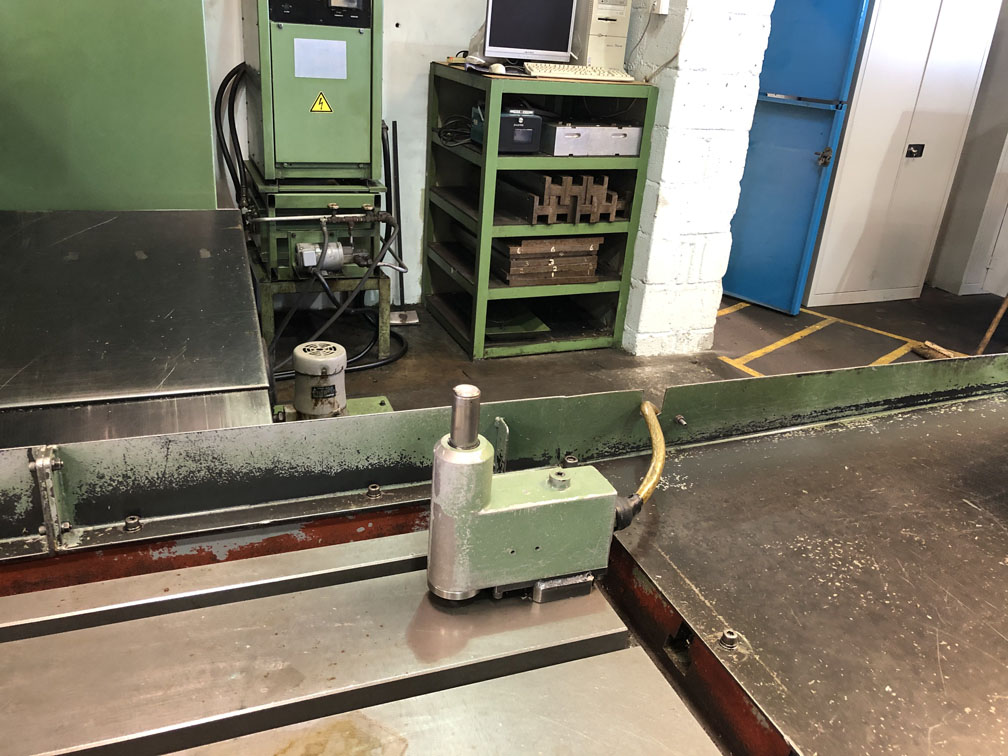

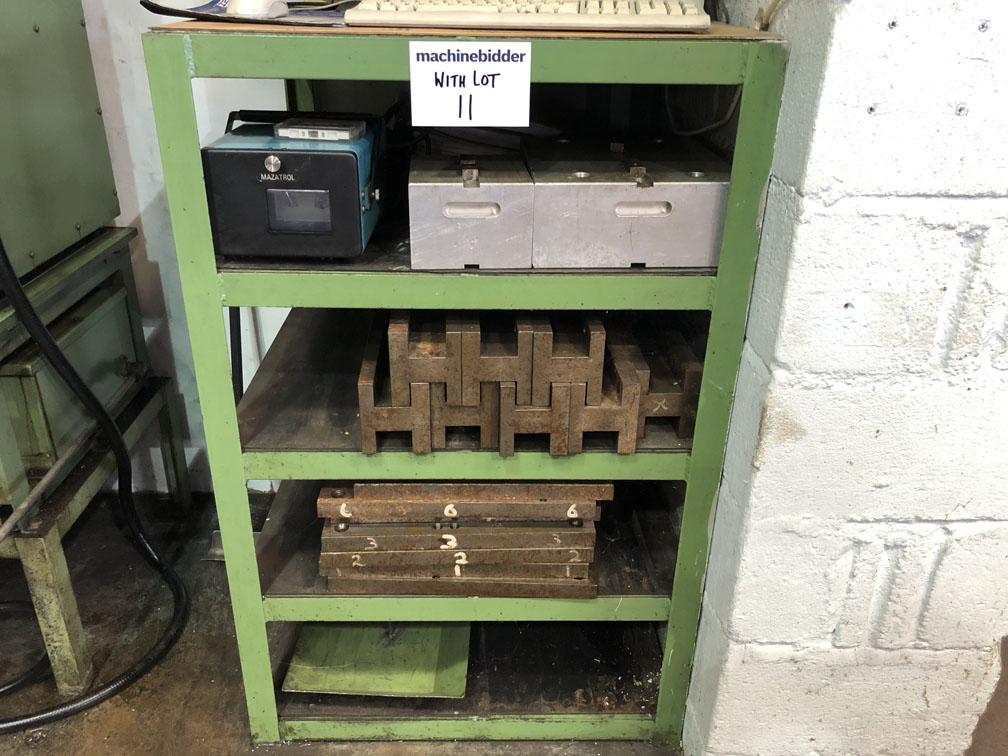

Maximum distance from centre of spindle to the front of the column 830mm. Minimum/maximum distance from top of the table to spindle flange 200 - 950mm. Height from floor level to top of the table 900mm. Spindle taper 50 ISO. No.of tools in carousel 40. Spindle speeds 14 - 2000 rpm. Spindle power 15 kW. Maximum tool dia. 200mm. Maximum tool dia with adjacent pocket empty 254mm dia. Maximum weight of tool 22 kgs. Maximum machining capacities - Drilling 70mm. Tapping M48 x 4. Milling cc/min 400. Green 2 door cupboard containing large quantity of spindle tooling,cutting tools and other accessories. Green table containing large quantity of clamping equipment. PC & Keyboard containing machine software. Back up parameters.

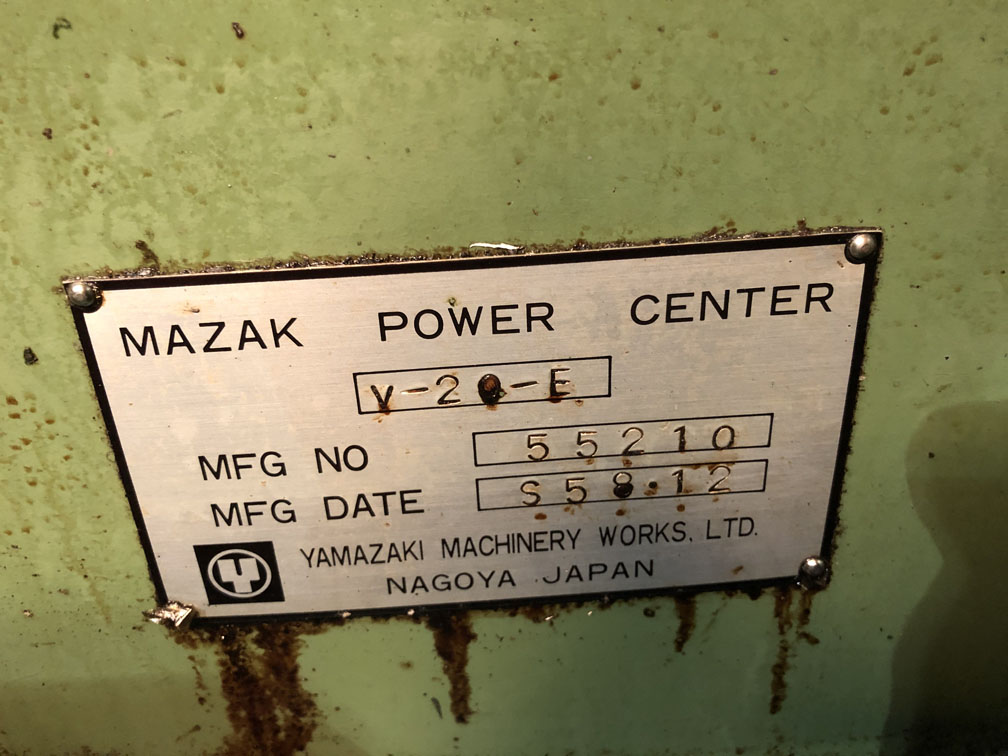

Machine Serial No.55210.

Dimensions 6300mm x 4080mm x 3510mm high. Approximate weight 17000 kgs.

DISCONNECTION & LOADING CHARGE TO SUITABLE FLATBED/OPEN TOP TRANSPORT £1,250

PLEASE SEE ATTACHED LOADING CHARGES & CONDITIONS

Video

Other information

Please refer to the terms & conditions if you wish to negotiate on this item.
