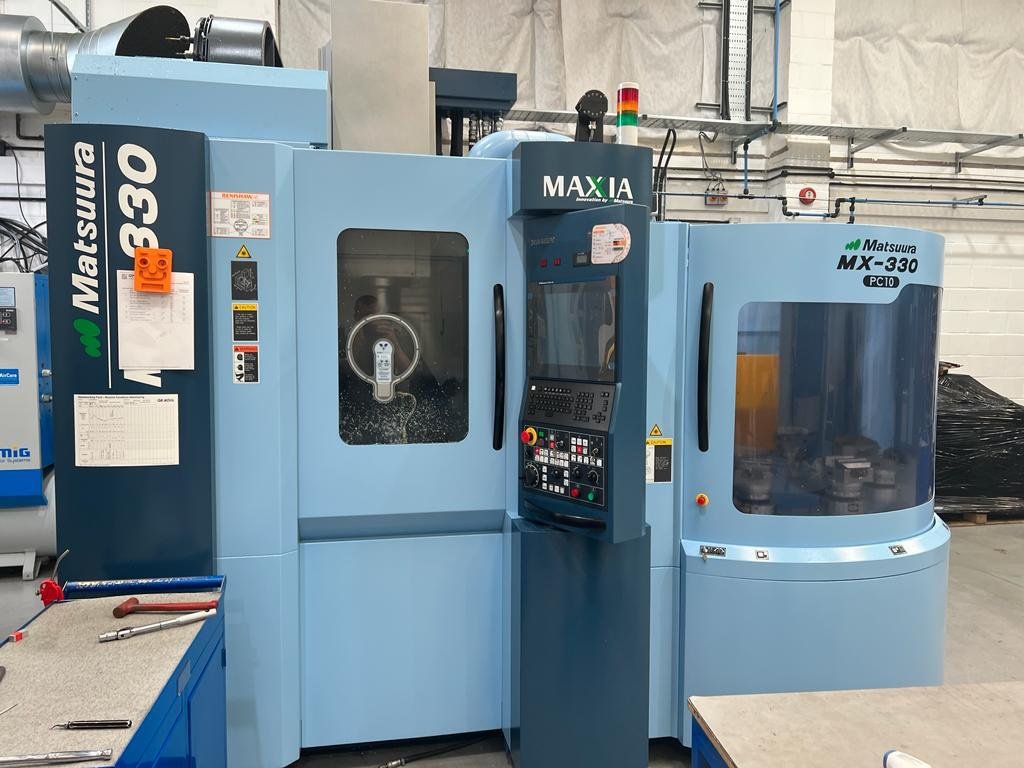

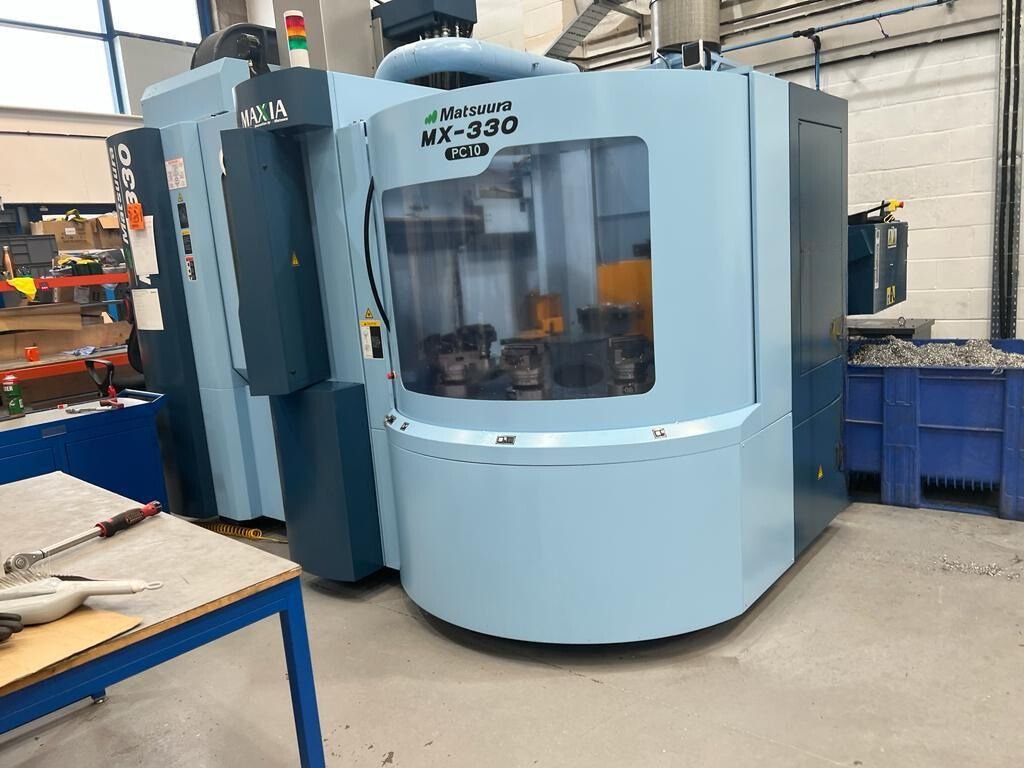

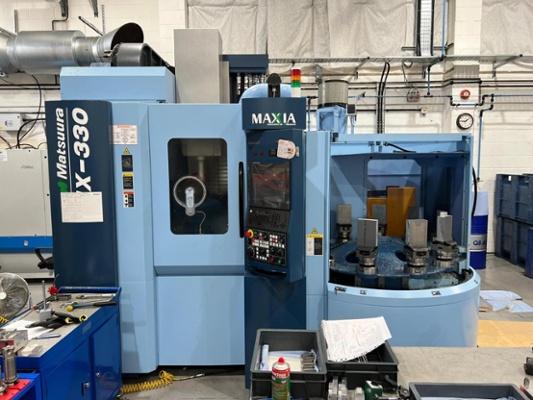

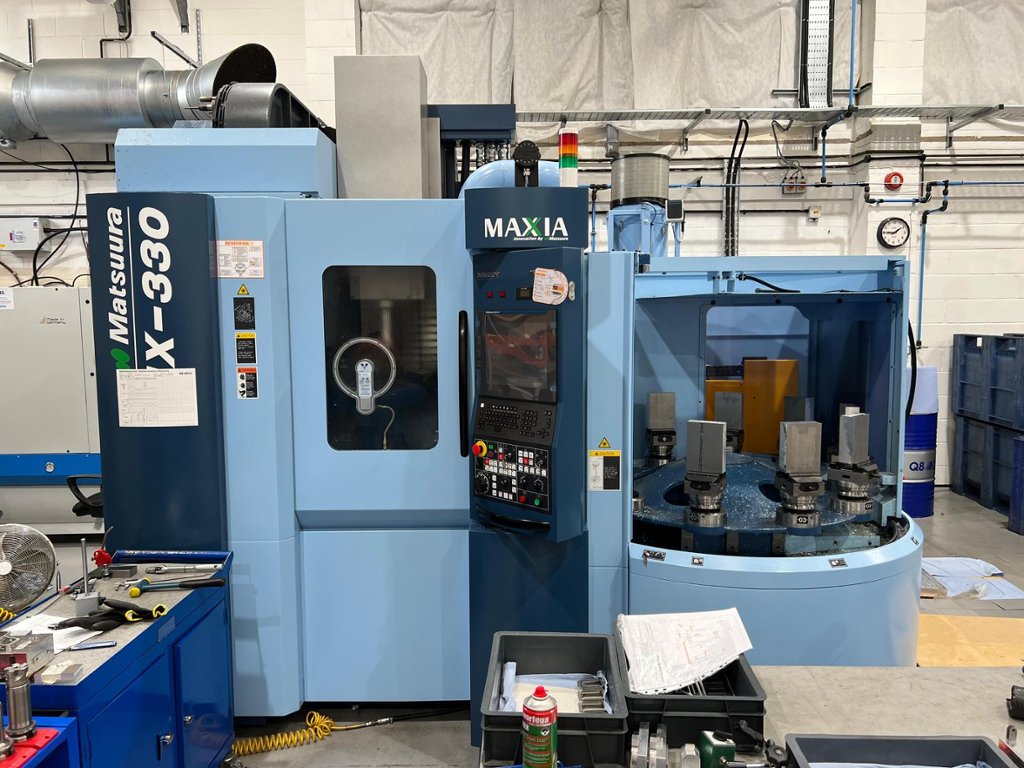

Lot 2: MATSUURA MX-330 10 Pallet 5 Axis Vertical Machining Centre with Matsuura G-Tech 31i Touch Screen Control. Installed 2022
This lot has been archived
Description

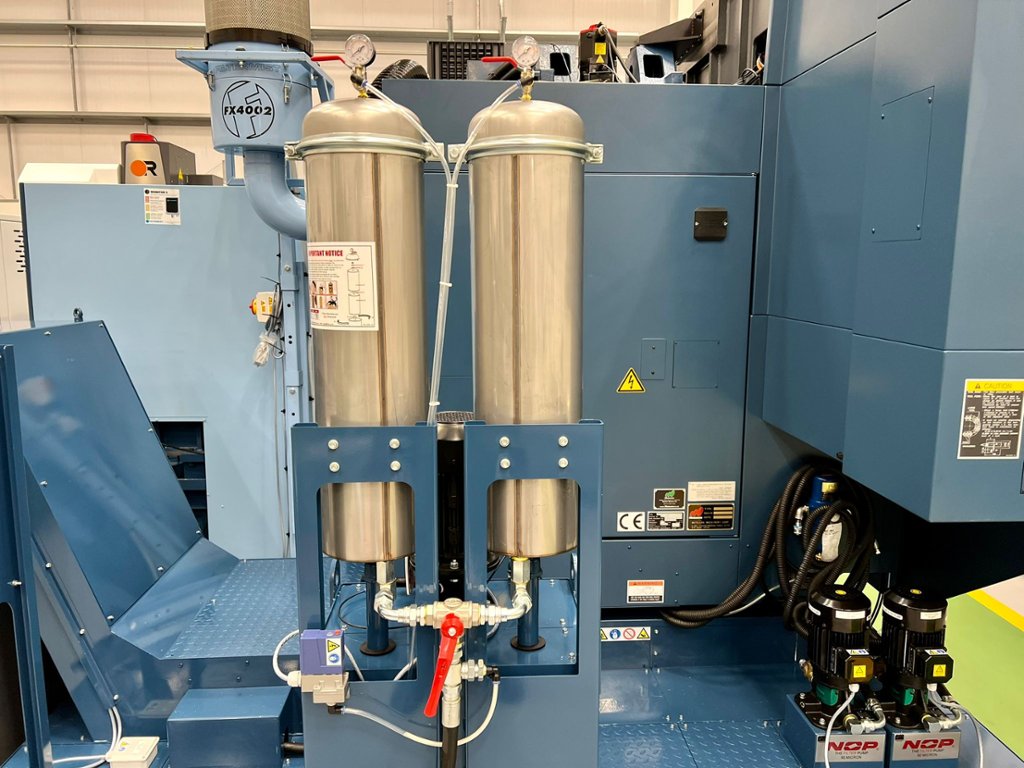

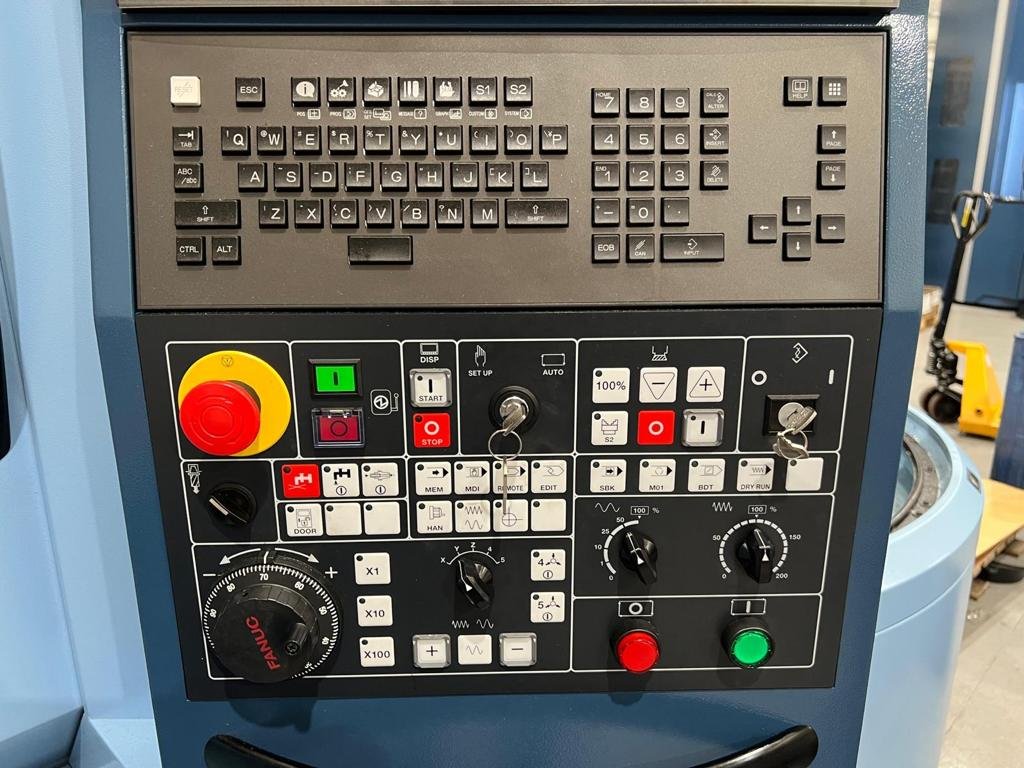

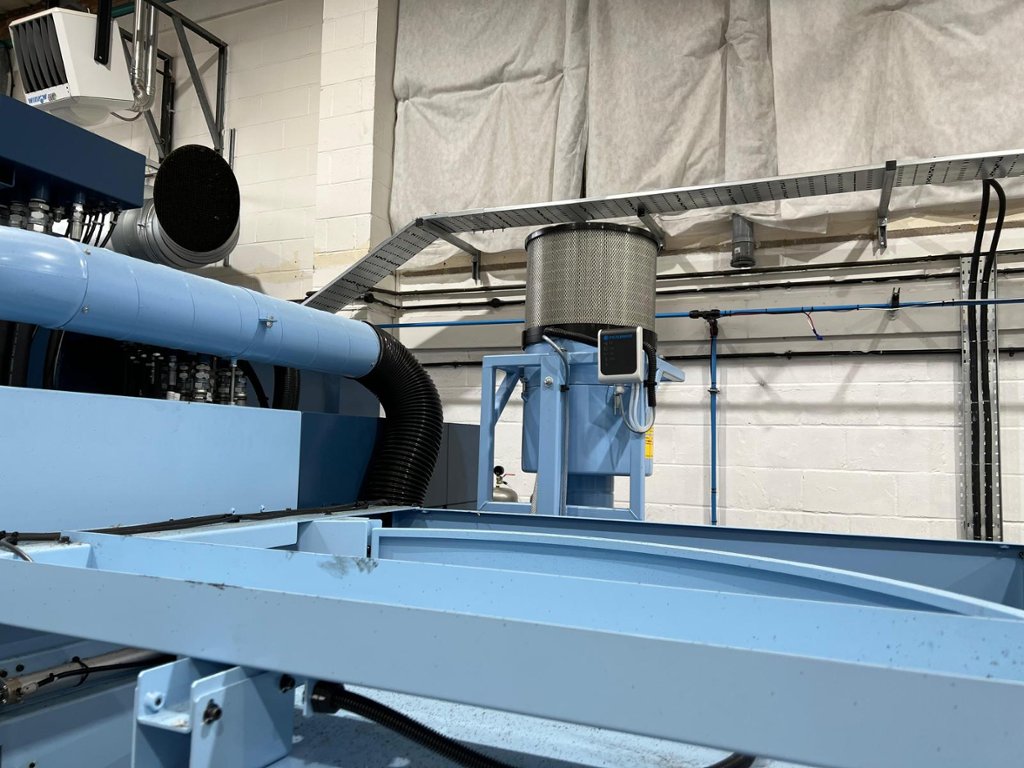

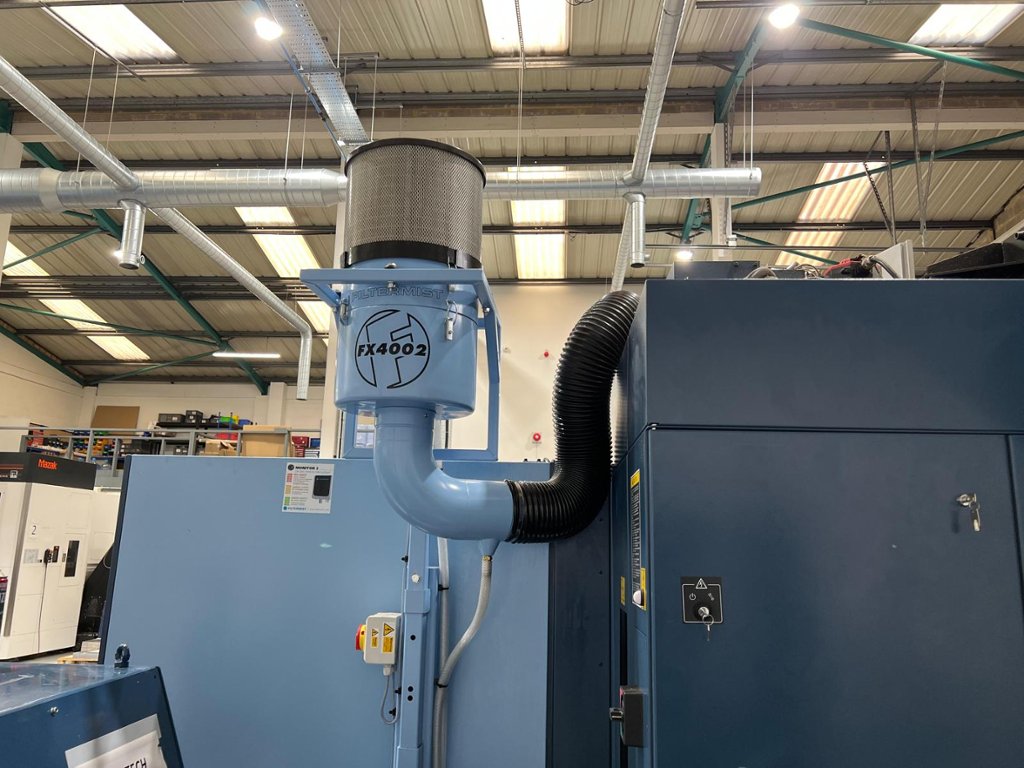

Working surface 130mm dia. Capto C6 Pallet System. X/Y/Z travels 435mm/465mm/560mm. Travel A/C (degrees) -125~-10 /360. Maximum work size 330mm dia. x 300mm high. Loading capacity 80 kg. Spindle taper BT 40. Spindle speeds 15,000 rpm. Rapids X/Y/Z 40m/min. Rapid traverse A/C min-1 17/33. No of tools 90. Type of tool shank JIS B 6339 40T. Maximum tool dia. 60mm. Maximum tool weight 10kg. Tool changing time 1.1 seconds. FSE Swarf Management System (Side Exit) with Chip Bin. 20 Bar Through Spindle Coolant (Duplex filtration). Filtermist FX4000 including floor stand & F monitor. Renishaw RMP600 Spindle Inspection Probe. Renishaw Laser Broken Tool Detection System. Matsuura G-Tech 31i Touch Screen Control.

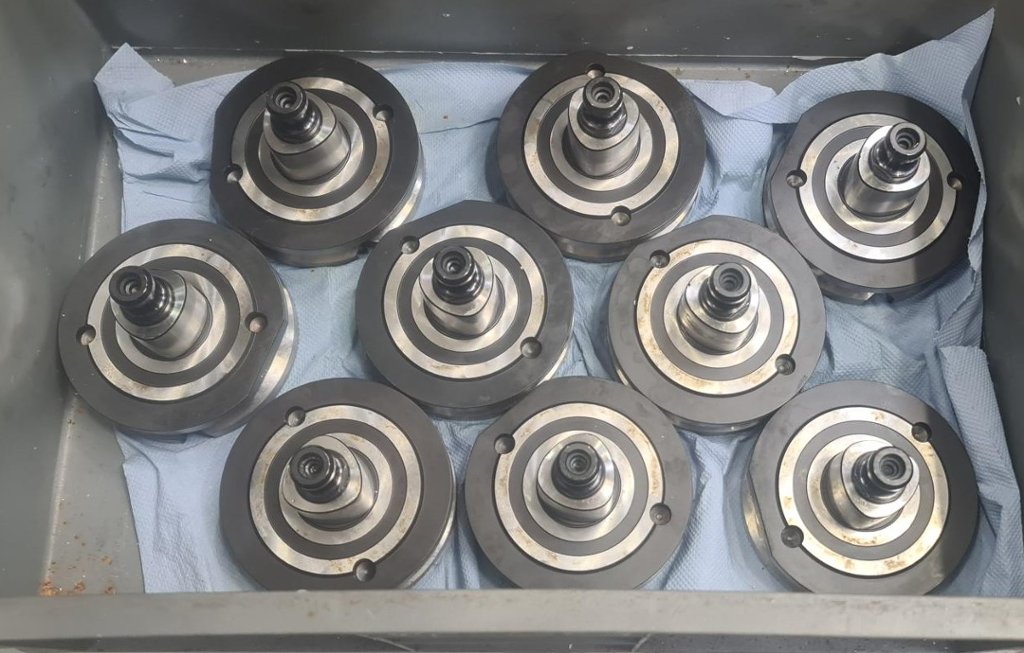

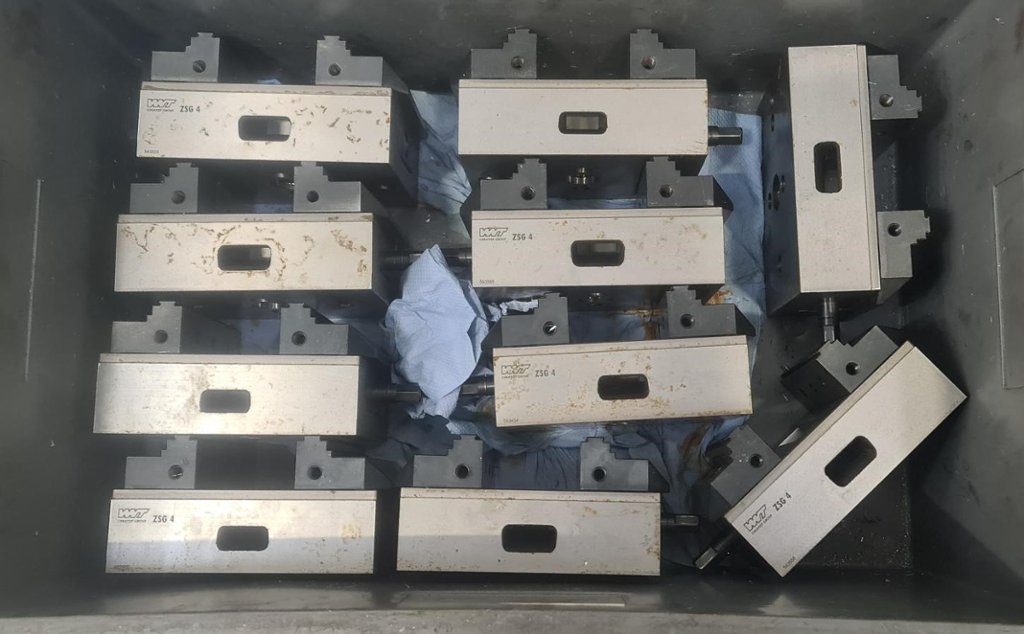

Complete with qty of Vices & Adapter Plates.

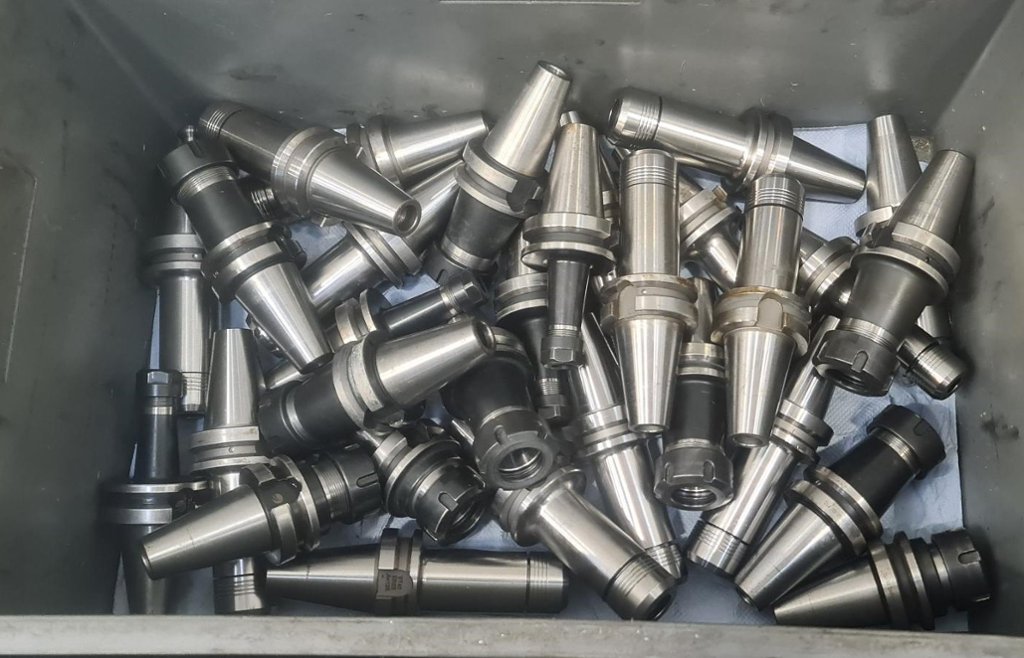

Selection of Toolholders.
Supplied new by Matsuura Machinery Ltd and installed in 2022.
Machine has been removed for concenience of sale and is now is storage in Greater Manchester
