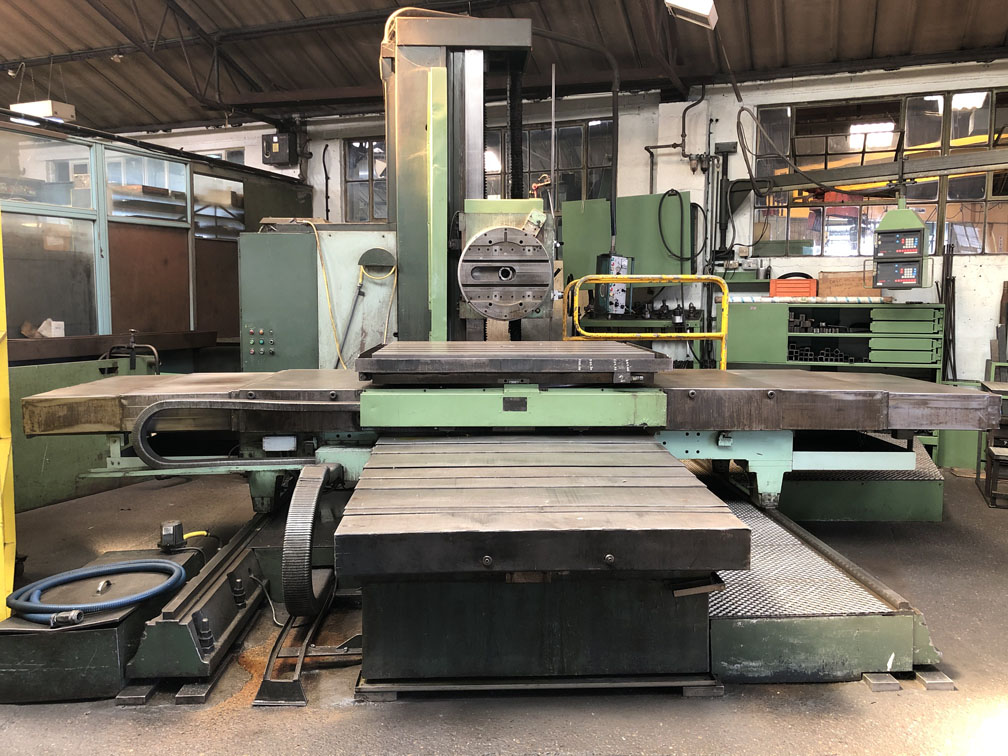

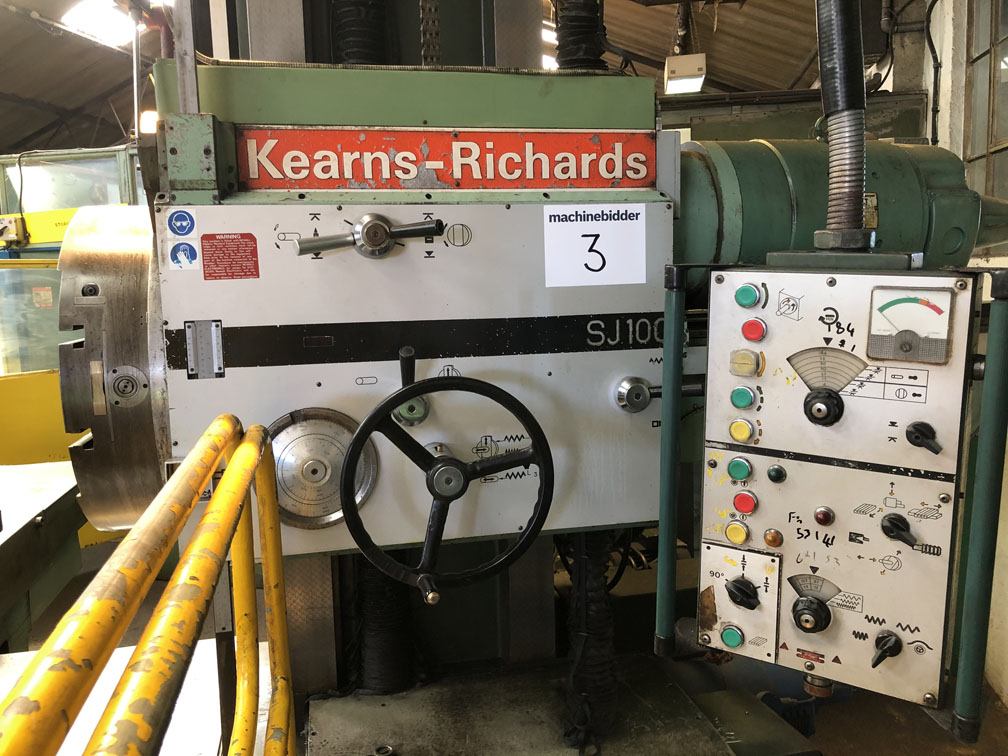

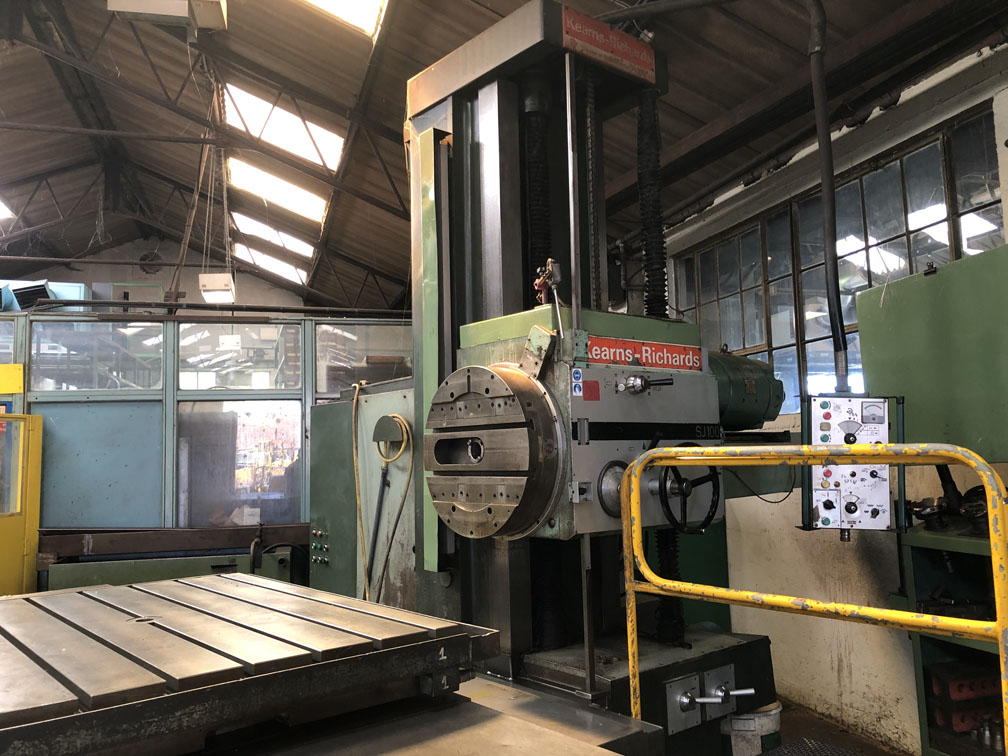

Lot 3: KEARNS RICHARDS SJ100 Table Type Horizontal Borer - SALE AGREED

Private Treaty Sale (by negotiation)

Description

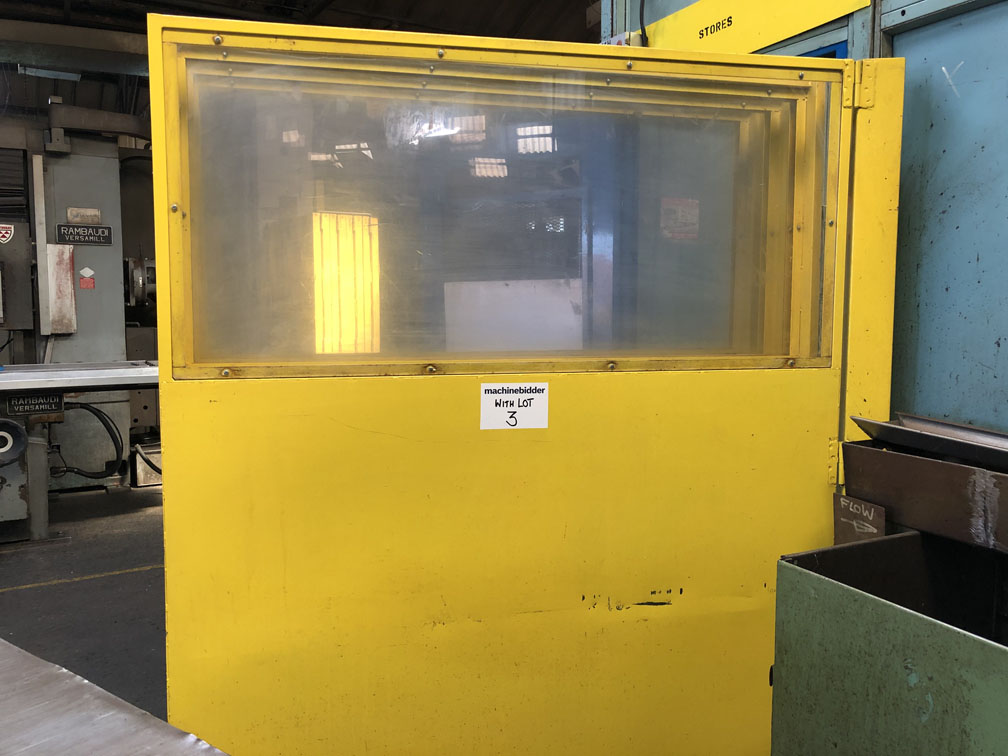

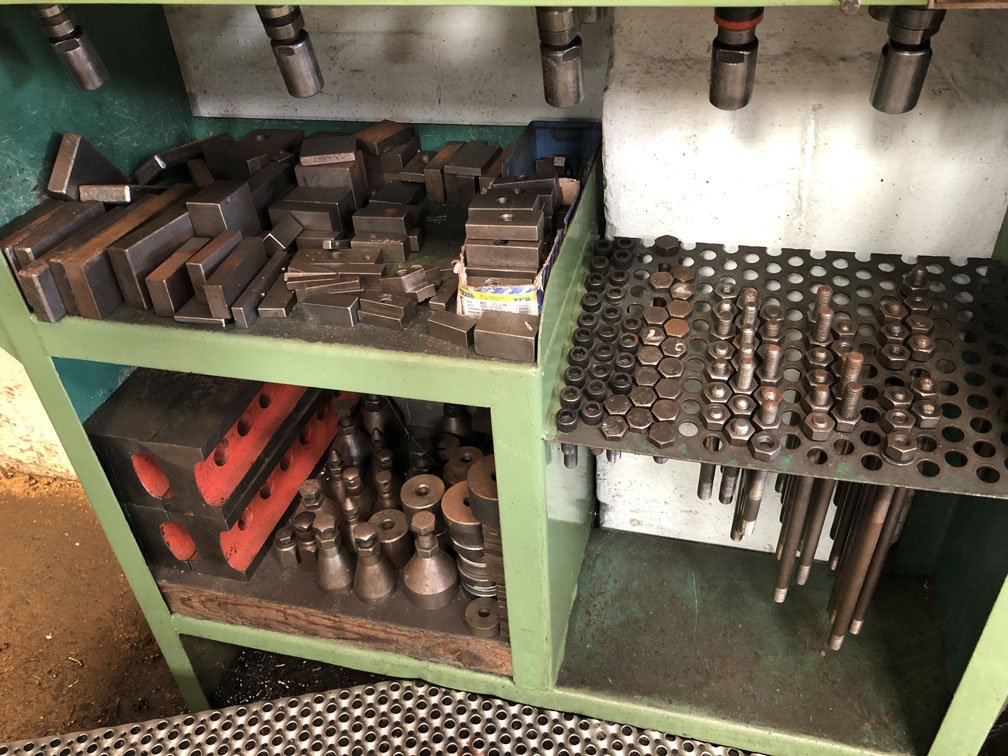

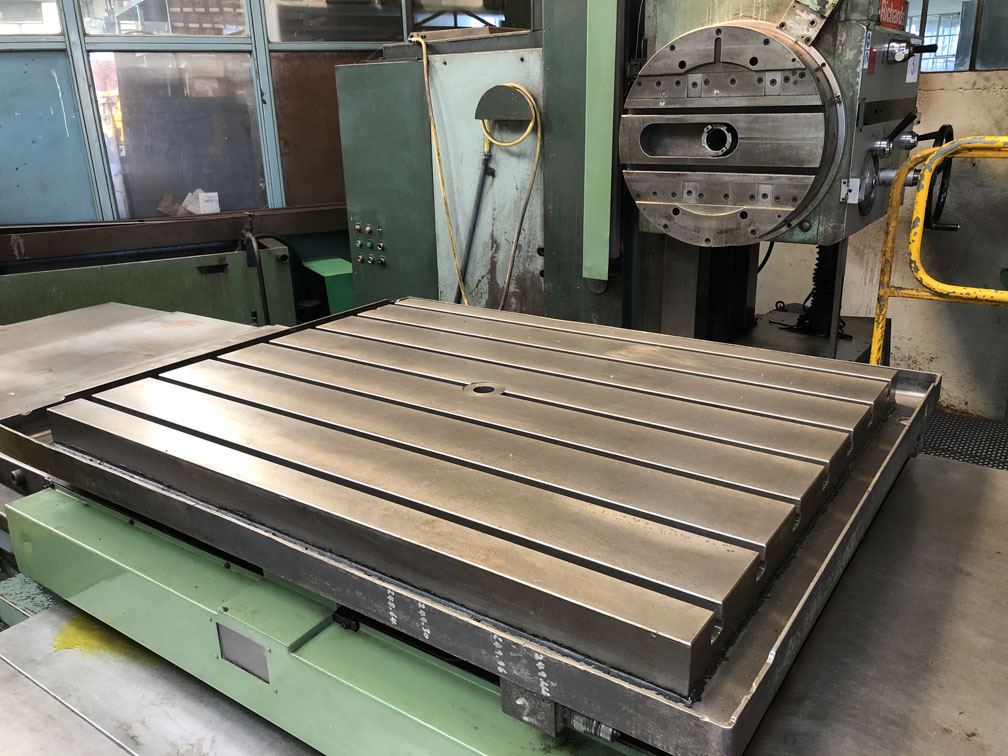

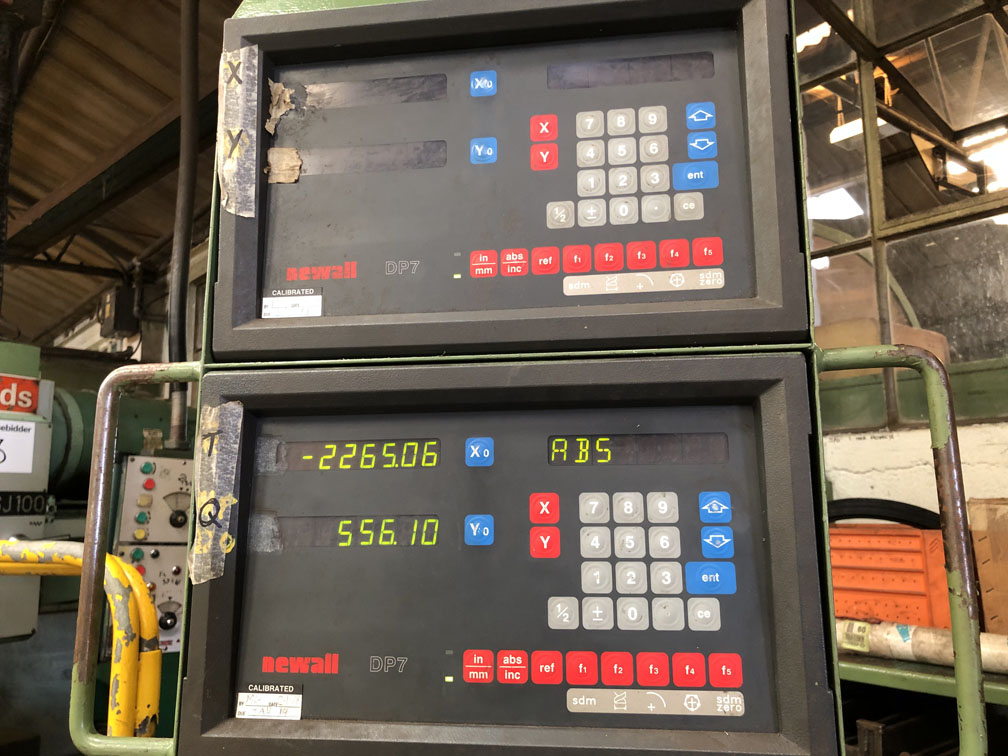

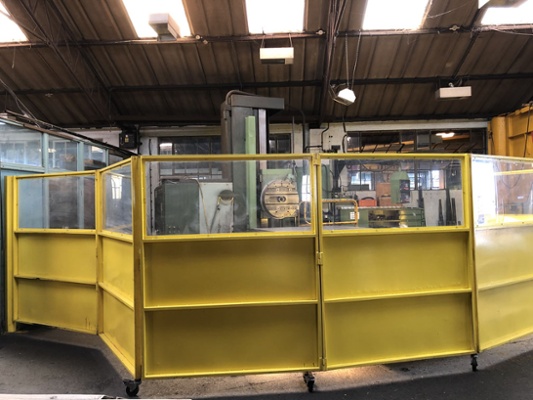

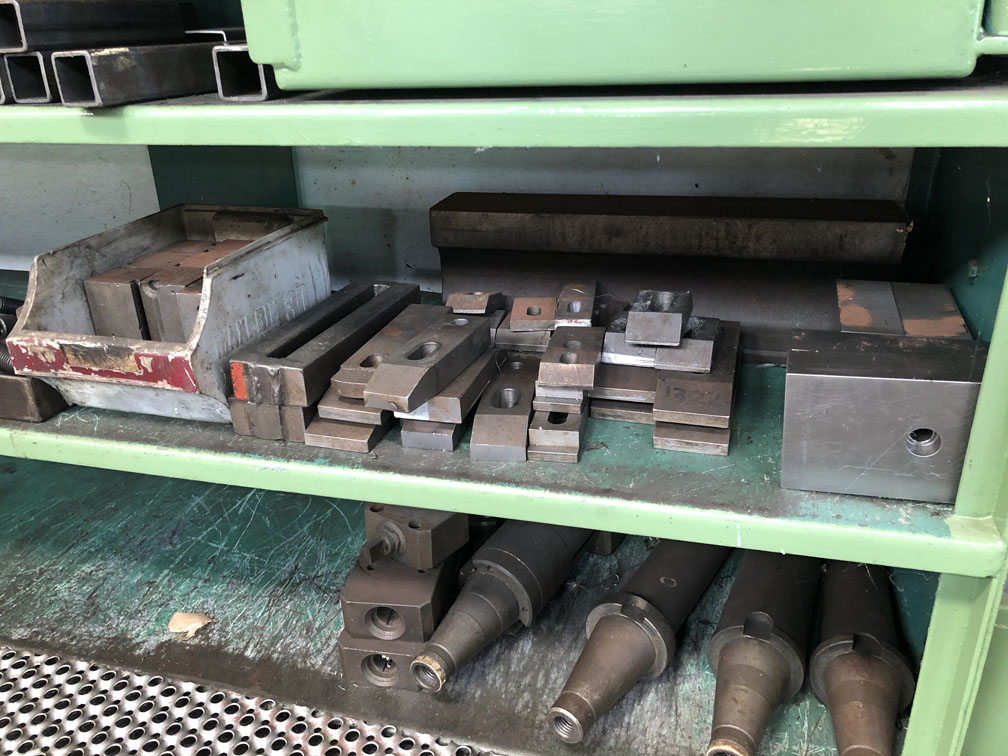

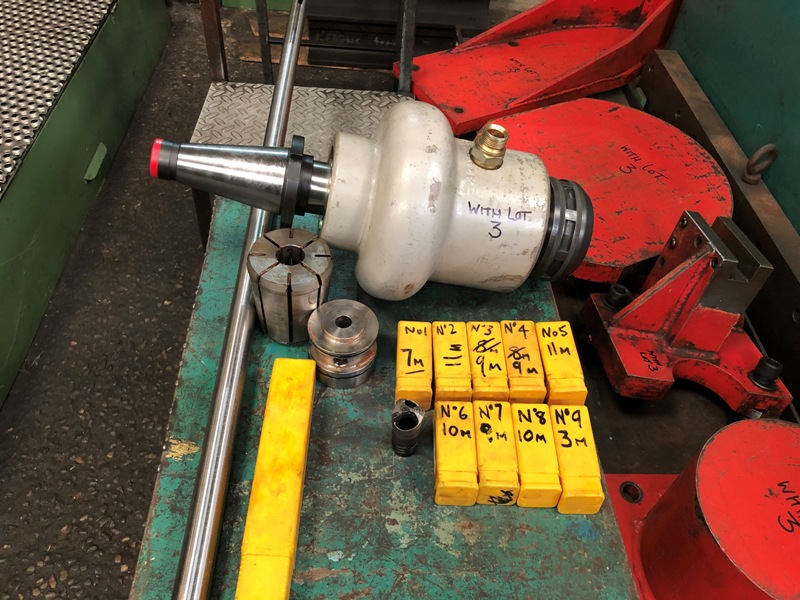

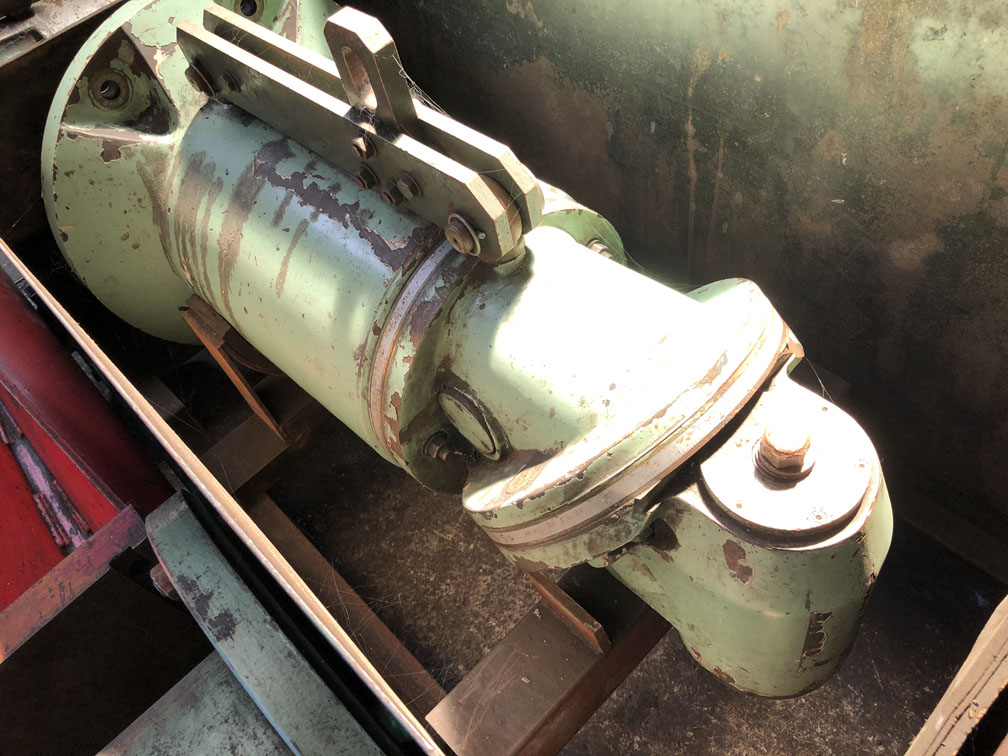

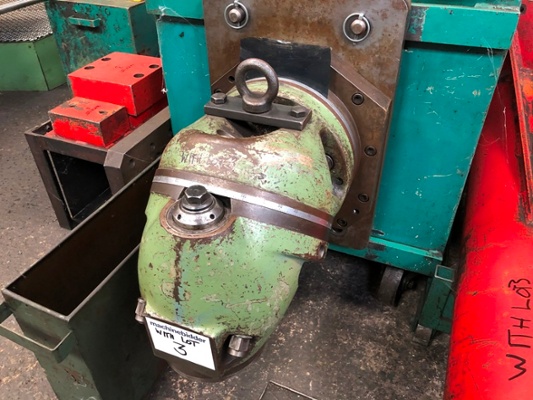

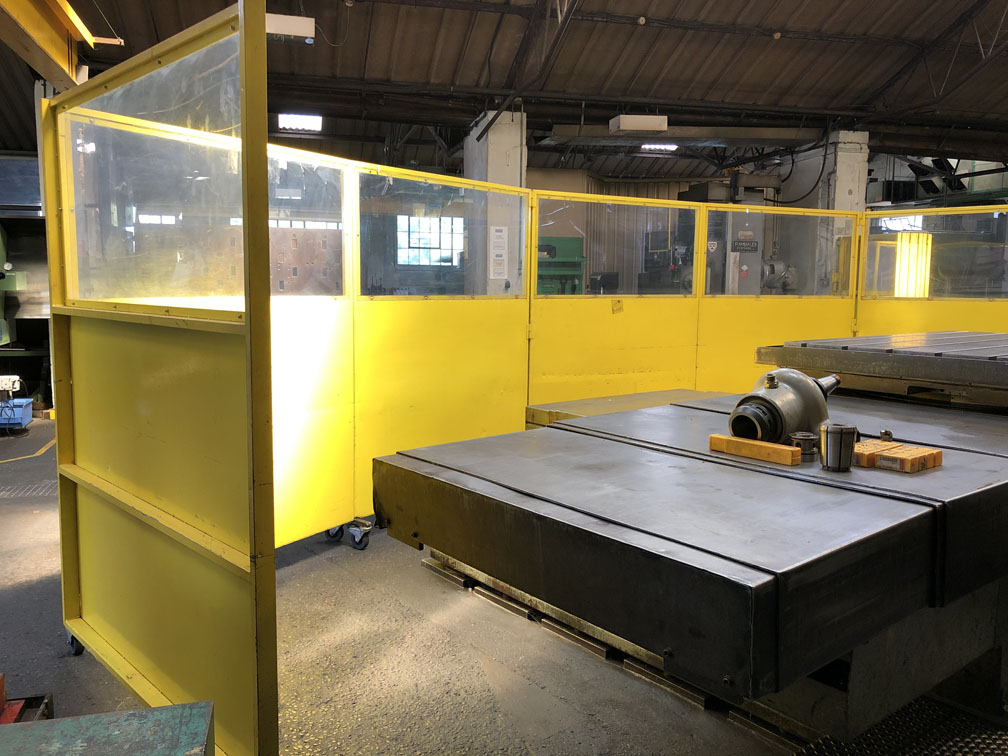

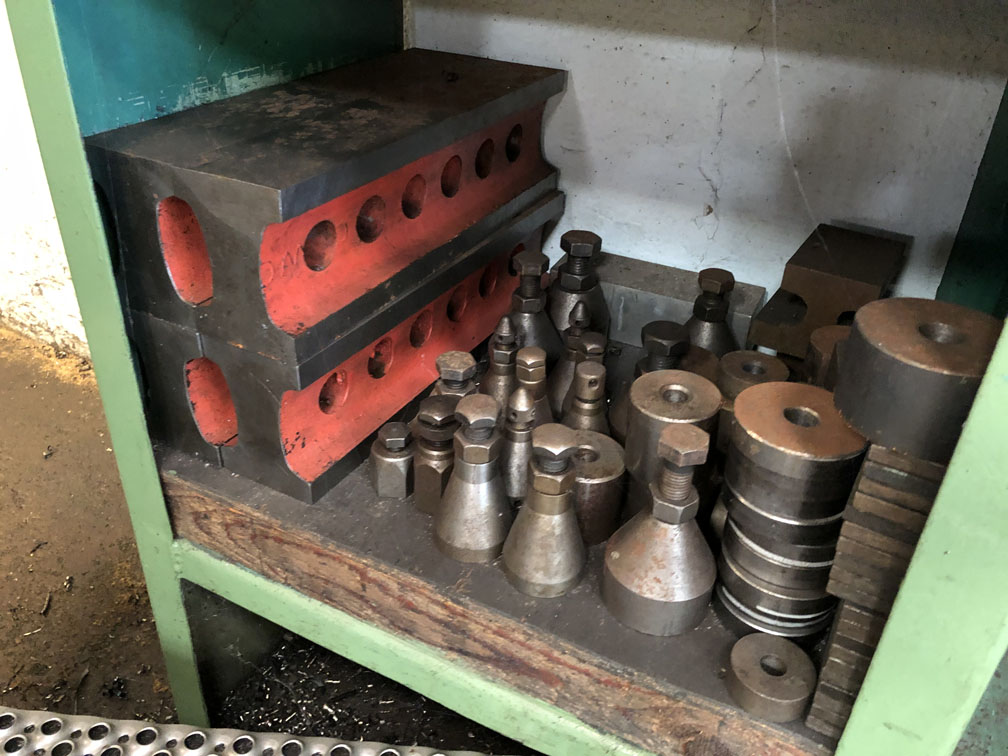

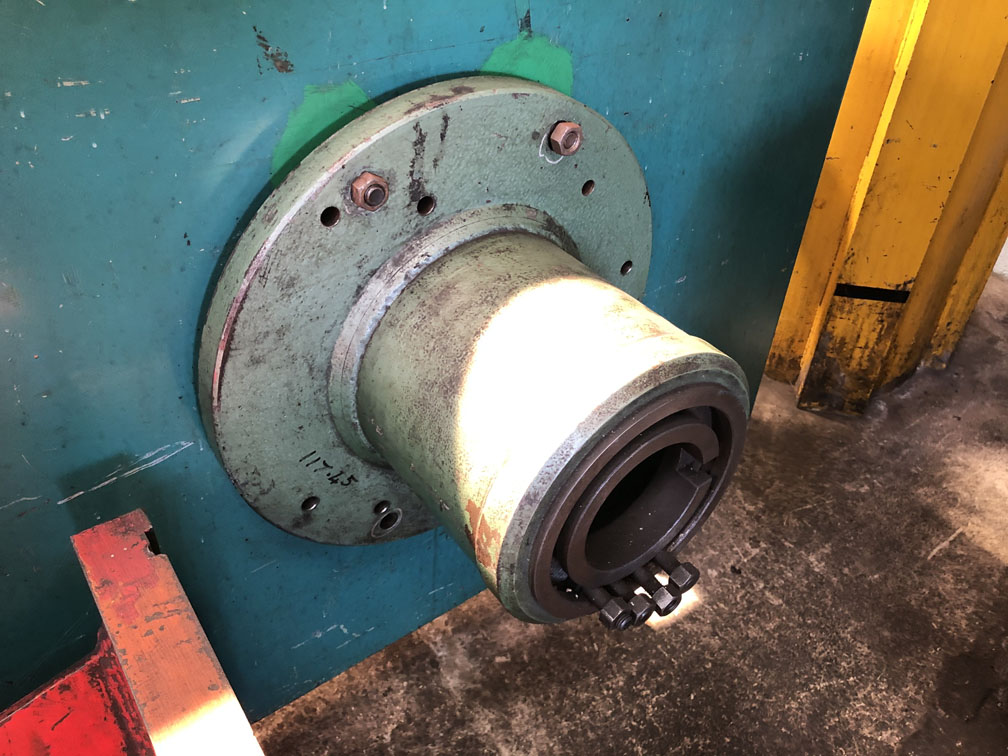

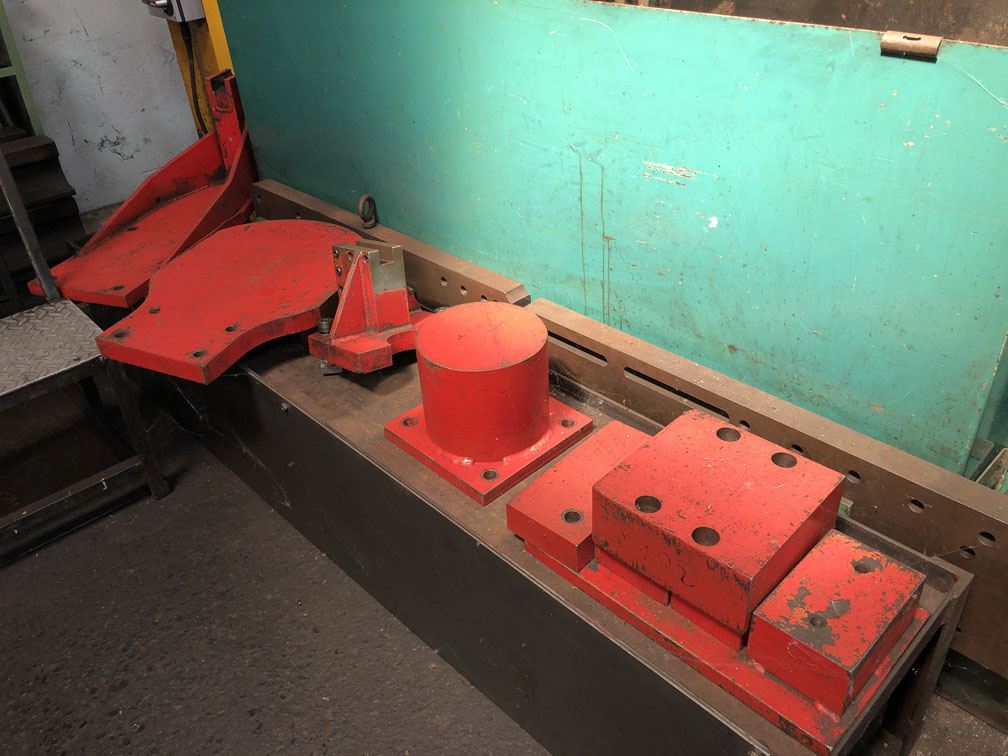

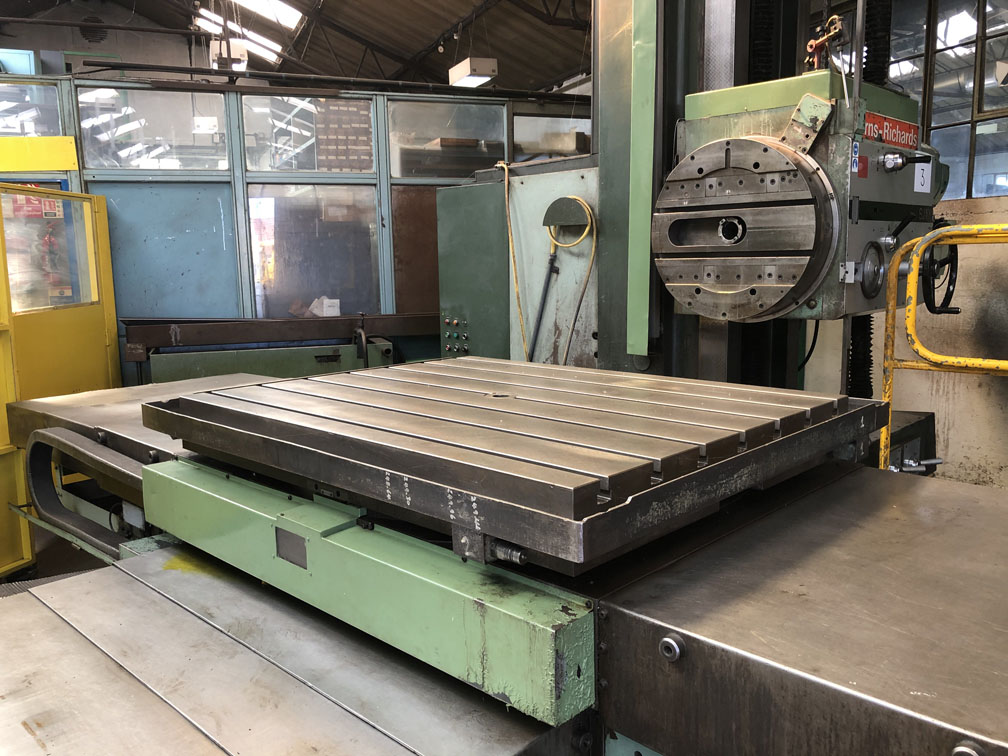

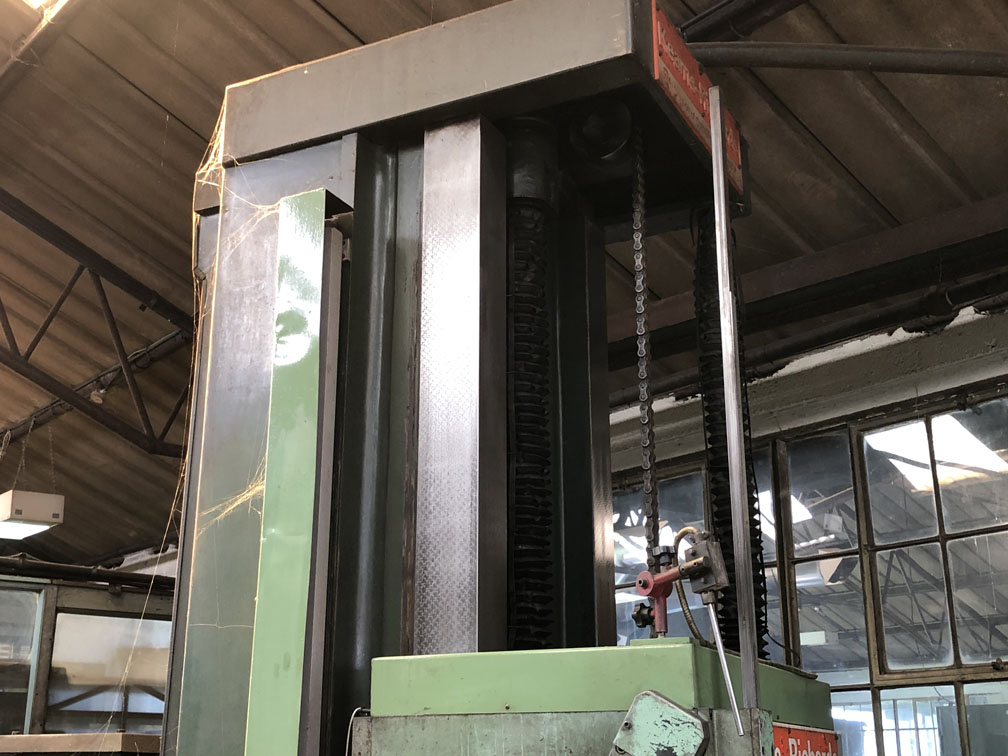

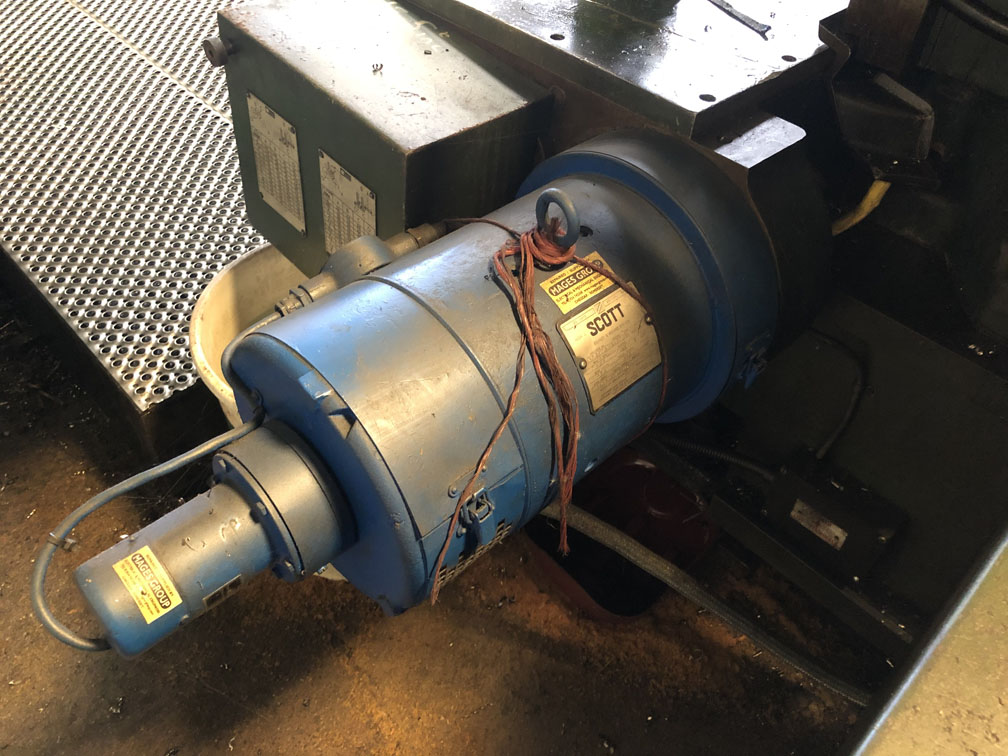

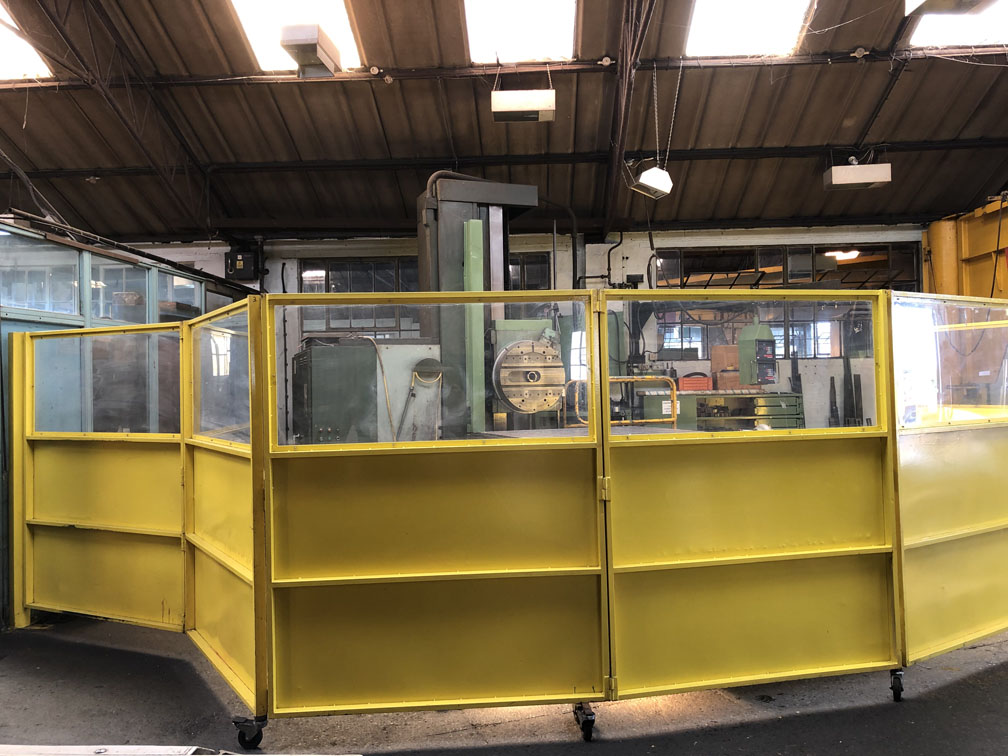

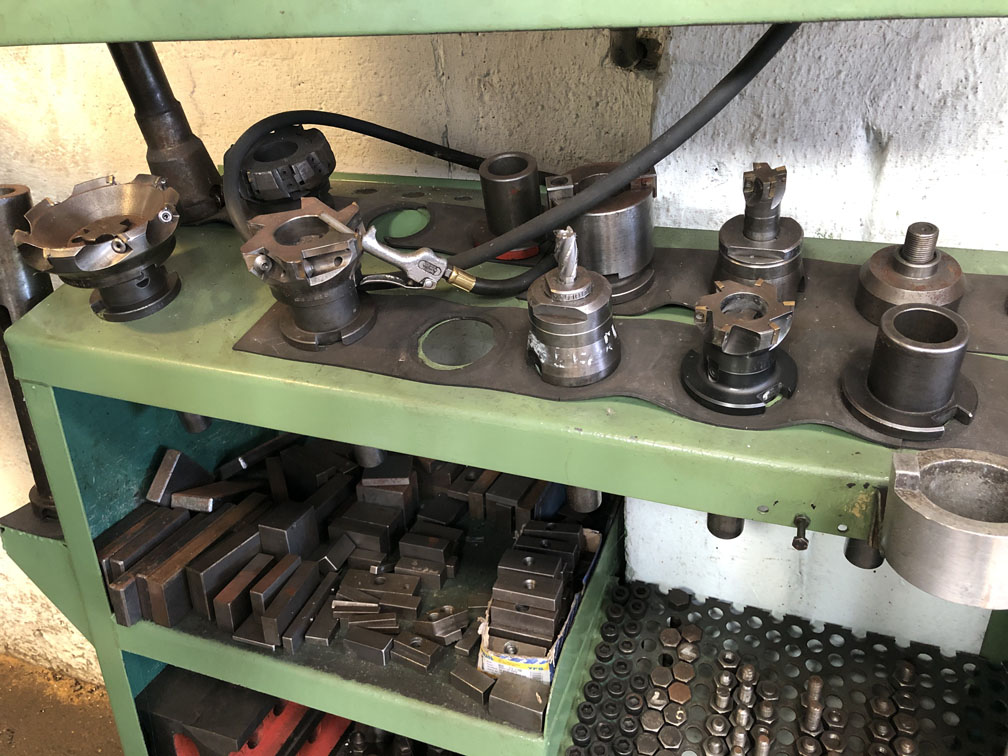

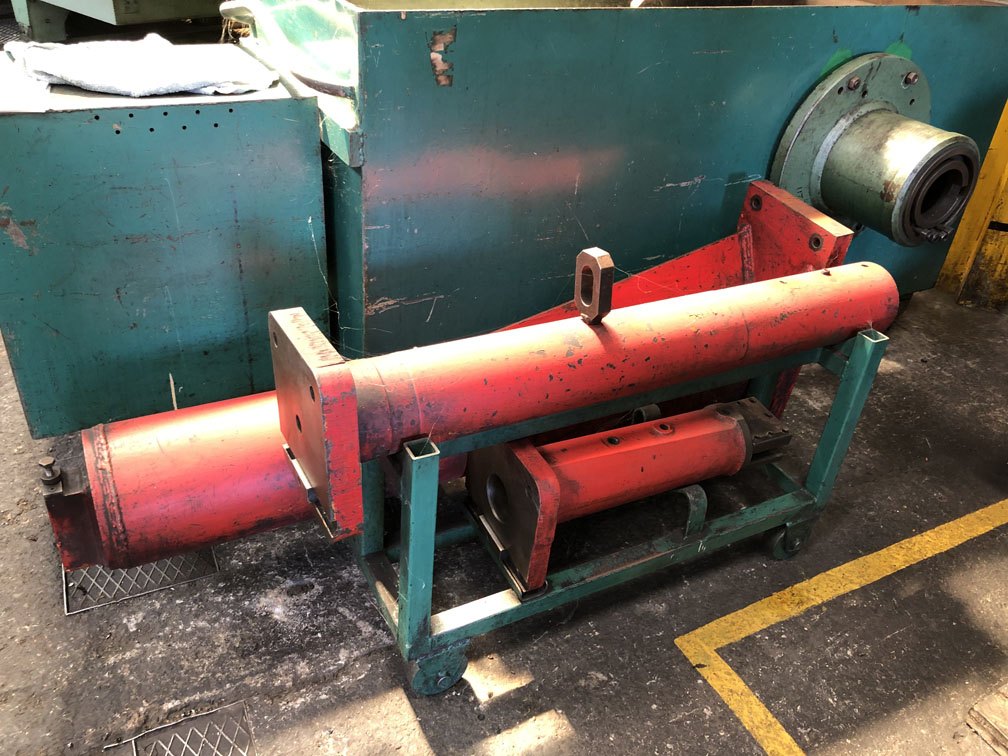

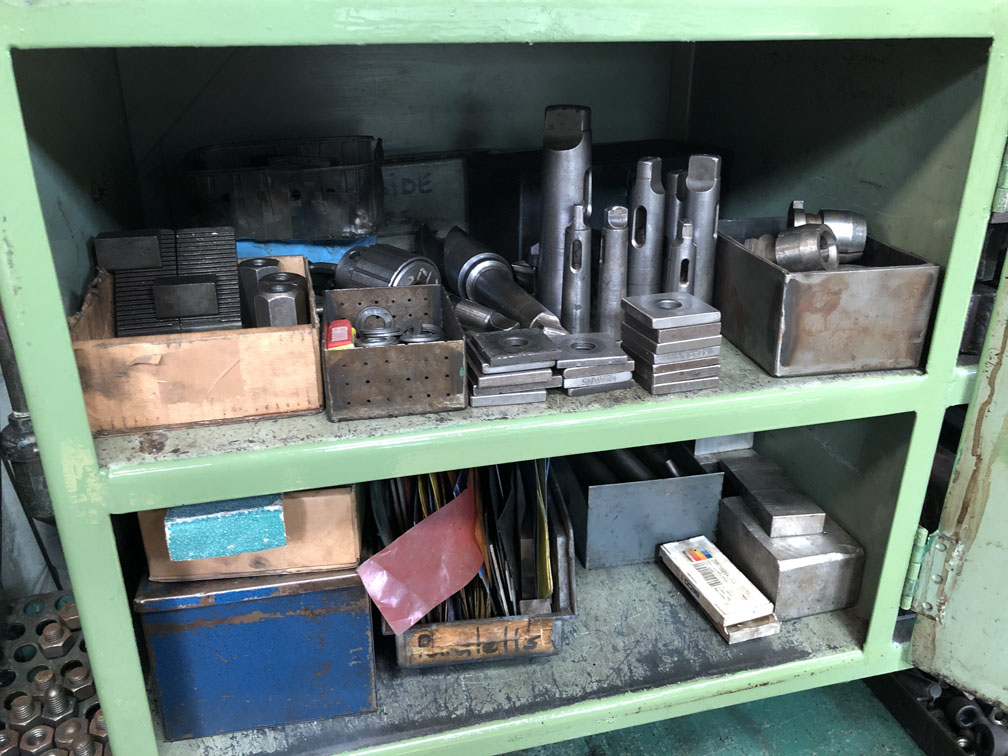

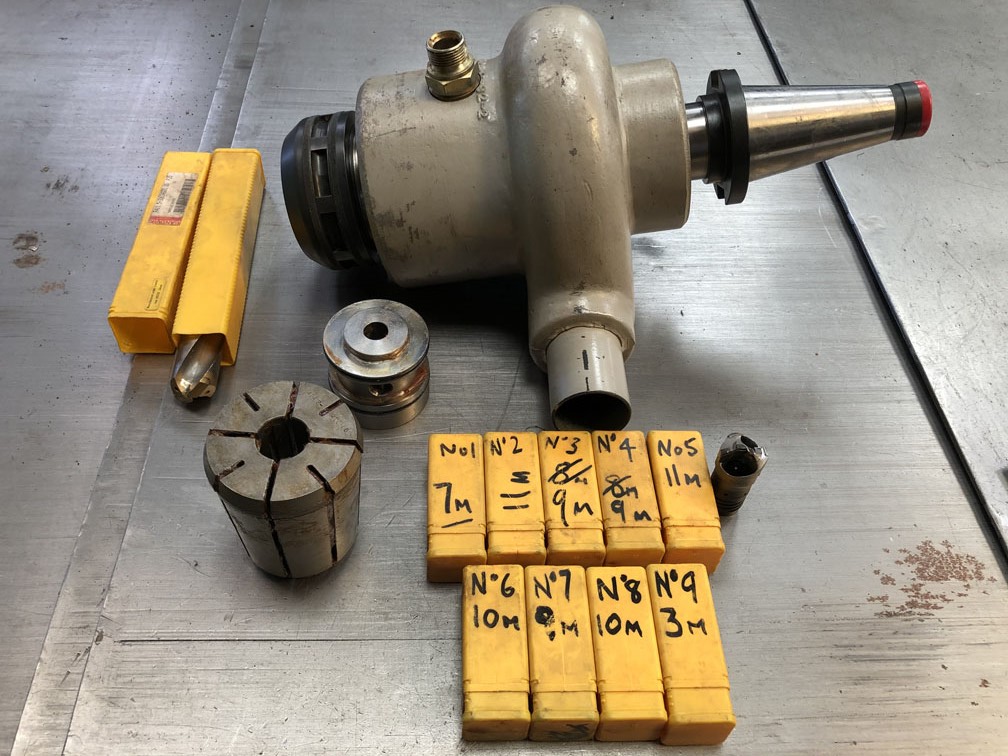

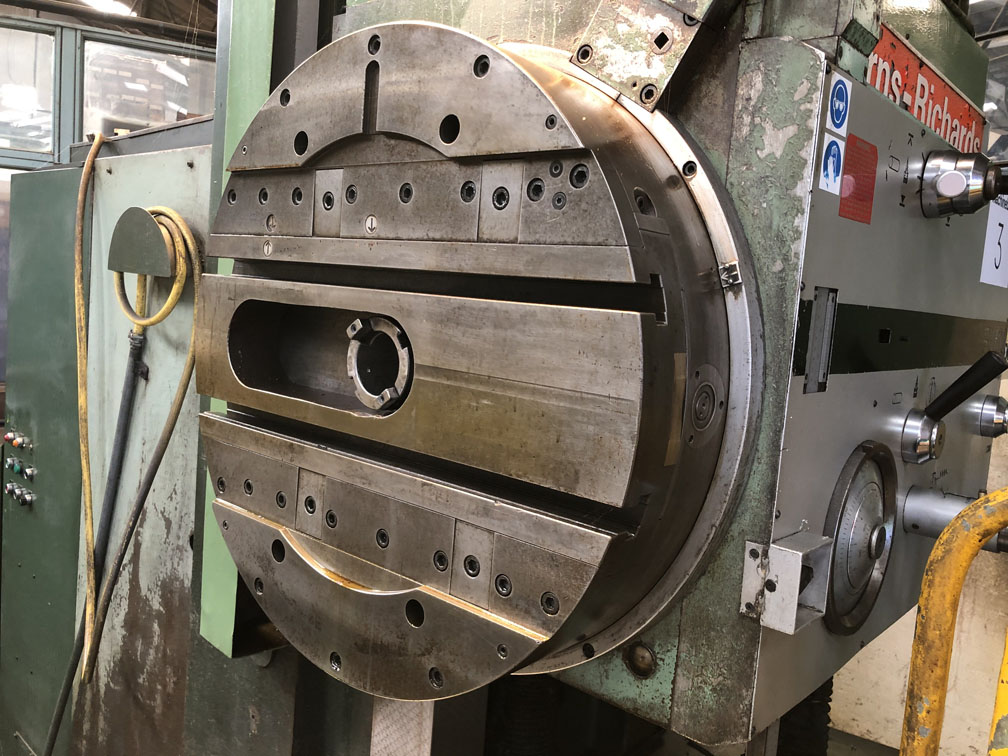

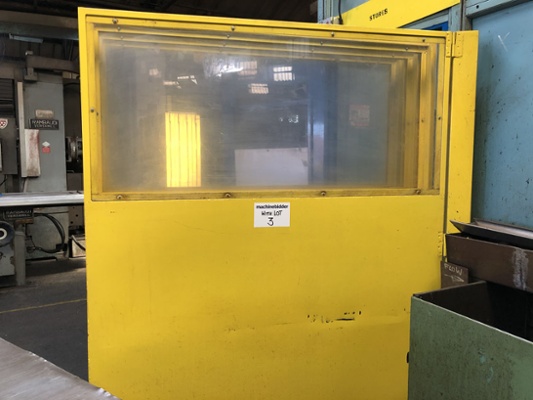

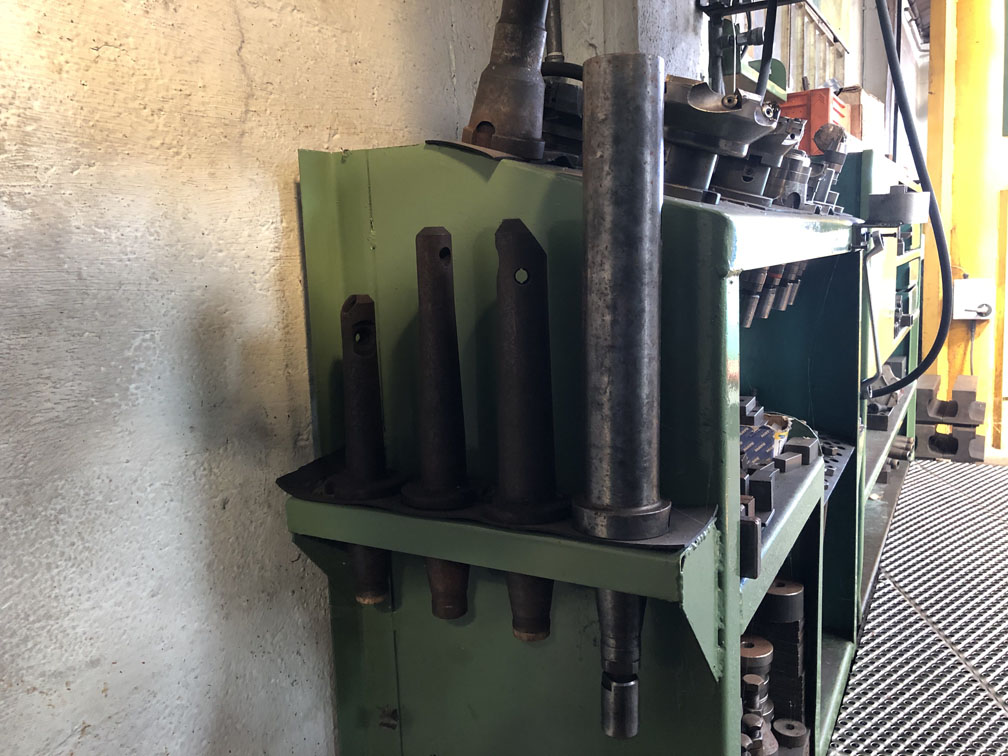

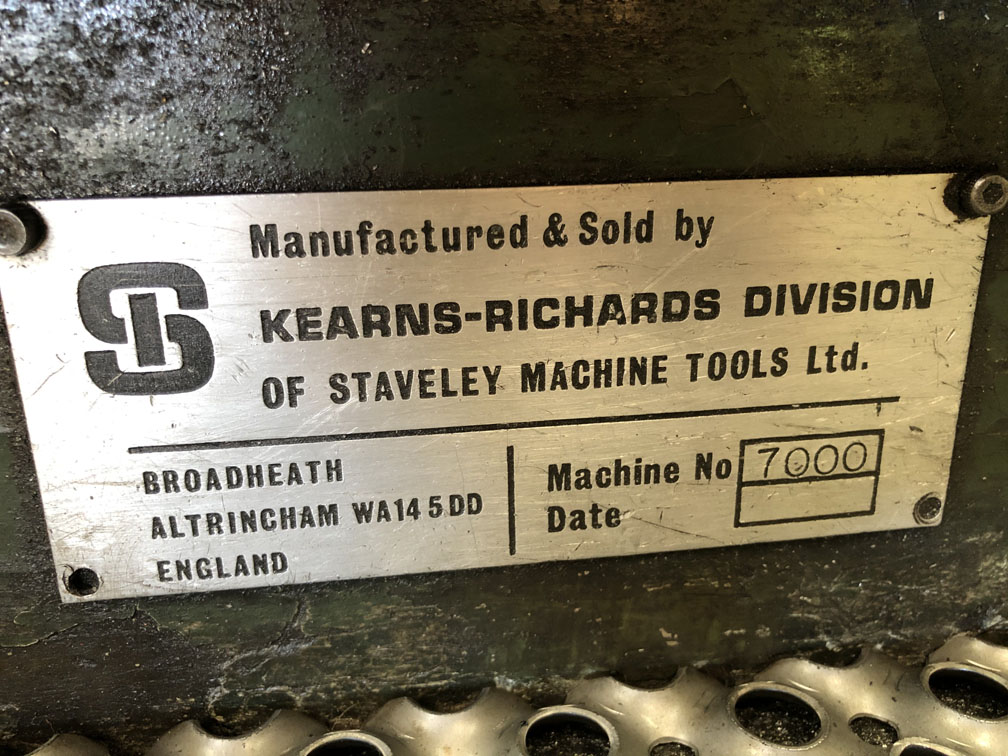

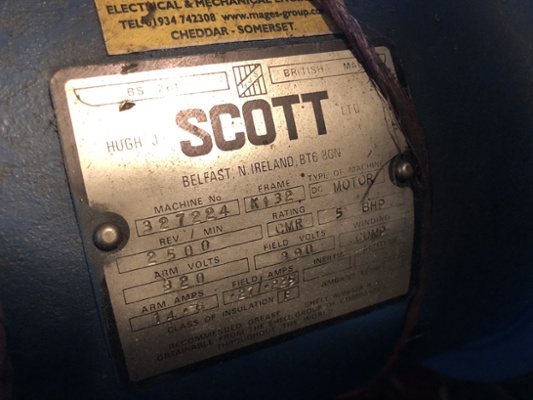

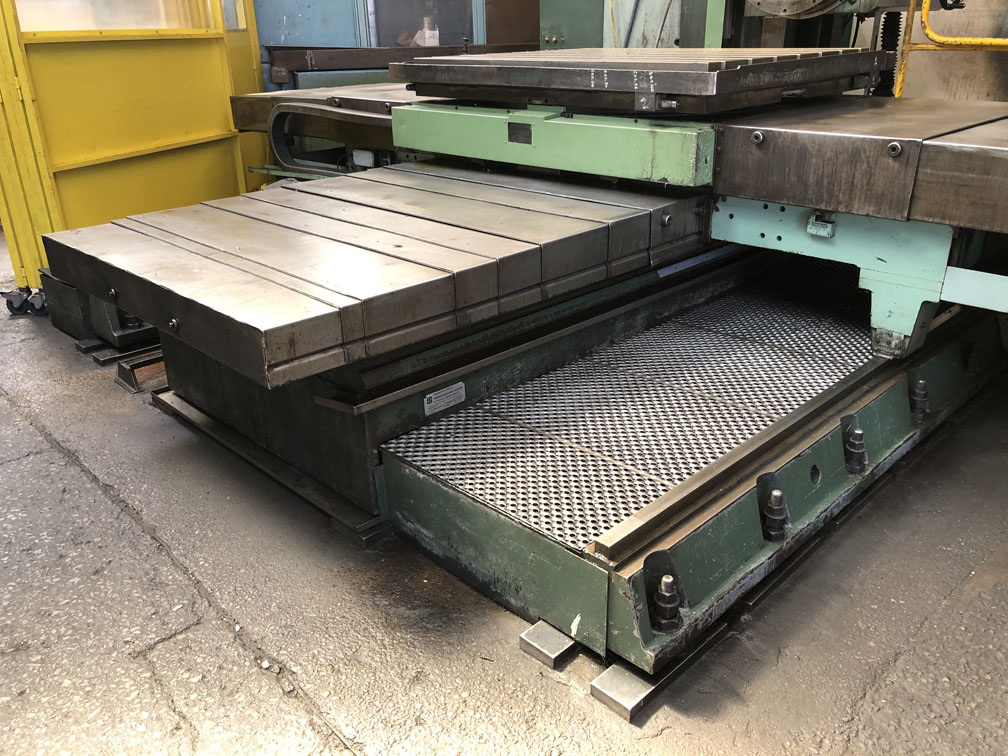

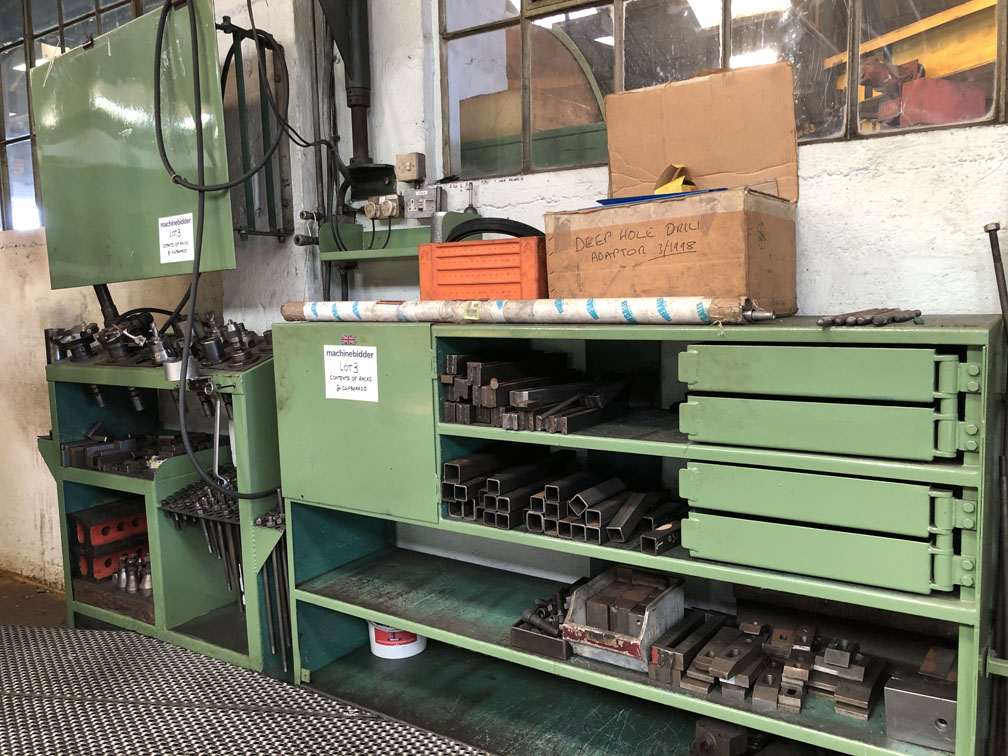

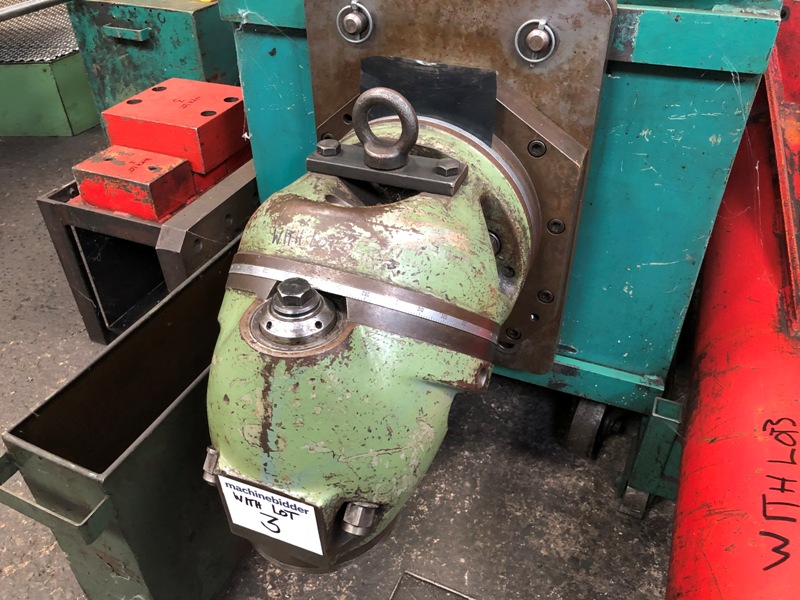

Spindle dia. 100mm. Spindle taper 50 ISO. Spindle travel 600mm. Spindle speeds 22 - 1120 rpm. Facing head speeds (3 ranges) 4.5 - 224 rpm. Table size 1500mm x 1200mm. Facing head dia. 680mm. Facing head capacity 1040mm. Facing slide traverse 180mm. Vertical travel 1500mm. Longitudinal travel 1800mm. Main motor 15 kW.Machine is extensively equipped with SANDVIK Deep hole boring attachment, tubes & cutters, feed tank with motor. Spindle supports. Double swivel vertical milling attachment. Lifting accessories. Spindle tooling. Boring bars. Clamping equipment. Several ground packing pieces. 2 x Newall DP7 Digital Readouts. Fully enclosed yellow concertina type guarding. Machine serial no.7000.

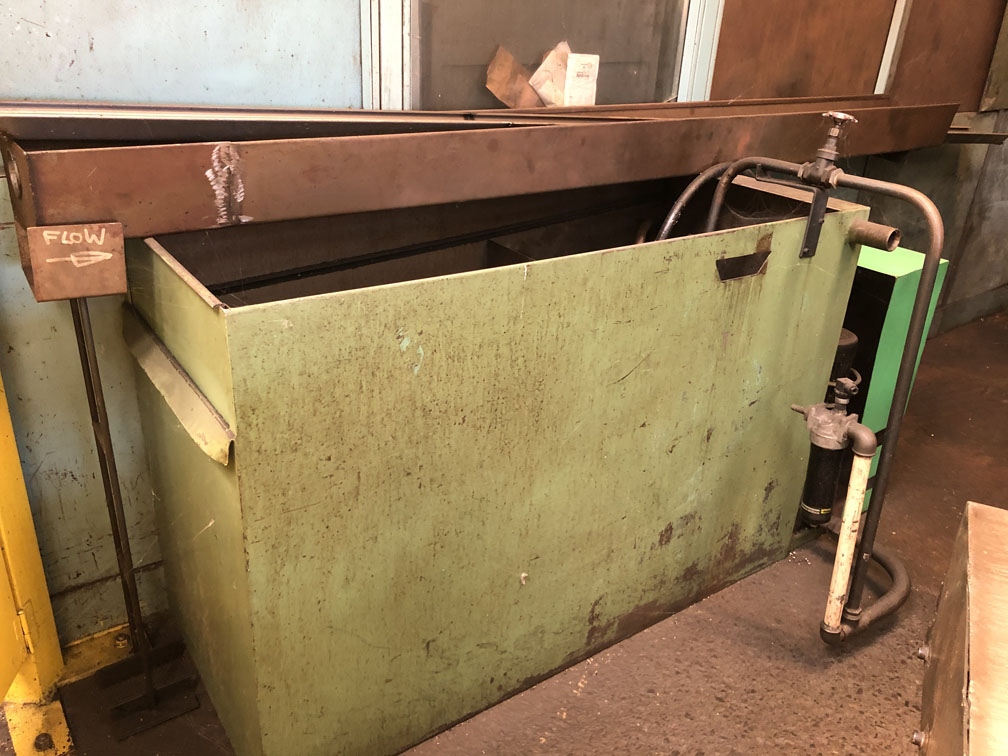

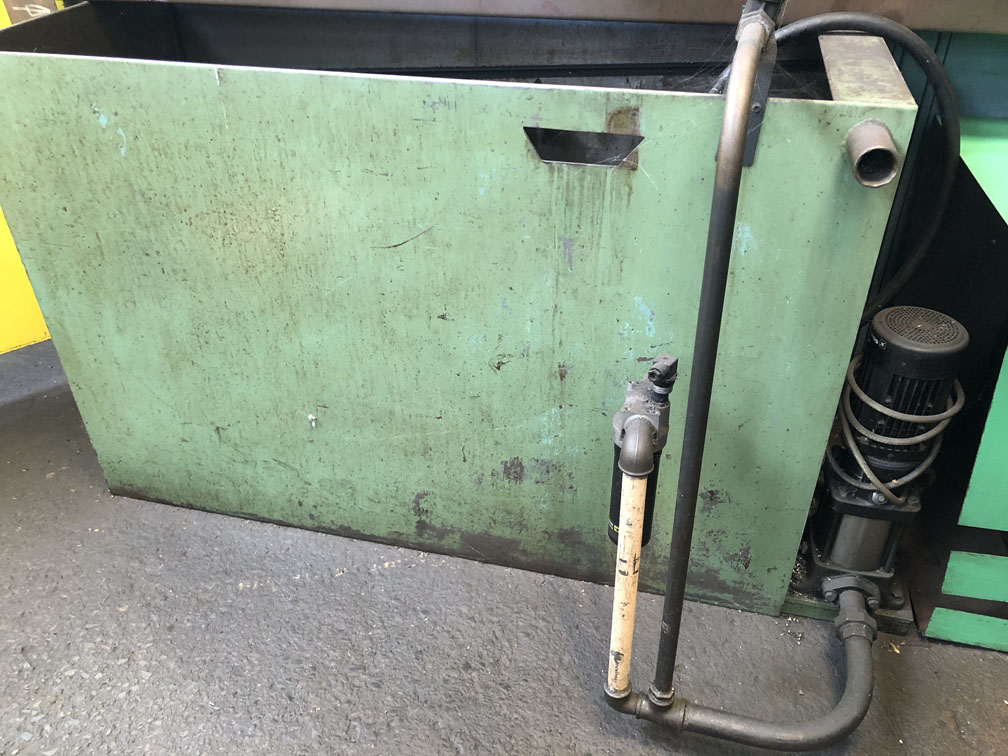

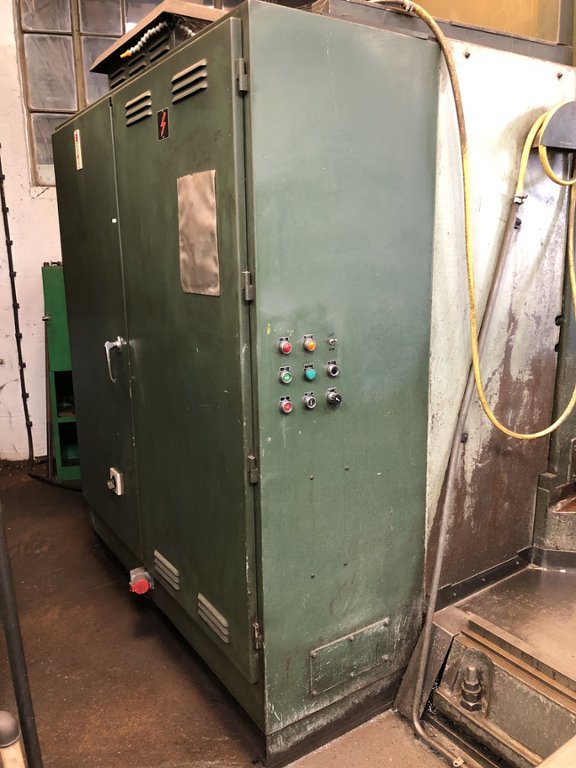

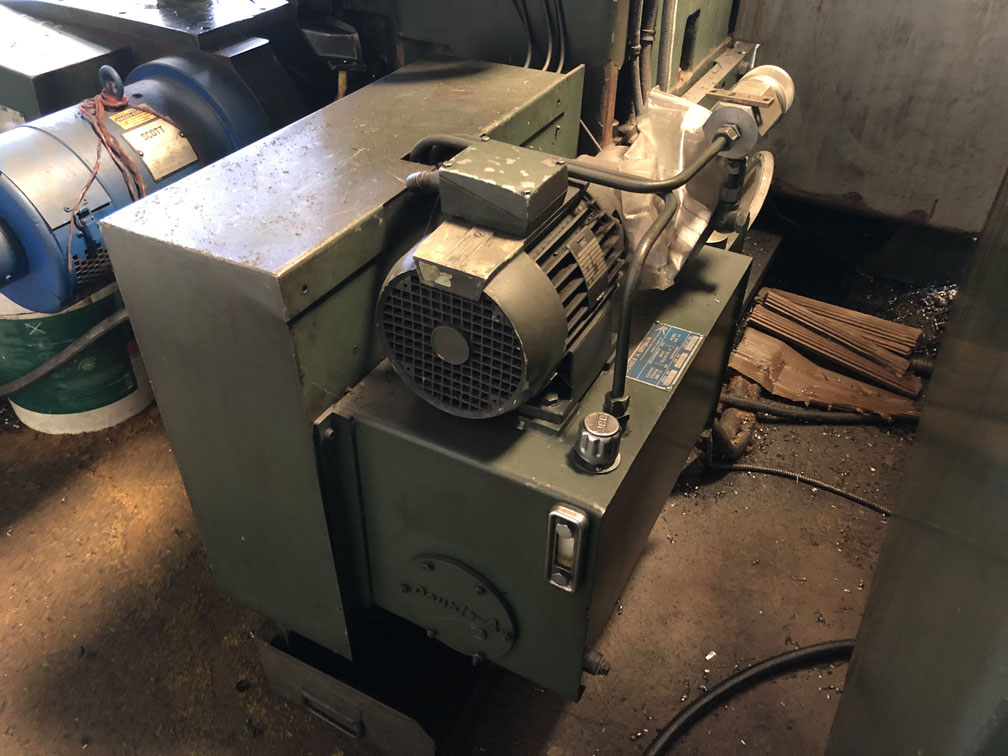

Approximate dimensions 5850mm x 5200mm x 3650mm high. Electrical cabinet 1680mm x 600mm x 2120mm high. High pressure coolant tank (for high pressure drilling) 1520mm x 650mm x 1000mm high.

Approximate machine weight 18,000 kgs

SALE AGREED

Video

Other information

Please refer to the terms & conditions if you wish to negotiate on this item.
